A 153-22 that drifts out of level, or creeps down overnight, can hide its fault in the hydraulics, the wiring, or a limit switch. Tracing it is what the JLG 153-22 service manual PDF is for: factory document 3121328, 158 pages covering the whole aerial platform. Electrical schematics anchor the back of the book, with procedures for Deutsch connectors and multimeter diagnostics, while hydraulic schematics map the valve and cylinder circuits behind the Nivolux self-leveling system. Cylinder drift tests take you from symptom to reseal. Set the chassis tilt sensor to trip at 3 degrees, then torque wheel bolts in two stages: 210 to 270 Nm first, 320 to 380 Nm to finish. On a machine that lifts people to 15.3 m, an invented torque figure is a risk nobody signed up for. This bookmarked PDF carries a true text layer, so the correct spec is one search away when your platform is stuck in the air.
What's Inside This JLG 153-22 Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction - Maintenance Safety Precautions | 3-12 | Hydraulic System Safety, Maintenance |
| Specifications | 13-20 | Operating Specifications, Dimensional Data, Capacities, Tires, Engine (Battery), Torque Requirements |

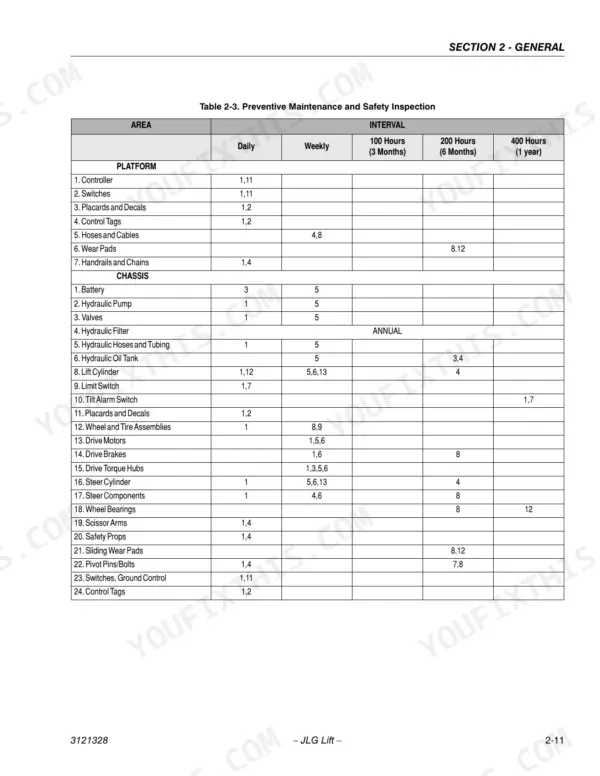

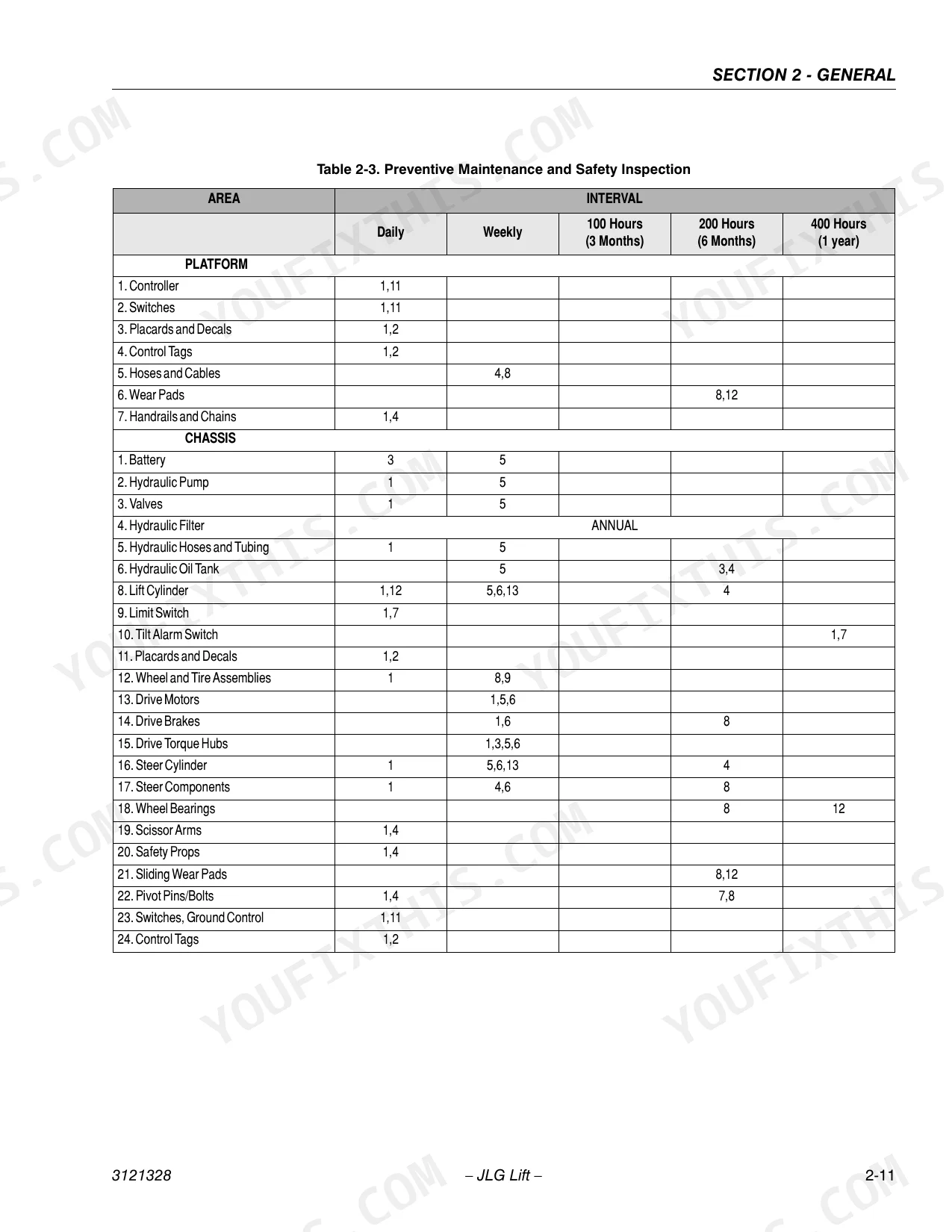

| General | 21-32 | Machine Preparation, Inspection, And Maintenance, Service and Guidelines, Lubrication and Information |
| Chassis, Scissor Arms & Platform | 33-74 | Operating Characteristics, Wheel Assembly, Hydraulic Motor, Steering Assembly, Rear Axle Assembly, Outrigger Cylinder Removal, Engine Compartment, Fuel Tank |
| Hydraulics | 75-98 | Cylinders - Theory of Operation, Valves - Theory of Operation, Cylinder Checking Procedure, Cylinder Repair, Valves |
| Jlg Control System | 99-114 | Main Terminal Box Circuit Boards, Control Card Complex 2, Nivolux - Automatic Self-Leveling System, PNP5 Circuit Board, Trigger Control Circuit Card |
| General Electrical Information & Schematics | 115-158 | Multimeter Basics, Applying Silicone Dielectric Compound to Amp Connectors, Working with Deutsch Connectors |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Tilt Sensor Setting | 3° | p. 108 |
| Platform Stowed/Jacks Retract Limit Switch sensing height | 2.5 m (8.2 ft) | p. 5 |
| High Drive Speed Cutout Limit Switch height | 3 m (9.8 ft) | p. 5 |
| Torque sequence 1st Stage | 210 - 270 Nm | p. 35 |
| Torque sequence 2nd Stage | 320 - 380 Nm | p. 35 |
| Joystick Input Voltage | 24V (±0.05V) | p. 59 |
| Joystick Centered Output Voltage | 12V (±0.25V) | p. 59 |
| Empty fuel tank weight | 16.6 kg (36.6 lbs) | p. 55 |
| Both Reset Rings | 125 bar (1812.9 psi) | p. 111 |
| Orange Set Ring | 250 bar | p. 112 |
| Pull back force on contact wire | 1 or 2 lbs. | p. 120 |
| Screwdriver blade width for wedge lock removal | 4.8 mm (3/16") | p. 122 |
JLG 153-22 Common Problems This Manual Covers
JLG 153-22 fault code 8-1 tilt sensor, all lift and drive functions inhibited on slight slope
Verify the machine sits on level ground; the chassis inclination sensor trips at 3° per page 108. Cycle power and retest. If the fault stays active, backprobe the sensor connector with a multimeter using the grounding methods on page 115, and check harness continuity before condemning the sensor.
Manual Section: Jlg Control System p. 108Fault code 8-2 platform load sense, overload alarm sounds with platform empty
Check the Load Sensing System calibration first; the procedure starts on page 111. Verify both reset rings at 125 bar (1812.9 psi) and the orange set ring at 250 bar per page 112. Adjust the sensor through the re-calibration steps before replacing it; most empty-platform overload alarms trace back to drifted calibration, not a failed sensor.
Manual Section: LSS Re-Calibration Procedure p. 111Fault code 4-4 battery supply, machine completely dead at ground and platform stations
Check the 40A battery fuse and the 10A battery supply fuse shown on page 131 before anything else. Test battery voltage under load, then inspect the main power connections for corrosion and heat damage. Clean and tighten every terminal, and measure voltage drop across each connection while operating a function.
Manual Section: General Electrical Information & Schematics p. 131Drive and lift functions cut out intermittently, controls go dead then recover after a few seconds
Test each Deutsch connector in the affected circuit; tug every contact wire with 1 or 2 lbs. of pull-back force per page 120 to find backed-out pins. Remove suspect wedge locks with a 4.8 mm (3/16 inch) screwdriver blade as shown on page 122, inspect the contacts for corrosion, and reseat them before replacing any harness.
Manual Section: Working with Deutsch Connectors p. 124Fault code 2-2 platform controls, joystick unresponsive or machine creeps with joystick centered
Measure joystick supply voltage first: input should read 24V (±0.05V) per page 59. Check centered output at 12V (±0.25V), forward at 17.5 to 18.5V, and reverse at 5.5 to 6.5V. Replace the joystick only if outputs fall outside these bands; otherwise trace the harness back to the platform control board.
Manual Section: Chassis, Scissor Arms & Platform p. 59Frequently Asked Questions
What is the procedure for testing cylinder drift on the JLG 153-22?
To test cylinder drift, place the maximum work load on the platform and extend the lift cylinder 3 to 5 meters from the stowed position. Mark the rod 50mm from the cylinder head, wait 15 minutes, and measure the distance. The drift must not exceed 3mm; if it does, check the holding valve or replace the cylinder seals as described on page 76. p. 29
What is the recommended hydraulic oil for the JLG 153-22?
JLG recommends Mobilfluid 424 hydraulic oil, which has an SAE viscosity index of 152. If temperatures remain below -7°C (20°F), JLG recommends using Mobil DTE 13M. p. 16
What is the torque specification for the wheel lug nuts on the JLG 153-22?
The wheel lug nut torque for both the front and rear axles is 480 Nm (354 ft lbs). p. 14
What is the capacity of the hydraulic tank on the JLG 153-22?
The hydraulic tank capacity for the JLG 153-22 is 135 L (35.7 gal). p. 13
What is the main relief valve pressure setting on a JLG 153-22 aerial platform?
The main relief valve pressure setting is 190 bar (2756 psi). p. 16
How is this JLG 153-22 Service Manual delivered?
Instant PDF download. You get the full 158-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print specific sections of this JLG 153-22 Service Manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
