This is the factory repair manual for the John Deere 5050E, 5055E, 5065E and 5075E utility tractors - the workshop-level book dealer techs use, not the operator's booklet that came in the seat pocket. These are mechanical tractors: a 2.9L 3-cylinder diesel with a mechanical injection pump, 12V electrics, no ECM and no fault codes to pull, so a manual with real teardown procedures is how you actually fix one. It covers engine rebuild specs (bore, stroke, valve clearances), the complete fuel system, clutch and transmission, PTO, MFWD front axle, steering and brakes, plus the full hydraulic section with pump, rockshaft, SCV and hitch adjustments. Wiring and hydraulic schematics are included for tracing problems wire by wire and line by line.
What's Inside This John Deere 5050E-5075E Repair Manual
| System | Pages | Key Topics |
|---|---|---|

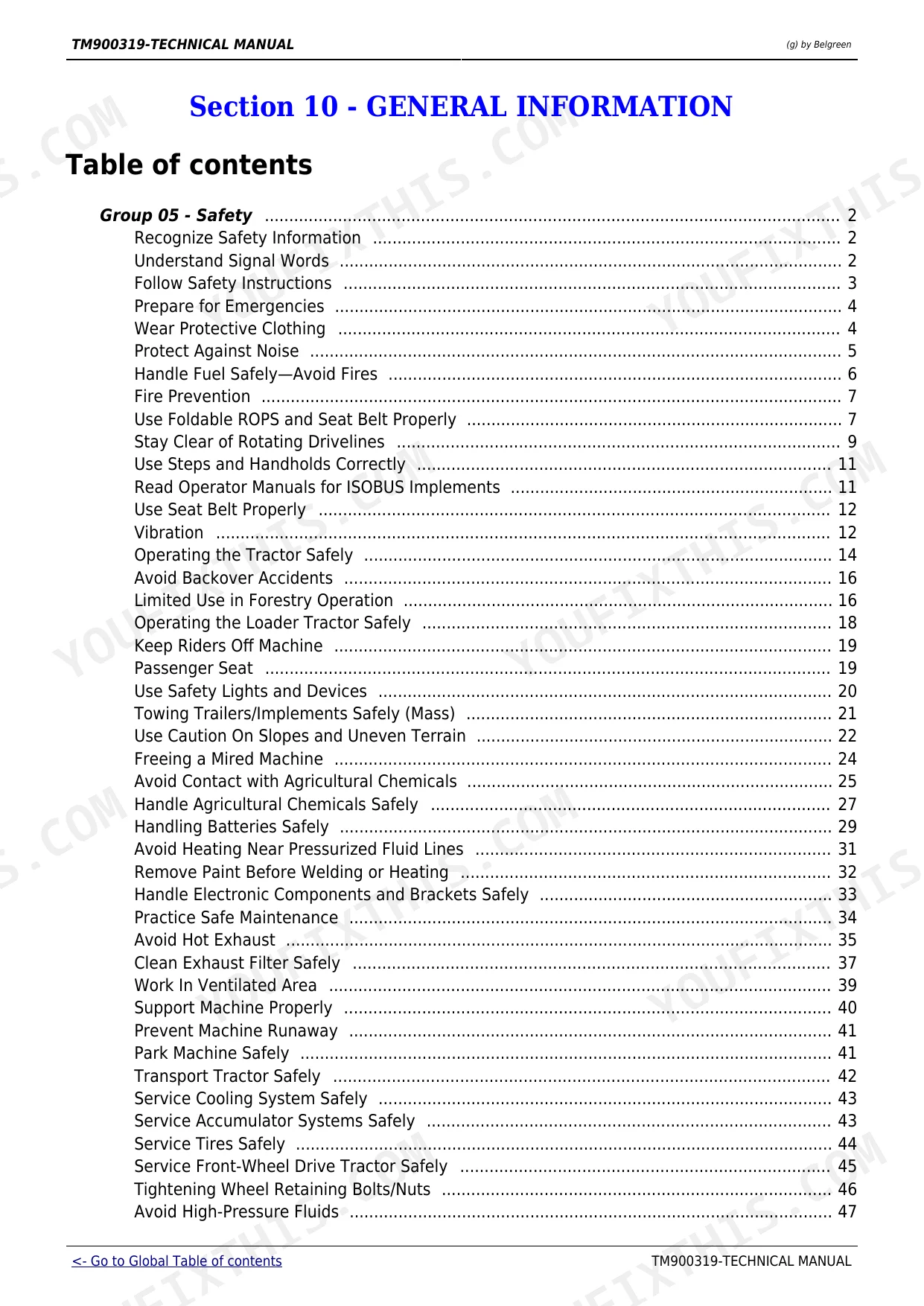

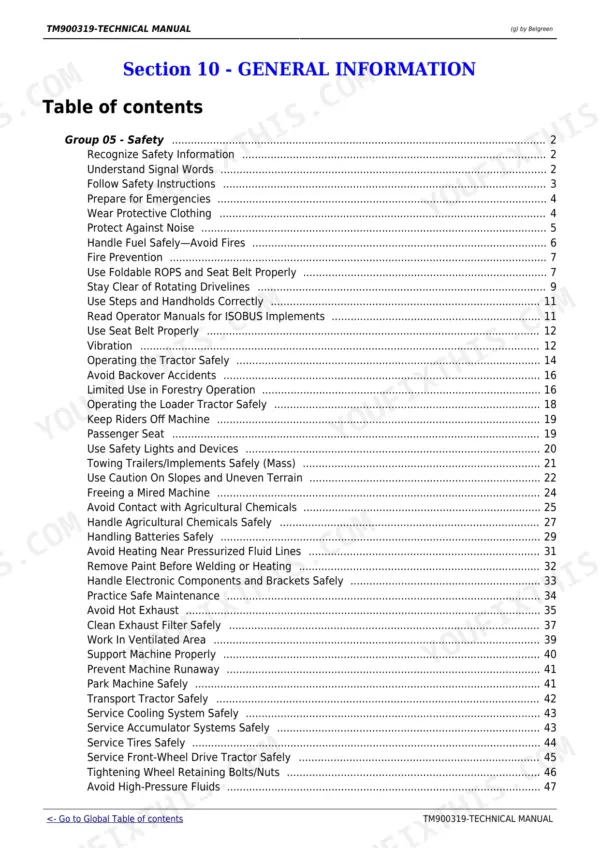

| General Information | 8 | Safety, General Specifications, Fuel and Lubricants, Serial Number Locations, Features and Accessories |

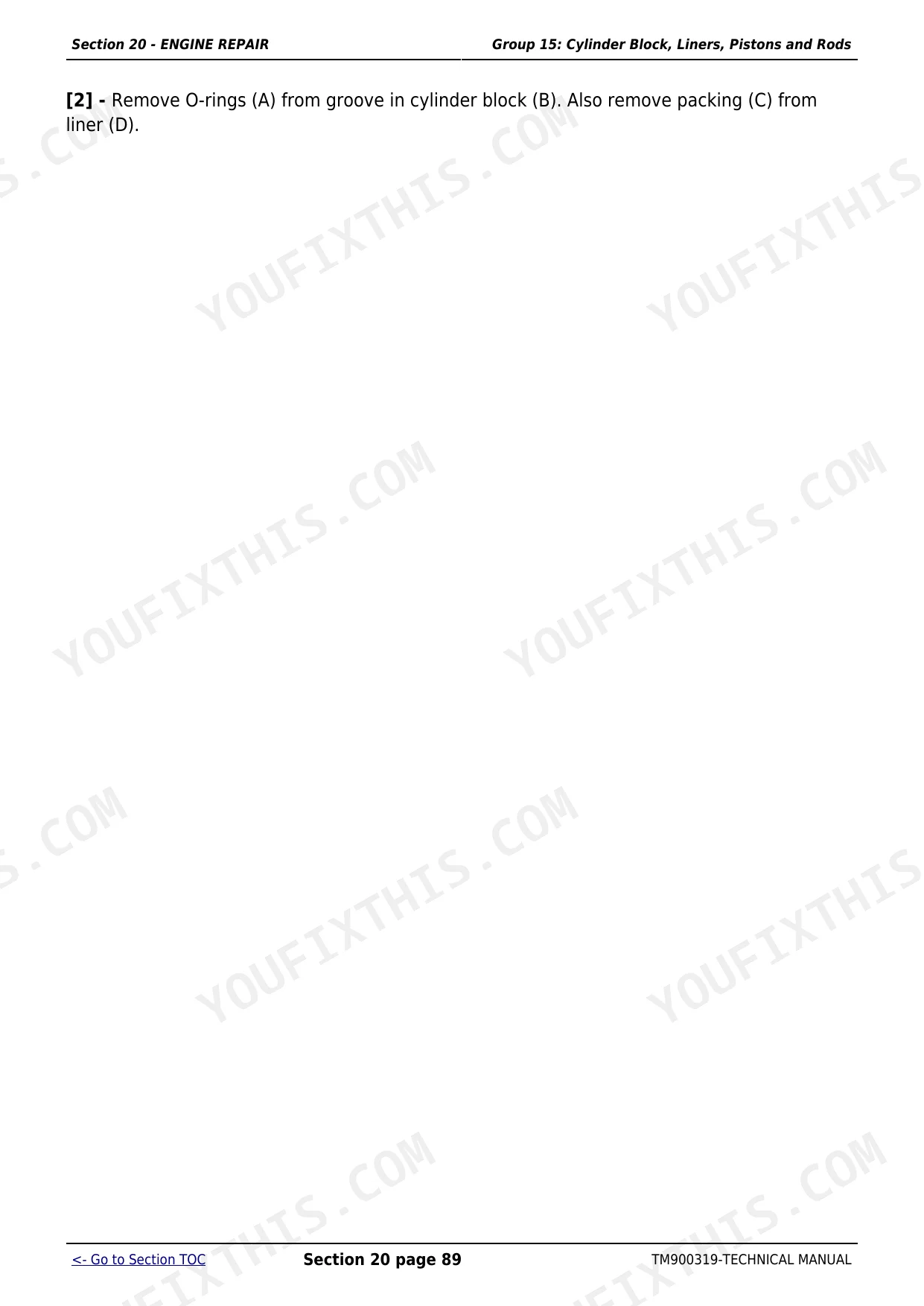

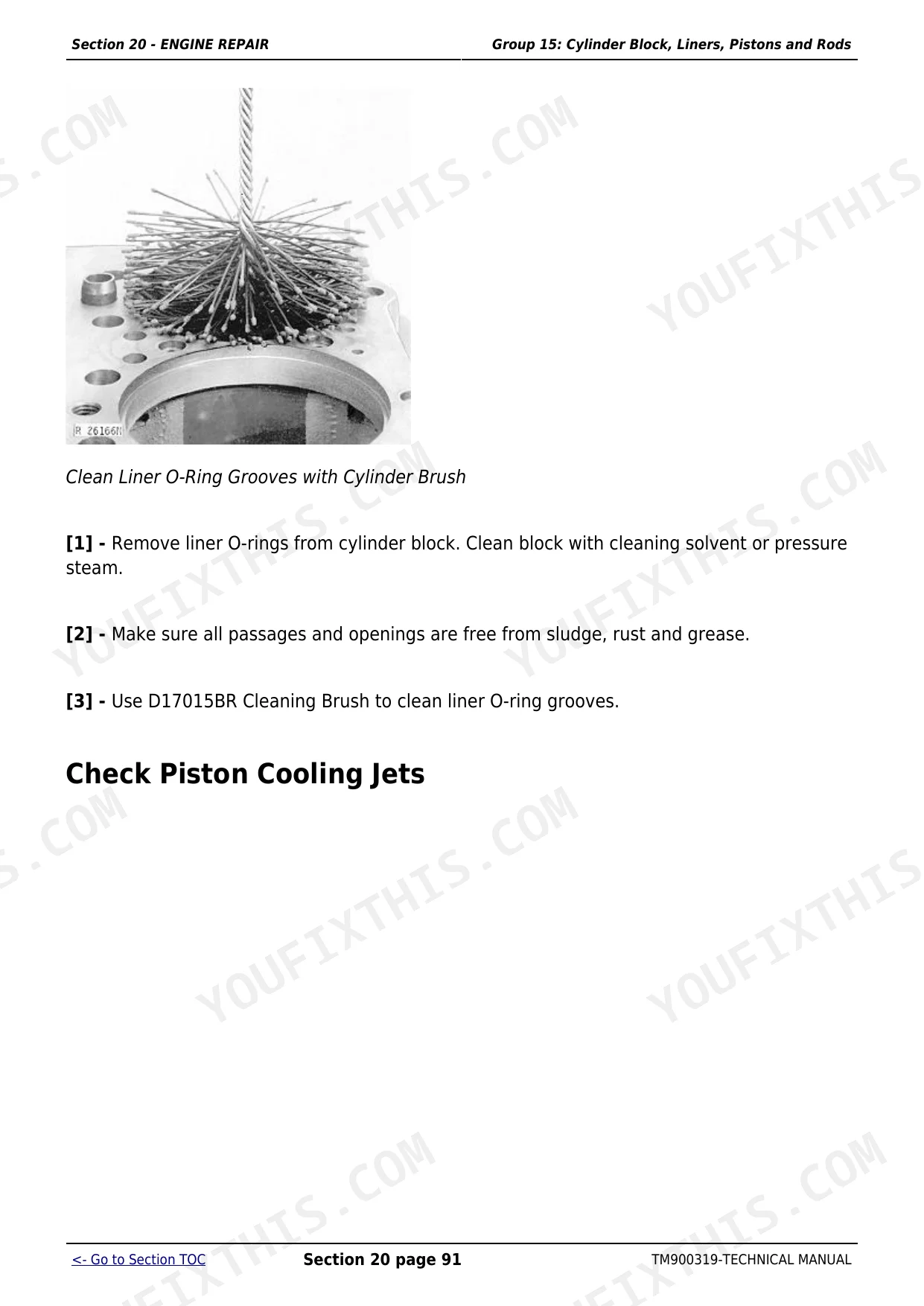

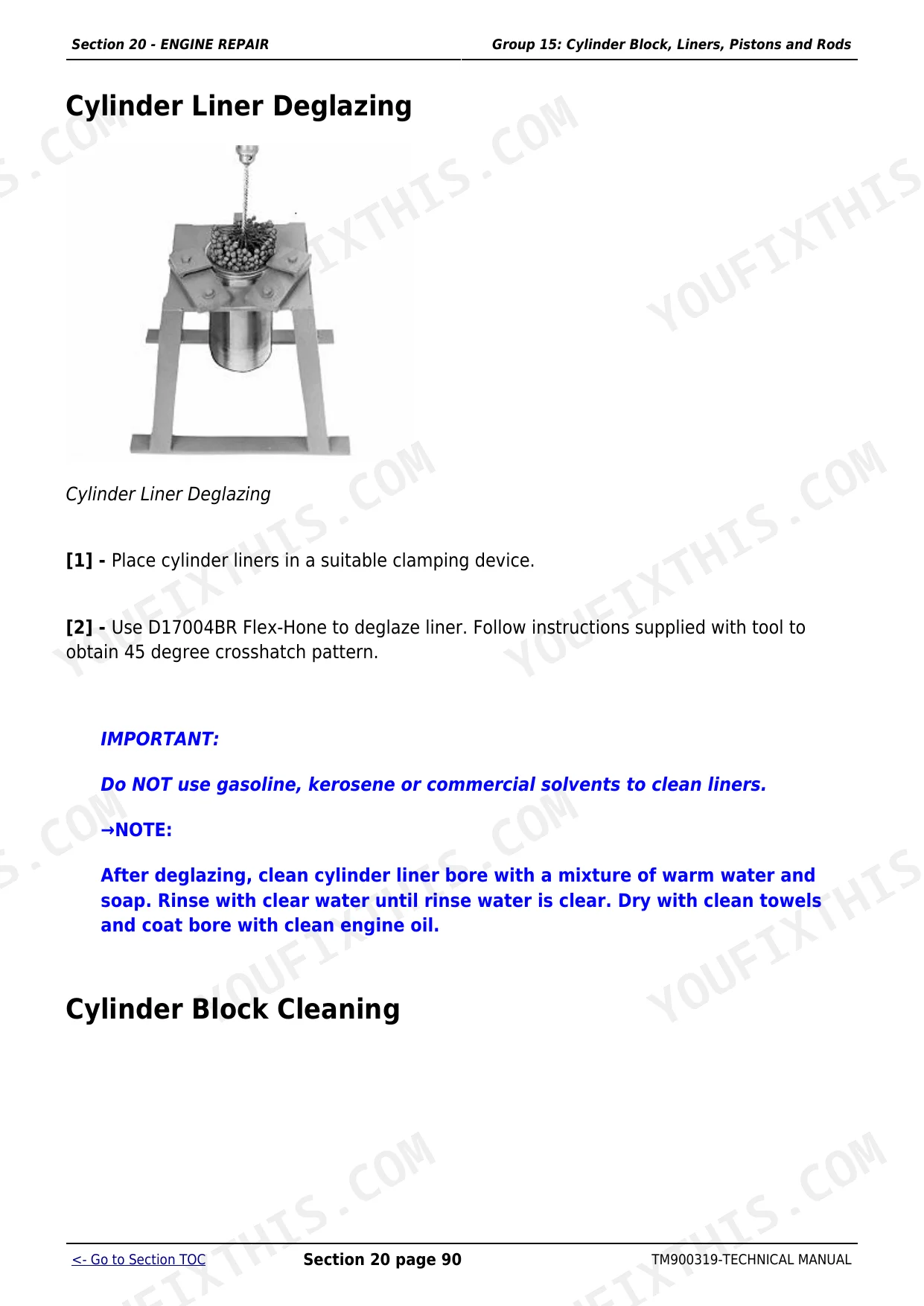

| Engine Repair | 94 | Engine, Cylinder Head and Valves, Cylinder Block, Liners, Pistons and Rods, Crankshaft, Main Bearings and Flywheel, Lubrication and Cooling Systems |

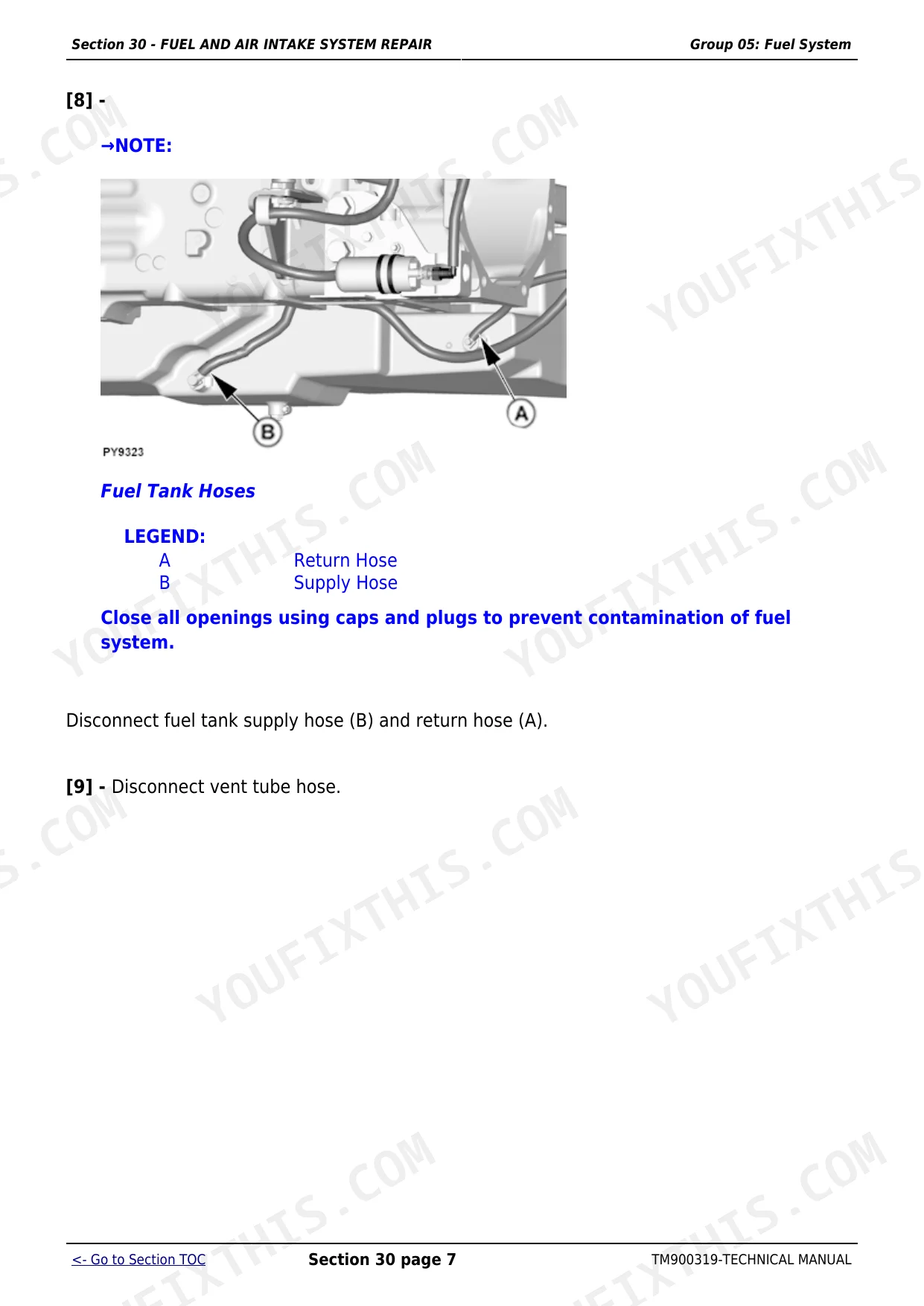

| Fuel and Air Intake System Repair | 353 | Fuel System, Air Intake and Exhaust System, Speed Control Linkage |
| Electrical Repair | 393 | Battery, Starter and Alternator, Electrical System Components, Wiring Harness |
| Power Train Repair | 469 | Clutch Housing and Assembly, Transmission, Rear PTO Drive Shaft, Differential and Final Drives, Mechanical Front Wheel Drive |
| Steering and Brake Repair | 689 | Steering Repair, Brake Repair |
| Hydraulic Repair | 750 | Hydraulic Pump and Filter, Rockshaft, Selective Control Valve (SCV) |

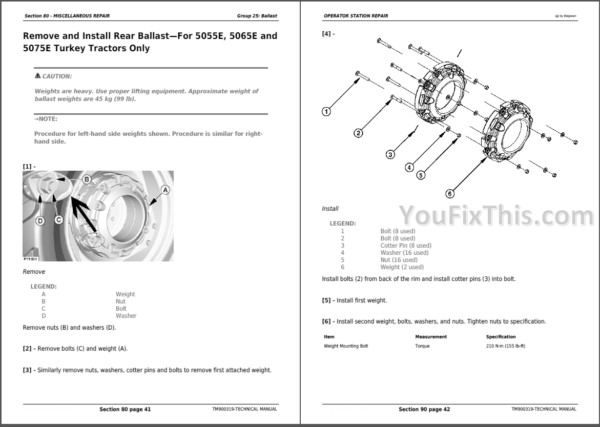

| Miscellaneous Repair | 836 | Front Axle, Wheels, 3-Point Hitch, Hood, Ballast |
| Operator Station Repair | 878 | Seat and Support, Right and Center Consoles, Roll-Gard, Fenders |
| Operational Checkout Procedures | 957 | Pre-Delivery Inspection, Break-In, General Checkout |
| Engine Operation, Tests and Adjustments | 995 | Compression Test, Injection Pump Timing, Idle Speed, Valve Adjustment |
| Fuel and Air Operation, Tests and Adjustments | 1052 | Fuel System Bleeding, Air Intake Restriction, Exhaust Checks |
| Electrical System Operation, Tests and Adjustments | 1090 | Charging System Tests, Starter Tests, Wiring Schematics |
| Power Train Operation, Tests and Adjustments | 1355 | Clutch and Transmission Tests, PTO Tests, Differential Lock |
| Steering and Brake Operation, Tests and Adjustments | 1435 | Steering Pressure Tests, Brake Adjustment and Tests |
| Hydraulic System Operation, Tests and Adjustments | 1491 | Hydraulic Pressure Tests, SCV Flow Tests, Hydraulic Schematics |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 5050E-3029T Engine, Turbocharged | ||
| Engine hp @ rated rpm | 49 hp (36 kW) at 2400 rpm | p. 56 |
| All Models | ||
| Cylinders | 3 | p. 56 |
| Bore | 106.5 mm (4.19 in.) | p. 56 |
| Stroke | 110 mm (4.33 in.) | p. 56 |
| Displacement | 2.9 L (179 cu in.) | p. 56 |
| Cylinder Firing Order | 1-2-3 | p. 56 |
| Intake Valve Clearance | 0.35 mm (0.014 in.) | p. 56 |
| Exhaust Valve Clearance | 0.45 mm (0.018 in.) | p. 56 |
| Slow Idle Speed | 850 (-50/+25) rpm | p. 56 |
| Fast Idle Speed | 2600 (-25/+50) rpm | p. 56 |
| Operating Range Speed | 1400-2400 rpm | p. 56 |
| Injection Pump Timing | 0.5 ± 1° BTDC (Time Trac) (5050E-3029T Engine, Turbocharged) / 0.5 ± 1° BTDC (Time Trac) (5055E-3029H Engine, Turbocharged) / 0 ± 1° BTDC (Time Trac) (5065E-3029H Engine, Turbocharged) / 0 ± 1° BTDC (Time Trac) (5075E-3029H Engine, Turbocharged) | p. 56 |
| Factory Observed PTO Power | 32.5 kW (44.19 hp) at 2400 rpm (5055E-3029H Engine, Turbocharged) / 35.5 kW (48.27 hp) at 2400 rpm (5065E-3029H Engine, Turbocharged) / 44.86 kW (61 hp) at 2400 rpm (5075E-3029H Engine, Turbocharged) | p. 56 |
| Rear tire size (2WD) | 14.9 x 28 (5055E Tractor) / 13.6 x 28 (5050E Turkey Tractor) / 16.9 x 28 (5065E Tractor) | p. 58 |
| Rear tire size (MFWD) | 13.6 x 28 (5055E Tractor) / 13.6 x 28 (5050E Turkey Tractor) / 14.9-28 Radial (5055E Turkey Tractor) / 14.9 x 28 (5065E Tractor) / 16.9 x 28 Radial (5065E Turkey Tractor) / 16.9 x 30 (5075E Tractor) | p. 58 |
| Electrical System | ||
| Battery Voltage | 12 V | p. 57 |
| Cold Cranking Amps | 623 CCA | p. 57 |
| Alternator Amperage | 40 amps | p. 57 |
| Starter Motor Voltage | 12 V | p. 57 |
| Power Take-Off | ||
| Engine-540 Speed (Standard PTO) | 2400 rpm | p. 57 |
| Engine-540 Speed (Economy PTO) | 1705 rpm | p. 57 |
| Hydraulic System | ||
| Pump Displacement-Steering | 11.9 cu cm (0.73 cu in.) | p. 57 |
| Pump Displacement-Implement | 19.2 cu cm (1.17 cu in.) | p. 57 |
| Steering Flow Rate | 25.7 L/min (6.8 gpm) | p. 57 |
| Implement Flow Rate | 44.0 L/min (11.6 gpm) | p. 57 |
| Implement (Maximum) Pressure | 19000-20000 kPa (190 - 200 bar) (2755-2900 psi) | p. 57 |
| Hitch Lift (at Hitch Ball) Capacity | 1800 kg (3968 lb.) | p. 57 |
John Deere 5050E-5075E Common Problems This Manual Covers
Engine starts hard, stalls, or dies under load, often after an hour of heavy work
Nine times out of ten this is fuel starvation: a clogged filter, water or dirt in the fuel, or air leaking into the suction line. The Fuel and Air Intake section covers filter replacement, water separator service, bleeding the system, and checking the mechanical injection pump supply so you can work the problem from the tank forward.
Manual Section: Fuel and Air IntakeHydraulic oil overheats or the whole hydraulic system goes weak or dead
The Hydraulic section points you at the transmission-hydraulic filter and pickup screen first, then walks through finding internal leaks, checking the pump, and correcting hitch feedback linkage adjustment. The included hydraulic schematics let you verify plumbing is routed correctly, which matters if a previous owner added a loader or remote valves.
Manual Section: HydraulicEngine runs hot, especially in dusty mowing or baling conditions
The Engine section's cooling coverage handles the usual suspects on these tractors: plugged radiator core and grille screens, a radiator cap that no longer holds pressure, a loose or glazed fan belt, and low coolant. It also covers flushing the system properly instead of just topping it off and hoping.

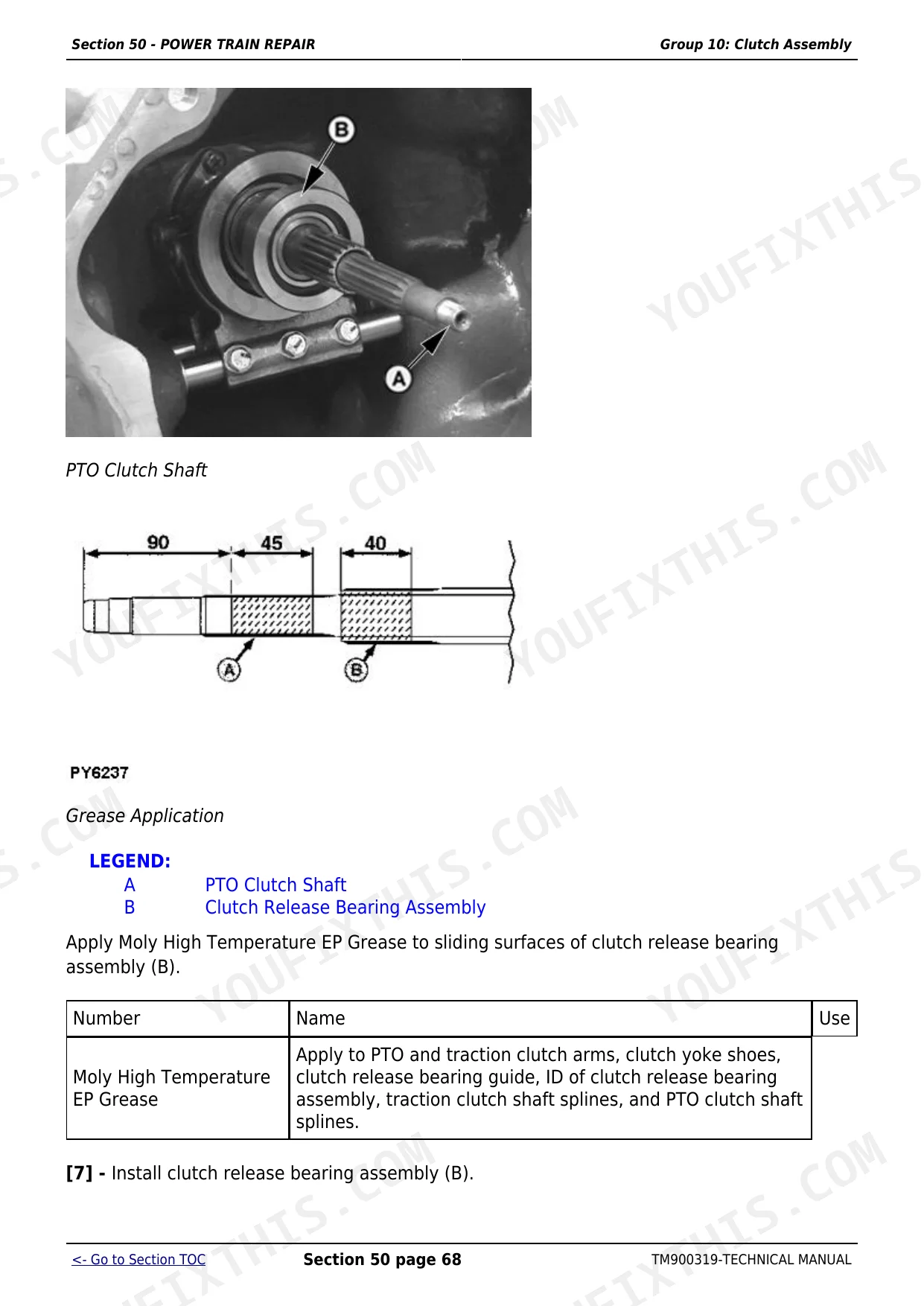

Manual Section: EnginePTO won't engage, engages weakly, or the driveline shows wear and damage
The Power Train section covers the PTO clutch, shaft, and control linkage, so you can find binding linkage or a damaged shaft mechanically. For the electric engagement side, the Electrical section's schematics let you test the PTO fuse and solenoid valve circuit with a multimeter before pulling anything apart.
Manual Section: Power TrainFrequently Asked Questions
My 5075E cuts out after about an hour of hard work, like it's running out of fuel. Does this manual cover that?
Yes, and that complaint is common enough on these tractors that the Fuel and Air Intake section is worth the price alone. The usual culprits are a clogged fuel filter, a dirty water separator, or air getting pulled into the suction side. The manual walks you through the fuel supply system step by step - filter service, bleeding air out of the lines, and checking the injection system - so you can chase it from tank to injectors instead of guessing.
The hydraulics quit entirely - no loader, no 3-point. Where do I start?
Start with the basics the Hydraulic section lays out: oil level, then the transmission-hydraulic filter and the pickup screen, which clog up and starve the pump. If those check out, the manual covers pump testing and how to isolate a high-pressure internal leak. The hydraulic schematics show you exactly how oil routes through the pump, rockshaft, SCV and mid-mount valve, which turns a dead system from a mystery into a checklist.
Does it include wiring diagrams? My PTO won't engage and I suspect the electrical side.
It does - full wiring harness layouts and schematics are in the Electrical section. For a dead PTO, you're checking the PTO fuse, then continuity and voltage at the PTO solenoid valve, and the manual gives you the diagrams to do that with a test light or multimeter. It also covers the mechanical side in the Power Train section: binding linkage and a damaged PTO shaft cause the same symptom, so you can rule out both paths.
What are the valve clearances and basic engine specs for the 5055E?
The book has the full spec tables: intake valves set at 0.35 mm (0.014 in.) and exhaust at 0.45 mm (0.018 in.), on the 2.9L (179 cu in.) 3-cylinder with a 106.5 mm bore and 110 mm stroke, firing order 1-2-3. Idle specs are in there too - slow idle at 850 rpm, fast idle at 2600 rpm. The Engine section then gives the actual adjustment and rebuild procedures, not just the numbers.
Is this the same as the operator's manual, and will it work for a rebuild?
No - the operator's manual tells you where the dipstick is; this is the technical repair manual, written for actual wrenching. It covers cylinder head work, pistons, crankshaft, clutch and transmission teardown, MFWD, brake and steering repair, and rockshaft/hitch service. If you're splitting the tractor for a clutch or going into the engine, this is the book that has the procedures and specifications for it.
