Part of the John Deere Repair Manuals.
This is the complete John Deere factory Diagnosis and Tests Service Manual (TM112619) for the 5083EN, 5093EN and 5101EN narrow-frame orchard and vineyard tractors, covering both the E and EN variants. Across 1,619 pages it gives you the exact test procedures, diagnostic trouble code (DTC) charts, wiring diagrams, and hydraulic pressure specifications for every major system. Rather than teardown and rebuild procedures, this manual tells you how to confirm a fault - whether it is an ECU sensor out of range, a hydraulic circuit below pressure, or a control unit address that reads wrong. It is the same diagnostic reference a John Deere dealer technician uses to isolate a failure and verify the repair.
What's Inside This John Deere 5083EN, 5093EN, 5101EN Manual

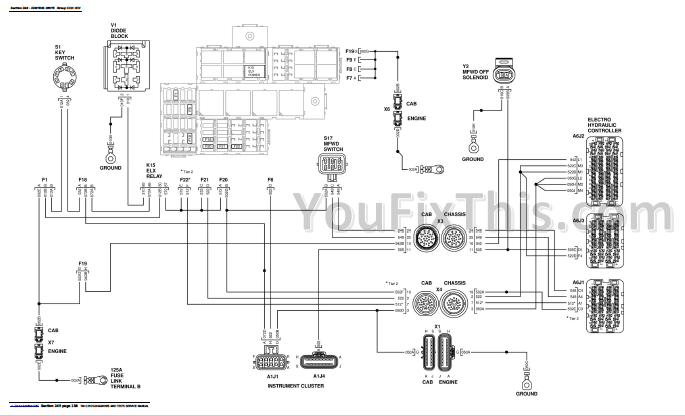

| System | Pages | Key Topics |
|---|---|---|
| General | Safety, General Specifications, General References, Torque Values | |
| Diagnostic Trouble Codes | Hcu Code Diagnostics, Dtc Charts, Fault Code Isolation, Code Clearing Procedures | |
| Observable Symptoms | Symptom-Based Diagnosis Index, System Routing by Symptom, No-Start, Power Loss, Noise | |
| System Diagnosis | System-Level Diagnostic Flowcharts, Root Cause Isolation, Pressure and Signal Tests | |
| Engines | Compression Test, Timing Verification, Cylinder Balance Test, Engine Speed Sensor Checks | |
| Fuel and Air | Fuel System Pressure Tests, Air Intake Restriction, Fuel Filter Condition, Injector Testing | |
| Electrical System | Wiring Diagrams, Circuit Tests, Harness Inspection, Battery and Charging System, Connectors | |
| Control Units | Ccu Diagnostics, ECU Sensor Voltage Checks, Address Reading, Control Unit Calibration | |
| PowrReverser Transmission | Transmission Pressure Tests, Reverser Clutch Diagnostics, Gear Engagement, Shift Quality | |
| Drive Systems | Front Axle Tests, MFWD Engagement Diagnostics, Driveshaft and PTO Checks | |
| Steering and Brakes | Steering Pressure Tests, Brake Adjustment Verification, Pedal Travel, Park Brake | |
| Hydraulics | Hydraulic Relief Pressure Tests, Pump Flow Tests, Hitch and Remotes Diagnostics, Valve Testing | |
| Operator's Station | Instrument Panel Diagnostics, Cab Controls, Display Codes, PTO Switch and Seat Switch | |
| Service Tools | Special Tool Listing, Diagnostic Equipment, Pressure Gauges, Scan Tool Setup |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 5083EN, 5093EN, 5101EN | ||
| Engine Speed Sensor Supply Voltage (key on, engine off) | 4.80 - 5.20 V | |
| Production Years | 2010-2015 (Tier 2 / Tier 3) | |
| All models | ||
| CCU Address 004 - Sensor Disconnected Jumper Installed | 1X (active) | |
| CCU Address 004 - Jumper Not Installed | 0X (inactive) | |
| Engine Family | PowerTech E 4045 4-cylinder, 4.5 L | |
| Transmission | PowrReverser, 12 forward / 12 reverse | |
| 5083EN | ||
| Rated Engine Power - 5083EN | 62 kW (83 hp) | |
| 5093EN | ||
| Rated Engine Power - 5093EN | 69 kW (93 hp) | |
| 5101EN | ||
| Rated Engine Power - 5101EN | 75 kW (101 hp) | |
John Deere 5083EN, 5093EN, 5101EN Common Problems This Manual Covers
PTO driveshaft ball joint breaks and driveshaft flails during operation
Inspect the PTO driveshaft U-joint and ball joint assembly per the Drive Systems diagnostic procedure. The joint fails when greasing intervals are missed on high-use machines. Replace the failed U-joint assembly and verify the PTO shaft runout and angle are within spec before returning the tractor to service. Check the PTO switch input in the Operator's Station section to confirm the PTO engagement signal is clean.
Manual Section: Drive SystemsEngine overheats rapidly under field load
Use the Engine section test sequence to check coolant flow, thermostat function, and water pump output. A failing water pump is a documented failure point on these tractors. Also verify the radiator fins are clear and the fan clutch is engaging correctly. The Fuel and Air section covers air filter restriction, which can cause partial load derating that looks like overheating under heavy draft.
Manual Section: EnginesHydraulic system is sluggish or leaks at the hitch and remote couplers
Follow the Hydraulics pressure test sequence to measure main relief pressure and pump output flow. Compare the readings to the specification in the General section. Contaminated or overdue hydraulic oil and a clogged filter (RE197065) are common causes of slow hitch response. The hydraulic valve test procedure isolates whether a slow remote is a relief valve, a priority valve, or a leaking cylinder seal.
Manual Section: HydraulicsPower loss, excessive smoke, or high fuel consumption on the PowerTech E engine
Work through the Fuel and Air section diagnostics in order: check primary fuel filter for water and restriction, verify final filter condition, then test fuel supply pressure to the injection pump. The Engine section covers cylinder balance and injector testing to identify a weak or leaking injector. Power loss combined with black smoke typically points to blocked air intake or a faulty injector, while blue smoke indicates oil entry into combustion.
Manual Section: Fuel and AirFrequently Asked Questions

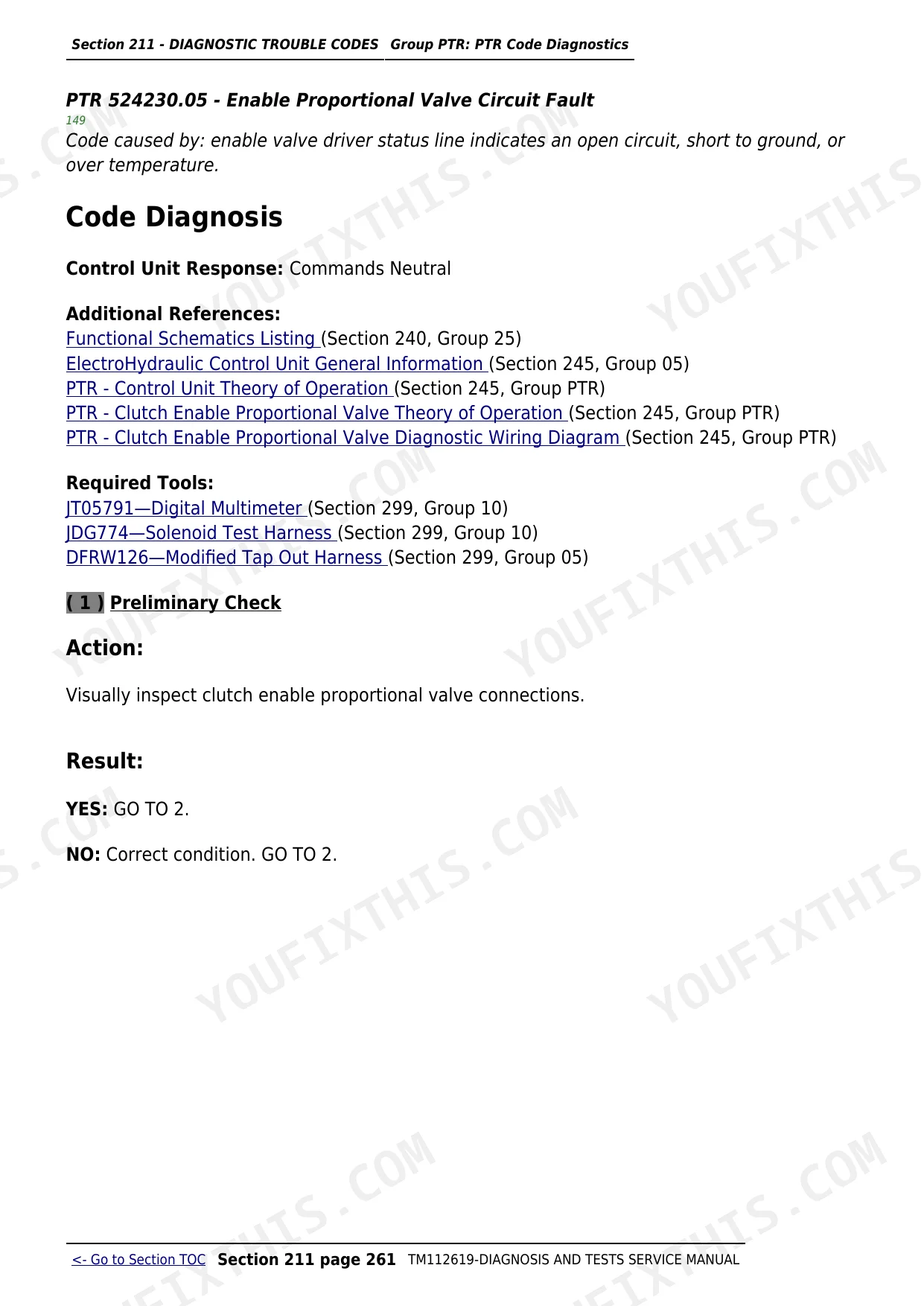

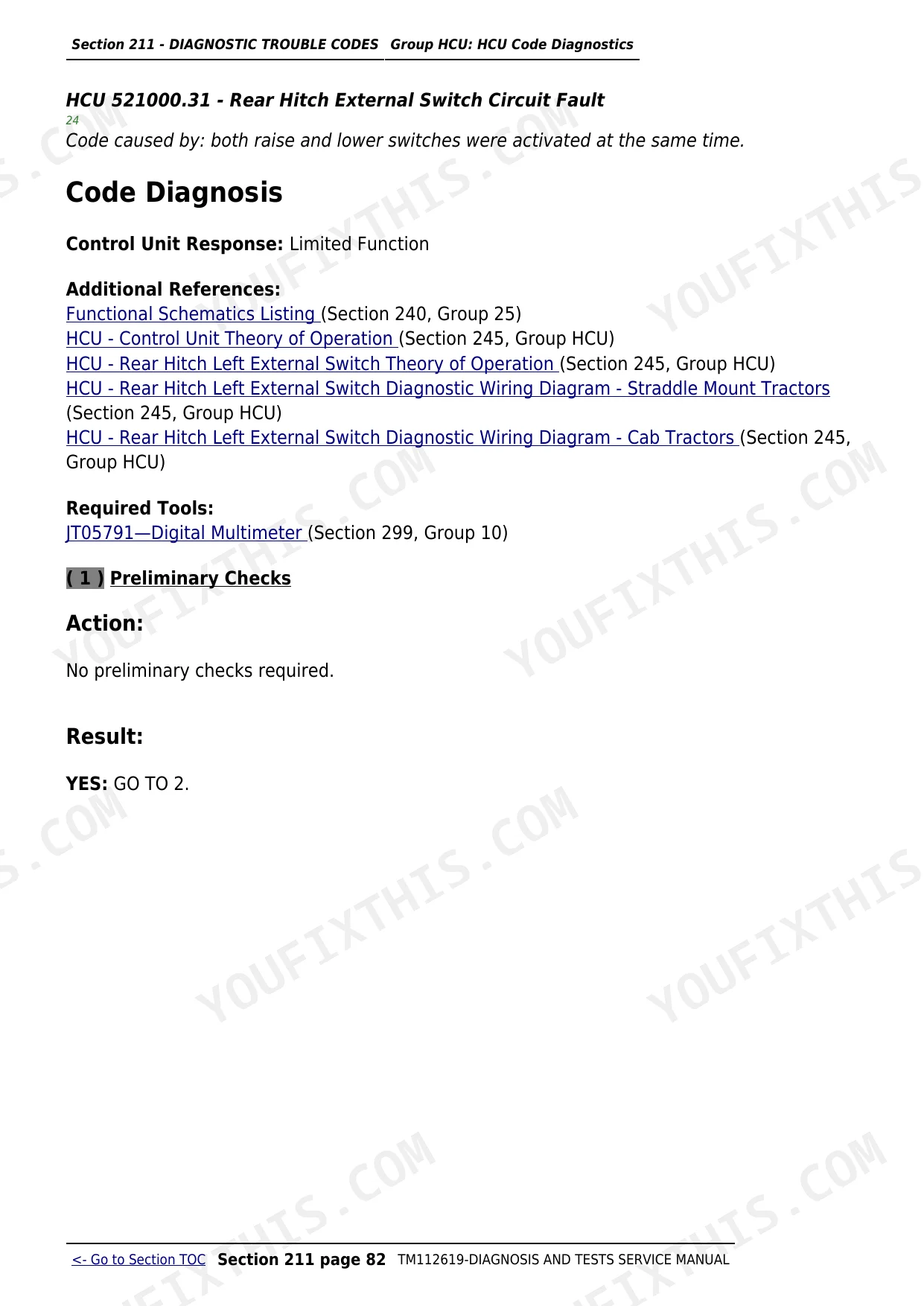

What diagnostic trouble codes does this manual cover for the 5083EN, 5093EN and 5101EN?
The Diagnostic Trouble Codes section covers the full HCU code list and all system fault codes for these tractors, including engine, hydraulic, electrical and control unit faults. Each code entry gives the fault description, probable cause, and the step-by-step test procedure to confirm or clear the fault before replacing a component.
How do I test hydraulic system pressure on the 5083EN or 5093EN?
The Hydraulics section gives the exact test port locations, gauge connections, and relief pressure specifications for the main hydraulic circuit and each remote valve circuit. It walks you through verifying pump flow and circuit pressure under load so you can tell whether a sluggish hitch or remote is a pump, valve, or internal leak problem.

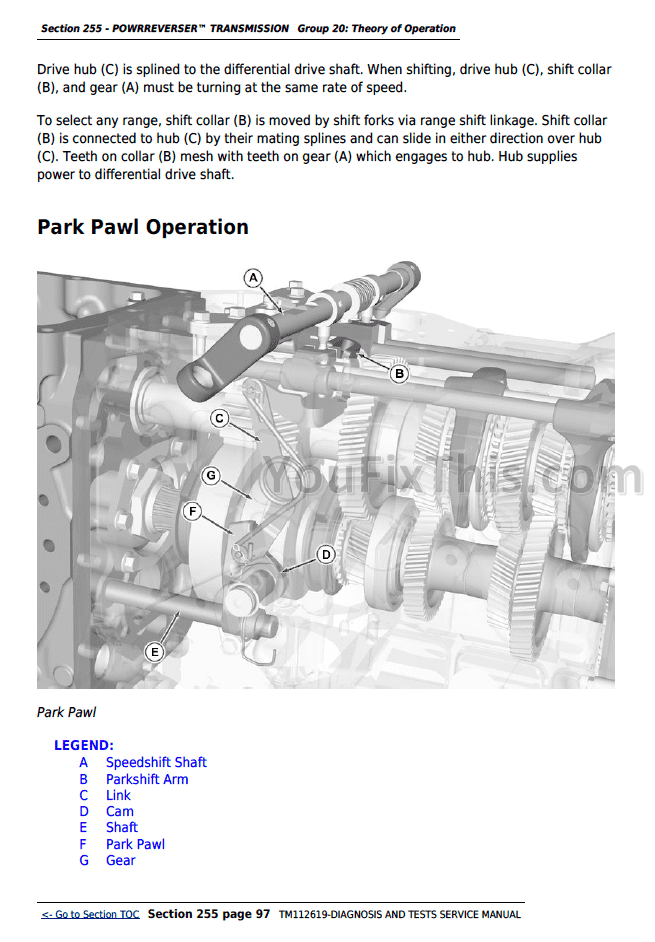

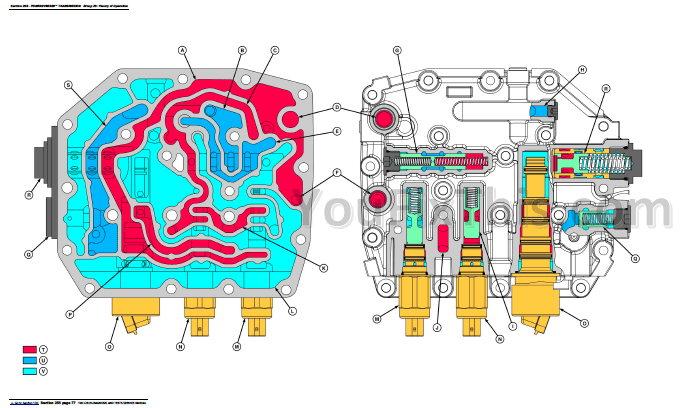

How do I diagnose PowrReverser transmission problems using this manual?
The PowrReverser Transmission section covers clutch pressure tests, reverser engagement diagnostics, and gear shift quality checks. If the tractor slips during direction change or shifts hard, the pressure test procedure isolates whether the fault is low clutch pressure, a worn modulating valve, or a hydraulic supply issue feeding the transmission.

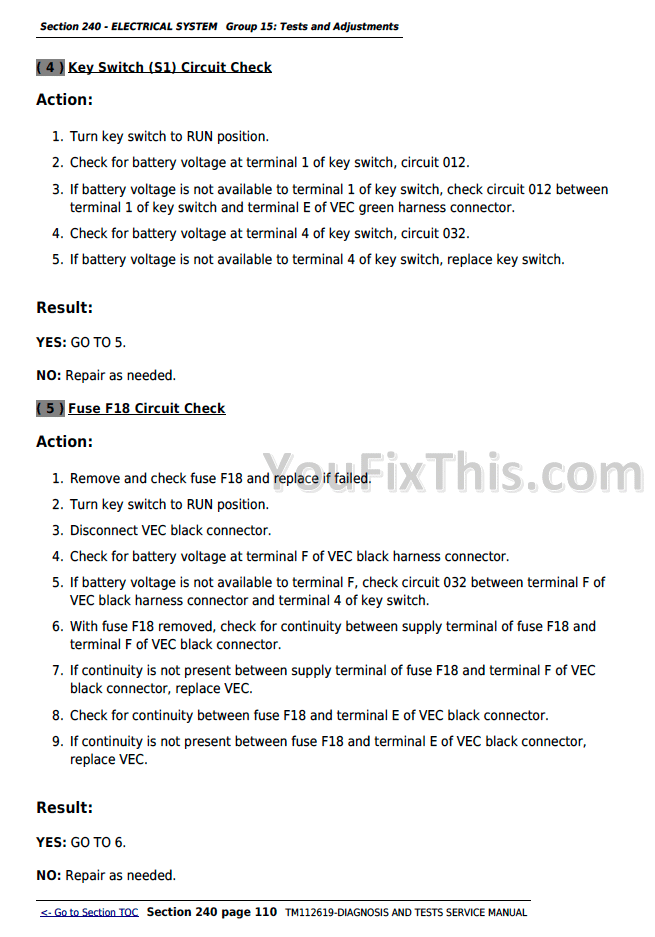

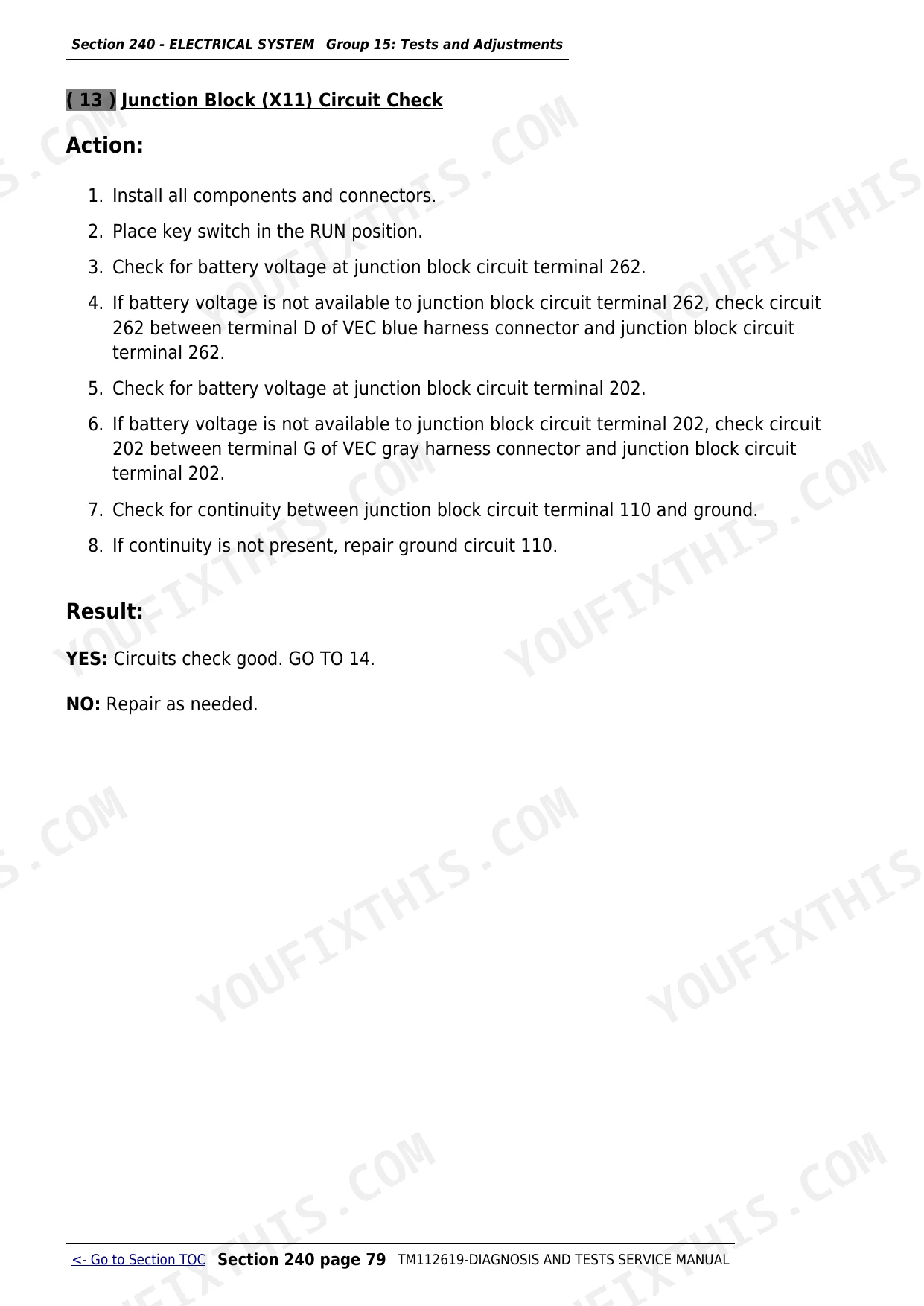

Can I trace electrical faults with the wiring diagrams in this manual?
Yes. The Electrical System section contains full wiring diagrams for the 5083EN, 5093EN and 5101EN along with circuit test procedures, harness connector locations, and voltage check points. Combined with the Control Units section covering CCU and ECU sensor voltage ranges, you can chase an intermittent fault down to the connector or sensor without a dealer scan tool.
What filters should be inspected when the tractor shows power loss or high fuel consumption?
Start with the primary and final fuel filters (part numbers RE522868 and RE62419) for restriction or water contamination, then check the air filter elements (KV16429 primary, AT171854 secondary) for clogging. The Fuel and Air section gives the restriction limits and test method. Blocked air or fuel filters are the leading cause of smoke and derating on these PowerTech E engines.
