Maintenance carries the most weight in this 293-page Kawasaki 45ZV-2 operator manual PDF (OEM ID 93104-00041), filling close to a third of the book for this wheel loader, then widening to break-in, transporting, storage, quick coupler operation, and care in mud, snow, dust, and rocky ground. Your operator's station gets an extended walk-through of the front console, right console, and monitor panel, so you know what each indicator light and gauge means before the engine turns over. The troubleshooting section sorts faults by engine, hydraulic system, and drive function, while the specifications page lists static tipping load, operating weight, and bucket capacity. The hydraulic system takes 73 L (19.3 gal) of oil, and the air cleaner element gets replaced after six cleanings or once a year. Air filters on a loader cycling dusty yards all day clog sooner than you expect. Keep the bookmarked, text-searchable PDF in your service truck or cab, right where the 45ZV-2 is parked.
What's Inside This Kawasaki 45ZV-2 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Engine Emission Control Label | 8-9 | Engine Model, Engine Family, Engine Displacement, Valve Clearance, Injection Timing |
| Machine Numbers | 10-11 | Machine Type, Product Identification Number, Engine Type, Engine Manufacturing Number |
| Safety | 12-45 | Recognize Safety Information, Understand Signal Words, Follow Safety Instructions, Prepare for Emergencies, Wear Protective Clothing, Protect Against Noise, Inspect Machine |
| Safety Signs | 46-55 | Bucket, Lift Arm, Front Console, Battery, Radiator Cap, Brake Oil Tank |
| Components Name | 56-57 | Bucket, Lift Arm, Hydraulic Oil Tank, Radiator, Engine, Counterweight |
| Operator’s Station | 58-111 | Front Console, Right Console, Monitor Panel |
| Break-In | 112-113 | Engine Operation, Engine Horsepower, Engine Idling, Indicator Lights, Gauges |

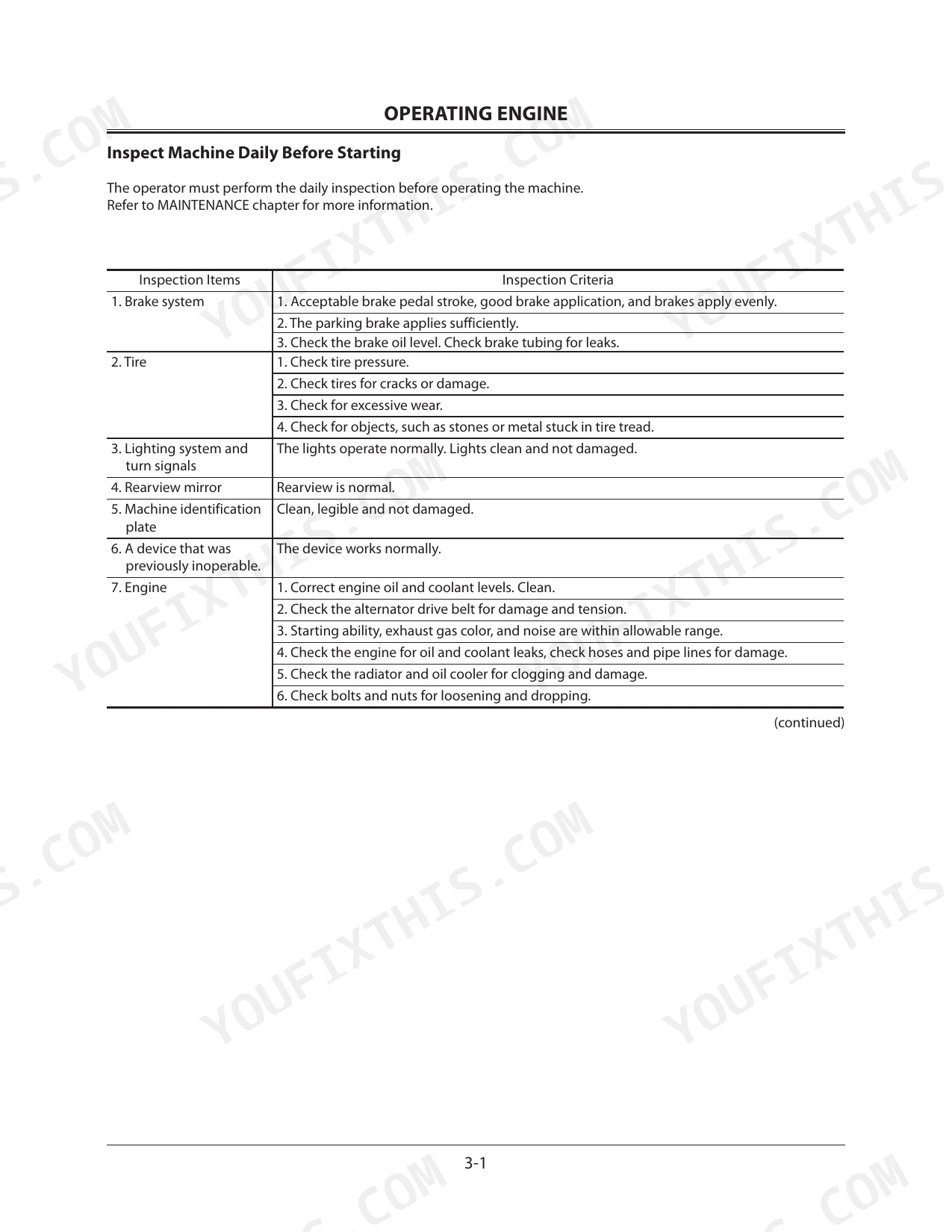

| Operating Engine | 114-125 | Inspect Machine Daily Before Starting, Starting Engine |
| Driving Machine | 126-141 | Starting to Move, Parking Brake Switch |
| Operating Machine | 142-157 | Loader Control Lever, Lever Locks |
| Transporting | 158-169 | Loading/Unloading on Trailer |

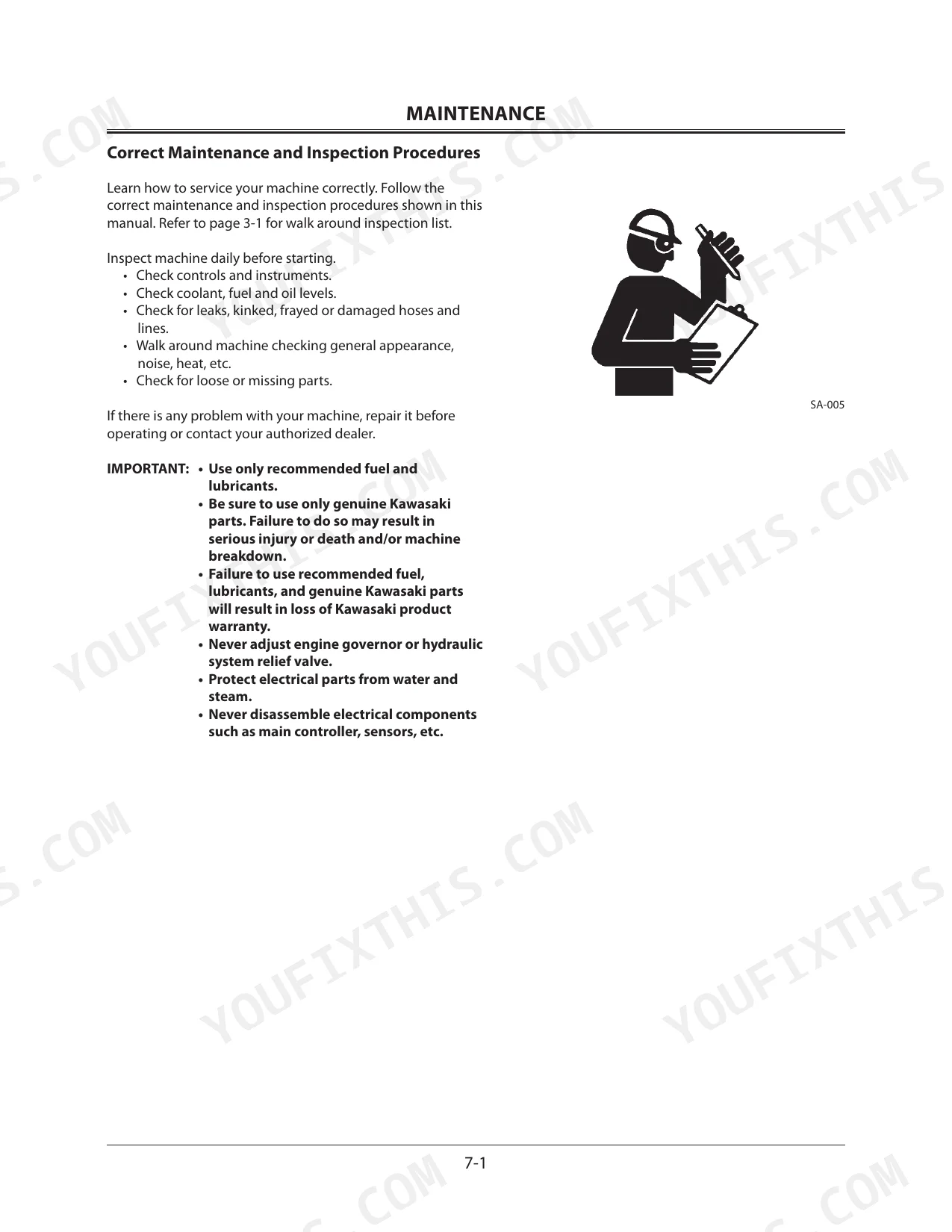

| Maintenance | 170-259 | Correct Maintenance and Inspection Procedures, Maintenance Guide |
| Maintenance Under Special Environmental Conditions | 260-263 | Muddy Soil, Rainy Weather, Snowy Weather, Dusty Atmosphere, Rocky Ground |
| Storage | 264-265 | Wash Machine, Oil and Grease, Battery, Coolant, Lubrication, No-Load Operation |
| Troubleshooting | 266-271 | Engine, Hydraulic System, Drive Function |
| Specifications | 272-273 | Bucket Capacity, Operating Weight, Static Tipping Load, Engine, Overall Length, Wheel Base |

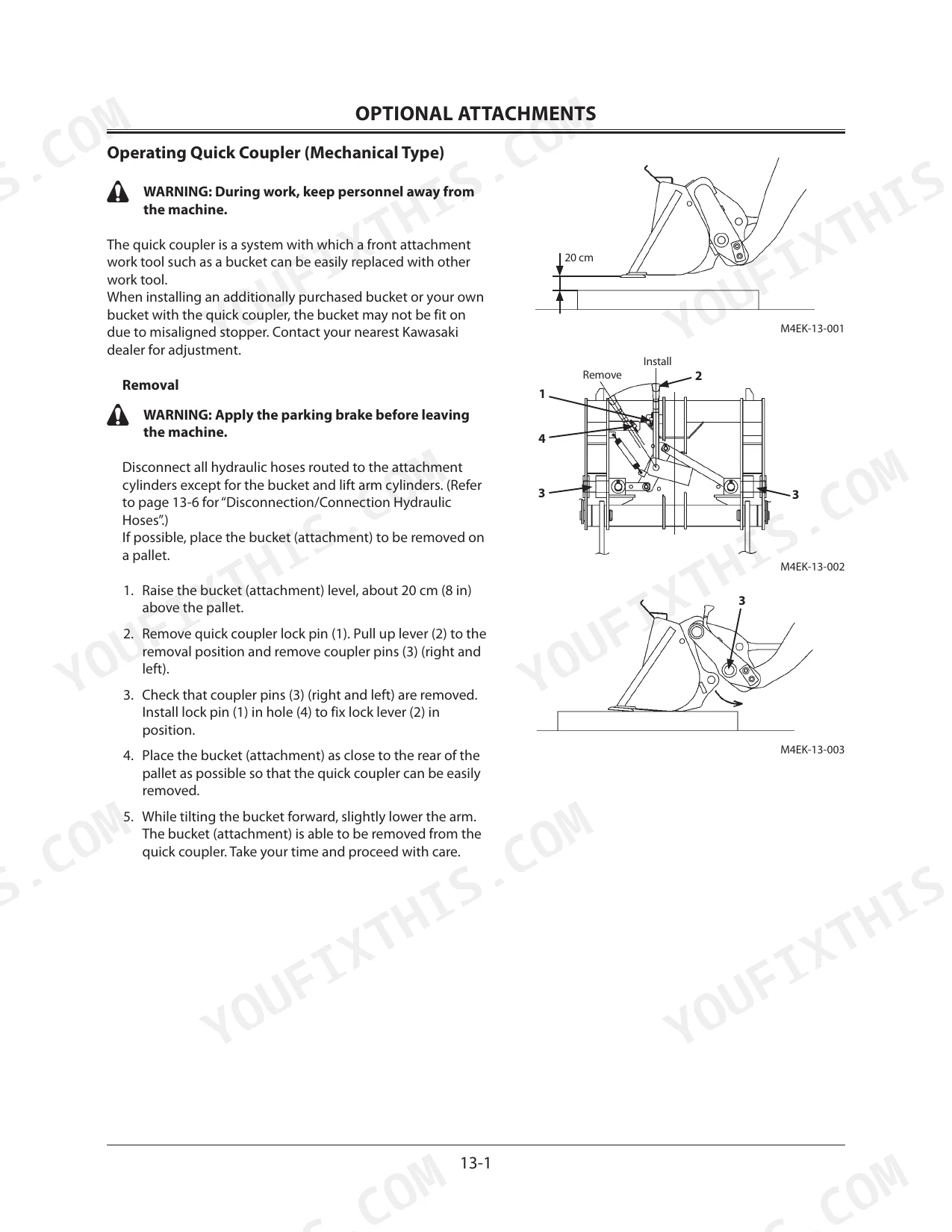

| Optional Attachments | 274-279 | Operating Quick Coupler |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Machine electrical system voltage | 12 volt | p. 121 |
| Engine Oil Quantity | 11.2 L (3 gal) | p. 180 |
| Hydraulic Oil Quantity | 73 L (19.3 gal) | p. 181 |
| Transmission Oil Quantity | 1.0 L (0.3 gal) | p. 180 |
| Air cleaner element replacement interval | after cleaning 6 times or every 1 year | p. 217 |
| Fan belt deflection | 7 to 9 mm | p. 221 |
| Slow blow fuses | 100 A | p. 226 |
| Check and Clean Starter and Alternator interval | every 1000 hours or 1 year | p. 250 |
| Engine Oil Refill Quantity | 11.2 L | p. 192 |
| Transmission Oil Refill Quantity | 1.0 L | p. 194 |
| Front Axle Oil Refill Quantity | 6.2 L | p. 195 |
| Rear Axle Oil Refill Quantity | 6.4 L | p. 195 |
Kawasaki 45ZV-2 Common Problems This Manual Covers

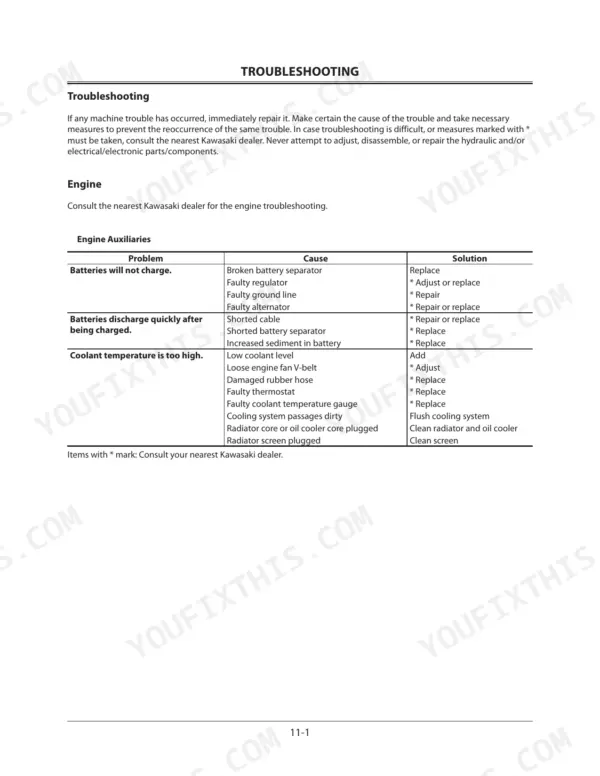

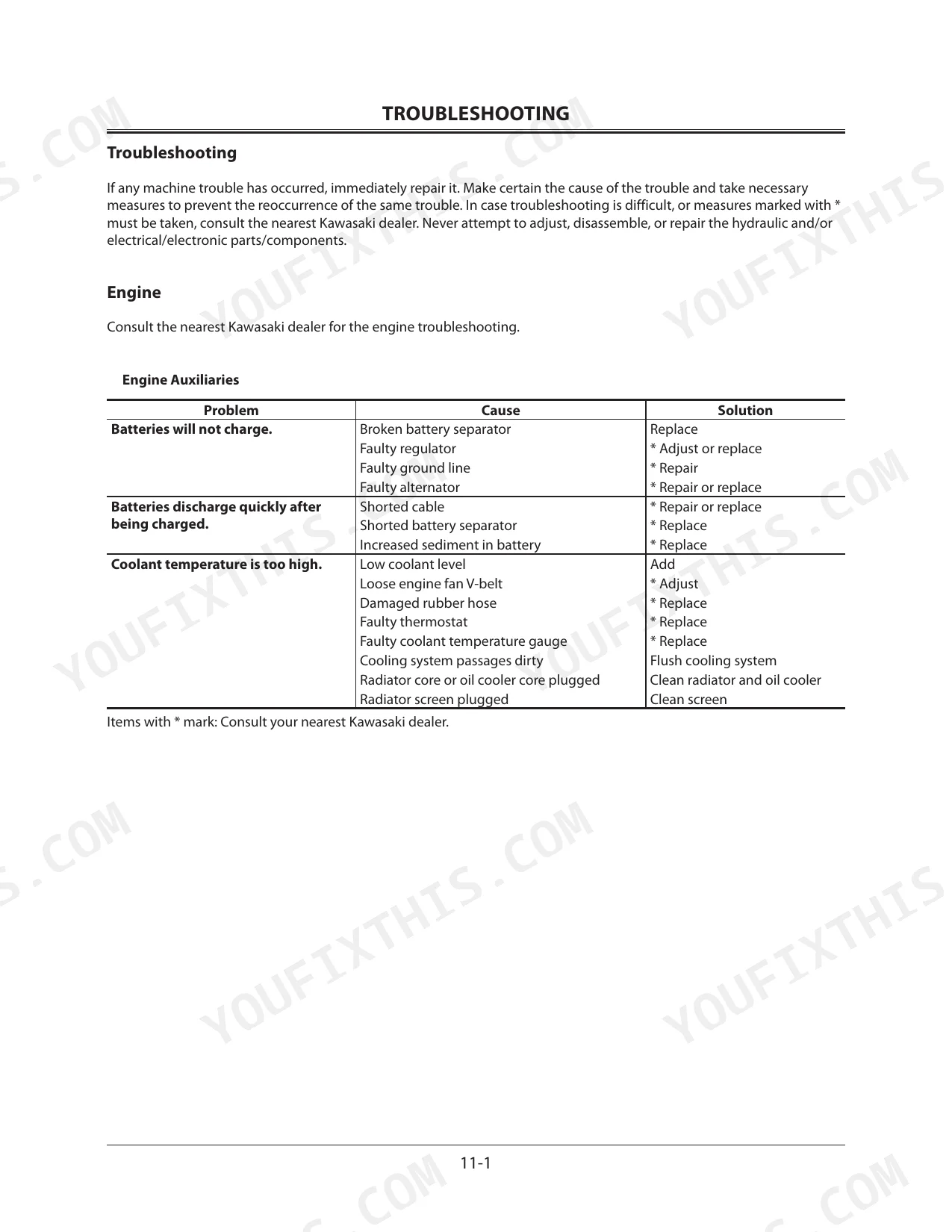

Kawasaki 45ZV-2 wheel loader charging system problem: batteries will not charge or batteries discharge quickly
Check fan belt deflection following page 221; it should measure 7 to 9 mm with about 98 N of thumb pressure. Inspect the 100 A slow blow fuses described on page 226, and confirm the batteries suit the 12 volt system per page 121. Work through the engine auxiliaries chart on page 266 before condemning the alternator.
Manual Section: Engine Auxiliaries Troubleshooting p. 266Wheel loader working in dusty atmosphere all day with engine coolant temperature too high
Check fan belt deflection following page 221 against 7 to 9 mm, and only open the radiator cap after the engine cools. Clean debris from the radiator and follow the dusty atmosphere guidance starting on page 260. Then work through the coolant temperature entries in the engine auxiliaries chart on page 266.
Manual Section: Engine Auxiliaries Troubleshooting p. 266Starter does not turn over and engine does not start at the start of the shift
Verify the batteries are fully charged and suit the 12 volt electrical system described on page 121. Inspect the 100 A slow blow fuses following page 226. Recheck the daily inspection and starting engine procedure on page 114 before cranking again, then use the engine does not start troubleshooting chart if it still refuses.
Manual Section: Engine Does Not Start TroubleshootingWhile cycling bucket and lift arms, hydraulic oil overheats and all actuators lose power
Check hydraulic oil level at the hydraulic oil tank; it holds 50 L per page 202, with 73 L in the full system per page 181. Inspect the machine for oil leaks and let the oil cool before topping up. Then work through the hydraulic system troubleshooting chart for overheating and actuator power loss.
Manual Section: Hydraulic System TroubleshootingParking brake does not release when starting to move, or does not work properly
Verify the parking brake switch position and the starting to move sequence on page 126 before suspecting hardware. Check the brake oil tank level and look for service brake fluid loss. Then follow the parking brake troubleshooting chart entries for release and holding faults.
Manual Section: Parking Brake TroubleshootingFront or rear axle is noisy while traveling, or the axle does not transmit power
Check axle oil level first; refill quantity is 6.2 L for the front axle and 6.4 L for the rear axle on page 195. Inspect each axle for oil leaks and listen for where the noise comes from. Then work through the front and rear axle troubleshooting chart before operating further.
Manual Section: Front and/or Rear Axle TroubleshootingFrequently Asked Questions
What do the Kawasaki 45ZV-2 error or warning codes mean?
The HST error codes are displayed by the HST warning indicator flashing. For example, a 1-1 code indicates low or high controller supply voltage, while a 2-1 code indicates an open circuit of the HST motor solenoid output cable. Refer to the table on page 72 for a full list of codes and their corresponding detecting conditions. p. 72
How do you bleed the hydraulic system on a Kawasaki 45ZV-2?
After changing hydraulic oil or replacing filters, start the engine and move the bucket and lift arm cylinders several times to bleed air mixed in the hydraulic circuit. Finally, rest the bucket on the ground to resume the hydraulic oil level check position, stop the engine, and check the oil level, adding more if needed. p. 202
What are the Kawasaki 45ZV-2 replacement specifications for engine oil and fuel filters?
The engine oil filter should be replaced every 500 hours or 6 months, with the first replacement at 100 hours or 1 month. The fuel filter element should also be replaced at the same interval, with the first replacement at 100 hours or 1 month. p. 180
What are the Kawasaki 45ZV-2 replacement specifications for the hydraulic return or suction filter?
The suction filter should be cleaned each time the hydraulic oil is changed. The return filter should be replaced every 1000 hours or 1 year, with the first replacement at 100 hours or 1 month. p. 181
What is the correct tightening torque for the Kawasaki 45ZV-2 front axle mounting nuts?
The front axle mounting nuts (1) and (2) have specific torque requirements. Nut (1) should be tightened to 207 to 253 N·m (153 to 187 ft-lb), and nut (2) should be tightened to 259 to 316 N·m (191 to 233 ft-lb). p. 250
Is this Kawasaki 45ZV-2 Operator Manual a digital download?
You get a 293-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print a copy of this Kawasaki 45ZV-2 Operator Manual for the shop?
Yes. Print a chapter or just the pages for the job at hand, for use in your own shop. Any home or office printer works.
