This afternoon you will read a part number to the dealer for a cracked steering hose or a worn bellcrank pin, and the Kawasaki 45ZV-2 parts catalog PDF (338 pages, OEM 93304-00100) for this wheel loader is where it comes from. Exploded views break the machine down group by group: radiator and fuel piping, the HST and its piping, both axles, brake and steering circuits, frames and center pin, the ROPS cab, main pump and control valve. The loader attachment group is one of the largest: lift arm, bellcrank and link assemblies, 3-spool shovel piping, the auto leveller, and mechanical or hydraulic quick couplers. Match the callout to your build before ordering: the 870 kg counterweight, 0.9 m3 coupler bucket and 95D31R battery each carry their own listing. A job stalls fast on one missing part number. Bookmarks jump to each group, and the pages print clean enough to sit on the bench under greasy thumbs.
What's Inside This Kawasaki 45ZV-2 Parts Manual

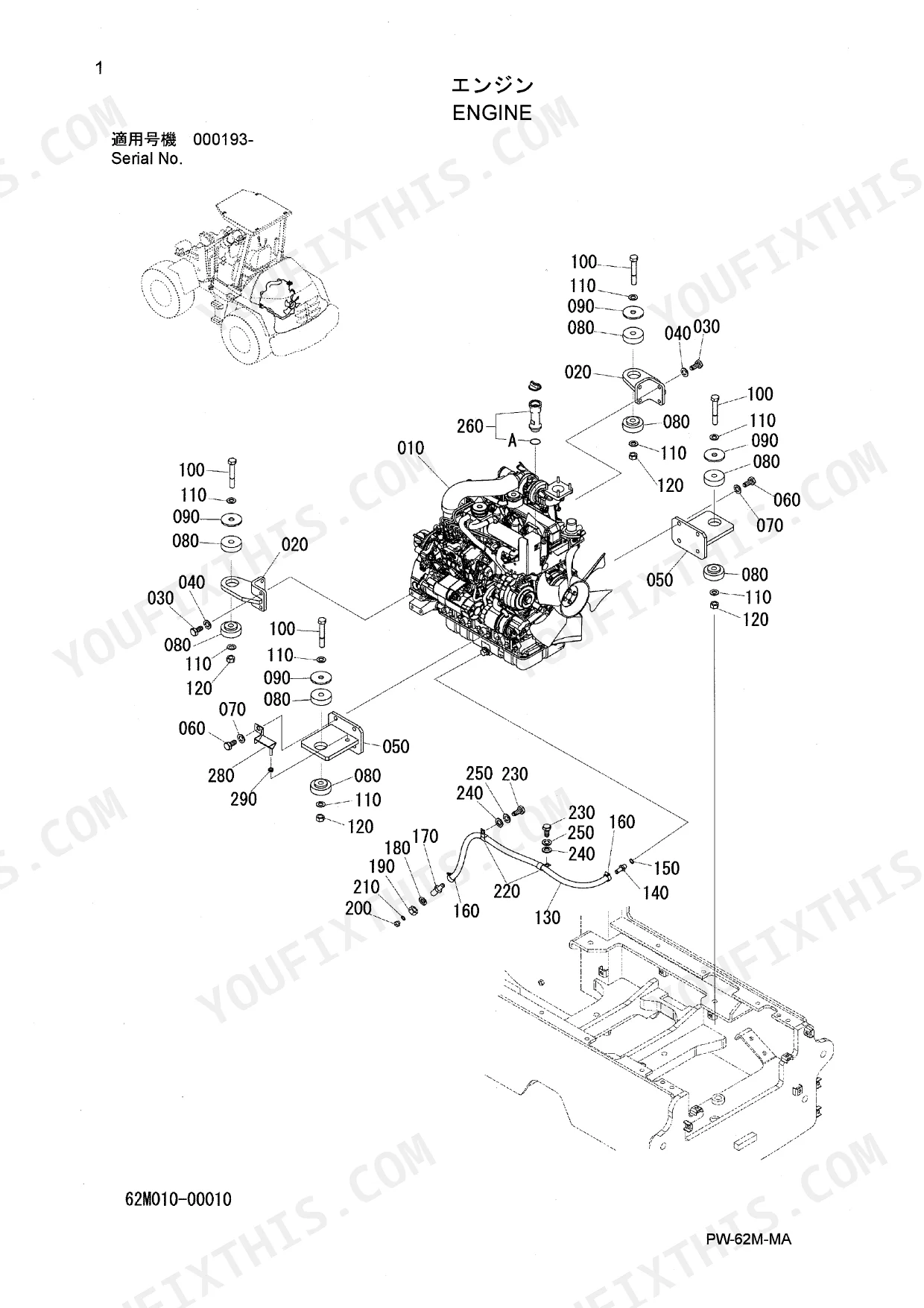

| System | Pages | Key Topics |
|---|---|---|
| Engine | 10-39 | Assy, Air Cleaner, Air Cleaner Assy, Air Cleaner Support, Muffler, Radiator, Radiator Assy, Radiator Support |
| Electrical System | 40-61 | Meter Panel (Wiring, Electric Parts), Battery (Wiring, Electric Parts, Back Up Alarm, Lamp) |
| Power Train (HST) | 62-73 | HST, HST System, HST Piping, Filter Assy, Shift Lever |

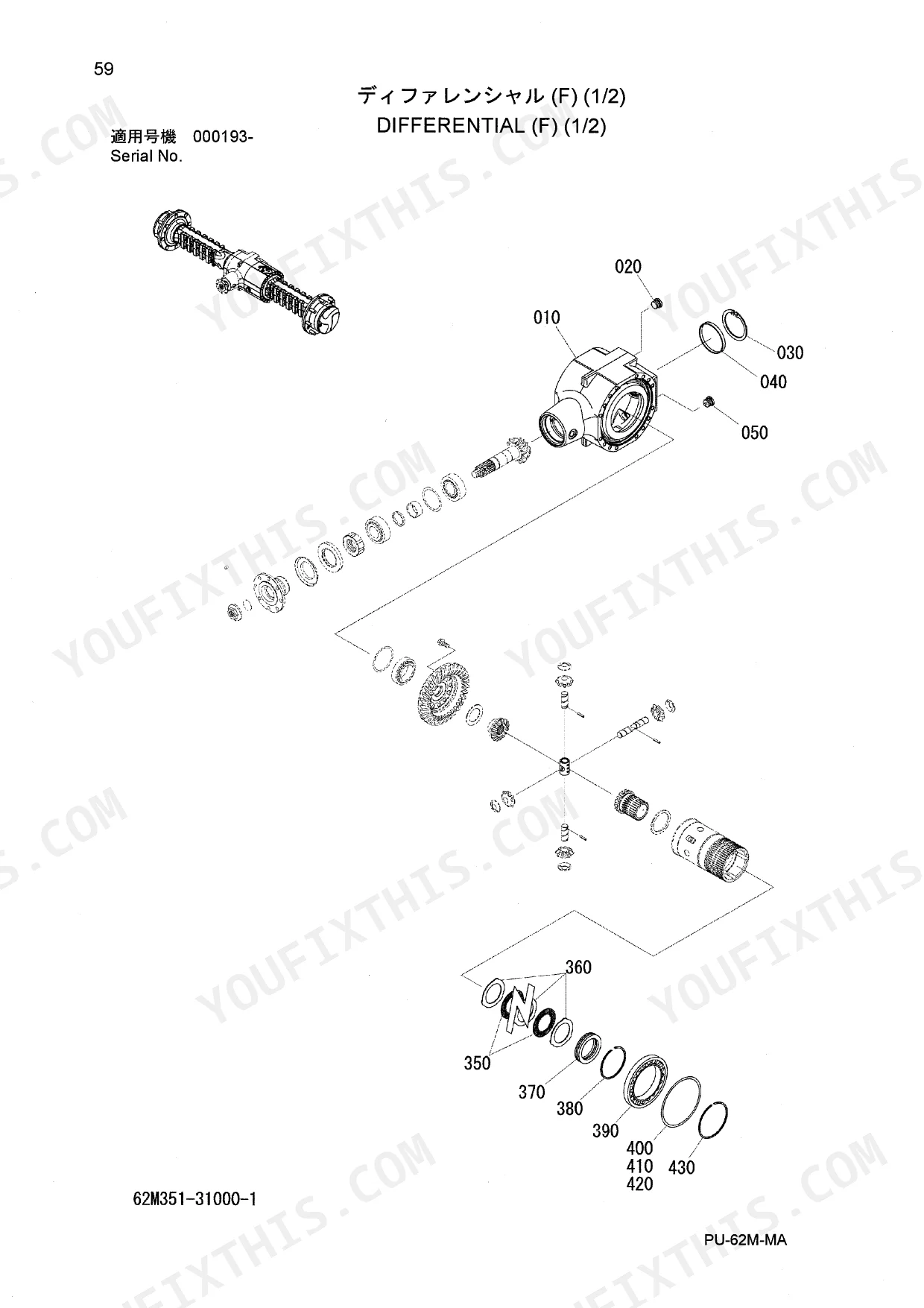

| Power Train (Axle) | 74-81 | Proreller Shaft, Front Axle, Rear Axle, Tire |
| Brake | 82-93 | System, Piping (Brake Oil Tank Assy), Conrtol, Parking Brake Control, Parking Brake Piping |
| Steering | 94-105 | Parts, System, Piping |
| Chassis | 106-151 | Front Frame, Rear Frame, Operator Frame, Center Pin, Engine Hood, Floor, Step, Fender |

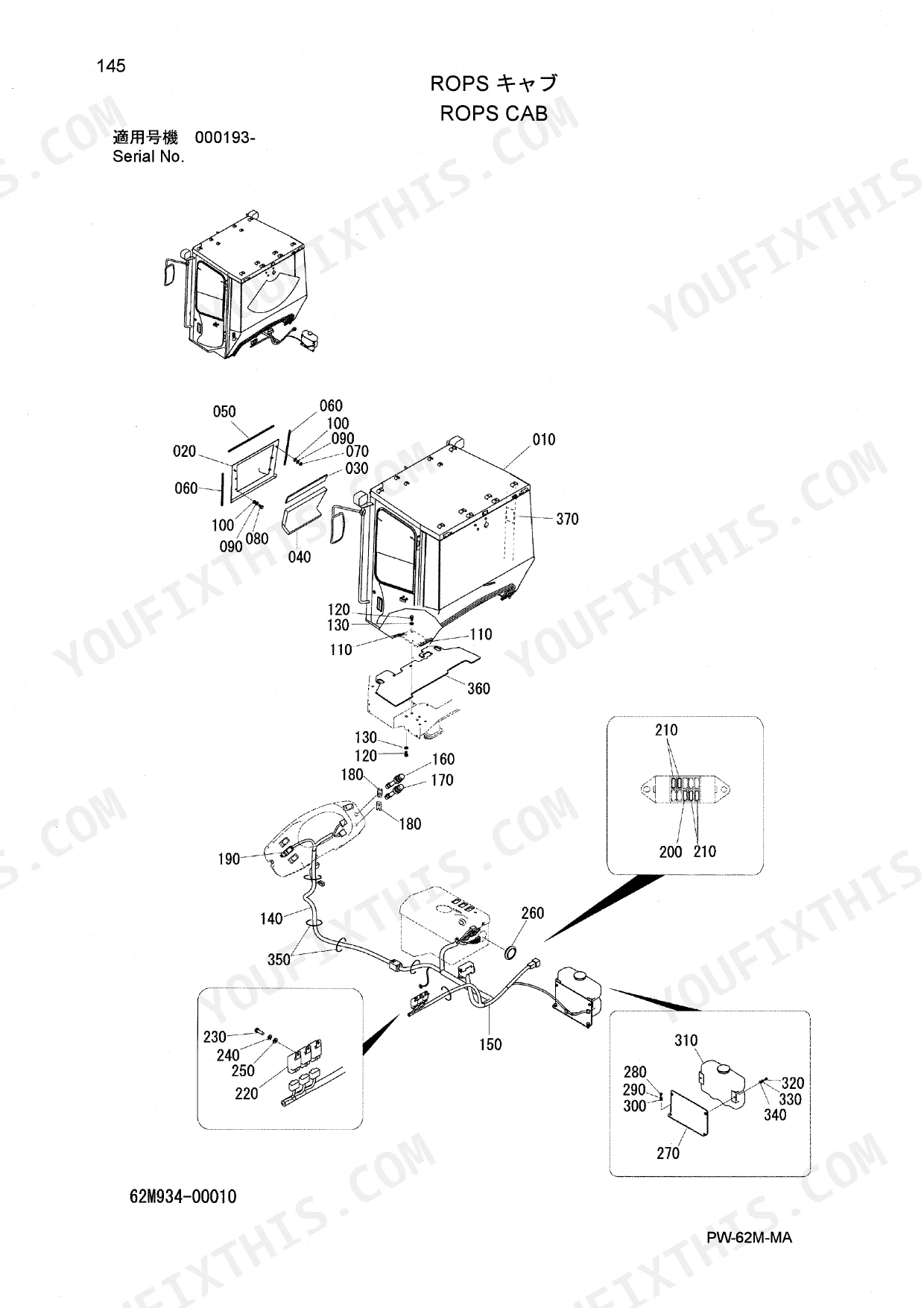

| Cab | 152-173 | ROPS Cab Kit (ROPS Cab Assy, Cab Body, Door Assy, Rear Lamp, Rear Washer) |

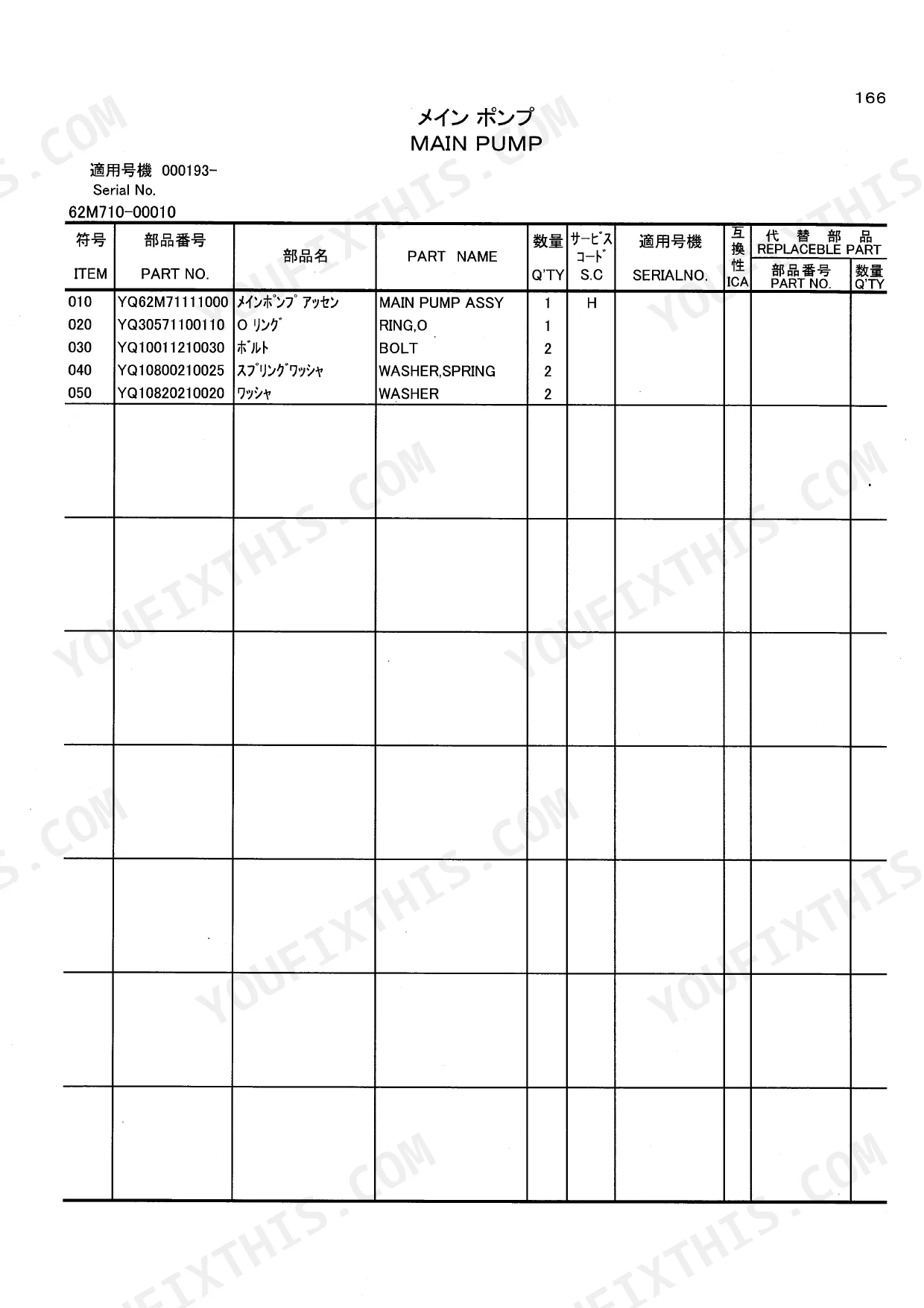

| Hydraulic System | 174-185 | Main Pump, Control Valve, Main System, Main Piping, Oil Tank, Filter Assy |
| Loader Attachment | 186-226 | Lift Arm (Assy, Bellcrank Assy, Link Assy), Shovel Piping, Cylinder, Shovel Control (Lever Assy), Auto Leveller, Quick Coupler, Bucket 0.9m3, Tools |
Kawasaki 45ZV-2 Common Problems This Manual Covers
Kawasaki 45ZV-2 engine oil filter, fan belt and starter replacement part numbers hard to find

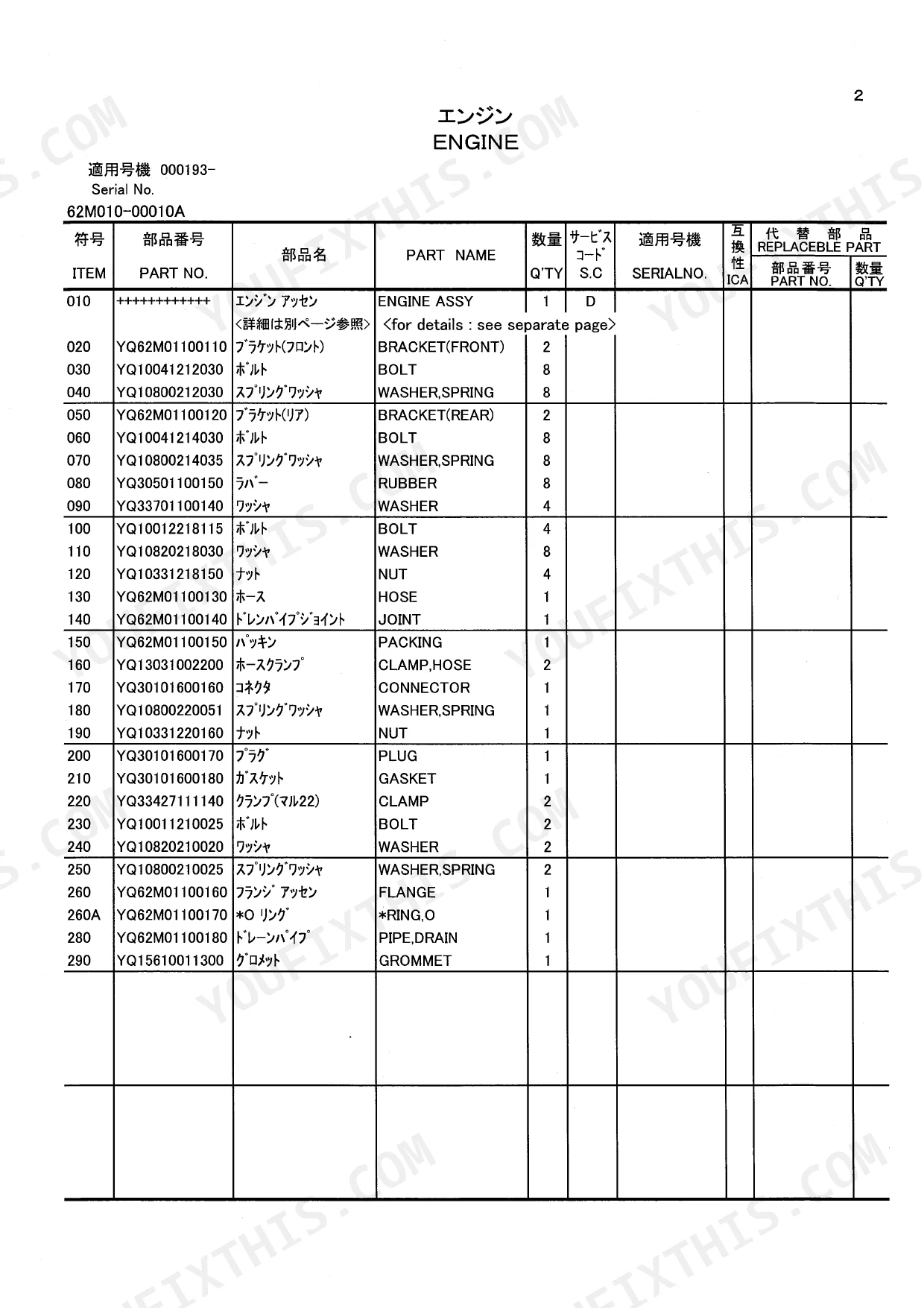

Check the Engine Assy replaceable parts list on page 13 for serial 000193 and up. Order oil filter YQ62M01198110, fan belt YQ62M01198130, alternator YQ62M01198120 or starter YQ62M01198140. Match each item against the exploded view on page 12, and pull engine mount rubber YQ30501100150 from the Engine list on page 11.
Manual Section: Engine p. 13Air cleaner shows two different element part numbers and the wrong one gets ordered
Check the Air Cleaner Assy list on page 17, which carries two separate elements: YQ30802111120 and YQ30802111130. Order both by part number, not by description. The same list gives vacuator valve YQ84002111150, indicator YQ30102611140 and cover YQ30802111140. Get hoses and clamps from the Air Cleaner Support list on page 19.
Manual Section: Air Cleaner p. 17Radiator core, oil cooler and radiator cap part numbers missing from the main radiator listing
Check the Radiator Assy list on page 25, not the Radiator group on page 23, which only points to sub-assemblies. Order radiator YQ62M04112110, oil cooler YQ62M04112120, cap YQ263G217011 and plug YQ263G217021. Match each item number against the exploded view on page 24 before ordering.
Manual Section: Radiator p. 25Radiator hoses, hose clamps and coolant water tank part numbers needed for radiator support work
Check the Radiator Support list on page 27. The radiator hoses are YQ62M04121110 and YQ62M04121120, with hose clamps YQ13031004800 and YQ13031006000. The water tank is YQ84104121160 and its hose is YQ62M04121190. Match item numbers against the exploded view on page 26. The same list also covers shroud YQ62M04121150 and both guards.
Manual Section: Radiator p. 27Fuel filter and water separator element part numbers hard to locate in the fuel piping listing
Check the Fuel Piping list on page 35 for fuel filter YQ30506121120, water separator YQ30106121110 and fuel pump YQ30106621120. For separator service parts, go to page 37: element YQ62J06198140, O-ring YQ62J06198130 and filter cup YQ62J06198110. Packing YQ30506198120 for the fuel filter assembly is on page 39.
Manual Section: Fuel System p. 35Battery size and battery or earth cable part numbers unclear when replacing electrical parts
Check the Battery (95D31R) list on page 47 for battery YQ62M12131120, battery box YQ62M12131110 and clamp YQ32212131131. For cables, use the Wiring (Rear) list on page 49: battery cable YQ62M12151120 and earth cables YQ62M12151130 and YQ62M12151140. Confirm the machine serial is 000193 or later before ordering.
