From front and rear chassis through the power system, torque converter and transmission, axles, brakes, steering and loading hydraulics, the Kawasaki 70ZIV parts catalog PDF (OEM ID AAAP17311-0) lays out this wheel loader group by group across 343 pages. Every group pairs an exploded view with its part numbers, so you can match the center pin, oil pump, control valve and steering cylinders on your machine to the right seal, bushing or bolt before you order. Torque converter and transmission groups fill nearly a quarter of the book; the closing section lists general purpose and rock buckets, bucket options and grease piping. Order center pin shims from the listed 0.1 to 1.0 mm range for the articulation joint, and spec the heat-resisting radiator hose at its listed 1050 mm length. A made-up part number buys a seal that almost fits. Bookmarks open each group, the text layer finds any part number, and your 70ZIV goes back to moving material.
What's Inside This Kawasaki 70ZIV Parts Manual
| System | Pages | Key Topics |
|---|---|---|

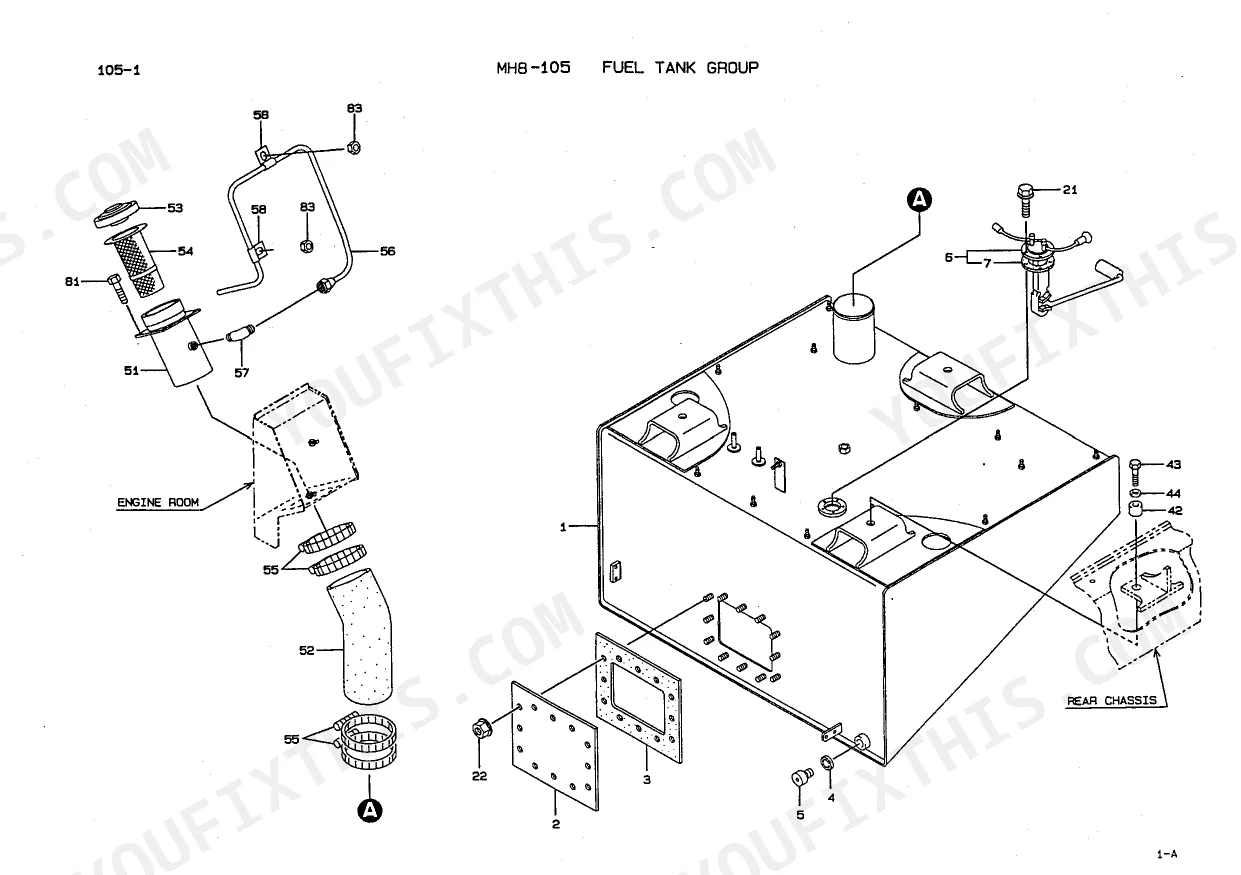

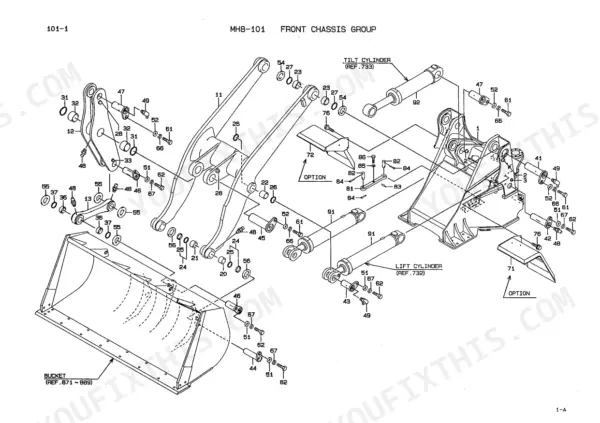

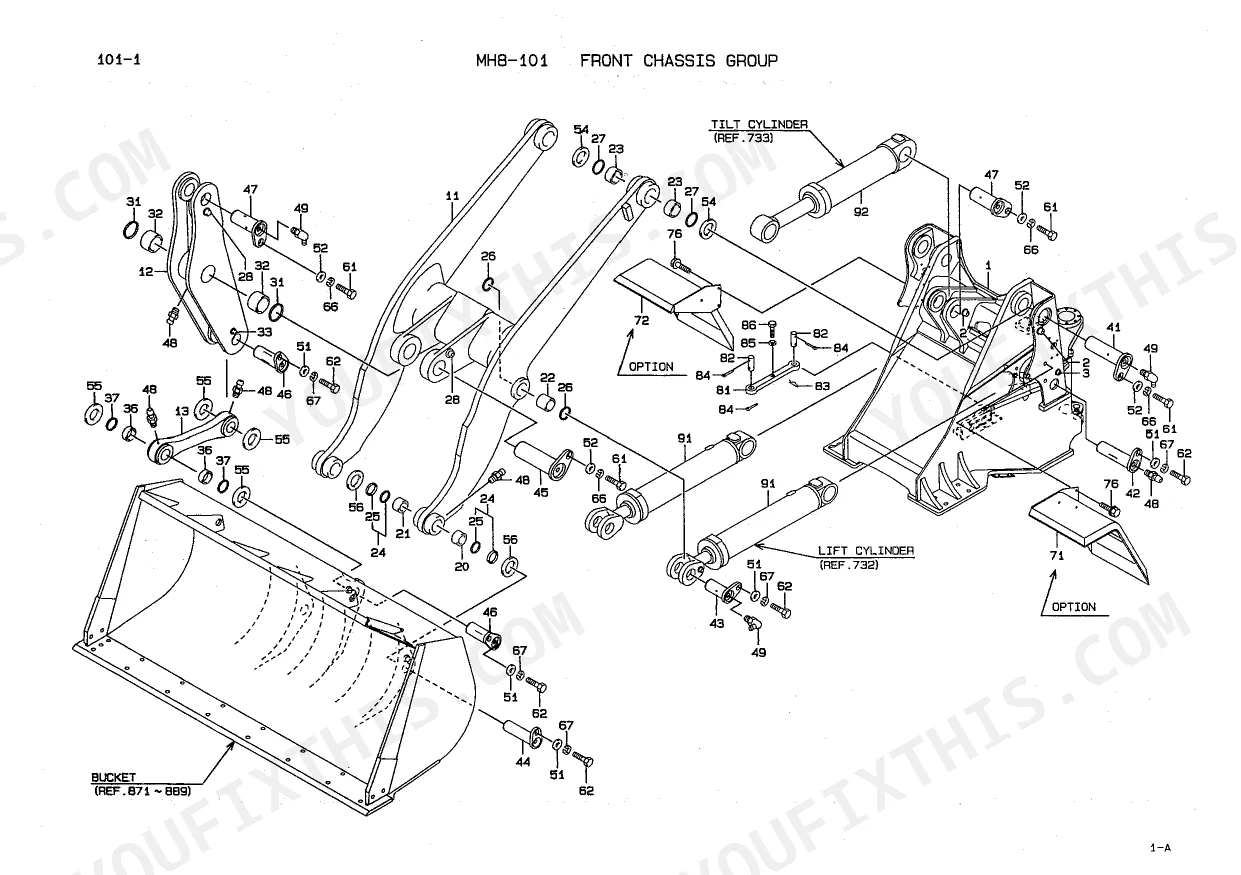

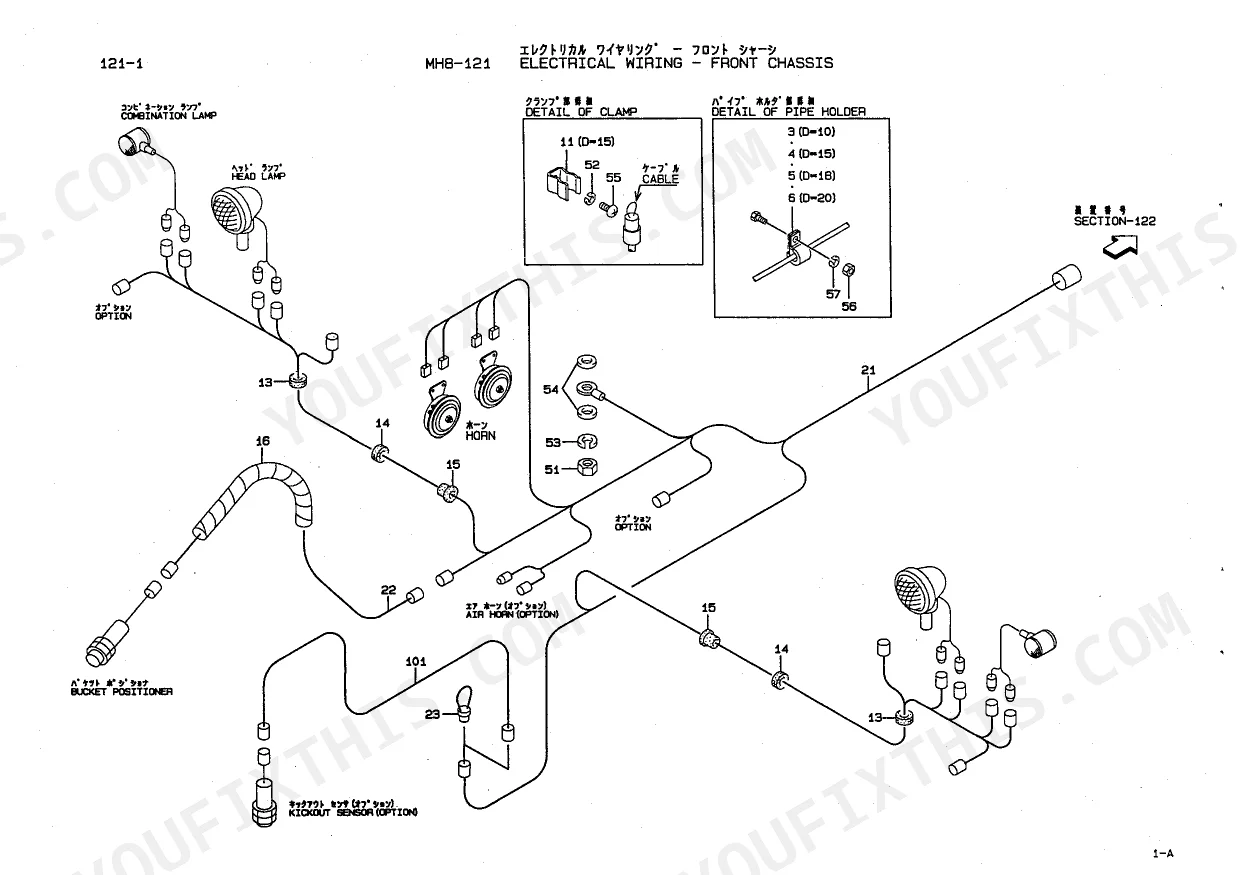

| Chassis and Electrical System | 4-83 | Front Chassis, Rear Chassis, Center Pin, Fuel Tank, Oil Tank, Floor Board, Operation Stand, Deck and Step Mount |

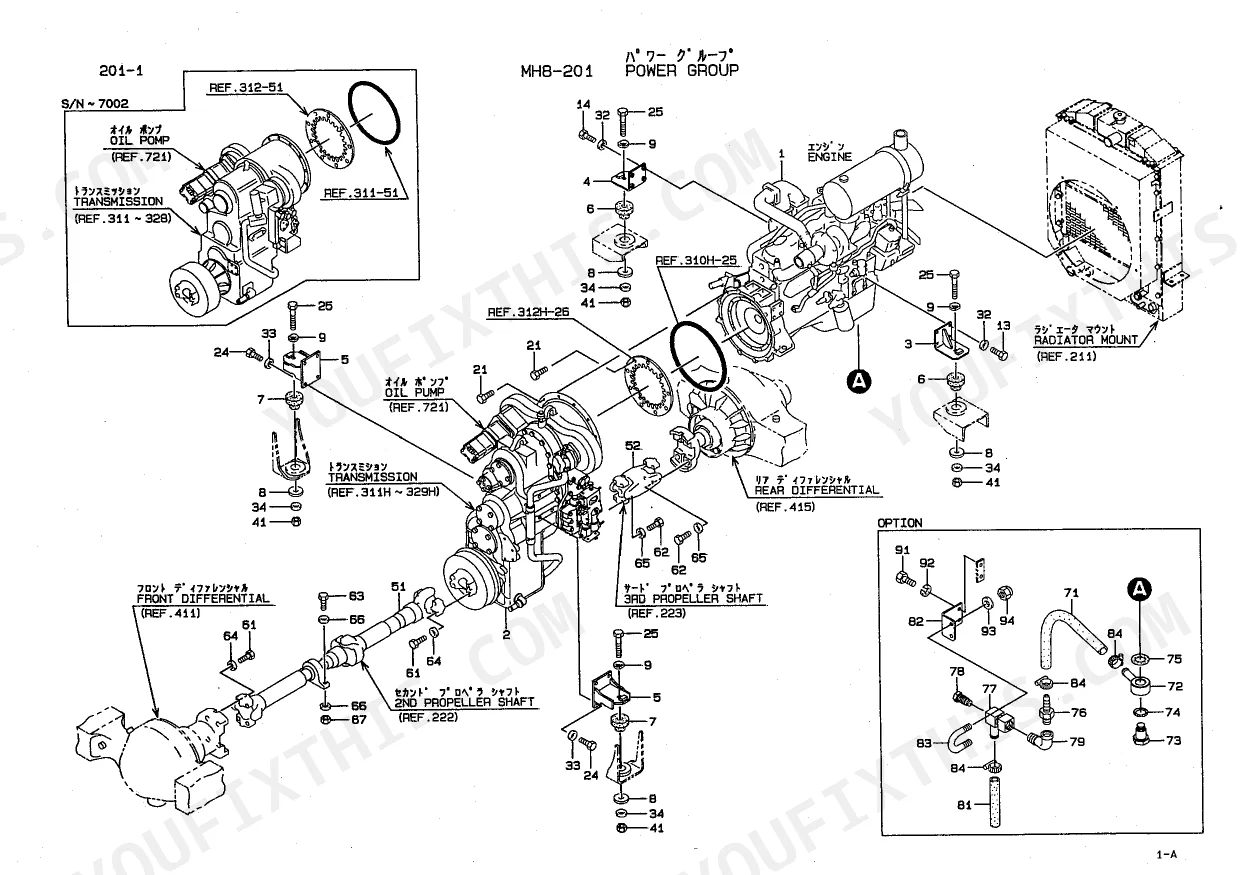

| Power System | 84-111 | Power Group, Fuel Line, Fuel Control, Radiator Mount, Radiator, Air Cleaner, Exhaust |
| Torque Converter and Transmission System | 112-193 | Transmission Hydraulic Line, Torque Converter Case, Torque Converter Input Shaft, Torque Converter Gears, Transmission Case, Transmission Input Shaft |
| Axle and Differential | 194-215 | Front Axle, Rear Axle, Axle Support, Air Breather Mount, Tire and Disc Wheel, Front Differential, Rear Differential |
| Brake System | 216-241 | Brake Line Floor Board, Brake Line Rear Chassis, Brake Line Axle, Parking Brake Link, Air Tank and Air Master Mount, Brake Valve, Air Master |
| Control System | 242-275 | Handle and Shift Lever, Shaft Case, Steering Gear and Wheel, Steering Link, Valve Control, Steering Cylinder, Steering Valve |
| Loading Hydraulic System | 276-303 | Loading Hydraulic Line Front Chassis, Loading Hydraulic Line Rear Chassis, Loading Hydraulic Line Steering Cylinder, Hydraulic Line Oil Cooler, Oil Pump, Control Valve |
| Accessories, Bucket, Etc | 304-343 | Marking, Grease Piping, Awning and Back Mirror, Bucket General Purpose, Bucket for Rock, Option Parts for Bucket, Repair and Maintenance Parts |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Hose, heat resisting LP length | 1050 mm | p. 96 |
| Tube, Nylon (L=290) | 290 mm | p. 218 |
| Brake Oil | 1L | p. 323 |
| Center Pin Shim Thickness | 0.1 - 1.0 mm | p. 16 |
| Instrument Panel Bulb Voltage/Wattage | 24V 1.4W | p. 28 |
| Instrument Panel Odometer Bulb Voltage/Wattage | 24V 3W | p. 29 |
Kawasaki 70ZIV Common Problems This Manual Covers
Kawasaki 70ZIV center pin group shim part number and available thickness range hard to pin down
Check the center pin listing on page 16. It lists shim 34200-20590 in the quantity needed (A/R) from serial 7001, with thicknesses from 0.1 to 1.0 mm. Measure the gap you need to fill before you order. Then confirm your serial number against the listing so the shim stack you order fits your machine.
Manual Section: Chassis and Electrical System p. 16Transmission hydraulic line parts ordered by model alone do not match the lines on the machine
Check your serial plate before you order anything. On page 112, the index splits the T/M hydraulic line into two groups: MH8-301 for S/N 7001 to 7002 and MH8-301H for S/N 7003 and up. On page 113, the clutch groups and transmission control valve also have H variants, and the repair kit is listed as MH8-395. Match the suffix to your serial.
Manual Section: Torque Converter and Transmission System p. 112Instrument panel bulbs burned out, correct replacement bulb rating and part number unknown
Check the instrument panel listing on page 28 for bulb 38480-70430, rated 24V 1.4W (green). The odometer lamp uses a different bulb, 38480-70440, rated 24V 3W, and it is listed on page 29. Pull the dead bulb and compare its rating to the listing before you order. That way you won't mix up the two bulbs.
Manual Section: Chassis and Electrical System p. 28Heat resisting hose cracked or weeping, replacement hose length hard to confirm
Check the Power System parts listing on page 96. The heat resisting hose is listed there at 1050 mm long. Measure the failed hose after you take it off and compare it to the listing before you order. Use the same exploded view to trace where the hose runs so you order the right position.
Manual Section: Power System p. 96Brake line nylon tube chafed or kinked, correct tube length and brake oil part unclear
Check the brake line exploded view on page 218, where the nylon tube is listed at L=290 (290 mm). Measure the damaged run, then find its group (floor board, rear chassis or axle) in the brake index on page 216. For refilling, brake oil is listed as 41262-70020 (1L) on page 323.
Manual Section: Brake System p. 218Lift cylinder, tilt cylinder or loader control valve parts hard to locate in the catalog

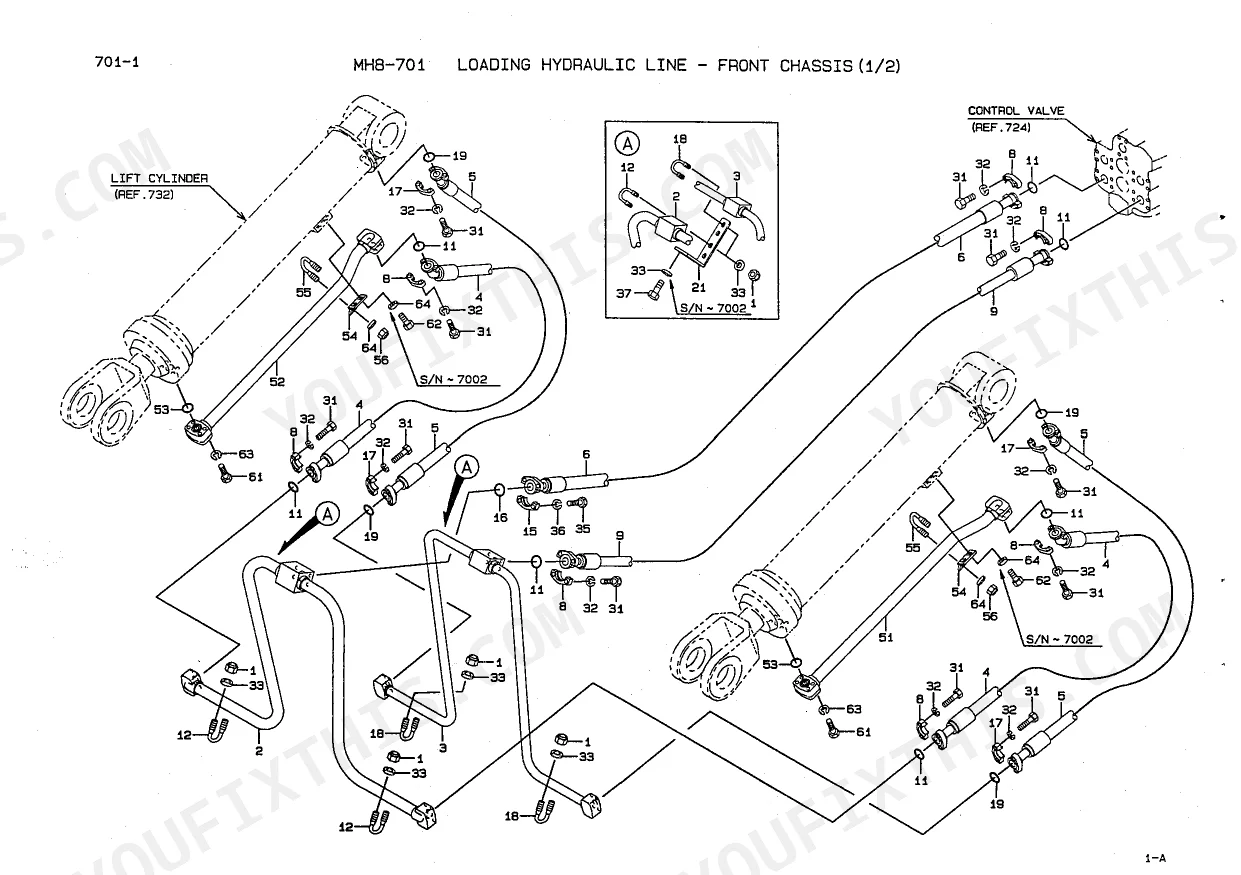

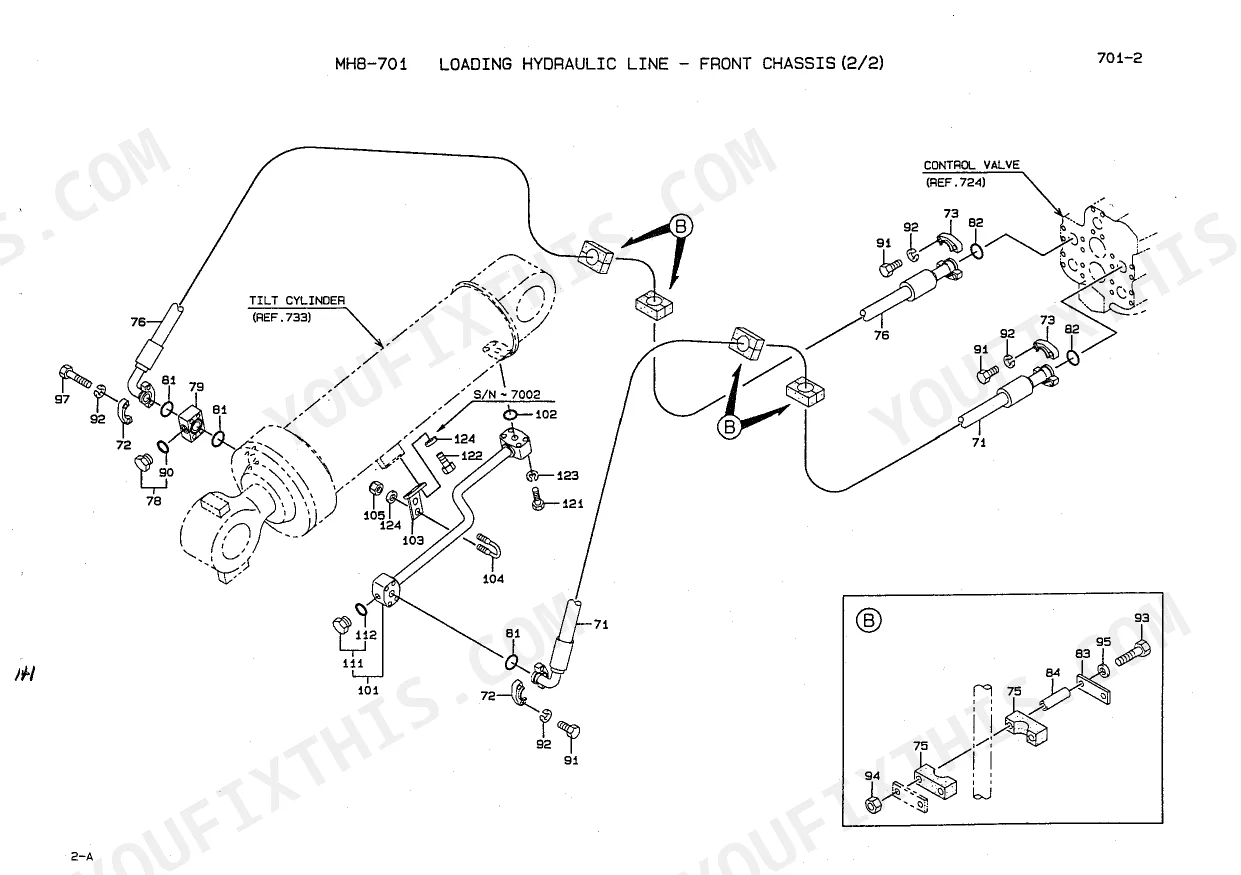

Check the Loading Hydraulic System index on page 276 before you dig through the pages. The control valve is group MH8-724, the lift cylinder is MH8-732 and the tilt cylinder is MH8-733. Hydraulic lines are split by location: front chassis (701), rear chassis (702), steering cylinder (703) and oil cooler (704). Go straight to the group that matches the component you pulled.
Manual Section: Loading Hydraulic System p. 276Frequently Asked Questions
What part number does this parts catalog list for the CHASSIS ASSY,FRONT on page 8?
Page 8 lists part number 34256-21480 for the CHASSIS ASSY,FRONT. p. 8
What is the inner air cleaner element part number for the Kawasaki 70ZIV?
The air cleaner group on page 103 lists filter element 30981-70370 as the inner air cleaner element for the Kawasaki 70ZIV, from serial 7001. p. 103
What is the transmission line filter element part number for the Kawasaki 70ZIV?
Page 120 lists filter element 30981-70350 in the transmission hydraulic line filter assembly for Kawasaki 70ZIV machines from serial 7003. p. 120

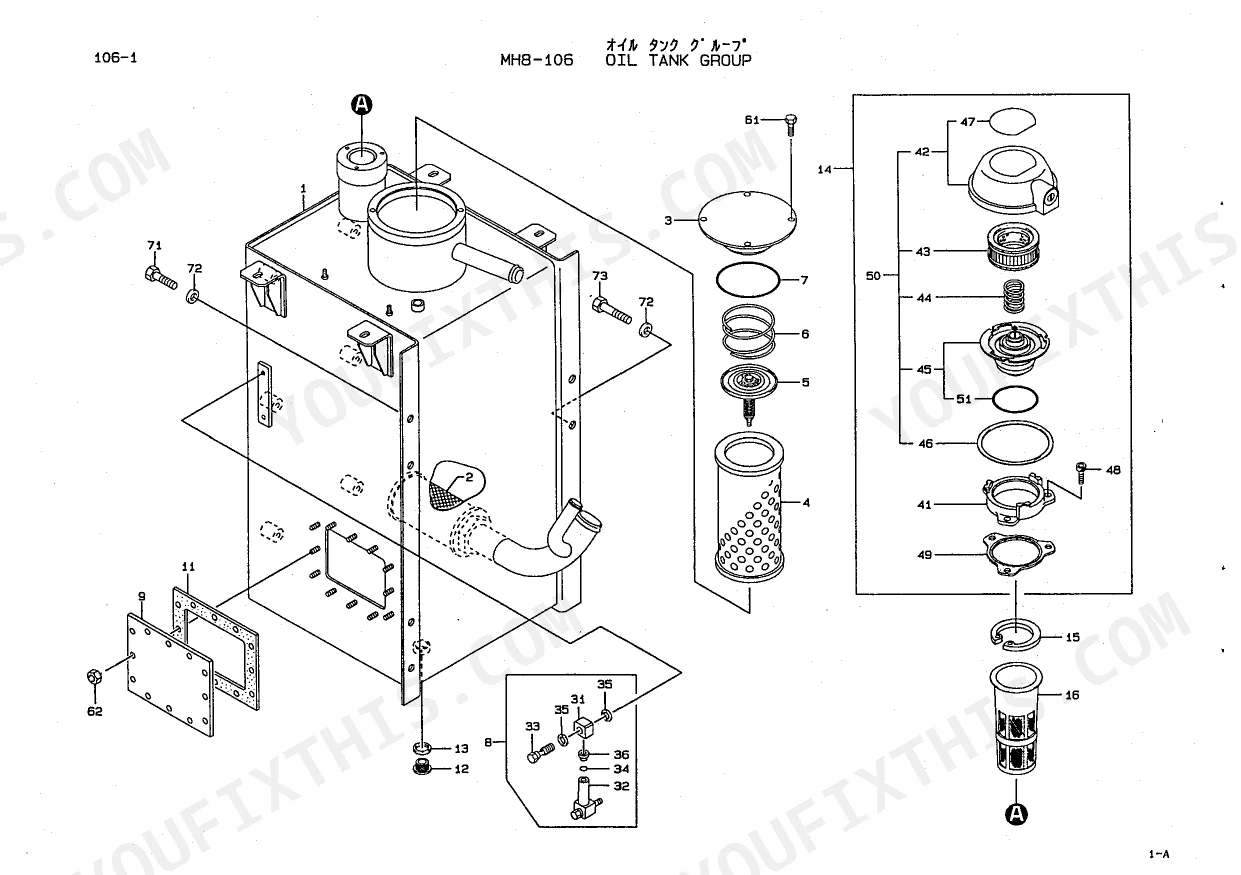

What is the hydraulic oil tank return filter part number for the Kawasaki 70ZIV?
The oil tank group on page 20 lists return filter assembly 40338-20020 for the Kawasaki 70ZIV, from serial 7001. p. 20
Is this Kawasaki 70ZIV manual a download or a disc?
A 343-page Parts Catalog in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Does this Kawasaki 70ZIV manual allow printing?
Yes. Many buyers print one chapter at a time for their own shop and keep the rest on a tablet.
