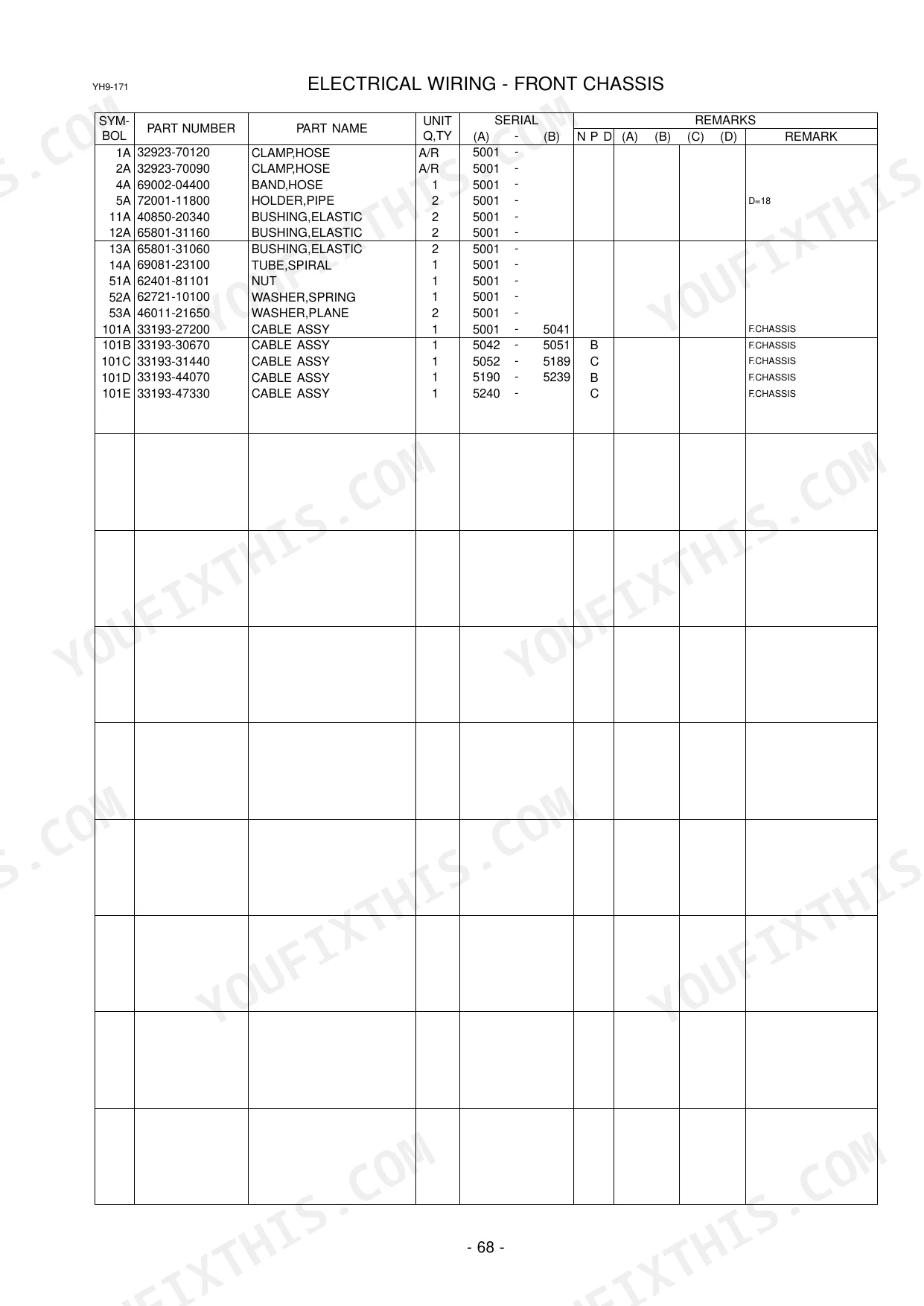

A worn center pin bushing is a simple fix until the parts counter asks for a number you cannot read off the old one. The Kawasaki 70Z V parts catalog PDF, OEM number 93308-00144, gives you that number across 616 pages of exploded views and parts lists for this wheel loader. Each group drawing breaks an assembly into numbered components, from the front and rear chassis and lift arm group through the torque converter, clutch groups and both differentials. Wiring layouts for the chassis and cab sit beside the lamp and relay mounts, while the loading hydraulic pages trace the pilot lines, control valve and lift and tilt cylinders down to the fittings. Look up the Orbitroll, kickout group or high lift arm option by name before your order goes in. A guessed part number buys the wrong seal kit. Bookmarks jump between groups on screen, and printed sheets can go to the bench and soak up hydraulic oil.

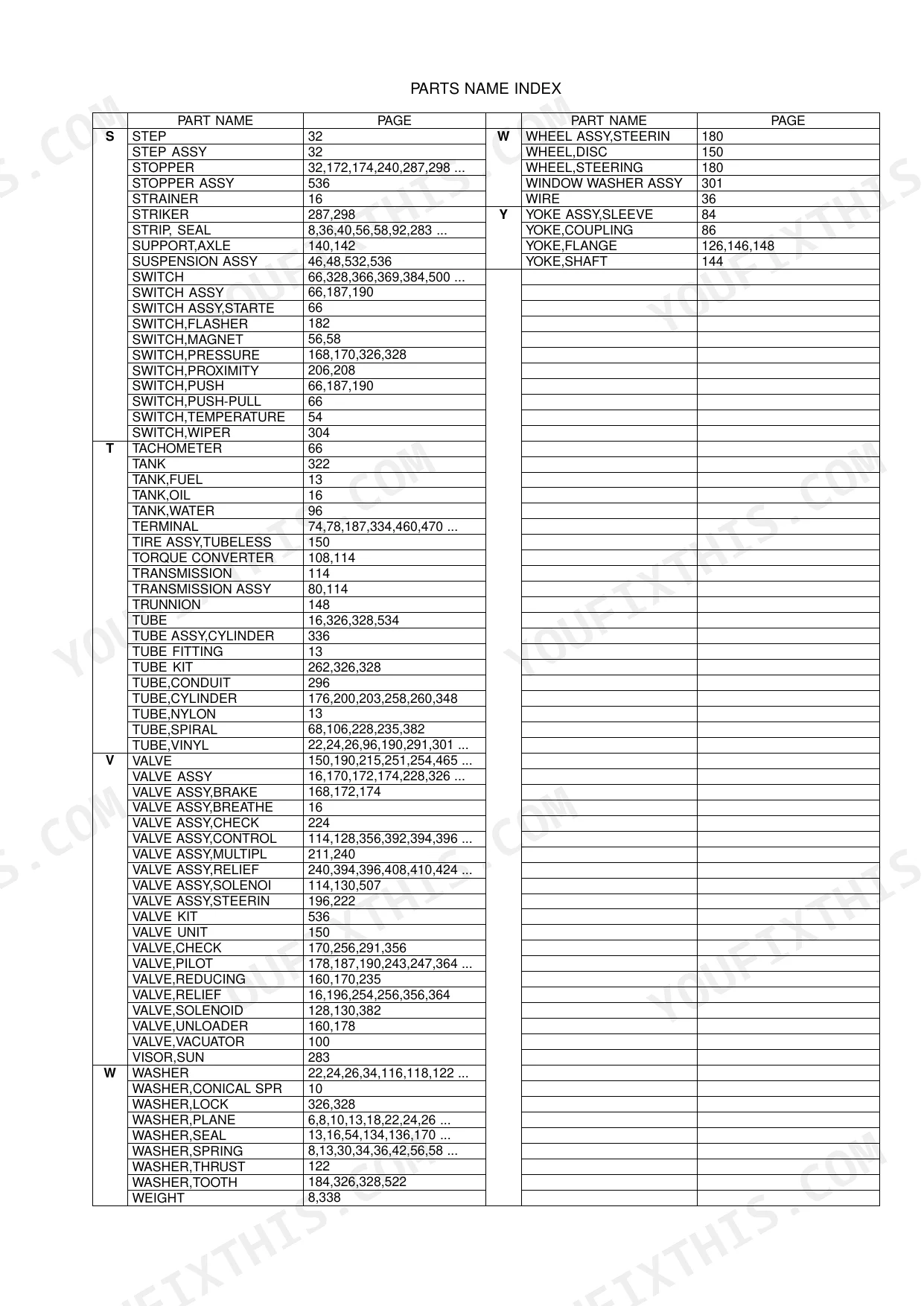

What's Inside This Kawasaki 70Z V Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Chassis and Electrical System | 54-129 | Front Chassis Group, Lift Arm Group, Pin Mount, Rear Chassis Group, Center Pin Group, Fuel Tank Group, Oil Tank Group, Floor Board Group |
| Power System | 130-155 | Power Group, Drain Line, 2nd Propeller Shaft, 3rd Propeller Shaft, Radiator Group, Radiator, Oil Motor, Water Line |

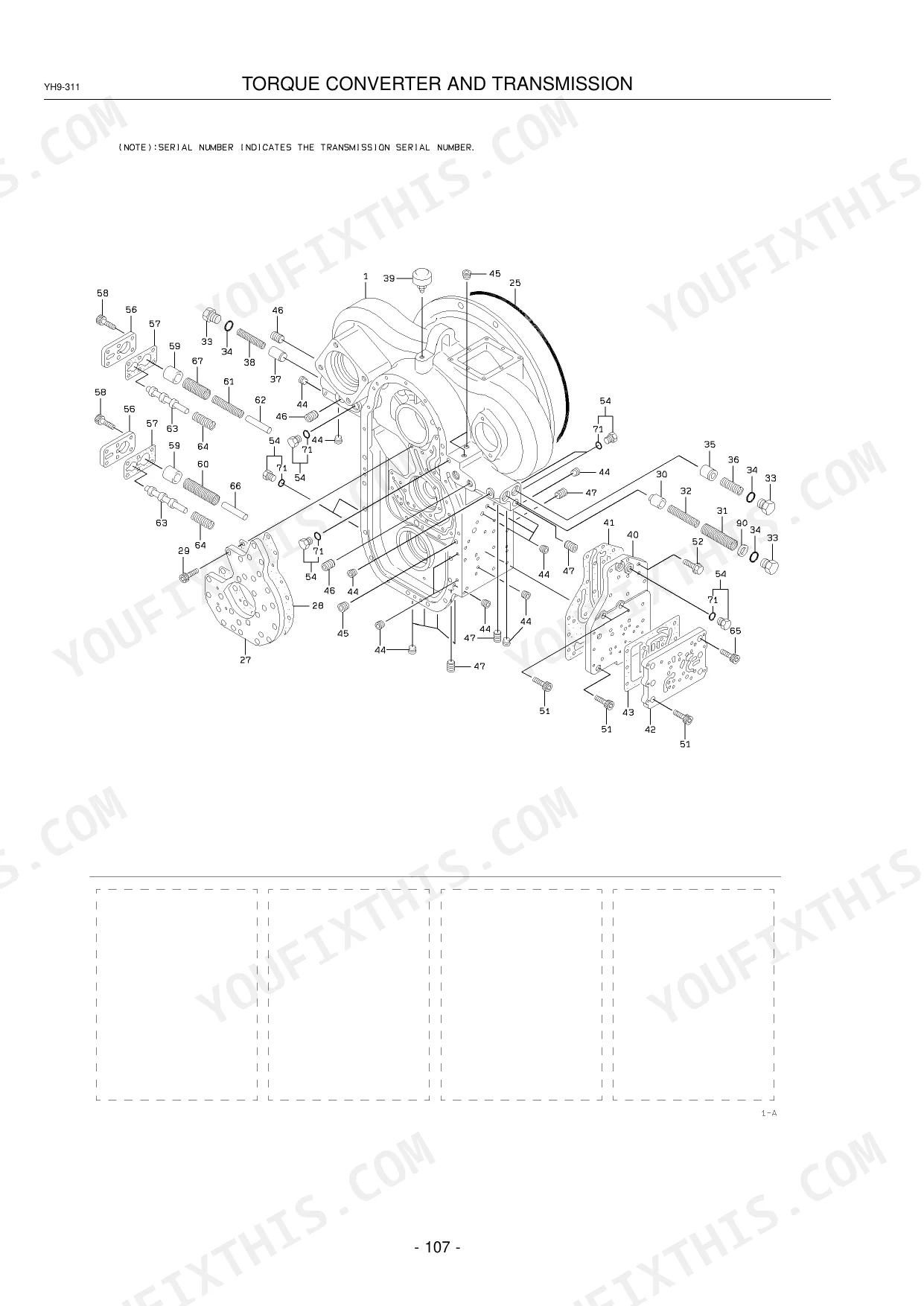

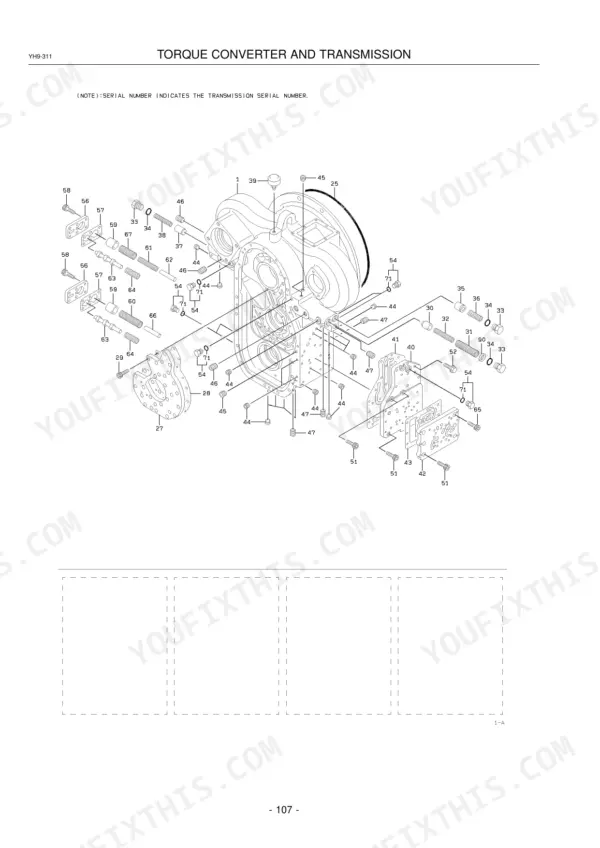

| Torque Converter and Transmission System | 156-183 | Transmission Hydraulic Line, Torque Converter and Transmission, Torque Converter Input Shaft Group, Torque Converter Gear Group, Transmission, Transmission Case Group |
| Axle and Differential | 184-201 | Front Axle Group, Rear Axle Group, Axle Support Group, Front Differential, Rear Differential, Tire & Wheel Group |
| Brake System | 202-229 | Brake Line, Air Breather Mount, Parking Brake Group, Brake Valve Group, Valve Unit, Brake Valve, Oil Cylinder, Unloader Valve |
| Control System | 230-259 | Steering Wheel Mount, Shift Lever Group, Tilt Case Group, Valve Control Group, Fuel Control Group, Steering Cylinder Group, Steering Valve, Orbitroll |

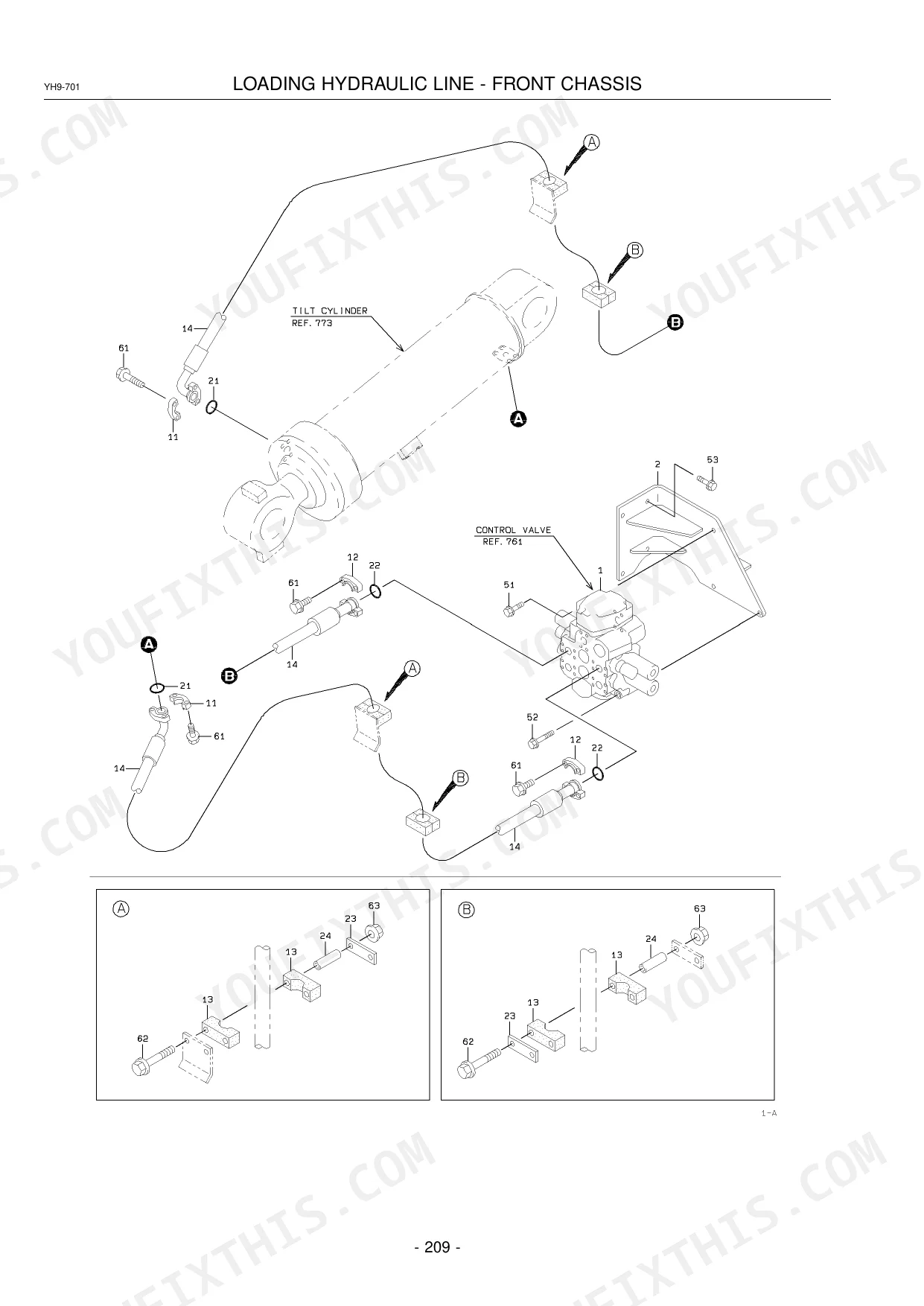

| Loading Hydraulic System | 260-315 | Loading Hydraulic Line, Hydraulic Line - Fan Motor, Pilot Hydraulic Line, Oil Pump, Control Valve, Pilot Valve, Valve Group, Fan Motor Valve |
| Accessories, Bucket, Etc | 316-329 | Bucket, Marking Group, Cap Mount, Lock Group, Repair & Maintenance Parts |

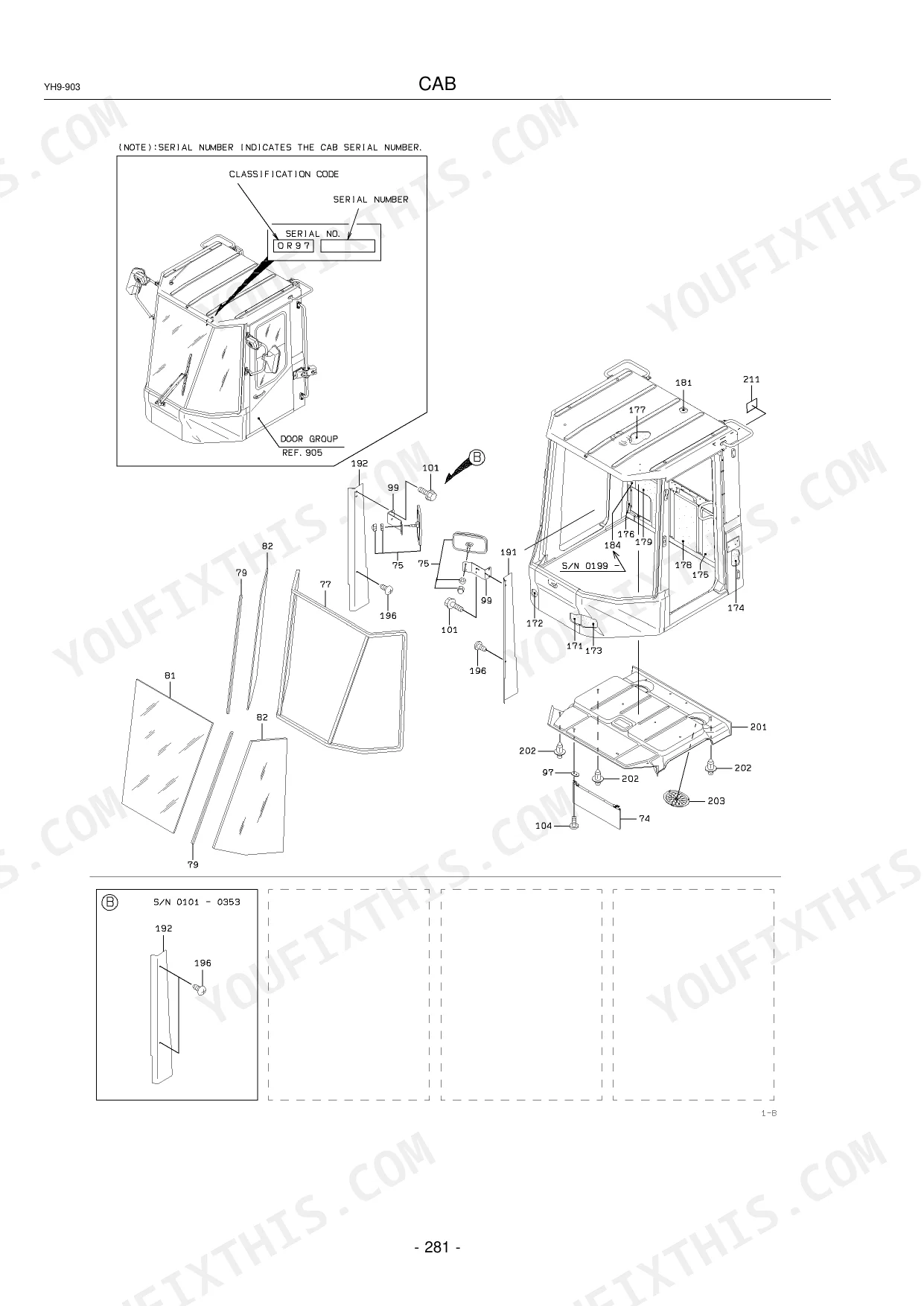

| Cab | 330-385 | Mount, Door Group, Front Wiper & Window Washer Group |
| Tilt Cylinder | 386-387 | Logging, High Lift Arm Spec |
| Option Weight | 388-389 | Log |
| Belly Guard | 390-393 | Front |
| Rear Glill Group | 394-395 | Steel Plate |
| Lift Arm | 396-589 | High Lift Arm Spec |
Kawasaki 70Z V Common Problems This Manual Covers
Kawasaki 70Z V lift arm and bucket link bushings worn out, need correct bushing and dust seal part numbers
Check the Lift Arm Group list on page 55 before ordering. For the bucket link, order bushing 40840-25150 (qty 2) and dust seal 65051-01608 (qty 4). Lift arm bushings are 40840-20300, 63422-42590 and 63422-43780, two each, with dust seal assy 34020-20040. Order seals with bushings; a new bushing behind an old seal won't last.
Manual Section: Chassis and Electrical System p. 55Lift arm and bucket pivot pins worn or scored, need pin part number by diameter and length
Measure the removed pin and match it to the Pin Mount list on page 57, where each pin carries its size. The largest, 40000-26170, is D=110 X 353L; 40000-25970 is D=90 X 303L; 40000-26000 is D=70 X 266L. Order grease nipples 75011-25400 (qty 7) and 75011-45400 (qty 5) while the pins are out.
Manual Section: Chassis and Electrical System p. 57Pin mount plate quantity differs between serial numbers when rebuilding lift arm pin joints
Verify your serial number against the Pin Mount list on page 57 before ordering plates. Plate 41621-20200 is qty 6 for S/N 5001 to 5086 and qty 10 from 5087 on. Thin plates 41621-20290 and 41621-20140 (T=1) are listed as required, so count what came out of each joint.
Manual Section: Chassis and Electrical System p. 57Loader controller unit failed, replacement part number changes by serial number range
Check your serial number first, then the Electrical Parts Mount list on page 107. Controller unit 33410-61280 covers S/N 5001 to 5130, 33410-61490 covers 5131 to 5264, and 33410-61810 covers 5300 to 5340. Machines from 5341 on use 33410-61810 per page 109. The converter also splits: 33460-60070 to 5229, 33460-60150 from 5230.
Manual Section: Electrical Parts Mount p. 107Blown fuse in the electrical parts mount fuse box, need 24V rating and part number
Match the rating marked on the blown fuse to the Electrical Parts Mount list on page 107 (page 109 for S/N 5341 on). Order 39880-70130 for 24V5A, 39880-70110 for 24V10A, 39880-70100 for 24V15A, 39880-70090 for 24V20A, 39880-70120 for 24V3A and 39880-70310 for 24V7.5A. Larger fuses are 39880-70250 (24V30A) and 39880-70220 (24V70A).
Manual Section: Electrical Parts Mount p. 107Warning buzzer or battery relay needs replacing, part numbers unclear on the electrical parts mount
Check the Electrical Parts Mount list on page 107 for your serial range. Buzzer 40810-20020 and battery relay 45058-20010 carry one part number across all serials, also confirmed on page 109. Relay 45050-70310 runs qty 5 to S/N 5130, qty 6 from 5131 to 5340, and qty 5 again from 5341.
Manual Section: Electrical Parts Mount p. 107Frequently Asked Questions
Which flanged bolts does the Kawasaki 70Z V front axle group use?
The front axle group uses flanged bolts 61805-24060, quantity 28, from S/N 5001, as listed on page 185. p. 185

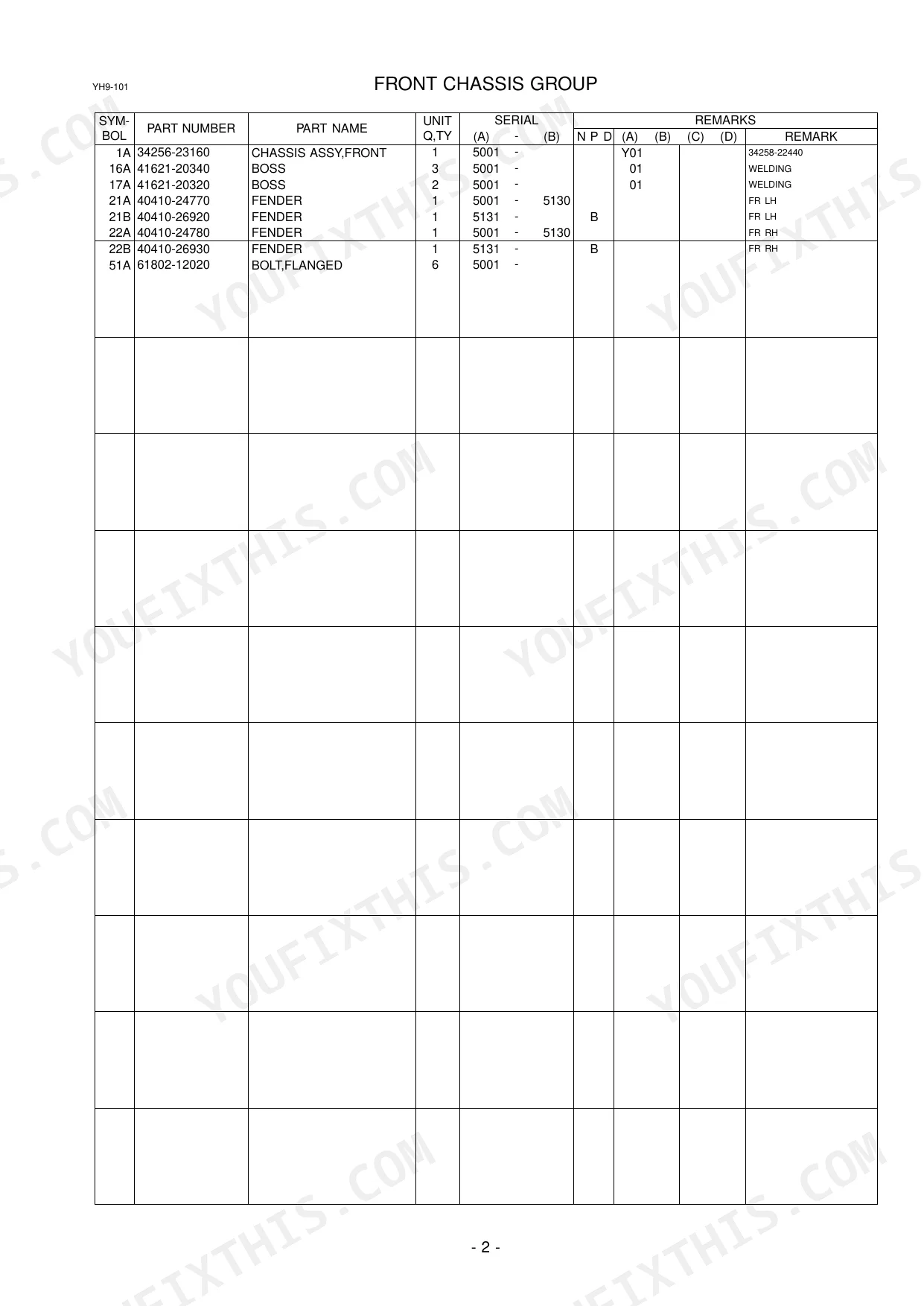

What is the part number for the left front fender on the Kawasaki 70Z V wheel loader?
The part number for the front left fender (FR LH) is 40410-24770 for serial numbers 5001 through 5130, and 40410-26920 for serial numbers 5131 and later. These parts are located in the Front Chassis Group on page 53. p. 53
What is the part number for the air cleaner element on the Kawasaki 70Z V wheel loader?
The air cleaner takes both filter elements, 30981-70370 and 30981-70360, quantity 1 each, from S/N 5001, as listed on page 151. p. 151
What is the engine oil filter part number for the Kawasaki 70Z V wheel loader?
The engine oil filter is not listed in this parts catalog. Refer to the Engine Parts Catalog, which is offered separately as noted on page 11. Part number 30981-70330 on page 67 is the oil tank filter element in the Oil Tank Group, not the engine oil filter. p. 67
How will I receive this Kawasaki 70Z V Parts Catalog?
You get a 616-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Is this Kawasaki 70Z V Parts Catalog printable?
Yes. Print the sections you need to take out to the shop for your own use. Standard letter or A4 paper works.
