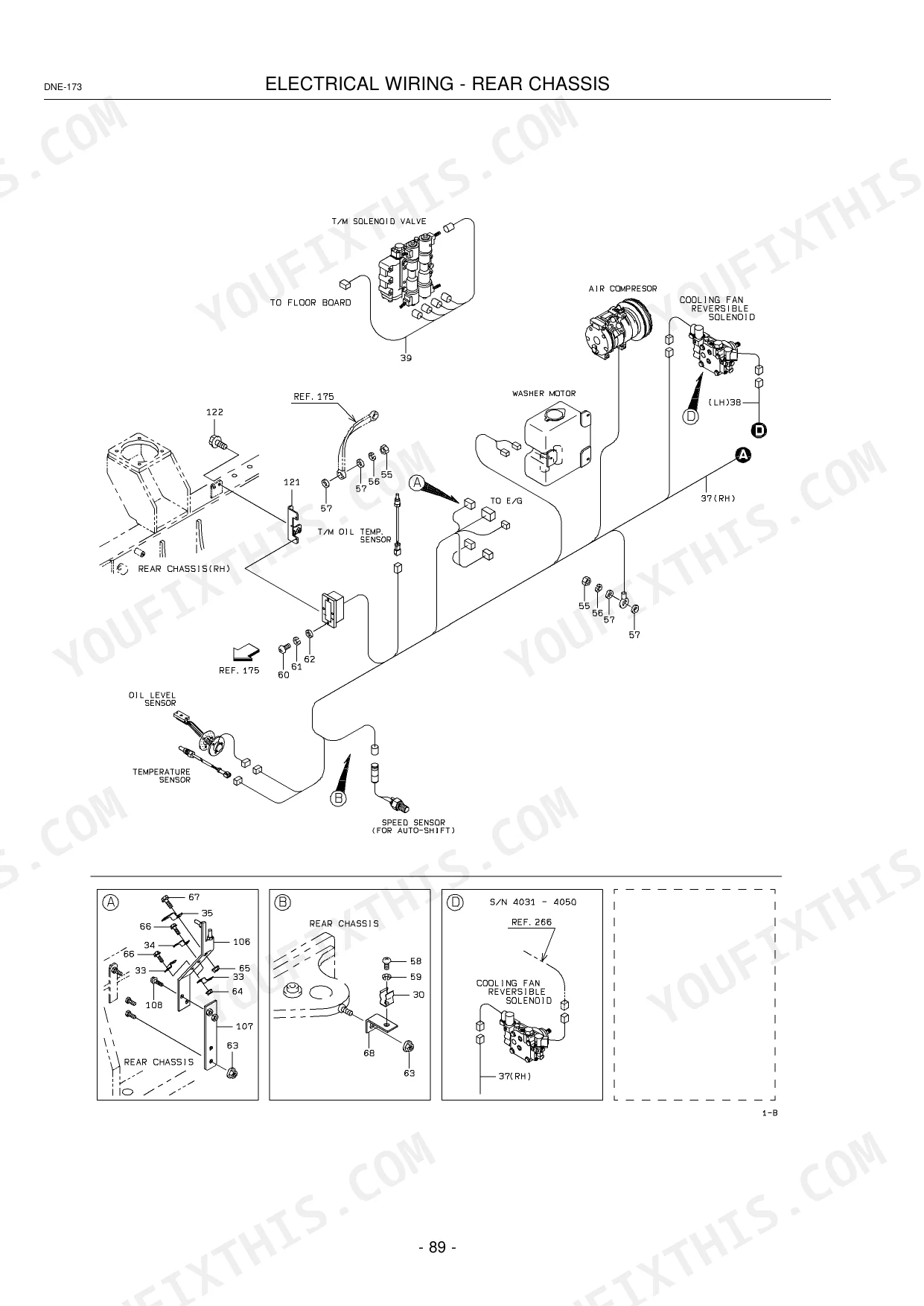

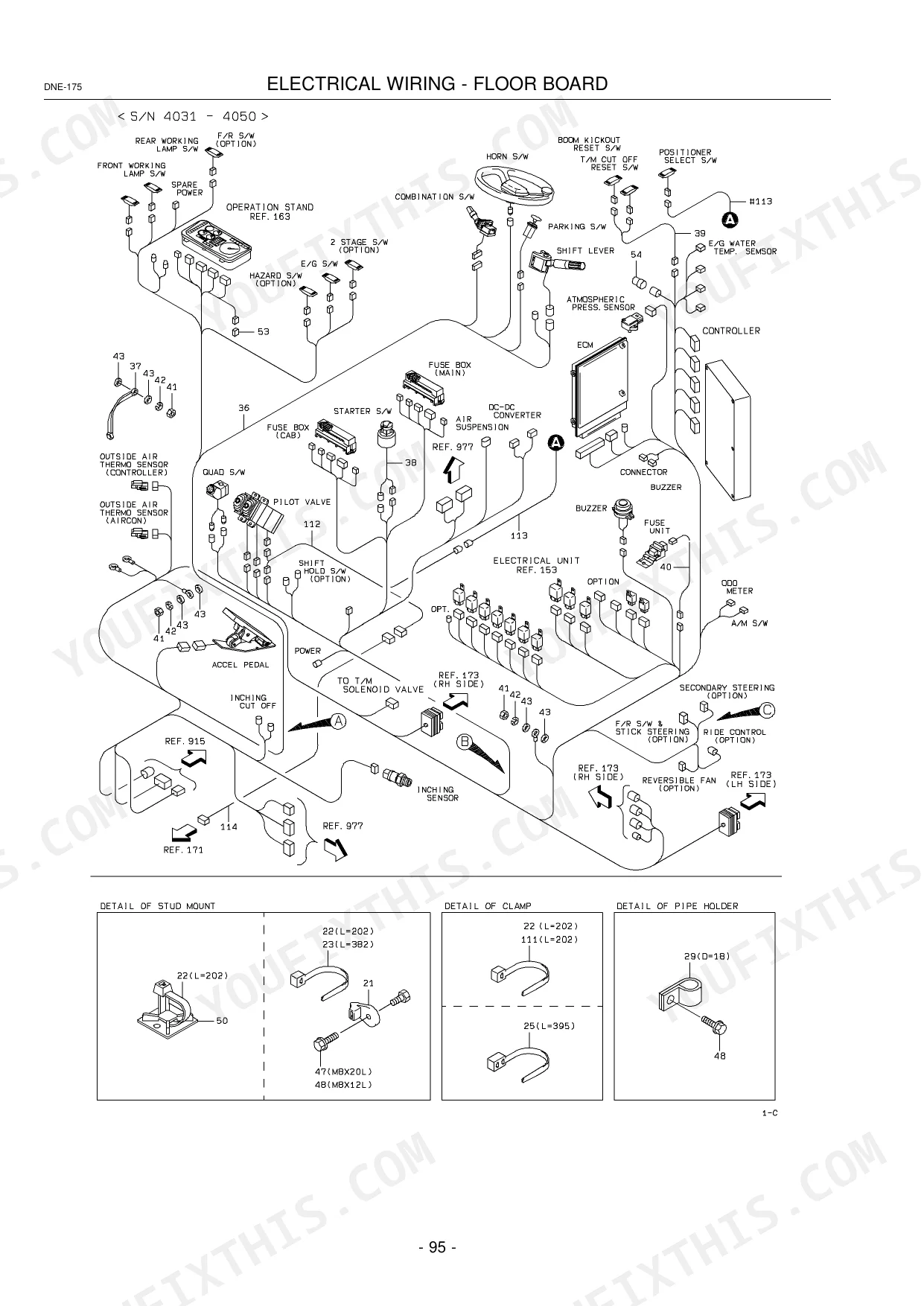

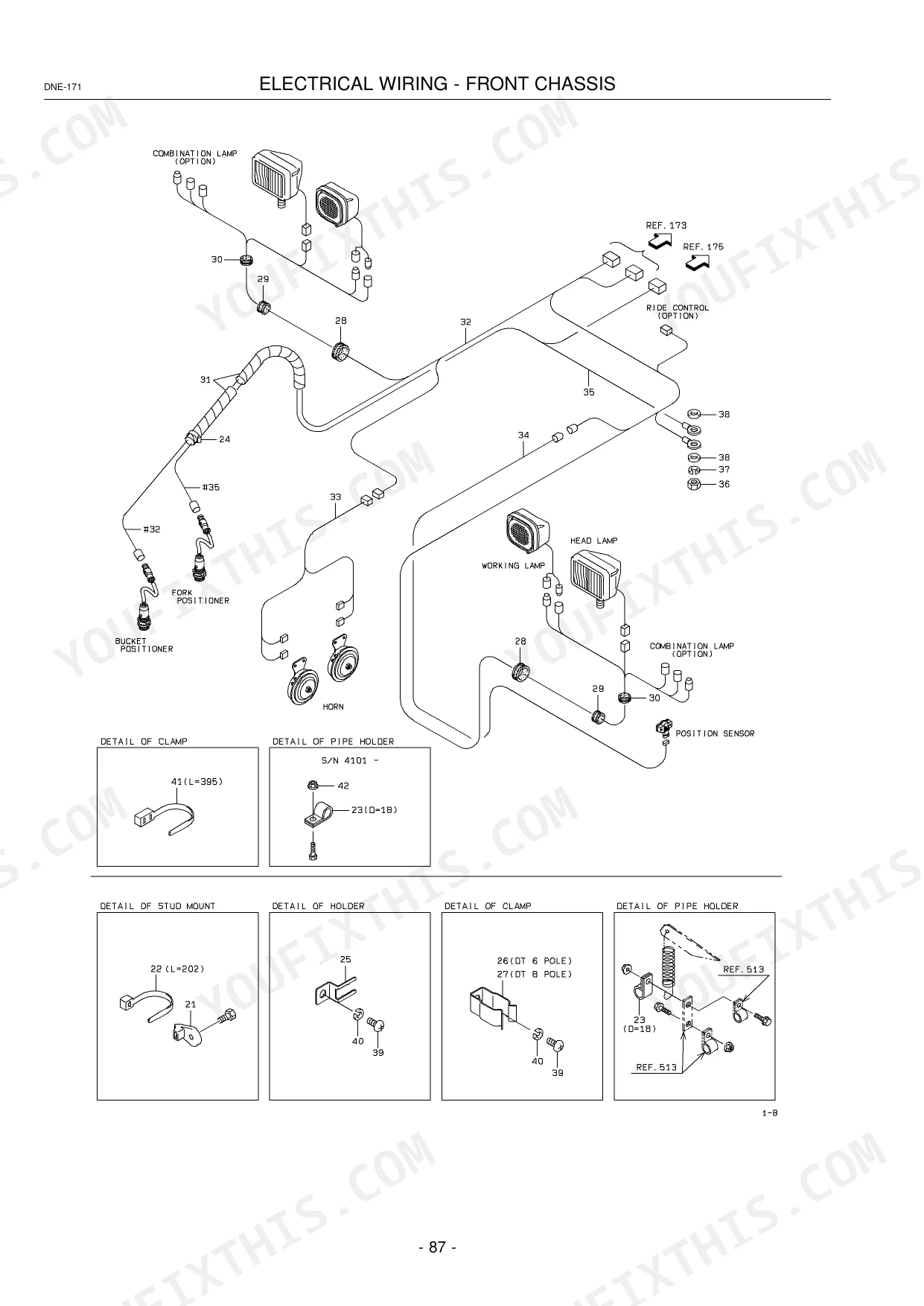

Torque converter clutch packs and the loader valve are where parts orders go wrong most often, and this Kawasaki 65TMV-2 parts catalog PDF (OEM ID 93307-00443) breaks both into exploded views before widening to the rest of the wheel loader across 516 pages. Wiring harness groups for the front chassis, rear chassis, floor board and cab identify each harness by part number, while a long USA spec option section covers dual lever and 3-way piping, ride control and secondary steering. Axles, differentials, brake valves, Orbitrol steering and the cab air conditioner get their own groups too. Match the callout on the illustration to its part number, then confirm it in the Parts No. Index before you order. A wrong seal kit can park a loader all week. Bookmarked and text searchable, your copy rides on the laptop in the service truck, wherever the loader is working.
What's Inside This Kawasaki 65TMV-2 Parts Manual
| System | Pages | Key Topics |
|---|---|---|

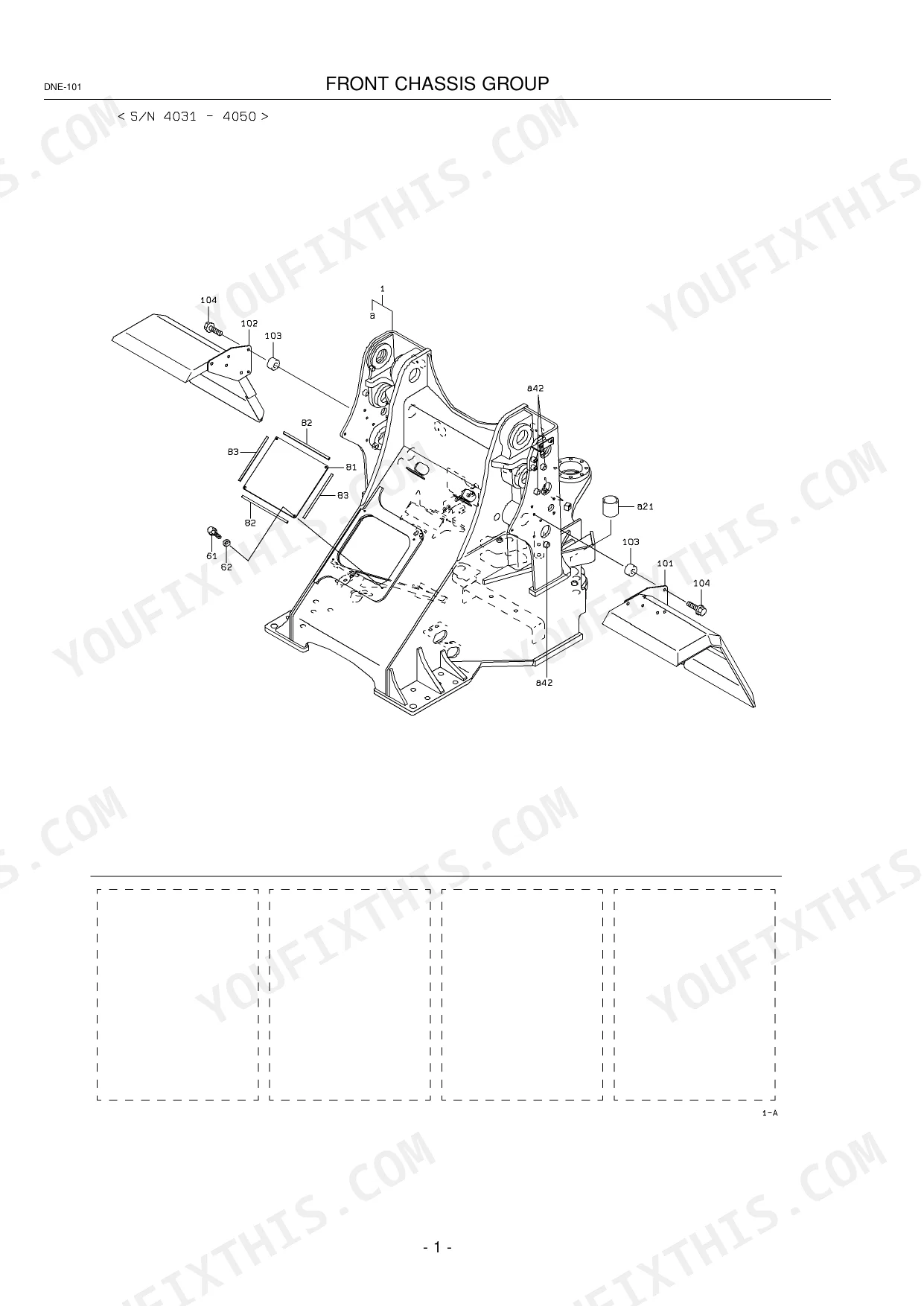

| Chassis and Electrical System | 3-157 | Front Chassis Group, Lift Arm Group, Pin Mount, Rear Chassis Group, Center Pin Group, Fuel Tank Group, Oil Tank Group, Floor Board Group |

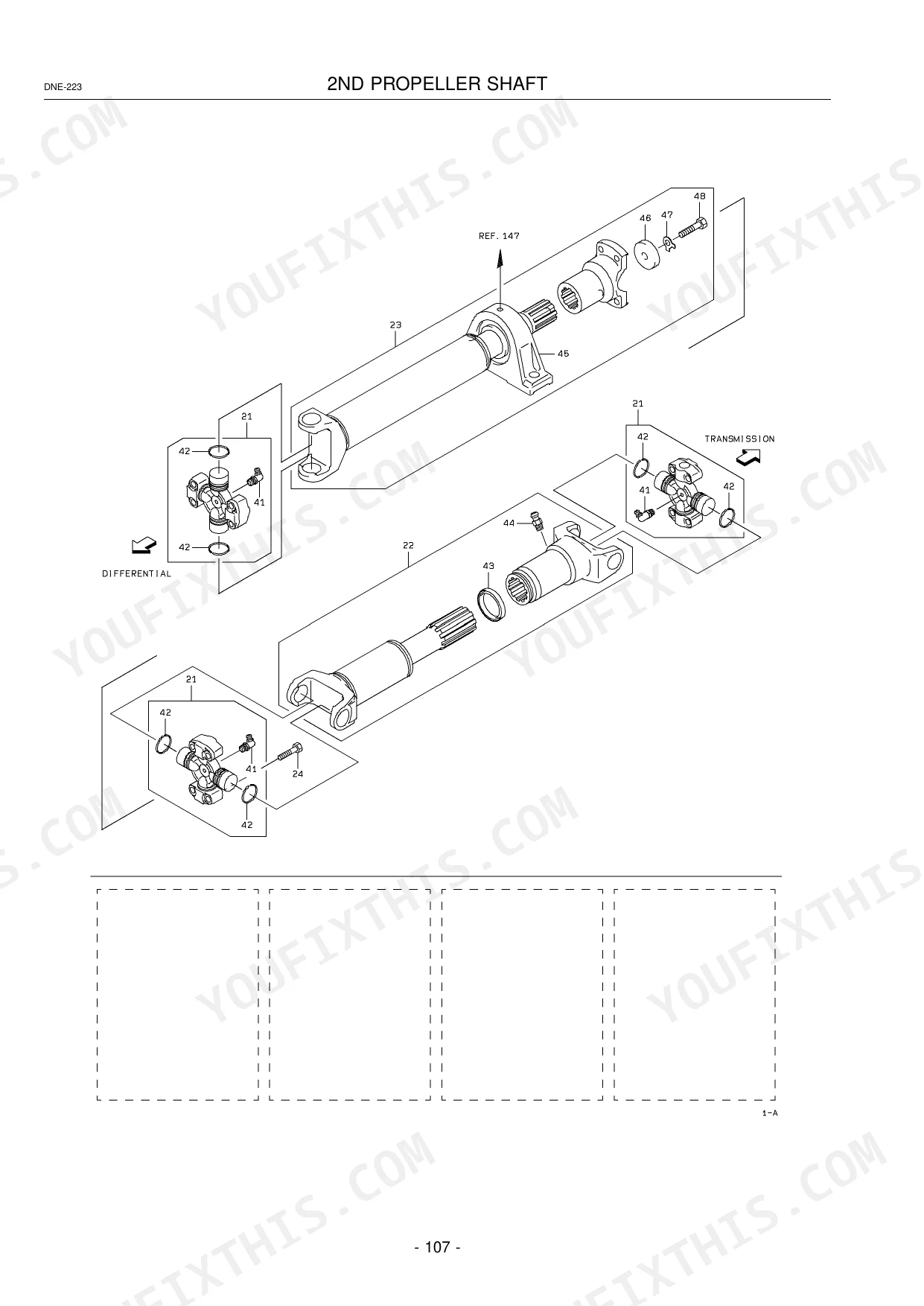

| Power System | 158-197 | Power Group, Drain Line, 2nd Propeller Shaft, 3rd Propeller Shaft, Radiator Mount, Cooling Unit Mount, Radiator Group, Fan Motor |

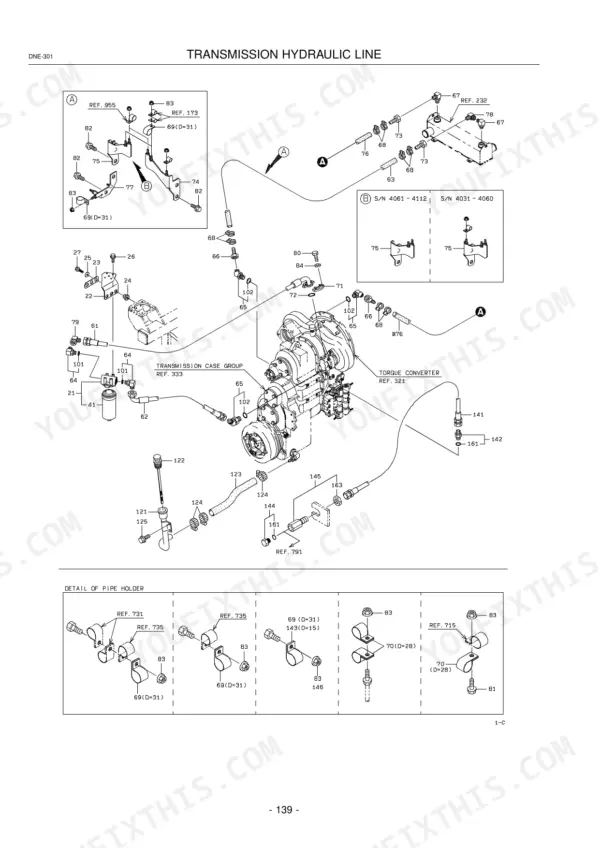

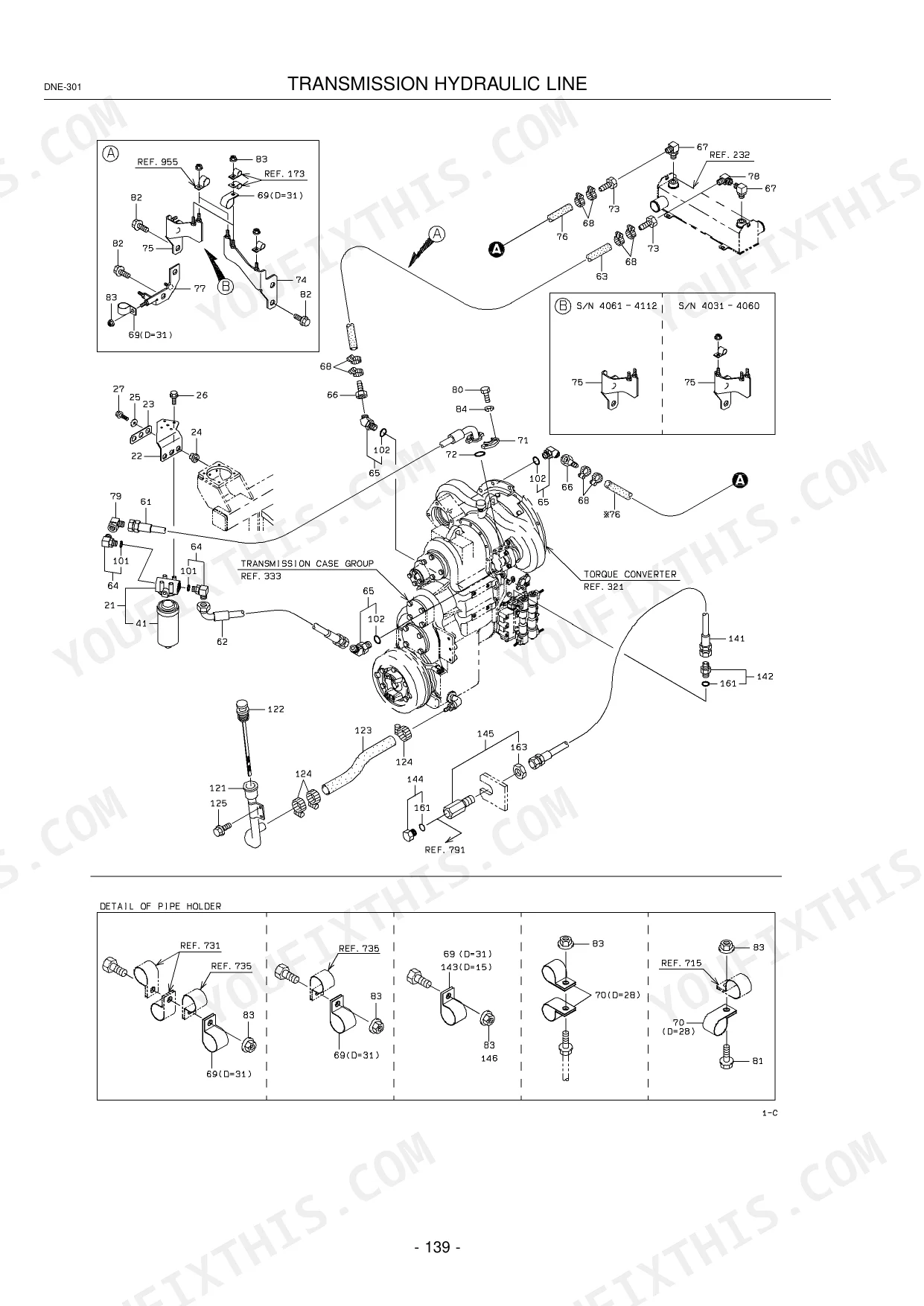

| Torque Converter and Transmission System | 198-221 | Transmission Hydraulic Line, Transmission, Torque Converter, Transmission Case Group, Forward & Reverse Clutch, 1st & 2nd Clutch, 3rd & 4th Clutch, Output Shaft Group |
| Axle and Differential | 222-233 | Front Axle Group, Rear Axle Group, Axle Support Group, Front Differential, Rear Differential, Tire & Wheel Group |
| Brake System | 234-265 | Brake Line Floor Board, Brake Line Rear Chassis, Brake Line Front Axle, Brake Line Rear Axle, Brake Line Accumulator, Parking Brake Line, Unloader Valve Mount |
| Control System | 266-289 | Steering Wheel Mount, Shift Lever Group, Tilt Case Group, Valve Control Group, Safety Device Assy, Fuel Control Group, Steering Cylinder Group, Orbitrol |
| Loading Hydraulic System | 290-325 | Loading Hydraulic Line Front Chassis, Loading Hydraulic Line Boom, Loading Hydraulic Line Rear Chassis, Loading Hydraulic Line Oil Cooler, Hydraulic Line Fan Motor |
| Bucket, Accessories, Etc | 326-337 | Bucket for General Purpose, Marking Group, Cap Mount, Lock Group, Repair & Maintenance Parts |
| Cab Option | 338-364 | Cab Mount, Cab, Door Group for LH, Door Group for RH, Cab Accessory, Front Wiper & Window Washer Group, Box & Switch Mount, Electrical Parts Group |
| Tmv-2 Option USA Spec | 365-439 | Front Large Fender, Radiator Group, Valve Control Group, Control Box Group, Pilot Hydraulic Line, Pilot Valve |
Kawasaki 65TMV-2 Common Problems This Manual Covers

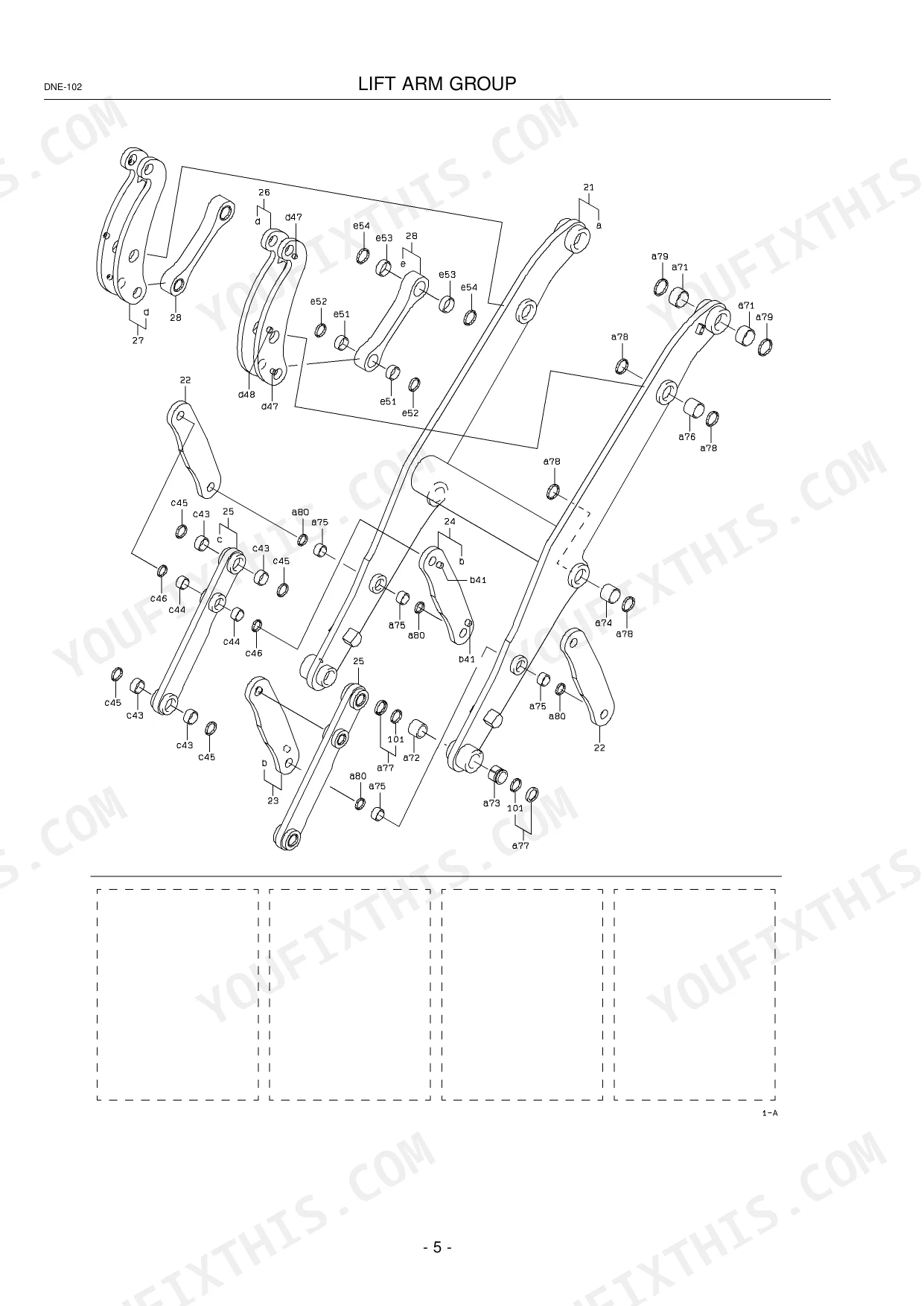

Kawasaki 65TMV-2 lift arm group and pin mount parts hard to identify when ordering replacements
Check the boom and attachment parts diagram before you pull a single pin. Match each callout in the Lift Arm Group (DNE-102, page 62) and Pin Mount listings to the part in your hand, then confirm the reference number against the parts list. Verify your serial number range before ordering so the right hardware shows up.
Manual Section: Chassis and Electrical System p. 62Loading hydraulic line on the boom weeping oil and replacement line part number unclear
Check the Loading Hydraulic System section on page 290 and open the Loading Hydraulic Line Boom view. Trace the leaking line between the control valve and the lift or tilt cylinder, match its callout, and pull the part number from the list. Front chassis, rear chassis and oil cooler lines each have their own views.
Manual Section: Loading Hydraulic System p. 290Radiator, cooling unit mount or fan motor parts hard to identify for an overheating loader
Check the Power System section beginning on page 158 for the Radiator Group, Cooling Unit Mount and Fan Motor listings. Match each callout to the damaged part and record the number from the parts list. USA spec machines carry a separate Radiator Group in the TMV-2 option section starting on page 365, so verify your build before ordering.
Manual Section: Power System p. 158Forward and reverse clutch or 1st and 2nd clutch parts hard to identify for transmission work
Check the Torque Converter and Transmission System section on page 198. Clutch parts are split across the Forward & Reverse Clutch, 1st & 2nd Clutch and 3rd & 4th Clutch views, with the Transmission Case Group and Output Shaft Group listed separately. Match each callout to the exploded view and record the part numbers before teardown.
Manual Section: Torque Converter and Transmission System p. 198Brake accumulator line or unloader valve mount parts hard to locate in the brake listings
Check the Brake System section on page 234. Brake lines are broken out by floor board, rear chassis, front axle, rear axle and accumulator, with the Parking Brake Line and Unloader Valve Mount on their own views. Pick the view that matches the component in hand, match the callout, and verify the part number against the list.
Manual Section: Brake System p. 234General purpose bucket and repair and maintenance part numbers hard to find when reordering
Check the Bucket, Accessories, Etc section on page 326. The Bucket for General Purpose has its own exploded view, and the Repair & Maintenance Parts listing groups the service items you reorder most. Record those part numbers once, confirm them against your serial number, and keep them in the service log so the next order goes quickly.
Manual Section: Bucket, Accessories, Etc p. 326Frequently Asked Questions
What are the replacement specifications for the air cleaner element on the Kawasaki 65TMV-2?
The air cleaner element is part of the Air Cleaner Group. The primary filter element part number is 30981-70800 and the secondary element part number is 30981-70810. p. 183
What is the part number for the engine oil filter element on the Kawasaki 65TMV-2 wheel loader?
The engine oil filter element for the 4HK1X engine is part number 50101-04650. p. 191
What is the part number for the transmission oil filter on the Kawasaki 65TMV-2 wheel loader?
The transmission oil filter element is part number 40330-60340. p. 199
What is the part number for the pilot hydraulic filter element on the Kawasaki 65TMV-2?
The pilot hydraulic filter element is part number 40337-60370. p. 257
What is the part number for the air conditioner filter on the Kawasaki 65TMV-2 wheel loader?
The air conditioner filter is part number 40330-60270. p. 384
How quickly can I access this Kawasaki 65TMV-2 manual after buying?
A single searchable PDF file of 516 pages, downloadable right after payment. Nothing ships, nothing waits in the mail.
Can I print this Kawasaki 65TMV-2 manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
