Written for the Kawasaki (KCM) 70Z7 wheel loader and printed under OEM number 93108-00723, this 383-page Kawasaki (KCM) 70Z7 operator manual PDF opens by showing you where the machine, engine and product identification numbers sit, so you can confirm the fit. Maintenance fills close to a third of the book, from preparation and periodic parts replacement through the inspection table that sets every service interval, and the operator's station section works through the front console, right console and monitor panel. Loading control levers, excavation, trailer tie-down, the articulation lock bar and the quick coupler each get their own pages, and the closing troubleshooting section sorts engine, fuel, battery, steering and hydraulic complaints by cause. Count on 150 liters (40 gallons) in the hydraulic oil tank, and check drive belt tension every 250 hours. A 20 A fuse in a 5 A headlamp slot costs you a harness. Bookmarks and a searchable text layer put the fuse chart or service table two clicks away.
What's Inside This Kawasaki 70Z7 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Machine Numbers | 10-11 | Machine Serial Number, Engine Serial Number, Product Identification Number, Hydraulic Components |
| Safety | 12-49 | Recognize Safety Information, Understand Signal Words, Follow Safety Instructions, Prepare for Emergencies, Wear Protective Clothing, Protect Against Noise, Inspect Machine |
| Safety Labels | 50-59 | Bucket, Lift Arm, Battery Box, Engine Housing, Oil Cooler, Articulation Lock Bar |
| Components Name | 60-61 | Cutting Edge, Bucket, Lift Arm, Hydraulic Oil Tank, Radiator, Transmission |
| Getting on/Off the Machine | 62 | Foot Holds, Handrails, Cab Door, Door Handle |

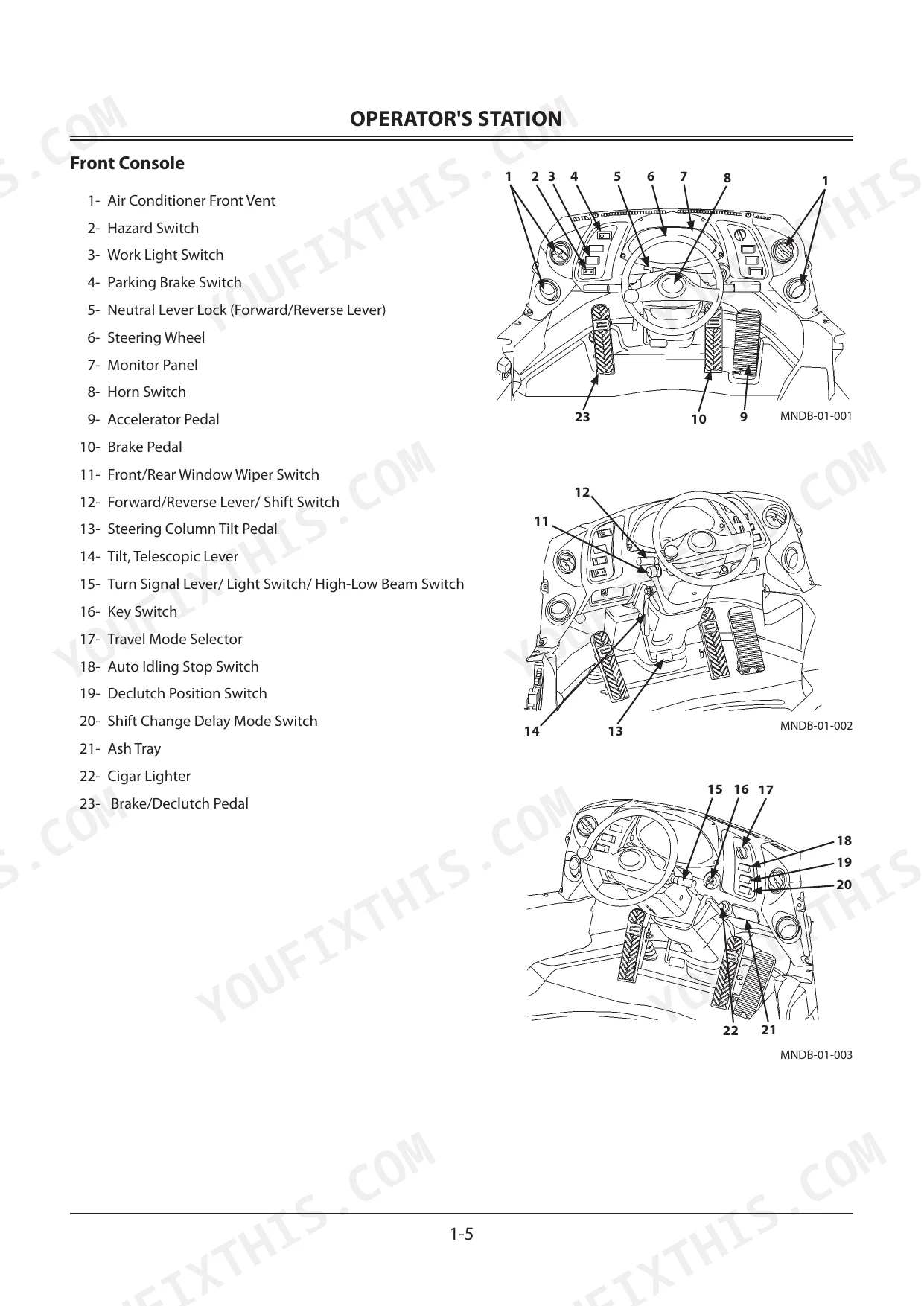

| Operator's Station | 63-175 | Cab Features, Front Console, Right Console, Monitor Panel |
| Break-In | 176-177 | Break-In Period, ECO Mode, Warm Up, Lubrication, Engine RPM |
| Operating the Engine | 178-191 | Inspect Machine Daily Before Starting, Check Before Starting, Starting Engine |

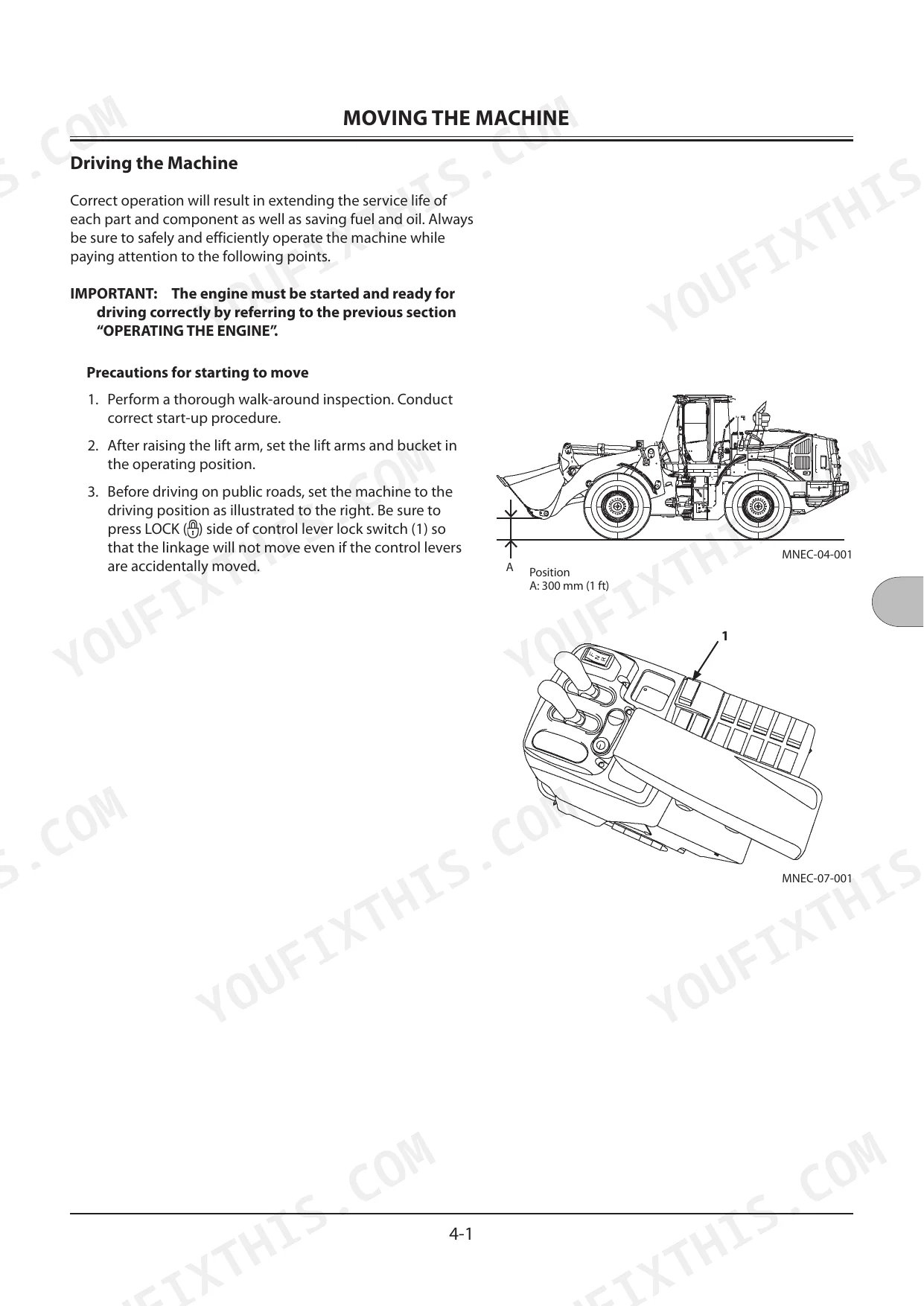

| Moving the Machine | 192-211 | Driving the Machine, Starting to Move, Parking Brake Switch |
| Operating the Machine | 212-233 | Loading Control Levers, Excavation, Loading |
| Transporting | 234-243 | Transporting by Road, Loading / Unloading on Trailer, Fastening Machine for Transporting |

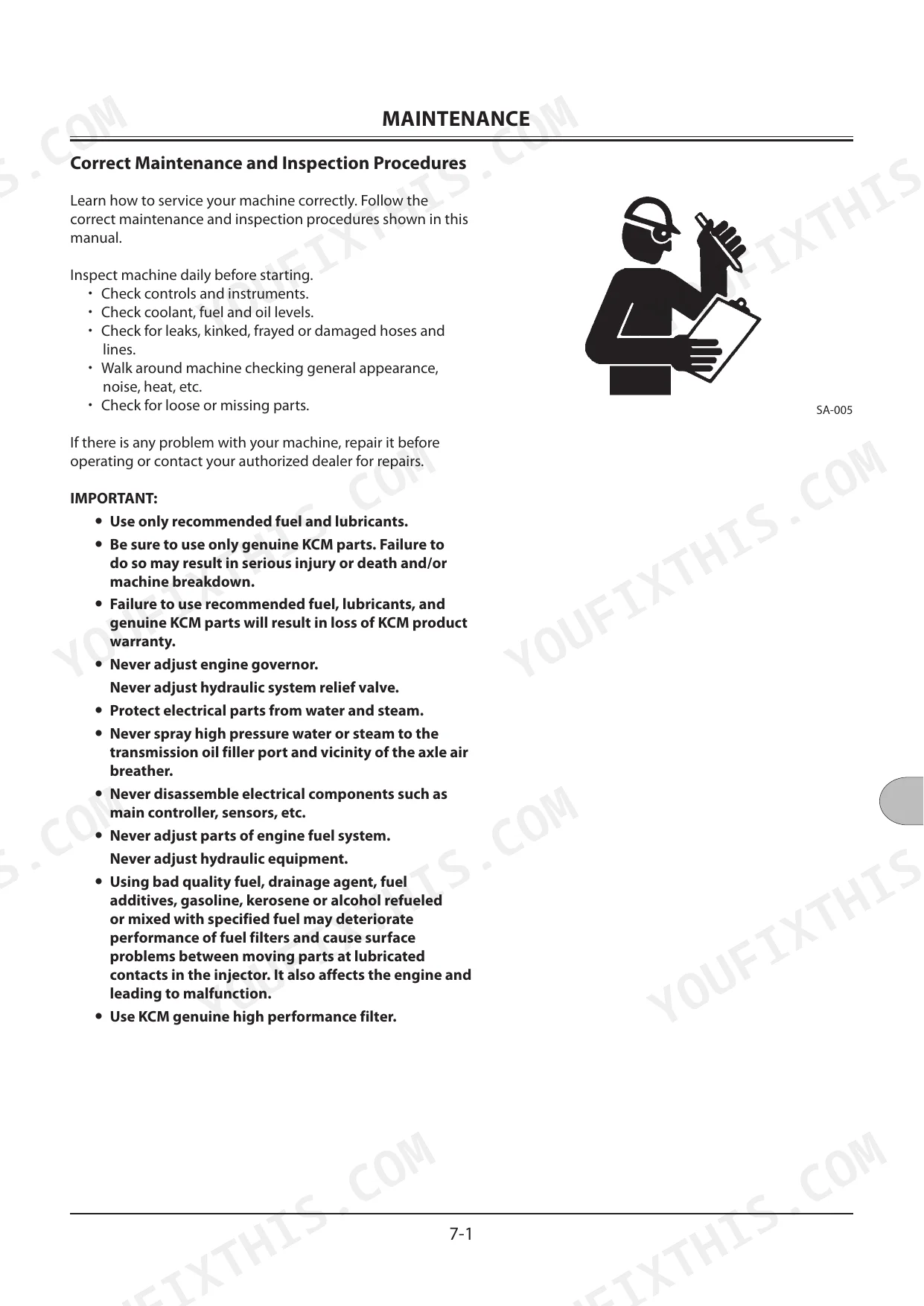

| Maintenance | 244-361 | Correct Maintenance and Inspection Procedures, Preparations for Inspection and Maintenance, Periodic Replacement of Parts, Inspection and Maintenance Table |
| Maintenance Under Special Environmental Conditions | 362-365 | Muddy Soil, Dusty Atmosphere, Rocky Ground, Freezing Weather, Engine Compartment, Radiator |
| Storage | 366-369 | Long-Time Storage, Battery, Coolant, Cylinder Rods, Fuel Tank, Periodic Operation |
| Troubleshooting | 370-373 | Engine, Batteries, Fuel System, Control Lever, Hydraulic System, Steering Wheel |
| Specifications | 374-375 | Bucket Capacity, Operating Weight, Tipping Load, Engine, Transmission Speeds, Tire Size |
| Other Attachments and Device | 376-379 | Quick Coupler |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Diesel fuel sulfur content | 15 ppm or lower | p. 2 |
| Fuse Box A - Head Lamp LH | 5 A | p. 153 |
| Fuse Box A - Head Lamp RH | 5 A | p. 153 |
| Drive Belt Tension | Check at 250 hours | p. 256 |
| Hydraulic oil tank capacity | 150 liters (40 gallons) | p. 286 |
| Operating Weight | 14180 kg | p. 374 |
| Air inlet system clamp tightening torque | 8 N·m (0.8 kg·m, 6 lbf·ft) | p. 311 |
| Wheel Bolt Torque | 890 N·m (91 kgf·m, 655 lbf·ft) | p. 330 |
| Brake Pedal Stroke Play | 7 to 16 mm (0.3 to 0.6 inch) | p. 325 |
| Bucket teeth tightening torque | 1090 N·m (111 kgf·m, 805 lbf·ft) | p. 342 |
| Cutting edge tightening torque | 1980 N·m (202 kgf·m, 1460 lbf·ft) | p. 342 |
| Air conditioner compressor belt deflection | Approx. 6 mm (0.2 in) | p. 339 |
Kawasaki 70Z7 Common Problems This Manual Covers
Kawasaki (KCM) 70Z7 wheel loader in steady loading work with engine coolant temperature reading too high

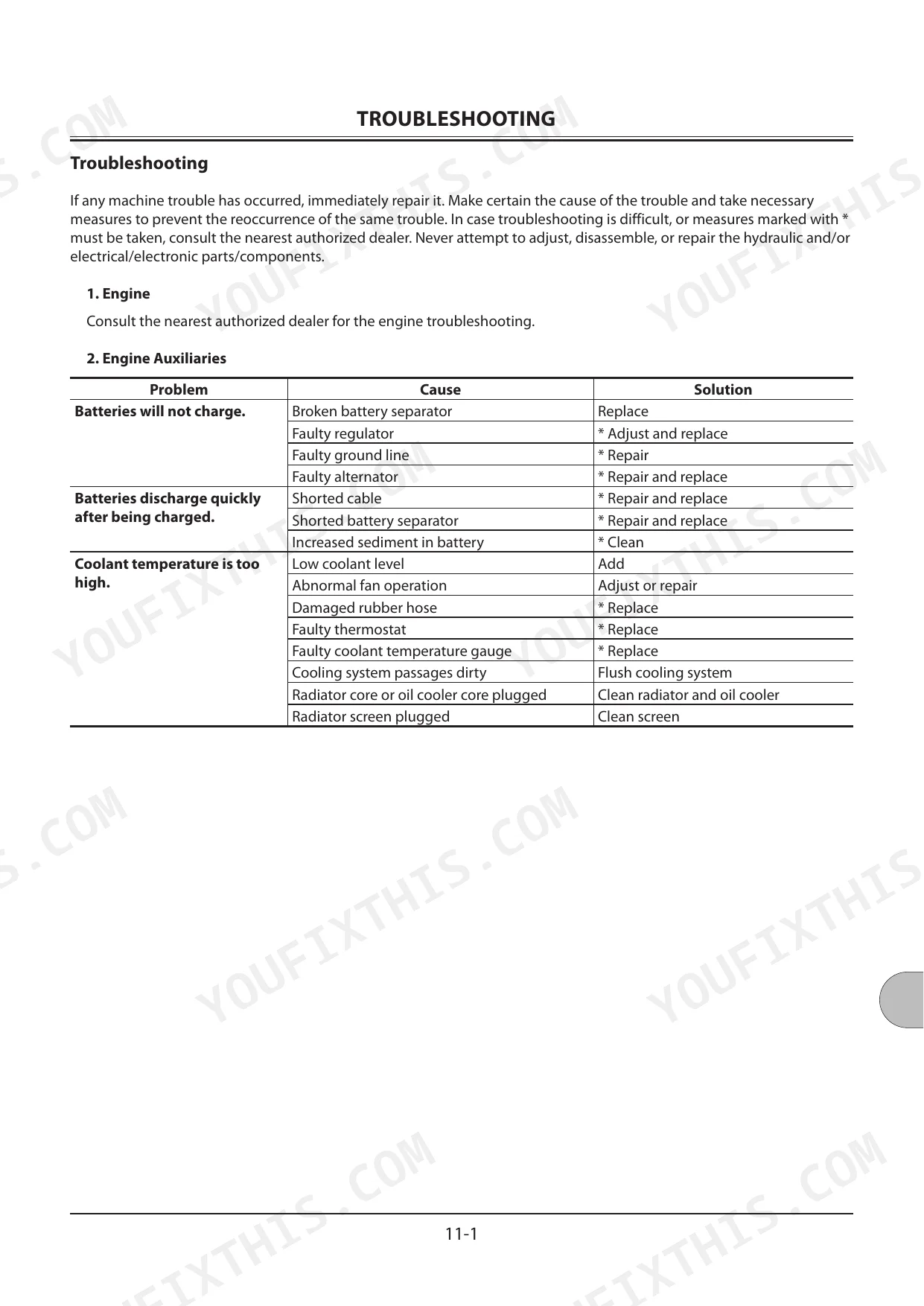

Check the coolant temperature entries in the engine troubleshooting chart on page 370. Inspect drive belt tension, which the schedule on page 256 calls for every 250 hours. Clean packed dust and debris out of the radiator and engine compartment following the special conditions guidance starting on page 362.
Manual Section: Engine Troubleshooting p. 370Loader batteries not charging while the engine runs or discharging quickly between shifts
Check the battery entries in the engine troubleshooting chart on page 370 and work through the listed causes. Confirm the room lamp and work lamps are off at shutdown, and trace those circuits using the fuse box ratings on page 153. For a machine parked for weeks, follow the battery steps in the storage section on page 366.
Manual Section: Engine Troubleshooting p. 370Engine runs low and stalls, or engine speed does not increase with the accelerator pedal
Check the engine troubleshooting chart on page 370 for the stall and low speed entries. Verify the tank holds diesel with sulfur content of 15 ppm or lower, as page 2 requires. Inspect the air inlet system for loose clamps and torque them to 8 N·m (6 lbf·ft) following page 311.
Manual Section: Engine Troubleshooting p. 370During loading cycles, hydraulic oil overheats and all loader actuators have no power
Check hydraulic oil level at the tank before anything else; the tank holds 100 liters per page 287, with 150 liters in the total system. Walk the hydraulic troubleshooting entries for oil overheating and actuator power loss. Clean debris off the oil cooler and radiator, especially in dusty work covered on page 362.
Manual Section: Hydraulic System TroubleshootingLoader control lever does not return to neutral or is not held by the magnetic detent
Check how the loading control levers and detent are meant to behave on page 212 before judging the fault. Work through the control lever troubleshooting entries for return to neutral and magnetic detent hold. Stop loading work until the lever returns to neutral reliably and the detent holds where it should.
Manual Section: Control Lever TroubleshootingService brake dragging or failing to stop the loader, with parking brake not holding
Measure brake pedal stroke play and compare it to the 7 to 16 mm (0.3 to 0.6 inch) range on page 325. Check the parking brake switch operation described in the moving the machine section on page 192. Work through the drive function troubleshooting entries for brake failure and dragging before returning the loader to work.
Manual Section: Drive Function TroubleshootingFrequently Asked Questions
How do I reset the oil change and filter replacement intervals on the Kawasaki (KCM) 70Z7?
To reset the oil change and filter replacement intervals, press the monitor display mode selector (1) for more than 2 seconds while the display is indicating the time to change or replace. Be careful not to press this button when the display is not indicating the time to change or replace, as it will not be able to indicate the correct time. p. 86
What are the replacement intervals for hydraulic hoses on the Kawasaki (KCM) 70Z7?
Hydraulic hoses, including the pump suction hose and various circuit hoses, should be replaced every 2 years or 4000 hours, whichever comes first. Always check clamps for deformation, cracks, or other deterioration when replacing hoses. p. 255

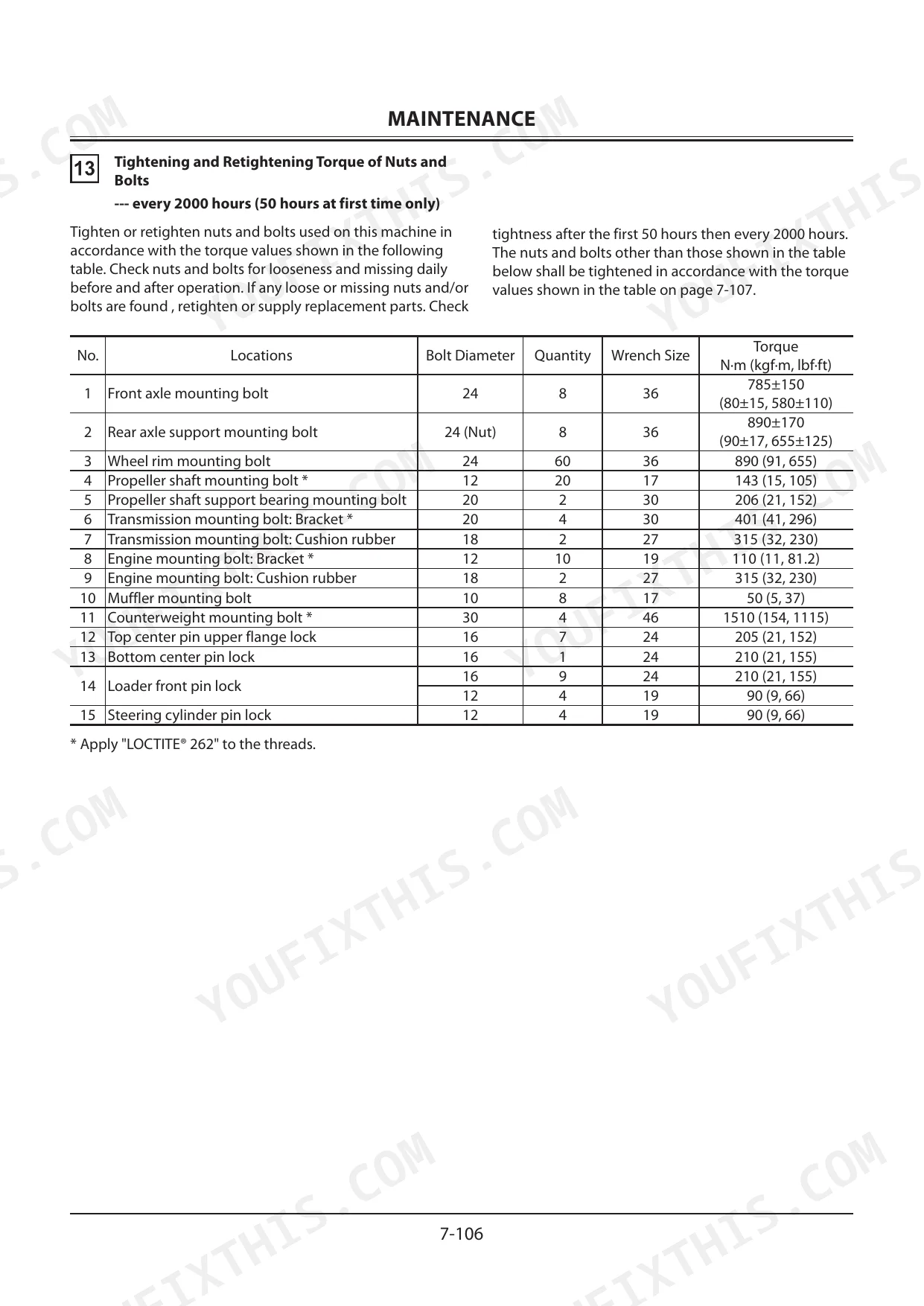

What is the tightening torque for the front axle mounting bolts on a Kawasaki (KCM) 70Z7 wheel loader?
The tightening torque for the front axle mounting bolts is 785±150 N·m (80±15 kgf·m, 580±110 lbf·ft). These should be checked for looseness every 2000 hours. p. 348
What is the fuel tank capacity for the Kawasaki (KCM) 70Z7?
The fuel tank capacity for the Kawasaki (KCM) 70Z7 is 235 liters (62 gallons). p. 302
What is the correct tightening torque for the bucket teeth mounting bolts on a Kawasaki (KCM) 70Z7 wheel loader?
The tightening torque for bucket teeth mounting bolts is 1090 N·m (111 kgf·m, 805 lbf·ft). p. 342
Is this Kawasaki (KCM) 70Z7 manual a PDF I download?
All 383 pages arrive as one searchable PDF at checkout. Read it at the desk, then take the phone out to the machine.
Is this Kawasaki (KCM) 70Z7 manual print-friendly?
Printing is allowed without restriction. Pull the pages you need for the job and bin them when they get greasy.
