Covering the Kawasaki 95ZIII wheel loader under OEM ID AAAP09720-0, this 26-page Kawasaki 95ZIII 3-plunger control valve parts catalog PDF is an option supplement: it covers only the parts for the 3-plunger control valve specification, and the book refers you to the standard 95ZIII parts catalog for all other parts (page 3). Exploded views work through the front chassis and lift arm piping, valve control link group, swivel joint, pilot valve, control valve and sequence valve, with each clamp, flange and hose keyed to a factory part number. Every relief valve, check valve, poppet and sleeve sits at its own callout, so you can name the worn piece before anything comes apart. Small parts get the same treatment. Swivel joint packing, link group gaskets, pilot valve boots and sequence valve springs each carry the OEM number your dealer will ask for. A weeping valve body is bad enough without waiting on the wrong seal kit. Bookmarks, an index and a text layer get you to the right number fast, and the 95ZIII goes back to cycling buckets.
What's Inside This Kawasaki 95ZIII Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Front Chassis & Lift Arm Piping | 4-7 | Valve Assembly, Clamp, Flange, Pipe, Hose, Holder, Joint, Plate |
| Valve Control Link Group | 8-9 | Knob, Screw, Gasket, Bracket, Adapter, Nipple, Cover, Rod |
| Swivel Joint | 10-11 | Packing, Joint, Seal |
| Pilot Valve | 12-15 | Pin, Seat, Link, Adjustor, Boot, Cap, Plunger, Tube |
| Control Valve | 16-19 | Retainer, Stopper, Relief Valve, Check Valve, Cover, Poppet, Sleeve, Plug |
| Sequence Valve | 20-26 | Poppet, Plunger, Plug, Bushing, Spring, Valve |
Every system also includes ring and bolt.
Kawasaki 95ZIII Common Problems This Manual Covers
Kawasaki 95ZIII swivel joint seal kit part number unclear, U-packing and back-up rings not identified

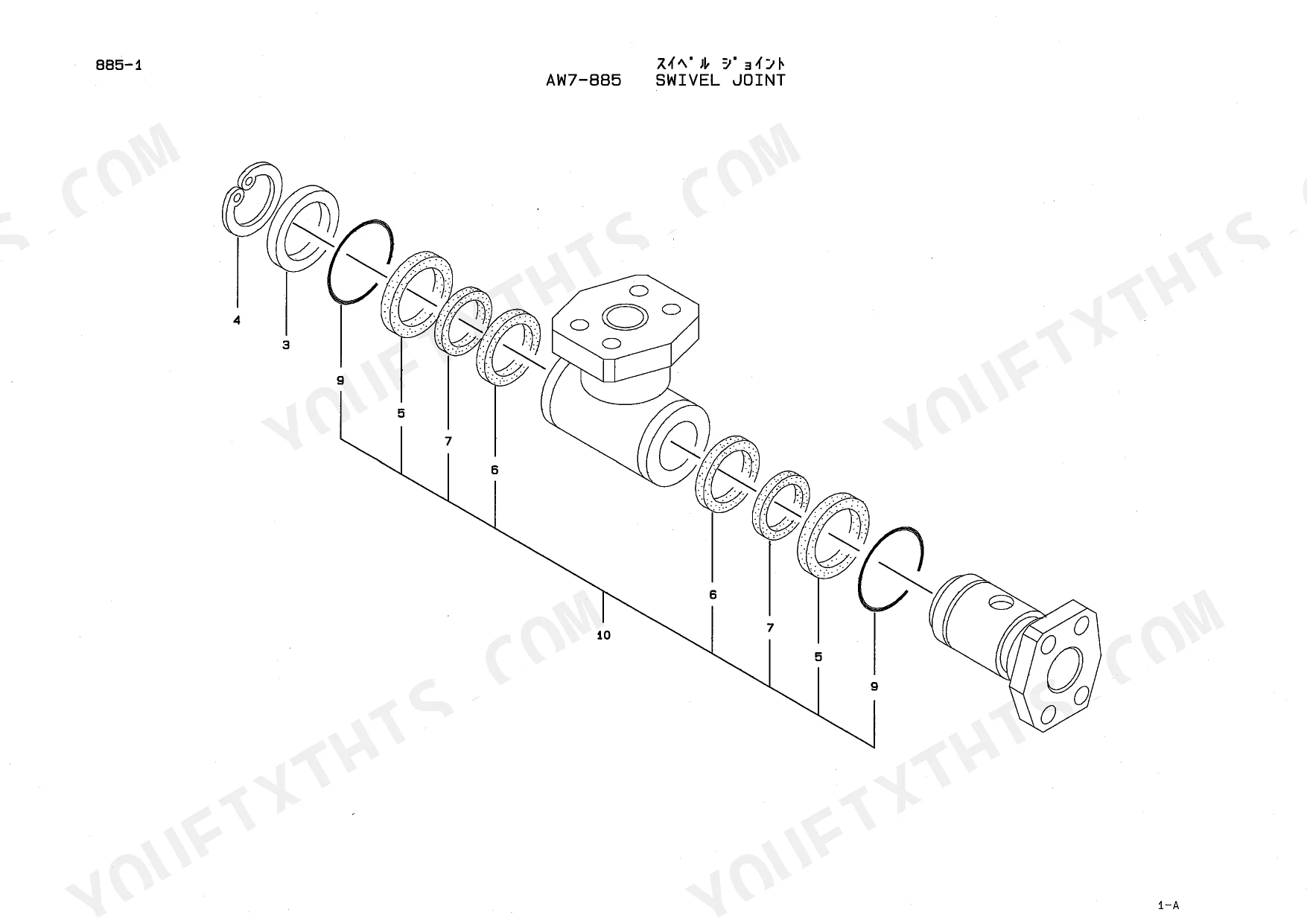

Open the swivel joint exploded view on page 10 and match each callout to the parts list. Order seal kit 49327-70550 for the reseal. The list also shows dust seal 34044-20020, U-packing 39661-20020, back-up ring 47194-20010 and O-ring 47131-20290. The complete swivel joint is 34947-20020. Confirm your machine falls in the 101- serial range.
Manual Section: Swivel Joint p. 10Pilot valve seal kit for lift and tilt sections, can't confirm which parts the kit includes

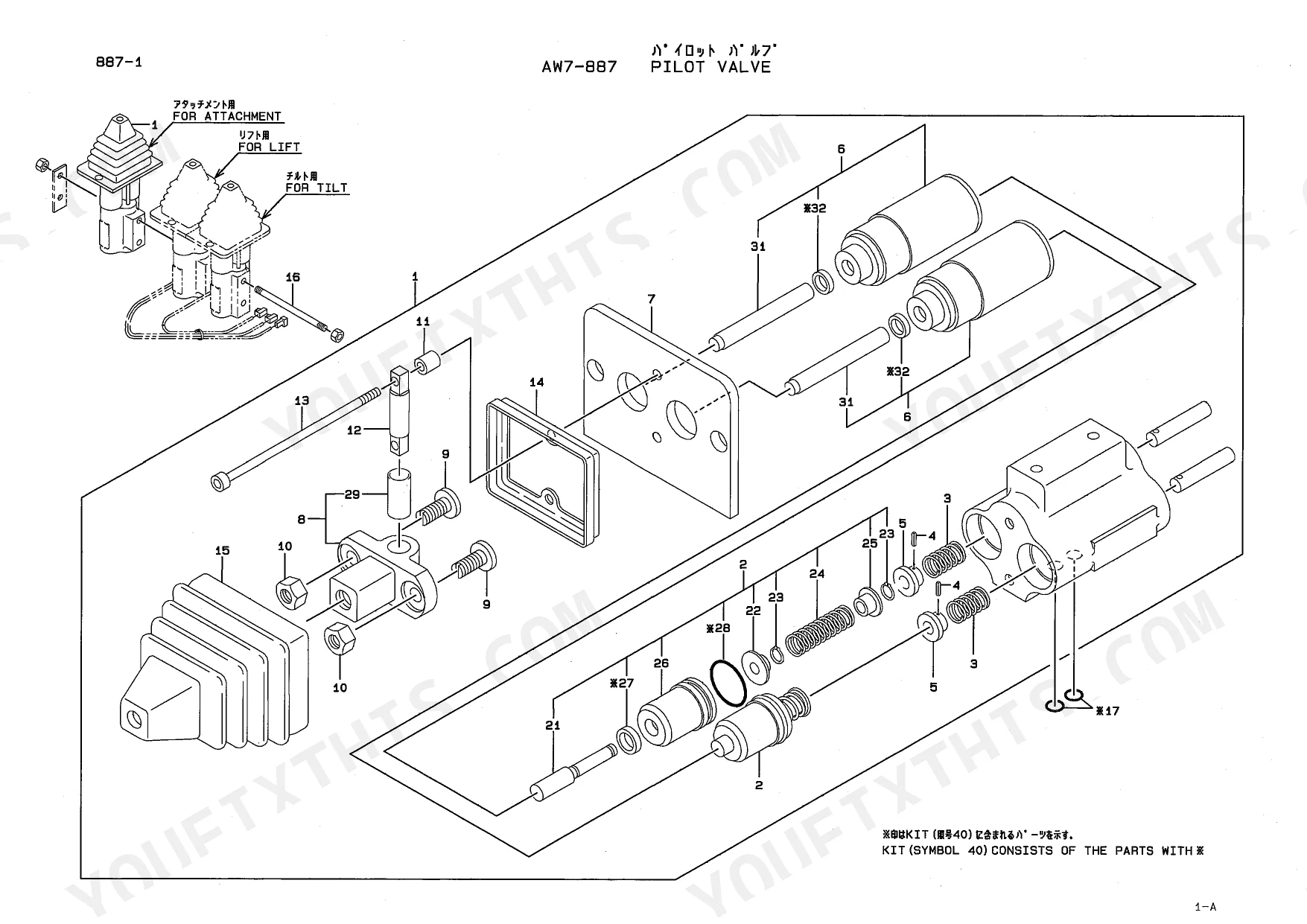

Check the pilot valve exploded view on page 12. It marks the lift and tilt sections and notes that the seal kit (symbol 40) consists of the parts flagged with X. Order seal kit 49327-70870; the list calls for quantity 2. The complete pilot valve is 38560-60080. Match dust seal 34044-70240 and U-packing 39661-70100 against your old parts.
Manual Section: Pilot Valve p. 12Multiple control valve relief valve part numbers confusing, three different relief valves listed

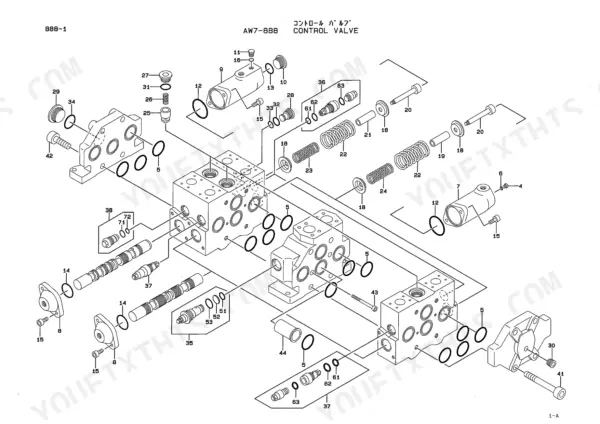

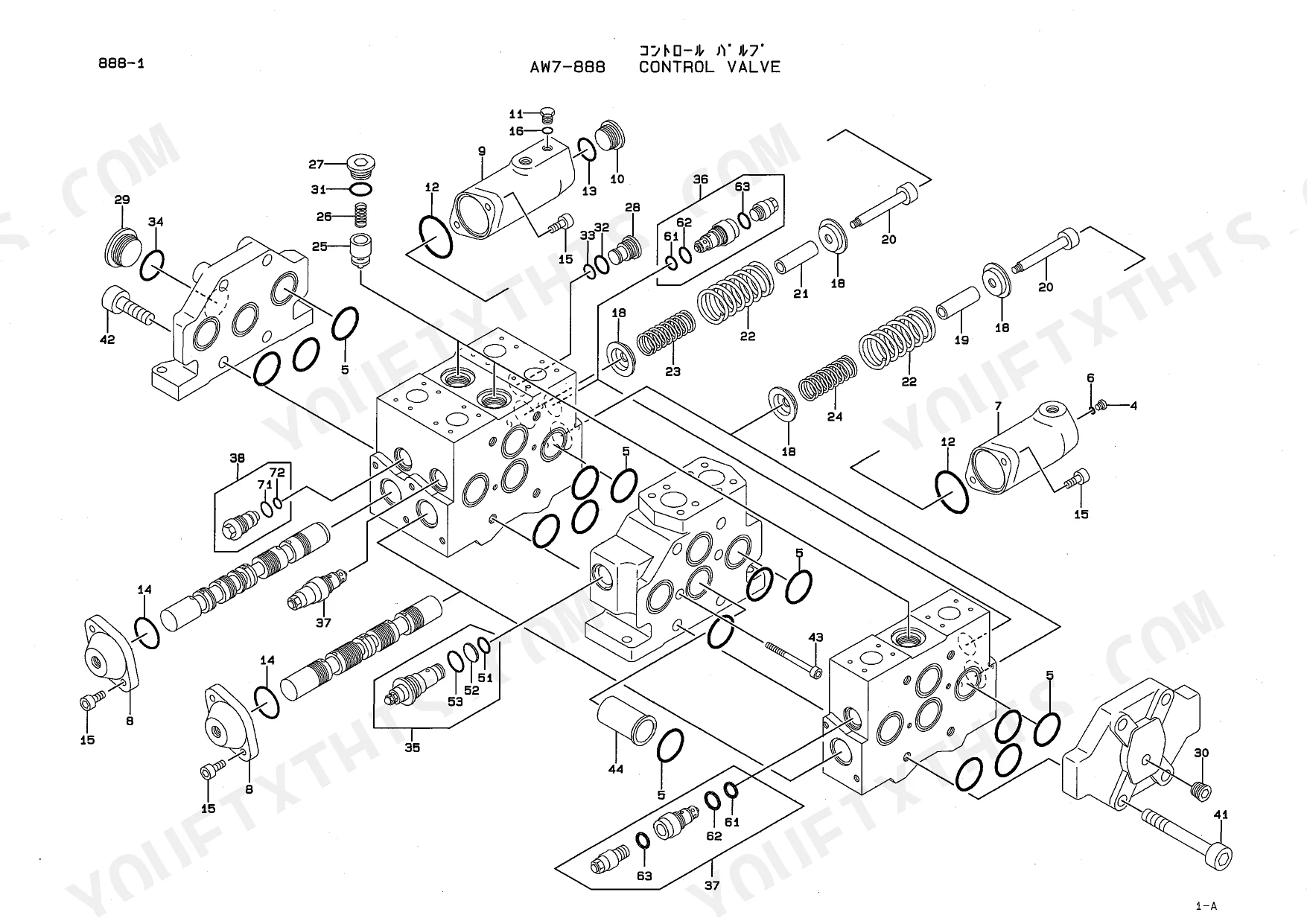

Inspect the control valve exploded view on page 16 and match the callout position of your relief valve before ordering. The list carries three relief valves: 38565-70730, 38565-70740 (qty 2) and 38565-70750 (qty 2), plus check valve 38554-70340. The complete multiple control valve assembly is 38532-60370. Pull the matching O-rings from the same list.
Manual Section: Control Valve p. 16Sequence valve plunger, poppet and spring part numbers needed, internal parts hard to locate
Check the sequence valve sectional views (Section B-B and Section C-C) on page 20 to locate each internal part. Order plunger 41585-70110, poppet 44074-70210, spring 35600-72550 and bushing 40840-71060 from the parts list. The complete sequence valve is 38549-20010 and its pilot valve is 38560-70050. Confirm the 101- serial range before ordering.
Manual Section: Sequence Valve p. 20Lift arm piping high pressure hose and split flange part numbers needed, O-rings not matched

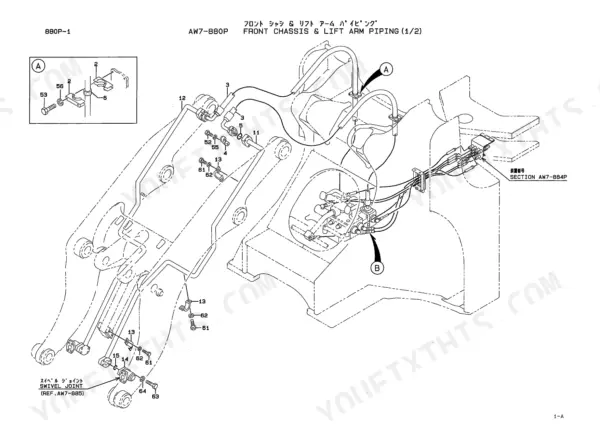

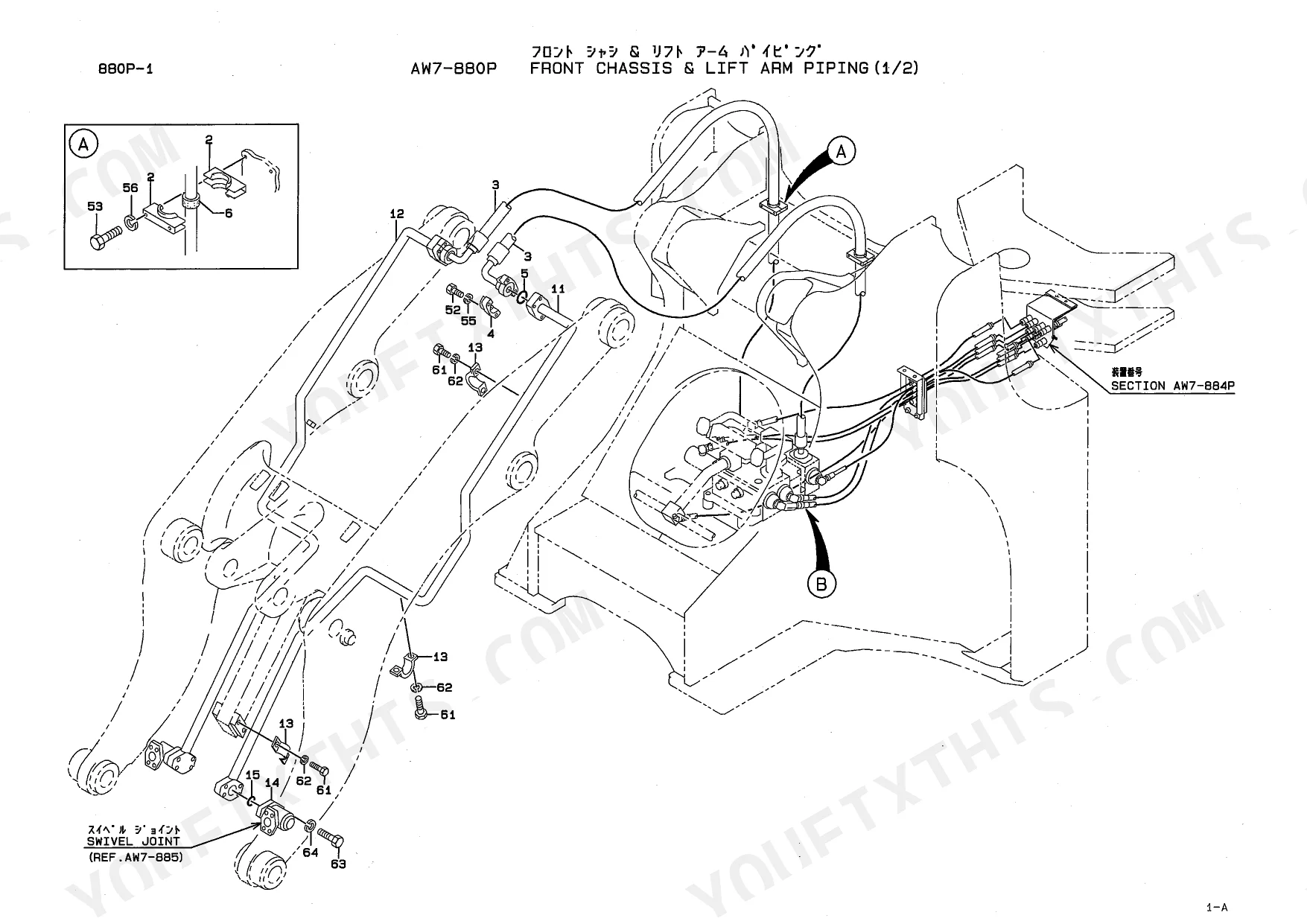

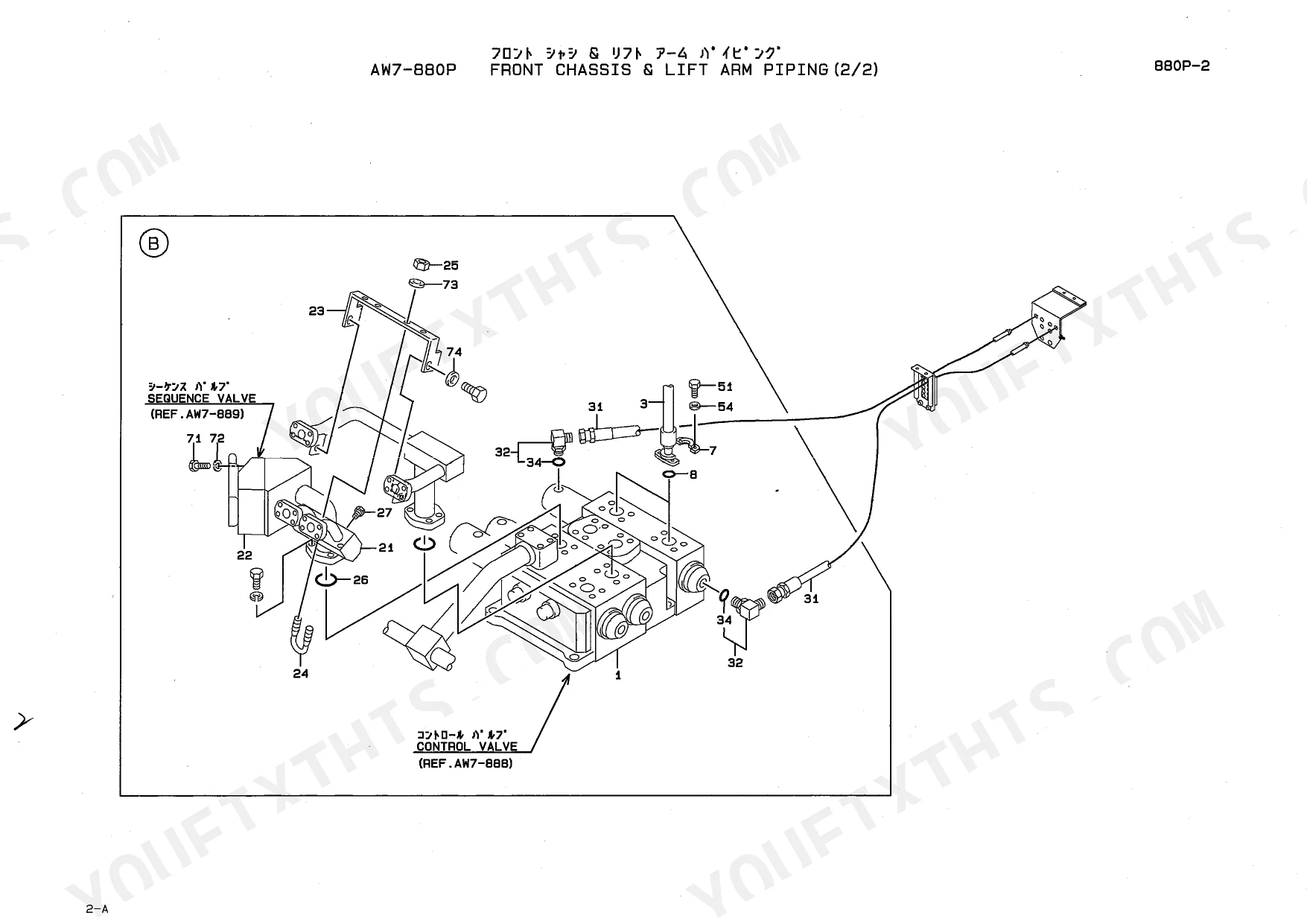

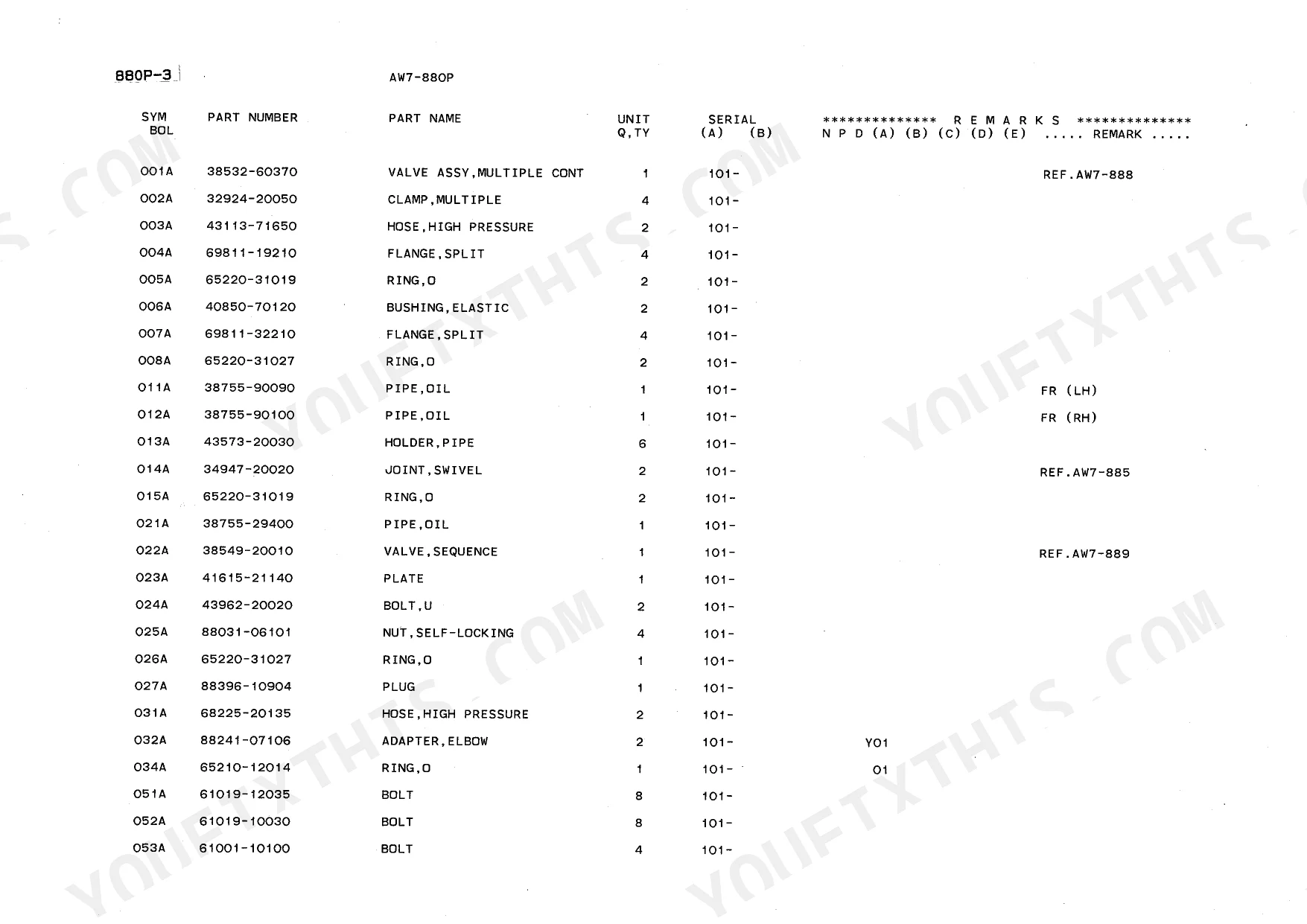

Check the front chassis and lift arm piping diagrams on pages 4 and 5, then pull numbers from the parts list on page 6. High pressure hose 43113-71650 pairs with split flange 69811-19210 and O-ring 65220-31019; split flange 69811-32210 takes O-ring 65220-31027. Note on page 7 that bolt (unify) 61241-06032 starts at serial 104-, not 101-.
Manual Section: Front Chassis & Lift Arm Piping p. 6Valve control link group pilot valve, knob, rod and gasket part numbers missing for control box

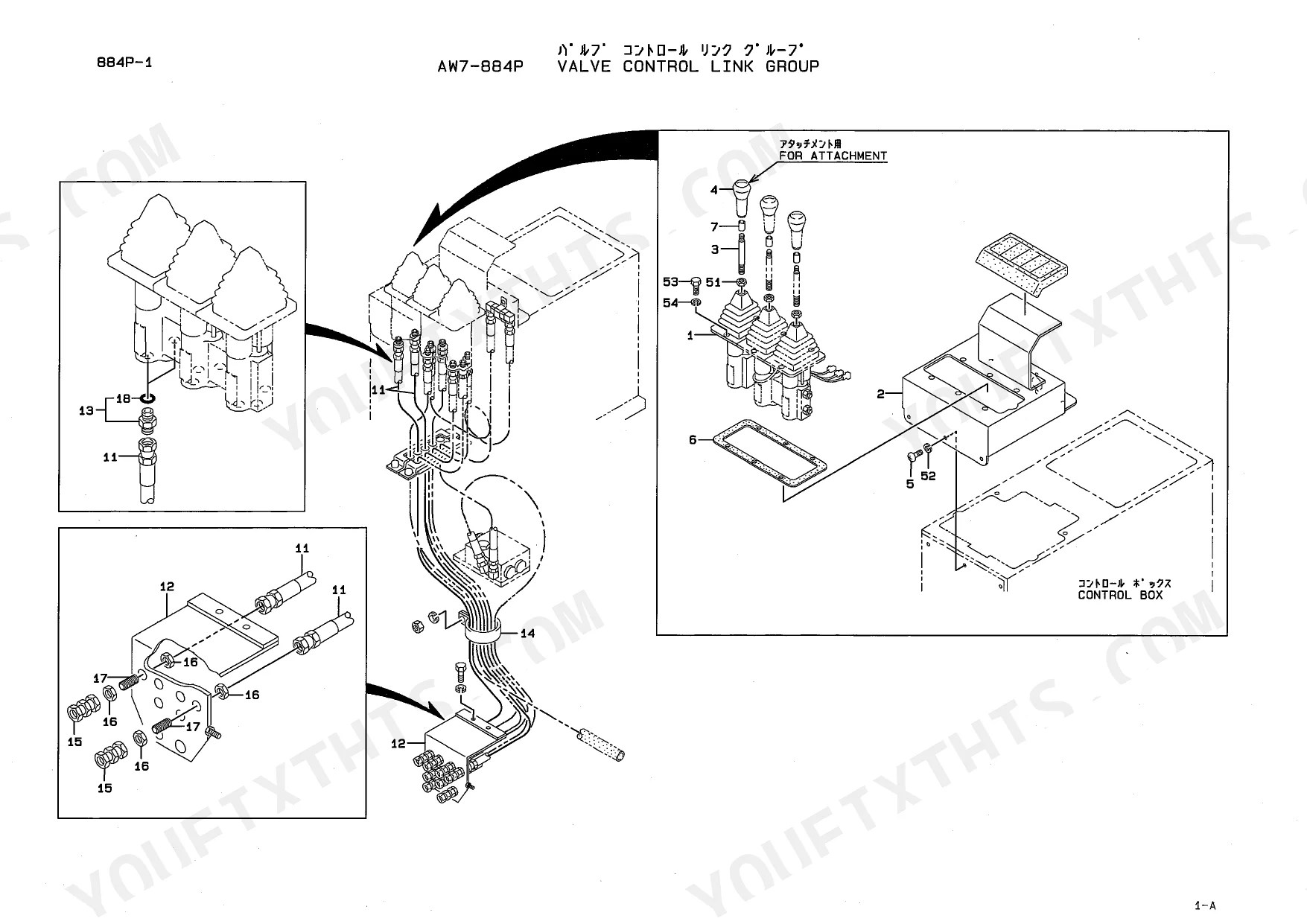

Check the valve control link group parts list on page 9, which follows the control box layout on page 8. Order pilot valve 38560-60080, rod 45870-20190, knob 37810-60010 and gasket 31990-21190. The high pressure hose is 43113-71660 and the O-ring is 65210-12011. Cross-check the pilot valve against its separate breakdown starting on page 12.
Manual Section: Valve Control Link Group p. 9Frequently Asked Questions
What is the part number for the CLAMP,MULTIPLE in this manual?
Page 6 lists part number 32924-20050 for the CLAMP,MULTIPLE. p. 6
What is the part number for the WASHER,SPRING in this manual?
Page 7 lists part number 62722-87100 for the WASHER,SPRING. p. 7
What is the part number for the COVER in this manual?
Page 9 lists part number 31200-24120 for the COVER. p. 9
What is the part number for the RING in this manual?
Page 11 lists part number 45200-20760 for the RING. p. 11
What exactly do I receive with this Kawasaki 95ZIII Parts Catalog?
Immediate download of the complete 26-page searchable Parts Catalog. Access it on any device, from a laptop at your desk to a phone in the field.
Am I free to print this Kawasaki 95ZIII Parts Catalog?
Yes. Print the pages you need for the job in your own shop, and bin them when they get greasy.
