Grab all 215 pages of the Kawasaki Mule 1000 Service Manual PDF and stop wrenching blind on your utility vehicle. Inside: factory electrical wiring diagrams, exploded views of every major assembly, torque tables for the full chassis, and a troubleshooting guide that walks you from symptom to cause. You get step-by-step procedures for the belt drive torque converter, carburetors, transmission and final drive, drum brakes, steering, suspension, and cooling system, plus a maintenance chart with factory service intervals. Replace the fuel hoses every 4 years, and pull the negative battery lead before any disassembly; the factory spells out both. Your Mule is parked while you dig through forum threads for answers. Skip that. Bookmarked chapters and a real text layer mean you type a part name, land on the right page, and get back to work.
What's Inside This Kawasaki MULE 1000, KAF450-B1 Manual
| System | Pages | Key Topics |
|---|---|---|
| Quick Reference Guide | 2-3 | - |
| General Information | 8-20 | General Specifications, Periodic Maintenance Chart, Torque and Locking Agent, Vehicle Jack and Support Locations |
| Fuel System | 21-36 | Throttle Pedal and Cable, Choke Cable, Carburetors, Air Cleaners, Fuel Filter, Fuel Pump |
| Cooling System | 37-48 | Coolant Flow Chart, Coolant, Radiator and Fan, Radiator and Thermostat Caps, Thermostat, Water Pump |

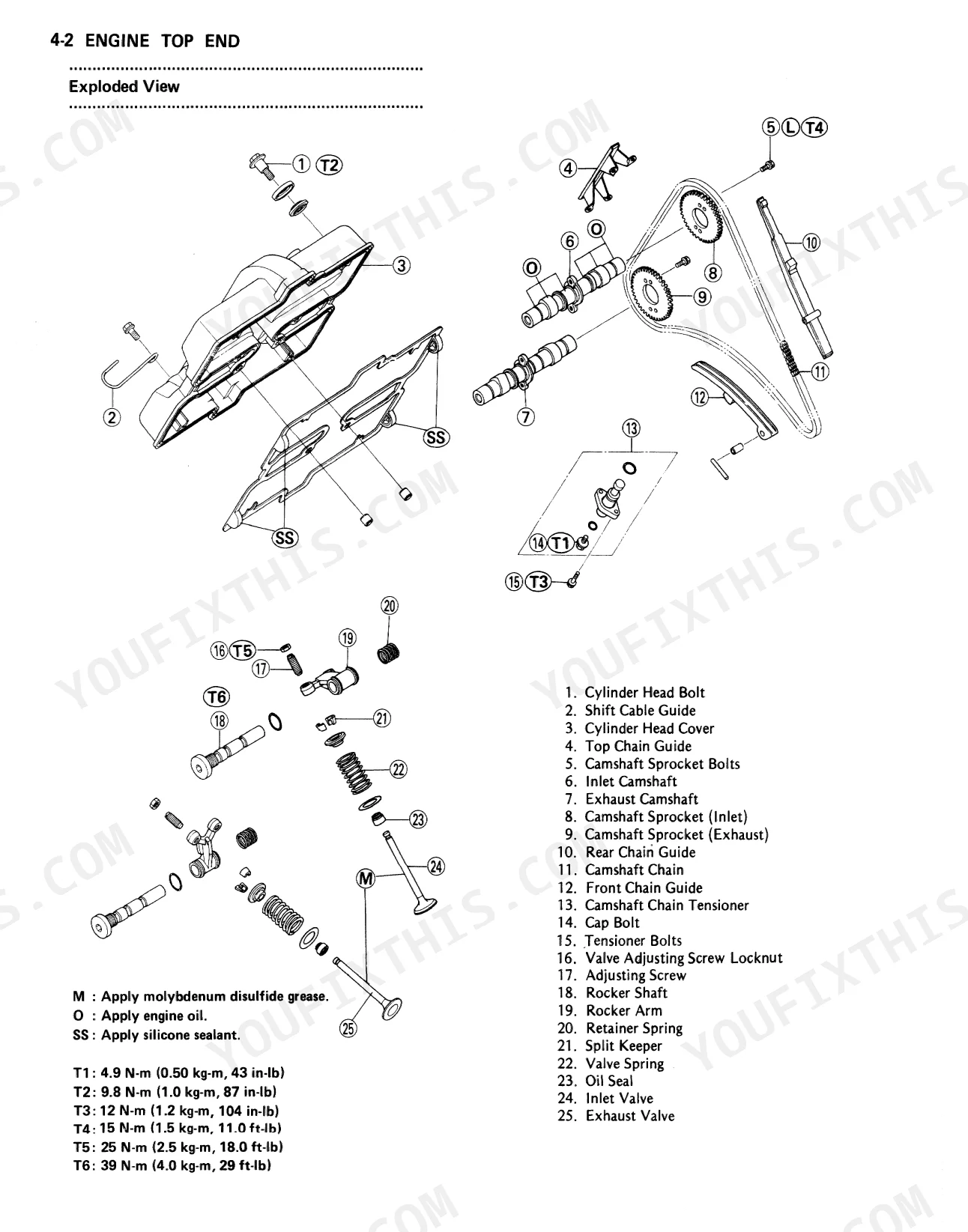

| Engine Top End | 49-72 | Cylinder Head Cover, Camshaft Chain Tensioner, Camshafts and Sprockets, Camshaft Chain and Guides, Rocker Arms and Shafts, Cylinder Head |
| Belt Drive Torque Converter | 73-84 | Converter Cover, Belt, Drive Pulley, Driven Pulley, Bushing and Splined Portion Inspection, Sheaves Surface Inspection |
| Engine Lubrication System | 85-92 | Engine Oil Flow Chart, Engine Oil and Oil Filter, Oil Pump, Relief Valve and Oil Screen, Oil Pressure Switch |
| Engine Removal/Installation | 93-96 | Engine Removal, Engine Installation, Engine Separation, Crankcase and Transmission Case Separation, Crankcase and Transmission Case Assembly |
| Engine Bottom End/Crankshaft | 97-112 | Crankcase, Crankshaft/Connecting Rods, Balancer, Left Engine Cover, Starter Motor Clutch, Starter Motor Chain and Sprockets |
| Transmission/Final Drive | 113-130 | Shift Lever and Cable, External Shift Mechanism, Transmission Case, Transmission Shafts, Differential Gears, Final Drive Shafts |
| Wheels/Tires | 131-140 | Wheel Alignment, Toe-In Adjustment, Wheels (Rims), Tires, Front Wheel Bearings and Grease Seals |
| Brakes | 141-156 | Brake Fluid, Brake Pedal and Master Cylinder, Brake Hose and Pipes, Brake Drums, Brake Panel Assemblies, Parking Brake Lever and Cables |
| Suspension | 157-160 | Struts and Shock Absorbers, Suspension Arms |
| Steering | 161-168 | Steering Wheel and Main Shaft Assembly, Steering Gear Assembly, Tie-Rod Length Adjustment, Dust Boot Inspection, Steering Knuckles |
| Frame | 169-178 | Seat, Cargo Bed, Front and Rear Bar Components, Front Fender Assembly |
| Electrical System | 179-206 | Battery, Charging System, Ignition System, Electric Starter System, Fuel Pump and Relay, Electrical Wiring |
| Appendix | 207-215 | Trouble Shooting Guide, General Lubrication, Nut, Bolt, And Fastener Tightness, Unit Conversion Table |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fuel hose replacement | 4 years | p. 11 |
| Coolant change | 2 years | p. 11 |
| Belt width | 30.6-31.8 mm std / 29 mm service limit | p. 75 |
| Brake lining thickness | 4.5 mm std / 1.0 mm limit | p. 144 |
| Brake drum wear limit | 180.75 mm | p. 144 |
| Coolant capacity | 2.5 L | p. 39 |
| Fuel tank capacity | 17.0 L | p. 21 |
| Battery | 12 V, 19 Ah | p. 184 |
| Battery specific gravity | 1.265 at 20°C | p. 184 |
| Spark plug gap | 0.6-0.7 mm | p. 6 |
| Coolant temperature switch | closes 107-113°C | p. 184 |
Kawasaki MULE 1000, KAF450-B1 Common Problems This Manual Covers
Kawasaki Mule 1000 engine overheating on hills, radiator fan not kicking on
Check coolant level first; the system holds 2.5 L of a 50/50 mix of soft water and ethylene glycol antifreeze (page 39). Test the coolant temperature switch with a multimeter; it must close between 107 and 113°C (225-235°F), spec listed on page 184. Replace the switch if it never closes, then pressure test the cap and radiator.
Manual Section: Cooling System p. 37Engine bogs down and stalls climbing hills, throttle response weak after winter storage
Drain stale fuel from the 17.0 L tank and inspect the filter element for varnish. Pull the carburetor float bowl and clean the jets with carb cleaner and compressed air, following the fuel system procedures starting on page 21. Replace any fuel hose over 4 years old per the maintenance schedule on page 11.
Manual Section: Fuel System p. 21Engine cranks slowly or won't start, weak spark at the plug

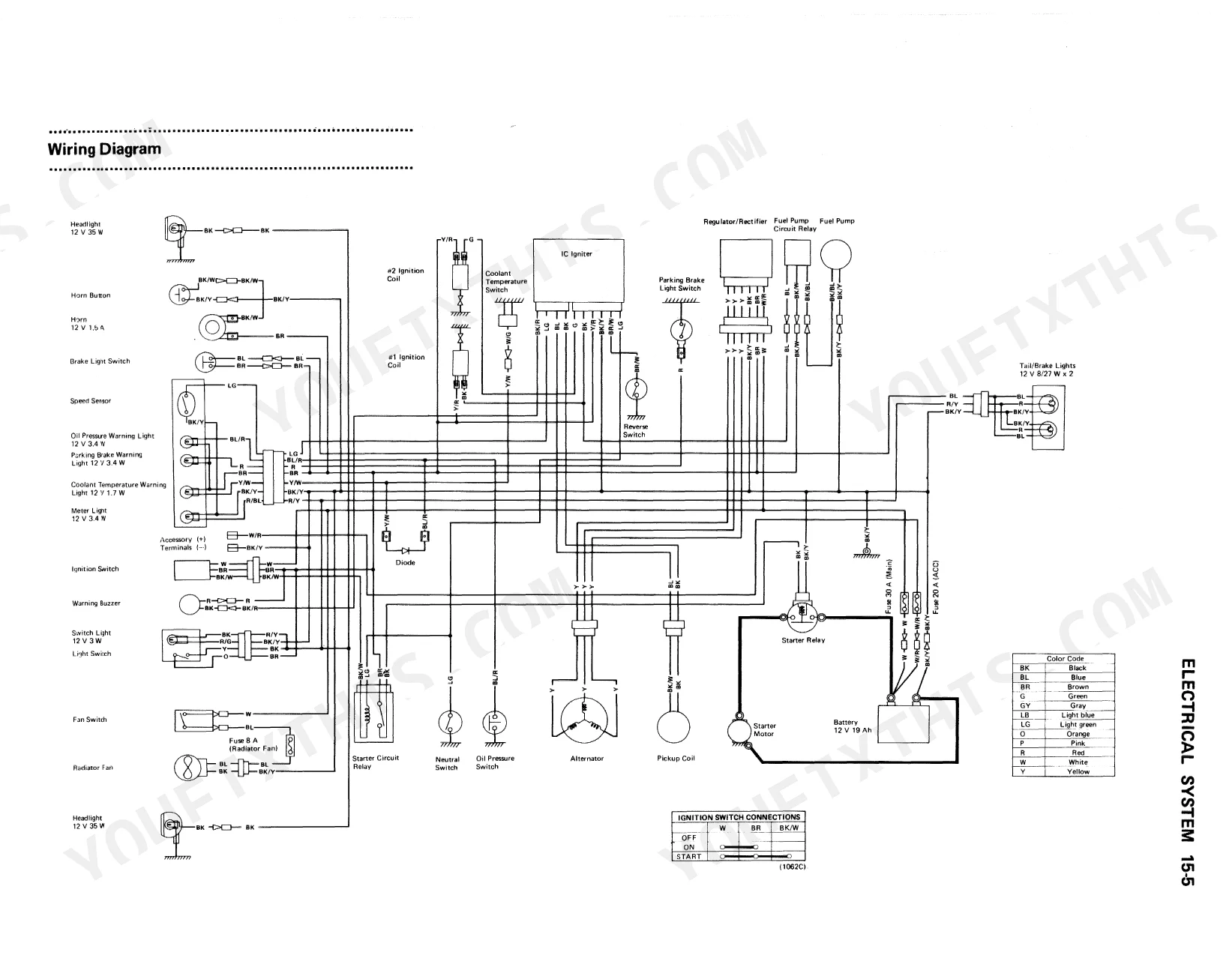

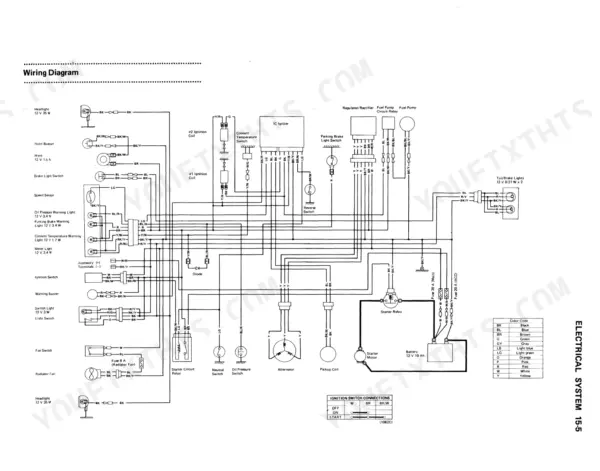

Check battery specific gravity with a hydrometer; it should read 1.265 at 20°C (68°F), spec on page 184. Charge or replace the 12 V 19 Ah battery if it reads low. Pull the spark plug and gap it to 0.6-0.7 mm, then trace the starter circuit using the wiring diagram on page 183.
Manual Section: Electrical System Diagnostics p. 179Drive belt slipping under load, loss of speed with squealing from converter cover
Remove the converter cover and measure belt width with calipers. Standard width is 30.6 to 31.8 mm; replace the belt once it wears down to the 29 mm service limit on page 75. While the cover is off, inspect both sheave surfaces for glazing or oil contamination and check the driven pulley bushing, procedures on page 73.
Manual Section: Belt Drive Torque Converter p. 75Brake pedal travels low, weak stopping power and parking brake barely holds
Measure brake shoe lining thickness; standard is 4.5 mm and the service limit is 1.0 mm (page 144). Check drum inside diameter against the 180.75 mm wear limit, then flush and bleed the system with fresh D.O.T.3 fluid. Adjust pedal free play to 10-20 mm and set parking brake lever travel to 6-10 clicks.
Manual Section: Brakes p. 144Frequently Asked Questions

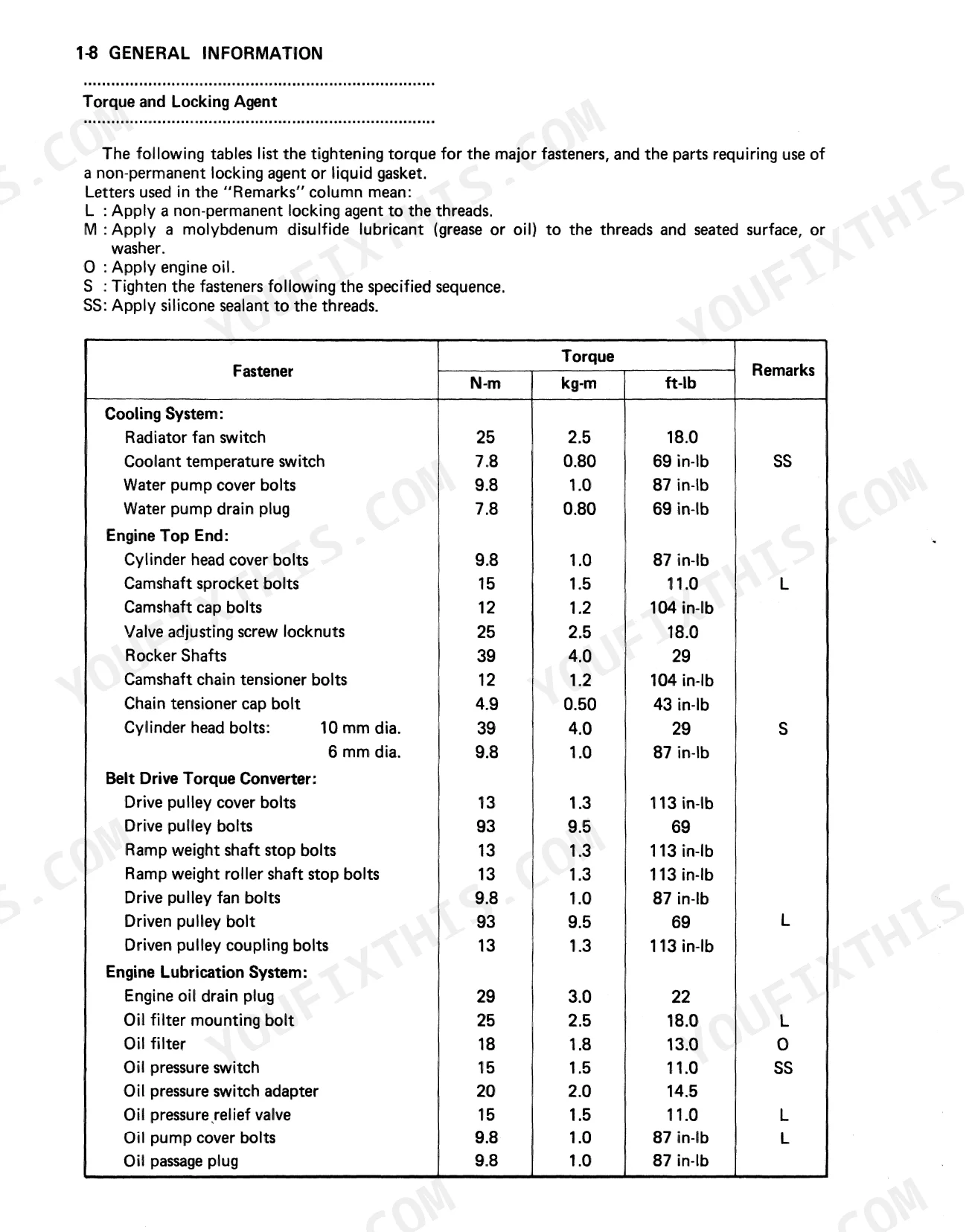

What are the torque specifications for the engine bolts on the Kawasaki MULE 1000?
The torque specifications for various engine bolts on the Kawasaki MULE 1000 are provided in the manual. For instance, cylinder head cover bolts should be tightened to 9.8 N-m (1.0 kg-m, 87 in-lb), camshaft sprocket bolts to 15 N-m (1.5 kg-m, 11.0 ft-lb), and 10 mm diameter cylinder head bolts to 39 N-m (4.0 kg-m, 29 ft-lb). Crankcase bolts (6 mm dia.) require 12 N-m (1.2 kg-m, 104 in-lb) and (8 mm dia.) 27 N-m (2.8 kg-m, 20 ft-lb). p. 12
Why might my Kawasaki MULE 1000 lose power when going uphill?

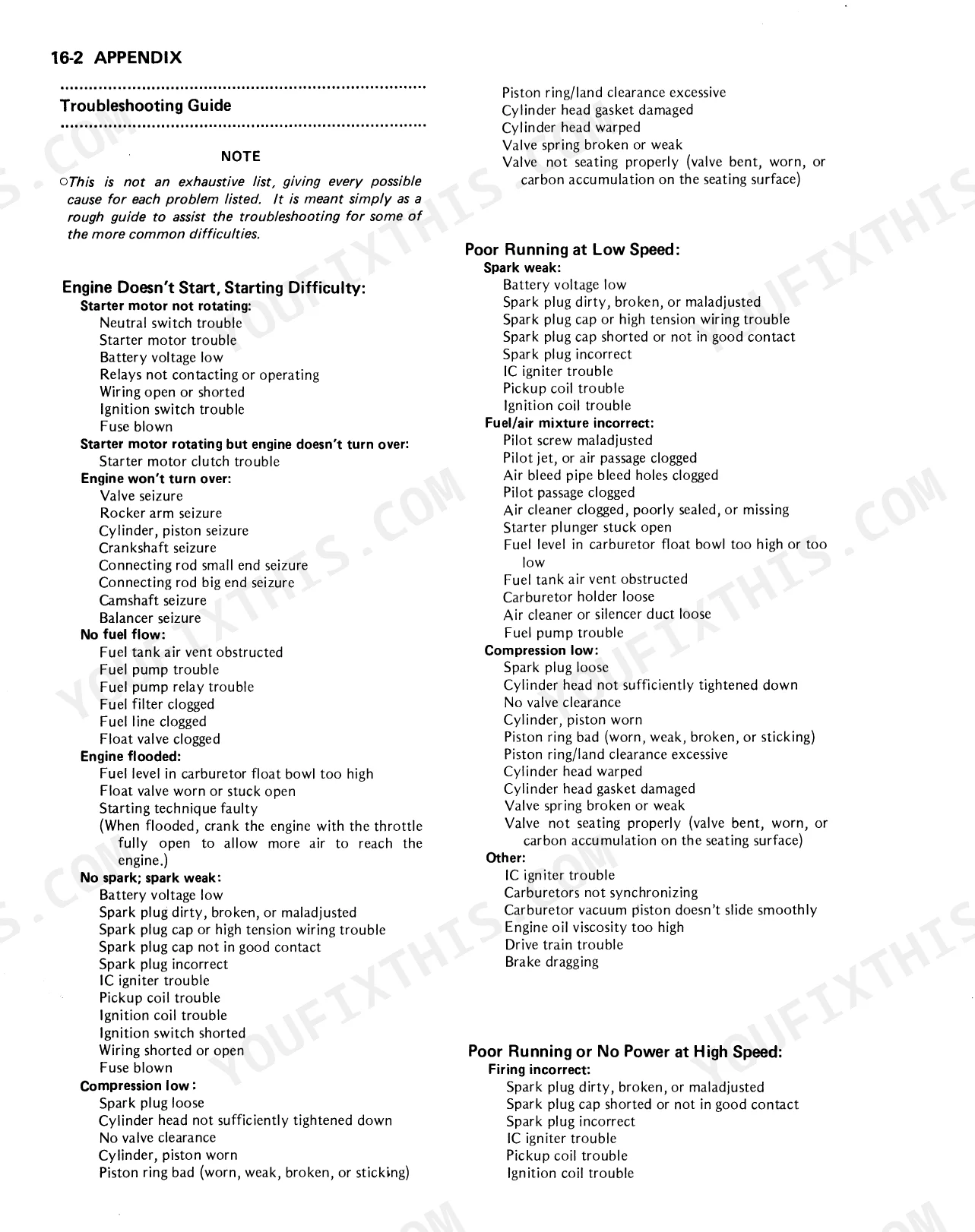

If your Kawasaki MULE 1000 loses power uphill, the troubleshooting guide suggests several potential causes. These include incorrect firing (e.g., dirty spark plug), incorrect fuel/air mixture (e.g., clogged main jet or low fuel level), low compression, or issues with the torque converter such as a dirty or worn belt, or broken springs. p. 208
How can I prevent my Kawasaki MULE 1000 from overheating?
To prevent overheating in your Kawasaki MULE 1000, ensure the cooling system is properly maintained. This involves checking the coolant level regularly, changing the coolant as scheduled, and flushing the cooling system if rust or scale accumulates. Also, inspect cooling system components like the radiator, thermostat, and fan for proper function and blockages. p. 209
What are the replacement guidelines for the fuel filter on the Kawasaki MULE 1000?
For the Kawasaki MULE 1000, the fuel filter replacement is condition-based rather than on a fixed schedule. You should visually inspect the fuel filter; if it is clear with no signs of dirt or contamination, it is acceptable. However, if the filter appears dark or dirty, it should be replaced. p. 34
What are the cleaning and replacement guidelines for the air filter on the Kawasaki MULE 1000?
The air cleaner elements on the Kawasaki MULE 1000 should be cleaned every 1,000 km, 5,000 km, or 10,000 km, and more frequently in muddy or dusty conditions. Replacement is condition-based: visually check the element and sponge gaskets for tears or breaks, and replace if any damage or distortion is found. p. 11
What do I get after purchasing this Kawasaki Mule 1000 manual?
Instant PDF download. You get the full 215-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print this Kawasaki Mule 1000 manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
