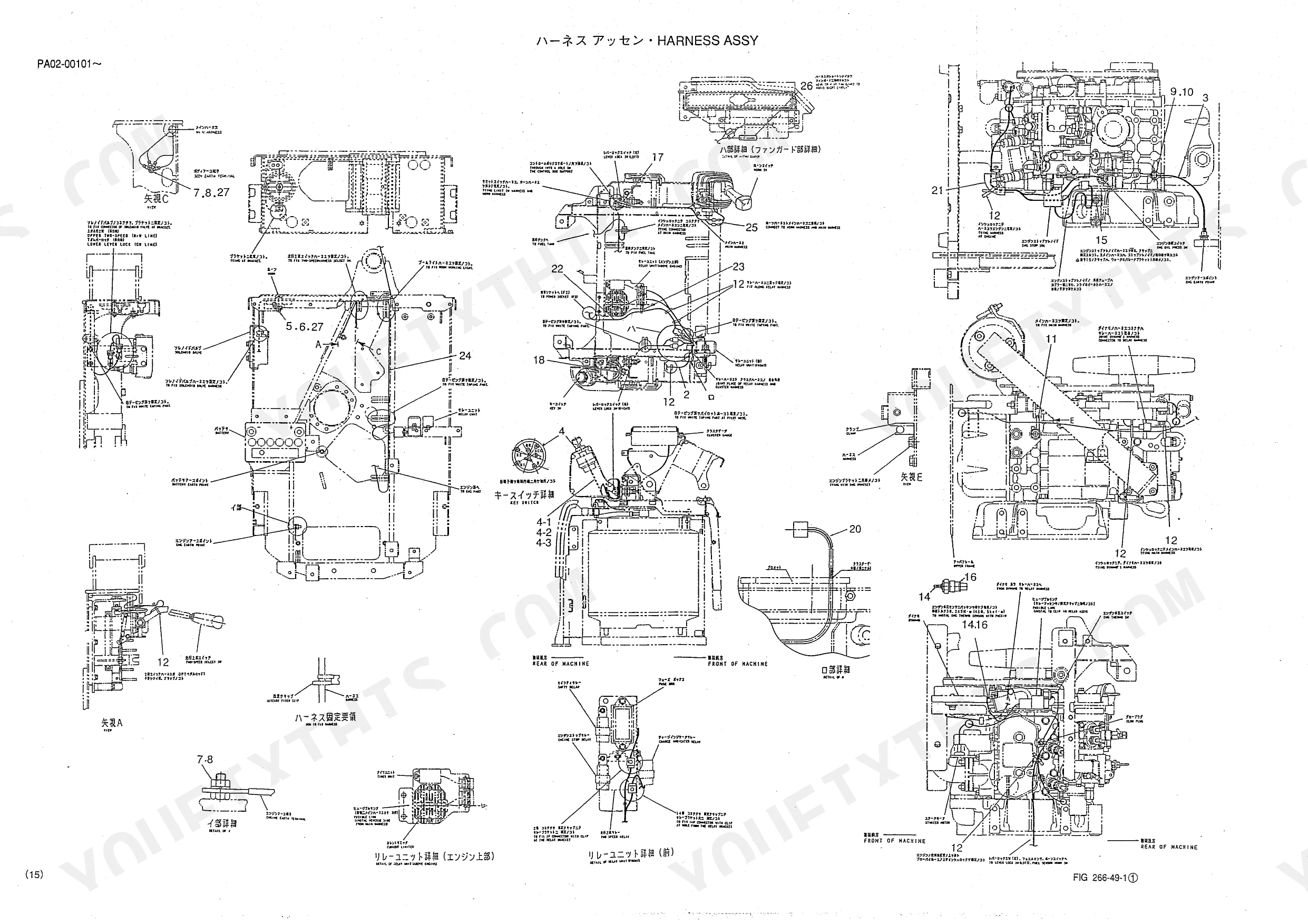

From the upper slewing structure and engine through the undercarriage, dozer blade and front attachment, this 316-page Kobelco SK09SR parts manual PDF (OEM ID S3PA00001ZE02) breaks the crawler excavator down assembly by assembly. Exploded views fill most of the book, tying each callout to a Kobelco part number and quantity, from the swing bracket and slewing ring to the idler adjuster, track rollers and shoes. Wiring diagrams back up the harness and battery pages, and the name and number indexes let you trace a part number back to its figure. Order the return filter as PA33H01040P1 and the suction strainer as PA33H01015P1; the engine's thermostat is listed as the 71°C unit and its thermo switch at 110°C. One wrong guess means freight, downtime and a second teardown. Bookmarked by section with a live text layer, this parts catalog lets you search a description and quote your dealer the correct number the first time.
What's Inside This Kobelco SK09SR Parts Manual

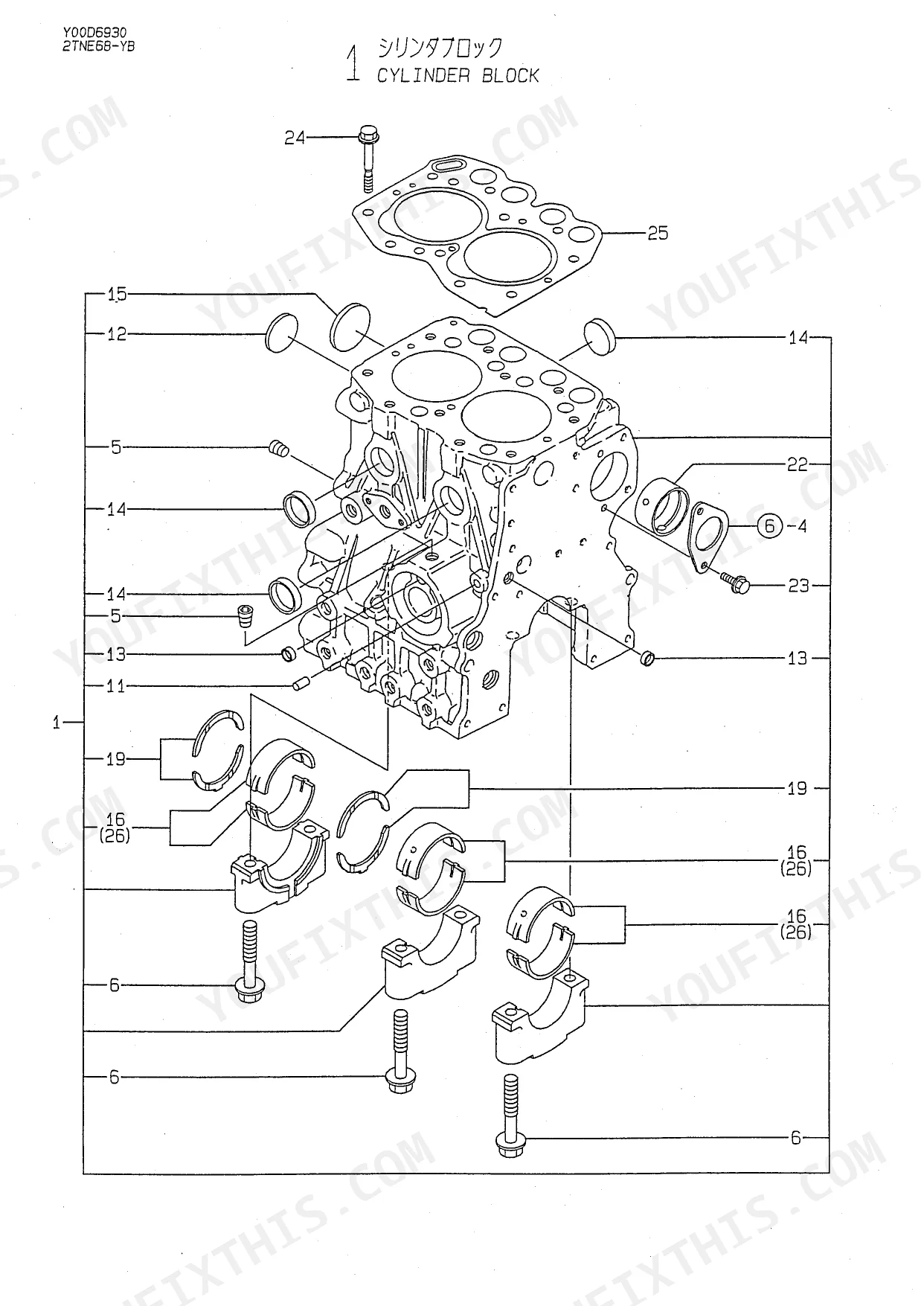

| System | Pages | Key Topics |
|---|---|---|
| General Maintenance Items | 15-20 | Filter List, Nut and Sleeve Parts, Paint Color |
| Upper Slewing Structure | 21-116 | Frame Assy, Upper, Bracket Assy, Swing, Counter Weight, Installation, Engine Assy, Control Assy |

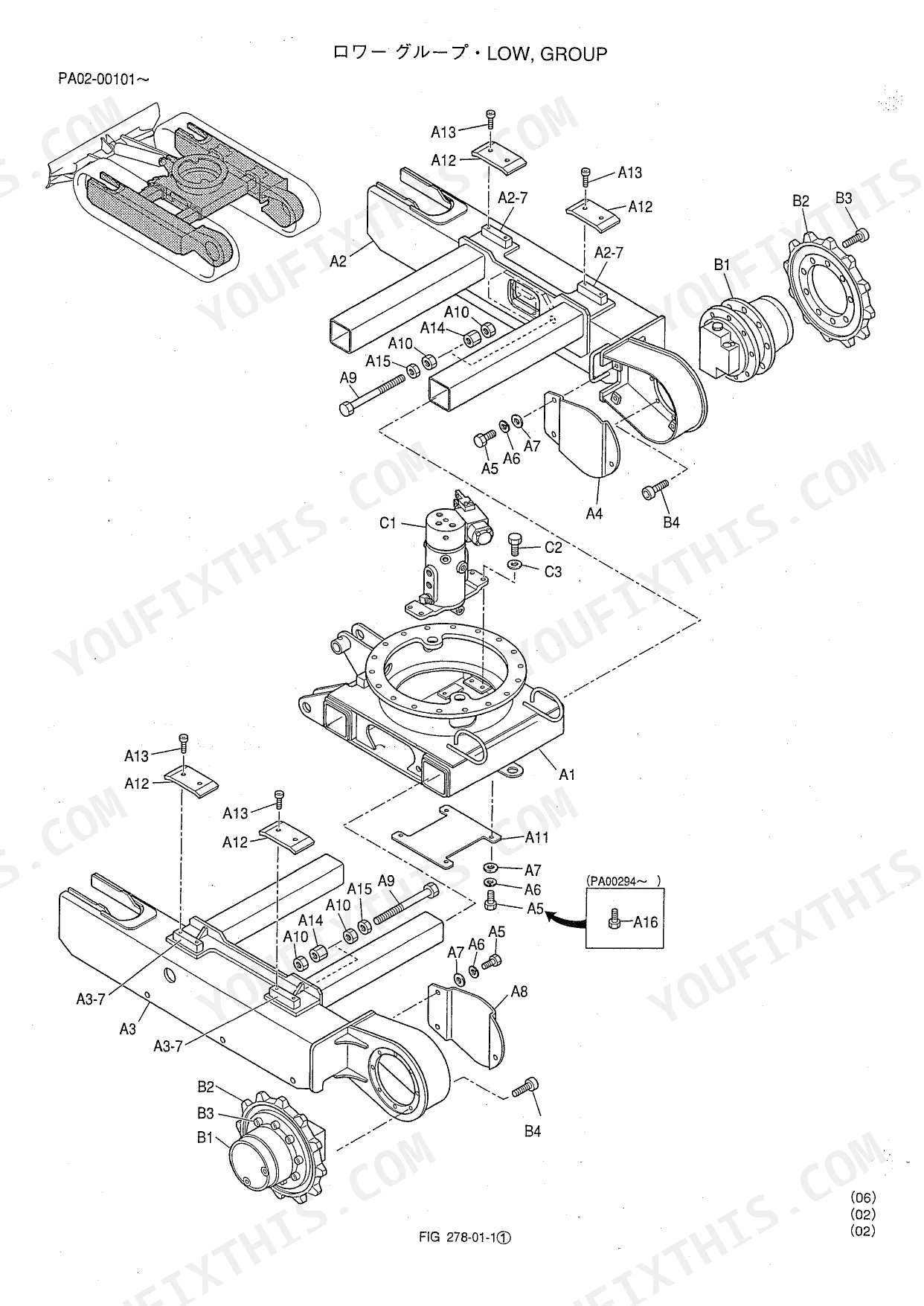

| Undercarriage | 117-134 | Low Group, Cylinder Installation, Slewing Ring Assy, Crawler Idler Assy, Track Roller Installation, Lower Hyd Lines, Dozer Assy |
| Attachments | 135-162 | Boom Assy, Boom Hyd Lines, Cylinder Installation, Working Light Installation, Working Light Assy, Arm Assy, Bucket Installation |
| Tools and Spare Parts | 163-166 | Tool Assy |
| Name-Plate | 167-176 | Name Plate Installation |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Thermostat | 71°C | p. 295 |
| Switch, thermo | 110°C | p. 295 |
| Element, Air-Cleaner | PA11P00002S002 | p. 16 |
| Filter, Return | PA33H01040P1 | p. 16 |
| Strainer, Suction | PA33H01015P1 | p. 16 |
| Relief Valve Set Pressure | 35 kgf/cm² at 15 L/min | p. 257 |
Kobelco SK09SR Common Problems This Manual Covers
Kobelco SK09SR air cleaner element replacement, need the correct part number before ordering a new filter
Check the filter list on page 16 under General Maintenance Items. The air cleaner element is listed as part number PA11P00002S002, quantity one. Write that number down before calling the dealer, and confirm your serial number on the name plate so the parts counter matches the right configuration.
Manual Section: General Maintenance Items p. 16Hydraulic return filter and suction strainer part numbers getting mixed up when ordering for a hydraulic service
Check the filter list on page 16 before ordering. The return filter is part number PA33H01040P1 and the suction strainer is PA33H01015P1, one of each per machine. Order both together and read the item numbers back to the parts counter, since the two numbers look nearly identical on a phone order.
Manual Section: General Maintenance Items p. 16Engine thermostat replacement, need to confirm the correct temperature rating before ordering the part
Verify the thermostat rating on page 295 in the engine parts list, where it is listed at 71°C. Start from the engine parts diagram, then match the item number to the list before ordering. Do not order by appearance alone; confirm the 71°C rating on the replacement part.
Manual Section: Engine Troubleshooting p. 295Engine thermo switch replacement, not sure which temperature rating to order from the parts counter
Check the engine parts list on page 295, where the thermo switch is listed with a 110°C rating. Start at the engine parts diagram, then confirm the item number in the list. Keep it separate from the 71°C thermostat on the same page; the two parts are easy to mix up.

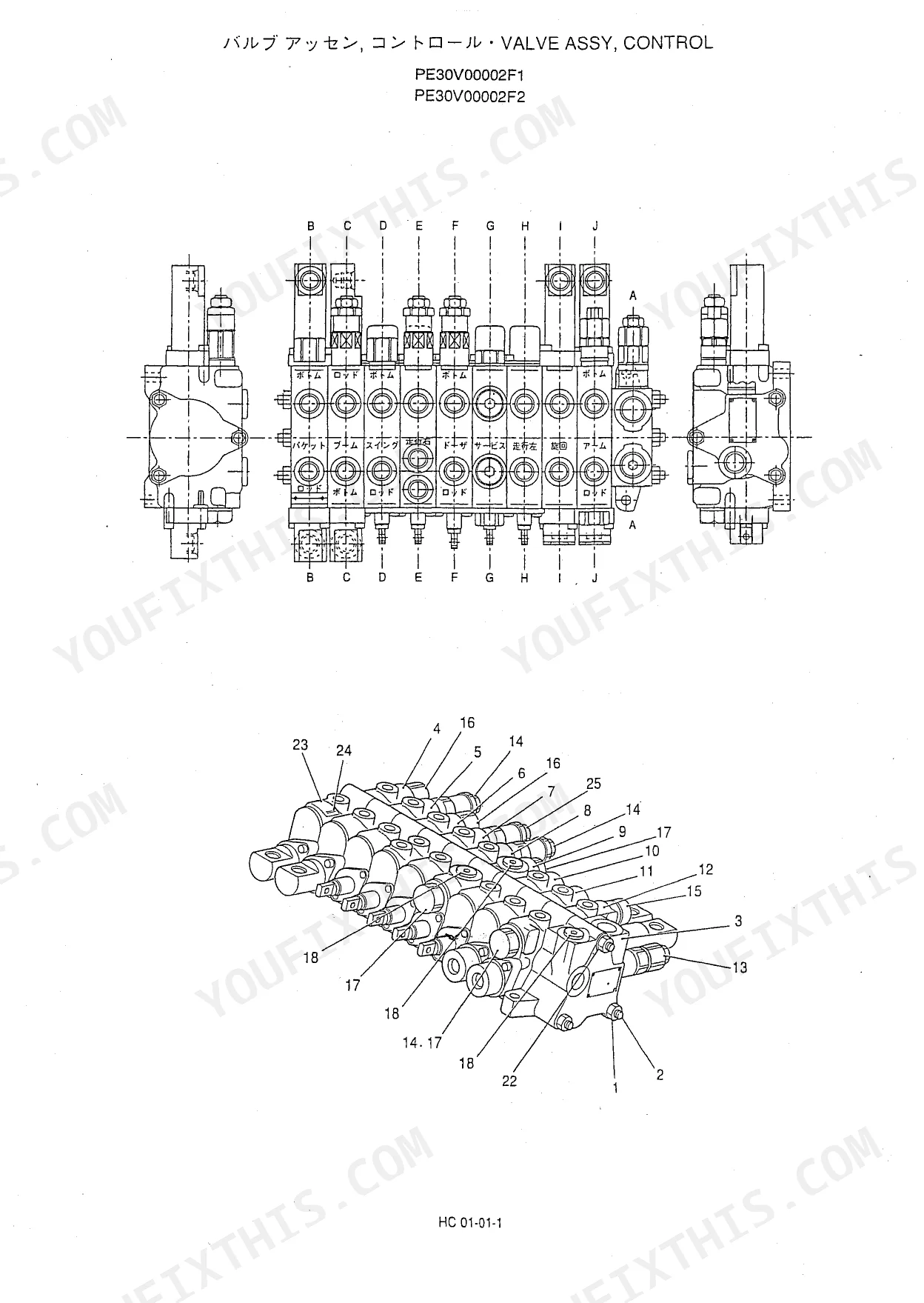

Manual Section: Engine Troubleshooting p. 295Relief valve replacement, need to confirm the correct set pressure before ordering the part
Locate the relief valve in the hydraulic parts diagram starting, then check the valve data on page 257, which lists a set pressure of 35 kgf/cm² at 15 L/min. Match that rating and the item number before ordering, since a valve with a different setting can look the same on the shelf.
Manual Section: Hydraulic Valve Troubleshooting p. 257Boom cylinder installation parts hard to identify, can't find the right exploded view for ordering

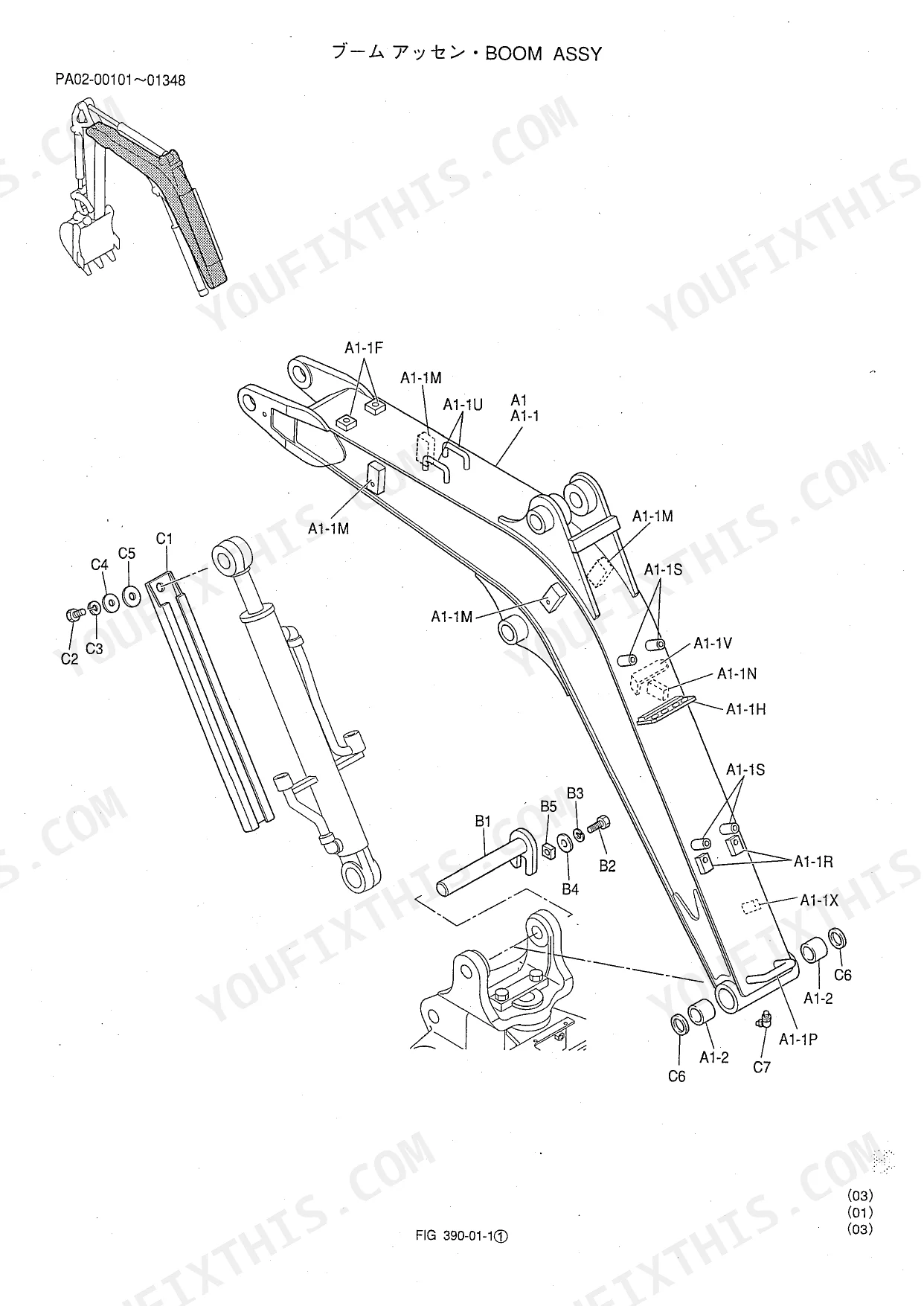

Check the boom and attachment parts diagram on page 136 first. Then work through the boom assembly, boom hydraulic lines, and cylinder installation views in the pages that follow, matching each callout to its parts list line. Confirm your serial number on the name plate before ordering.
Manual Section: Attachments p. 136Frequently Asked Questions
What are the engine oil and fuel filter replacement specifications for the Kobelco SK09SR?
The manual specifies the following Yanmar diesel parts for engine maintenance: the element kit for the engine oil filter is part number 119305-35150, and the element kit for the engine fuel filter is part number 124550-55700. p. 16
What is the replacement specification for the air cleaner element on the Kobelco SK09SR?
The replacement air cleaner element for the SK09SR is part number PA11P00002S002. p. 16
What part number are the engine mounting bolts on the Kobelco SK09SR?
The engine mounting bolts are M10 x 20 capscrews, part number ZS18C10020, per the engine installation parts list. p. 35
What is the part number for the engine oil level gauge on the Kobelco SK09SR?
The engine oil level gauge is part number PA58S01001P1. p. 35
What is the part number for the engine thermostat on the Kobelco SK09SR?
The engine thermostat is part number 119260-49800. p. 31
Is this Kobelco SK09SR Parts Manual a digital download?
All 316 pages arrive as one searchable PDF at checkout. Read it at the desk, then take the phone out to the machine.
Is this Kobelco SK09SR Parts Manual printable?
Yes. Many mechanics print the section they need for their own shop and bring it to the bench.
