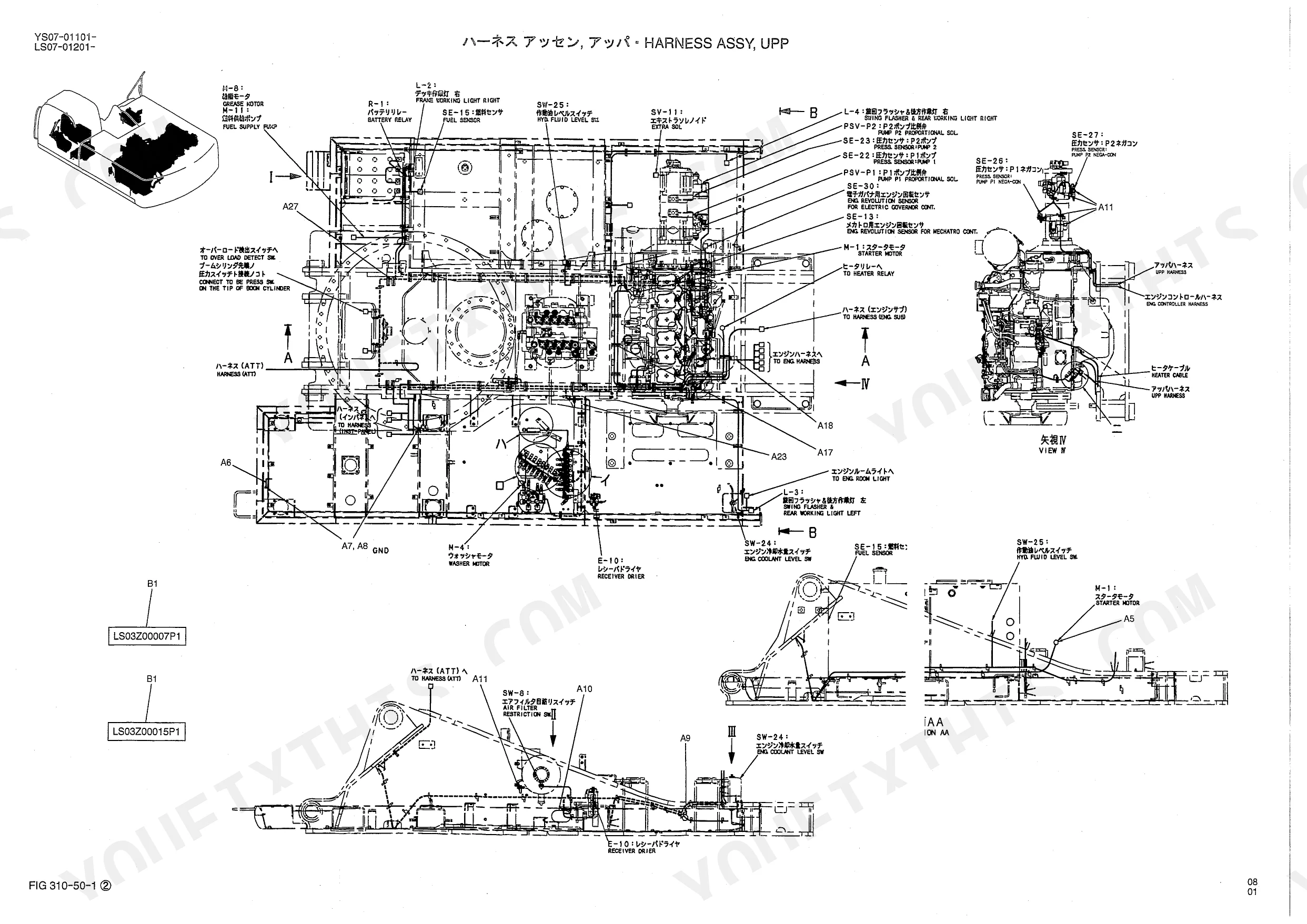

Before you unbolt a worn track roller or a weeping swing motor on a Kobelco SK480 or SK480LC hydraulic excavator, you want its correct part number, and this 724-page Kobelco SK480 parts catalog PDF (OEM ID S3LS00009ZE05) has it. Exploded views break the superstructure, undercarriage and attachments into numbered assemblies, from the slewing ring, idler adjuster and track rollers to the 7.0 m standard boom and 3.45 m arm with their hydraulic lines. Wiring diagrams trace the upper harness and controller group, and a parts index at the back cross-references each number to its figure. Order a holding valve only after confirming the listed set pressure of 39.7 MPa at 250 L/min, and match the 1.0 mm swing shim by its own part number. A wrong seal kit means a crew waiting on freight. Bookmarks and a searchable text layer take you from a part number to its exploded view in seconds.
What's Inside This Kobelco SK480, SK480LC Parts Manual

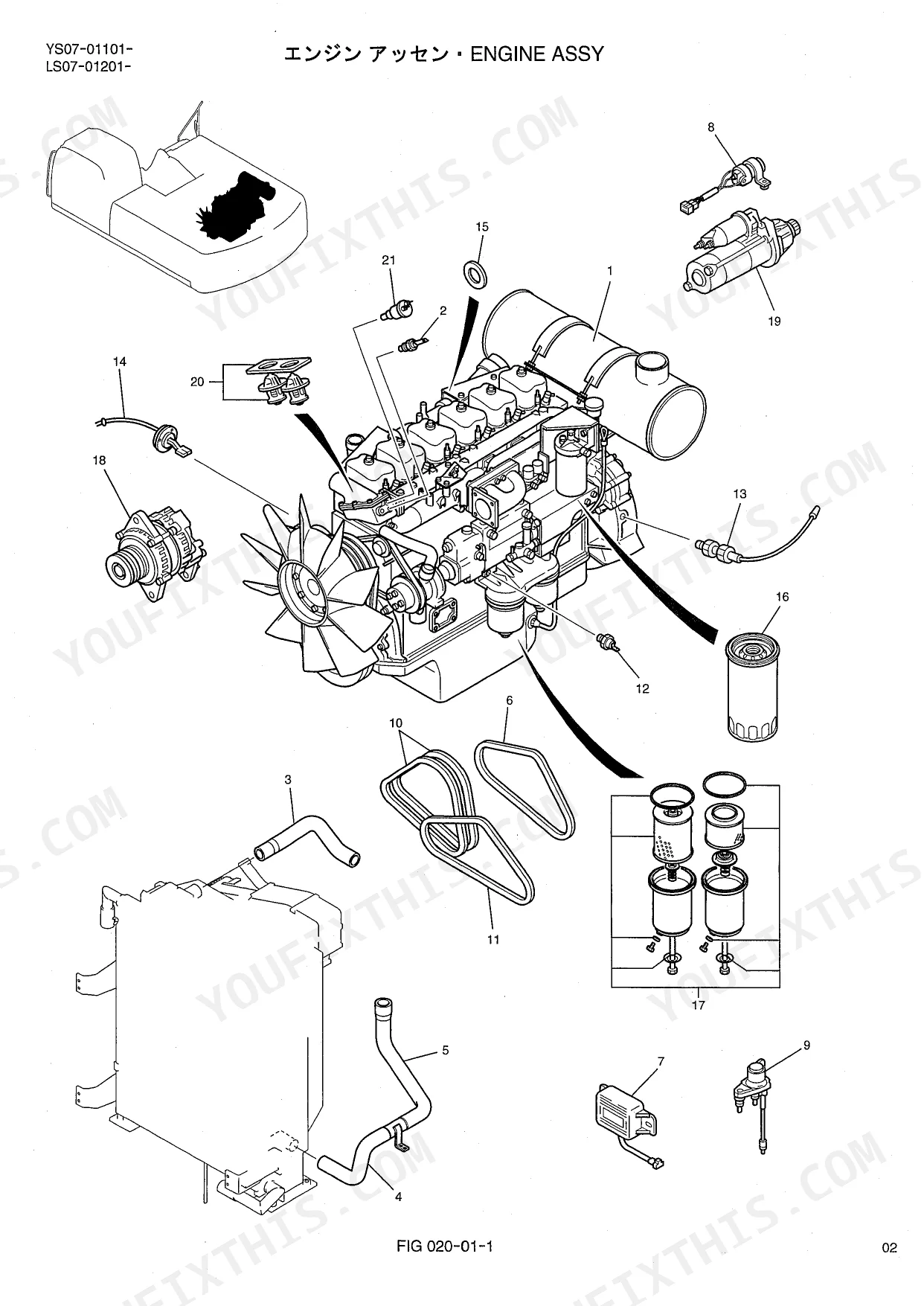

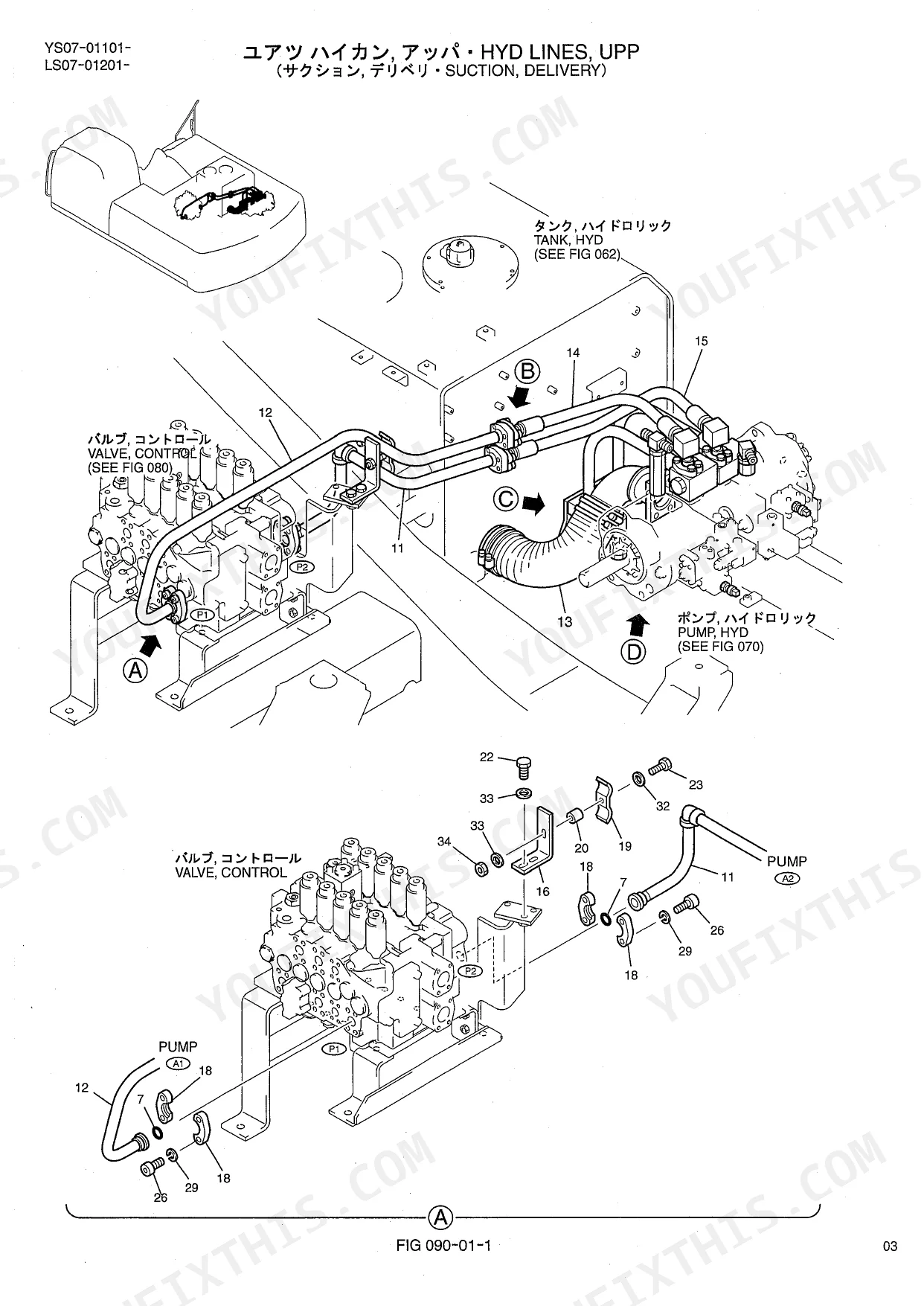

| System | Pages | Key Topics |
|---|---|---|
| General Maintenance Items | 21-28 | Filter List, Nut & Sleeve Parts No, Paint Color |
| Superstructure | 29-260 | Upper Frame Assy, Counterweight Assy, Engine Assy, Engine Instal, Radiator Instal, Radiator Assy, Cleaner Assy |
| Undercarriage | 261-294 | Low Group, Slewing Ring Assy, Idler Assy, Crawler, Idler Adjust Assy, Roller Assy |

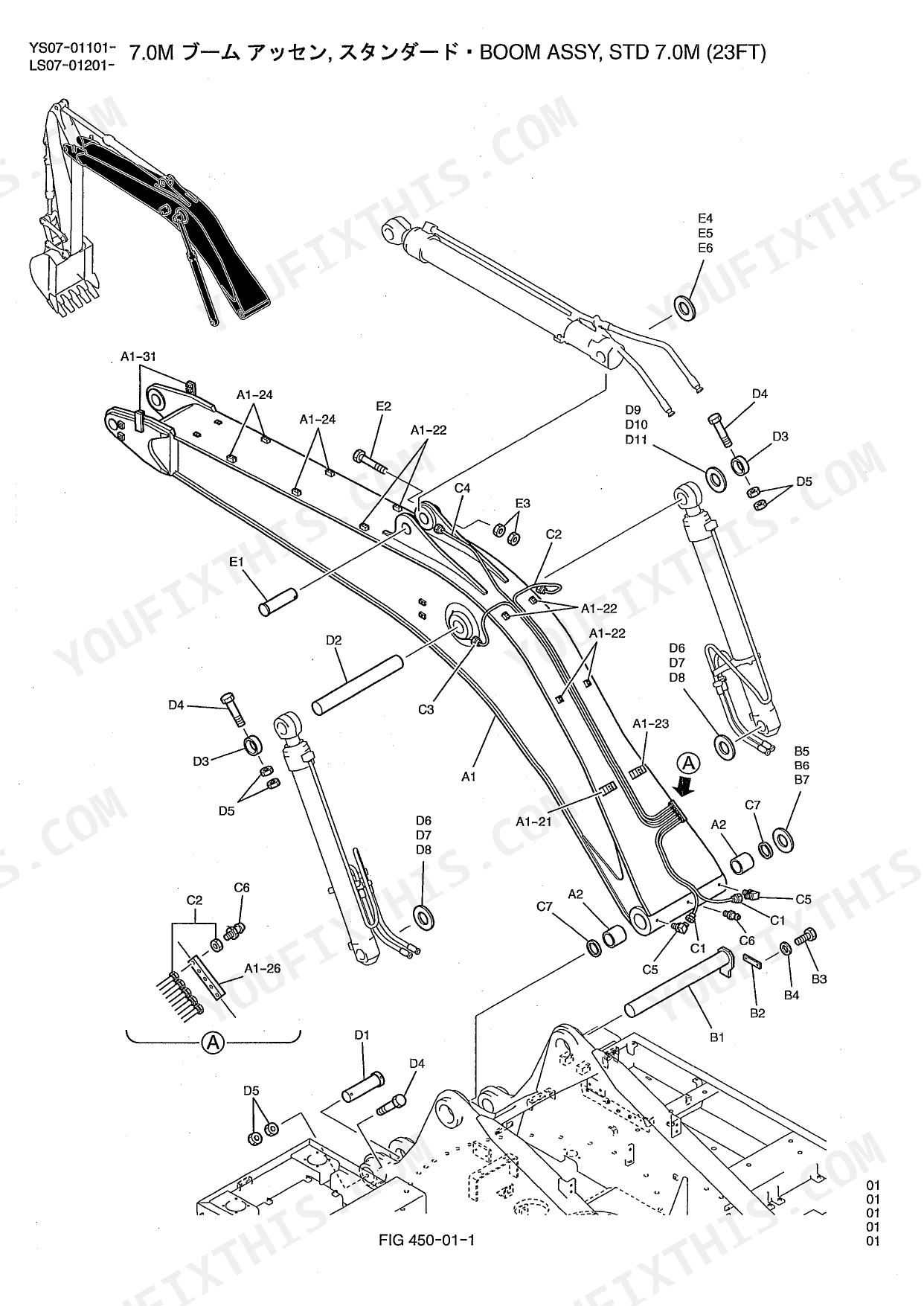

| Attachments | 295-316 | Std 7.0m Boom Assy, 7.0m Boom Hyd Lines, Light Instal, Std 3.45m Arm Assy |
| Tools and Spare Parts | 317-324 | Tool & Accessory, Element Kit, Transfer Instal, Mirror Instal |

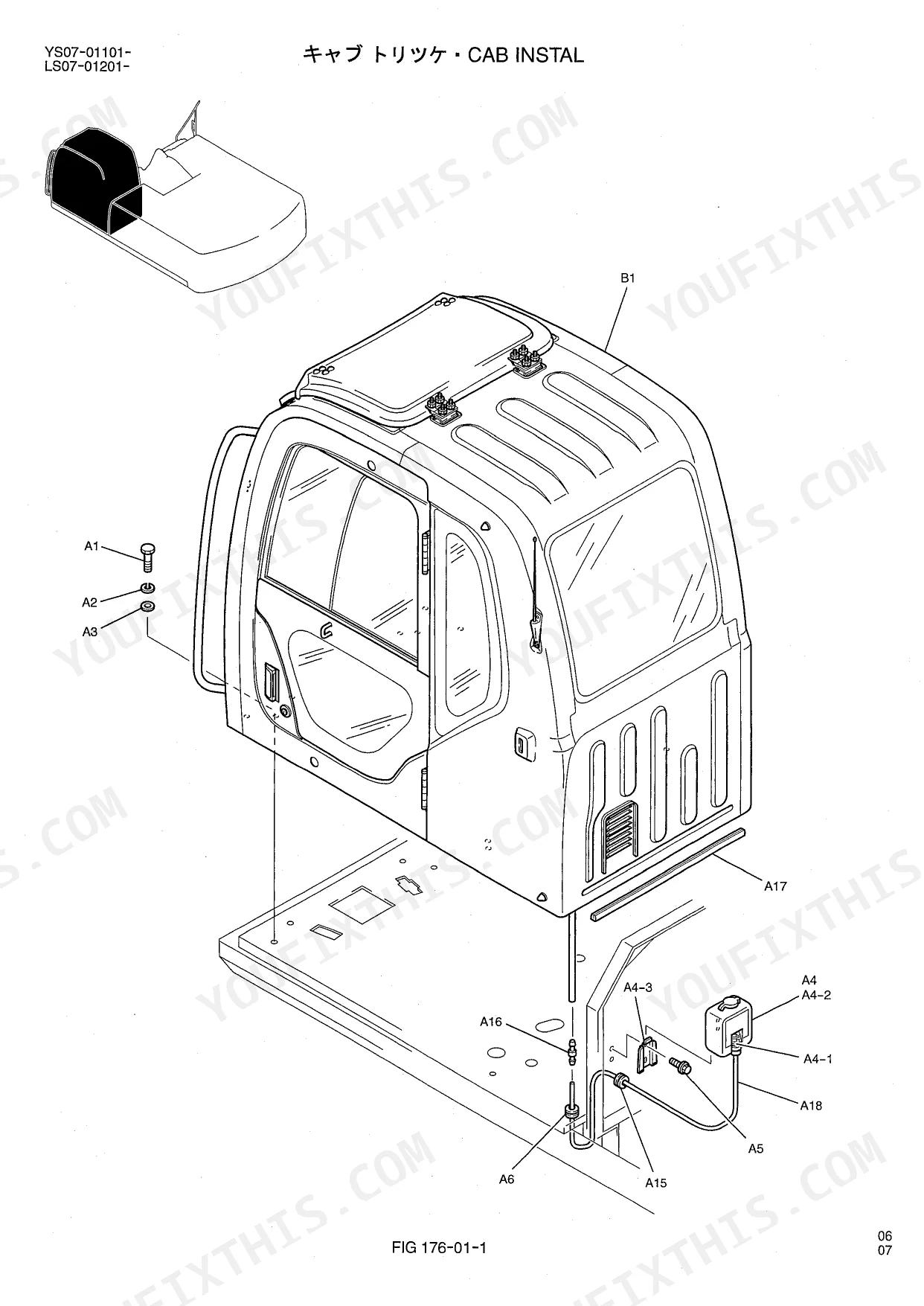

| Optional Parts | 325-354 | Lock Assy, Cab, Mirror Instal, Light Instal, Short 3.0m Arm Assy, Semilong 4.04m Arm Assy |
| Name-Plate | 355-374 | Name Plate Instal |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Shim (1.0) | 1.0 mm | p. 81 |
| Set Pressure (Holding Valve) | 39.7 MPa at 250 L/min | p. 428 |
| Engine Oil Pan Drain Plug Standard Tool | 250mm middle type ratchet wrench | p. 374 |
| Overload Relief Valve Set Pressure | 400 kgf/cm² at 5L/min | p. 415 |
| Valve Assy, Holding Set Pressure | 39.7 MPa at 250L/min | p. 428 |
| Valve Assy, Relief Set Pressure (F1) | 34.8 MPa at 30L/min | p. 502 |
| Valve Assy, Relief Set Pressure (F2) | 36.3 MPa at 30L/min | p. 502 |
Kobelco SK480, SK480LC Common Problems This Manual Covers
Kobelco SK480LC filter element part numbers for scheduled service hard to locate in the parts catalog
Check the filter list in the General Maintenance Items group starting on page 21, where the filters sit alongside the maintenance intervals. Copy the part number straight from that list, then confirm it against the Element Kit listing in Tools and Spare Parts on page 317 before ordering a full service set.
Manual Section: General Maintenance Items p. 21Can't identify the correct idler adjust assembly and roller assembly part numbers for the undercarriage

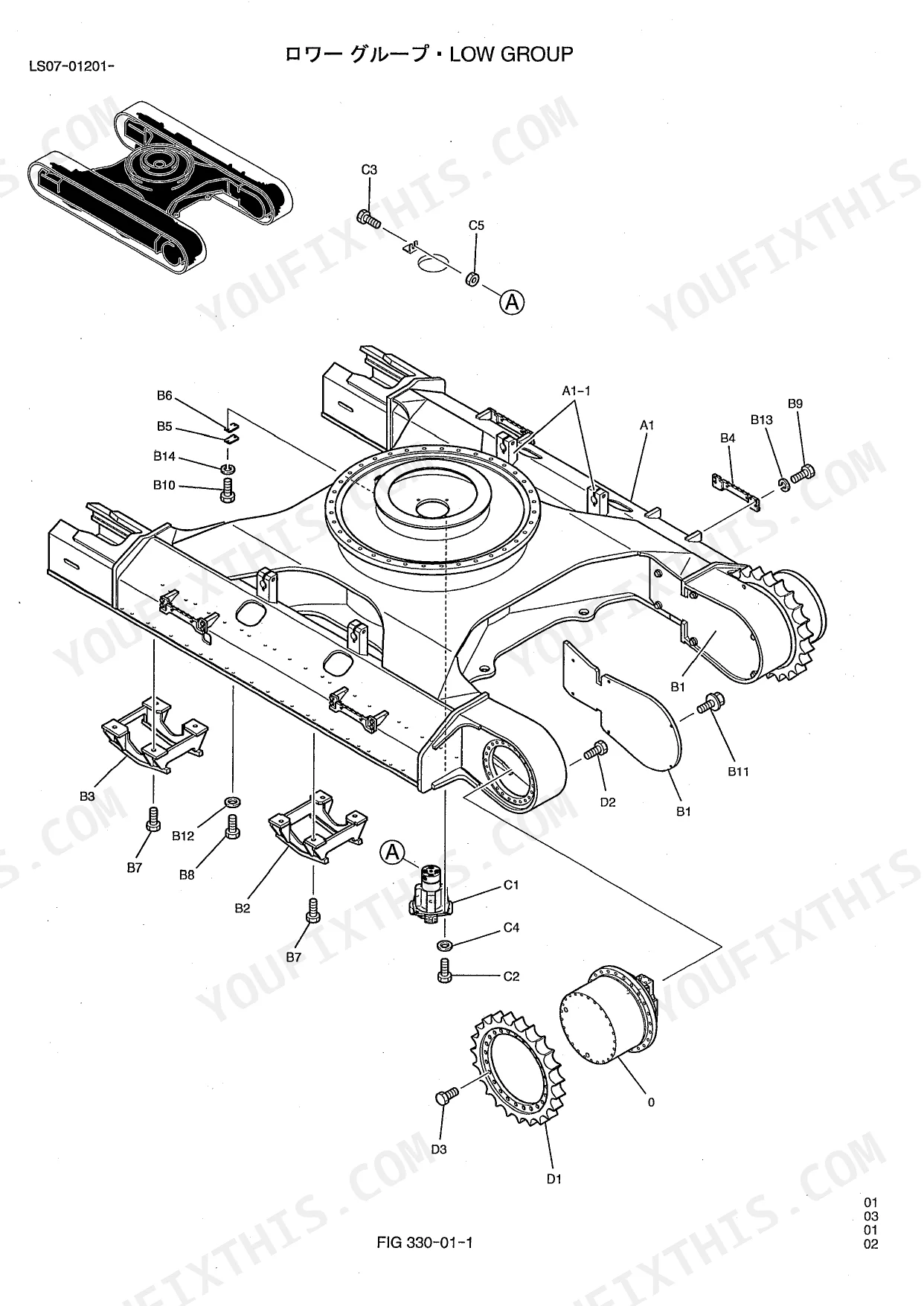

Check the Undercarriage group starting on page 261 and work through the chassis exploded views on pages 262 through 264. Locate the Idler Assy, Idler Adjust Assy and Roller Assy callouts, read each item number against the parts list, and confirm whether the machine is an SK480 or SK480LC before you place the order.
Manual Section: Undercarriage p. 261Arm hydraulic line parts don't match on a machine fitted with the optional short or semilong arm
Measure the arm and match it to the right listing before pulling a part number. The standard 7.0m boom and 3.45m arm with their hydraulic lines start on page 295, while the Short 3.0M and Semilong 4.04M arm assemblies sit in Optional Parts from page 325. Verify the hydraulic line callouts in the matching exploded view.
Manual Section: Attachments p. 295Can't confirm which relief valve assembly to order without the factory set pressure
Verify the set pressure listed in the catalog before ordering a replacement valve. The overload relief valve is listed at 400 kgf/cm² at 5L/min on page 415, and the relief valve assembly on page 502 shows F1 at 34.8 MPa at 30L/min. Cross-reference your old part number against whichever listing matches.
Manual Section: Hydraulic Components p. 415Alternator and regulator inner parts hard to identify when rebuilding instead of replacing the assembly
Check the Alternator & Regulator listing in the Mitsubishi 6D24-TL engine parts section, which breaks out the complete assembly and its inner parts. Decide whether you need the whole unit or individual components, then pull the part number from the matching list. Check the engine harness listing too if the connectors need replacing.
Manual Section: Alternator & RegulatorEngine overhaul gasket kit contents and part numbers unclear for a Mitsubishi 6D24-TL rebuild
Check the Engine Overhaul Gasket Kit listing in the Mitsubishi 6D24-TL engine parts section to see every gasket the kit covers. Compare it against the engine group index before ordering loose gaskets, so you don't double up. Verify the kit part number against the genuine parts information at the front of the engine catalog.
Manual Section: Engine Overhaul Gasket KitFrequently Asked Questions
What are the replacement specifications for the engine oil filter element on the Kobelco SK480?

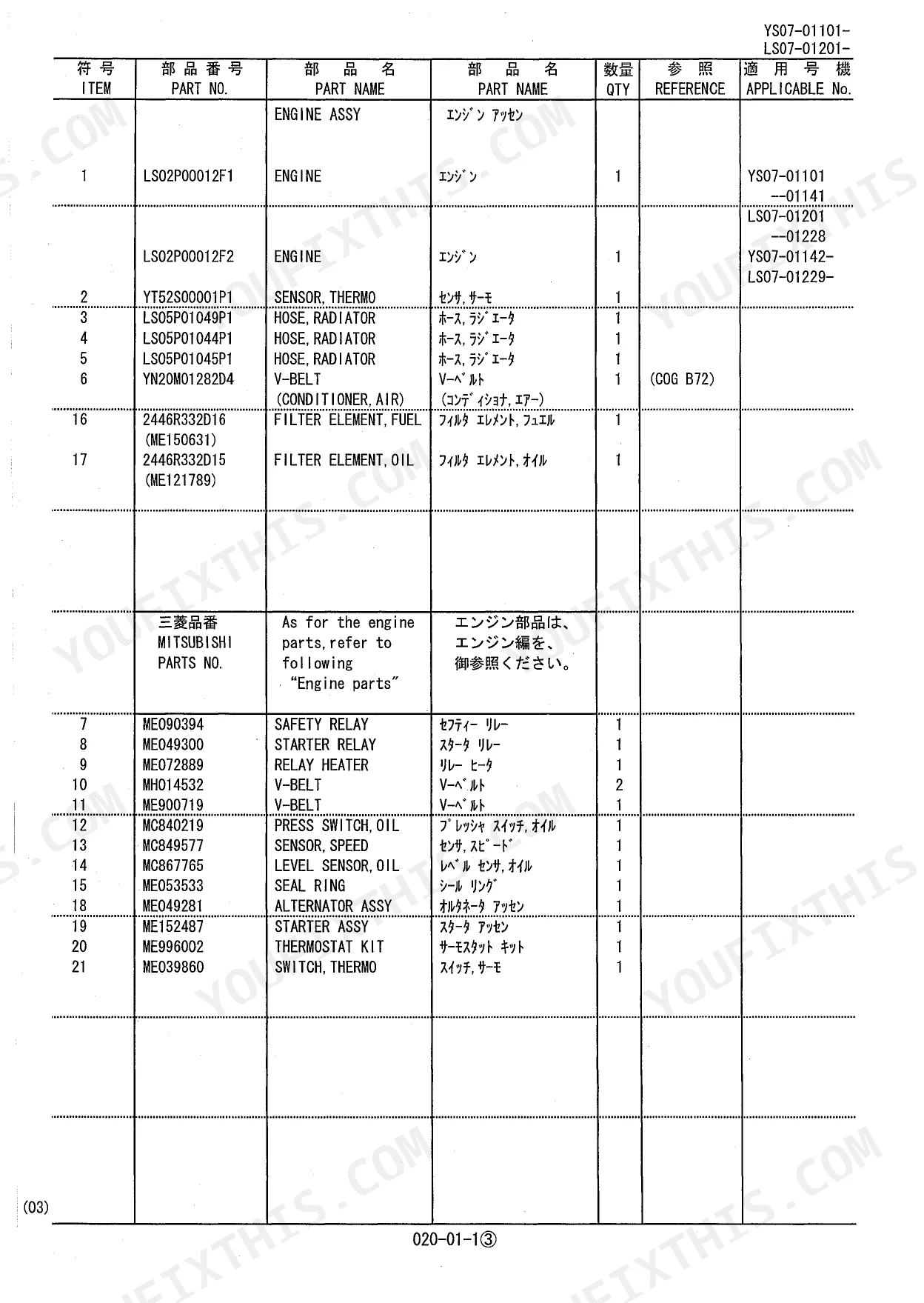

The engine oil filter element for the SK480/SK480LC is part number 2446R332D15 (ME121789). This is a primary filter element for the Mitsubishi engine. p. 23
What are the replacement specifications for fuel filters and fuel-system sealing washers on the Kobelco SK480?
The fuel filter element is part number 2446R332D16 (ME150631). For the fuel system, the gasket for the injection pump body is part number ME704044, and the bolt for the injection pump drive is part number ME713384. p. 23
What is the standard tightening torque for the engine oil pan drain plug on a Kobelco SK480?
The standard tightening torque for the engine oil pan drain plug is 5-8 kgf-m (approximately 36-58 ft-lb). It is recommended to tighten by hand first, then tighten with a ratchet wrench at an angle of 15-30 degrees. p. 374
What is the set pressure for the overload relief valve on the Kobelco SK480 main control valve?
The set pressure for the overload relief valve on the main control valve is 400 kgf/cm² at 5 L/min. p. 415
What is the overload relief valve assembly set pressure on the Kobelco SK480?
The set pressure for the valve assembly overload relief varies by model: F1 is 34.8 MPa, F2 is 36.3 MPa, F3 is 29.4 MPa, F4 is 32.8 MPa, F5 is 26.5 MPa, and F6 is 29.4 MPa, all measured at 30 L/min (except F3/F5 at 500 L/min). p. 478
What exactly do I receive with this Kobelco SK480 Parts Catalog?
This is a 724-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Am I free to print this Kobelco SK480 Parts Catalog?
Yes. It prints from any PDF reader, so run off the pages you need for your own repair work.
