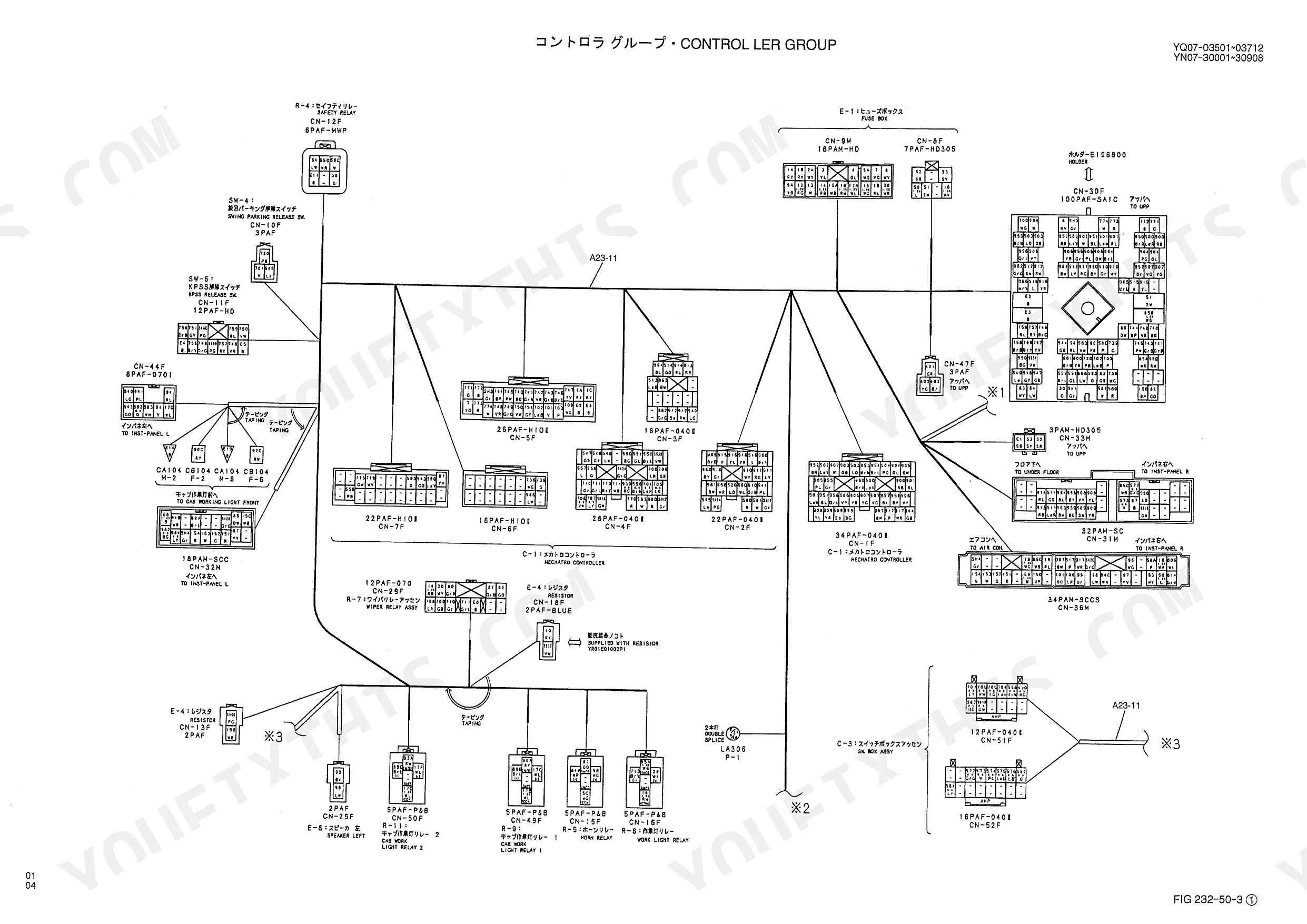

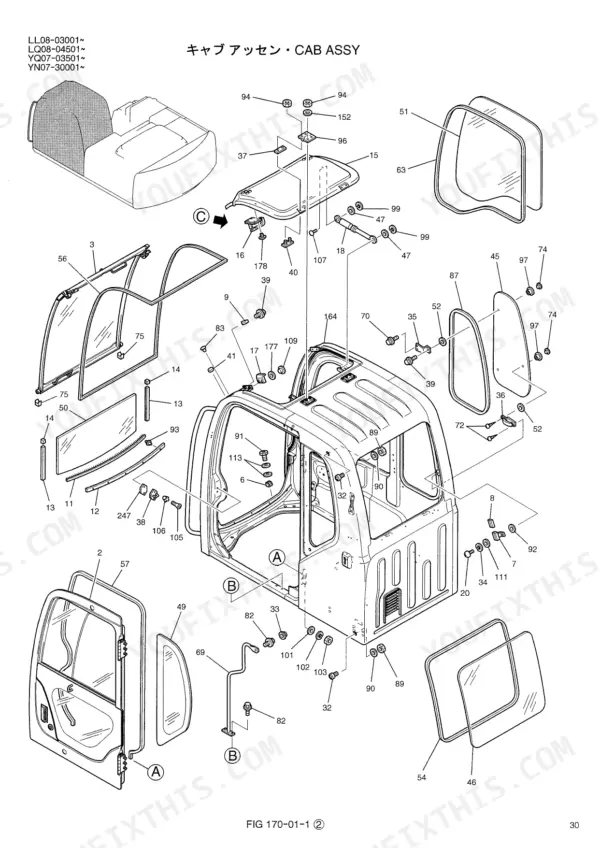

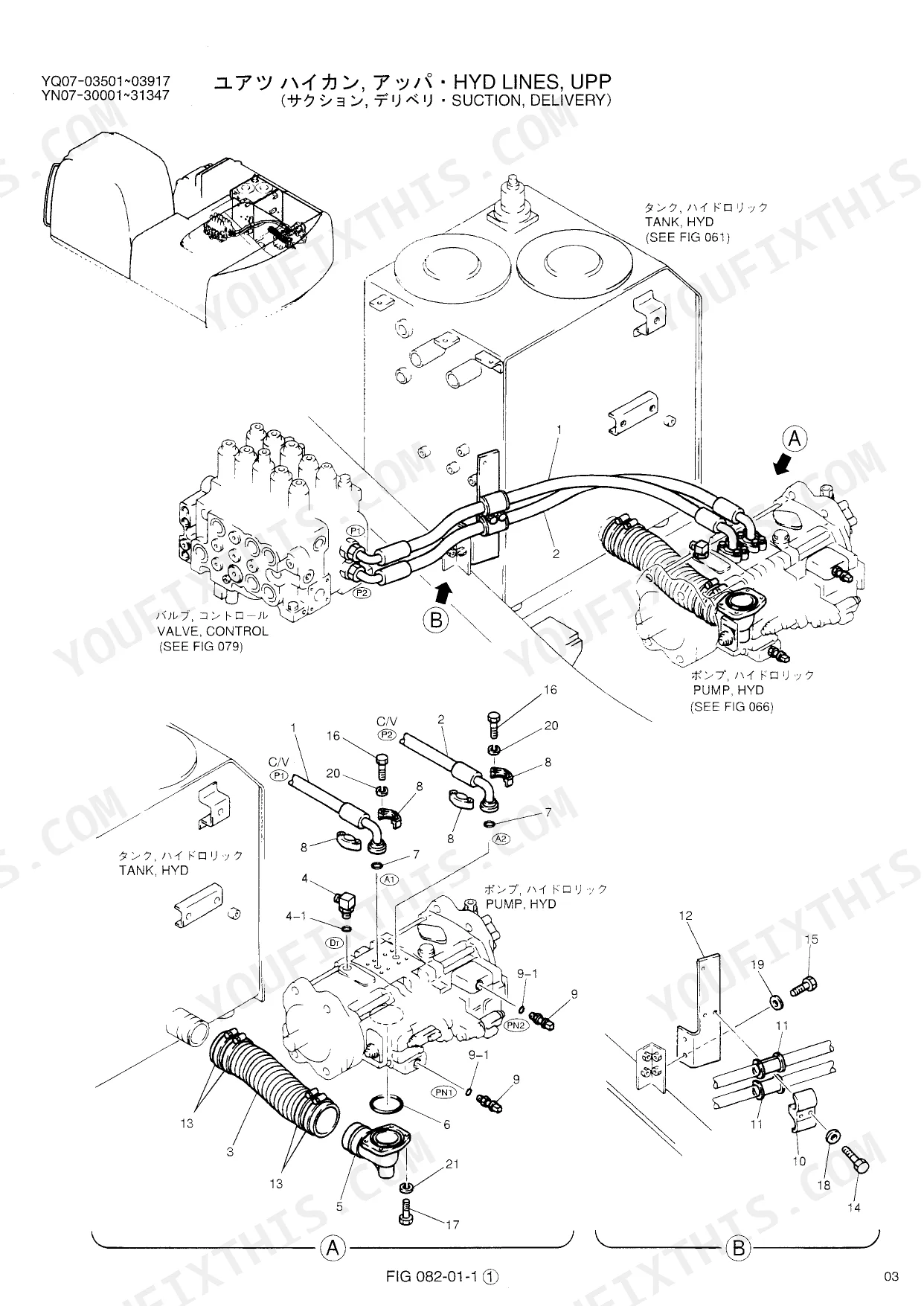

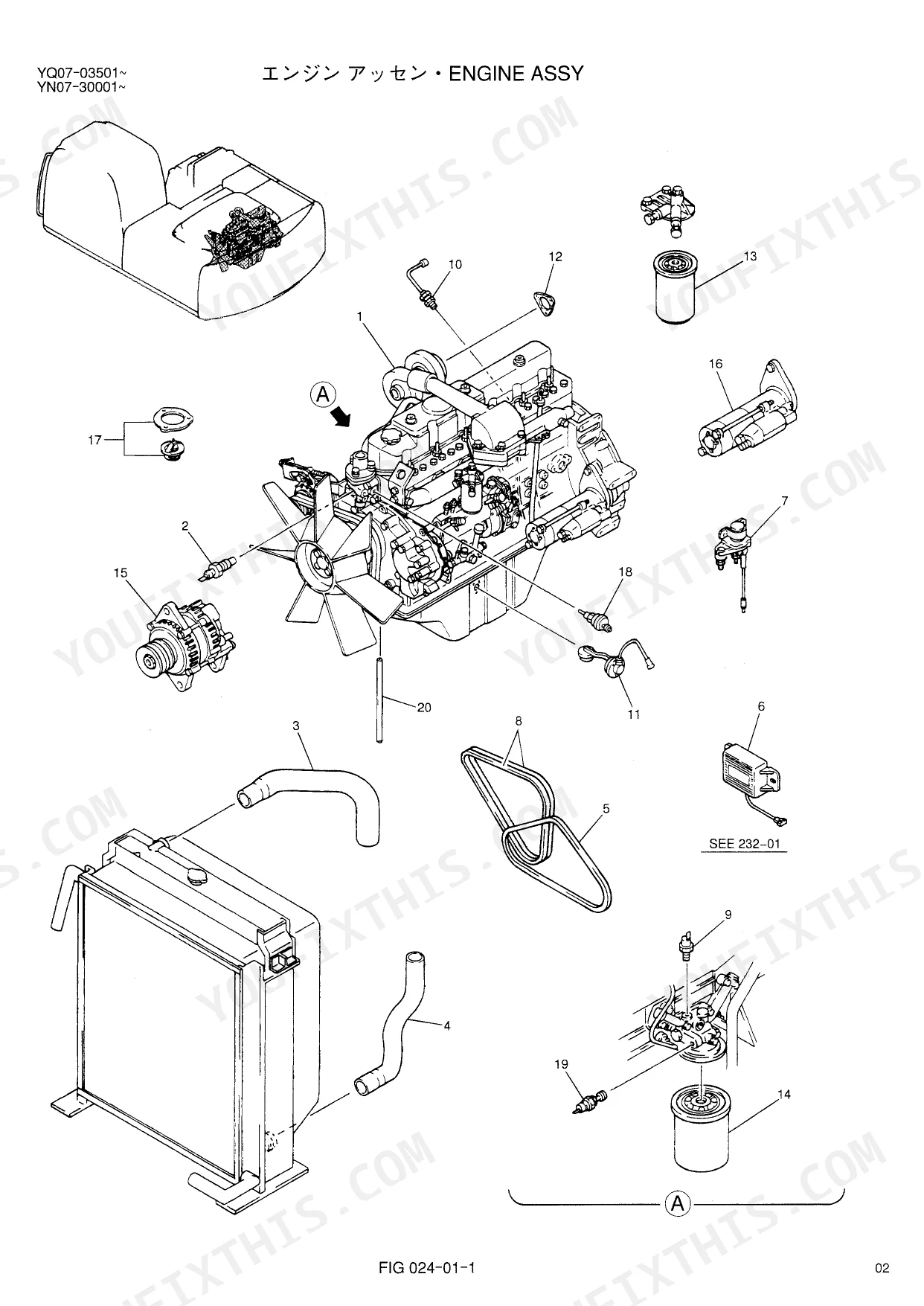

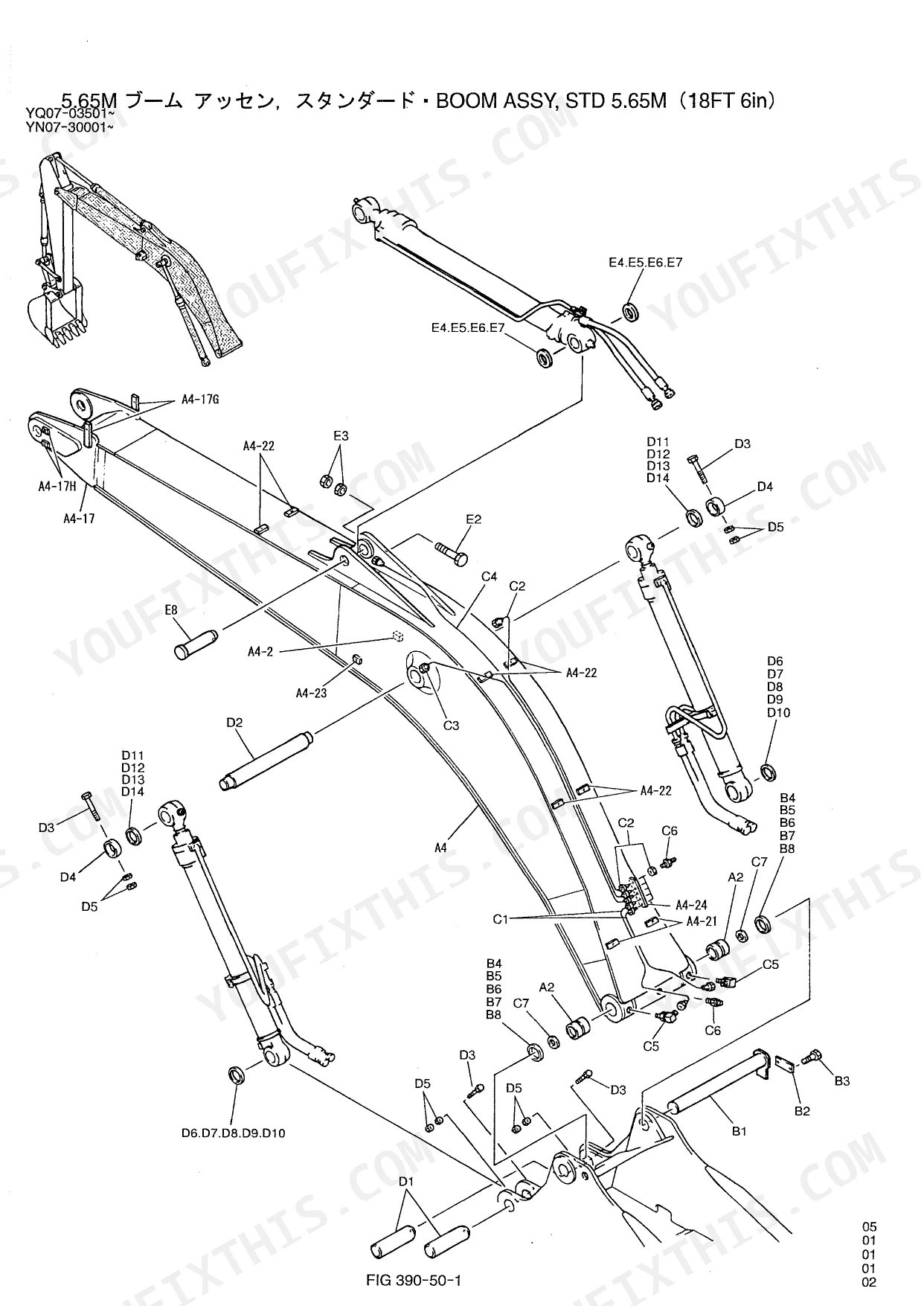

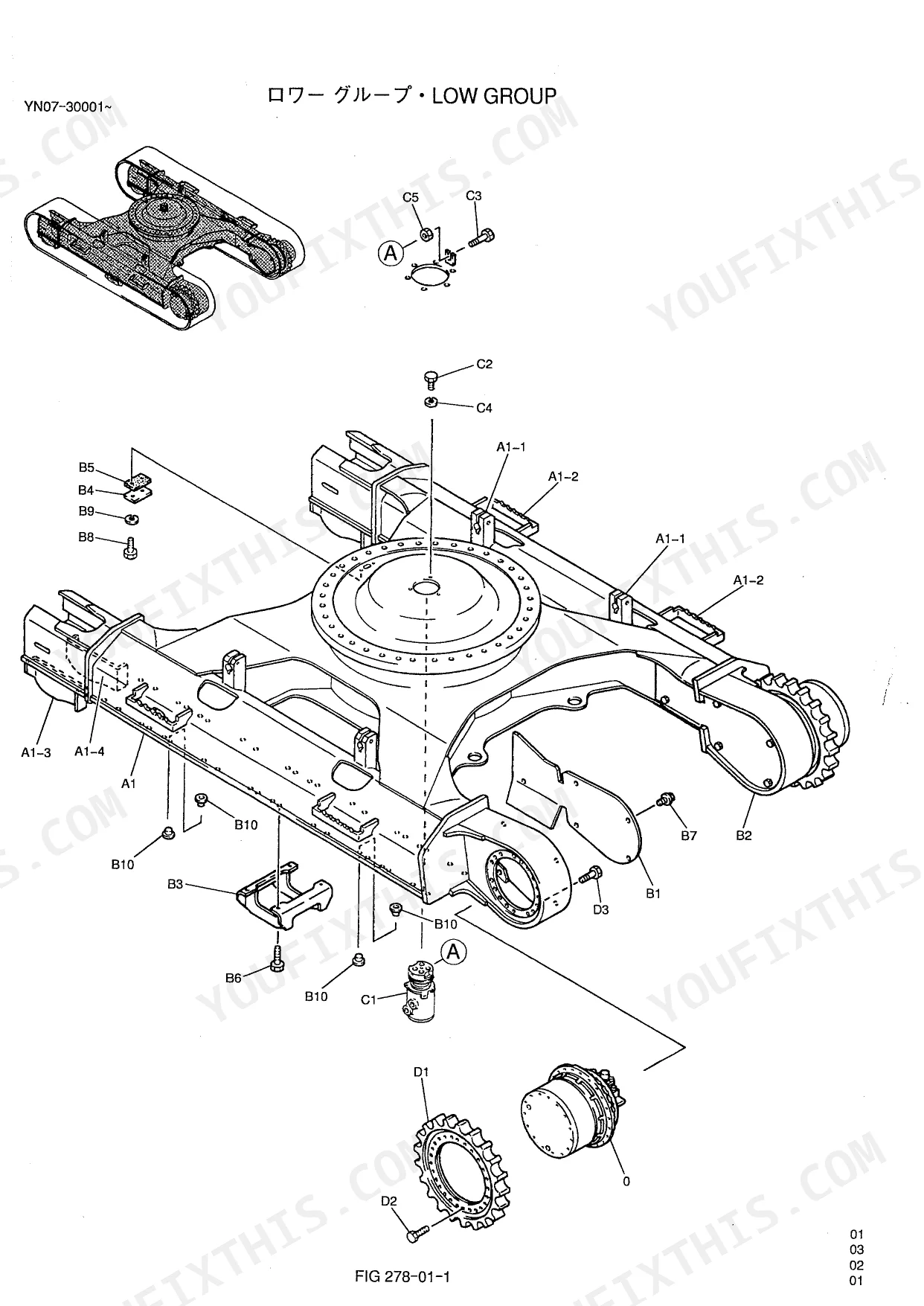

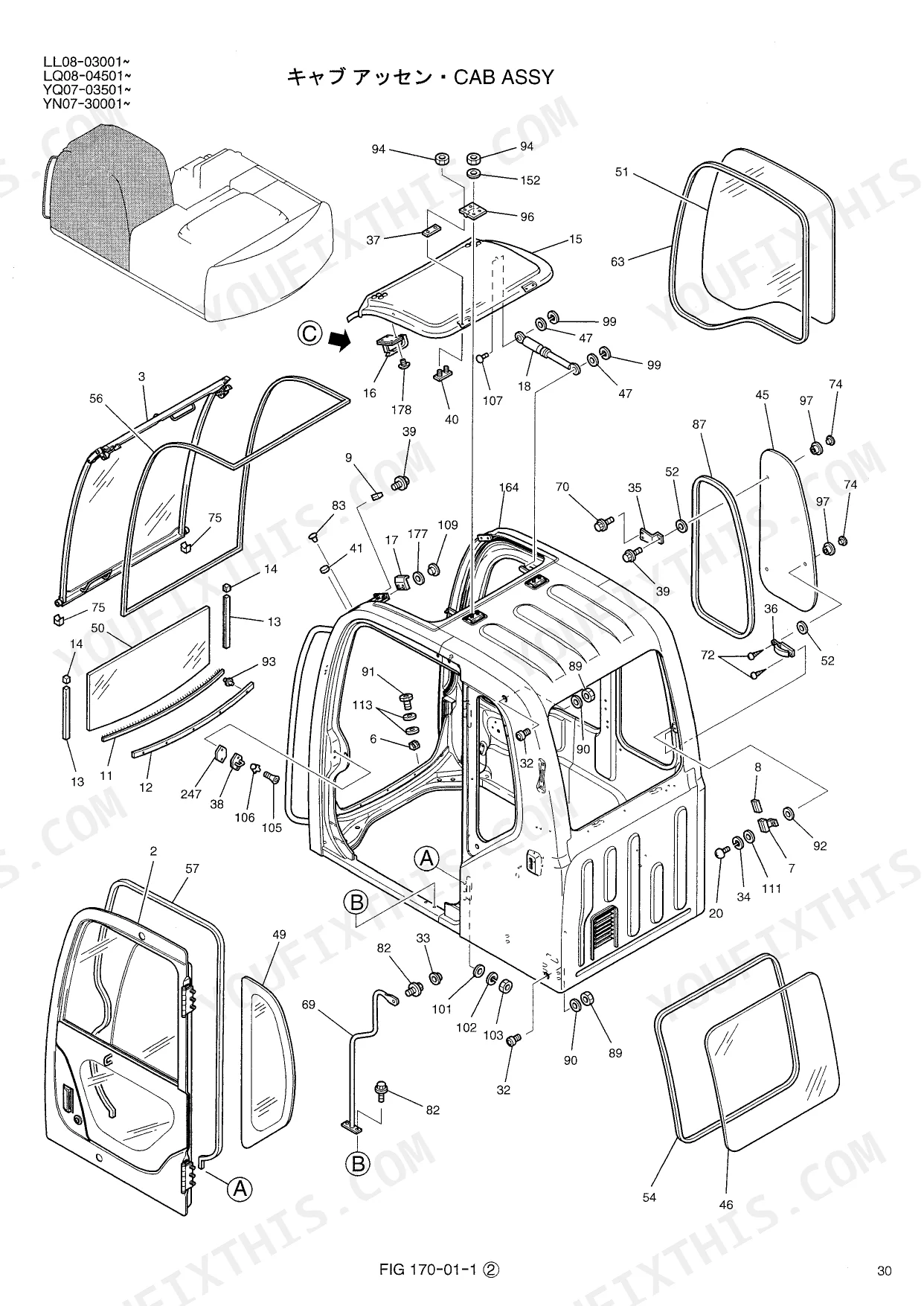

Superstructure, undercarriage, boom and arm, and the engine down to its injection pump and turbocharger: the Kobelco SK200-6 parts catalog PDF covers the whole crawler excavator across 738 pages and five SK200-6 and SK210-6 variants, with the LC and NLC undercarriages included. Exploded views tie a part number to every piece of the swing reduction, slewing ring, crawler idler and adjuster, track rollers and remote pilot control lines, including the boom safety and boom and arm safety versions. Engine parts fill roughly half the book, from cylinder head and block through starter, alternator and water pump, while the harness assemblies and controller group give you the wiring side of the cab. Before you order a replacement holding valve, match it to its setting: F1 is 39.7 MPa at 150 L/min, F2 is 37.8 MPa. A guessed set pressure splits hoses. Bookmarks follow the factory figure numbers and the text is searchable, so a part number takes you straight to its page.
What's Inside This Kobelco SK200-6 to SK210NLC-6 Series Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| General Maintenance Items | 19-24 | Filter List, Nut and Sleeve Parts, Paint Color |
| Superstructure | 25-228 | Frame Assy, Upp, Counterweight Assy, Engine Assy, Engine Instal, Radiator Instal, Radiator Assy, Repair Kit |
| Undercarriage | 229-274 | Low Group, Ring Assy, Slewing, Idler Assy, Crawler, Idler Adjust Assy, Roller Assy |
| Attachments - Boom and Arm | 275-347 | Boom Assembly, Arm Assembly, Hydraulic Lines, Cylinder Installation, Bucket Installation |
| Engine Components - General | 348-400 | Bucket Assembly, Engine Parts Catalog, Injection Pump, Cylinder Head, Cylinder Block |
| Engine Components - Systems | 401-584 | Electrical Components, Hydraulic Components, Pneumatic Components, Starter, Alternator, Fuel Injection Pump |
| Engine Components - Detailed Assemblies | 585-683 | Engine Overhaul Gasket Kit, Rocker Cover, Breather, Cylinder Head, Cylinder Block, Turbocharger |
| Engine Components - Starter and Fuel Systems | 684-738 | Starter, Alternator, Regulator, Fuel Injection Pump, Fuel Return Hose, Water Pump and Fan |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Set pressure for Valve Assy, Holding (F1) | 39.7 MPa at 150 L/min | p. 510 |
| Set pressure for Valve Assy, Holding (F2) | 37.8 MPa at 150 L/min | p. 510 |
| Relief Valve Set Pressure (F1) | 20.6MPa at 70L/min | p. 416 |
| Relief Valve Set Pressure (F2) | 18.6MPa at 50L/min | p. 416 |
| Relief Valve Set Pressure (F3) | 19.6MPa at 50L/min | p. 416 |
| Relief Valve Set Pressure (F4) | 19.6MPa at 30L/min | p. 416 |
| Relief Valve Set Pressure (F5) | 20.6MPa at 50L/min | p. 416 |
Kobelco SK200-6 to SK210NLC-6 Series Common Problems This Manual Covers
Kobelco SK200-6 radiator assembly part number differs by serial number, unsure which radiator fits my machine
Check the radiator listing on page 37 before ordering. YN05P00024F1 covers YQ07-03501 to 03508 and YN07-30001 to 30108. YN05P00024F2 covers YQ07-03509 to 04012 and YN07-30109 to 31671. YN05P00024F3 runs from YQ07-04013 and YN07-31672 on. Match your serial plate, then confirm oil cooler YN05P00024S002 on page 39.
Manual Section: Radiator Installation p. 37Muffler replacement part number changes across serial ranges, can't tell which muffler fits
Verify your serial number against the muffler assembly list on page 47. YN12P00013P1 covers YQ07-03501 to 03516 and YN07-30001 to 30184. YN12P00021P1 covers YQ07-03517 to 04383 and YN07-30185 to 32646. YN12P00029P1 runs from YQ07-04384 and YN07-32647 on. Order exhaust gasket ME088841 from the same list.
Manual Section: Muffler Assembly p. 47Need part numbers for engine oil, fuel, pilot and hydraulic filter elements before the next service
Check the filter list on page 20 before you make the parts run. The engine oil element kit is ME088532, the fuel element kit is ME015254 and the pilot filter is YN50V01001S005. The same list shows a separate hydraulic filter element kit for nibbler and breaker machines, so confirm which attachments your machine runs before ordering.
Manual Section: General Maintenance Items p. 20Air cleaner outer and inner elements look similar, can't confirm the right part numbers
Check the air cleaner assembly on page 43. The outer filter element is YN11P00001S002, and the inner W element is YN11P01013P1, shown on its own on page 44. Add O-ring YN11P00001S006 to the order. If you're also replacing the intake hoses, note that their part numbers change at serials YQ07-03800 and YN07-31039.
Manual Section: Air Cleaner Assembly p. 43Fuel pump assembly needs rebuilding, can't find what the repair kit actually includes
Check the fuel pump assembly breakdown on page 51. Pump assembly YT22P00001F5 is covered by repair kit YT22P00001R100, which consists of items 1 to 11, 21 to 25 and 26. The check valve YT22P00001S018 and strainer YT22P00001S019 fall outside the kit, so order them separately if they need replacing.
Manual Section: Fuel Pump Assembly p. 51Engine speed sensor, oil pressure switch and alternator part numbers needed for the Mitsubishi engine
Check the engine assembly list on page 31. The speed sensor is MC849577, the oil pressure switch is MC840219, the alternator assembly is ME088887 and the starter assembly is ME049303. For internal starter and alternator components, go to the Engine Components section for starter and fuel systems starting on page 684.
Manual Section: Engine Assembly p. 31Frequently Asked Questions
What is the part number for the SETSCREW in this manual?
Page 27 lists part number ZS83C20020 for the SETSCREW. p. 27
What is the part number for the PLUG in this manual?
Page 29 lists part number 2420Z1340D2 for the PLUG. p. 29
What is the part number for the SAFETY RELAY (INP) in this manual?
Page 31 lists part number ME077148 for the SAFETY RELAY (INP). p. 31
What is the part number for the STAY in this manual?
Page 35 lists part number YN05P01049P1 for the STAY. p. 35
What is the part number for the CLIP in this manual?
Page 43 lists part number ZC16X11000 for the CLIP. p. 43
How will I receive this Kobelco SK200-6 Parts Catalog?
All 738 pages arrive as one searchable PDF at checkout. Read it at the desk, then take the phone out to the machine.
Am I free to print this Kobelco SK200-6 Parts Catalog?
You can. Print the sections you want for your own use and keep the file as your backup.
