Book No. 6-25600 marks this as Link-Belt's own factory book: a 228-page Link-Belt 130 LX, 160 LX operator manual PDF for both LX-series excavators. Lifting capacity tables for every model and arm length take up a large share of the specifications chapter, so you can check a lift against the 3.06 m arm on the 130 LX or the 3.10 m arm on the 160 LX before you lift. Control patterns, the systems display, hand signals, daily inspection and the service interval schedule fill most of the remaining book, with track, idler and roller adjustment, fuses and booster battery hookup near the back. Set steel track sag to 280 to 300 mm (11 to 12 in), then torque the track shoe bolts to 350 to 370 Nm (260 to 275 lb ft). Guess the sag and you buy an idler early. Bookmarked by chapter and text-searchable, this copy keeps your 130 LX or 160 LX working instead of parked.
What's Inside This Link-Belt 130 LX, 160 LX Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| 130 LX - 160 LX Excavators | 5 | Identification Numbers, Machine Components, Instruments, Controls, Lubrication |
| To the Owner | 6 | Machine Orientation, Identification Numbers, Machine Components |
| Right, Left, Front and Rear of Machine | 7-8 | Travel Position, Operator's Cab, Idler Wheels, Travel Reduction Gears |
| Identification Numbers | 9-10 | Type, Serial Number and Year of Manufacture, Machine Components |
| Safety Rules | 11-42 | Utility Safety, Personal Safety, Before Operation, Machine Operation, Burn Prevention, Fire Extinguisher, Fire or Explosion Prevention, Maintenance |

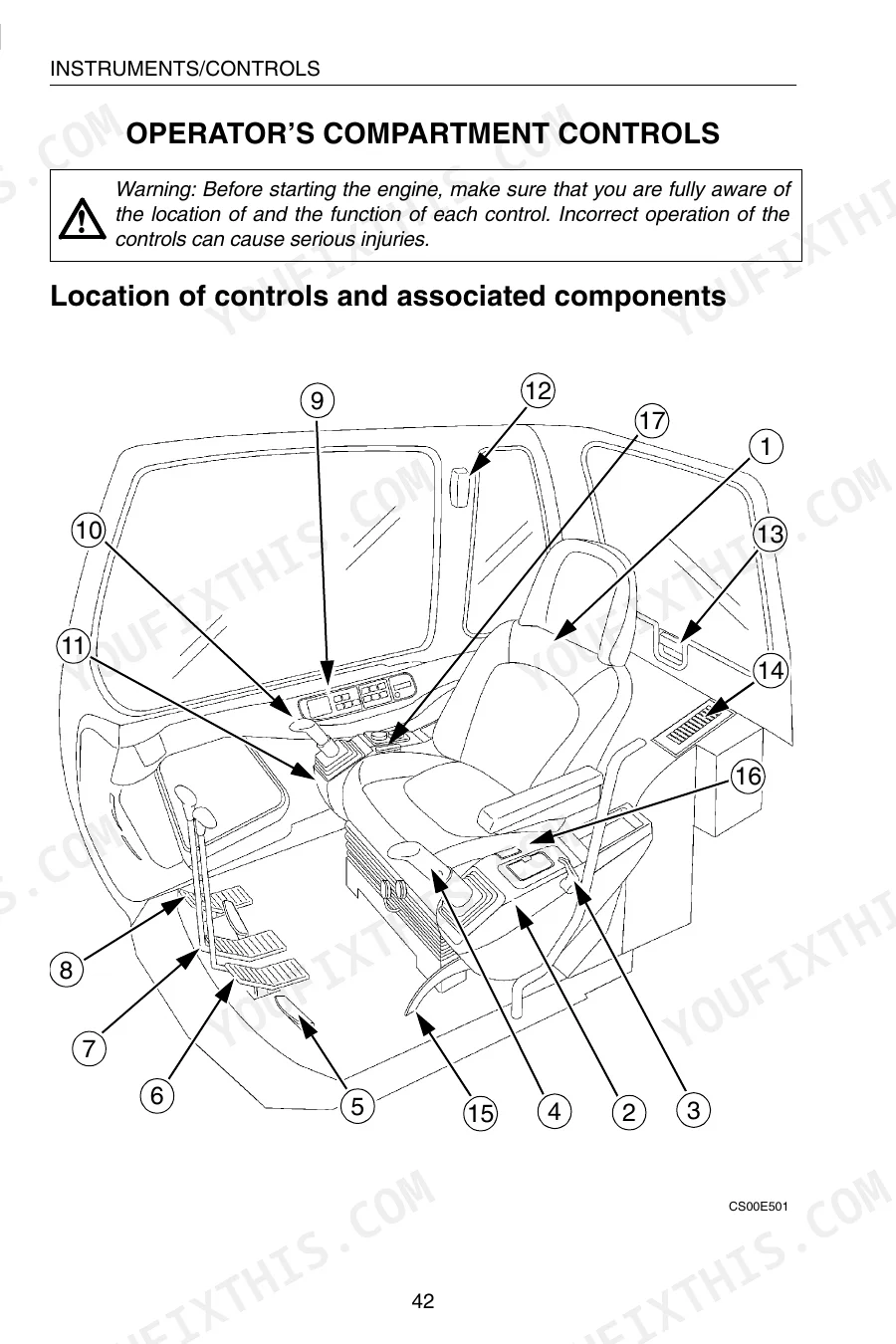

| Instruments/Controls | 43-92 | Cab Door, Steps and Access Handles, Operator's Compartment Controls, Right-Hand Control Arm, Left-Hand Control Arm, Systems Display and Control Panel, Anti-Theft Device |

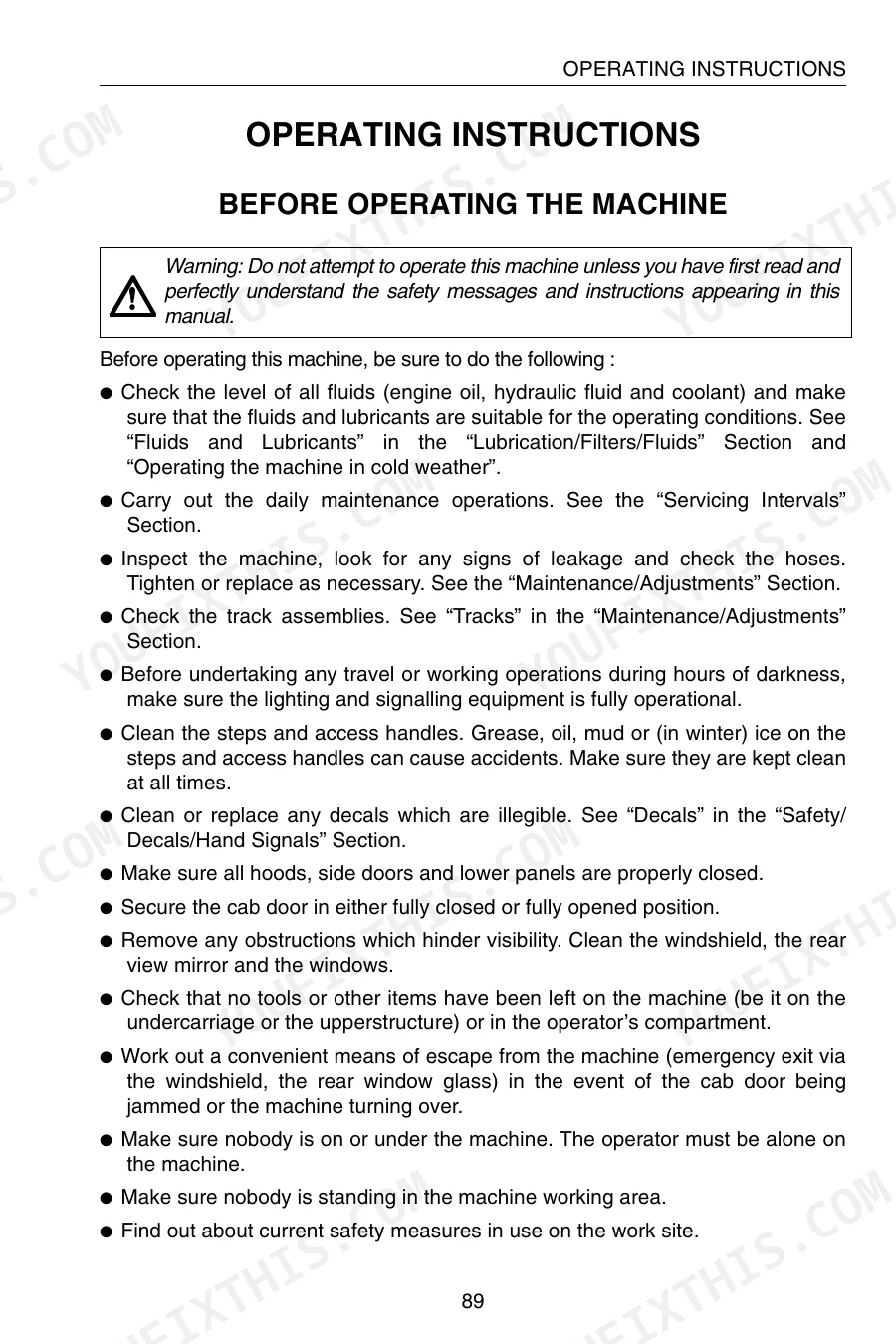

| Operating Instructions | 93-128 | Before Operating the Machine, Machine Operation, Break-In Period, Vandal Covers, Starting the Engine, Bringing the Machine Up to Operating Temperature, Engine Operation |

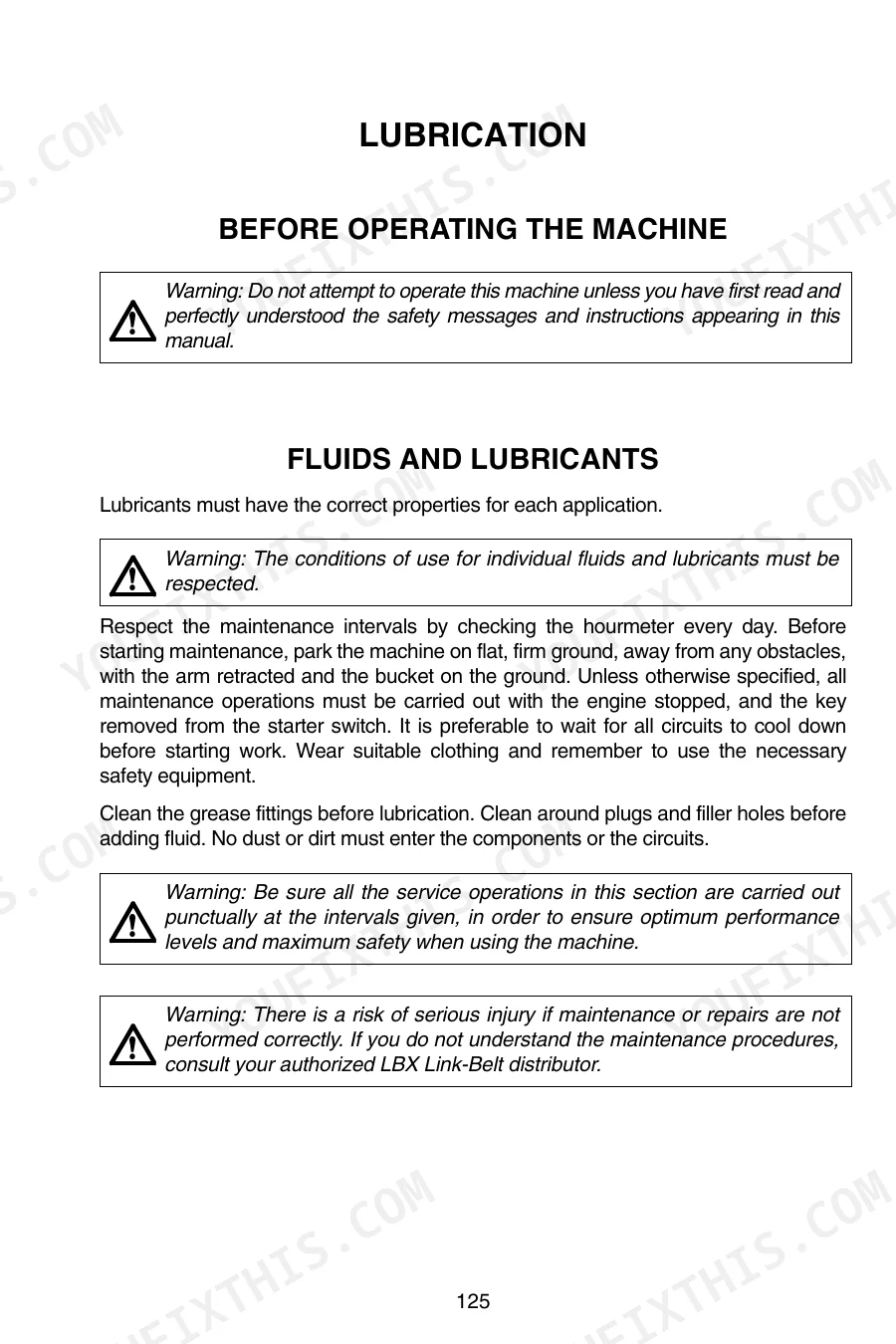

| Lubrication | 129-172 | Before Operating the Machine, Fluids and Lubricants, Hourmeter, Daily Inspection, Service Intervals, Engine Oil, Environment, Fluid and Lubricant Capacities and Specifications |
| Adjustment/Maintenance | 173-194 | Tracks, Track Rollers and Idler Wheels, Radiator and Oil Cooler, Fan and Alternator Drive Belt, Fuel Tank Filter, Inspecting and Cleaning the Machine, Checking for Cylinder Leakage |
| Electrical | 195-202 | Fuses, Batteries, Connecting Booster Batteries, Replacing a Bulb |
| Machine Storage | 203-204 | Preparation for Storage, Periodic Checks |

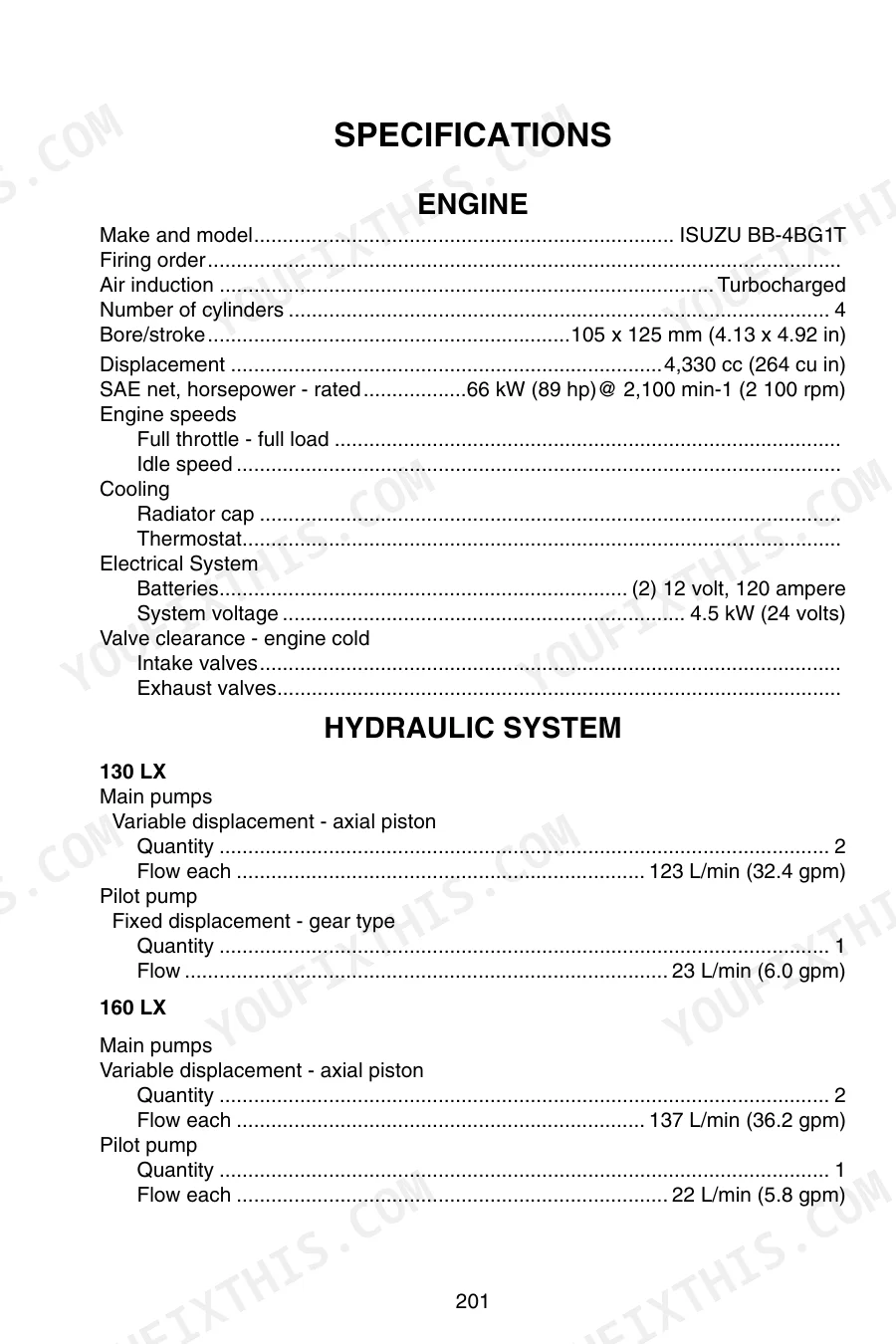

| Specifications | 205-226 | Hydraulic System, Weights (LX Operating Weight, Component Parts), Undercarriage, Safety Devices, Operator's Compartment, Operator's Cab |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Fan and alternator drive belt deflection | 1/4 to 1/2 inch (8 to 12 mm) | p. 179 |
| Track sag | 280 to 300 mm (11 to 12 in) | p. 175 |
| Track shoe bolt torque | 260 to 275 pound feet (350 to 370 Nm) | p. 177 |
| Hydraulic pump torque (M10) | 47-54 Ft.Lbs (64-74 Nm) | p. 193 |
| Hydraulic pump torque (M20) | 270-365 Ft.Lbs (367-496 Nm) | p. 193 |
| Engine Oil Capacity | 15 litres (4.0 gal) | p. 136 |
| Cooling System Capacity | 17.7 litres (4.7 gal) | p. 136 |
| Fuel Tank Capacity | 250 litres (66 gal) | p. 136 |
| Hydraulic Reservoir Capacity | 73 litres (19 gal) | p. 136 |
| Travel Reduction Gear Oil Capacity | 3 litres (0.8 gal) | p. 136 |
| 130 LX | ||
| Swing Reduction Gear Oil Capacity | 2.2 litres (0.6 gal) | p. 136 |
| 160 LX | ||
| Swing Reduction Gear Oil Capacity | 4.4 litres (1.2 gal) | p. 136 |
Link-Belt 130 LX, 160 LX Common Problems This Manual Covers

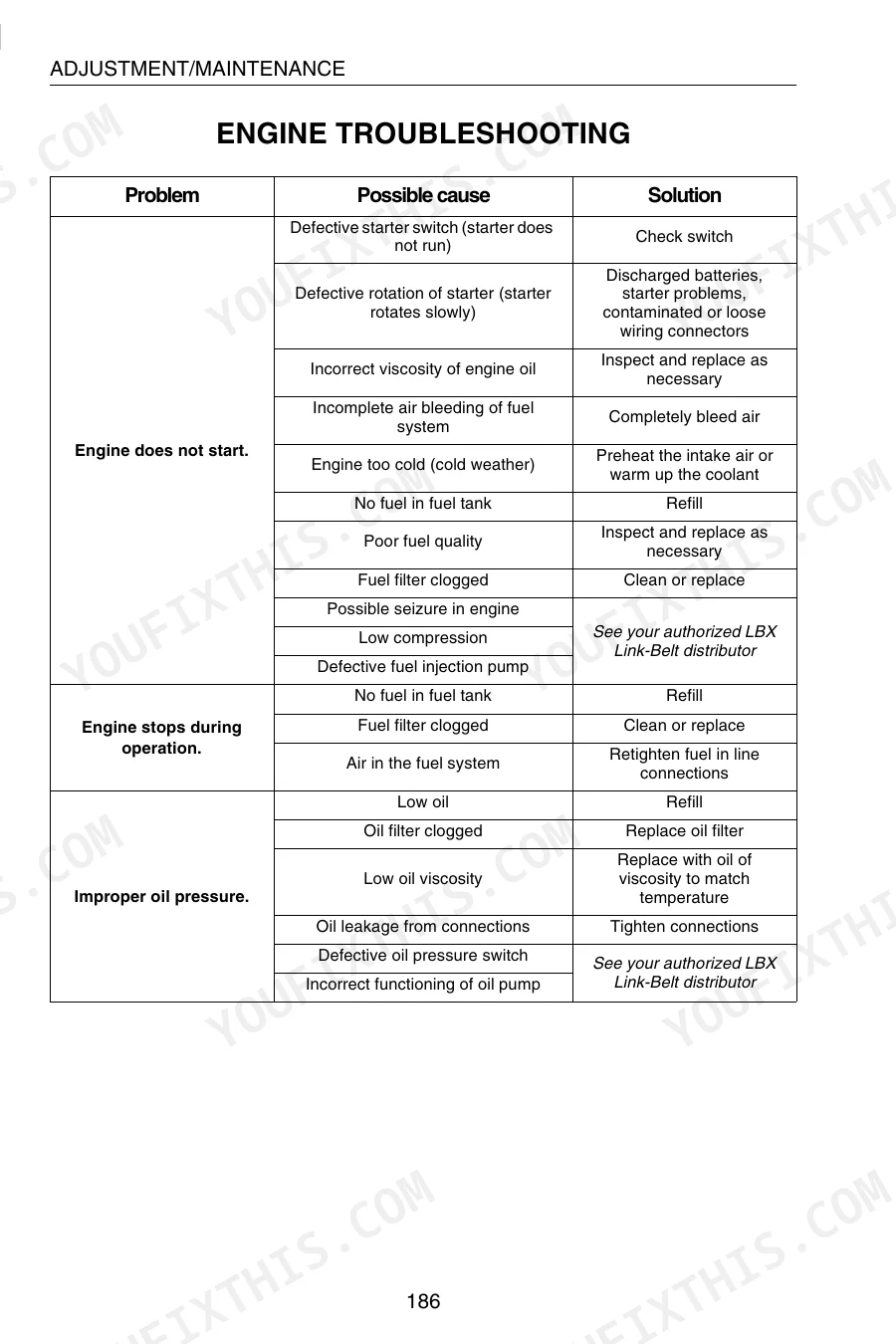

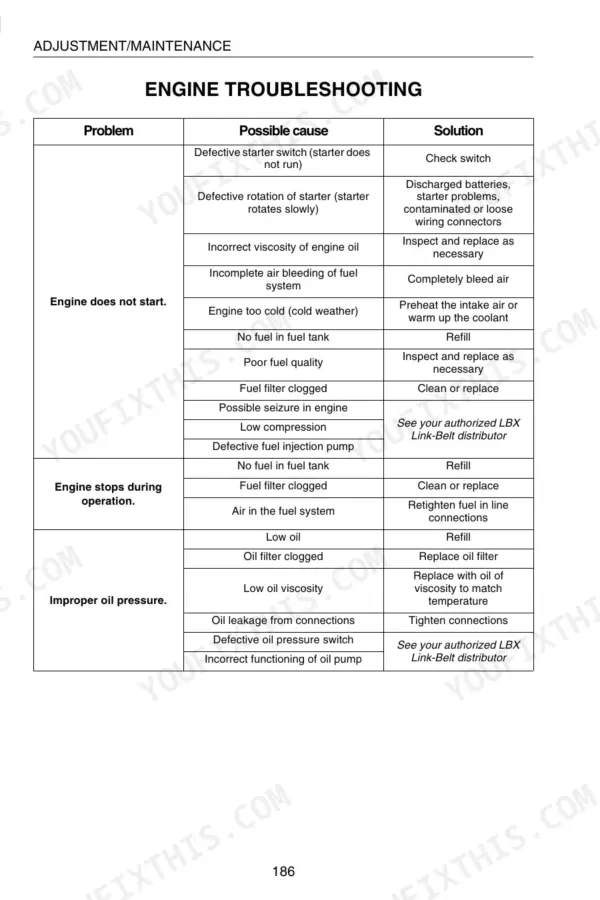

Link-Belt 130 LX and 160 LX engine does not start and battery shows a defective charge
Check the engine troubleshooting entries on page 190 for no-start and defective battery charge. Inspect the fuses and batteries in the Electrical section on page 195, and follow the booster battery procedure there before jumping the machine. Then check fan and alternator drive belt deflection against 8 to 12 mm (1/4 to 1/2 in) on page 179.
Manual Section: Engine Troubleshooting p. 190Fan and alternator drive belt or radiator and oil cooler neglected, engine overheating
Check the engine overheating entry on page 190. Clean the radiator and oil cooler, then press the center of the fan and alternator drive belt with about 20 lbs (10 kg); deflection should be 8 to 12 mm (1/4 to 1/2 in) per page 179. A full cooling system refill takes 17.7 litres (4.7 gal) per page 136.
Manual Section: Adjustment/Maintenance p. 179Steel track tension wrong at the daily check, with too much or too little sag
Clean the tracks first, as the Tracks procedure calls for, then measure steel track sag against 280 to 300 mm (11 to 12 in) following page 175. Adjust tension until sag falls inside that range. While you are at the undercarriage, torque any loose track shoe bolts to 350 to 370 Nm (260 to 275 lb ft) per page 177.
Manual Section: Tracks p. 175At the daily inspection before work, a hydraulic cylinder shows oil leakage
Release pressure in the hydraulic system with the Hydraulic System Pressure Release procedure before you go near the cylinders. Then check for cylinder leakage following the Checking for Cylinder Leakage steps in Adjustment/Maintenance. If the reservoir needs topping up, use the oil in the Fluids and Lubricants table; reservoir capacity is 73 litres (19 gal) on page 136.
Manual Section: Cylinder Leakage p. 182Travel reduction gear oil level found low during the scheduled maintenance interval check
Check the travel reduction gear oil level, then drain and refill it following the Travel Reduction Gears procedure in the Lubrication section. The listed capacity is 3 litres (0.8 gal) on page 136. Fill only with the oil named in the Fluid and Lubricant Capacities and Specifications table, and log the hourmeter reading for the next interval.
Manual Section: Lubrication p. 136Water and sediment in the fuel tank or water separator, engine stopping during operation
Check the engine stops during operation entry on page 190. Drain water and sediment from the fuel tank and water separator, then bleed the fuel system following the Fuel System procedure before cranking again. Clean the fuel tank filter covered in Adjustment/Maintenance. The tank holds 250 litres (66 gal) per page 136.
Manual Section: Engine Troubleshooting p. 190Frequently Asked Questions
What are the recommended service intervals for the Link-Belt 130 LX, 160 LX excavator?
Service intervals are based on operating hours. For example, the engine oil level, coolant level, and hydraulic reservoir level should be checked every 10 hours. The attachment should be greased every 50 hours. Major components like the swing reduction gear require oil changes every 1000 hours, while the hydraulic fluid should be changed every 5000 hours. p. 133
What are the fluid capacities for the 130 LX and 160 LX models?
The 130 LX and 160 LX models have specific fluid capacities. The engine oil capacity is 15 litres (4.0 gal). The fuel tank capacity for both models is 250 litres (66 gal). The hydraulic system total capacity is 123 litres (32 gal) for the 130 LX and 148 litres (39 gal) for the 160 LX. p. 136
How can I troubleshoot if the engine does not start?
If the engine does not start, check the starter switch, ensure the batteries are charged, and verify that the fuel filter is not clogged. Also, check for incorrect engine oil viscosity or incomplete air bleeding of the fuel system. If the engine is too cold, preheat the intake air or warm up the coolant. p. 190
What is the required torque for the track shoe bolts on a Link-Belt 130 LX, 160 LX excavator?
The track shoe bolts must be tightened to a torque of 260 to 275 pound feet (350 to 370 Nm). p. 177
What is the correct tension for the fan and alternator drive belt?
To check the belt tension, press the center of the belt with a pressure of about 20 lbs (10 kg). The belt deflection should be between 1/4 to 1/2 inch (8 to 12 mm). p. 179
Is this Link-Belt 130 LX manual a download or a disc?
This is a 228-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Does this Link-Belt 130 LX manual allow printing?
Yes. Print the pages or sections you need for your own shop use. Any standard printer works.
