Seven Manitou lift truck variants, from the MC 30 and M26-2 up to the M40-4 and M50-4, share this 820-page repair manual, OEM ID 547518 EN. As a Manitou M26-2 repair manual PDF, it pairs the electric diagram and hydraulic diagrams with gear box and torque converter work, including the transmission hydraulic circuit and pressure checking. Axle work runs through the brakes, planetary reduction, steering cylinder and bevel pinion support, and the I.C. engine sections strip the cylinder head, pistons, crankshaft and timing case. Refill the sump with 7.6 L of engine oil. When your hour meter says service is due, the schedule spells it out: clean the dry air filter cartridge every 50 H and change the engine oil filter at 400 H. Separate disassembly sections for the 1004-4 and 1004-42 engines let you confirm which unit your truck carries before ordering parts, and bookmarks plus a searchable text layer take you straight to each chapter.
What's Inside This Manitou MC30, M26-2 to M50-4 Repair Manual

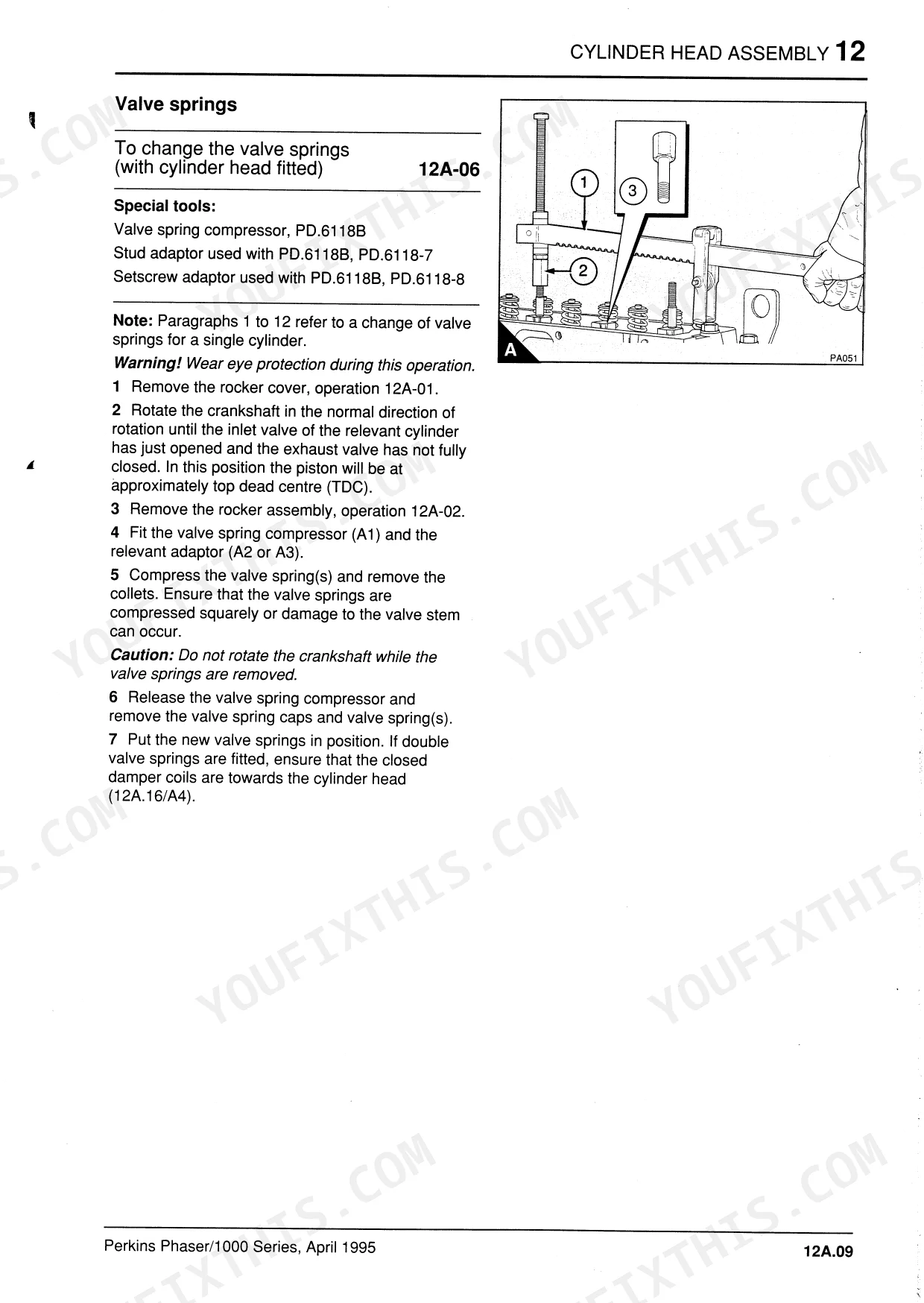

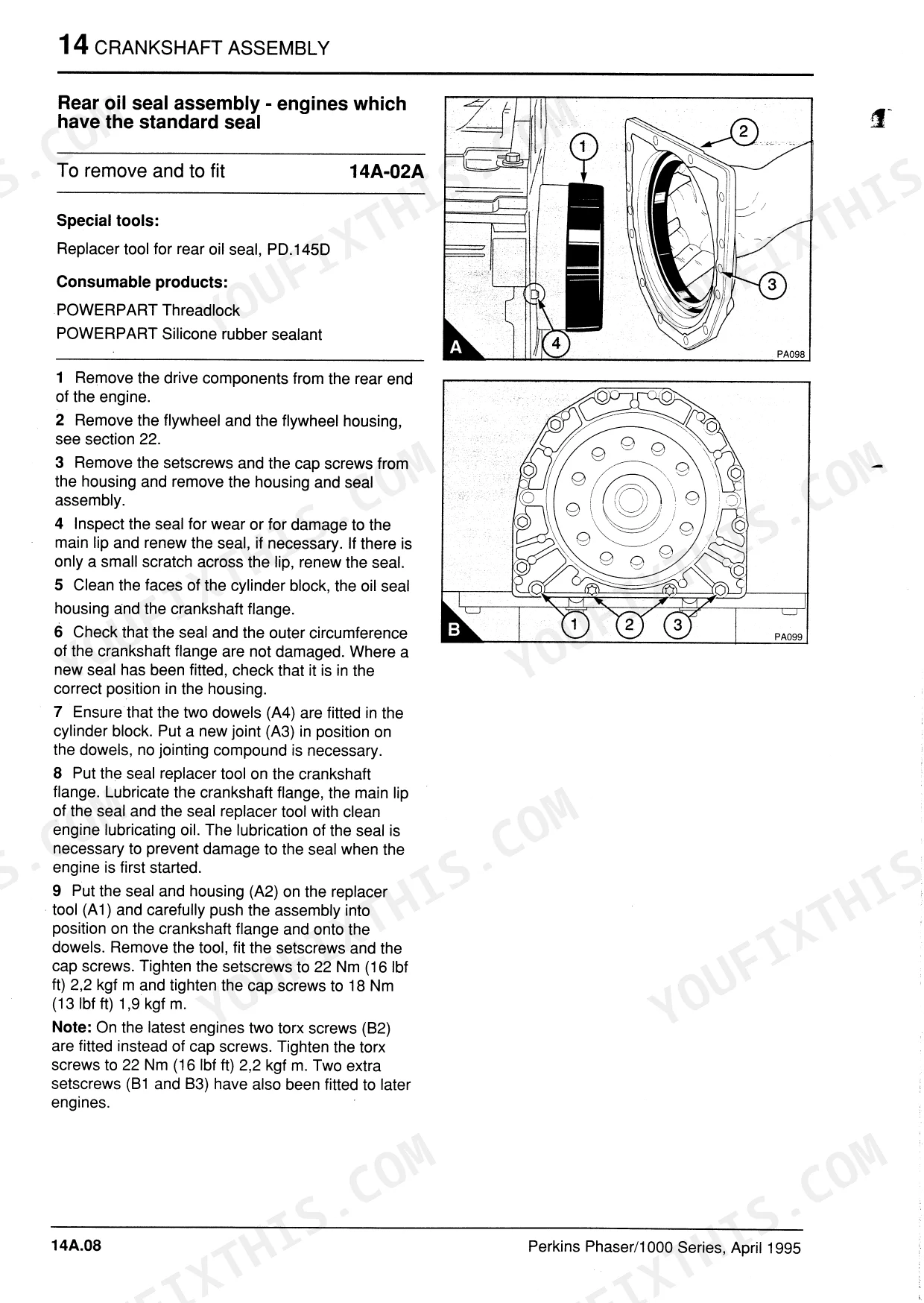

| System | Pages | Key Topics |
|---|---|---|
| General Points | 7-44 | Characteristics |
| I.C. Engine | 45-236 | General Information, Specifications, Cylinder Head Assembly, Piston and Connecting Rod Assemblies, Crankshaft Assembly, Timing Case and Drive Assembly, Cylinder Block Assembly |
| Gear Box / Converter | 237-564 | Transmission Hydraulic Circuit, Transmission Maintenance, Pressure Checking |
| Axle Assembly | 565-792 | Brakes, Planetary Reduction, Steering Cylinder, Bevel Pinion Support |

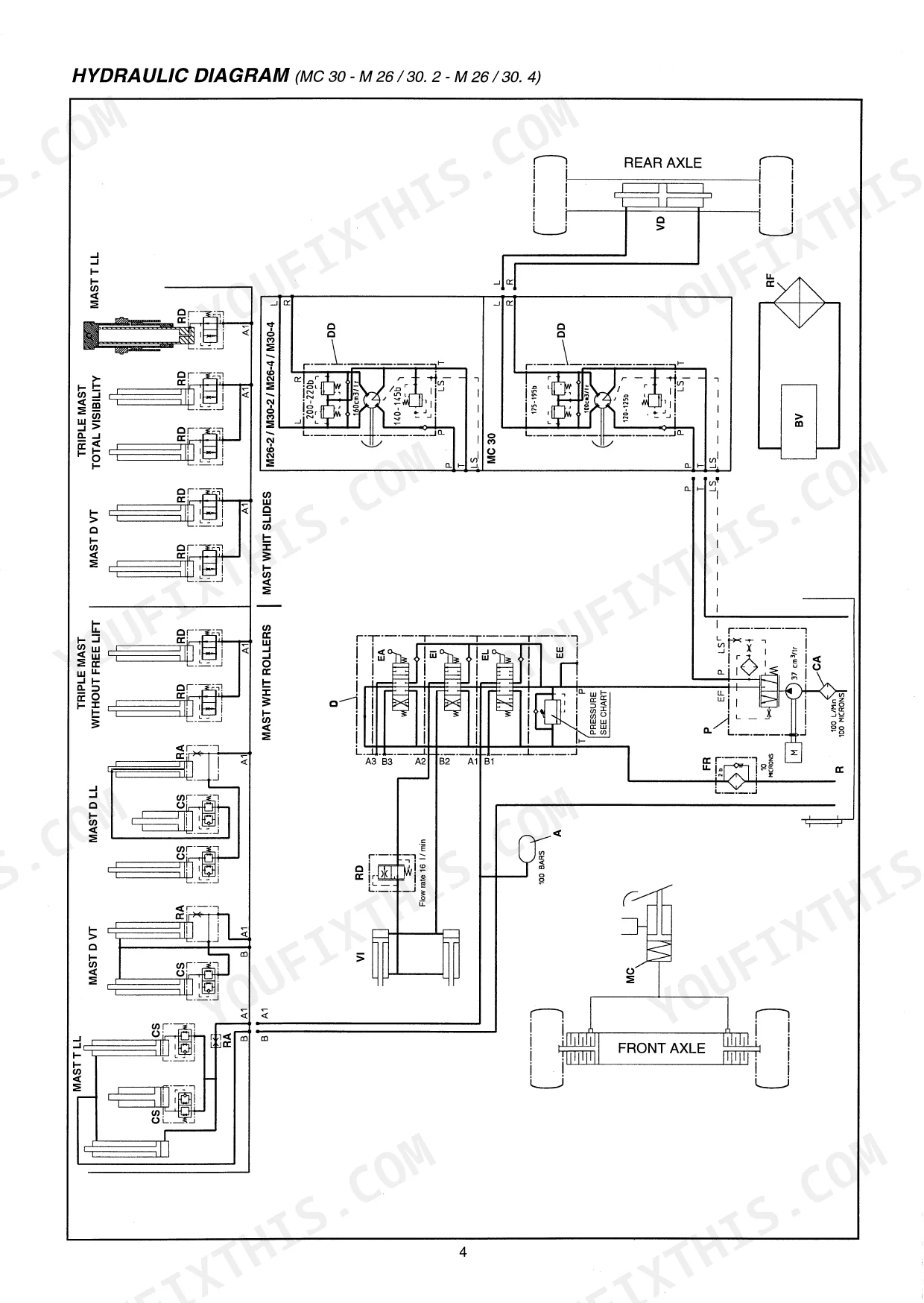

| Hydraulic | 793-802 | Hydraulic Diagrams |
| Electricity | 803-820 | Electric Diagram |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||

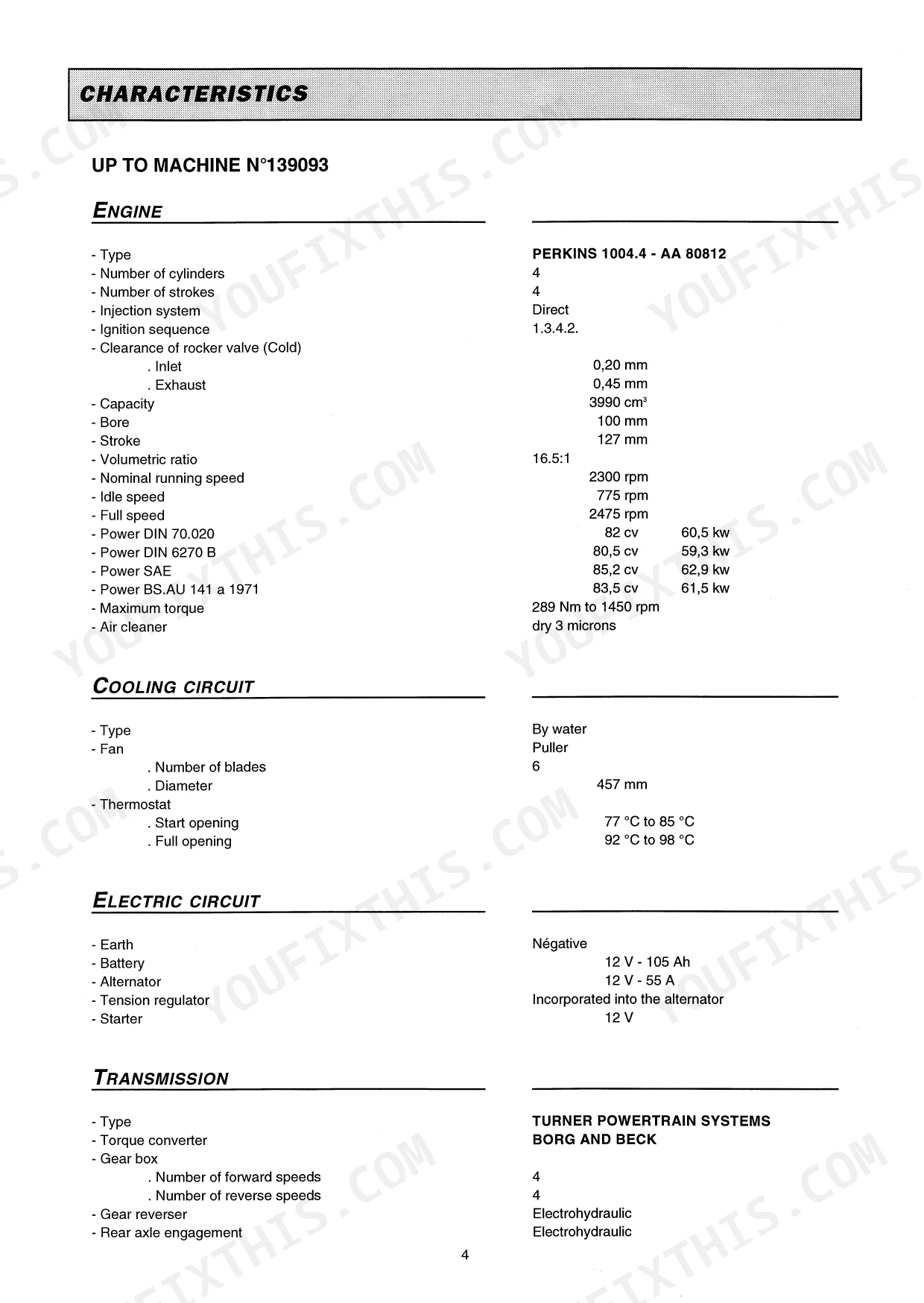

| Battery | 12 V - 105 Ah | p. 12 |
| Alternator | 12 V - 55 A | p. 12 |
| Engine oil filter change interval | 400 H | p. 42 |
| Dry air filter cartridge clean interval | 50 H | p. 42 |
| Engine Oil Capacity | 7.6 L | p. 43 |
| Fuel Tank Capacity | 85 L | p. 43 |

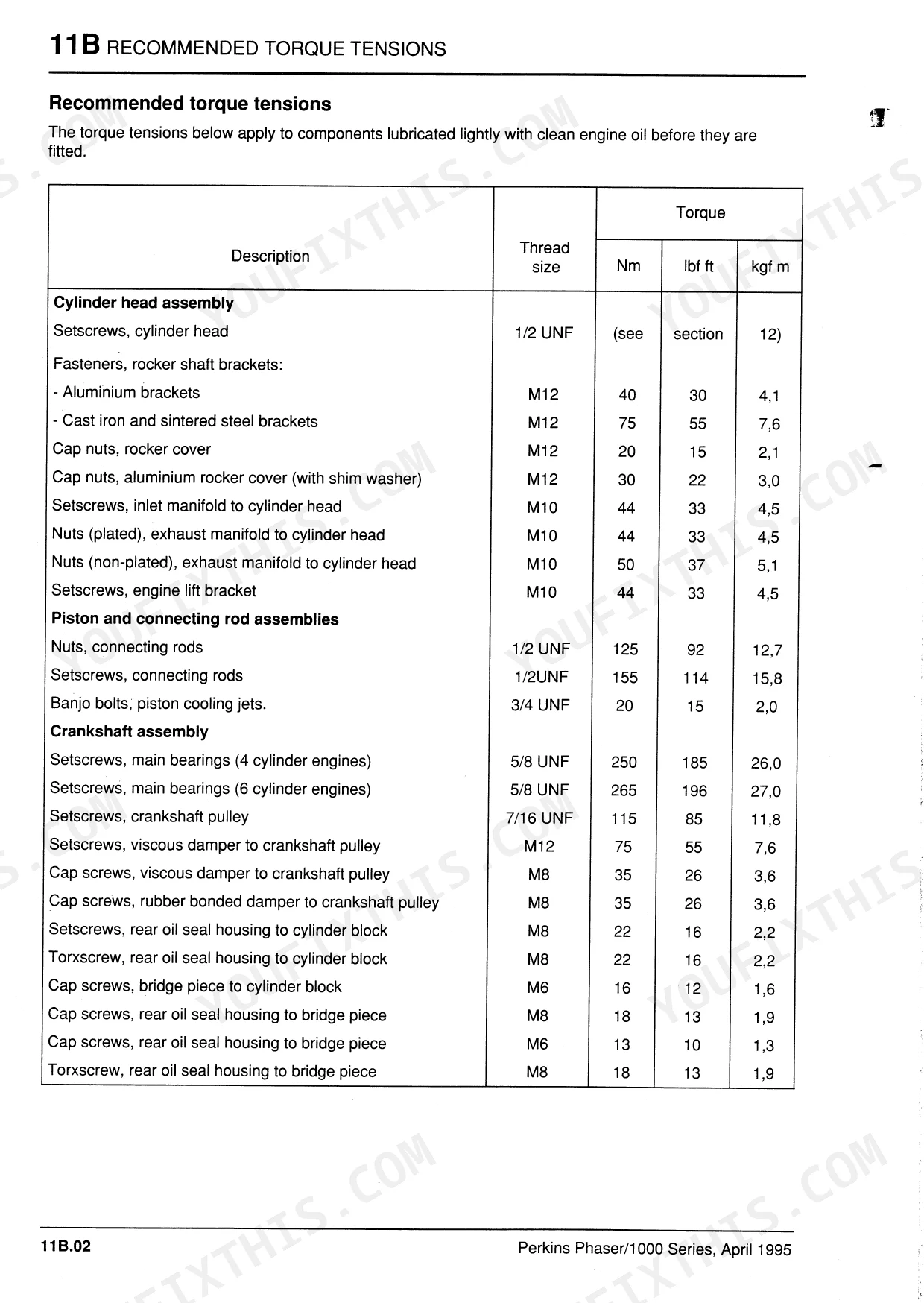

| Cylinder Head Setscrew Torque | 110 Nm | p. 82 |
| Main Bearing Setscrew Torque (4 cylinder) | 250 Nm | p. 130 |
| Main Bearing Setscrew Torque (6 cylinder) | 265 Nm | p. 130 |
| Connecting Rod Nut Torque | 125 Nm | p. 101 |
| MC 30, M26-2, M30-2, M26-4, M30-4 | ||
| Hydraulic Oil Tank Capacity | 64 L | p. 43 |
| M40-4, M50-4 | ||
| Hydraulic Oil Tank Capacity | 80 L | p. 43 |
Manitou MC30, M26-2 to M50-4 Common Problems This Manual Covers
Manitou MC 30 and M-series lift truck alternator warning light stays on at fast idle and ammeter shows no output
Verify the battery is fully charged, then check all connections at the regulator, alternator and battery following page 611. If they are good, switch off, disconnect the wire from the alternator F terminal and bridge it to the alternator negative terminal. Switch on and run at fast idle: no output means an alternator fault, output means a regulator fault.
Manual Section: Alternator Fault Diagnosis p. 611Battery runs discharged or gets hotter than normal and charge voltage will not hold constant
Verify the battery is fully charged, then connect a 0 to 50 V moving-coil voltmeter across the alternator terminals and a 0 to 100 A ammeter in the alternator to battery positive wire, per page 610. Switch on a 10 to 15 A load, run at about 1500 rev/min, then remove the load. Voltage should rise to 14 V and hold steady.
Manual Section: Alternator Fault Diagnosis p. 610Diesel engine runs correctly for a short time then stops or runs roughly
Loosen the vent plug on the fuel filter and work the fuel lift pump priming lever until air-free fuel flows, as laid out on page 271. If the lever will not move, rotate the crankshaft one revolution. Loosen the high-pressure pipes at two atomisers, crank until fuel runs clear, then hunt for the leak in the suction or low-pressure system.
Manual Section: Fuel System Air Elimination (Bosch) p. 271Turbocharged engine has not enough power and blows black smoke from the exhaust
Inspect the air filter element first, since a dirty element sits on the black smoke cause list in the turbocharger chart on page 223. Clean the dry cartridge every 50 H and change it at 400 H per page 42. Then check for a loose connection to the turbocharger, a damaged or restricted crossover pipe, and restriction in the exhaust system.
Manual Section: Turbocharger Faults p. 223Turbocharged engine blows blue smoke with high lubricating oil consumption
Check the crankcase breather for restriction first; it appears on the chart for both blue smoke and high oil consumption on page 223, with the cause list on page 224. Then check the air filter element. If the breather valve must be cleaned inside, do not put it completely into cleaning fluid, dry it with low pressure air, and never direct compressed air at your skin, per page 226.
Manual Section: Turbocharger Faults p. 223S115 starter motor does not operate or turns the engine over with slow action
Inspect the starter brushes following page 617: they must slide freely in their guides with free-moving wire connections. Clean a sticking brush with material damp with gasolene and refit it in its original position. Check spring pressure with a spring balance against 8.34 to 11.00 N, and renew worn brushes with the exact same grade.
Manual Section: Starter Motor Testing p. 617Frequently Asked Questions
What are the Manitou MC30, M26-2 to M50-4 replacement filter specs for engine, hydraulic, transmission, and axle oil?
The manual provides specific part numbers and service intervals for filters. The engine oil filter (133 755) and transmission oil filter (189 195) should be changed every 400 hours. The hydraulic return oil filter cartridge (21 967) also requires replacement every 400 hours. The suction strainer for the hydraulic oil tank (77 402) should be cleaned every 800 hours. p. 42
What are the air-filter primary and safety element replacement specs for the Manitou MC30, M26-2 to M50-4?
The dry air filter cartridge (177 130) should be cleaned every 50 hours and replaced every 400 hours. The safety dry air filter cartridge (177 179) should be replaced every 800 hours. p. 42
What is the correct valve tip clearance for the Perkins 1004.4 engine in a Manitou lift truck?
For the Perkins 1004.4 engine, the valve tip clearance (cold) is 0,20 mm for the inlet valves and 0,45 mm for the exhaust valves. p. 12
What is the torque for the cylinder head setscrews on the Perkins 1004.4 in a Manitou MC30, M26-2 to M50-4?
The cylinder head setscrews for the Perkins 1004.4 engine should be tightened to 110 Nm (80 lbf ft) 11,1 kgf m, followed by an additional turn based on the length of the setscrew (150 degrees for short, 180 degrees for medium, or 210 degrees for long). p. 82
What is the capacity of the hydraulic oil tank for the MC 30 lift truck?
The hydraulic oil tank capacity for the MC 30 lift truck is 64 liters. p. 43
What format is this Manitou MC 30 manual in?
One searchable PDF covering 820 pages, delivered instantly. No disc, no shipping, no waiting on the post.
Can I print just the pages I need from this Manitou MC 30 manual?
Yes. Many buyers print one chapter at a time for their own shop and keep the rest on a tablet.
