Within the hour you could have the rocker cover off and a feeler gauge on the valve tips, and the 617-page Manitou MLT 526 repair manual PDF (OEM ID 0-1-M66 EN) walks you through that job on the lift truck across five Série A variants. Engine work fills more than half the book (cylinder head, pistons, crankshaft, timing case, turbocharger, fuel and cooling), and the transmission and axle chapters follow with gearbox teardown, brake disc checks and planetary reduction rebuilds. Hydraulic schematics trace the transmission circuit and hydrostatic steering unit, and the electric diagram with its legend lets you follow a dead circuit wire by wire. Change the transmission, hydraulic return and fuel filter cartridges every 500 hours, drain transmission oil every 800, and torque collared nuts to 42 to 52 Nm. Some nights it is just you, the machine, and nobody to ask. The bookmarked, text-searchable file prints cleanly, so your copy can sit on the bench and take the grease.
What's Inside This Manitou MLT 526, MLT 526 Turbo, MLT 526 Turbo MONO-ULTRA Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| General Instructions and Safety Notice | 1-33 | Safety Precautions |
| General Information | 34-61 | Engine Identification, Safety Precautions, Engine Lift Equipment, Viton Seals, Consumable Products |

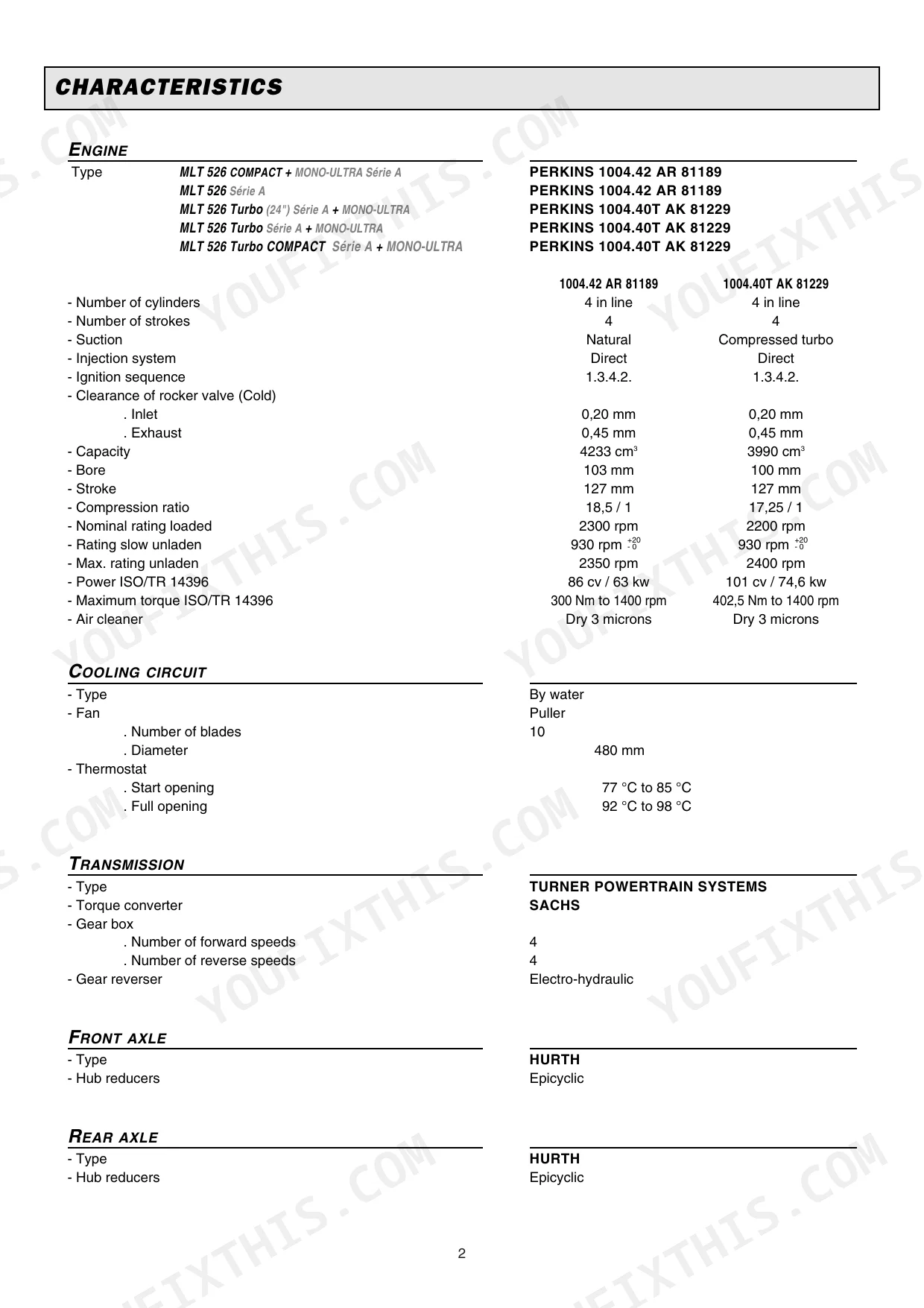

| Specifications | 62-69 | Basic Engine Data, Thread Sealant, Torque Tensions, Compression Test Data |

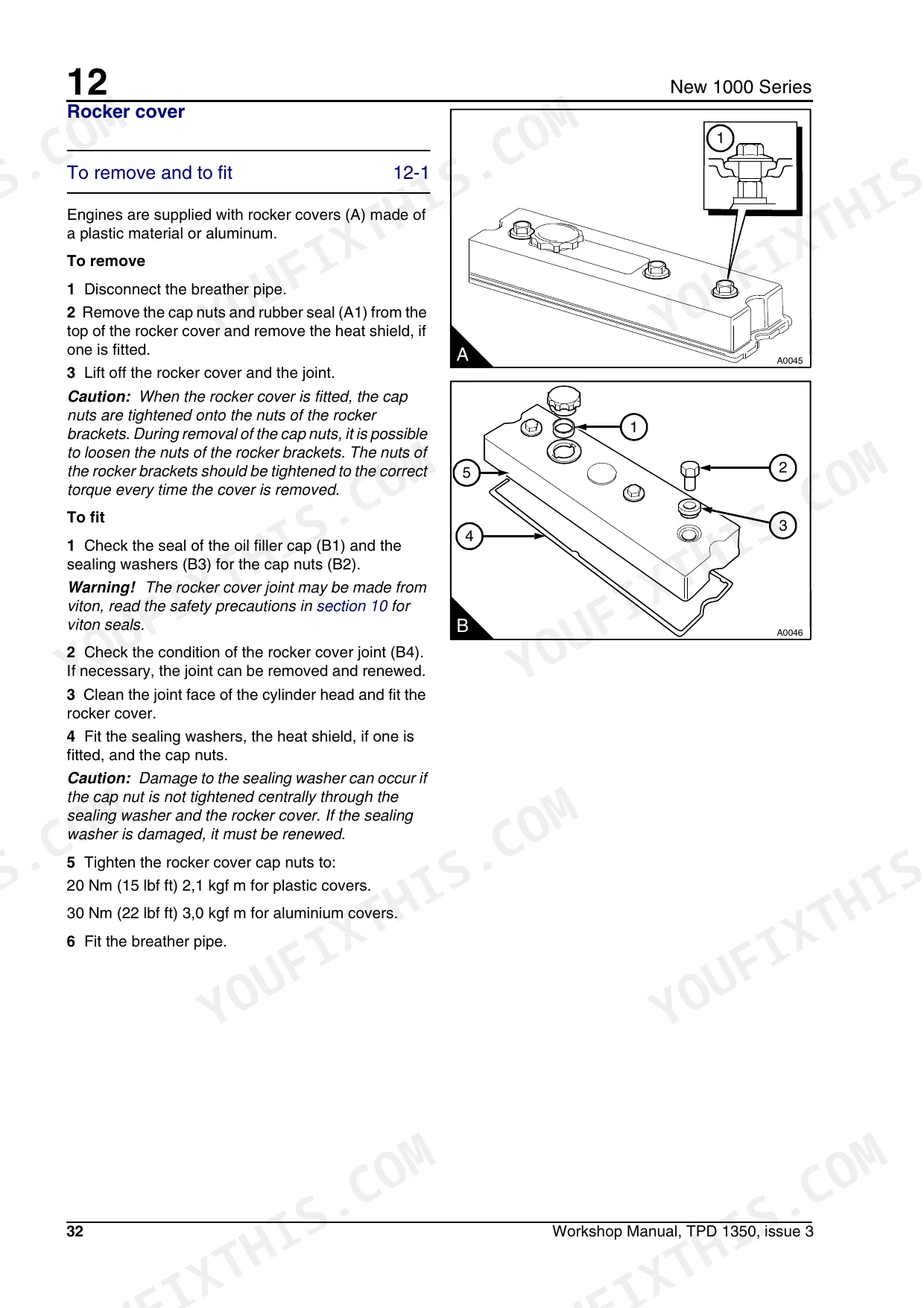

| Cylinder Head Assembly | 70-99 | Rocker Cover, Rocker Assembly, Valve Tip Clearances, Valve Springs, Cylinder Head, Valve Guides, Valve Seat Inserts |
| Piston and Connecting Rod Assemblies | 100-117 | Big End Bearing, Piston Height, Piston Rings, Connecting Rod, Piston Cooling Jets |
| Crankshaft Assembly | 118-146 | Crankshaft Pulley, Rear Oil Seal, Thrust Washers, Main Bearings, Balancer Unit |
| Timing Case and Drive Assembly | 147-165 | Timing Case Cover, Front Oil Seal, Idler Gear, Camshaft Gear, Crankshaft Gear |
| Cylinder Block Assembly | 166-179 | Cylinder Block, Cylinder Liner, Cylinder Bore |
| Engine Timing, Aspiration, Lubrication, Fuel, Cooling, Flywheel, Electrical, Auxiliary | 180-343 | Engine Timing, Turbocharger, Lubrication System, Fuel System, Cooling System, Flywheel, Electrical Equipment, Compressors |
| Transmission | 344-399 | Gear Box Details, Transmission Hydraulic Circuit, Disassembly and Reassembly |
| Axle Assembly - Axle | 400-543 | Checking Wear and Replacing Braking Disks, Steering Case Removal, Planetary Reduction Disassembly |
| Hydraulic | 544-595 | Hydrostatic Steering Unit, Dismantling, Assembling |

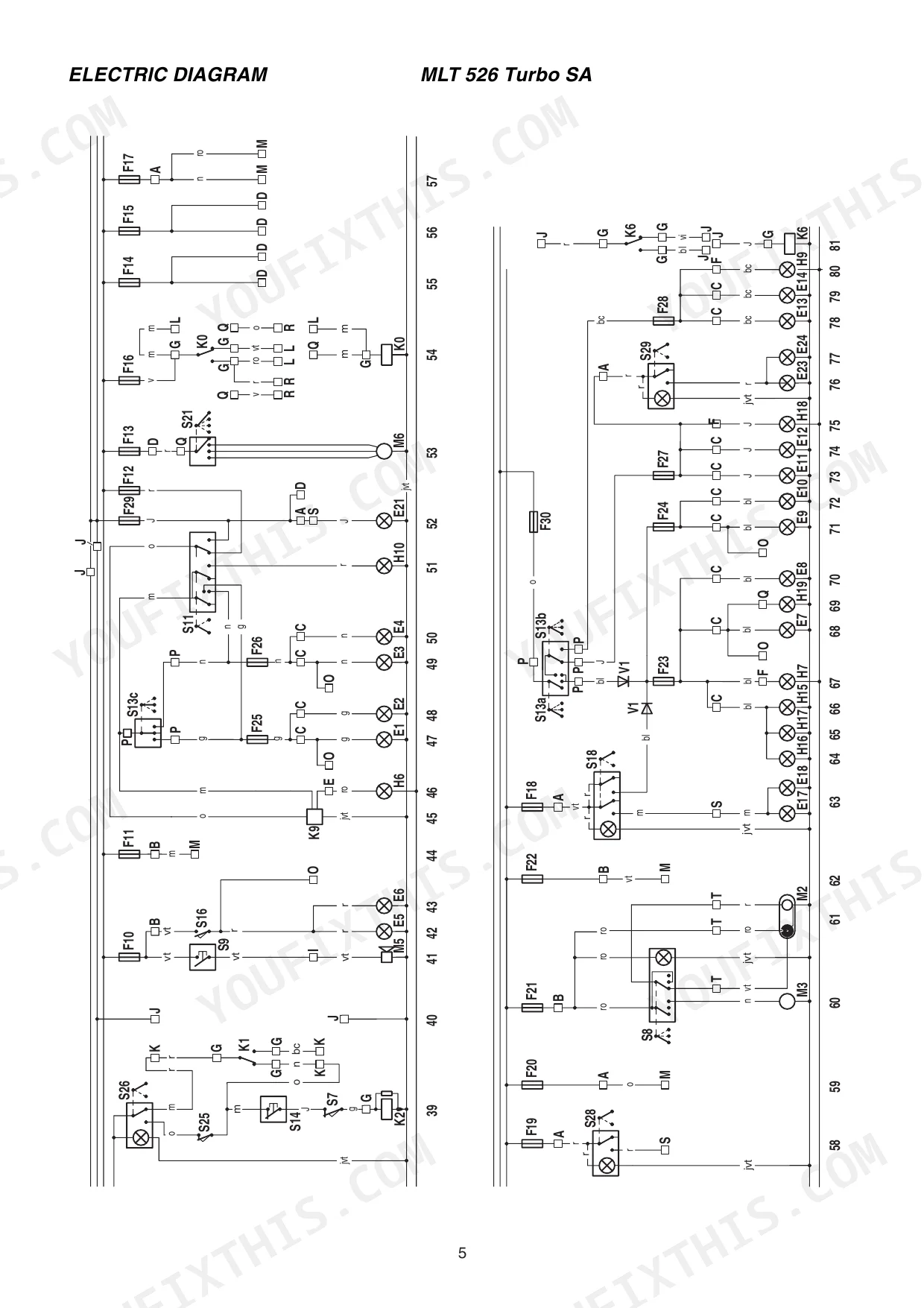

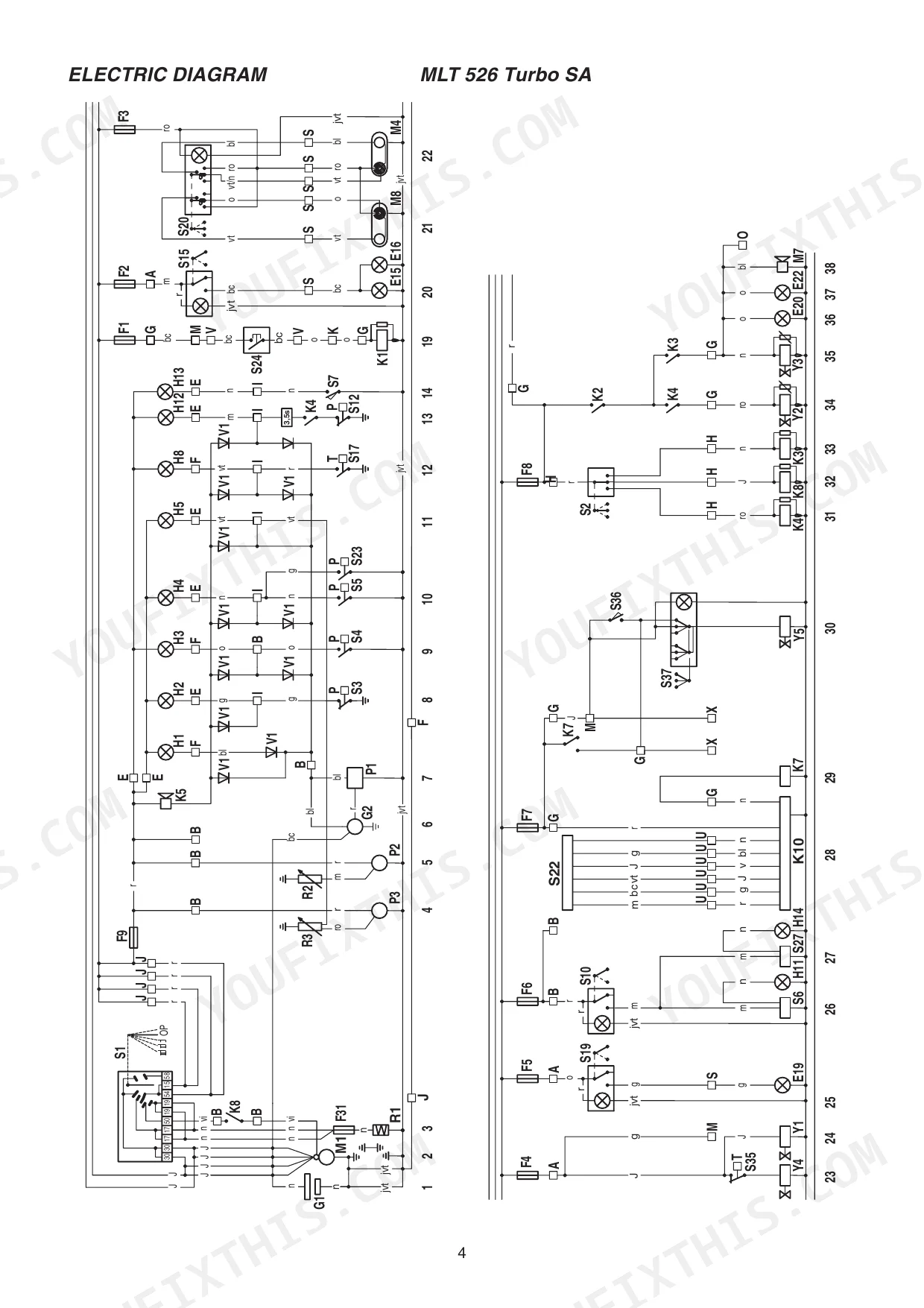

| Electricity | 596-617 | Electric Diagram, Legend |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

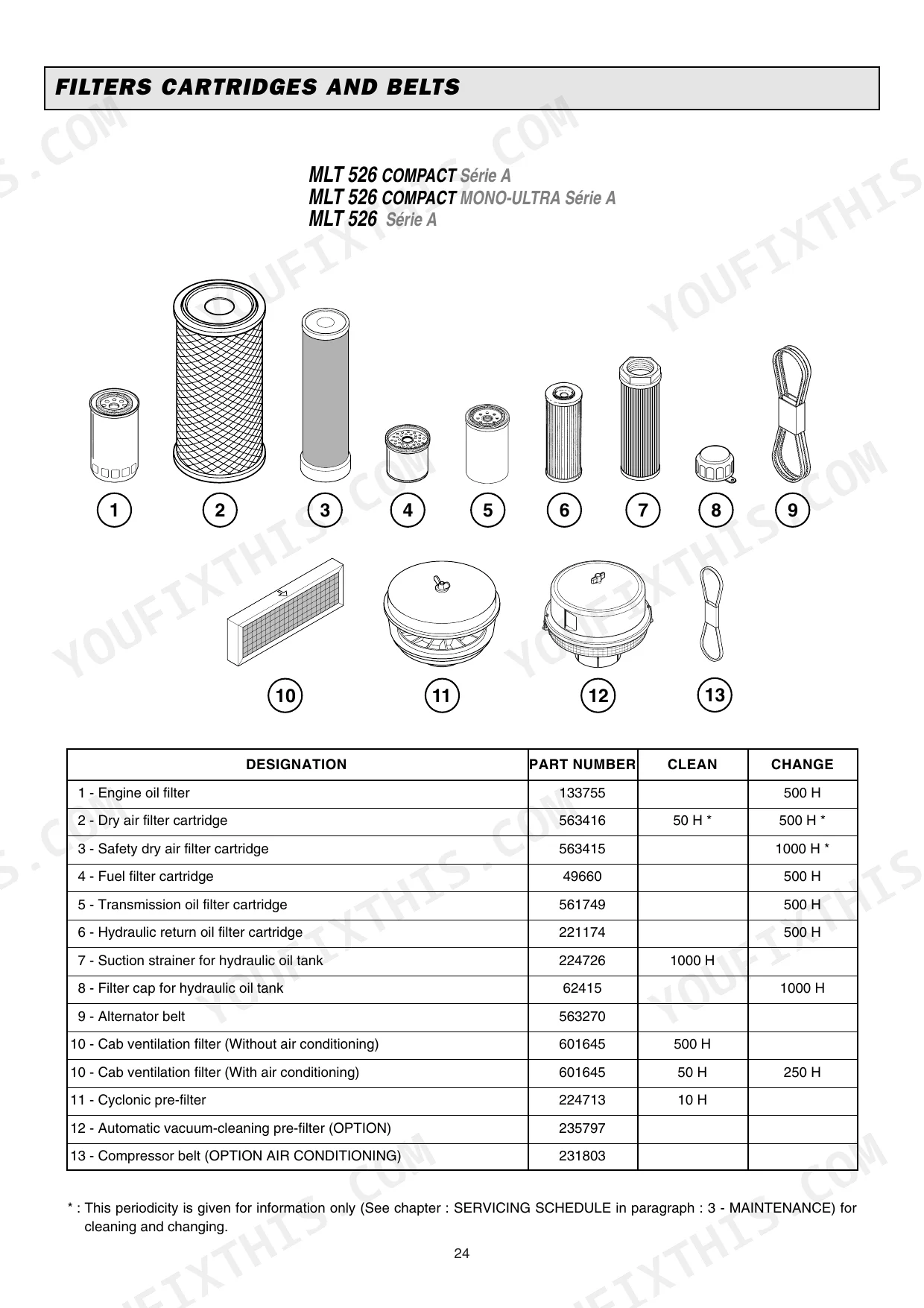

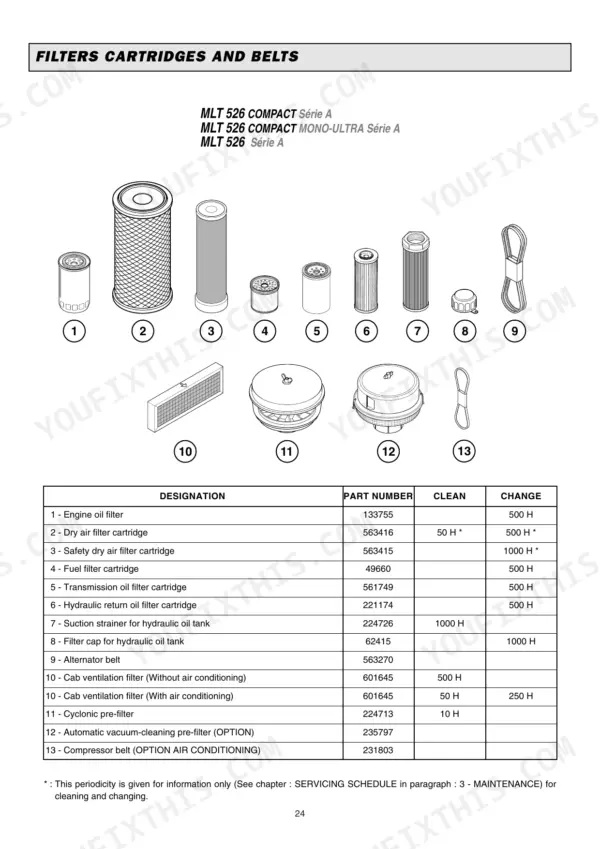

| Transmission oil filter cartridge change interval | 500 H | p. 24 |
| Hydraulic return oil filter cartridge change interval | 500 H | p. 24 |
| Fuel filter cartridge change interval | 500 H | p. 24 |

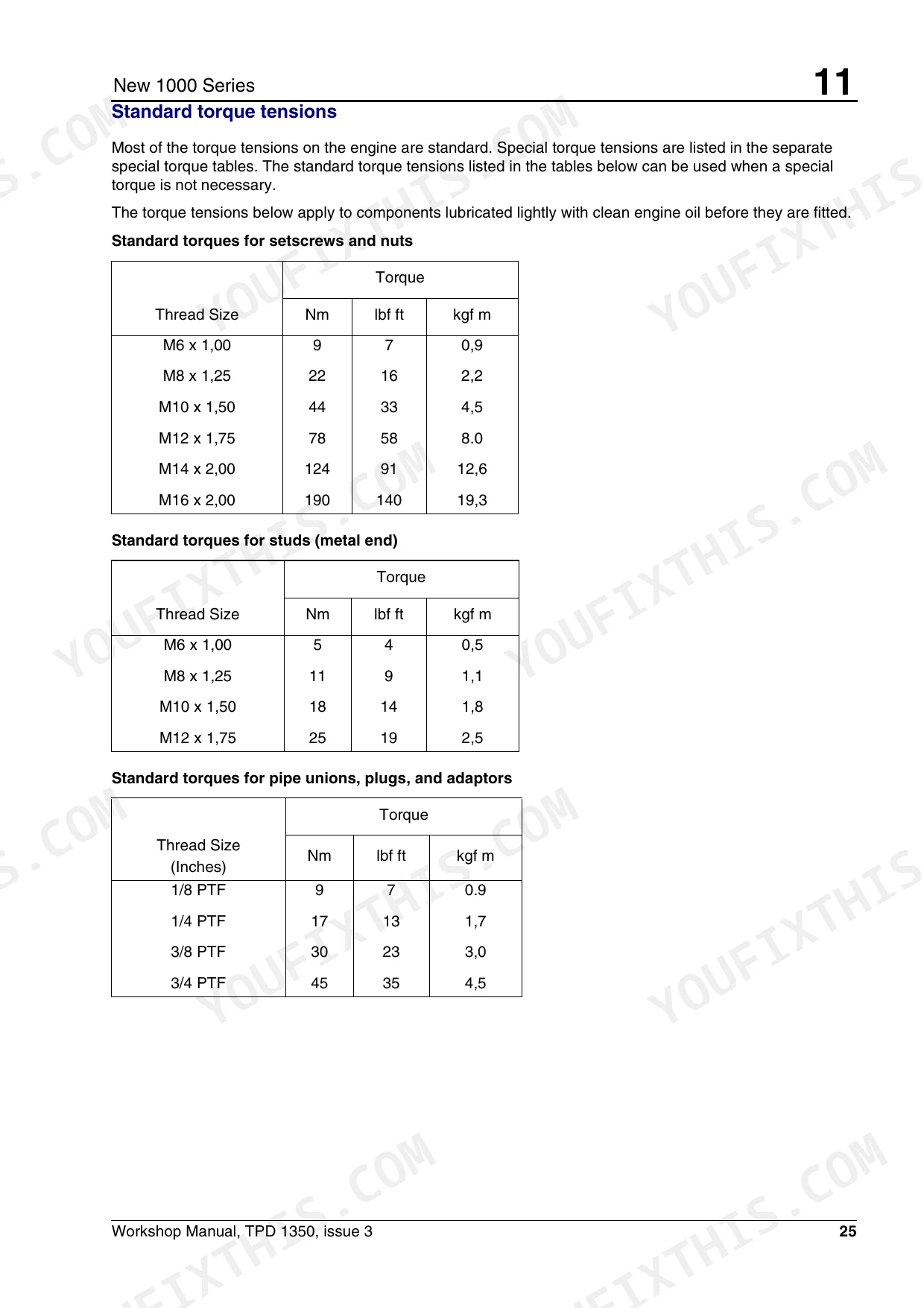

| Torque wrench setting for nuts (units with collar) | 42-52 Nm | p. 467 |
| Torque wrench setting for nuts (alternative versions) | 298-328 Nm | p. 467 |
| Actuator rod movement test pressure distance | 1,00 mm (0.039 in) | p. 103 |
| Tightening torque for G 1/4 screwed connection with cutting edge | 4 daNm (350 lbf in) | p. 576 |
| Tightening torque for G 1/4 screwed connection with copper washer | 2 daNm (180 lbf in) | p. 576 |
| Engine Oil Capacity | 8 Liters | p. 31 |
| Cooling Circuit Capacity | 17.25 Liters | p. 31 |
| Hydraulic Oil Tank Capacity | 125 Liters | p. 31 |
| Transmission Oil Capacity | 11 Liters | p. 31 |
Manitou MLT 526, MLT 526 Turbo, MLT 526 Turbo MONO-ULTRA Common Problems This Manual Covers
Manitou MLT 526 transmission fails to drive or shows a delay in taking up drive
Check transmission oil level first against the 11 liter capacity on page 31. Test transmission pump pressure next, and if it reads low, trace the hydraulic circuit on the schematic. Work through the transmission hydraulic fault diagnosis before splitting the gearbox for disassembly.
Manual Section: Transmission Hydraulic System Fault DiagnosisTelehandler past due on transmission oil and filter service, now transmission overheating
Check the transmission oil level and condition first, topping up to the 11 liter capacity listed on page 31. Replace the transmission filter every 400 hours and the oil every 800 hours per page 360, tracked on the hour meter. If it still runs hot, work through the transmission hydraulic fault diagnosis.
Manual Section: Transmission p. 360Turbo engine short on power with black smoke, blue smoke or high oil consumption
Inspect the turbocharger impeller and turbine rotor for damage before condemning the unit. Use the turbocharger fault chart to match low power, black smoke, blue smoke or high oil consumption to a cause. Turbocharger service sits in the engine aspiration section starting at page 186.
Manual Section: Turbocharger FaultsAlternator charge warning light not illuminated, no charge current and the battery discharged
Check the warning light circuit and alternator wiring against the wiring diagrams on pages 601 and 602 before replacing parts. Test for charge current with the engine running. If the battery is overheating rather than discharging, follow the alternator fault diagnosis for that symptom.
Manual Section: Alternator Fault DiagnosisInsufficient braking, soft brake pedal, ineffective safety brake or an overheated axle
Inspect the braking disks for wear and replace them following the procedure that starts at page 417. Check whether the axle runs hot, since overheating is a separate branch in the braking troubleshooting chart. Verify the safety brake holds on its own before returning the truck to work.
Manual Section: Braking System TroubleshootingSteering wheel hard to turn, does not return to neutral, or shows excessive play
Check the hydrostatic steering unit and its line connections using the steering troubleshooting chart in the hydraulic section starting at page 544. When refitting lines, torque each fitting to its value on page 576; a G 1/4 fitting with cutting edge takes 4 daNm (350 lbf in). Verify steering is not reversed after reassembly.
Manual Section: Steering System TroubleshootingFrequently Asked Questions
What are the fuel filter and fuel-system seal replacement specs for the Manitou MLT 526?
The fuel filter cartridge (part number 49660) should be changed every 500 hours. When replacing fuel system components, ensure that only genuine Perkins parts are used to avoid damaging the fuel injection pump. p. 29
What are the hydraulic oil filter and transmission filter replacement specs for the Manitou MLT 526?
The transmission oil filter cartridge (part number 561749) and the hydraulic return oil filter cartridge (part number 221174) should both be changed every 500 hours. p. 29
What is the correct torque for the cylinder head setscrews on the Manitou MLT 526?
On the Manitou MLT 526 (Perkins engine type AR), gradually and evenly tighten all cylinder head setscrews to 45 Nm (33 lbf ft) 4,5 kgf m in the sequence shown, then tighten the four 1/2 UNF setscrews to 110 Nm (80 lbf ft) 11,1 kgf m in the sequence 2, 8, 13 and 18, followed by the specified angle tightening. p. 84
What are the valve tip clearance specs for the Manitou MLT 526 engine?
With the engine hot or cold, the correct clearance is 0,20 mm (0.008 in) for inlet valves and 0,45 mm (0.018 in) for exhaust valves. p. 74
Is this Manitou MLT 526 manual a PDF I download?
A single searchable PDF file of 617 pages, downloadable right after payment. Nothing ships, nothing waits in the mail.
Am I free to print this Manitou MLT 526 Repair Manual?
Yes. Print the sections you need to take out to the shop for your own use. Standard letter or A4 paper works.
Can I find hydraulic circuit diagrams in this Manitou MLT 526 manual?

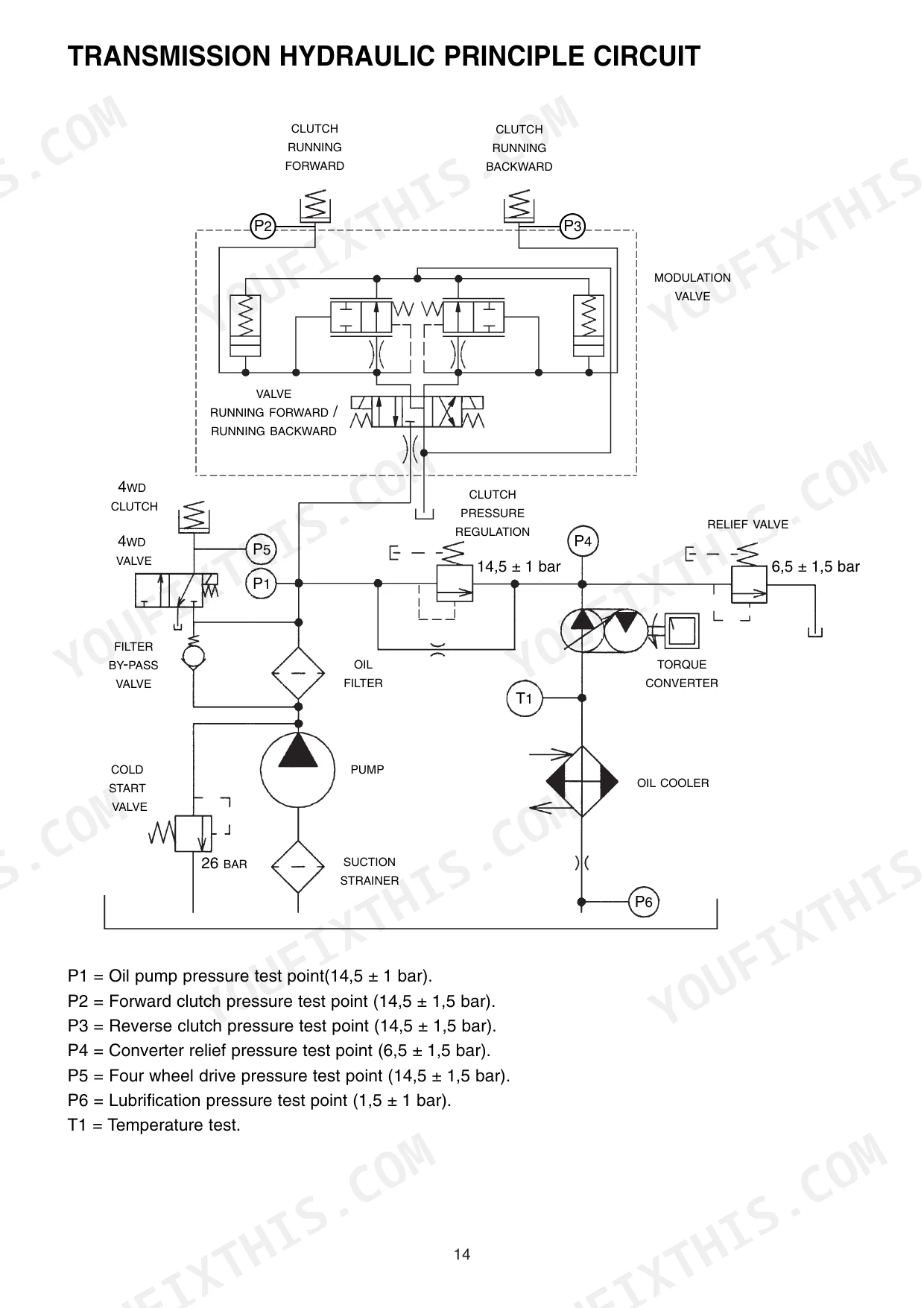

Included. Hydraulic system schematics cover all circuits, control valves, and component specifications for the Manitou MLT 526, 526 Turbo, 526 Turbo MONO-ULTRA. There is one on page 357, for example.
