A seal kit ordered off a worn tag turns a one-day boom job into a parked machine, which is why the Manitou MT 1030 parts catalog PDF (OEM ID 647480) belongs in the shop: 319 pages covering six telehandler variants of the MT 732, 932 and 1030 family, Easy 75D ST3B S1 builds included. Exploded views fill the transmission section, over a third of the book, breaking the gearbox, bevel drive and propshaft down with a part number against every callout. Hydraulic pages trace the valve bank, joystick and rams, and wiring diagrams map the harness, lighting and safety circuits so you can identify a component before ordering it. Match your ram by stroke: 720 mm on the lifting cylinder, 310 mm on compensation. One wrong seal costs freight, a week's wait and a second strip-down. The bookmarked, searchable file prints clean, so the exploded views can sit on the bench and take the grease instead of your laptop.
What's Inside This Manitou MT 732, 932, 1030 Easy 75D ST3B S1 Parts Manual

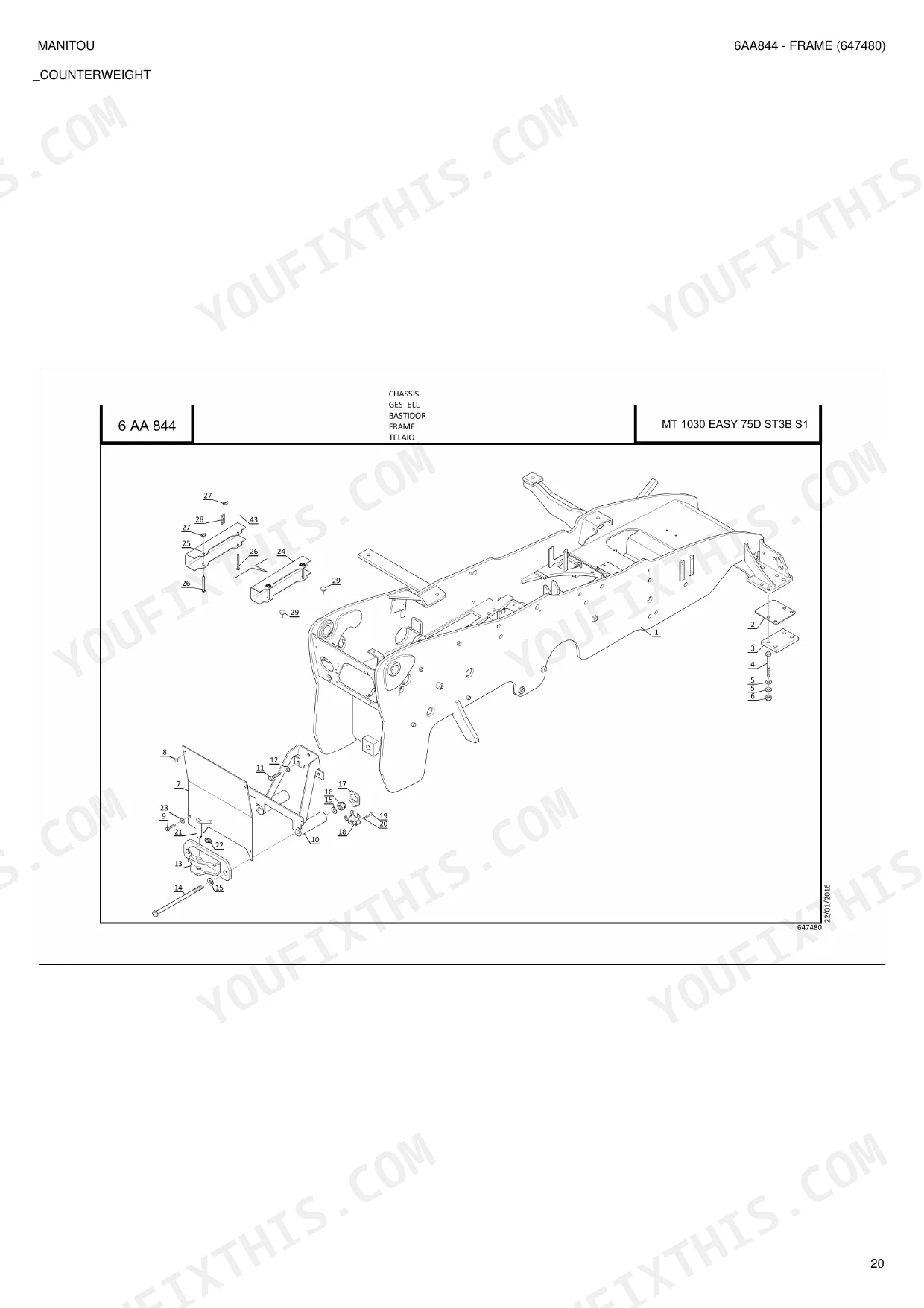

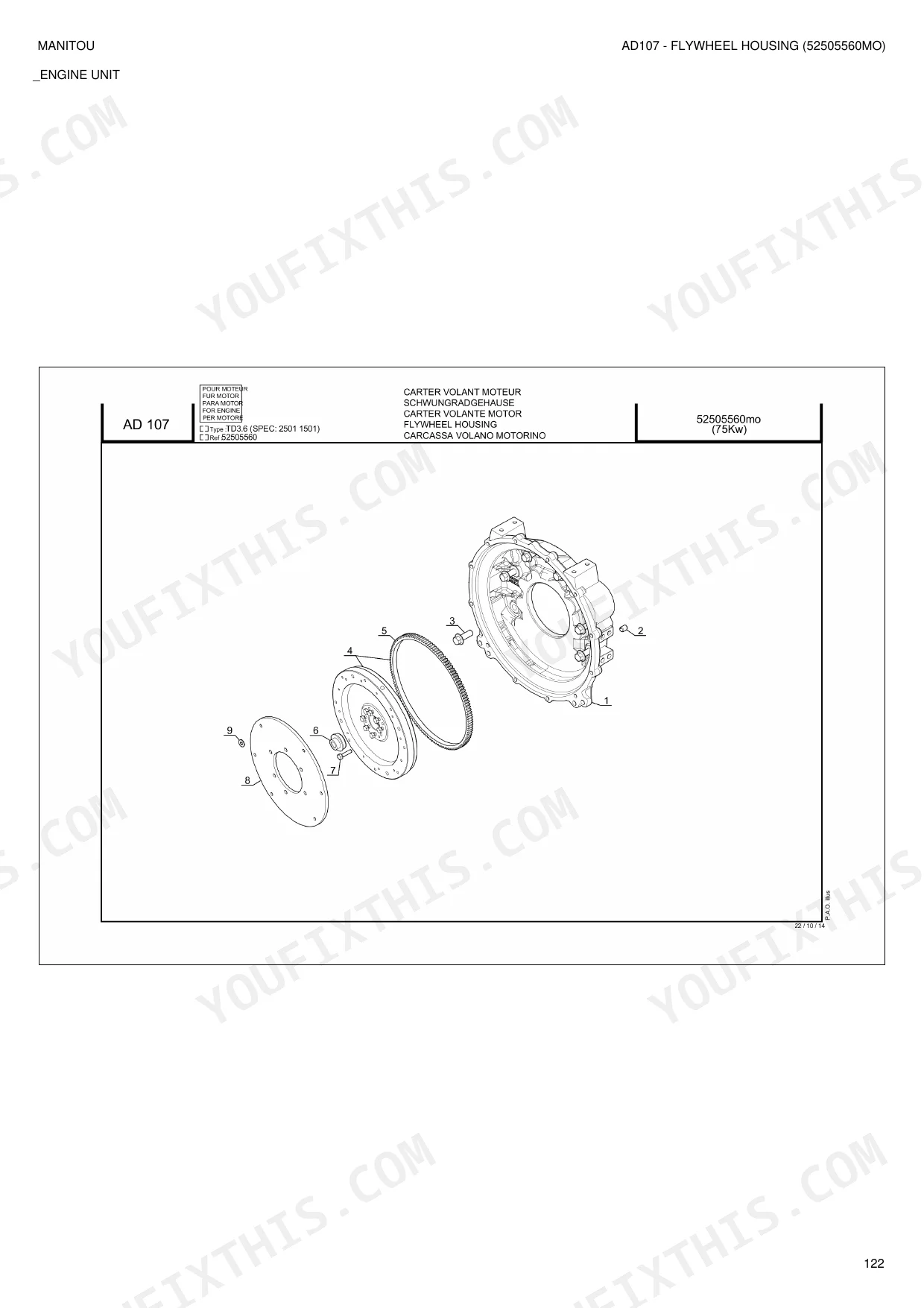

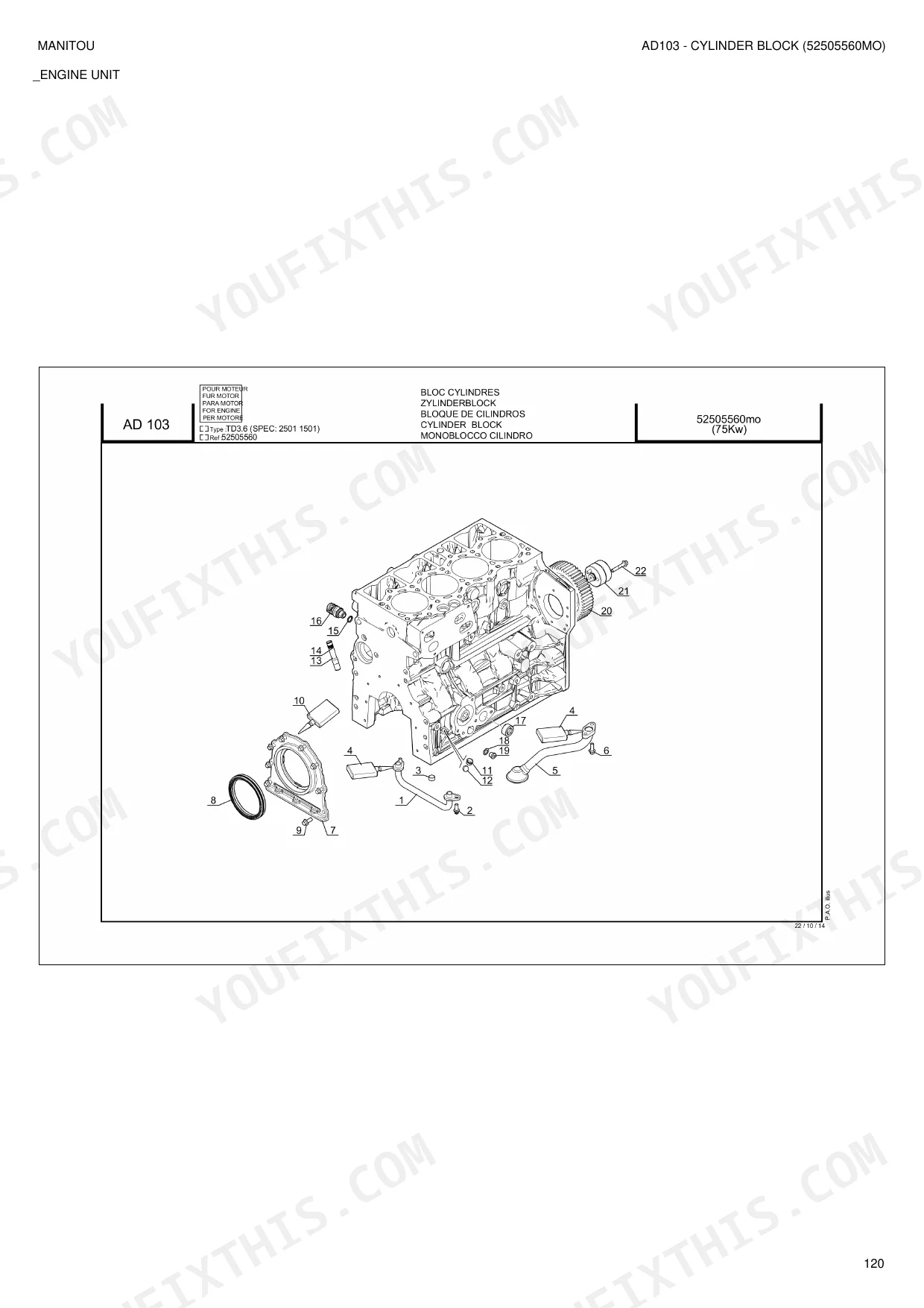

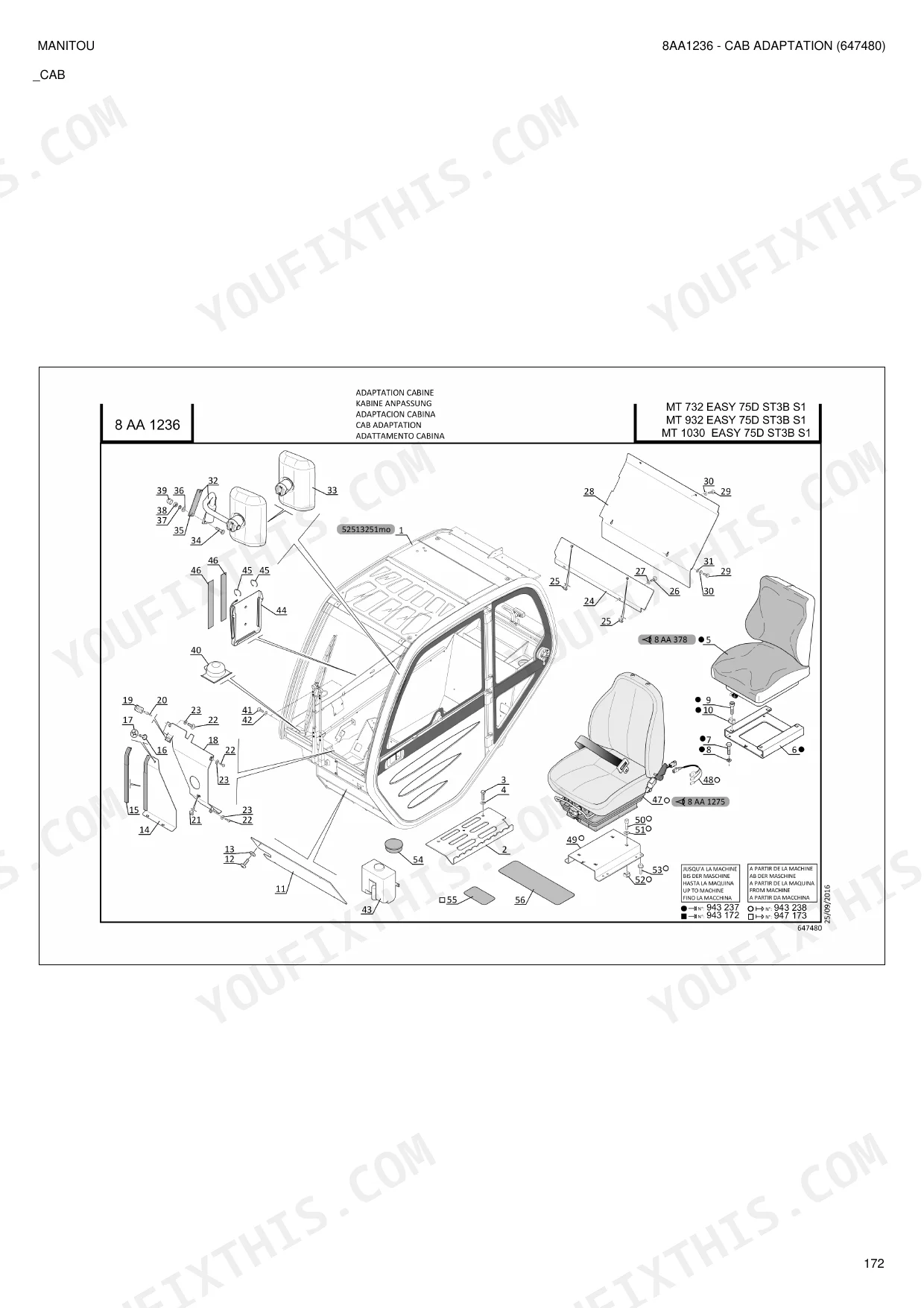

| System | Pages | Key Topics |
|---|---|---|
| General Instructions and Safety Notice | 4-11 | Adhesive Signs |
| Filters-Belt | 12-22 | Engine - Transmission Adaptation, Fuel Circuit |
| Frame - Body | 23-33 | Engine Bonnet, Counterweight, Mud Guard, Sound Proofing, Tank, Exterior Rearview Mirror |
| Electricity | 34-55 | Circuit - Harness, Lighting - Signaling, Safety System |
| Axle Assembly - Axle | 56-81 | Rear Axle, Front Axle |
| Wheels | 82-83 | Complete Wheel, Tyre, Valve, Wheel Nut |
| Hydraulic | 84-112 | Circuit, Valve Bank, Joystick, Ram |
| Telescopic Boom | 113-116 | Boom Foot, Bushing, Articulating Pin, Sliding Block, Intermediate Telescope, Guide Hose |
| Engine | 117-162 | Unit, Complete, Intake System - Exhaust, Fuel Supply System, Electrical System, Cooling System |
| Pedals | 163-178 | Brake Circuit, Handbrake, - Linkage |
| Driver Cab | 179-204 | Cab, Heater - Air Conditioning, Door - Glass |

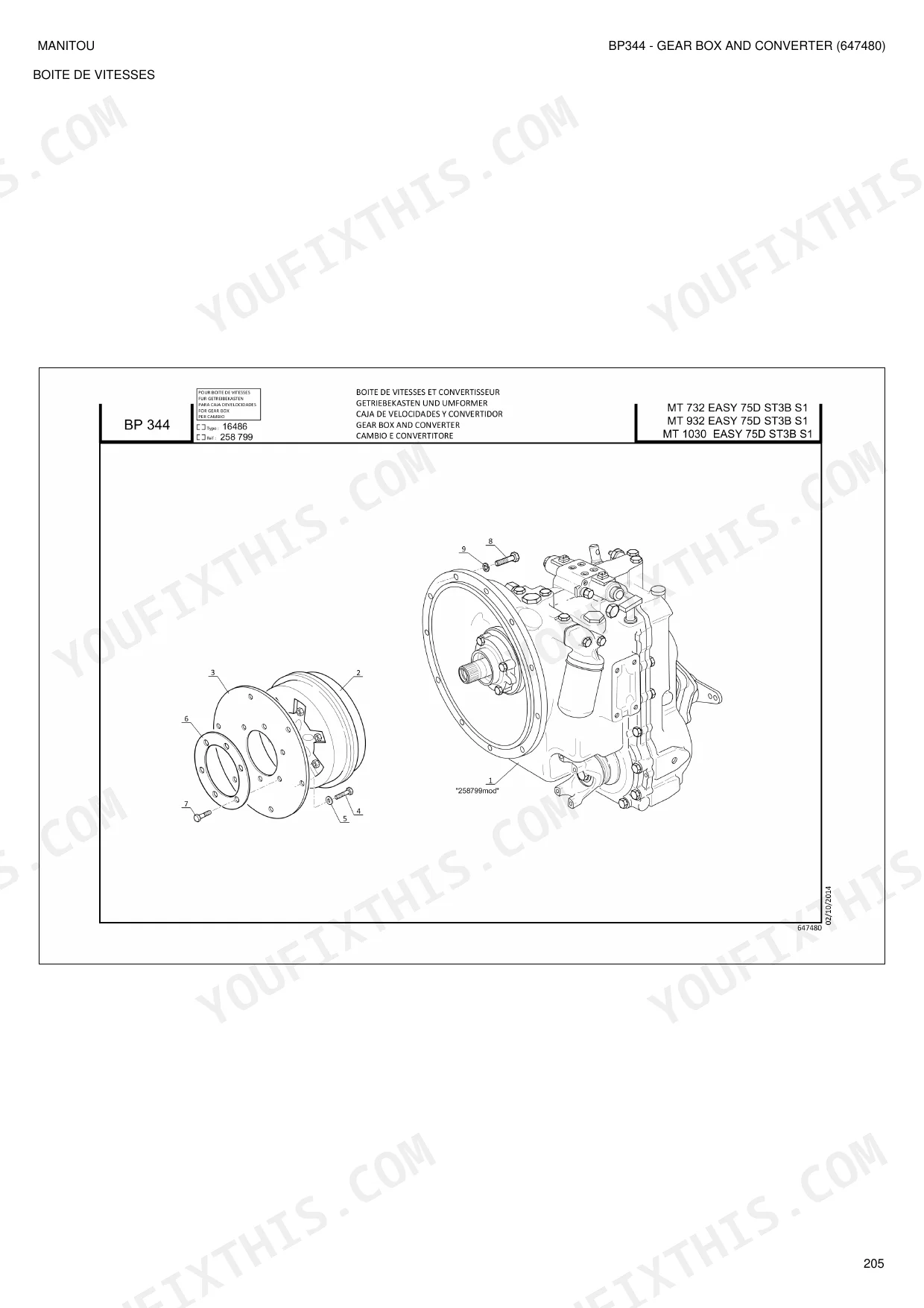

| Transmission | 205-319 | Gear Box, Bevel Drive, Propshaft |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Washer 51 dimensions | 46 X 68 X 2,5mm | p. 98 |

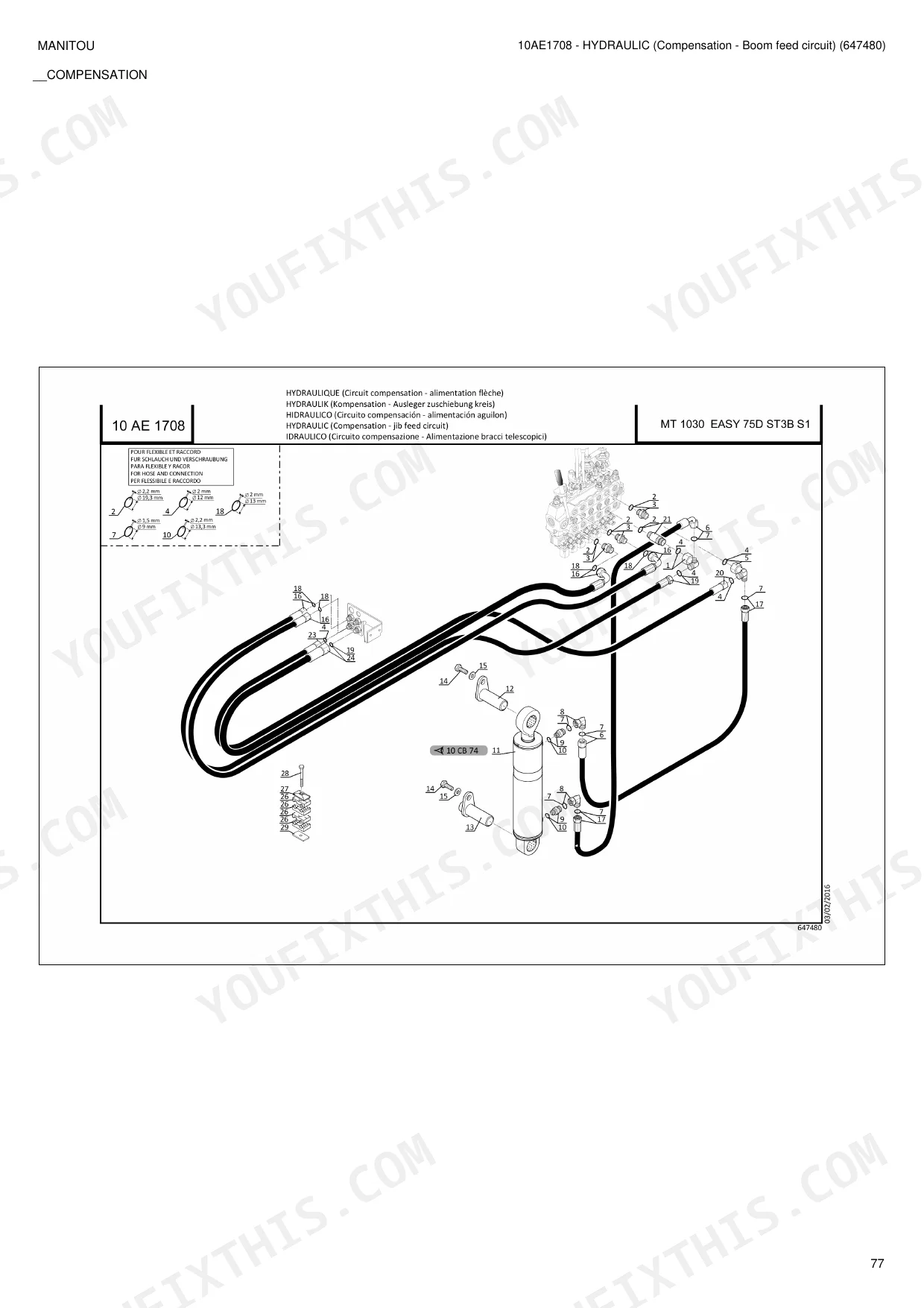

| Compensation cylinder stroke | 310mm | p. 103 |
| Lifting cylinder stroke | 720mm | p. 105 |
Manitou MT 732, 932, 1030 Easy 75D ST3B S1 Common Problems This Manual Covers
Manitou MT 732, 932 or 1030 lifting cylinder and compensation cylinder rams hard to tell apart when ordering parts
Measure the stroke of the ram on the machine before you order anything. The lifting cylinder exploded view on page 105 lists a 720mm stroke, while the compensation cylinder on page 103 shows 310mm. Match your reading to the right exploded view, then pull item numbers from that parts list and confirm them against your serial number.
Manual Section: Hydraulic p. 105Hydraulic circuit washer 51 dimensions unclear when matching a replacement against the old flattened washer
Check the hydraulic exploded view on page 98, where washer 51 is listed at 46 X 68 X 2,5mm. Measure the inside diameter, outside diameter and thickness of the old washer with calipers before ordering. Read the part number for item 51 from that parts list and confirm it against your machine model and serial number.
Manual Section: Hydraulic p. 98Telescopic boom sliding block, bushing or articulating pin part number hard to find for a worn boom
Check the telescopic boom exploded views starting on page 113, which cover the boom foot, bushings, articulating pins, sliding blocks, intermediate telescope and guide hose. Identify the worn part by its position on the diagram, then read its part number from the matching parts list and confirm it fits your model before ordering.
Manual Section: Telescopic Boom p. 113Fuse, relay or harness section part number hard to pin down from the electric circuit diagrams

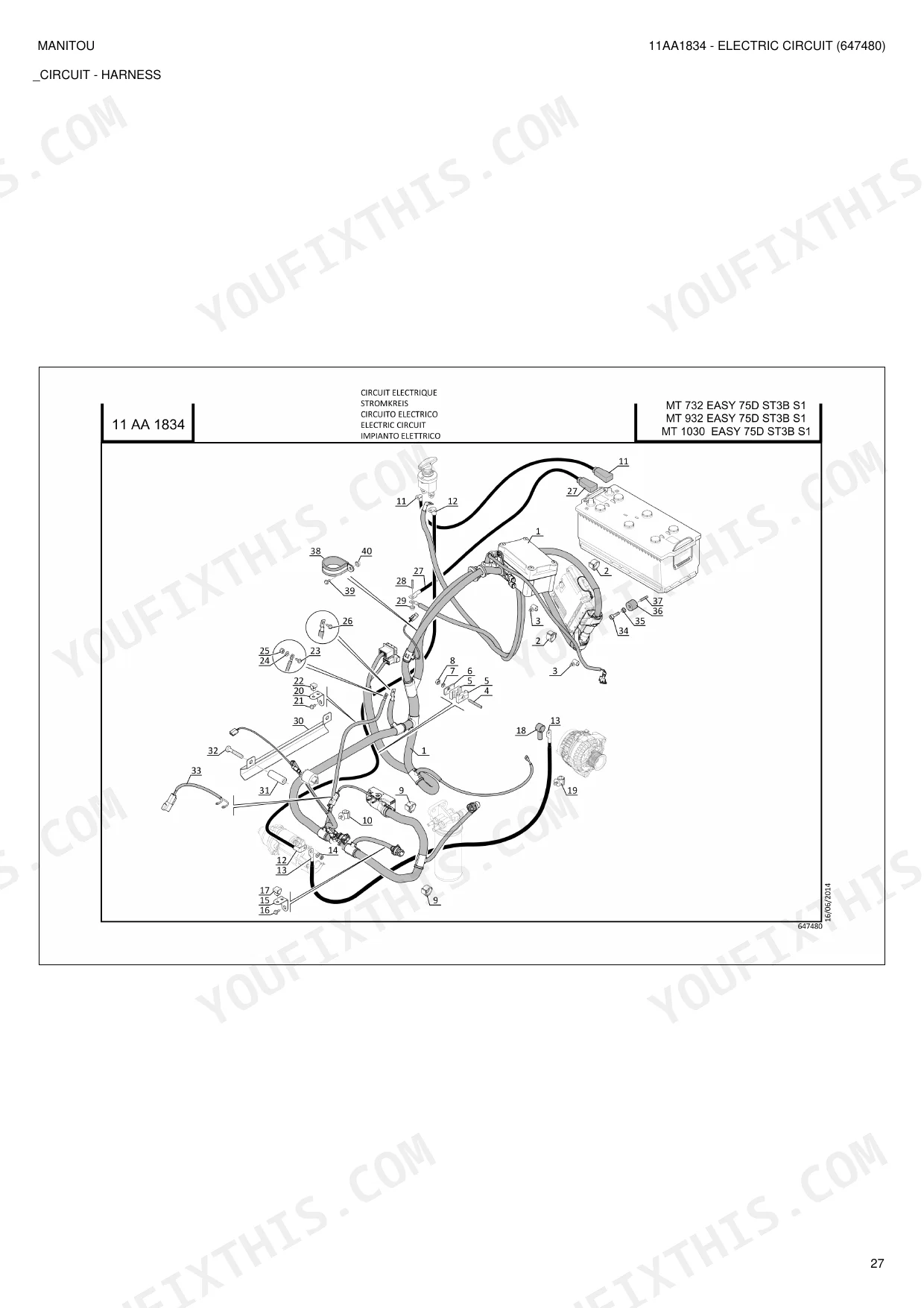

Check the electricity wiring diagram on page 34 and trace the circuit to the harness, relay or fuse involved. The Electric Circuit section lists harness, relay, fuse and lighting parts separately. Read the part number from the matching parts list and confirm it against your model before ordering.
Manual Section: Electric Circuit p. 34Brake pedal or master cylinder replacement part hard to identify in the brake circuit parts list
Check the Pedals section starting on page 163, where the brake circuit exploded view shows the brake pedal and master cylinder. Locate the item by its callout number on the diagram, then read the part number from the parts list. Check the handbrake and linkage parts in the same section if you are replacing the full pedal assembly.
Manual Section: Brake Circuit p. 163Filter and belt part numbers unclear when ordering a parts kit for the next scheduled service
Check the Filters-Belt section starting on page 12 for filter and belt part numbers, and the Fuel Circuit pages in the same section for the fuel tank, lines and fuel filter. Write each part number from the parts list onto your order sheet and confirm it matches your model before ordering.
Manual Section: Filters and Belts p. 12Frequently Asked Questions
What are the MT 732 replacement specifications for engine oil, fuel, hydraulic-return, and transmission filters?
The manual provides specific part numbers for various filters. For example, the filter cartridge listed as cartouche is part number 563416 (page 13), the fuel filter is 318538 (page 21), the oil filter is 561749 (page 13), and the hydraulic return oil filter is 248754 (page 95). p. 13
What is the M8 screw torque on the Manitou MT 732, 932, 1030 Easy 75D ST3B S1 engine-transmission adaptation?
The manual specifies that the M8 screw (part number 42347) used in the engine-transmission adaptation should be tightened to the standard torque for an M8 8.8 grade bolt. Please refer to page 15 for the location and assembly details. p. 15
What is the part number for the hydraulic lifting cylinder on the MT 1030?
The part number for the lifting cylinder on the MT 1030 EASY 75D ST3B S1 is 52500275. This component is detailed in the hydraulic lifting circuit section on page 90. p. 90
What is the alternator belt part number for the Manitou MT 732, 932, 1030 Easy 75D ST3B S1 telehandler?
The part number for the alternator belt is 941243. This is listed in the filters and belts section of the manual. p. 13
What is the part number for the cab door hinge on the Manitou MT 732, 932, 1030 Easy 75D ST3B S1?
The part number for the cab door hinge is 604711. This part is used in the cab assembly as detailed on page 206. p. 206
How will I receive this Manitou MT 732 Parts Catalog?
A 319-page Parts Catalog in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print a copy of this Manitou MT 732 Parts Catalog for the shop?
Yes. Printing works from any reader and any printer, for your own shop use.
