Manitou issued publication 647625EN as the complete workshop reference for the Privilege Plus rotating telehandler line, and this 1,186-page file bundles both of its issues back to back: the original September 2017 release and the revised second issue of February 2019, which the PDF bookmarks and the section pages below reference. The book covers four machines in one binding: the EU Stage IV MRT 2470 and MRT 3050 with the Mercedes OM 934 LA engine, and the Stage IIIA export MRT-X 2470 and MRT-X 3050 running the Mercedes OM 904 LA. Eleven repair sections take you from general characteristics and per-model spec tables through engine, transmission, axles, brakes, the telescopic boom, hydraulics, the complete electrical system and the rotating driver cab.

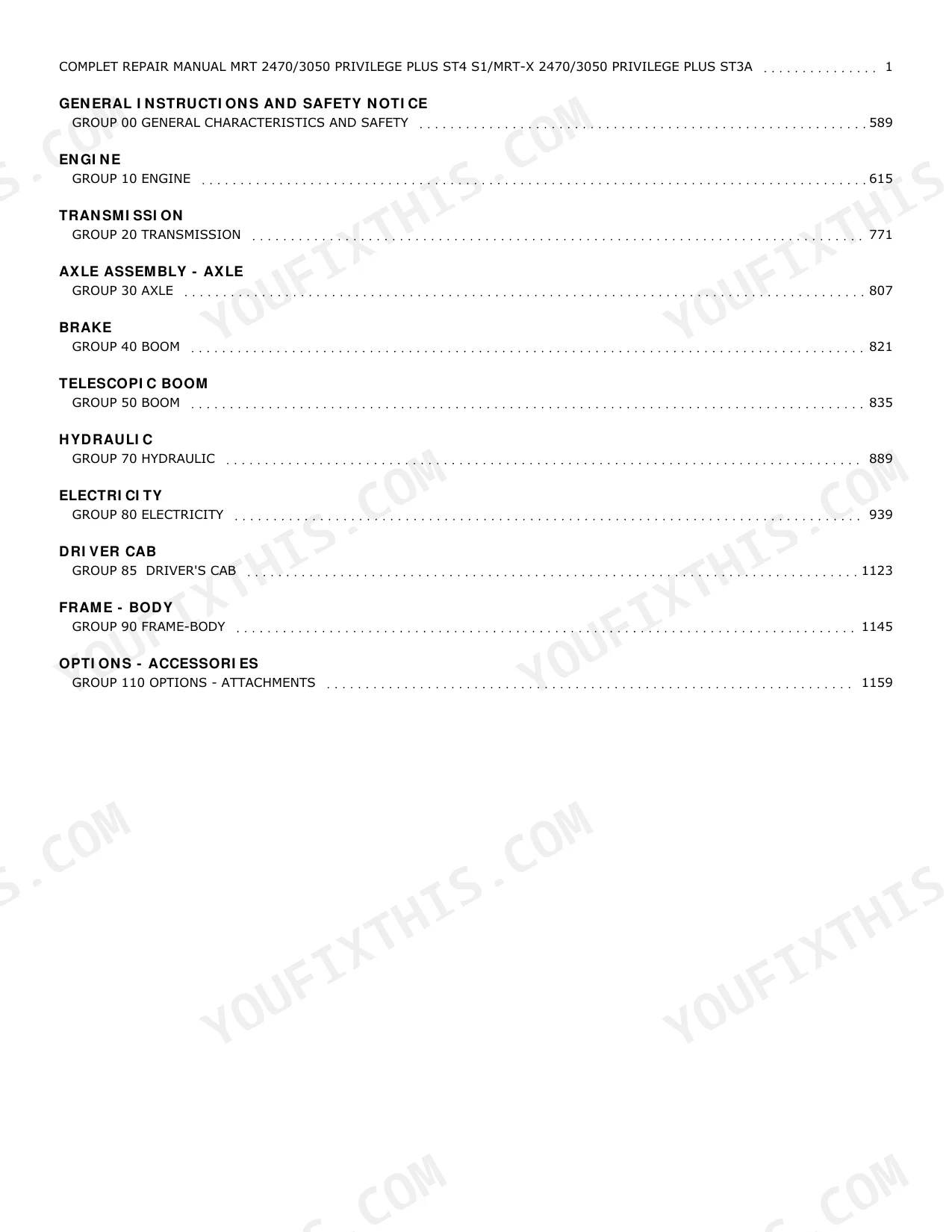

What's Inside This Manitou MRT 2470, MRT-X 2470, MRT 3050, MRT-X 3050 Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| General Characteristics and Safety | 594-619 | Per-Model Spec Tables, Dimensions, Fluid Capacities, Master Torque Values, Safety Notices |

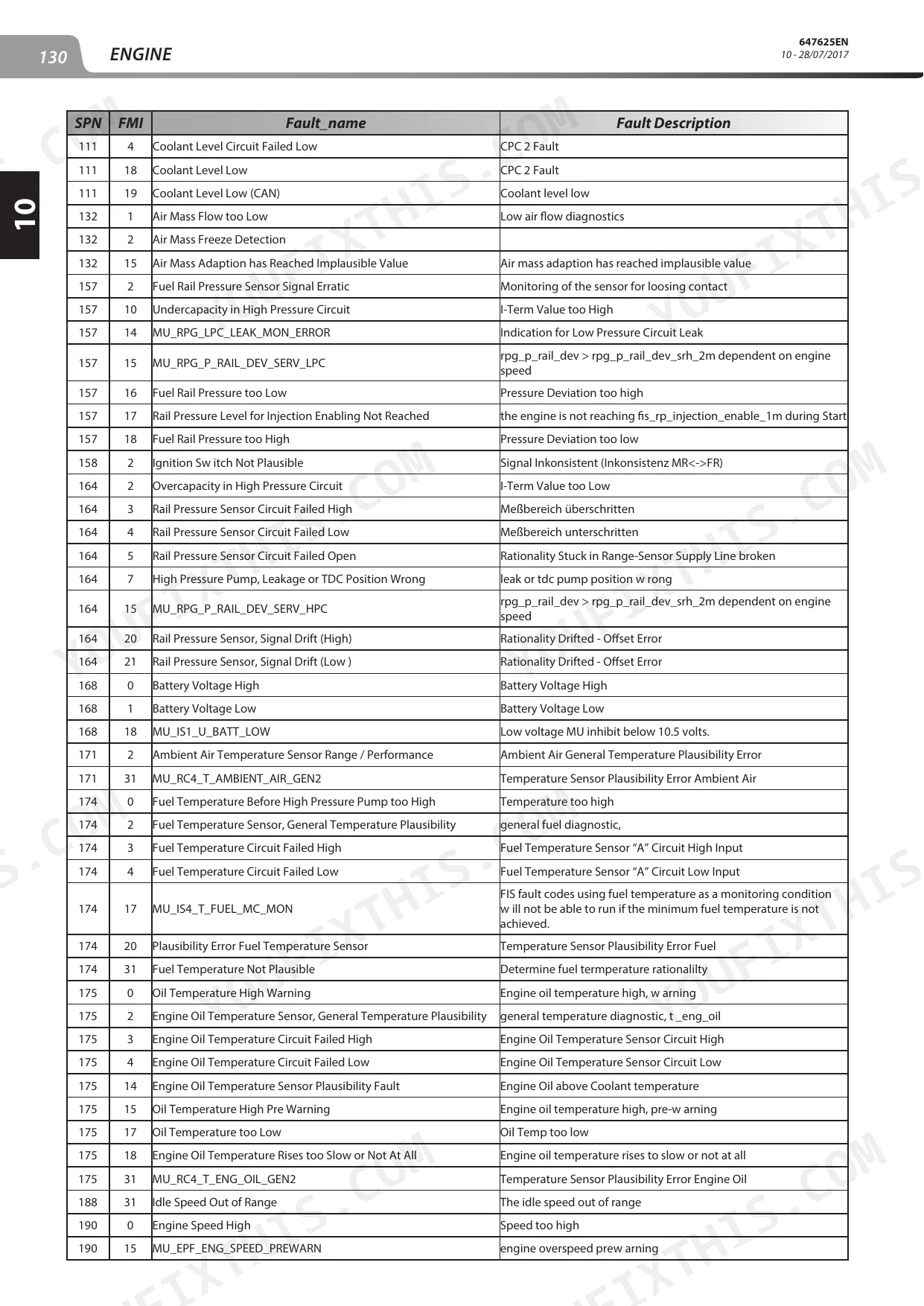

| Engine | 620-775 | Mercedes Om 904 La and Om 934 La Service, Fuel System, Cooling, DEF System, Removal and Installation |
| Transmission | 776-811 | Hydrostatic Transmission, Gearbox Service, Pressure Checks, Calibration |
| Axle Assembly | 812-825 | Front and Rear Axle Overhaul, Differentials, Reduction Gears, Steering Knuckles |
| Brake | 826-839 | Service Brake Circuit, Parking Brake, Bleeding Procedure, Pressure Testing |

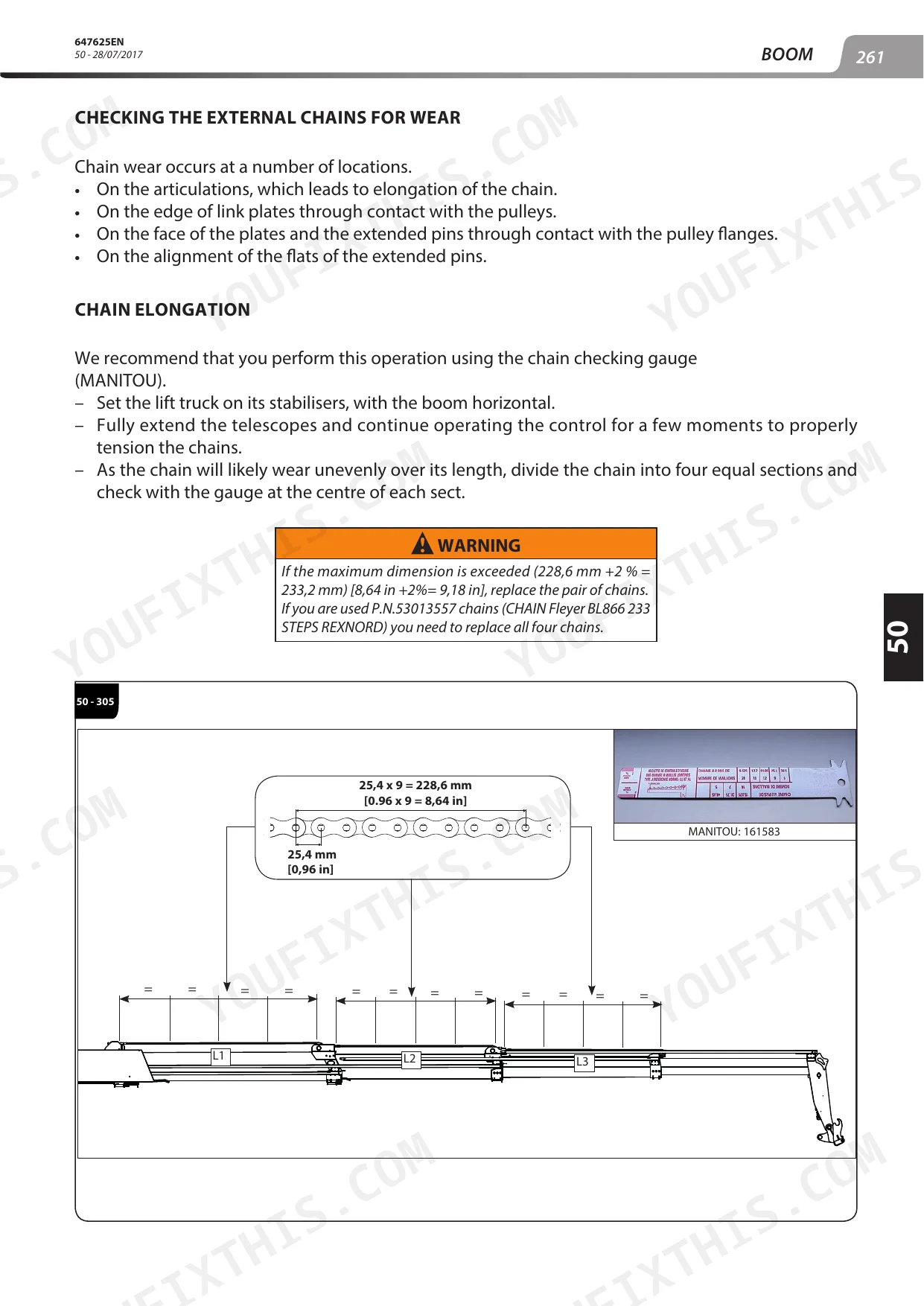

| Telescopic Boom | 840-893 | Boom Sections, Wear Pads, Extension Chains, Cylinder Service, Attachment Carriage |
| Hydraulic | 894-943 | Pumps, Distributors, Cylinders, Load-Holding Valves, Circuit Schematics, Pressure Settings |

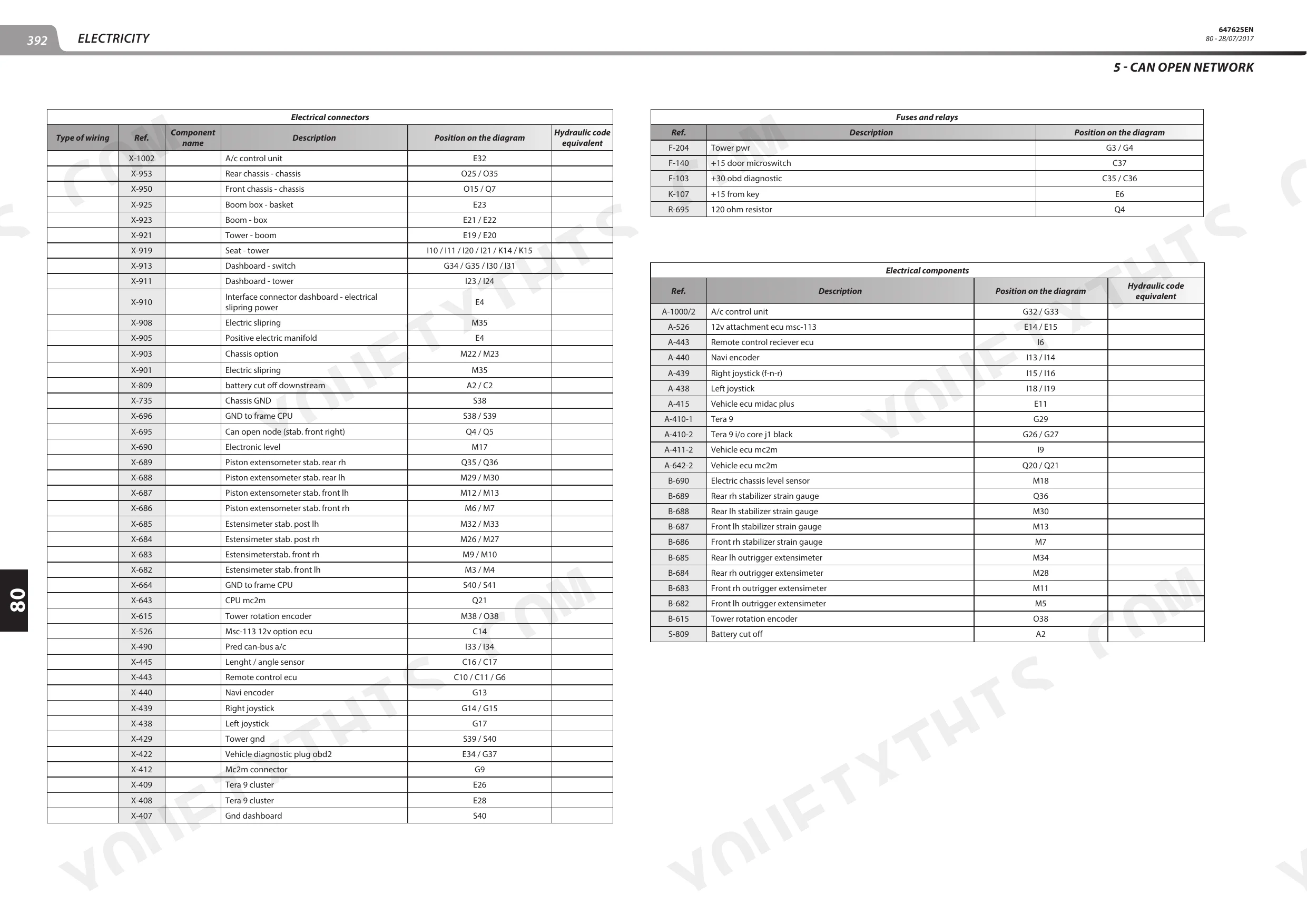

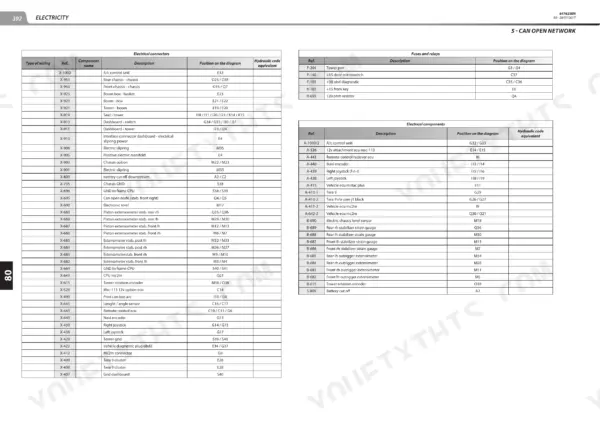

| Electricity | 944-1127 | Wiring Harnesses, Fuses and Relays, Sensors, E-Reco System, Fault Code Diagnostics |
| Driver Cab | 1128-1149 | Cab Removal, Controls, HVAC, Instrument Panel, Seat and Glazing |
| Frame and Body | 1150-1163 | Chassis, Counterweight, Stabilizers, Slewing Ring, Body Panels |
| Options and Accessories | 1164-1186 | Winch, Platform, Jib and Attachment Options, Hydraulic Couplings |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine (MRT 2470 / 3050, EU Stage IV) | Mercedes OM 934 LA D.933.911 | p. 606 |
| Engine (MRT-X 2470 / 3050, Stage IIIA) | Mercedes OM 904 LA D.904.971 | p. 606 |
| Rated Power (ISO/TR 14396) | 129 kW (173 hp) at 2,200 rpm | p. 606 |
| Fuel Tank Capacity | 290 L (76.6 US gal) | p. 608 |
| Hydraulic and Transmission Oil Capacity | 290 L (76.6 US gal) | p. 608 |
| DEF Tank Capacity (MRT models) | 60 L (15 US gal) | p. 608 |
| Cooling System Capacity | 30 L (7.9 US gal) | p. 608 |
| Engine Oil Capacity (OM 934 LA) | approx. 20.5 L (5.4 US gal) | p. 618 |
| Front Axle Differential Capacity | 8 L (2.1 US gal) | p. 618 |
| Overall Length (C) | 7,549 mm (297.2 in) | p. 604 |
| Overall Width (M) | 2,490 mm (98.0 in) | p. 604 |
| Wheelbase (D) | 6,152 mm (242.2 in) | p. 604 |
Manitou MRT 2470, MRT-X 2470, MRT 3050, MRT-X 3050 Common Problems This Manual Covers
Boom movement locked or restricted after attachment change
Start in the Electricity section with the E-RECO diagnostics: verify the attachment was recognized, check the stored attachment data against the fitted equipment, and clear the fault only after the load chart adaptation completes. The manual lists the menu paths and sensor checks in order.
Manual Section: ElectricityStabilizer fails to extend or is not detected as set
Follow the stabilizer diagnostic flow: inspect the pin-mounted strain gauges and position sensors, test their circuits per the wiring section, then verify hydraulic supply to the stabilizer cylinders. The safety interlock releases only when all four legs report ground contact.
Manual Section: Frame and BodyEngine derate or overheating during long high-lift cycles
Work through the cooling system checks in the Engine section: radiator pack condition, fan drive operation, coolant level against the 30 L system capacity, then the fuel and air side of the Mercedes engine including charge-air ducting. The manual gives the test values for each step.
Manual Section: EngineFrequently Asked Questions
How do I diagnose and reset E-RECO attachment fault codes on the MRT Privilege Plus?
The Electricity section covers the E-RECO recognition system end to end: how the machine reads attachment data, why a mismatch locks boom movement, and the diagnostic menus used to read and clear the stored faults after the cause is fixed.
Does this manual include torque specifications for the boom and chassis bolts?
Yes. Master tightening torque tables are included with the general characteristics pages, and each repair chapter repeats the values that matter for the job at hand, including boom pivot, slewing ring and axle mounting hardware.
Are hydraulic circuit schematics and pressure settings included?
The Hydraulic section carries the circuit schematics plus pump, distributor and load-holding valve service procedures with the factory pressure settings and test-point locations needed to verify them.
Which engines does the manual cover, and is DEF/AdBlue service included?
Both factory fits are covered: the Mercedes OM 934 LA in EU Stage IV MRT machines, including the 60 L DEF system, and the Mercedes OM 904 LA in Stage IIIA MRT-X export machines.
Does it cover the stabilizers and the rotating turret?
Yes. Frame and Body handles the stabilizer legs, their sensors and the slewing ring, while the Electricity section covers the stabilizer position monitoring that the safety system relies on before it releases full boom envelope.
