This is the factory chassis service manual for the McCormick XTX Series tractors: the XTX145, XTX165, XTX185, XTX200 and XTX215. It runs 1,540 pages and is the book the dealer technician works from. It covers the tractor, the eight speed powershift and the speed and range transmissions, the front and rear axles, the hydraulics, the steering, brakes, cab and the electronic controllers, with full electrical troubleshooting and schematics and hydraulic schematics, plus calibration and error code procedures including the Tier 2 and Tier 3 engine fault codes. The range runs a four cylinder engine on the XTX145 and a six cylinder engine on the larger models. One honest note up front: internal engine teardown and overhaul are not in this volume. The engine section covers removal and refitting and points you to the companion McCormick engine service manual for the rebuild. Everything else on the machine is here.
What's Inside This McCormick XTX145-XTX215 Manual

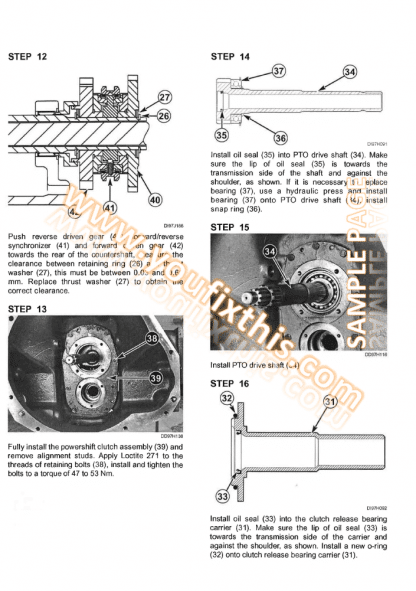

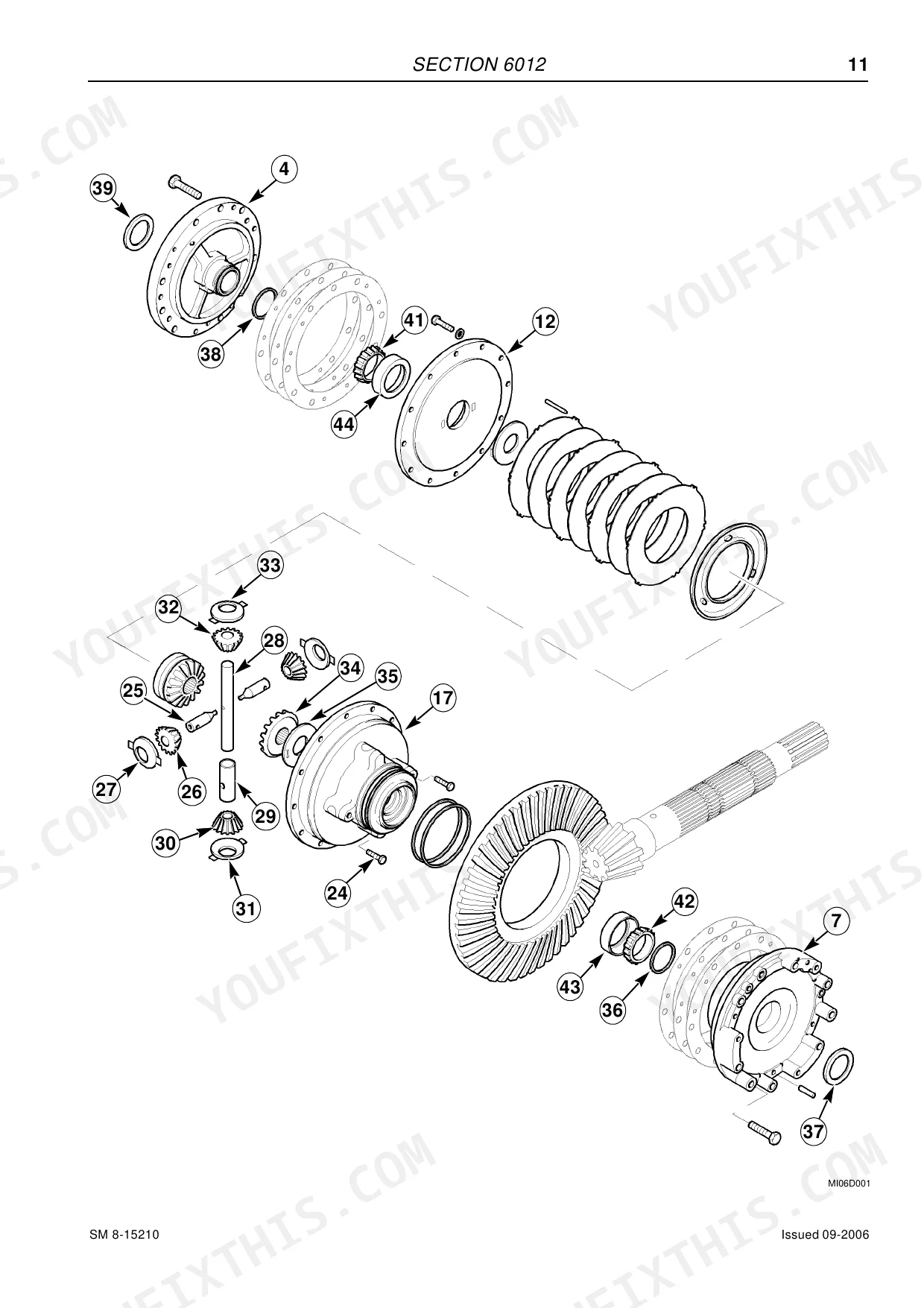

| System | Pages | Key Topics |
|---|---|---|
| General | Safety Rules, General Information, Torque Specifications and the General Specifications and Clearance Data for the Xtx Tractors | |
| Engine | Lifting the Engine Out and Refitting It, The Oil and Pressure Checks (5.3 Litre Sump, 0.7 Bar at Warm Idle) and Reading the Tier 2 and Tier 3 Fault Codes; the Internal Overhaul Is in the Companion McCormick Engine Service Manual | |
| Fuel System | Draining and Removing the Fuel Tank, The Supply Lines, The Water Separator and the Shutoff, And Bleeding the System; Injection and Internal Fuel Work Are in the Companion Engine Service Manual | |
| Electrical | Full Electrical Troubleshooting and Schematics, Instrument Cluster Programming, And Battery Servicing and Testing | |
| Steering | Servicing the Steering Column, The Rexroth Orbital Hand Pump and the Power Steering Supply, With the Front Axle Steering on Two and Four Wheel Drive Tractors | |
| Transmission | Separating the Speed and Range Transmissions, Eight Speed Powershift Transmission Servicing, The Powershift and Shuttle Valves, The Differential and Differential Lock, The Rear Axles and the Front Drive Axles, With the Operating Theory | |
| Brakes | Servicing and Bleeding the Wet Service Brakes, The Parking Brake and the Hydraulic Trailer Brake Valve | |
| Hydraulics | Hydraulic Troubleshooting and Schematics, The Charge and Lubrication Pump, The Hydraulic Valves and the Remote Valves | |
| Chassis and Mounted Equipment | Pedal, Lever and Switch Adjustments, Air Conditioning and Cab Equipment | |
| Controller Systems | Calibration, Error Codes, Troubleshooting and Schematics for the Hitch, MFD and Differential Lock Controller, The Speed Sequencer, The F/N/R, Powershift and PTO Controllers and the Instrument Cluster, Plus Controller Programming |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine (XTX145) | FPT four cylinder, 145 HP (107 kW) at 2300 rpm | |
| Engine Range | Four cylinder on the XTX145, six cylinder on the larger models | |
| Compression Ratio | 17:1 | |
| Bore x Stroke | 102 x 120 mm (four cylinder) | |
| Displacement | 3920 cc (four cylinder) | |
| Turbocharger | Garrett GT22 | |
| Engine Oil Capacity (sump) | 5.3 litres (four cylinder) | |
| Oil Pressure (warm, idle) | 0.7 bar |
McCormick XTX145-XTX215 Common Problems This Manual Covers
Complete loss of hydraulic power to the loader or steering
Work the Hydraulics section. It carries the hydraulic troubleshooting routine with the schematics, the charge and lubrication pump, the hydraulic valves and the remote valves. A total loss of power usually points to the charge pump, a stuck main relief or a failed priority valve, and the section walks the pressure checks in order so you confirm which one before you open the system.
Manual Section: HydraulicsEngine stalls under load or will not start, with fault codes showing

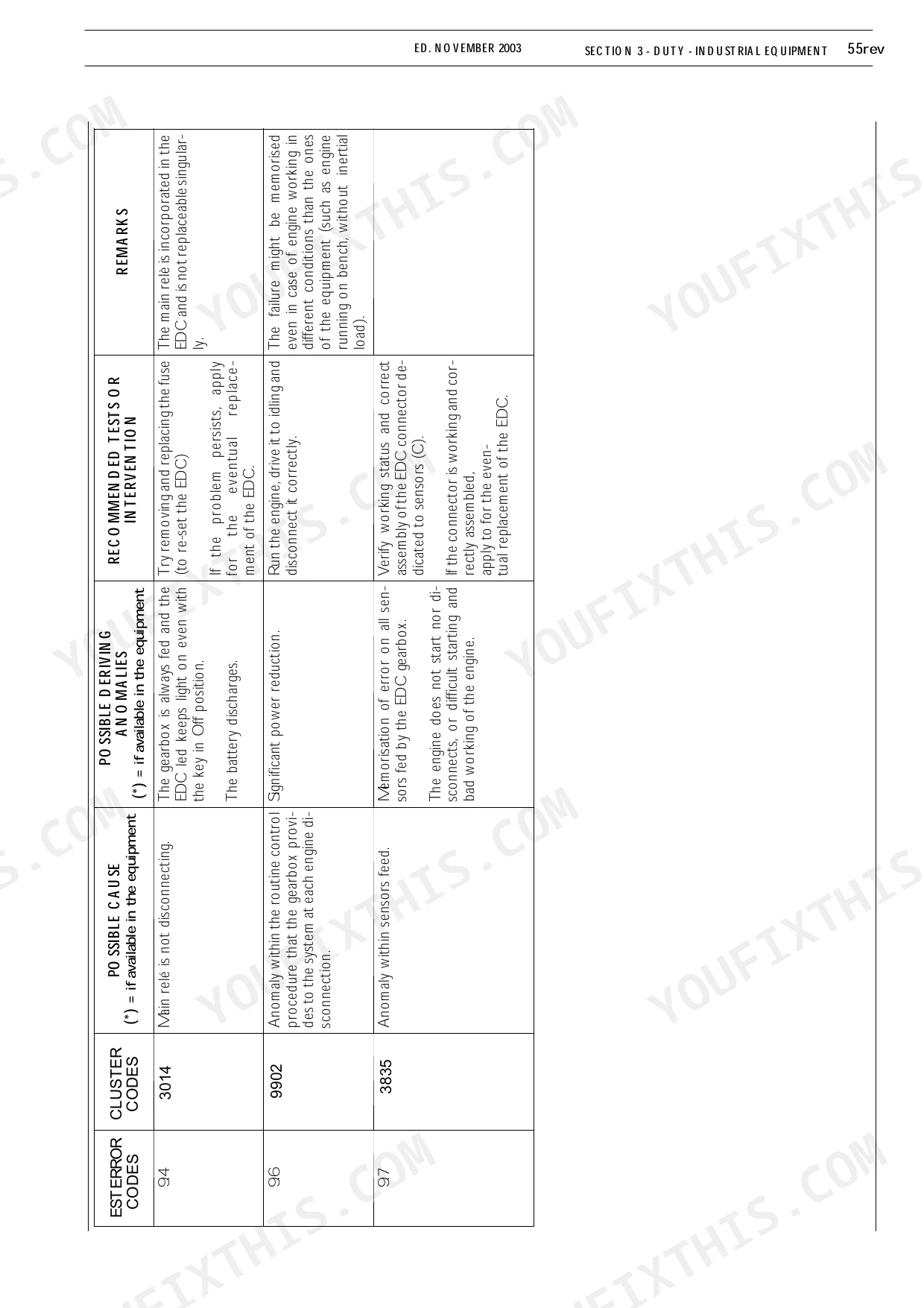

Start in the Engine section for the Tier 2 and Tier 3 error codes, which point you at the sensor or circuit the engine controller has flagged. Removal and refitting are covered here, but the internal rebuild is in the companion engine service manual, so the boundary is clear. Reading the stored code first stops you chasing a fuel fault that is really an electronic one.
Manual Section: EngineSudden transmission noise followed by gear slip or harsh shifts
Work the Transmission section. It covers separating the speed and range transmissions, the eight speed powershift servicing, the powershift and shuttle valves and the differential, with the operating theory and the inspection steps for the clutch packs and gears. Pair it with the Controller Systems section so an electronic shift fault is read by error code before you split the tractor.
Manual Section: TransmissionA controller is throwing error codes or the hitch will not calibrate
Go to the Controller Systems section. It gives the calibration sequence, the error codes and the troubleshooting schematics for the hitch, MFD and differential lock controller, the speed sequencer, the F/N/R, powershift and PTO controllers and the instrument cluster. You read the stored code, follow its troubleshooting tree and re-run the calibration to confirm the fix rather than replacing a good controller.
Manual Section: Controller SystemsFrequently Asked Questions
Does this manual cover engine overhaul on the XTX Series?
No. The Engine section covers removing and refitting the engine in the tractor and the Tier 2 and Tier 3 engine error codes. The internal rebuild, pistons, bearings, injection and the rest, is in the companion McCormick engine service manual, and this chassis manual points you to it. What you get here is everything to get the engine out, plus full coverage of the rest of the tractor.
What engines do the XTX tractors use?
The range runs an FPT (Iveco) diesel: a four cylinder on the XTX145, rated at 145 HP (107 kW) at 2300 rpm with a 17:1 compression ratio, a 102 by 120 mm bore and stroke, 3920 cc and a Garrett GT22 turbocharger, and a larger six cylinder engine on the XTX165 through XTX215. The model number tracks roughly to the rated horsepower.
Are the wiring and hydraulic diagrams included?
Yes. The Electrical section carries the full electrical troubleshooting and schematics, and the Hydraulics section carries the hydraulic troubleshooting schematics along with the charge pump and valve coverage. These are the dealer diagrams used to trace a fault to the actual circuit.

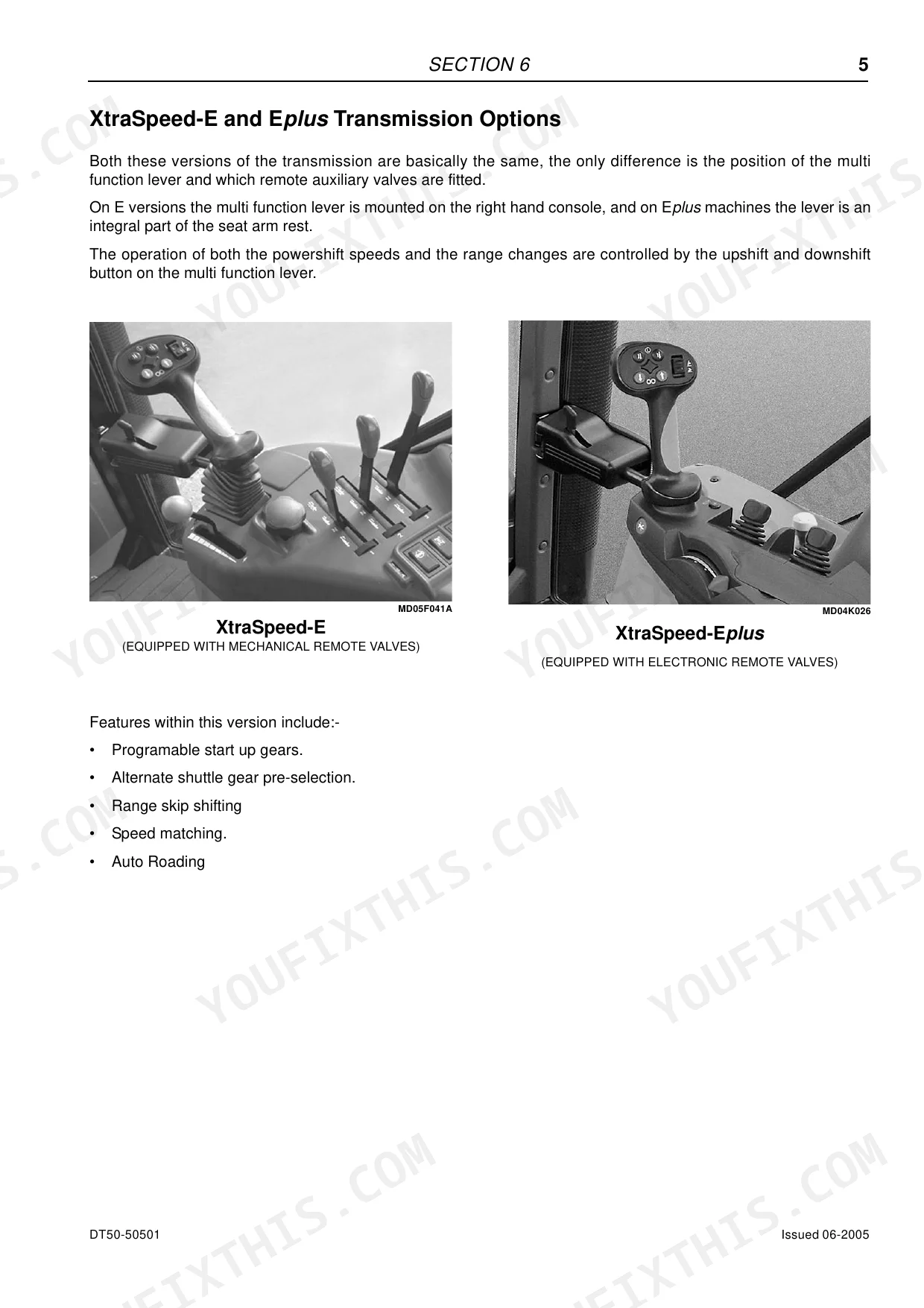

Does it cover the eight speed powershift transmission?
Yes. The Transmission section covers separating the speed and range transmissions, the eight speed powershift servicing, the powershift and shuttle valves and the differential, with the operating theory. The Controller Systems section adds the speed sequencer and F/N/R calibration so an electronic shift fault is read by code first.
Is this McCormick XTX145, XTX165, XTX185, XTX200, XTX215 manual a digital?
Instant PDF download (67 MB). You get the full 1540-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print specific sections of this McCormick XTX145, XTX165, XTX185?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
Does this McCormick XTX145, XTX165, XTX185, XTX200, XTX215 manual include?
Yes. You'll find full electrical schematics with wire routing diagrams, connector identification, and circuit descriptions.
