This parts catalog is assembled from 299 factory EPC plates, each one a drawing with its own parts list, merged into a single 574-page PDF and kept in McCormick's own plate order across sections 2 through 9. Bookmarks run down to every plate. Chassis and attachments is the deepest group at 146 pages, the power train next at 118, covering the transmission housing and bearing carrier, range shift, the forward and reverse shuttle, creep speed and the autospeed valve split by transmission serial number. Engine, fuel, electrical, steering, brakes and hydraulics fill the rest, every drawing keyed to part numbers you can order against. Harness illustrations cover the transmission, engine, instrument panel, control console and cab roof. The hydraulic group lays out remote control valves, the priority valve with its 41cc pump on page 356, the hitch valve assembly and front PTO piping for Hydrac. Printed values sit right in the drawings: a 3 kw starter on page 130, individual front weights at 45kg (100lb) on page 437. A tractor down mid-harvest costs you daylight. Bookmarks and a searchable text layer put you on the right illustration fast, so the part number you order is the right one the first time. Every page carries the catalog reference 7_3102.
Complete the set for your MC95, MC105, MC115
- Repair Manual: McCormick MC80-MC135 Tractor Service Manual
What's Inside This McCormick MC95, MC105, MC115 Parts Manual

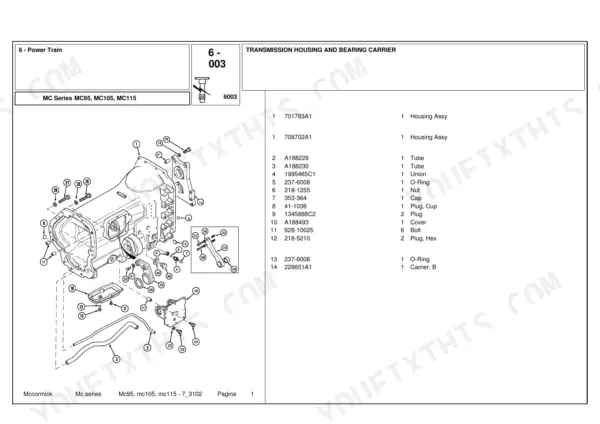

| System | Pages | Key Topics |
|---|---|---|
| Engine | 1-59 | Engines, Radiator and Connections, Radiator - Mc95, Mc105, Radiator - Mc115, Fan Shields, Coolant Recovery System, Flywheel Housing |
| Fuel System | 60-80 | Fuel Injection Pump - Mc95, Mc105, Fuel Injection Pump - Mc115, Fuel Lines, Fuel Injection Nozzle, Electrical Control - Mc115, Lift Pump, Heater Plugs |
| Electrical System | 81-157 | Harness - Transmission, Harness - Engine, Harness - Instrument Panel, Harness - Control Console, Harness - Cab Roof, Harness - Cab Roof - Lp Cab |
| Steering System | 158-207 | Steering Wheel and Column - Fixed, Steering Wheel and Column - Serial No. - - Jje2024217, Steering Wheel and Column |

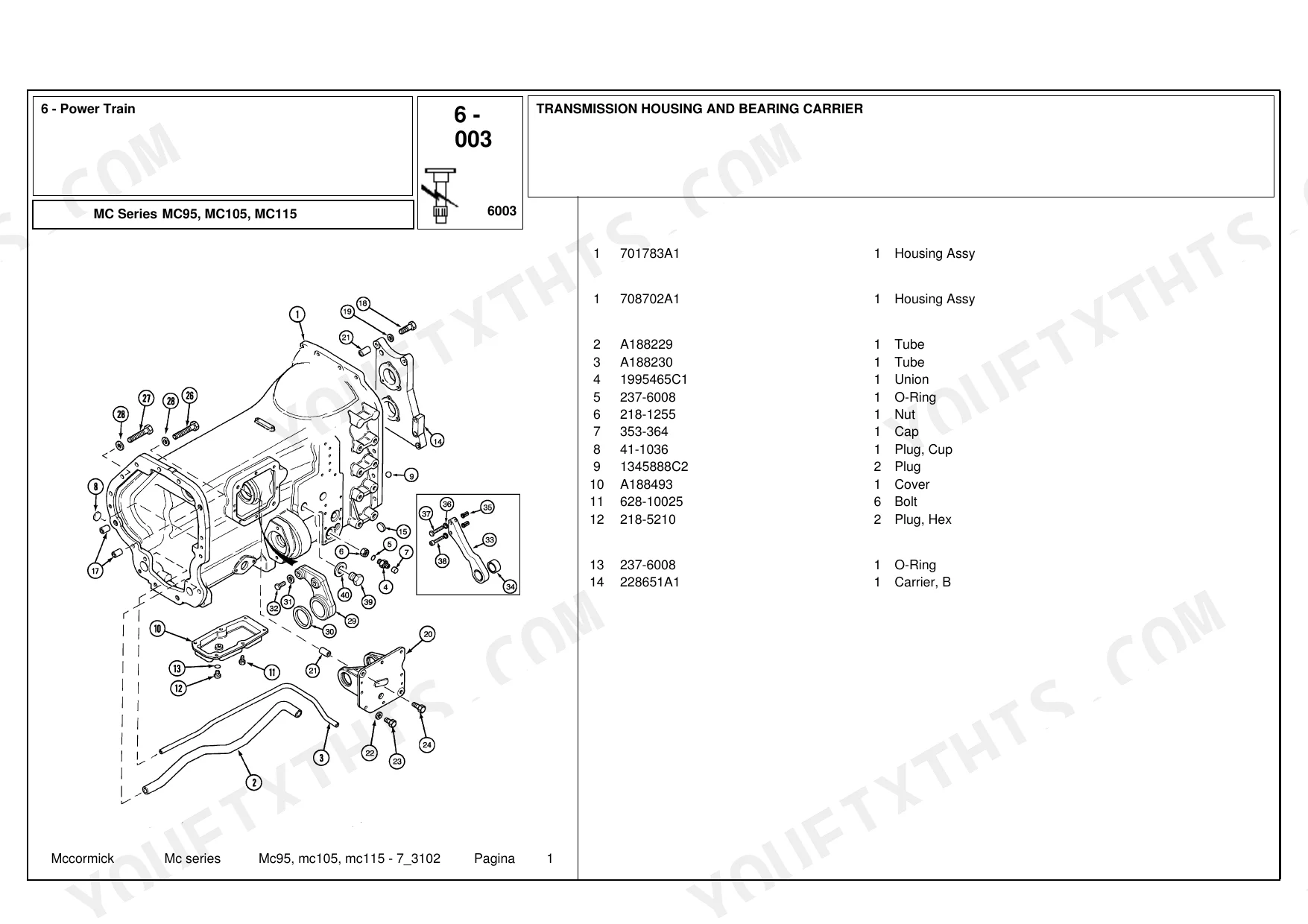

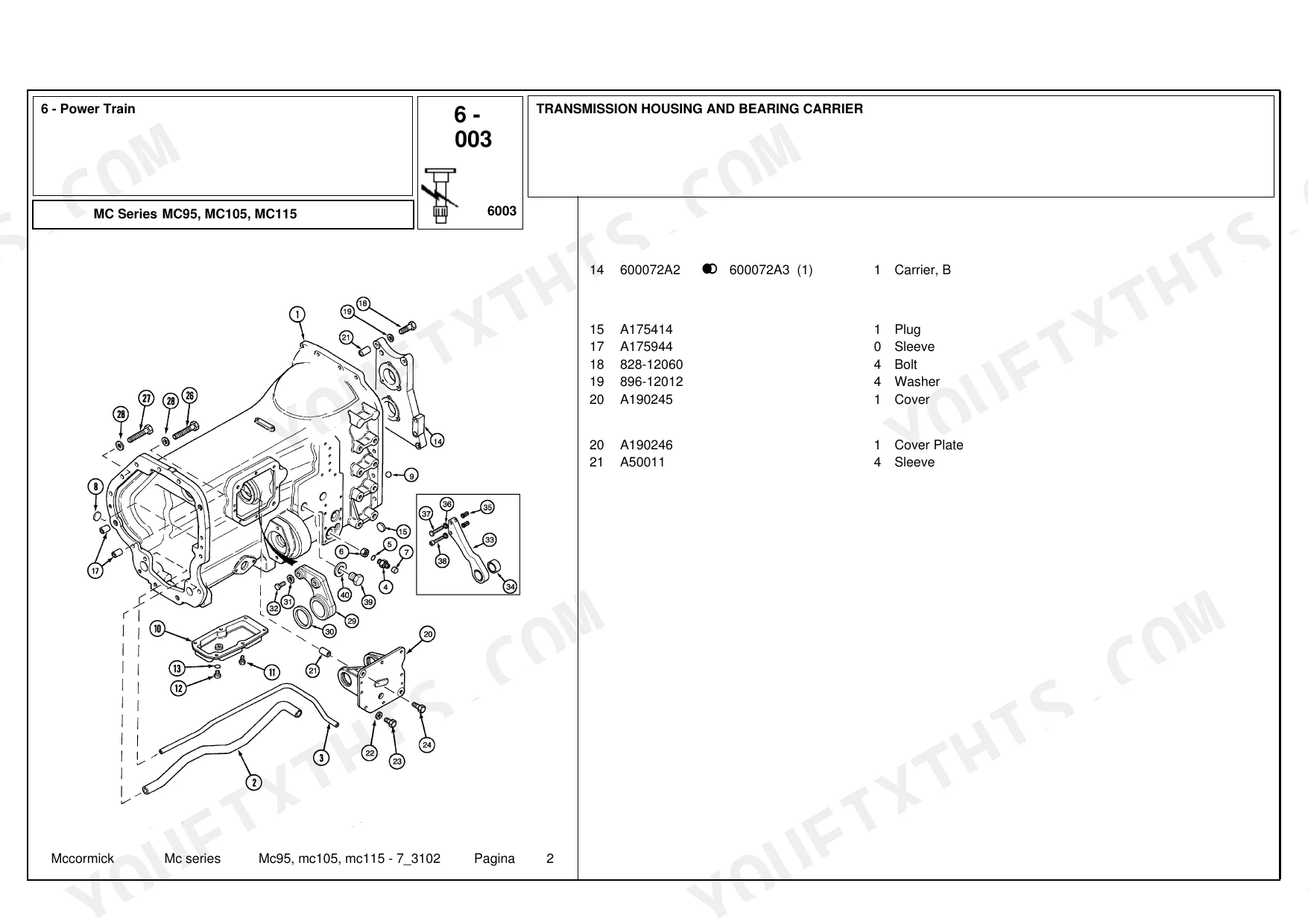

| Power Train | 208-325 | Transmission Housing and Bearing Carrier, Flywheel Housing, Speed Transmission - Input Shaft, Speed Transmission - Drop Shaft, Transmission - Main Shaft - Creep Speed |
| Brakes | 326-353 | Parking Brake, Parking Brake Controls, Brake Discs, Brake Pedals and Master Cylinders, Brake System, Hydraulic Trailer Brake Circuit - Europe Only |
| Hydraulic System | 354-428 | Hydraulic Pump, Oil Lines and Filter, Oil Cooler - Mc95, Mc105, Oil Cooler - Mc115, Hydraulic Oil Filter, Powershift Valve Assy., Priority Valve |

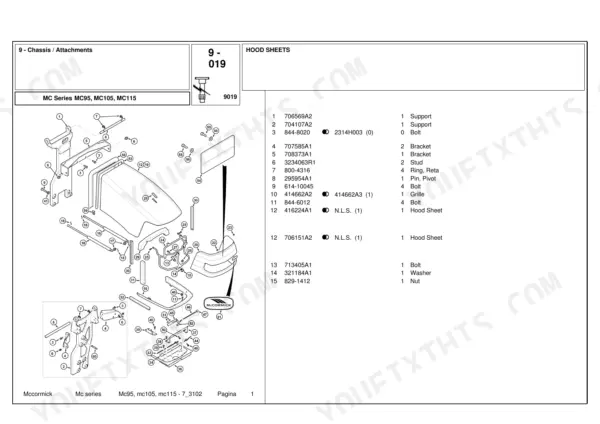

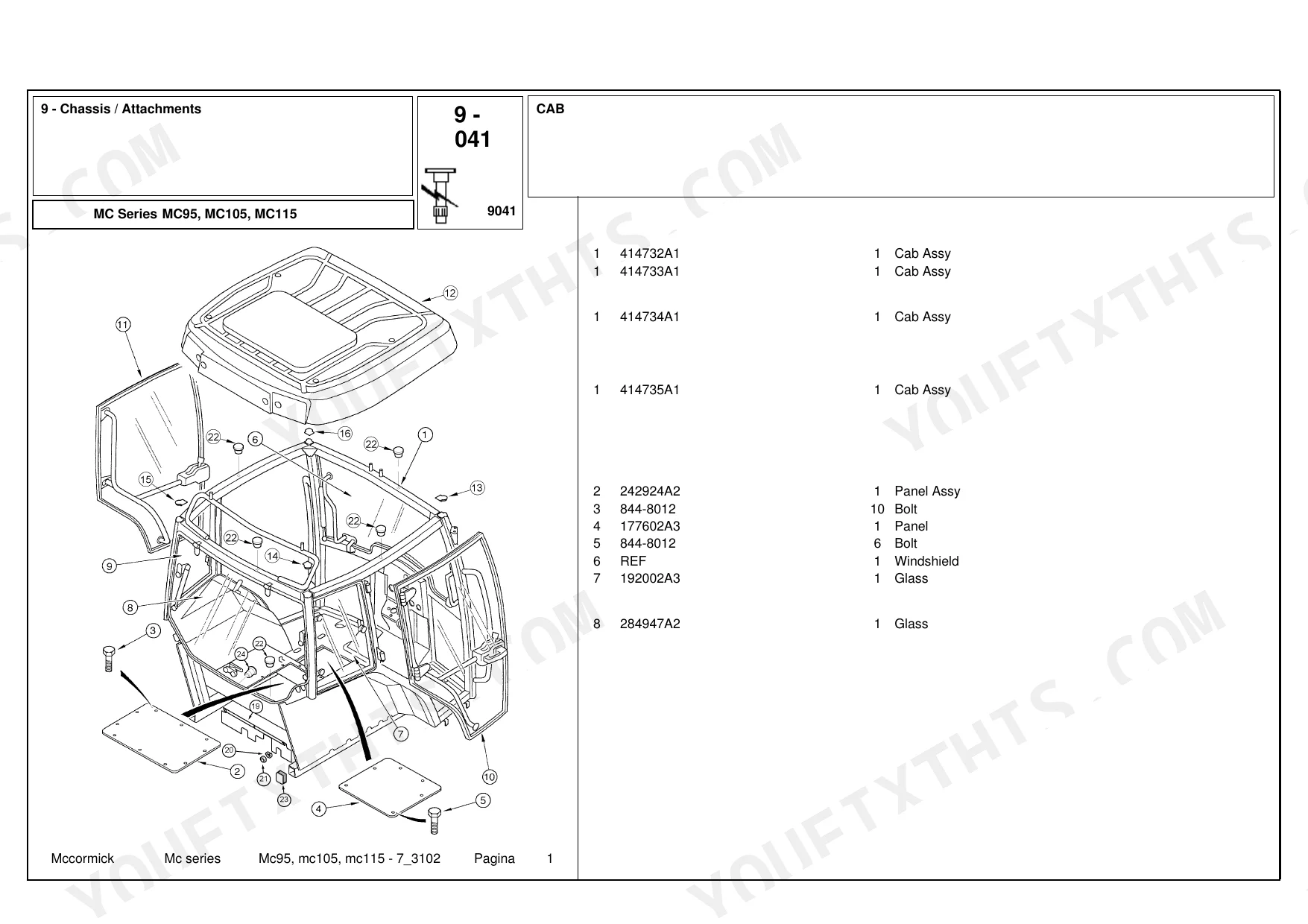

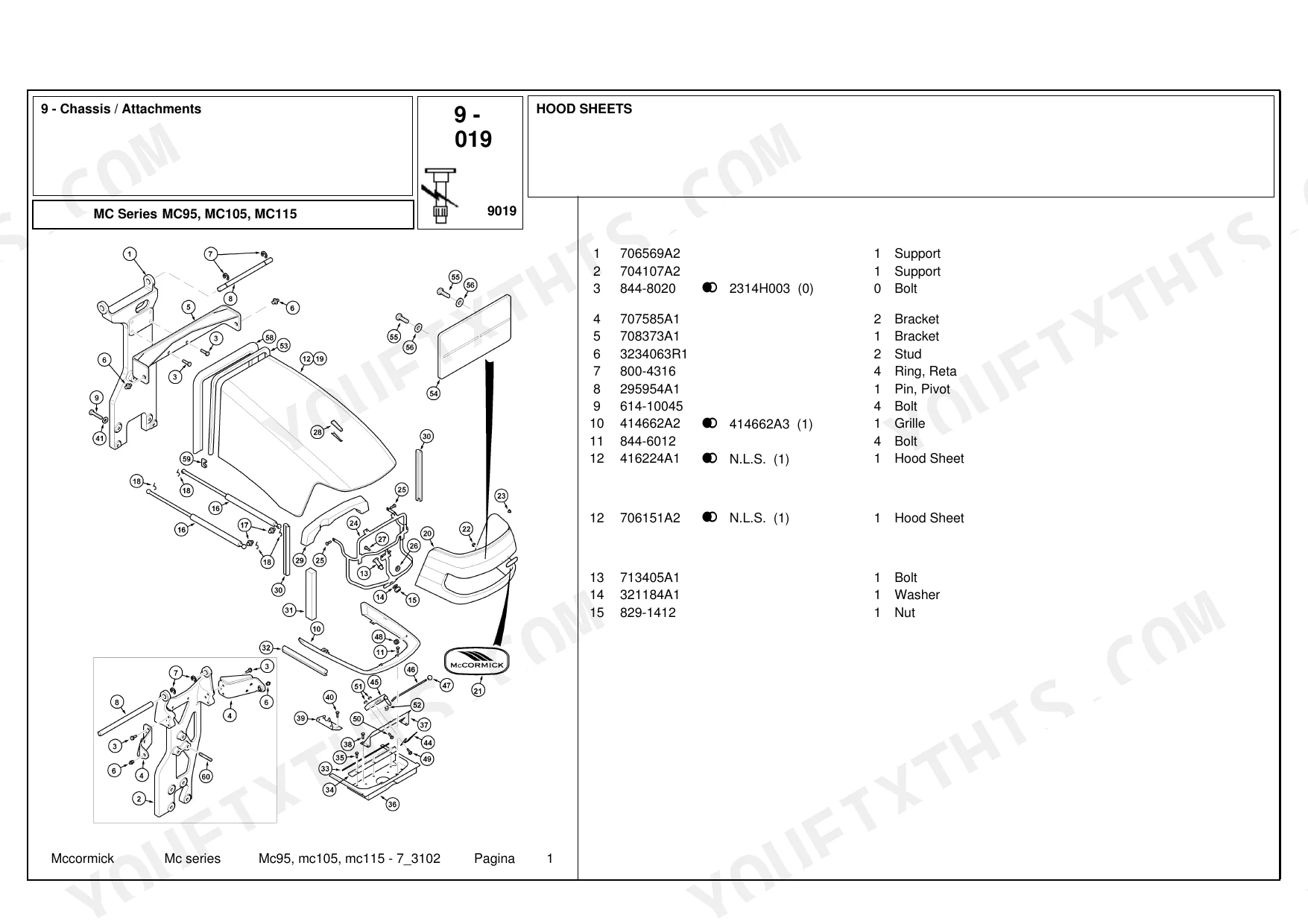

| Chassis / Attachments | 429-574 | Front Frame - Mc95, Mc105, Front Frame - Mc115, Front Weights, REAR Fenders - CAB - Europe Only, Rear Fenders - Cab, Fenders - Front Wheel, Hood Sheets |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| MC95 | ||
| Engine Power (MC95) | 64 kw (90 hp) | p. 1 |
| MC105 | ||
| Engine Power (MC105) | 74 kw (100 hp) | p. 1 |
| MC115 | ||
| Engine Power (MC115) | 87 kw (117 hp) | p. 1 |
| All Models | ||
| Coolant Pressure Relief Valve | 110 KPa | p. 7 |
| Cylinder Block Heater | 120V/750W (240V/750W alternative) | p. 35 |
| Starter Rating | 3 kw | p. 130 |
| Speed Transmission Input Shaft Shim | 0,127 mm (set: 0,076 / 0,127 / 0,254 / 0,635 mm) | p. 220 |
| Transmission Range Shim | 0,05 mm (set: 0,05 / 0,077 / 0,127 / 0,305 mm) | p. 245 |
| Forward Clutch Clearance | 0,5 mm | p. 248 |
| Hydraulic Pump Displacement | 41cc | p. 356 |
| Hydraulic Oil Filter Capacity | 30 cu in | p. 366 |
| Front Weight (Individual) | 45kg (100lb) | p. 437 |
McCormick MC95, MC105, MC115 Common Problems This Manual Covers
McCormick MC115 fuel injection pump part number unclear, catalog splits listings between model groups
Open the Fuel System group starting on page 60 and confirm which injection pump illustration matches your tractor, since MC95 and MC105 share one listing and MC115 uses a separate one. Match your engine rating against the 87 kw (117 hp) figure on page 1 before ordering pump, drive gear, and mounting hardware.
Manual Section: Fuel Injection Pump p. 60Need reverser and forward/reverse control parts but callouts run across several transmission illustrations
Work the Power Train exploded views beginning on page 208 and follow the forward/reverse control callouts through the shift linkage. Check the forward clearance value of 0,5 mm listed on page 248 against the clutch pack group you are ordering, then pull shaft, disc, and detent numbers from that same illustration so the kit matches.
Manual Section: Transmission p. 208Powershift clutch disc and pack numbers hard to match to the right gear group
Identify your group first, then order from one illustration. The input shaft plate on page 220 lists its shims as a set of 0,076, 0,127, 0,254 and 0,635 mm, and the range group on page 245 lists 0,05, 0,077, 0,127 and 0,305 mm, so read the thickness off the illustration that matches your build rather than assuming one size. Take discs, plates, and snap rings from that same view, never mixed across illustrations.
Manual Section: Transmission p. 208Hydraulic oil filter and pump part numbers not obvious when servicing remote hydraulics
Go to the Hydraulic System group opening on page 354. Confirm the pump against the 41cc displacement listed on page 356, then take the filter number from page 366 where capacity reads 30 cu in. Pull the oil line and fitting callouts from the same exploded view so seals and adapters arrive together.
Manual Section: Hydraulic System p. 354Alternator and starter part numbers mixed in with harness callouts across the electrical group
Turn to the Electrical System illustrations starting on page 81. The alternator has its own plates on pages 131 to 133, and the starter assembly on page 130 is listed at 3 kw, so order from those views rather than from the harness drawings. Take harness, connector, and terminal numbers from the matching illustration rather than a neighboring one.
Manual Section: Electrical System Harnesses p. 81Front weight and ballast bracket part numbers needed before adding a loader

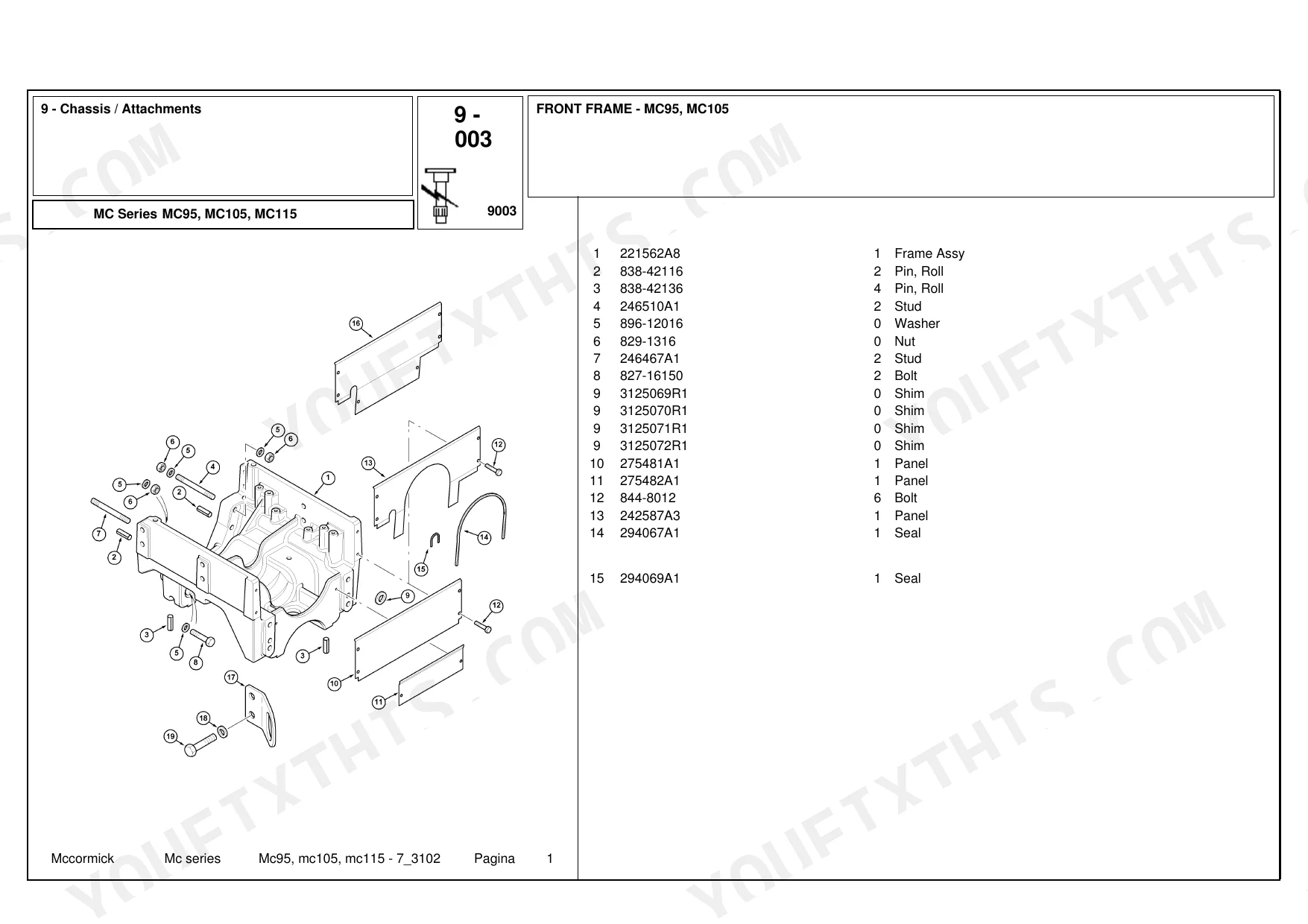

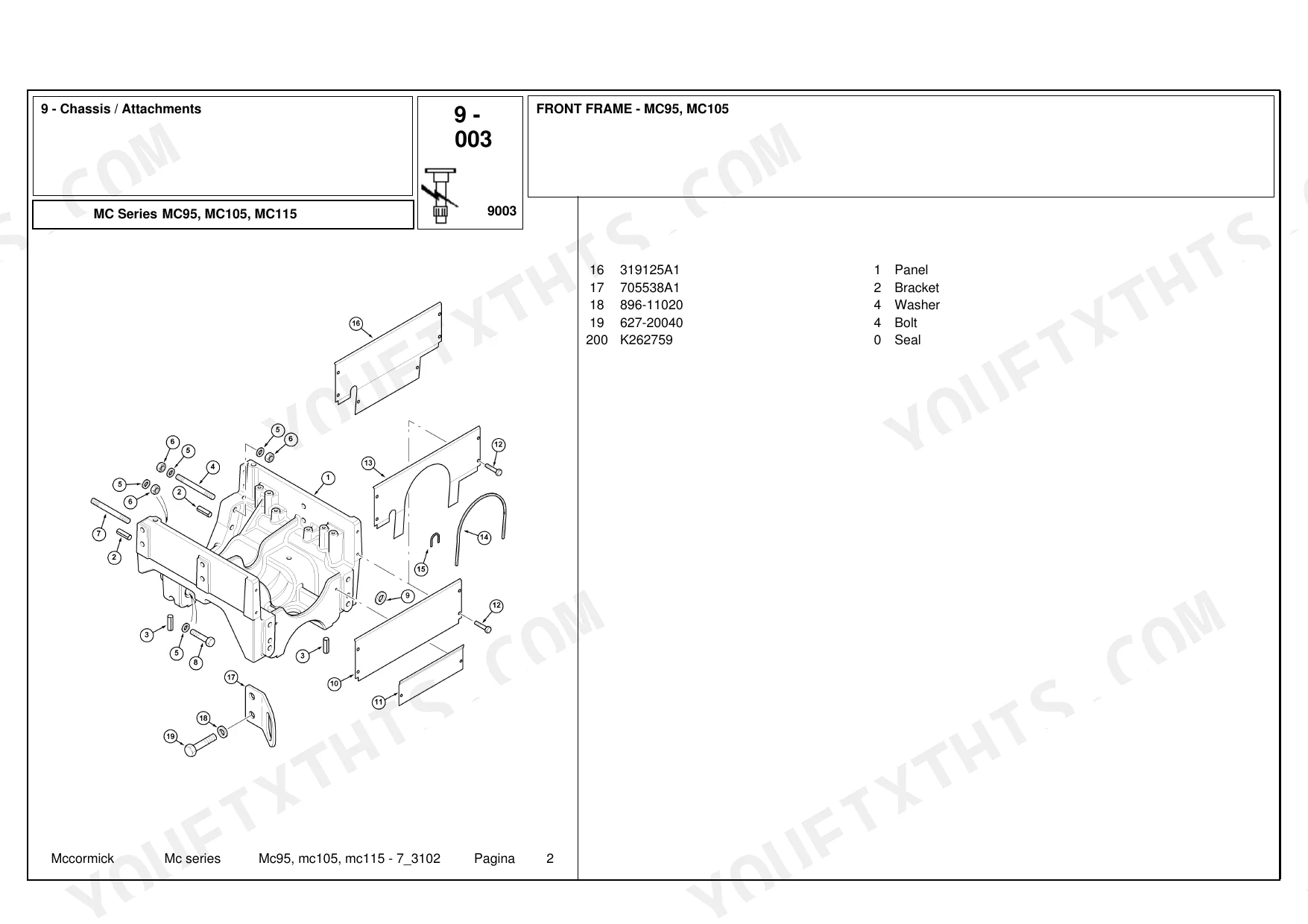

Check the Chassis group exploded views beginning on page 429 for the front frame and weight carrier callouts. Individual front weights are listed at 45kg (100lb) on page 437, so count the stack you need and order carrier, weights, and retaining pins together before the field work starts.
Manual Section: Chassis and Attachments p. 429Frequently Asked Questions
What are the replacement specifications for the air cleaner assembly on the MC95 and MC105 models?

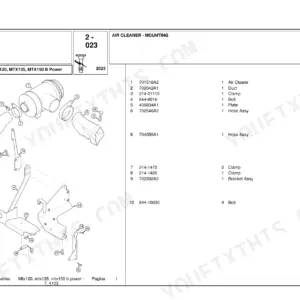

The air cleaner assembly for the MC95 and MC105 models is identified by part number 704204A1. This assembly includes the primary and secondary elements, which are listed as part numbers 222422A1 and 427471A1 respectively. p. 27
What is the engine oil filter element specification for the McCormick MC95, MC105, MC115 tractor?
The engine oil filter element for the MC series is part number 701899A1. This component is part of the oil filter and cooler assembly. p. 49
What is the cylinder head cover torque or bolt spec for a McCormick MC95, MC105, MC115 tractor?
The cylinder head cover assembly uses M8 x 60 bolts with a grade of 8.8. These bolts are used to secure the cover assembly (part number 708150A1) to the engine. p. 48
What is the radiator cap specification for the McCormick MC95, MC105, MC115 tractor?
The radiator cap for the MC series is part number 710829A1. This cap is used across various radiator assemblies, including those for the MC95, MC105, and MC115 models. p. 6
What is the engine oil pan gasket specification on a McCormick MC95, MC105, MC115 tractor?
The engine oil pan gasket for the MC series is part number 707634A1, which corresponds to the manufacturer part number 3681K036. p. 46
