All 94 pages of this Mccormick W4 Tractor Operator Manual (OEM #1004211R2) are built around one job: keeping your W4 running right, whether it's burning gasoline, distillate, or kerosene. Inside you get wiring diagrams, hydraulic schematics for the remote control system, a full troubleshooting section, and step-by-step daily prep procedures covering instruments, controls, and pre-start checks. The lubrication guide walks you through engine oil specs, front wheel greasing, oil filter service, and the complete maintenance schedule spanning the cooling system, brakes, clutch, spark plugs, and battery ignition. Refill the Hydraulic Remote Control system to approximately 8 quarts after any drain. Keep 3/16 inch clearance at the clutch release bearing or that bearing will not last. Your machine isn't going to diagnose itself. Pull up this PDF, jump to any bookmarked section by keyword, and get back to work.
What's Inside This Mccormick W4 Tractor, McCormick W4 Tractor Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | - | General, Serial Numbers, Engine and Chassis |

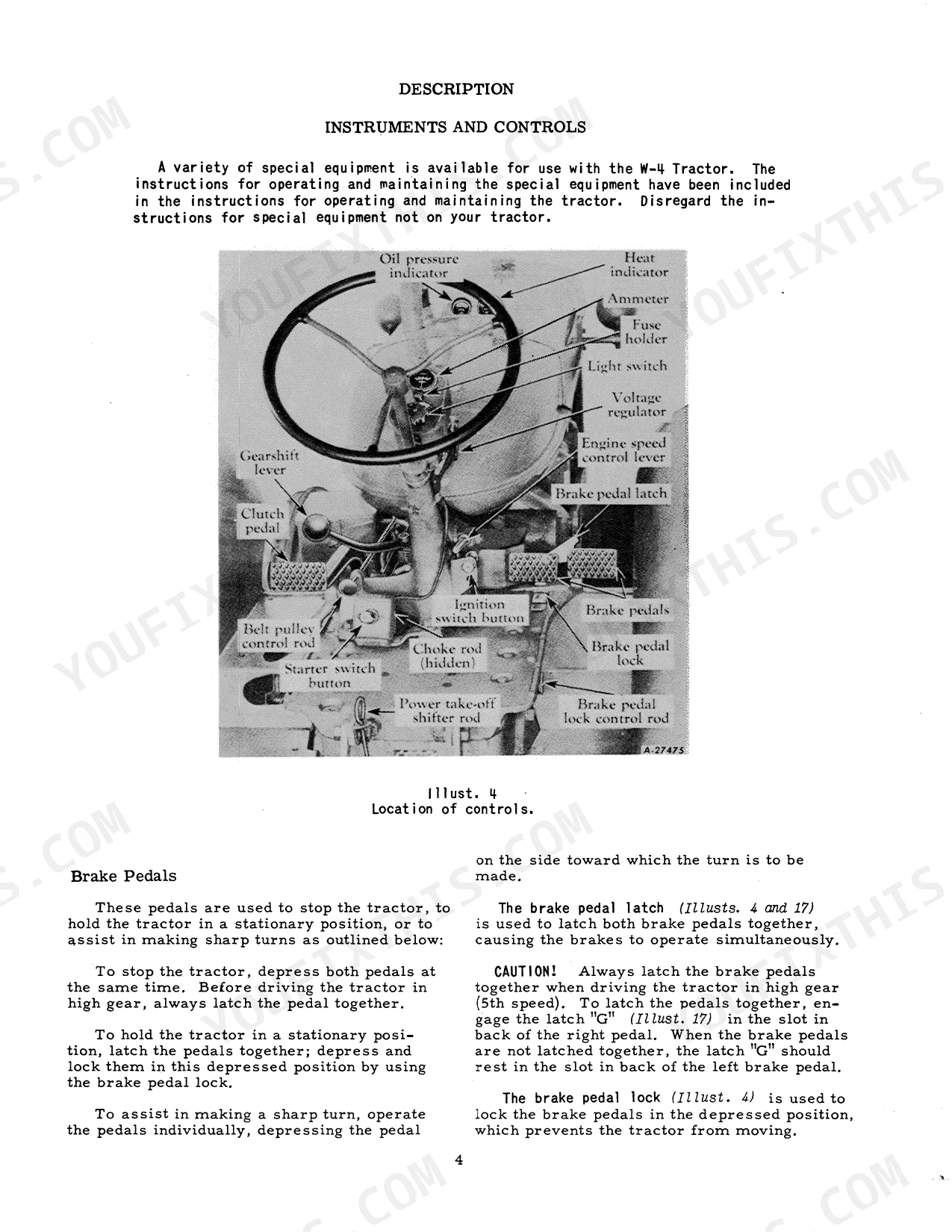

| Description | - | Before Starting Your New Tractor, Instruments and Controls, Preparing the Tractor for Each Day's Work, Views of the Tractor |

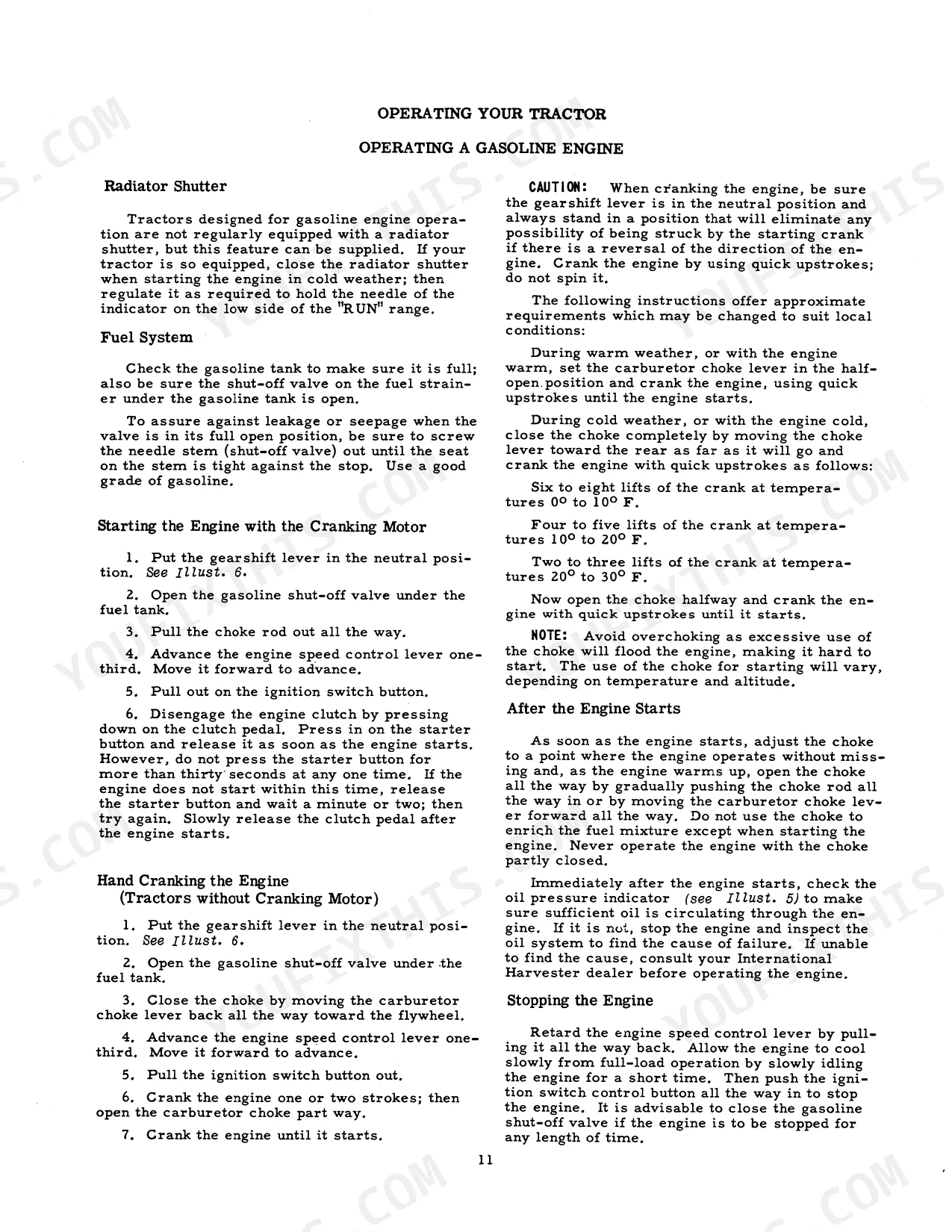

| Operating Your Tractor | - | Driving the Tractor, Operating a Gasoline Engine, Operating a Distillate Engine on Distillate, Operating a Distillate Engine on Gasoline, Operating a Kerosene Engine |

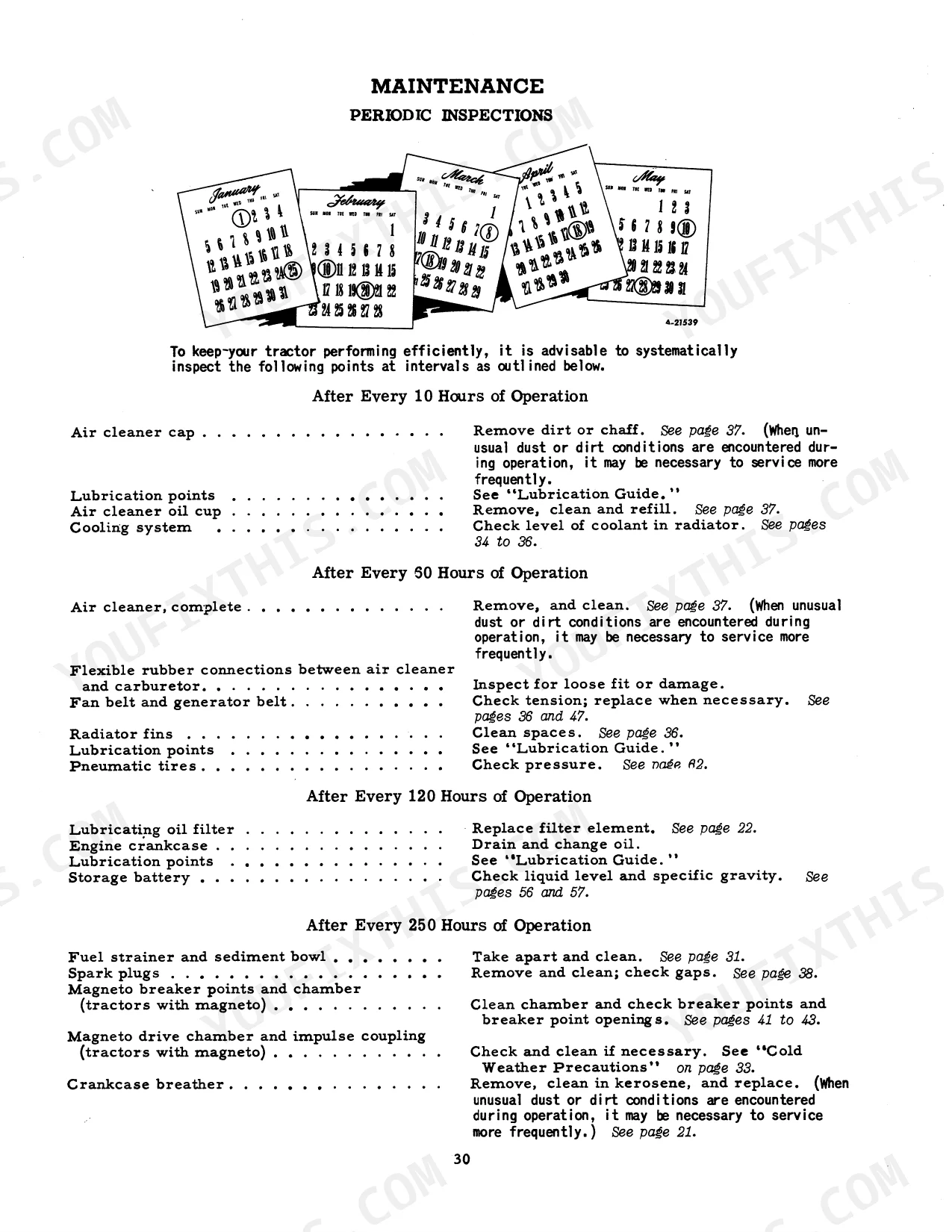

| Lubrication | - | Engine and Chassis Lubricant Specifications, Greasing the Front Wheels, Lubrication Guide, Lubricating Oil and Grease Specifications, Oil Filter |
| Air Cleaning System | - | Oil Cup Service, Air Intake Cap and Screen, Washing the Air Cleaner, General Precautions |
| Brakes | - | Brake Pedals, Brake Pedal Latch, Brake Pedal Lock, Locking the Brakes, Adjustment, Equalization of Both Brakes |
| Clutch | - | Clutch Pedal, Care of the Engine Clutch, Clutch Clearance |
| Spark Plugs and Cables | - | Spark Plugs, Spark Plug Cables, Cleaning the Spark Plugs, Checking the Spark Plug Gap, Replacing Spark Plugs |
| Storing and Housing Your Tractor | - | - |
| Valve Clearance Adjustment | - | - |
| Wheels | - | Front Wheels, Rear Wheels, Front Wheel Weights, Rear Wheel Weights |
| Special Equipment | - | Air Pipe Extension, Belt Pulley, Hydraulic Remote Control, Power Take-Off, Spark Arrester, Tire Pump, Pneumatic |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Hydraulic Remote Control system refill capacity | approximately 8 quarts | p. 69 |
| Clutch release bearing clearance | 3/16 inch | p. 64 |
Mccormick W4 Tractor, McCormick W4 Tractor Common Problems This Manual Covers
McCormick W4 Tractor clutch release bearing is noisy or rough during operation and gear shifting p. 64
Check the clutch pedal linkage for proper adjustment. Verify a clearance of 3/16 inch is maintained between the clutch release bearing and the levers as shown on page 64. Adjust the pedal rod length if the measurement is incorrect to prevent continuous bearing wear.
Manual Section: ClutchHydraulic remote control system fails to respond or lifts implements very slowly under heavy load p. 69
Drain the hydraulic system completely and clean the suction screen. Fill the reservoir with approximately 8 quarts of fresh hydraulic fluid as directed in the troubleshooting procedures on page 69. Test the remote cylinder operation under a load to confirm proper pressure recovery.
Manual Section: Special EquipmentStarter motor jams completely and fails to engage the flywheel ring gear when pressing the button
Inspect the starter motor mounting bolts for tightness. Check the wiring diagram for correct battery connections. Ensure the clutch pedal is fully depressed to maintain the required 3/16 inch release bearing clearance before attempting to crank the engine again.
Manual Section: Ignition and Electrical ProblemsEngine turns over but fires a few times and dies despite cleaning the tank and sediment bowl
Inspect the fuel shut-off valve and ensure it is fully open. Check the clutch pedal to verify the 3/16 inch clearance is maintained to reduce starter drag. Clean the main fuel lines and drain the carburetor bowl to remove any remaining trapped moisture or debris.
Manual Section: Hard to StartFrequently Asked Questions
How to reset 1948 McCormick Deering W4 tractor distributor?
To time the distributor for battery ignition, set the engine to No. 1 T.D.C. firing stroke, then advance the distributor by turning the body about 30 degrees in the cam rotation direction until a spark occurs when the secondary cable is held 1/16" to 1/8" from the primary terminal. For magneto, crank the engine to No. 1 piston upper dead center compression stroke, turn the magneto coupling counterclockwise until the metal strip on the rotor points to the No. 1 terminal on the cap, then install and recheck timing by observing the impulse coupling trip. Refer to pages 41 and 44 for complete instructions.
How to reset fuel system on McCormick Deering W4 tractor?
To adjust the carburetor, first close both fuel adjusting screws, then set the main fuel adjusting screw 2-1/2 to 3 turns open and the idle fuel adjusting screw 1 to 1-1/2 turns open. After the engine is hot, fine-tune the main fuel adjusting screw until the engine operates steadily under load, keeping the adjustment as lean as possible. Refer to page 36 for detailed instructions.
Torque specs for McCormick Deering W4 wheel lug nuts?
The manual instructs to check and tighten the rear wheel bolts at intervals to ensure the lugs seat properly, especially if the tractor is equipped with steel wheels. However, specific torque specifications in lb-ft for the wheel lug nuts are not provided.
How to reset timing on McCormick Deering W4 engine
To time the engine, specifically the distributor or magneto, for battery ignition, set the engine to No. 1 T.D.C. firing stroke and hold the secondary cable 1/16" to 1/8" from the primary terminal until a spark occurs. For magneto, crank to No. 1 piston upper dead center compression stroke, turn the magneto coupling counterclockwise until the metal strip on the rotor points to the No. 1 terminal on the cap, then install and recheck timing by observing the impulse coupling trip. Refer to pages 41 and 44 for complete instructions.
What do I get after purchasing this Mccormick W4 Tractor manual?
Immediate download of the complete 94-page searchable Operator Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Is this Mccormick W4 Tractor Operator Manual printable?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Are there hydraulic schematics in this Mccormick W4 Tractor manual?

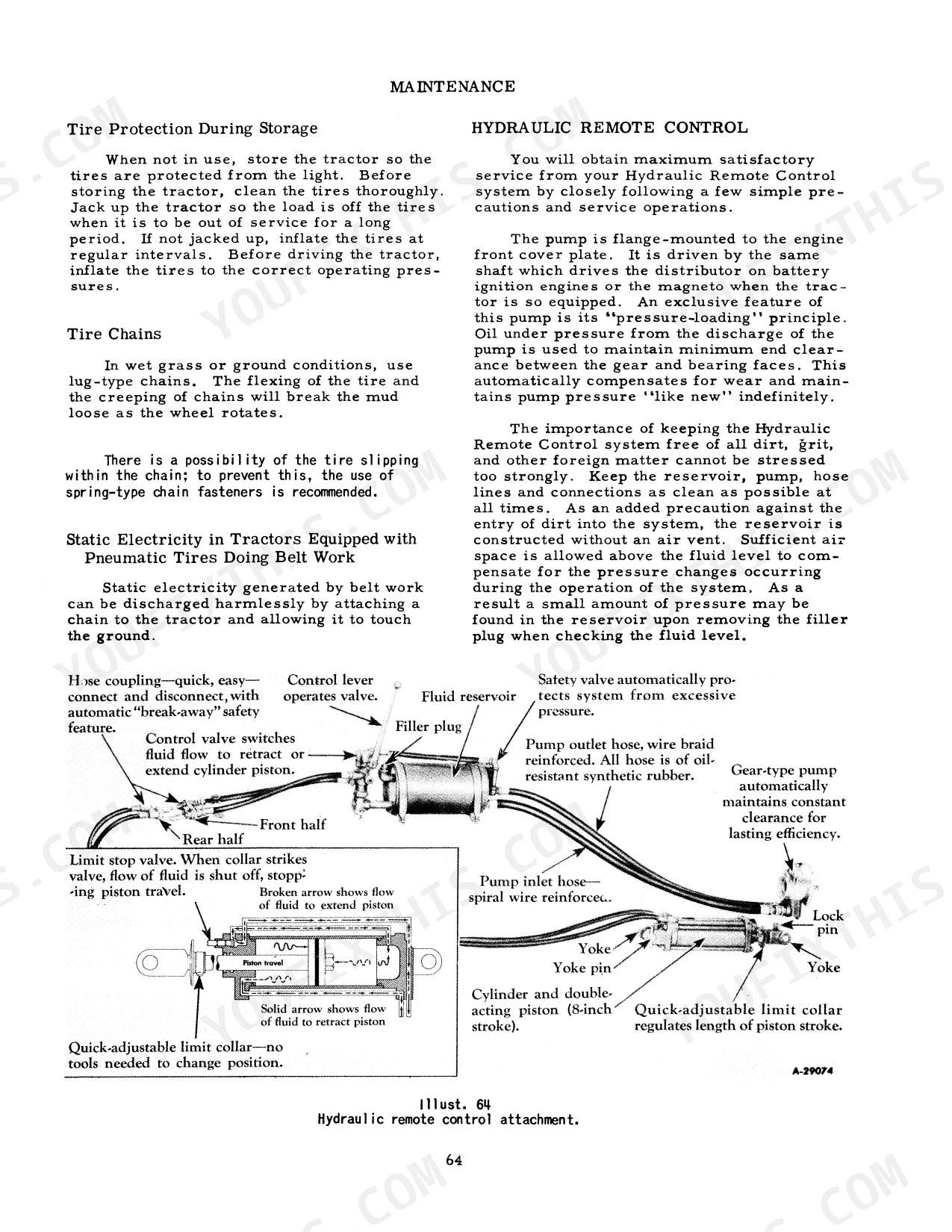

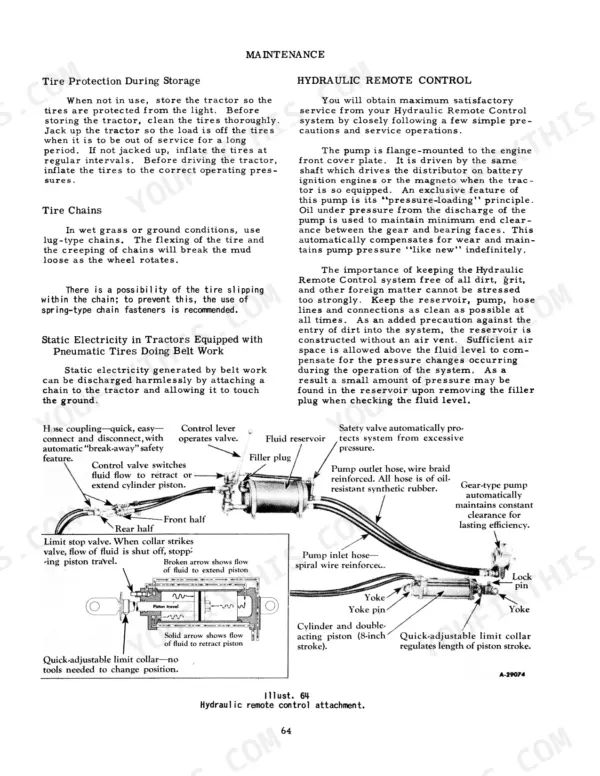

Included. A hydraulic system diagram shows the main hydraulic layout for the Mccormick W4 Tractor.
