This is the factory chassis service manual for the McCormick ZTX Series tractors: the ZTX230, ZTX260 and ZTX280, the big horsepower end of the range. It runs 1,019 pages and is the book the dealer technician works from. It covers the tractor, the transmission, the front and rear axles, the hydraulics, the steering, brakes, cab and the electronic controllers, with full wiring and hydraulic schematics and calibration and error code procedures. The engine coverage is built around these tractors' electronic engine: the engine electronic control system, the CAPS common rail fuel system with its high pressure pumping, the fault codes and the datalink diagnostics, alongside engine removal. If you are chasing a fuel or engine management fault on a ZTX, this is the section that has the pressures and the diagnostic procedures.
What's Inside This McCormick ZTX230-ZTX280 Manual
| System | Pages | Key Topics |
|---|---|---|

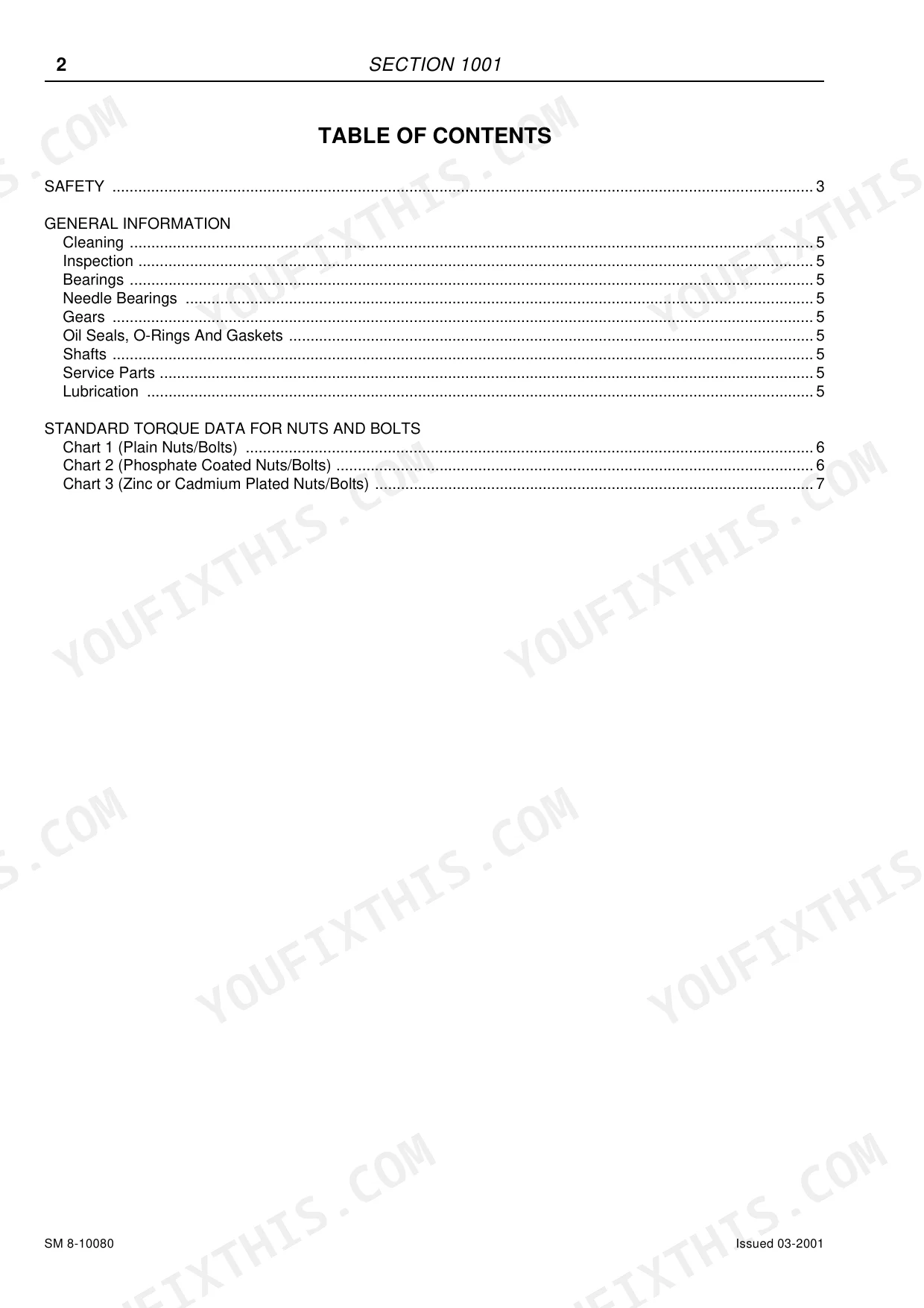

| General | Safety Rules, General Information, The Lubricant and Capacity Specifications and the Torque Data for the Ztx Tractors | |
| Engine | The Engine Electronic Control System, The Caps Common Rail Fuel System and Its High Pressure Pumping, The Engine Fault Codes and Datalink Diagnostics, And Engine Removal and Refitting | |
| Fuel System | The Caps Fuel Pump and Supply, The Lift and Gear Pump Pressures and the Fuel System Troubleshooting and Bleeding | |

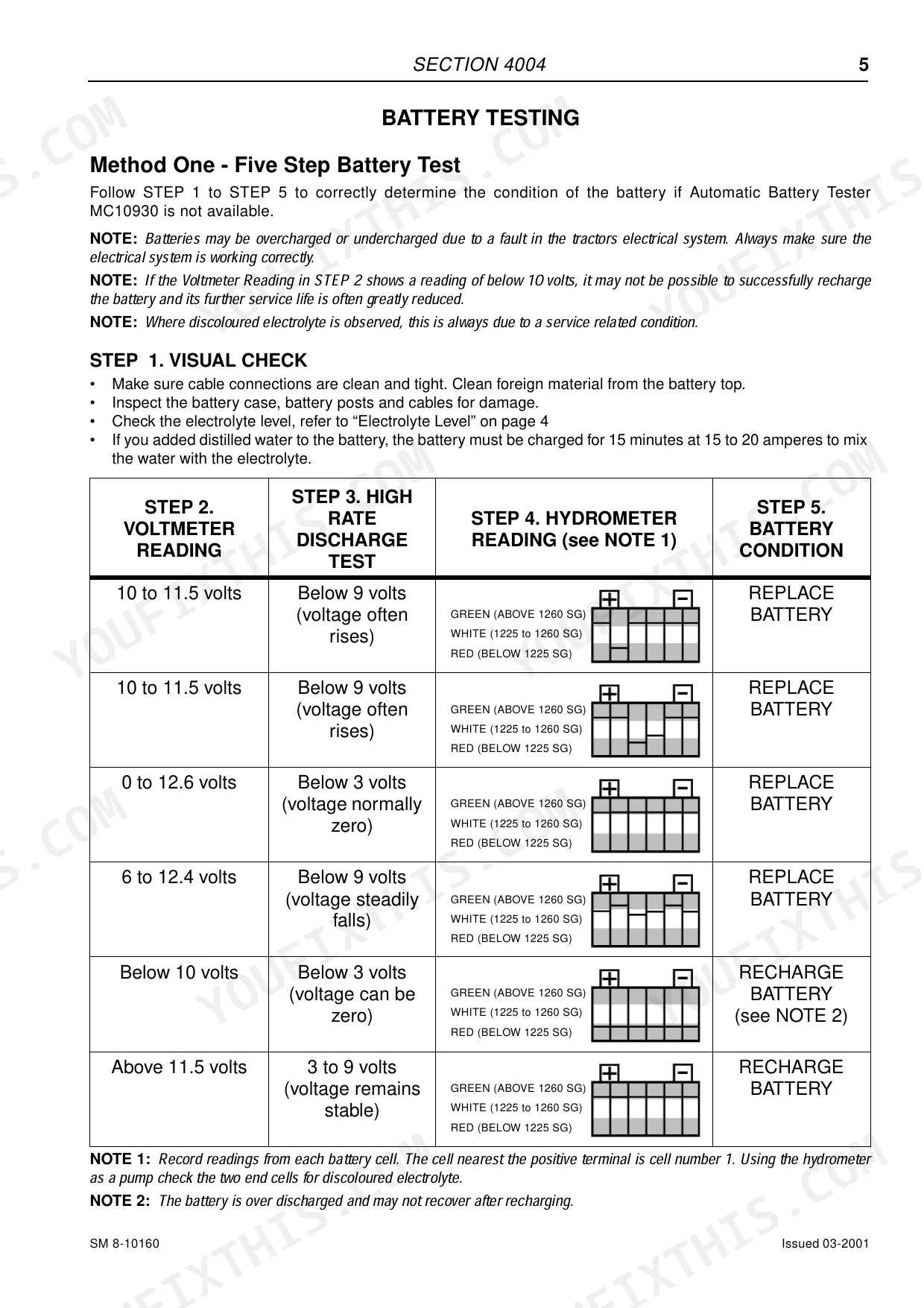

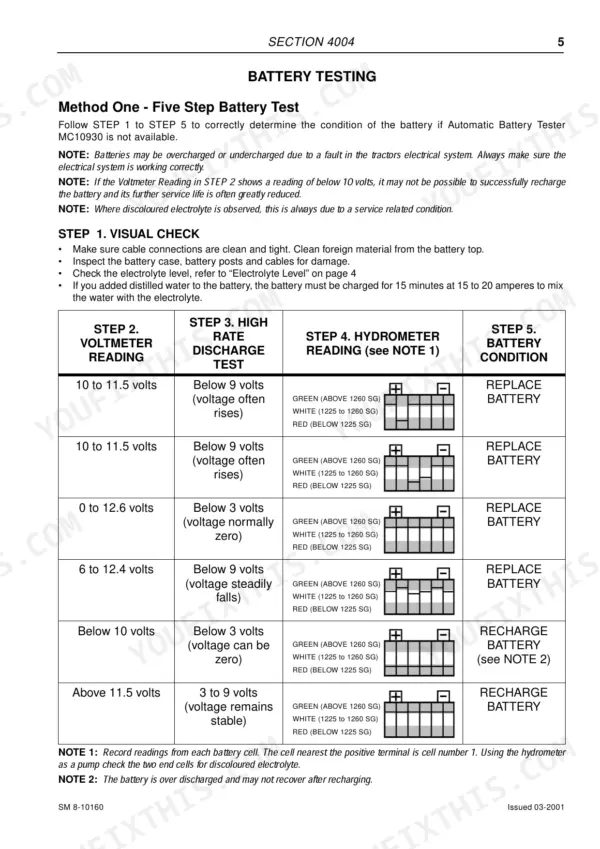

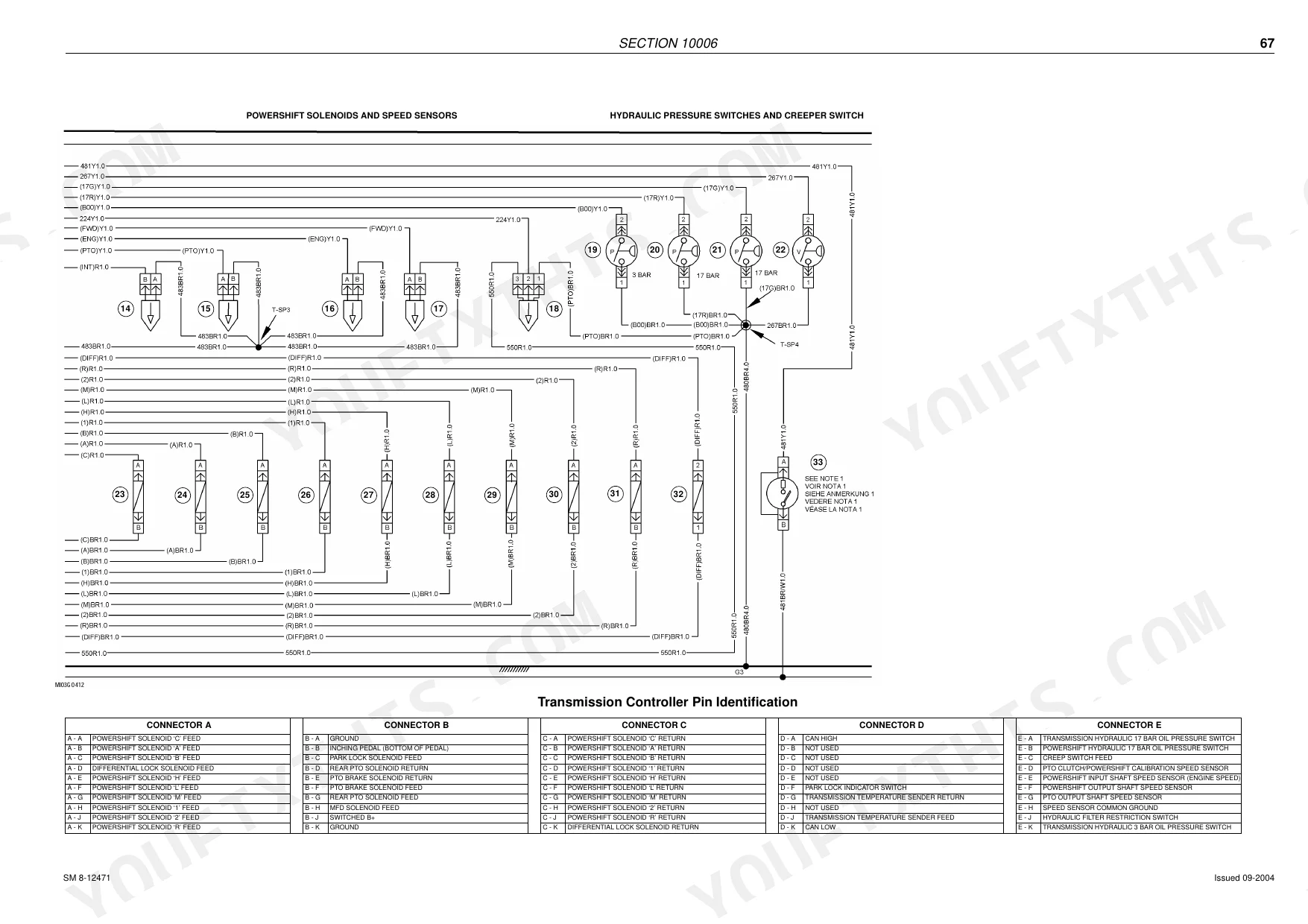

| Electrical | Full Electrical Schematics, How the Electrical System Works, Instrument Cluster Programming and Battery Servicing and Testing | |
| Steering | Servicing the Steering Column and the Rexroth Orbital Steering Hand Pump, Including Removal and the Steering Hydraulic Supply | |
| Transmission | Splitting the Tractor, The Powershift and Range Transmission Servicing, The Powershift and Shuttle Valves, The Differential and Differential Lock, The Rear Axles and the Front Drive and Suspension Axles, With the Operating Theory | |

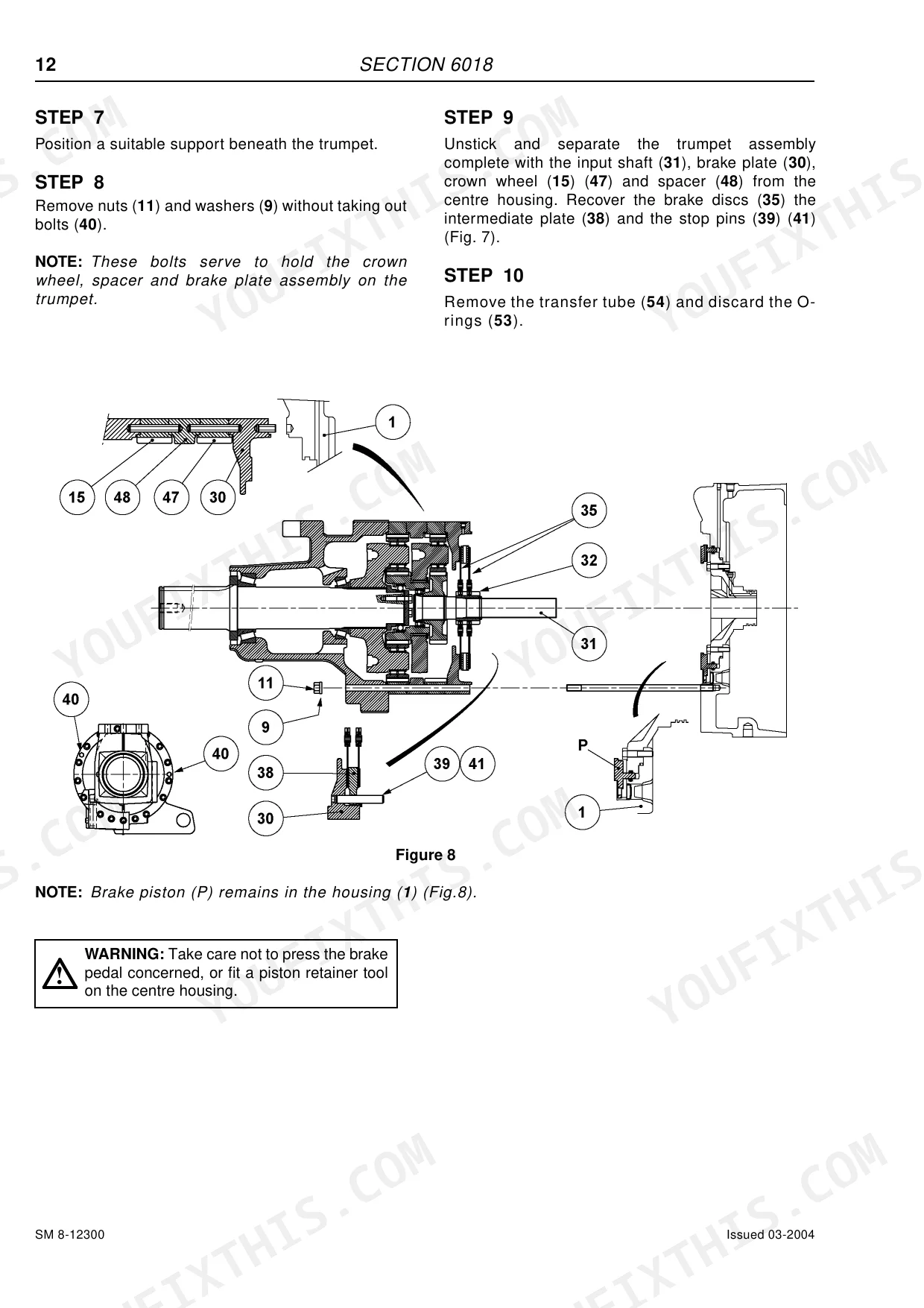

| Brakes | Servicing and Bleeding the Service Brakes and the Hydraulic Trailer Brake Valve | |
| Hydraulics | Hydraulic Troubleshooting and Full Schematics, The Charge and Lubrication Pump, The Hydraulic Valves and the Remote Valves | |
| Chassis and Mounted Equipment | Pedal, Lever and Switch Adjustments, Air Conditioner Troubleshooting and Component Servicing, And Cab Equipment | |

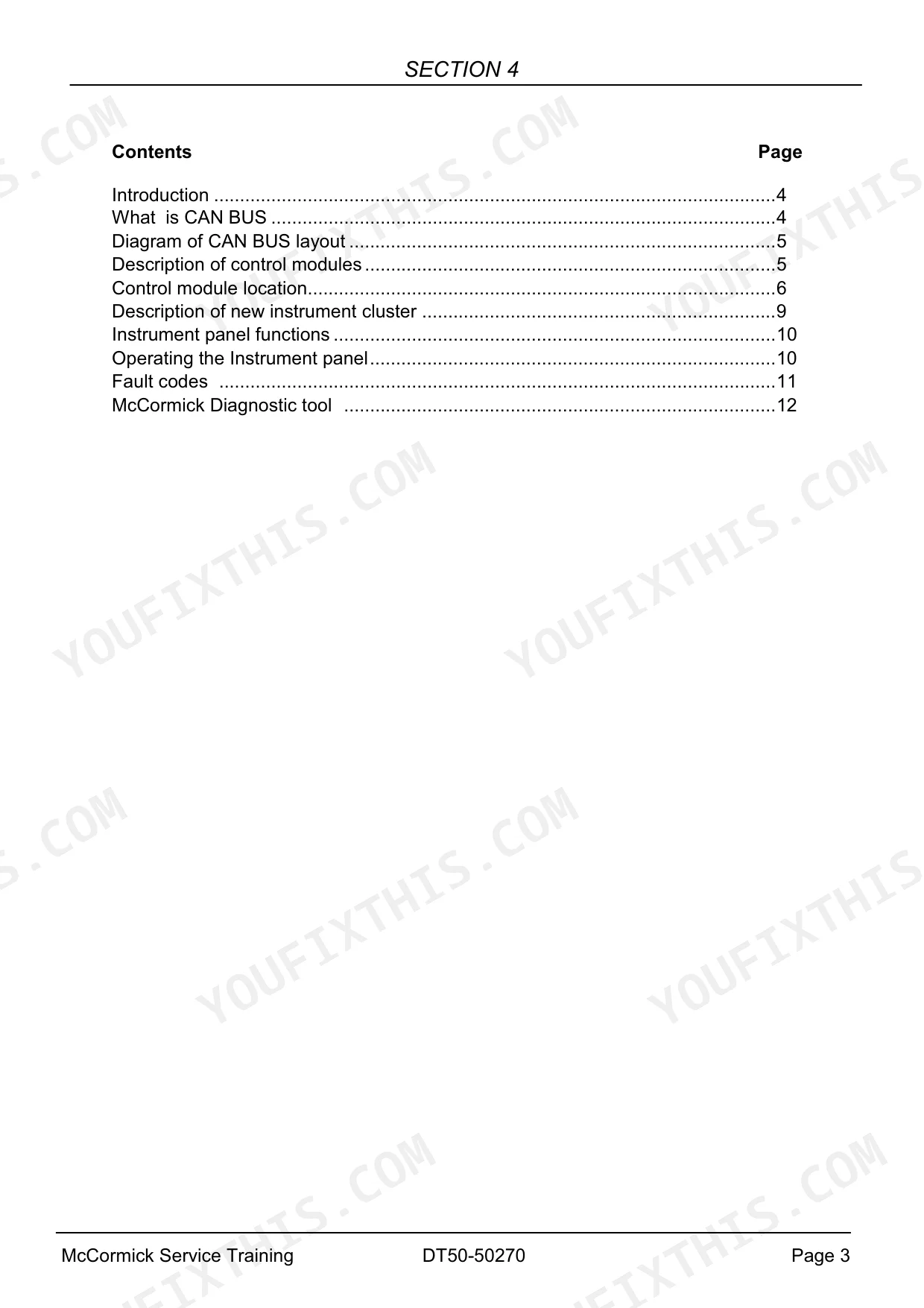

| Controller Systems | Calibration, Error Codes, Troubleshooting and Schematics for the Hitch, MFD and Differential Lock Controller, The Speed Sequencer, The F/N/R, Powershift and PTO Controllers and the Instrument Cluster, Plus Controller Programming |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine Oil | McCormick engine oil, SAE 15W-40, 20 litres (with filter change) | |
| Coolant Mix | 33% to 50% ethylene glycol solution | |
| Cooling System Capacity | 40 litres | |
| Transmission Oil | McCormick UTTO | |
| CAPS Fuel Rail Pressure (operating) | 345 to 1035 bar (5000 to 15000 psi) | |
| Lift Pump Pressure | 6.5 bar (95 psi) | |
| Gear Pump Output Pressure | 11.5 bar (165 psi) |
McCormick ZTX230-ZTX280 Common Problems This Manual Covers
Engine overheats or loses coolant
Start in the General specifications for the right mix and fill (a 33 to 50 percent ethylene glycol solution, 40 litre cooling system) and then use the Engine section diagnostics. Because the ZTX runs an electronically managed engine, the fault codes and datalink diagnostics point you at a sensor, a thermostat or a fan circuit, so you confirm the cause before you start chasing a head gasket.
Manual Section: EngineThrottle response lags, the engine stalls, or it will not make power
Work the Engine and Fuel System sections. These cover the CAPS common rail fuel system with its high pressure pumping (a 345 to 1035 bar operating range), the lift and gear pump pressures and the engine electronic control. A lag or a stall on this engine is usually a fuel pressure or a sensor fault, and the datalink diagnostics read it directly rather than leaving you to guess at the injection.
Manual Section: EngineSudden loss of hydraulic power or a PTO failure
Work the Hydraulics section. It carries the hydraulic troubleshooting routine with the schematics, the charge and lubrication pump, the hydraulic valves and the remote valves. A total loss of power usually points to the charge pump or a stuck relief, and the section walks the pressure checks in order so you confirm which one before you open the system.
Manual Section: HydraulicsA controller is throwing error codes or the hitch will not calibrate
Go to the Controller Systems section. It gives the calibration sequence, the error codes and the troubleshooting schematics for the hitch, MFD and differential lock controller, the speed sequencer, the F/N/R, powershift and PTO controllers and the instrument cluster. You read the stored code, follow its troubleshooting tree and re-run the calibration to confirm the fix rather than replacing a good controller.
Manual Section: Controller SystemsFrequently Asked Questions
What does the engine section cover on the ZTX?
It is built around the ZTX's electronic engine. You get the engine electronic control system, the CAPS common rail fuel system with its high pressure pumping (345 to 1035 bar operating range), the lift and gear pump pressures, the engine fault codes and the datalink diagnostics, plus engine removal and refitting. So a fuel or engine management fault is diagnosed by code and pressure check here.
Are the wiring and hydraulic diagrams included?
Yes. The Electrical section carries the full electrical schematics and how the system works, and the Hydraulics section carries the hydraulic troubleshooting schematics with the charge pump and valve coverage. These are the dealer diagrams used to trace a fault to the actual circuit.
How do I read and clear controller and engine error codes?
The Engine section carries the fault codes and datalink diagnostics for the engine, and the Controller Systems section carries the calibration and error codes for the hitch, MFD and differential lock controller, the speed sequencer and the F/N/R, powershift and PTO controllers. Between them you read the stored code, work its troubleshooting tree and re-run the calibration to confirm the fix.
What oils and capacities does the ZTX use?
The engine takes McCormick 15W-40, 20 litres with a filter change, the cooling system holds 40 litres of a 33 to 50 percent ethylene glycol mix, and the transmission and hydraulics run McCormick UTTO oil. The General section carries the full lubricant and capacity table and the torque data.
How will I receive this McCormick ZTX230, ZTX260, ZTX280 Service Manual?
A 1019-page Service Manual in searchable PDF format (45 MB), available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Am I able to print pages from this McCormick ZTX230, ZTX260, ZTX280 manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
Does this McCormick ZTX230, ZTX260, ZTX280 manual cover the hydraulic system?
Full hydraulic system diagrams are included, covering circuits, valve locations, and hydraulic component specs for the McCormick ZTX230, ZTX260, ZTX280.
