A blinking diagnostic code with the truck dead in the aisle is where the Mitsubishi FB16PNT, FB18PNT, FB20PNT operator manual PDF earns its keep: 202 factory pages, part number 99750-7P110, for electric forklifts in MC (mechanical control) and FC (fingertip control) versions. Maintenance fills about a fifth of the book, scheduled by the hour meter from the 10-hour pre-start check to the 2000-hour annual service, with the parts to change periodically. A diagnostic code list backs up troubleshooting for sudden shutdowns, a dark monitoring display, mast faults and manual magnet brake release, and the tipover chapter explains load center and capacity plates. Set brake pedal free play at 5 to 7 mm, and bring front wheel nuts to 216 to 264 N·m after a tire change. Guess at a code and you buy the wrong contactor. Bookmarks and a searchable text layer take you straight to your answer, and the truck is lifting pallets again before the next shift.
What's Inside This Mitsubishi FB16PNT, FB18PNT, FB20PNT Operator Manual

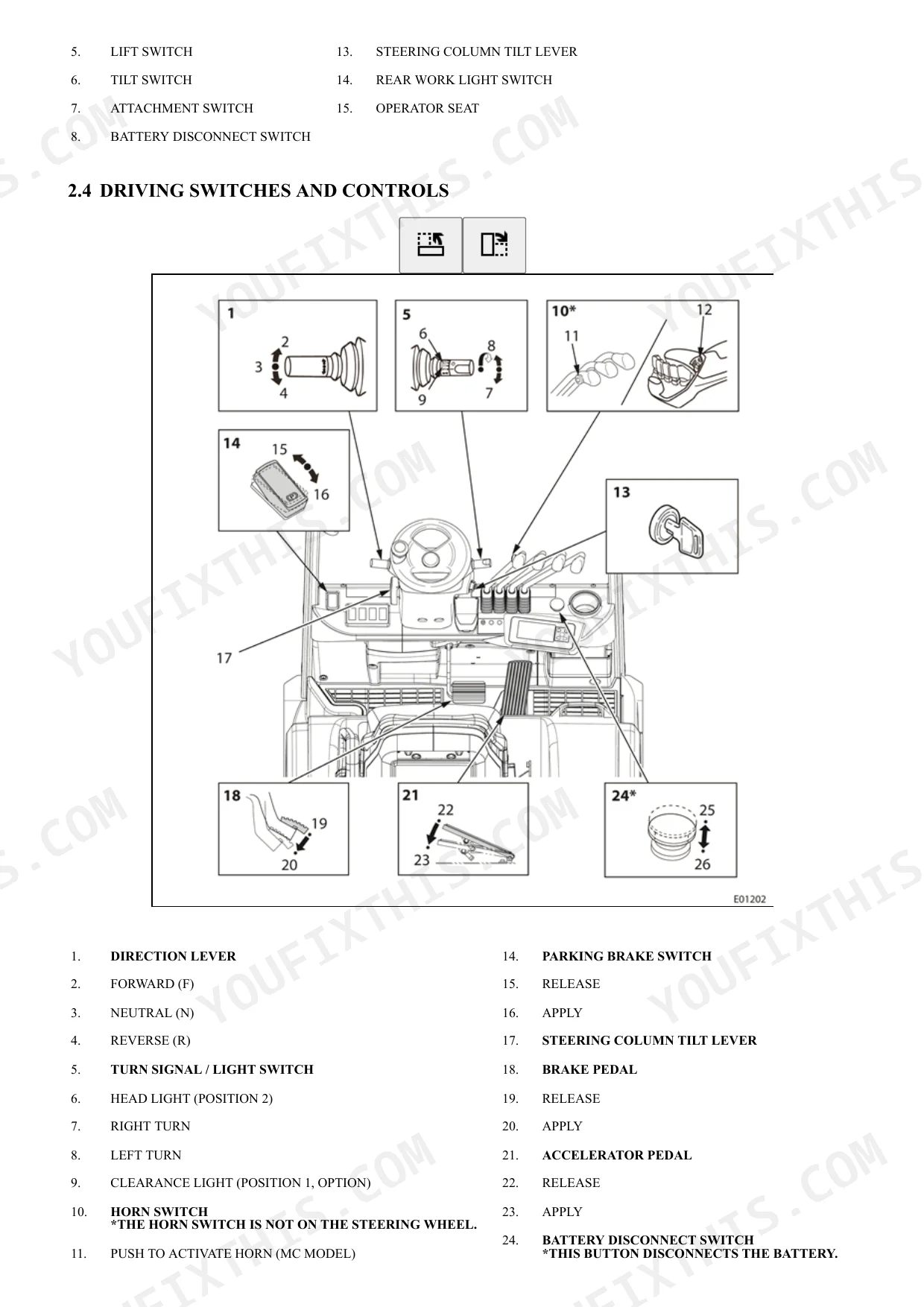

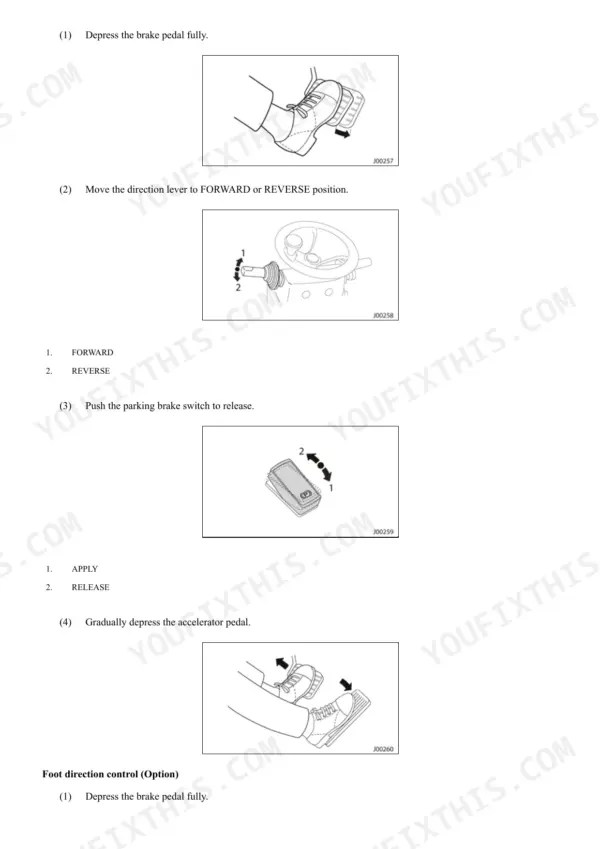

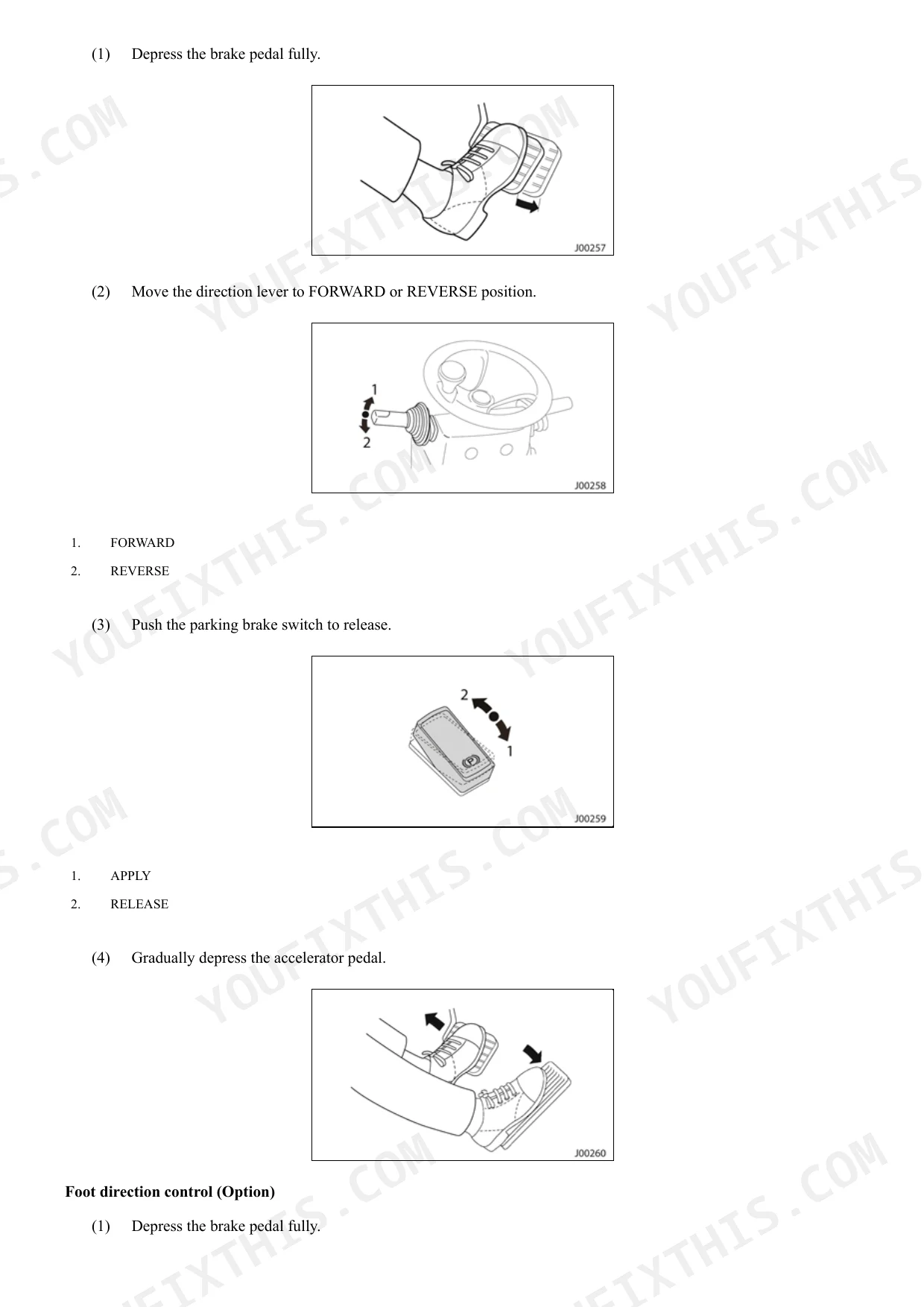

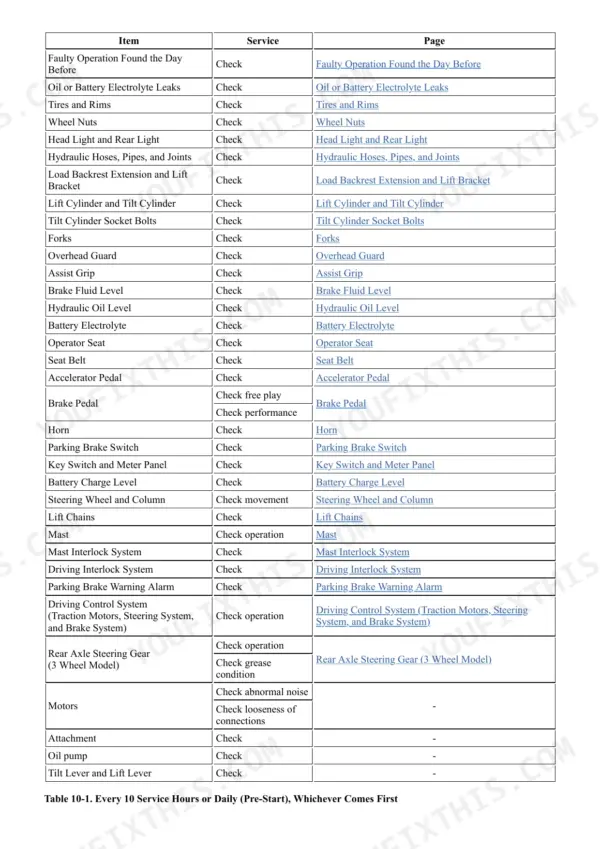

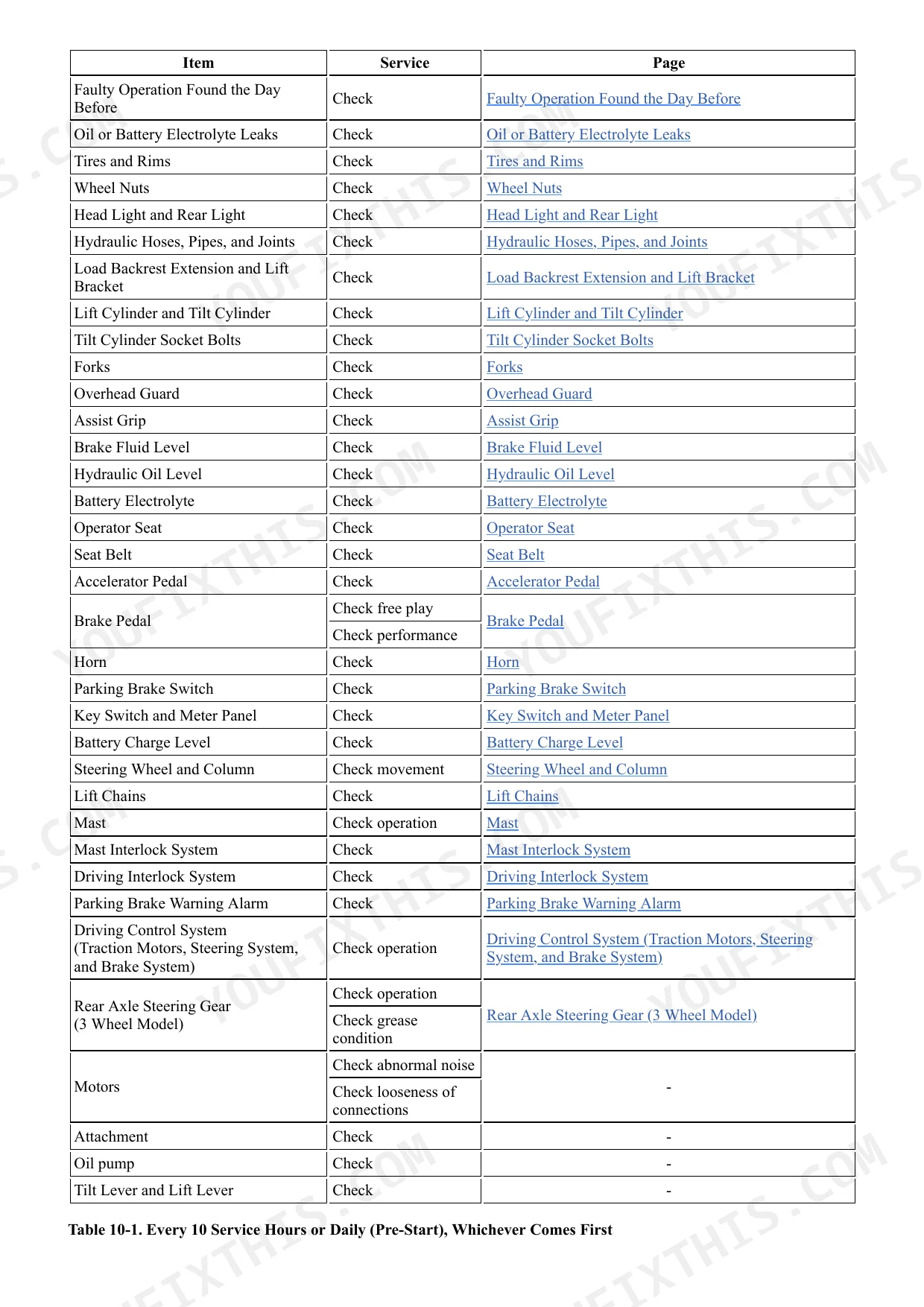

| System | Pages | Key Topics |
|---|---|---|
| Safety Rules for Forklift Truck Operators | 6-44 | General (Warning Decals, Location), Warning Decals and Description, Safety Rules, Operating Precautions, Working Precautions |
| Know Your Forklift Truck | 45-102 | Serial Number and Capacity Plate, Electrical Components, Model View, Driving Switches and Controls, Meter Panel, Integrated Presence System, Parking Brake Protection |
| How to Avoid a Tipover; How to Survive One | 103-110 | Stability and Center of Gravity, Forklift Truck Stability Base, Capacity, Capacity Plate, Do’s and Don’ts to Avoid Tipover |
| Operation | 111-128 | New Forklift Truck Break-In, Check Central Vehicle Monitoring System, Before Moving Forklift Truck, Forklift Truck Operation, Stopping Forklift Truck, Parking Forklift Truck |
| Operating Techniques | 129-141 | Stacking Methods, Handling Loads Safely, Correct Operating Steps, Incorrect Operating Steps, Lifting the Load, Traveling with the Load, Unloading, Working on Grades |
| Storing the Forklift Truck | 142 | End of Each Shift Storage, Long Term Storage |
| Transportation Hints | 143-144 | Forklift Truck Loading and Shipping, Forklift Truck Lifting and Tiedown Information, Operating the Forklift Truck Without Power Supply |
| Special Situations | 145 | Care in Cold Weather |
| Troubleshooting | 146-155 | If the Forklift Truck Shuts Down Suddenly, If Central Vehicle Monitoring System Does Not Come on, If Abnormal Noise Sounds From Electromagnetic Brake, If Lights Won't Glow |
| Maintenance | 156-194 | General, Inspection Precautions |
| Service Data | 195 | Recommended Oils and Greases, Specifications, Capacities and Forklift Truck Weight |
| To the Mitsubishi Forklift Truck Owner | 196-202 | Importance of Genuine Parts, Proper Disposal of Your Forklift Truck, Instructions for Ordering Parts, Service Registration |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Line (Traction motor, Pump motor) fuse ampere | 500A | p. 147 |
| Front wheel nut torque | 216 to 264 N·m | p. 154 |
| Rear wheel nut torque | 159.3 to 194.7 N·m | p. 154 |
| Brake pedal free play | 5 to 7 mm (0.20 to 0.28 in.) | p. 175 |
| Contactor mounting bolt torque | 11.77 ±1.90 Nm (1.20 ±0.19 kgf·m) [8.68 ±1.40 lbf·ft] | p. 186 |
| Tightening torque for wheel nuts (Front) | 216 to 264 N·m (22 to 27 kgf·m) [159.3 to 194.7 lbf·ft] | p. 166 |
| Tightening torque for wheel nuts (Rear) | 216 to 264 N·m (22 to 27 kgf·m) [159.3 to 194.7 lbf·ft] | p. 166 |
| Clearance between contacts | 3.5 mm (0.14 in.) or less | p. 187 |
| Drift lowering distance of lift cylinders | 50 mm/15 min. (1.97 in/15 min.) max. | p. 188 |
| Drift forward tilting distance of tilt cylinders | 12 mm/15 min. (0.47 in/15 min.) | p. 189 |
| FB16PNT | ||
| Battery Weight (1.6 ton) | 1000 kg (2205 lb) | p. 98 |
| FB18PNT, FB20PNT | ||
| Battery Weight (1.8, 2.0 ton) | 1225 kg (2701 lb) | p. 98 |
Mitsubishi FB16PNT, FB18PNT, FB20PNT Common Problems This Manual Covers

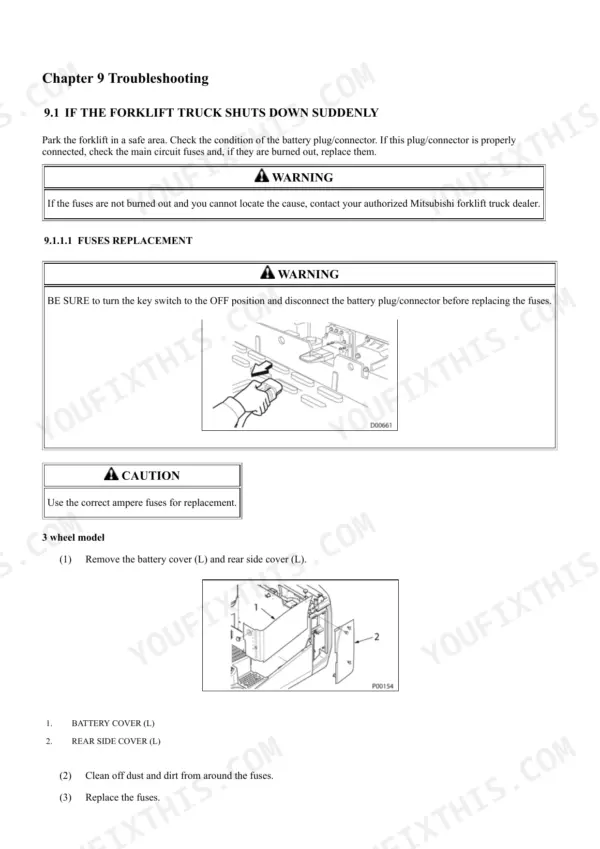

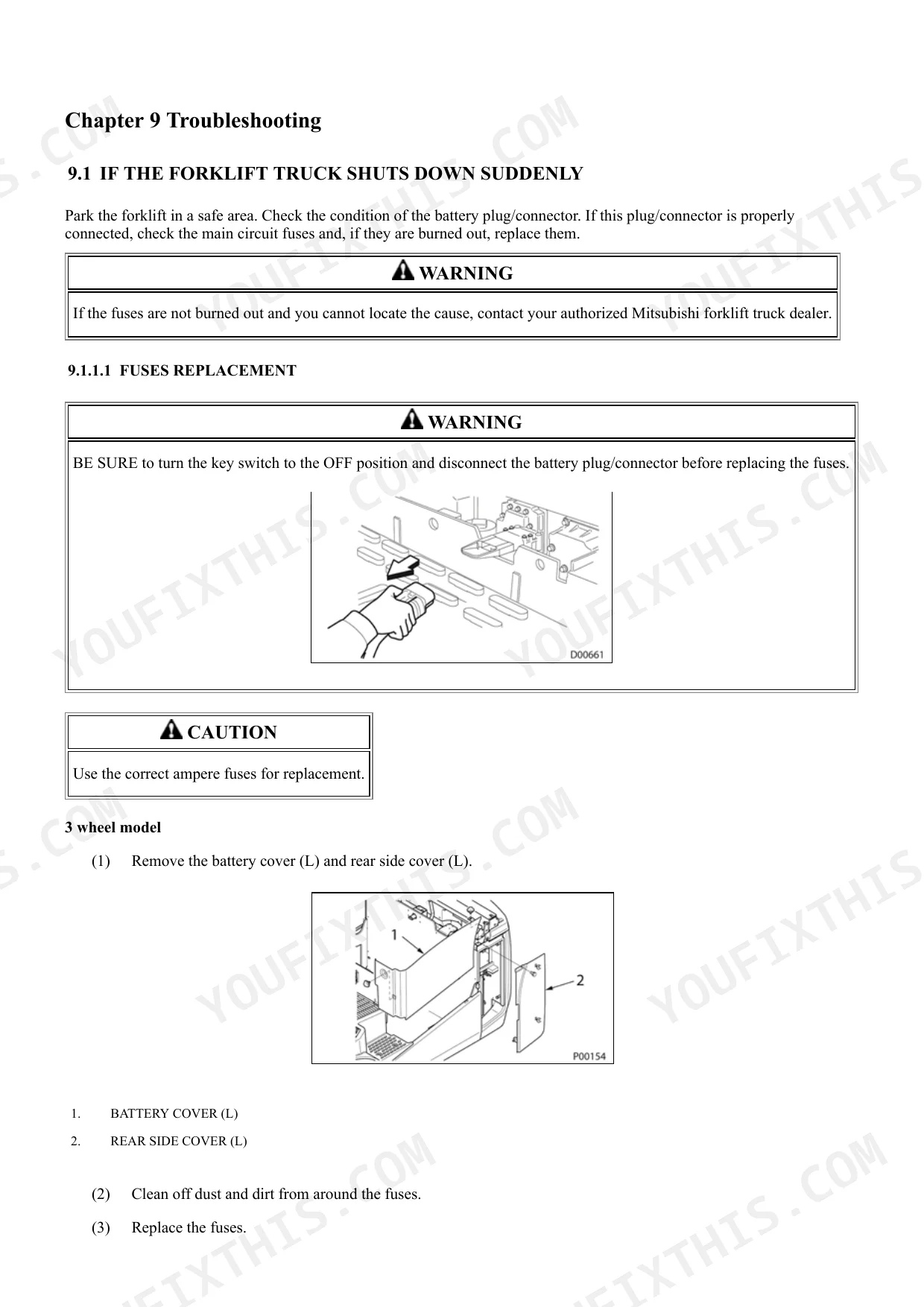

Mitsubishi FB16PNT battery plug or main circuit fuse problem, forklift truck shuts down suddenly mid-shift
Check that the battery plug and connector are fully seated and have not backed out, following page 146. Inspect the main circuit fuses next; the line fuse for the traction and pump motors is rated 500A on page 147. Replace a blown fuse only with one of the same rating, and find out why it blew first.
Manual Section: Forklift Truck Shuts Down Suddenly p. 146Central vehicle monitoring system on the meter panel does not come on at startup
Check that the battery plug and connector are fully engaged and not loose, following page 147. Verify battery condition and state of charge, then inspect the fuses for a blown element. Recharge a run-down battery before going any further. If the display still stays dark, have a Mitsubishi technician check the circuit.
Manual Section: Central Vehicle Monitoring System Does Not Come On p. 147Blown fuse or burned-out bulb suspected when the forklift truck lights won't glow
Inspect the fuses for the lighting circuit following page 147, and replace a blown fuse only with one of the same rating. If the fuses check good, inspect each bulb and replace any that has burned out. Switch the lights on again and confirm every lamp glows before the truck goes back on shift.
Manual Section: Lights Won't Glow p. 147Diagnostic code blinks or glows on the display and the forklift truck stops moving
Check the direction lever, accelerator pedal, seat belt and control levers, because those are the inputs the manual lists for this condition. Set each one to its proper position, then read the code against the diagnostic code list on page 155. If the code stays lit, tag the truck out and call for service.
Manual Section: Diagnostic Code Blinks or Glows and Forklift Truck Stops MovingBattery disconnect switch issue, mast and attachments malfunction or fail to operate from the control levers
Check the battery disconnect switch first. The manual lists it as the starting point for mast and attachment malfunctions. Verify the switch is fully engaged, then run the mast through lift and tilt with no load on the forks. If the mast still misbehaves, look for a diagnostic code on the display and match it on page 155.
Manual Section: Mast and Attachments MalfunctionLift cylinders drift down and mast tilts forward on its own with a load raised

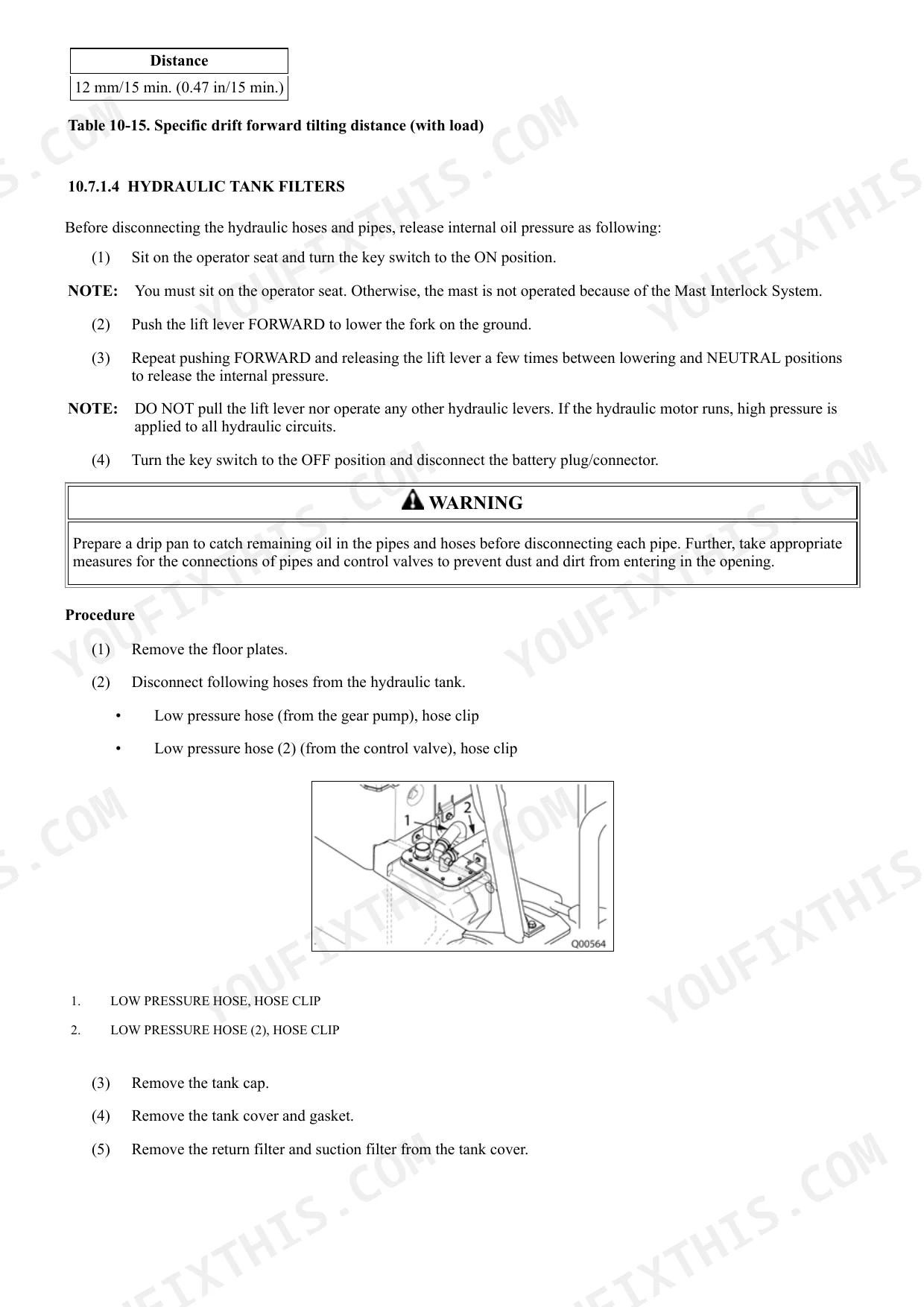

Measure lift cylinder drift following the check on page 188. Lowering must not exceed 50 mm (1.97 in) in 15 minutes. Check tilt cylinder forward drift the same way against 12 mm (0.47 in) in 15 minutes on page 189. If either reading is over the limit, park the truck and report it to your service technician.
Manual Section: Maintenance p. 188Frequently Asked Questions
How do I enter the PKB check mode on a Mitsubishi FB16PNT, FB18PNT, or FB20PNT?
To enter the PKB check mode, turn the key switch to the ON position, push the Mode button to access the menu, and use the '-' or '+' buttons to select 'PKB CHECK MODE'. Finally, push the (R) button to enter the mode. Ensure all conditions, such as the parking brake being applied and the direction lever being in NEUTRAL, are met. p. 183
What is the tightening torque for the tank cover mounting bolt on the Mitsubishi FB16PNT, FB18PNT, FB20PNT forklift?
The tightening torque for the tank cover mounting bolt is 3.0 Nm (0.3 kgf·m) [2.2 lbf·ft]. p. 190
What is the specific length of the lift chain for a 1-ton model?
The specific length for the lift chain (20 links) on a 1-ton model is 327 mm (12.87 in.). p. 179
What is the tightening torque for the lift chain locknut on the Mitsubishi FB16PNT, FB18PNT, FB20PNT forklift?
The tightening torque for the locknut is 98 to 103 Nm (10 to 10.5 kgf·m) [72.3 to 76.0 lbf·ft]. p. 179
Is this Mitsubishi FB16PNT manual a PDF I download?
Immediate download of the complete 202-page searchable Operator Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print specific sections of this Mitsubishi FB16PNT Operator Manual?
Yes. Printing works from any reader and any printer, for your own shop use.
