Eight Mitsubishi forklift trucks fall under this 152-page Mitsubishi FD35 operator manual PDF (OEM 99730-78100), covering the gasoline and LP-gas FG35 to FG50 series and the diesel FD35 to FD50. Maintenance takes up roughly a quarter of the book, organized by the hour meter from the 10-hour daily checks through 50, 200, 1200, and 2400 service-hour intervals, with the schedule printed as a chart. Your capacity chart and load center explanation sit in the tipover chapter, the OK Monitor pages explain each warning light on the instrument panel, and troubleshooting covers a stalled engine, coolant temperature in the red, and a lit powershift oil temperature lamp. Set alternator belt deflection at 11 to 13 mm (0.4 to 0.5 in.), then torque rear wheel nuts to 378 N·m (278 lbf·ft) after a tire change. Late shift, stalled truck, nobody to ask. Bookmarks jump between chapters on screen, and printed pages can live at your bench and get greasy.
What's Inside This Mitsubishi FG35–FG50, FD35–FD50 Forklift Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Rules for Forklift Truck Operators | 7-31 | In General, Warning Decals, Location, Decals for LP-Gas Only, Description, Before Operating Forklift Truck, Operating Precautions |
| Know Your Forklift Truck | 32-47 | Serial Number and Capacity Plate, Model View, Operator’s Compartment, Instrument Panel, OK Monitor, Operator’s Seat, Seat Belt, Fuses and Lights |
| How to Avoid a Tipover; How to Survive One | 48-54 | Know What Forklift Truck Stability Is, Center of Gravity, Stability and Center of Gravity, Forklift Truck Stability Base, Rated Capacity, Capacity Chart |
| Refueling | 55-57 | Gasoline or Diesel Engine Equipped, LP-Gas Equipped |

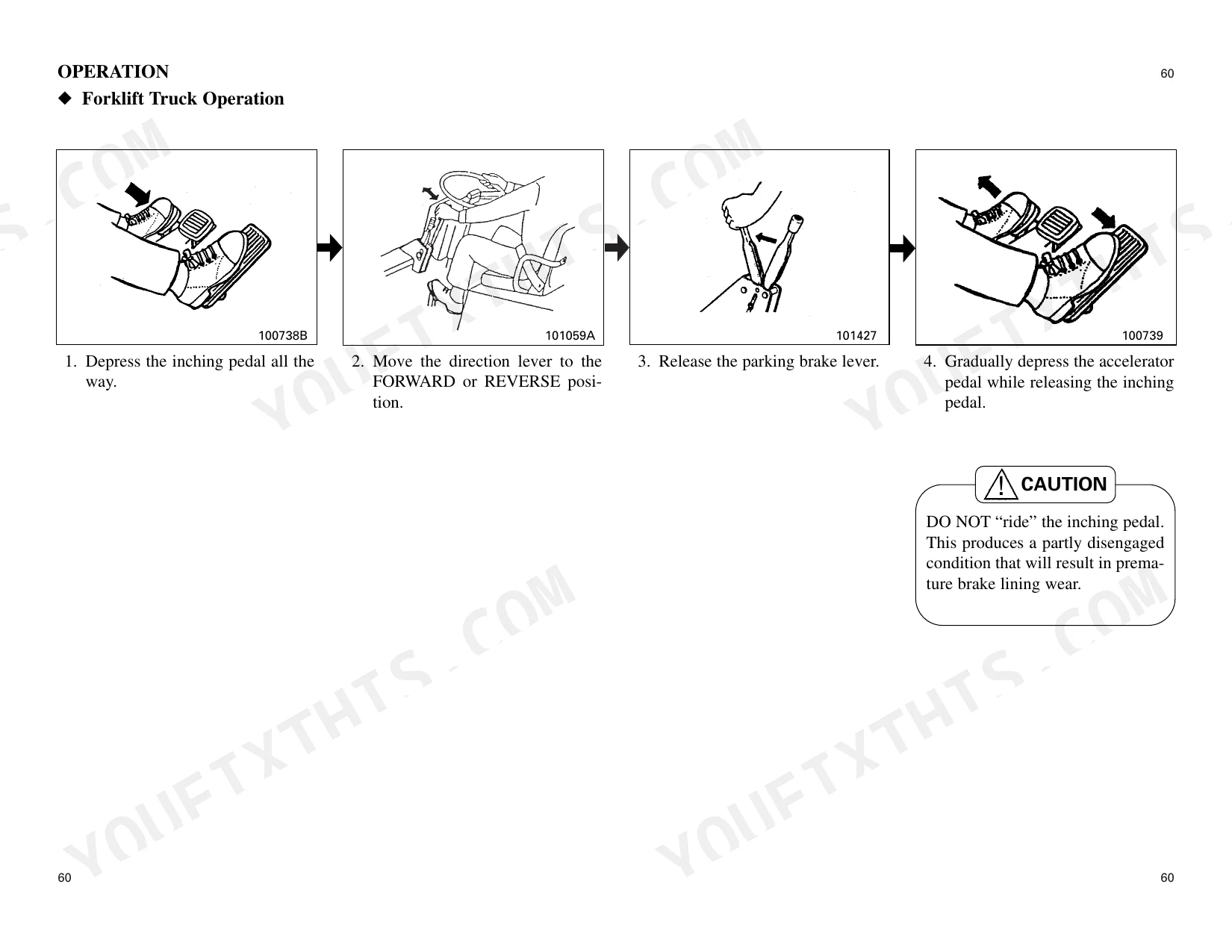

| Operation | 58-71 | New Forklift Truck Break in, Before Starting Engine, Starting Gasoline Engine, Starting Diesel Engine, Engine Won’t Start, Starting with Jumper Cables, Starting LP-Gas Engine |
| Operating Techniques | 72-80 | Stacking Methods, Handling Loads Safely, Inching Into and Lifting the Load, Traveling with the Load, Unloading, Handling Round Objects, Working on Grades |
| Storing the Forklift Truck | 81 | End of Each Shift Storage, Long Term Storage |
| Special Situations | 82-83 | Care in Cold Weather, Care in Hot Weather, Care in Severe Dust or Lint Conditions |
| Transportation Hints | 84 | Forklift Truck Shipping, Machine Lifting and Tiedown Information |

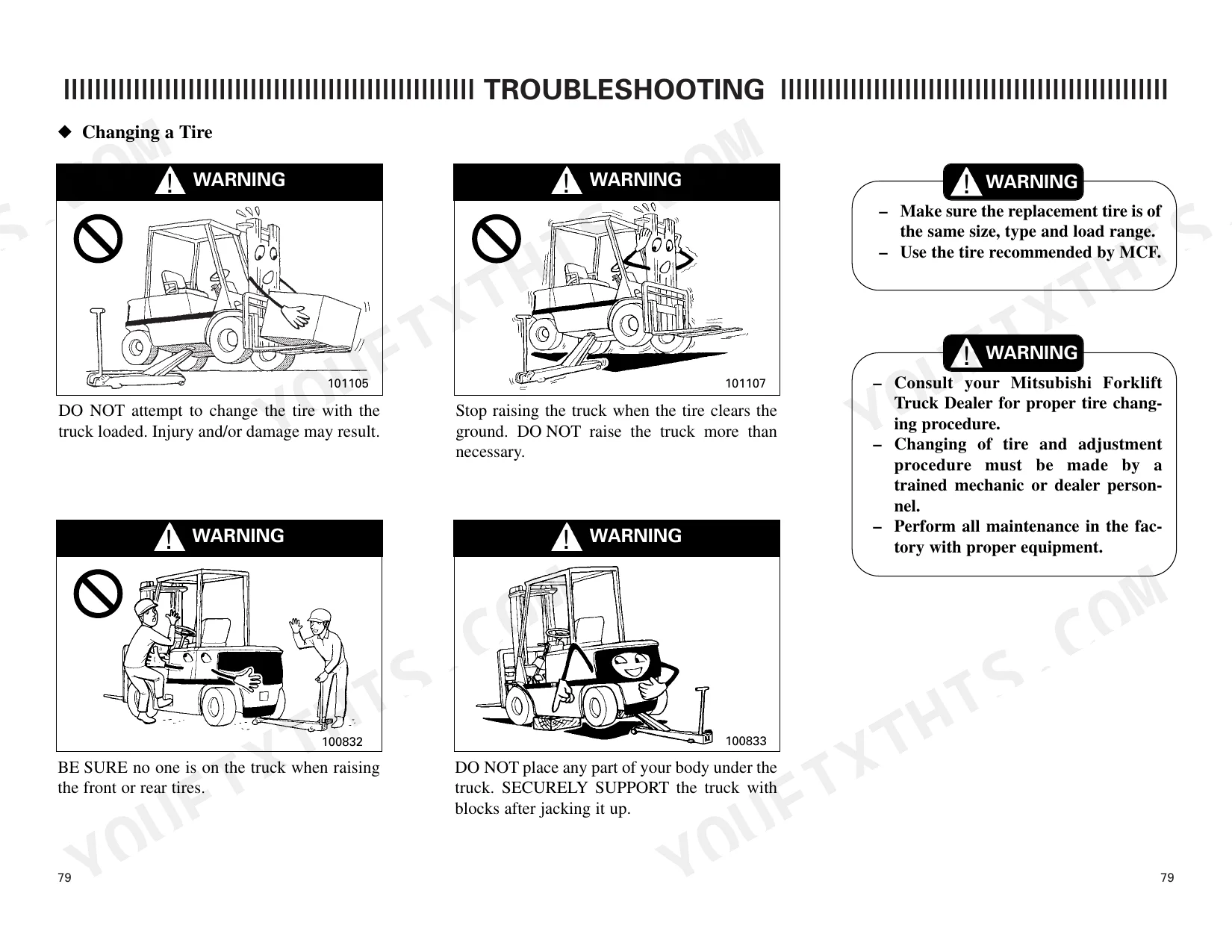

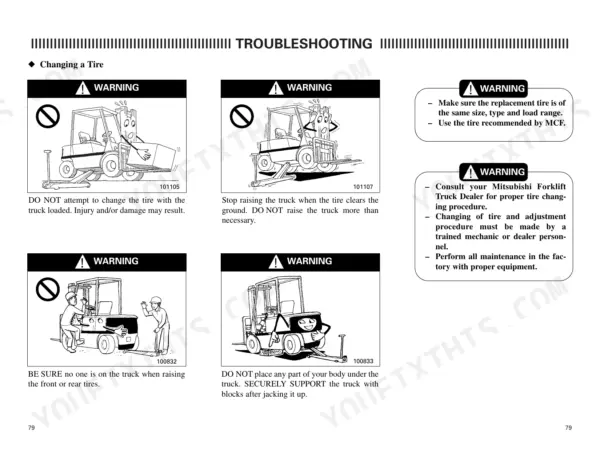

| Troubleshooting | 85-95 | Changing a Tire, Stalled Engine, Engine Coolant Temperature Gauge Needle Moves Into Red Zone, Powershift Transmission Oil Temperature Warning Light Glows |

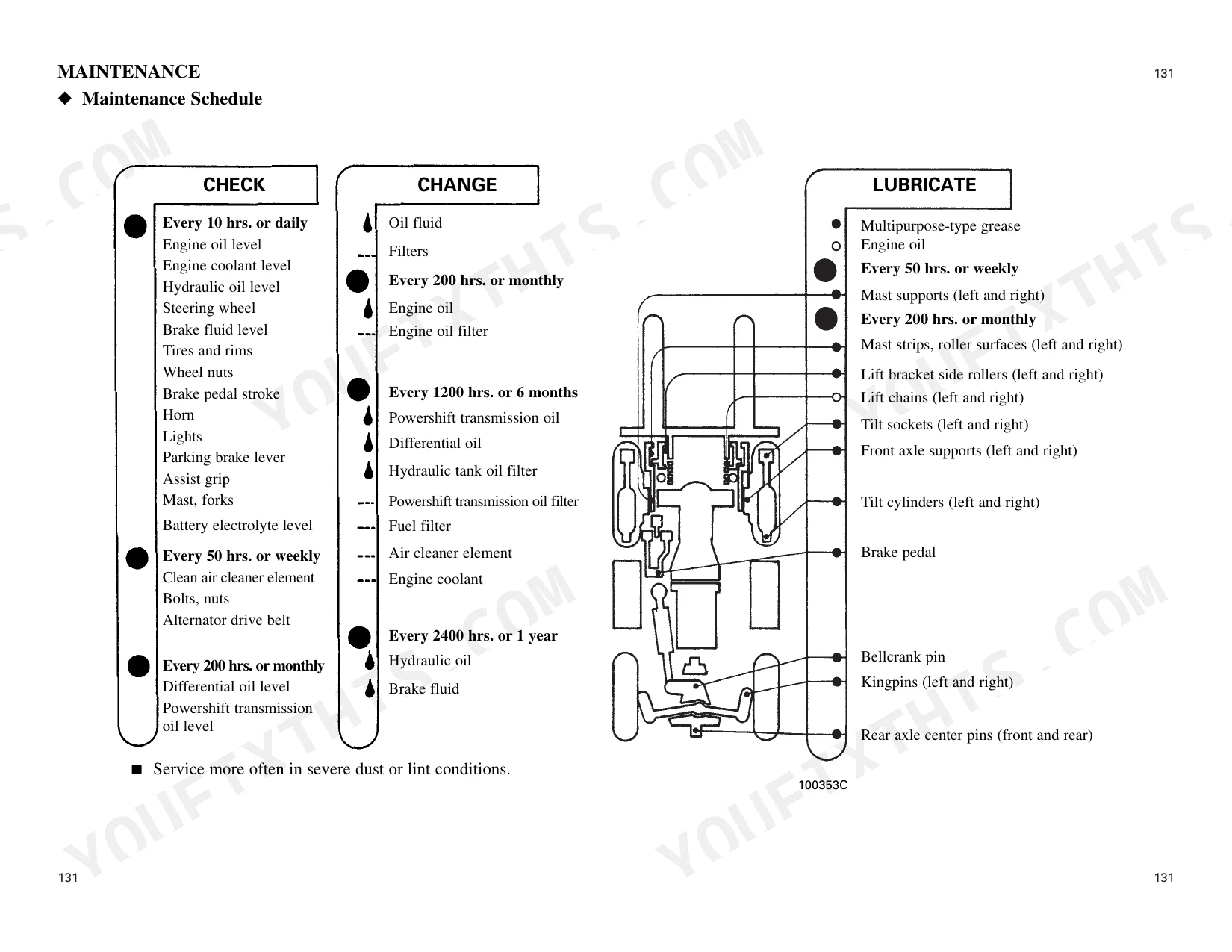

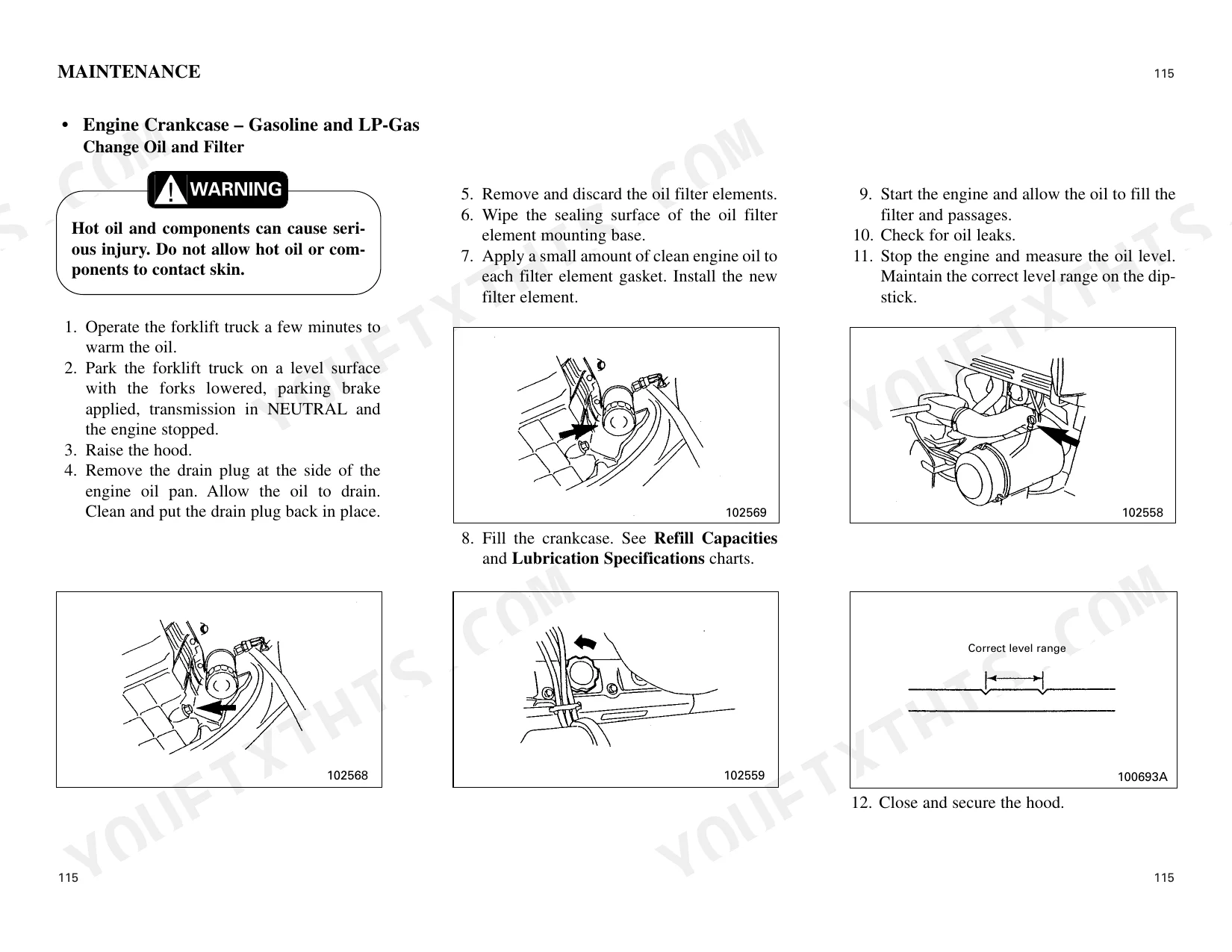

| Maintenance | 96-132 | General, Inspection Precautions, Maintenance Schedule, Every 10 Service Hours or Daily, Every 50 Service Hours or Weekly, Every 200 Service Hours or Monthly |

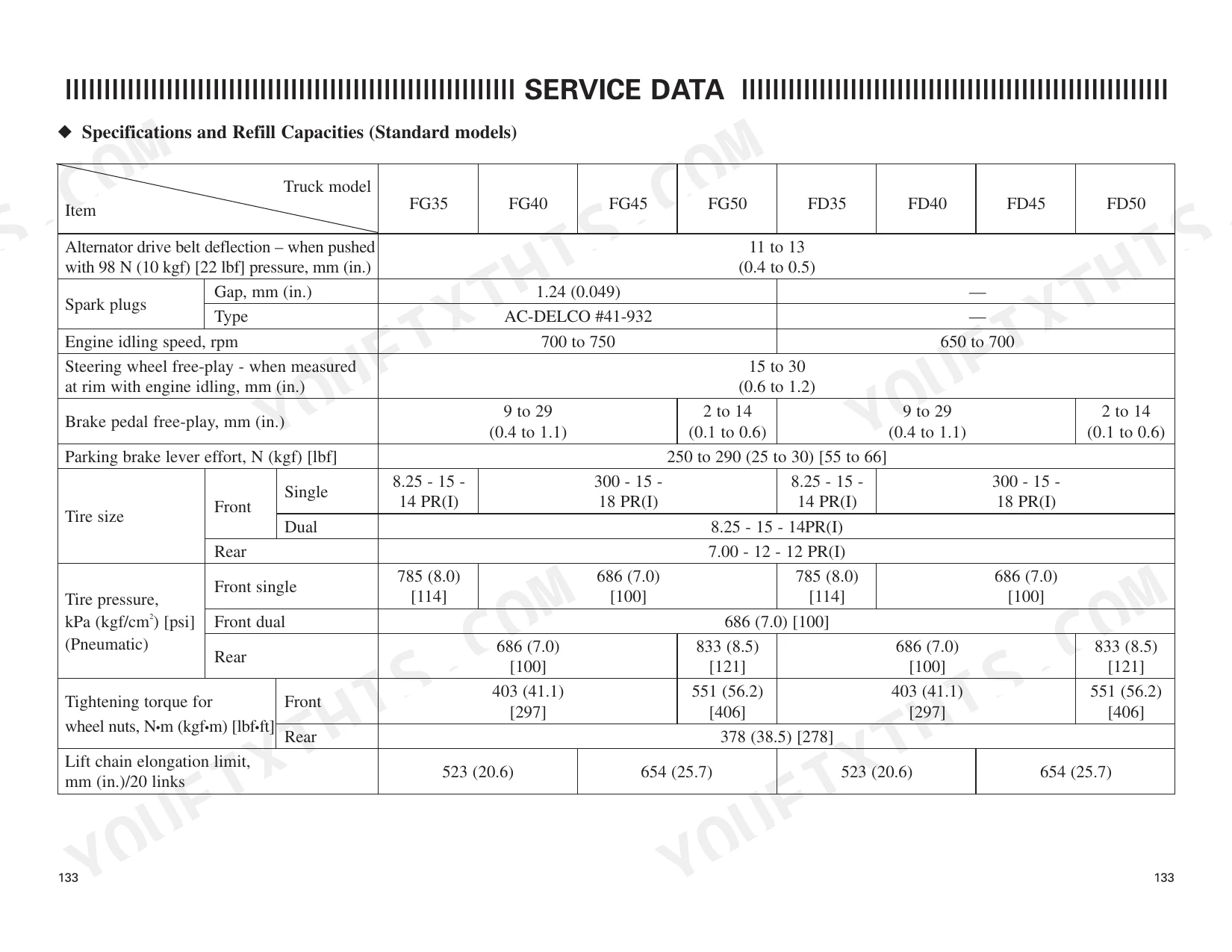

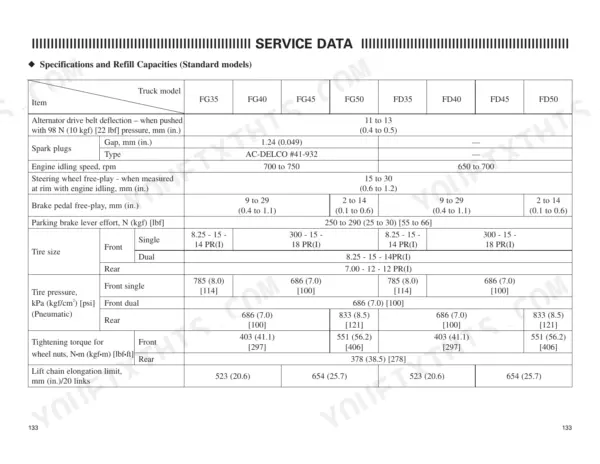

| Service Data | 133-143 | Specifications and Refill Capacities, Rated Capacity and Truck Weight, Recommended Fuels and Oils |
| To the Forklift Truck Owner | 144-147 | Importance of Genuine Parts, Instructions for Ordering Parts, Service Registration, Transfer of Ownership |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| T/C neutral switch fuse capacity | 10A | p. 43 |
| Instrument panel, turn signal lights, engine thermo switch fuse capacity | 10A | p. 43 |
| Tightening Torque for Rear Wheel Nuts | 378 N·m (38.5 kgf·m) [278 lbf·ft] | p. 91 |
| Alternator drive belt deflection | 11 to 13 mm (0.4 to 0.5 in.) | p. 117 |
| Brake Fluid Reservoir Capacity | 130 cc (7.9 cu in.) | p. 140 |
| FG35, FG40, FG45, FG50 | ||
| Engine cooling system capacity | 11 (2.9) liters (U.S. gal.) | p. 134 |
| Engine Oil Total Capacity (FG35, FG40, FG45, FG50) | 5.0 L (1.3 U.S. gal.) | p. 140 |
| FG35, FD35 | ||
| Fuel Tank Capacity (FG35, FD35) | 105 L (28 U.S. gal.) | p. 140 |
| Hydraulic Tank Capacity (FG35, FD35) | 58.5 L (15.4 U.S. gal.) | p. 140 |
| FG45, FD45, FG50, FD50 | ||
| Fuel Tank Capacity (FG45, FD45, FG50, FD50) | 125 L (33 U.S. gal.) | p. 140 |
| Hydraulic Tank Capacity (FG45, FD45, FG50, FD50) | 69.3 L (18.3 U.S. gal.) | p. 140 |
| FD35, FD40, FD45, FD50 | ||
| Engine Oil Total Capacity (FD35, FD40, FD45, FD50) | 12 L (3.2 U.S. gal.) | p. 140 |
Mitsubishi FG35–FG50, FD35–FD50 Forklift Common Problems This Manual Covers
Mitsubishi FG/FD forklift engine coolant temperature gauge needle climbing into the red zone during work
Check the overheating inspection steps on page 94 the moment the needle hits red: stop lifting and park somewhere safe first. Let the engine cool before opening the cooling system, then verify coolant level. If the truck works in dust or lint, follow the severe dust and lint care on page 82.
Manual Section: Engine Coolant Temperature Gauge Needle Moves into Red Zone p. 94Powershift transmission oil temperature warning light glows on the instrument panel during heavy shifts
Confirm the light is the Powershift Transmission Oil Temperature Warning Light on the OK Monitor (page 38), then follow the operating steps for an overheated transmission on page 94. Ease off the work cycle and do not keep pushing the truck hard while the lamp stays lit.
Manual Section: Powershift Transmission Oil Temperature Warning Light Glows p. 94Engine cranks but won't start, or starter barely turns over after the truck sat in storage
Check fuel level first, then test the battery and starter connections. If the engine smells of fuel after long cranking, treat it as flooded and follow the Engine Won't Start steps in the Operation section that starts on page 58. For a flat battery, jump start only by the jumper cable procedure and safety warnings in that section.
Manual Section: Engine Won't StartHorn, stop lights, or backup lights dead while the rest of the electrical system works
Check the fuses before chasing wiring. The fuse chart on page 43 lists each circuit: horn, stop lights, and backup lights each run a 10A fuse, while tail, head, clearance and working lights run 15A. Replace a blown fuse only with the same rating, and if it blows again, inspect that circuit.
Manual Section: Know Your Forklift Truck p. 43Rear wheel nuts loose or wheel wobbling after changing a tire in the yard
Torque the rear wheel nuts to 378 N·m (38.5 kgf·m) [278 lbf·ft] as listed on page 91. Remove and install wheels following the tire changing procedure on page 85, and confirm the jack capacity is rated for the truck before lifting.
Manual Section: Changing a Tire p. 91LP-gas equipment leaking with a strong gas smell around the parked truck
Remove every ignition source right away: no smoking, no sparks, no open flame near the truck. Follow the gas leak and fire safety emergency procedures in the Trouble with the LP-Gas Equipment section of Troubleshooting. Do not restart the engine or refuel until the leak is found, and review the LP-gas refueling rules on page 55.
Manual Section: Trouble with the LP-Gas EquipmentFrequently Asked Questions
What are the torque specifications for the wheel nuts on the Mitsubishi FG35, FG40, FG45, and FG50 forklifts?
For 3.5 to 4.5 ton models, the front wheel nut tightening torque is 403 N•m (41.1 kgf•m) [297 lbf•ft]. For the 5 ton model, the front wheel nut tightening torque is 551 N•m (56.2 kgf•m) [406 lbf•ft]. p. 139
What are the engine oil and oil filter replacement specifications for the gasoline and LP-Gas engines on the Mitsubishi FG35–FG50, FD35–FD50 forklifts?
The engine oil capacity for the crankcase is 4.2 liters (1.1 U.S. gal) and the oil filter capacity is 0.8 liters (0.2 U.S. gal), for a total of 5.0 liters (1.3 U.S. gal). p. 140
What is the correct alternator drive belt deflection for the forklift?
The correct alternator drive belt deflection is 11 to 13 mm (0.4 to 0.5 in.) when pushed with 98 N (10 kgf) [22 lbf] of pressure midway between the pulleys. p. 117
What is the lift chain elongation limit for the 3.5 to 4 ton models?
The lift chain elongation limit for the 3.5 to 4 ton models is 523 mm (20.6 in.) per 20 links. p. 105
What is the tightening torque for the tilt cylinder socket bolts on the Mitsubishi FG35–FG50, FD35–FD50 forklifts?
The tightening torque for the tilt cylinder socket bolts is 127 to 152 N•m (13 to 15.5 kgf•m) [94 to 112 lbf•ft]. p. 102
Is this Mitsubishi FG35 manual a PDF I download?
A 152-page Operation & Maintenance Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Is printing allowed for this Mitsubishi FG35 Operation & Maintenance Manual?
Yes. Print the pages you need for the job in your own shop, and bin them when they get greasy.
