The right part number for a given truck, synchro or torque converter drive, dual or triple mast, is settled in one place: the 502-page Mitsubishi FD35, FD38, FD40 parts catalog PDF (OEM 98731-51920), built for this lift truck series. Exploded views break down the chassis from radiator piping and the fuel system through the transmission, axles, wheel brakes and steering, and tie each key number to a part number and name. Mast parts fill nearly a third of the book, covering dual, triple, full free and panoramic builds, and the attachment pages that follow cover side shifters, rotating forks and rotators. Interchangeability symbols show you whether a superseded number still fits. Check the nameplate before ordering: the FD35 is rated at 3500 kg, the FD38 at 3750 kg and the FD40 at 4000 kg, all at a 600 mm load center. Wrong mast code, wrong chain, and the truck sits. The PDF is bookmarked and text searchable, and it stays yours for as long as these trucks are in your fleet.

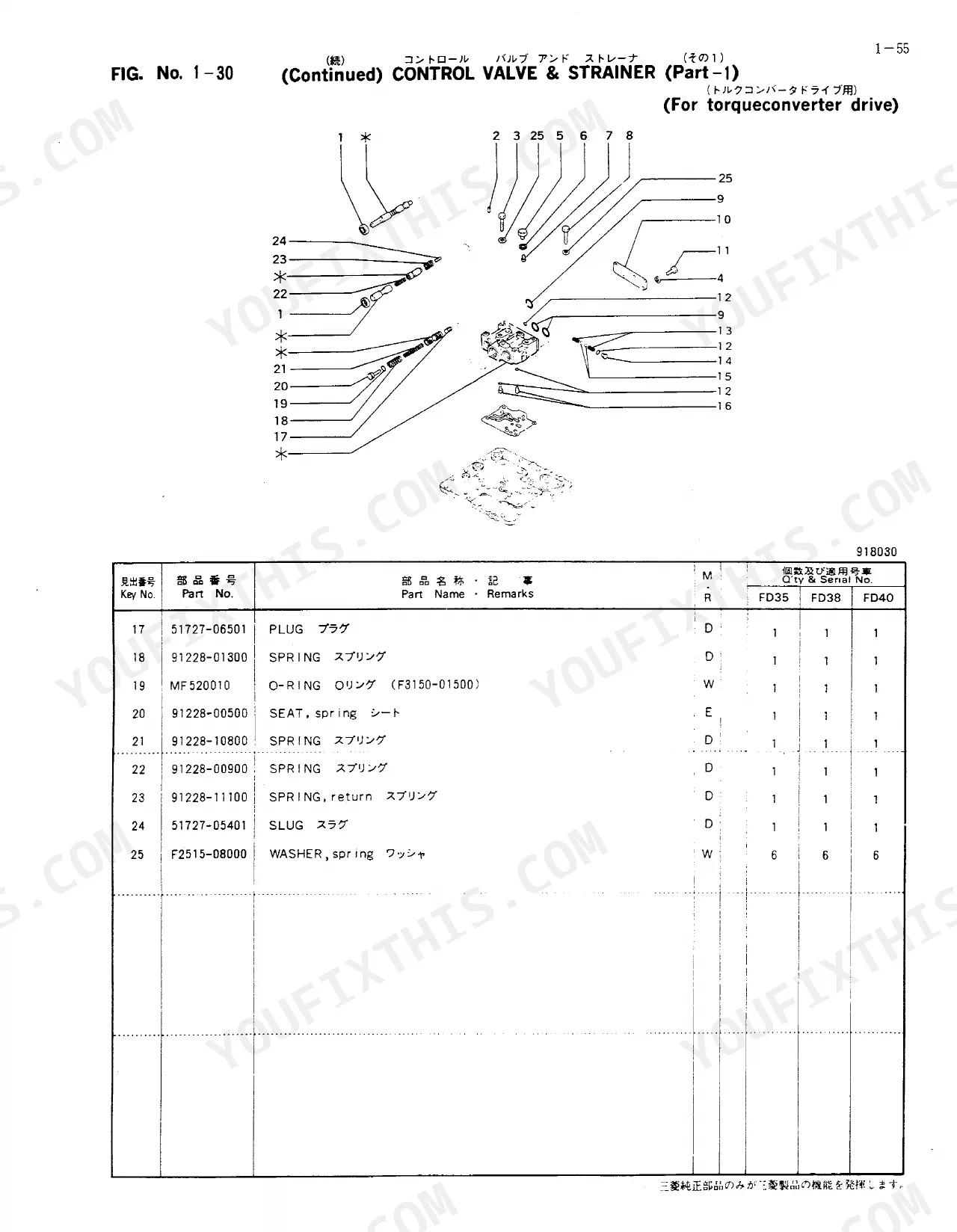

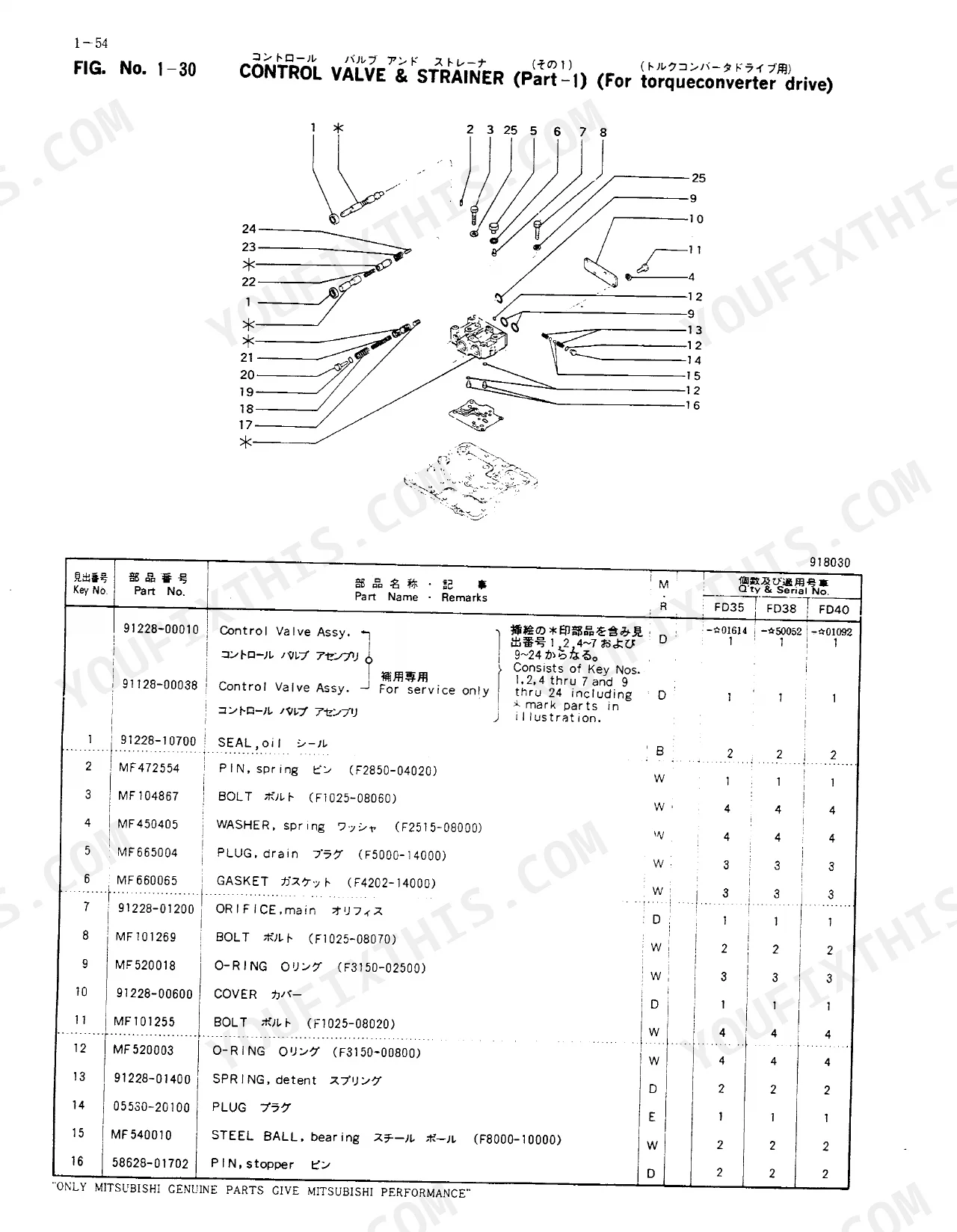

What's Inside This Mitsubishi FD35, FD38, FD40 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Parts List Cover | 1 | FD35, FD40, Chassis, Mast, Attachment |
| Guide for Use of Parts List | 2-5 | Service Parts, Ordering Procedure, Nameplate Location, Serial Number Location, Interchangeability Symbols, Management Rank |
| Model Identification | 6-7 | Chassis Transmission Type, Maximum Capacity, Engine Type, Mast Kind, Lifting Height, Attachment Kind |
| Parts List Sample | 8-15 | System Number, System Name, Key Number, Part Number, Part Name, Management Rank |
| Chassis Parts | 20-161 | Cooling System (Radiator & Piping), Exhaust & Inlet System (Exhaust Muffler, Air Cleaner), Fuel System, Electric System (Wiring, Equipment) |
| Mast Parts | 168-323 | Dual Mast, Triple Mast, Dual Full Free Mast, Triple Full Free Mast, Dual Panoramic Mast, Special Mast |
| Attachment Parts | 330-467 | Hinged Fork, Hinged Bucket, Exchangeable Bucket, Side Shifter, Rotating Fork, Rotator |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Maximum load capacity FD35 | 3500kg | p. 6 |
| Maximum load capacity FD38 | 3750kg | p. 6 |
Mitsubishi FD35, FD38, FD40 Common Problems This Manual Covers

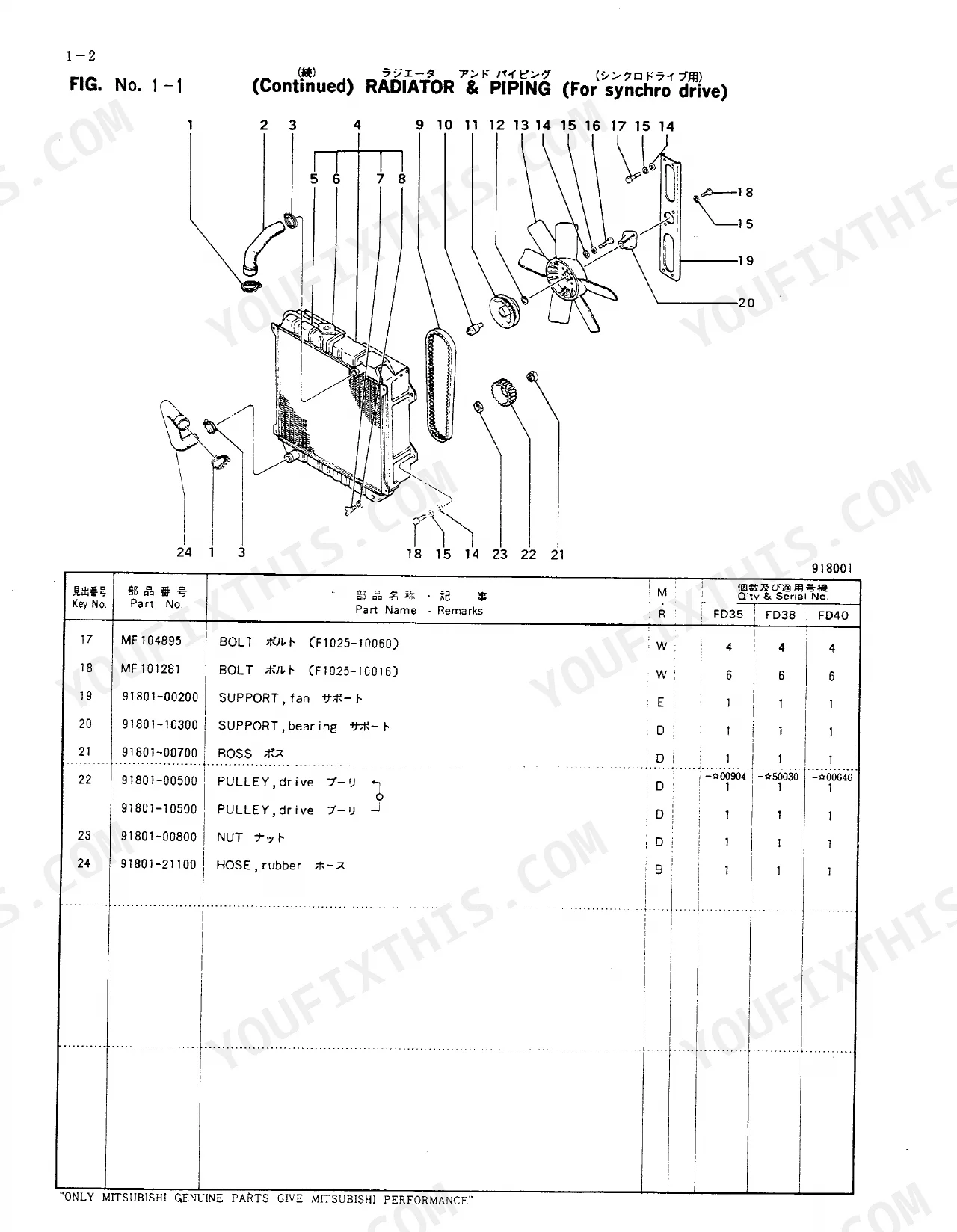

Mitsubishi FD35 FD38 FD40 radiator assembly part number differs between synchro drive and torque converter drive trucks
Check the chassis transmission type in the model identification section on page 6 first. Then use the matching figure. Synchro drive trucks list Radiator Assy 91801-10100 on page 20. Torque converter drive trucks list 91801-15100 on page 22. Both figures list pressure cap 91201-02100 and water drain cock 91201-02300, so you can order those for either drive type.
Manual Section: Cooling System (Radiator & Piping) p. 20Air cleaner element, seal washer and packing part numbers needed for intake filter service
Use the air cleaner figure on page 25. It lists element 34430-21300 under Air Cleaner Assy 91861-10100, with seal washer 34430-11600 and packing 34430-21800 in the same parts list. Order the seal washer and packing with the element so the housing goes back together complete. Check the quantities in your FD35, FD38 or FD40 column.
Manual Section: Exhaust & Inlet System (Muffler & Air Cleaner) p. 25Fuel filler cap part number changes at a serial number break on the fuel tank
Find your serial number using the nameplate and serial number location guide on page 2. Page 27 lists filler cap 91264-35200 for trucks up to FD35 00753, FD38 50028 and FD40 00581. For later trucks, use the fuel system figure on page 28. It lists filler caps 91264-00010 and 91264-10010 and fuel cock 91864-20200.
Manual Section: Fuel System p. 27Glow plug indicator replacement part number differs by serial number on the instrument panel
Check your serial number before you order. On page 31, the glow plug indicator splits at a serial break. Earlier trucks list MC840115. FD35 from 00957, FD38 from 50031 and FD40 from 00851 list 34766-01400, which can only substitute as a set with 34466-01300 (6 pieces). The same figure lists hour meters 05205-20400 and 05205-20401.

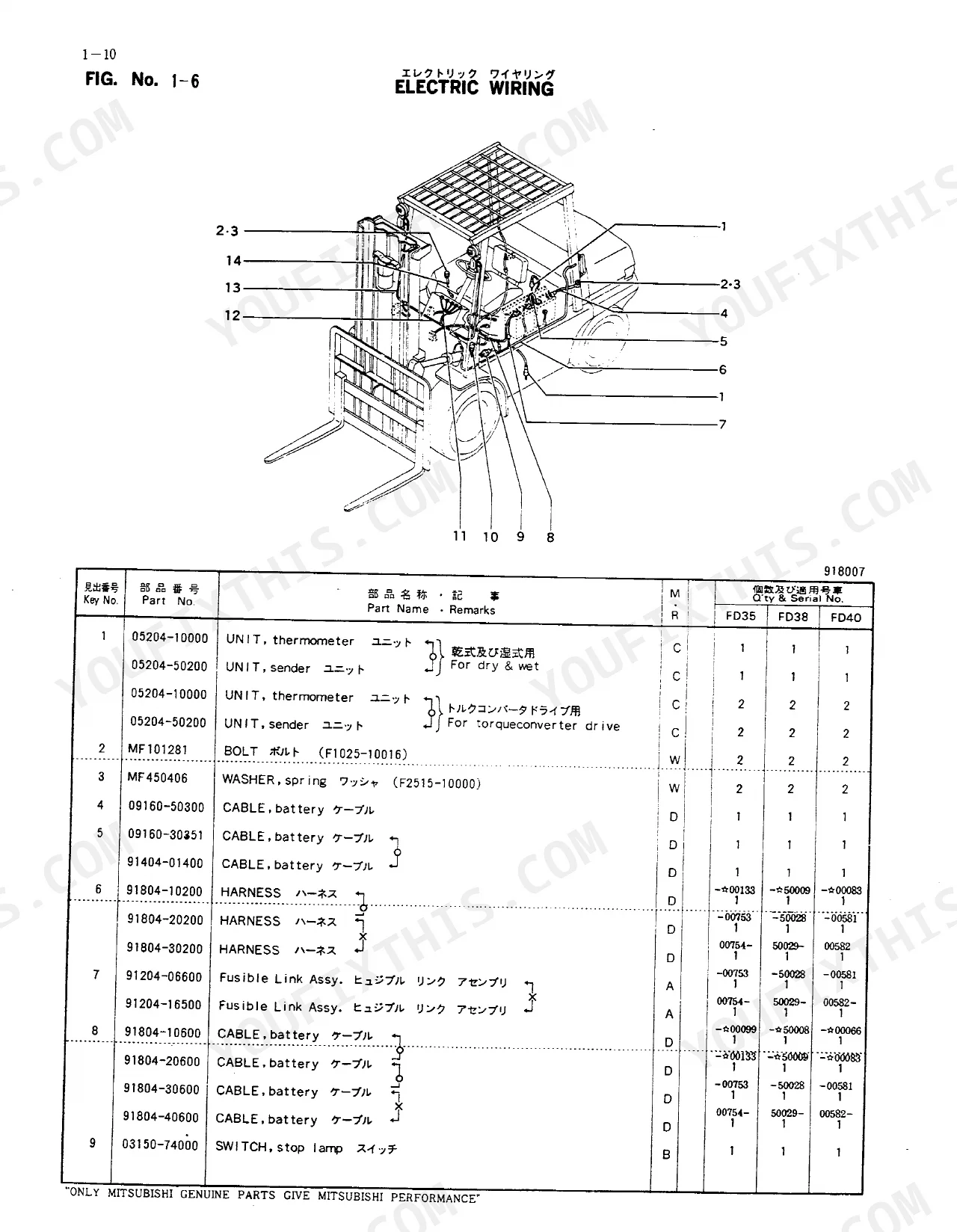

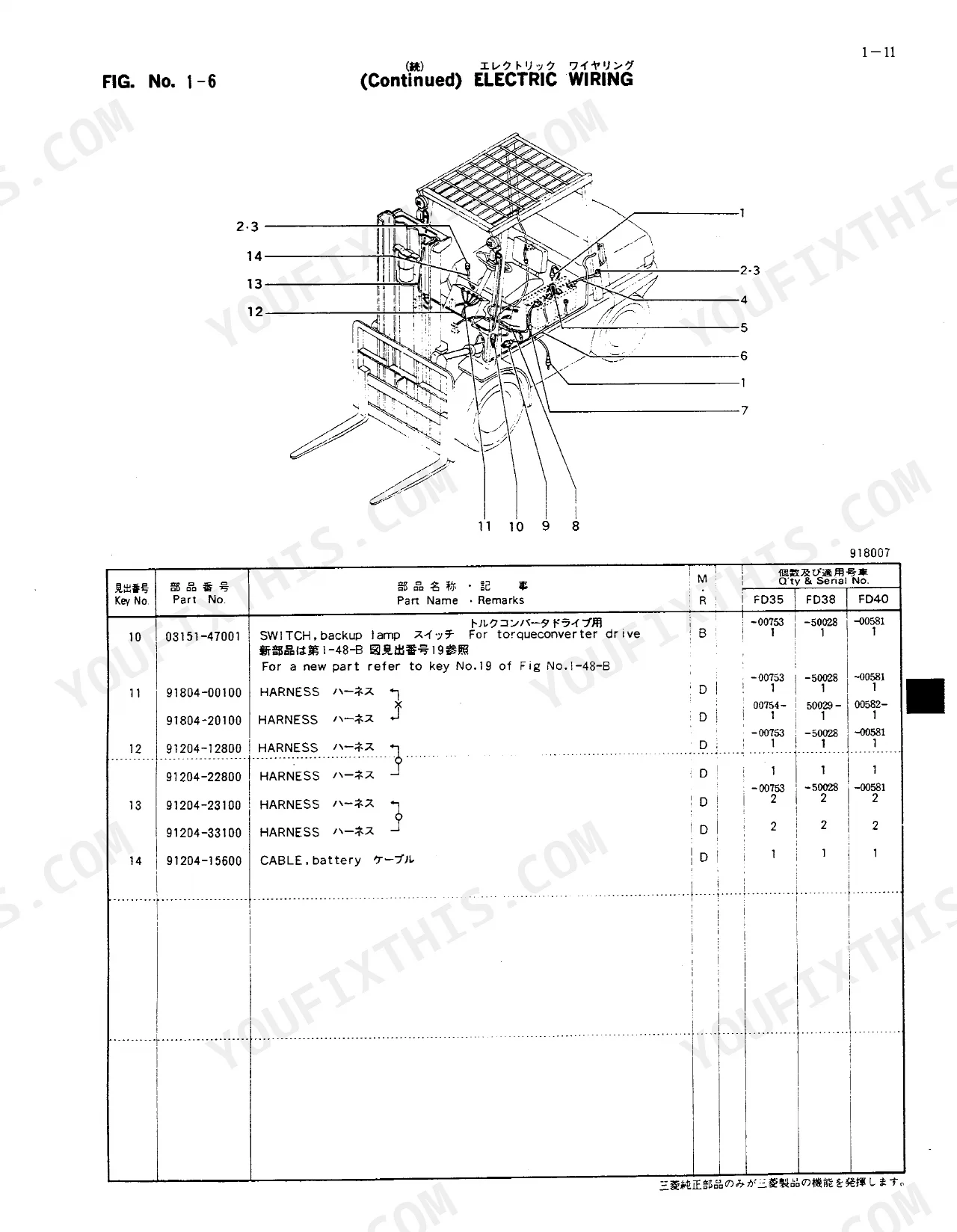

Manual Section: Electrical System (Wiring & Equipment) p. 31Stop lamp switch and fusible link assembly part numbers hard to pick out of the wiring figure
Check the electric wiring figure on page 29. It lists the stop lamp switch as 03150-74000 and the fusible link assemblies as 91204-06600 and 91204-16500. The battery cables and harnesses each have several part numbers, so match every key number on the drawing to its line in the list. Confirm the quantity in your model column before ordering.
Manual Section: Electrical System (Wiring & Equipment) p. 29Exhaust muffler, gasket and tail pipe part numbers split across several serial number ranges
Use the exhaust muffler figure on page 24. Muffler 91862-10100 and exhaust pipe 91862-10200 are listed for FD35, FD38 and FD40, and the same figure lists gasket 30632-52100. The tail pipe has four part numbers with serial breaks. Check your serial number against the interchangeability symbols explained on page 2 before ordering the tail pipe.
Manual Section: Exhaust & Inlet System (Muffler & Air Cleaner) p. 24Frequently Asked Questions

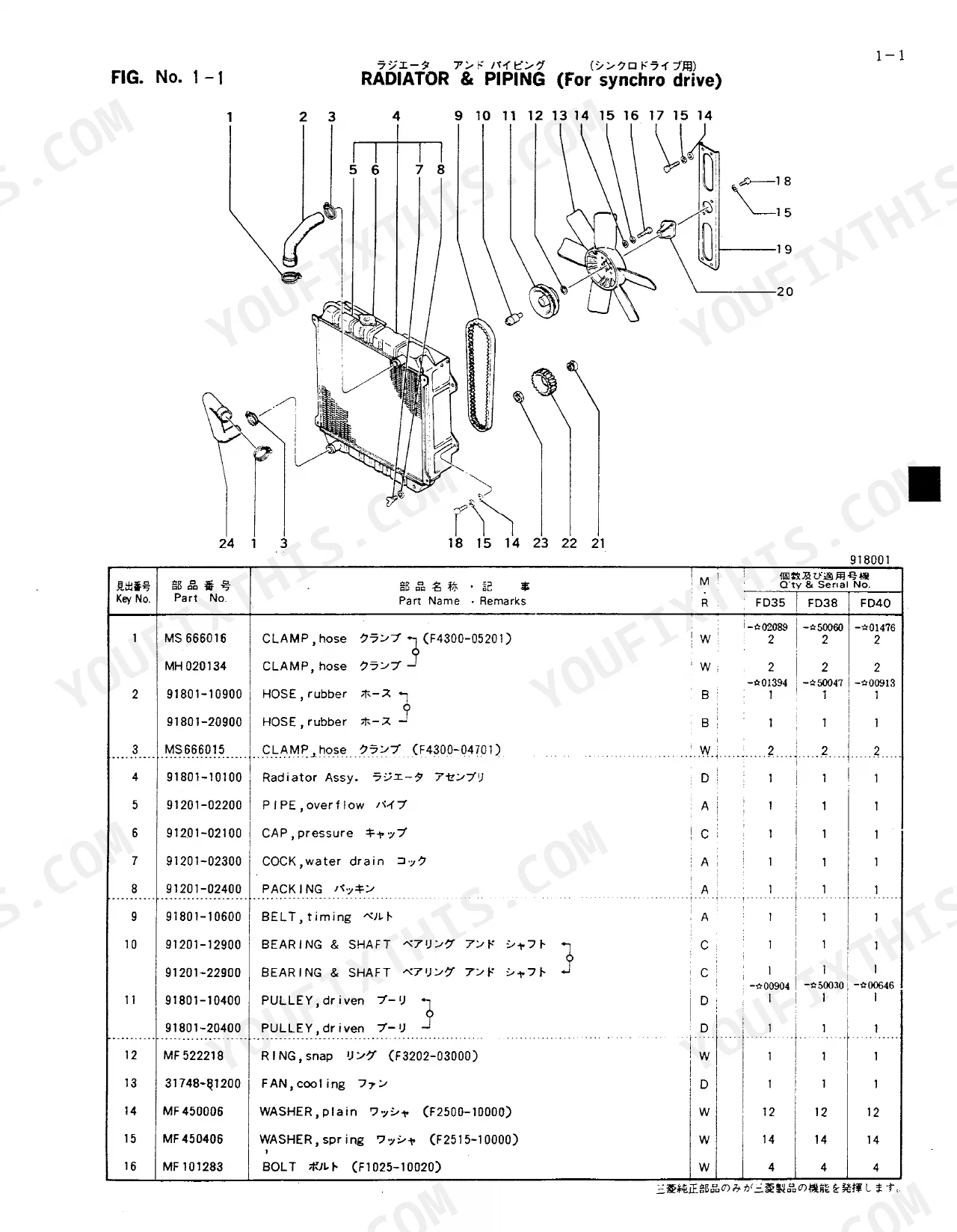

What part number does this parts catalog list for the HOSE, rubber on page 20?
Page 20 lists part number 91801-10900 for the HOSE, rubber. p. 20
What is the radiator assembly part number for a Mitsubishi FD35 with synchro drive?
The radiator & piping figure for synchro drive trucks on page 20 lists Radiator Assy 91801-10100 for the FD35, FD38 and FD40. p. 20
What is the fuel filler cap part number for early Mitsubishi FD35, FD38 and FD40 trucks?
The fuel system figure on page 27 lists filler cap 91264-35200 for trucks up to FD35 serial 00753, FD38 50028 and FD40 00581. Later trucks use the figure on page 28. p. 27
What is the stop lamp switch part number for the Mitsubishi FD35, FD38 and FD40?
The electric wiring parts figure on page 29 lists stop lamp switch 03150-74000 for the FD35, FD38 and FD40. p. 29
Is this Mitsubishi FD35 manual a PDF I download?
Immediate download of the complete 502-page searchable Parts Catalog. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print this Mitsubishi FD35 manual?
You can. Print the sections you want for your own use and keep the file as your backup.
