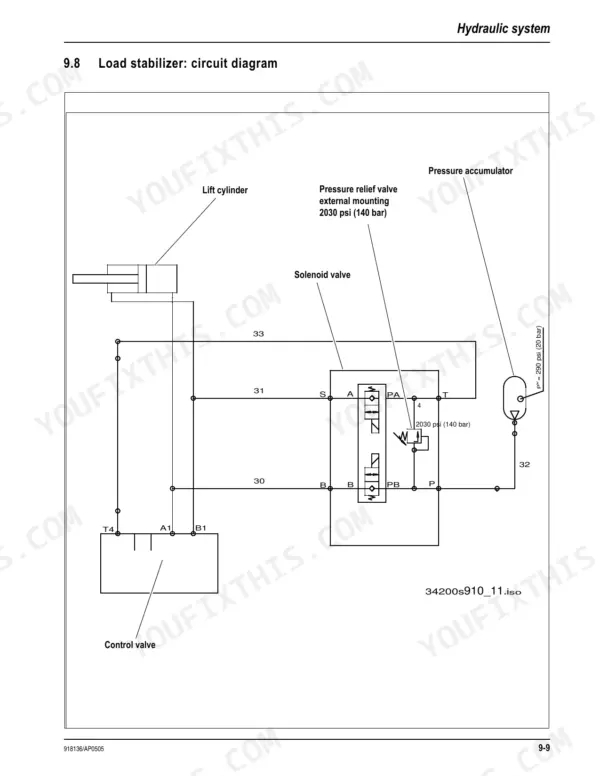

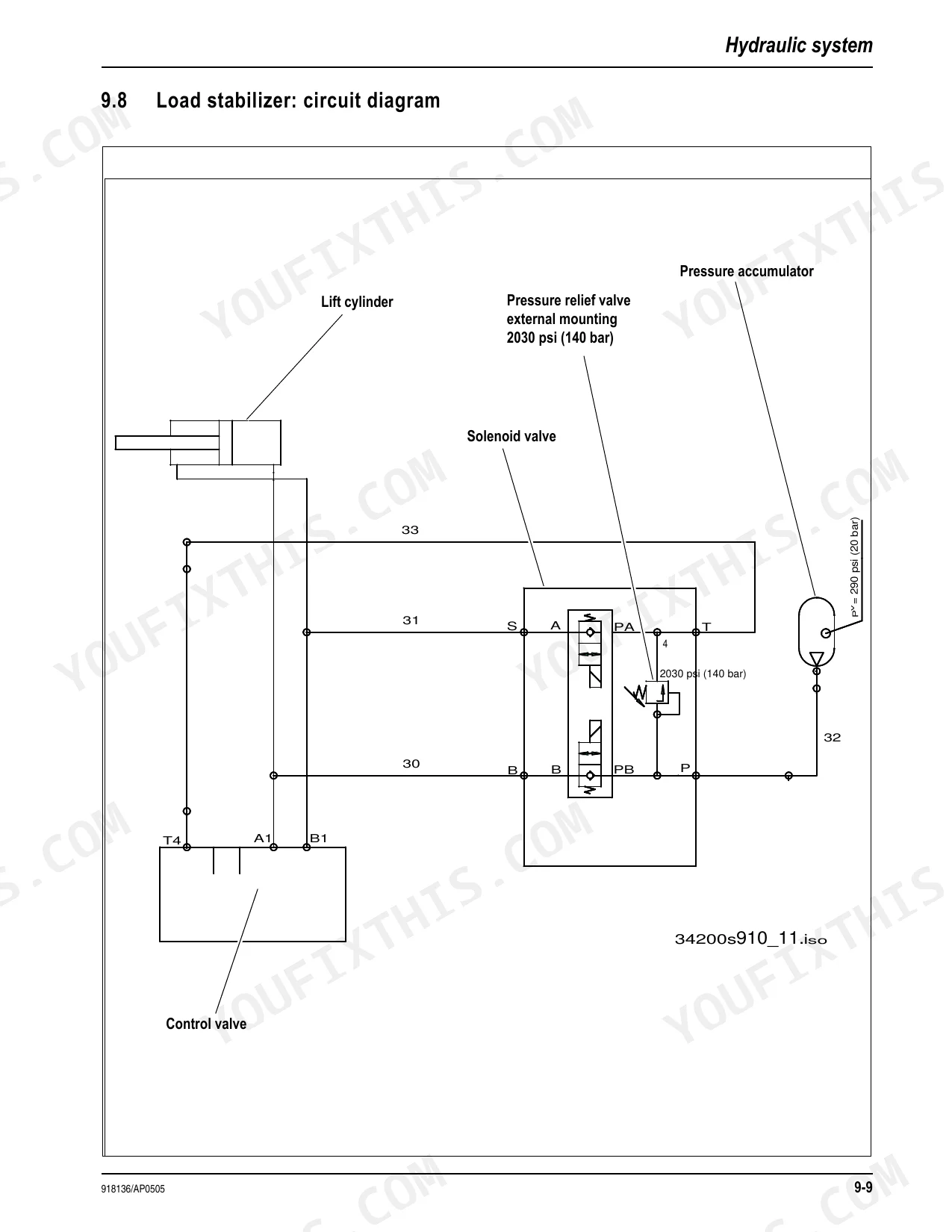

All 204 pages of this Mustang ML 48 Service Manual (OEM #918136) are dedicated to one machine: the 2005 All-Wheel-Steer Loader. Inside: hydraulic schematics for both the 12.5 mph and 25 mph ECO Speed power train circuits, wiring diagrams with full cable color coding and relay maps, and steering electronics coverage down to individual plug-and-socket connections. You also get axle sealing procedures, brake bleeding sequences, work hydraulics circuits with pilot control, and a complete maintenance schedule built around the ML 48. Torque your wheel nuts to 295 ±15 lb.-ft. (400 ±20 Nm) and set the track-rod end on the steering cylinder to 148 lb.-ft. (200 Nm). Your machine is down. Pull it up on any device, search any spec by keyword, and get back to work.
What's Inside This Mustang ML 48 Manual
| System | Pages | Key Topics |
|---|---|---|
| Overview | 9-16 | Important Information, Type Decals and Component Numbers, Machine Overview, Cab Overview, Instrument Panel, Multifunctional Lever and Drive Lever: Overview |

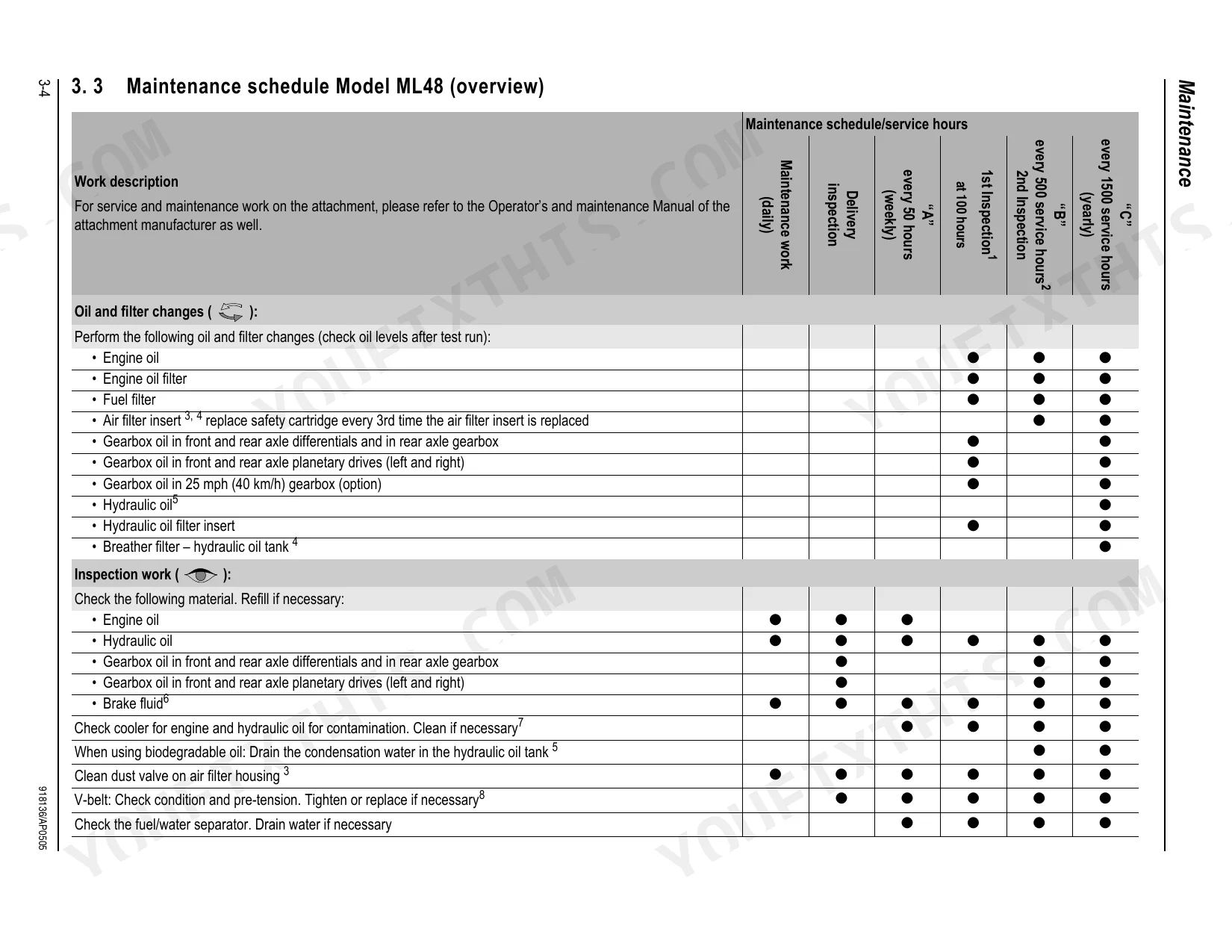

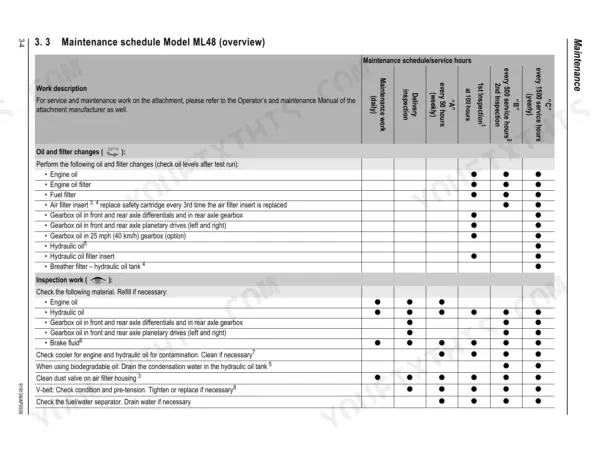

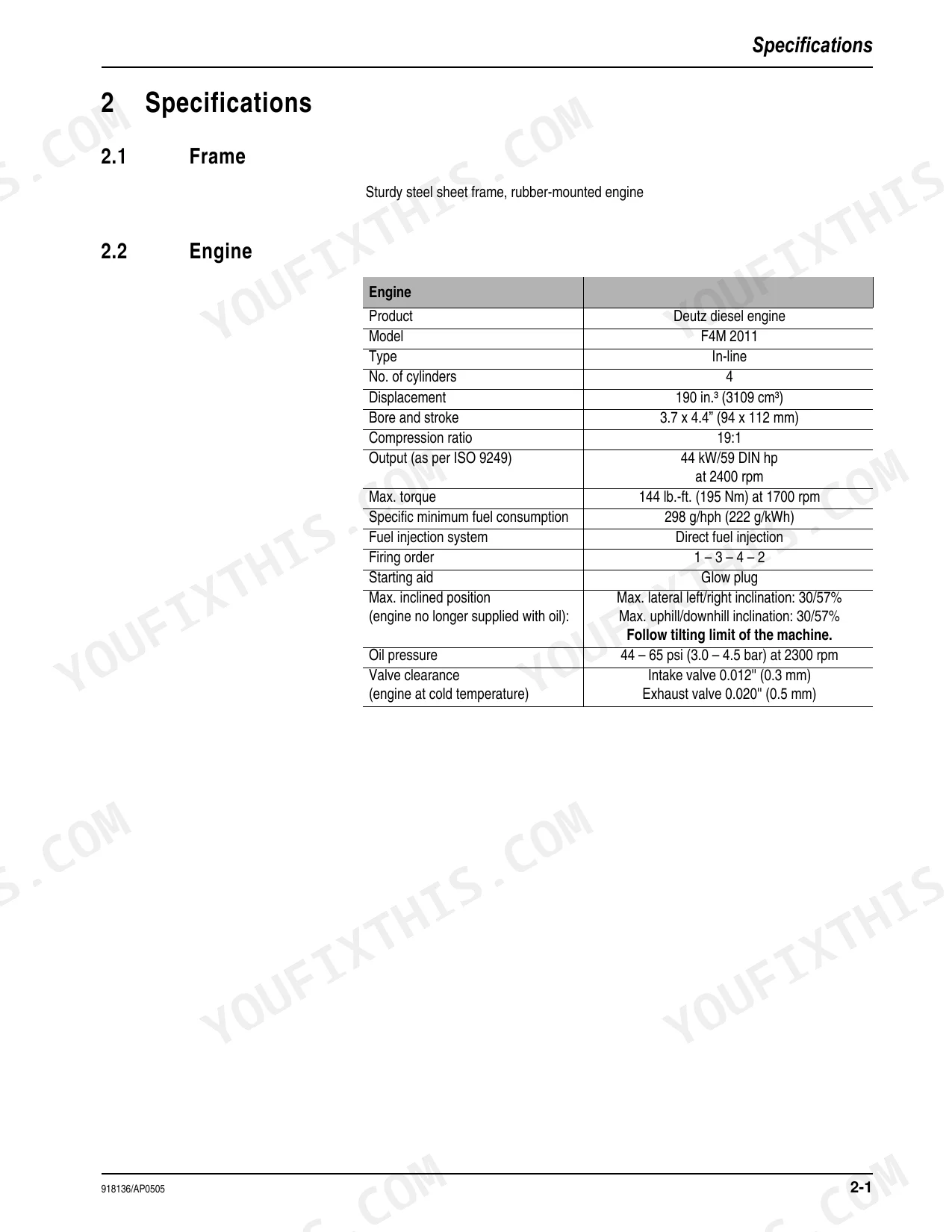

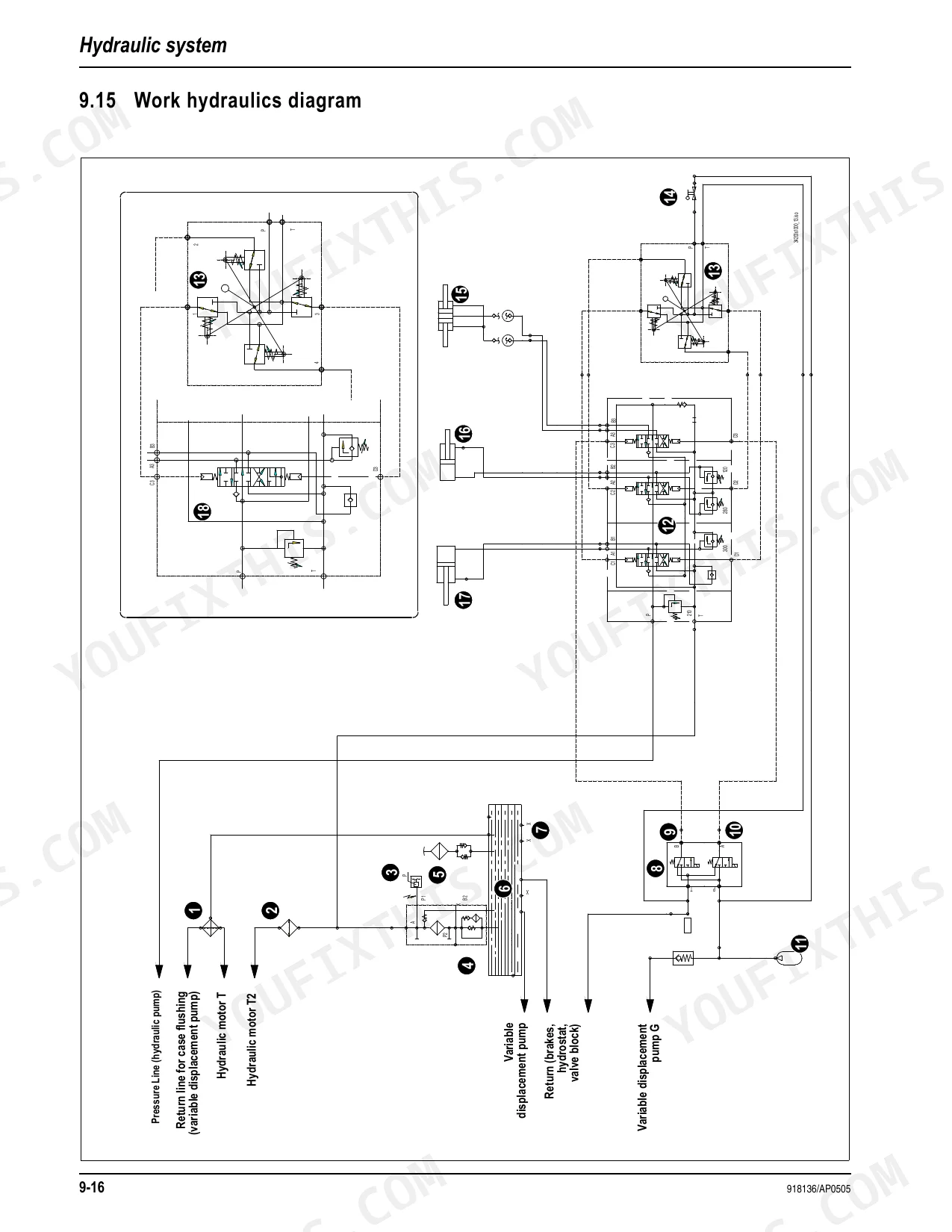

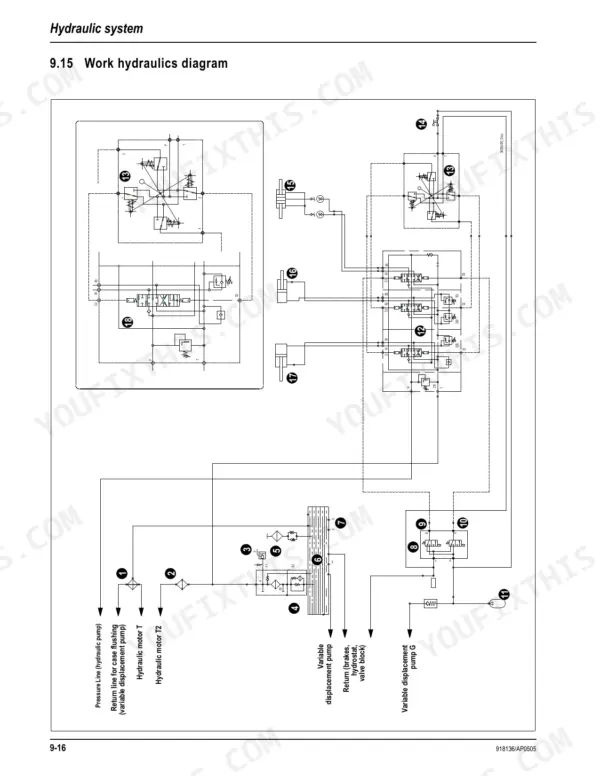

| Maintenance | 27-64 | Fluids and Lubricants, Maintenance Decal (Explanation of Symbols on Maintenance Decal), Maintenance Schedule Model ML48, Maintenance Items, Introduction |
| Engine | 65-80 | F4M 2011 Engine: Overview, Engine Oil Cooling, Fuel System, Engine Level 2 (Tier Ii), Checking and Adjusting Valve Tip Clearance, Replacing the Fuel Injection Pump |
| Power Train | 81-104 | Variable Displacement Pump 12.5 Mph (20 Km/H), Hydraulic Motor – Hydraulic Connections 12.5 Mph (20 Km/H), Hydraulic Motor – Control Element 12.5 Mph (20 Km/H) |
| Axles | 105-128 | Type Decal – Axle, Front Axle Screw Connections, Rear Axle Screw Connections, Drain, Fill and Check Plug – Front Axle, Fill and Check Plug – Rear Axle |
| Brakes | 129-132 | Brake Circuit, Service Brake (Important Information on the Brake System, Bleeding the Brake System with Bleed Equipment), Parking Brake: Overview |
| Steering | 133-140 | Mph (20 Km/H) Steering Circuit, 25 Mph (40 Km/H) Steering Circuit, Hydraulic Ports on Servostat, Sealing the Steering Cylinder 12.5 / 25 Mph (20 Km/H / 40 Km/H) |
| Hydraulic System | 141-158 | Test Report, Control Valve: Overview – Connections, Work Hydraulics Oil Supply, Pilot Control Unit: Design, Pilot Control Circuit, Work Hydraulics Circuit |
| Electrical System | 159-202 | Ohm's Law (Current, Voltage, Resistance); Power, Terminal Description, Cable Color Coding, Relays, Electric Units, Main Fuse Box with Relays, Steering Electronics, Instrument Panel |

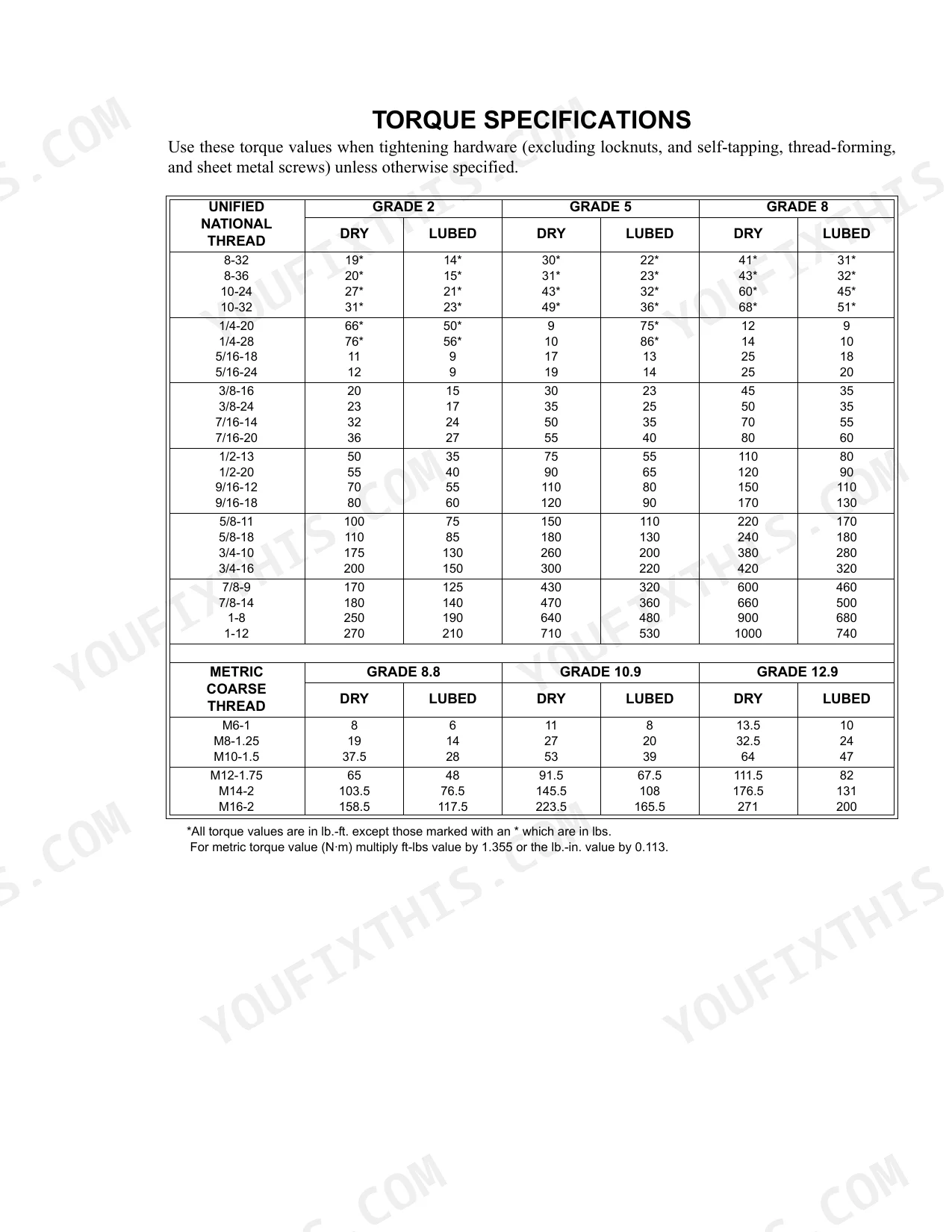

| Torque Specifications | 203 | Unified National Thread, Metric Coarse Thread, Torque Values in lb.-ft. and N·m |
| Back Cover | 204 | Mustang Manufacturing Co., Inc., Company Address, Company Website, Document Number, Copyright Information, Printed in Usa, All Rights Reserved |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| General tightening torques (Grade 8 (10.9) M10) | 49 (67) lb.-ft. (Nm) | p. 25 |
| General tightening torques (Grade 8 (10.9) M12) | 85 (115) lb.-ft. (Nm) | p. 25 |
| Hydraulic pump (gear pump) Displacement | 2.0 in.³/rev (32.0 cm³/rev) | p. 20 |
| Hydraulic pump (gear pump) Output | 20 gal./min (74 L/min) at 2400 rpm | p. 20 |
| Hydraulic oil return filter replacement interval | At the latest after 1500 service hours (yearly) | p. 51 |
| Variable displacement motor Displacement (Standard) | 1.3 to 4.9 in.³/rev (20.6 to 80.7 cm³/rev) | p. 18 |
| Variable displacement motor Drive speed (Standard, 2nd drive range) | 0 – 12.4 mph (0 – 20 km/h), forward and reverse | p. 18 |
| Fuel filter replacement interval | every 50 hours (weekly) | p. 30 |
| Air filter replacement interval (general) | At the latest after 1500 service hours (yearly) | p. 41 |
| Air filter replacement interval (acidic air environments) | at the latest after 500 service hours! | p. 41 |
| Oil cooler cleaning interval | every 50 hours (weekly) | p. 30 |
| Boost pressure (Test report 12.5 mph) | 435 – 580 psi (30 – 40 bar) | p. 88 |
Mustang ML 48 Common Problems This Manual Covers
Mustang ML 48 hydraulic drive feels mushy or weak under load, machine loses tractive force p. 20
Measure gear pump output at 2400 rpm. Rated flow is 20 gal./min (74 L/min) per page 20; if output falls below 60% of rated, replace the pump. Verify hydraulic oil is at the correct level in the 17-gal. (65 L) tank. Inspect high-pressure lines and return filter for restrictions; see the Hydraulic System section starting page 141.
Manual Section: Hydraulic System MaintenanceDrive control feels erratic or has inconsistent forward/reverse response after pressure checks p. 90
Check boost pressure using the procedures on page 90: target is 363 psi (25 bar) for boost and about 725 psi (50 bar) for high-pressure starting speed. If symptoms persist, verify control piston initiation pressure per page 94; spec is 3481 to 3771 psi (240 to 260 bar). Inspect the hot oil shuttle valve for off-center positioning before condemning the drive pump or motor.
Manual Section: Power Train Adjustment WorkHydraulic system temperature rises during operation, oil performance drops and pressure falls p. 51
Check hydraulic oil level first; the tank holds 17 gal. (65 L). Inspect the return filter and replace it no later than every 1500 service hours per page 51. Clean debris from the hydraulic cooler and radiator fins. Look for leaks at all high-pressure fittings. Flush the system completely if contamination is found after a component failure.
Manual Section: Hydraulic System MaintenanceLoader arms move unevenly, stall mid-cycle, or respond slowly when operating attachments p. 141
Inspect hydraulic pressure lines for kinks, cracks, or collapsed inner liners; see the Hydraulic System section starting page 141. Check for air in the system by watching for foamy oil at the reservoir. Verify the gear pump is delivering rated flow of 20 gal./min (74 L/min) at 2400 rpm per page 20 before suspecting the control valve or lift circuit.
Manual Section: Hydraulic SystemEngine overheats during operation or loses power with excessive smoke from exhaust p. 79
Check coolant level and inspect the radiator for blocked fins. Replace the air filter cartridge per page 41; replace the fuel filter per the maintenance schedule on page 30. For persistent overheating or smoke, run through the Engine Trouble diagnostic sequence on page 79. Intake valve clearance is 0.012'' (0.3 mm) cold.
Manual Section: Engine TroubleFrequently Asked Questions
How do I reset the Mustang ML 48?
The manual describes a reset procedure for the air filter maintenance display. After replacing the filter cartridge, press reset button A to reset the red mark C in the maintenance display B. This is a specific reset for a maintenance item, not a general machine reset.
What are the torque specs for Mustang ML 48 fasteners?
General tightening torques for cap screws range from 2 lb.-ft. (3 Nm) for M4 Grade 7 to 1696 lb.-ft. (2300 Nm) for M30 Grade 10 (12.9). Specific tightening torques include the wheel nut at 295 ±15 lb.-ft. (400 ±20 Nm), track-rod end (steering cylinder) at 148 lb.-ft. (200 Nm), and piston rod (steering cylinder/track rod) at 184 lb.-ft. (250 Nm). For detailed torque specifications for various components, refer to the diagrams on pages 110 and 111.
How do I troubleshoot a Mustang ML 48 not starting?

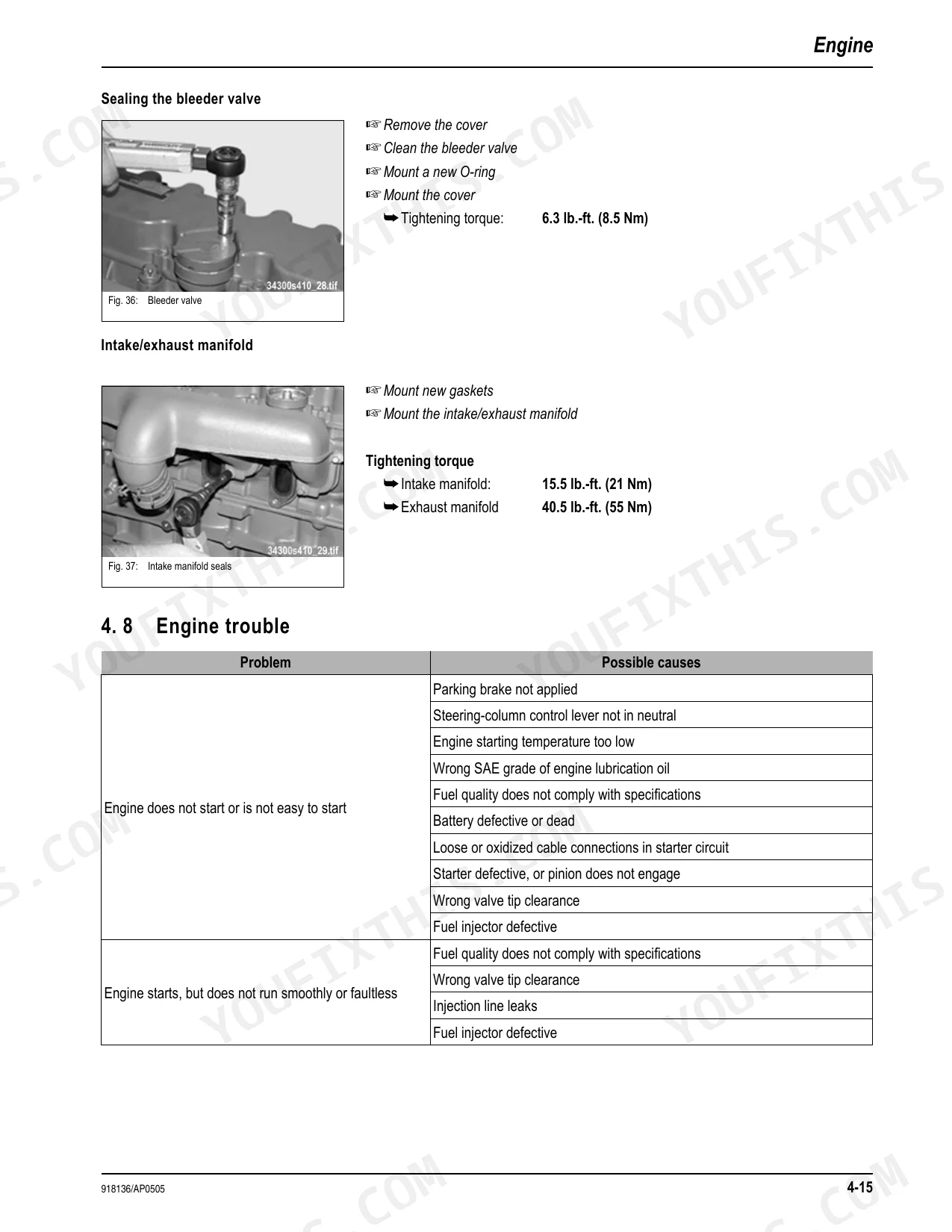

If the Mustang ML 48 does not start or is difficult to start, possible causes include the parking brake not being applied, the steering-column control lever not being in neutral, or the engine starting temperature being too low. Other issues could be the wrong SAE grade of engine lubrication oil, fuel quality not complying with specifications, a defective or dead battery, or loose/oxidized cable connections in the starter circuit. A defective starter, pinion not engaging, wrong valve tip clearance, or a defective fuel injector can also prevent starting.
How do I replace the Mustang ML 48 filter?
The manual provides procedures for replacing several filters. To replace the fuel filter, pinch off the fuel feed line, unscrew the old cartridge, clean the sealing surface, oil the new gasket, and screw on the new filter cartridge by hand until contact, then tighten a further half revolution. For the engine oil filter, stop the engine, place a container, unscrew the old cartridge, clean the filter head, apply oil to the new seal, and tighten the new cartridge by hand a further half revolution. The air filter cartridge replacement involves stopping the engine, removing the ignition key, opening the engine cover, folding bow hooks, removing the lower housing section, and carefully removing the old filter cartridge (D) and safety cartridge (F), then inserting new ones and closing the housing. The hydraulic oil return filter element must be replaced by an authorized dealer if the return pressure is too high or operating temperature is too high, or at the latest after 1500 service hours.
What format is this Mustang ML 48 manual in?
You get a 204-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone — bring it right to the shop floor.
Is this Mustang ML 48 Service Manual printable?
Yes, print as many copies as you want — there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Does this Mustang ML 48 manual include wiring diagrams?
Yes. You'll find full electrical schematics with wire routing diagrams, connector identification, and circuit descriptions.
Document Quality
This document is a scanned PDF with an OCR layer, allowing you to search and copy the full text. The text quality is generally crisp and easy to read throughout. Diagrams and illustrations are mostly clear, with labels remaining readable even when zoomed. Pages are clean with no significant scan artifacts or skewed content. There are several intentionally blank pages included, such as pages 2, 8, 170, 171, 201, and 202.
