All 208 pages of this Mustang ML 48T Service Manual (OEM #918139) focus on one thing: factory-level service for your 2005 All-Wheel-Steer Loader, covering both the 12.5 mph and ECO Speed 25 mph powertrain configurations. Inside you get hydraulic schematics for every circuit from work hydraulics to the pilot control unit, full wiring harness diagrams broken out by harness number (engine-frame, cab, roof, joystick, load stabilizer), and exploded views across the axles, brakes, steering, and hydraulic system. Check your V-belt deflection at 0.40" (10 mm), swap the hydraulic oil filter at 1500 service hours, and confirm M4 Grade 7 fasteners at 2 lb.-ft. (3 Nm) before buttoning anything back up. Your loader has two speed modes and a dozen interconnected systems; guessing which circuit is misbehaving is expensive. Bookmarked by section, searchable by keyword; open it on your phone and have the spec before you touch the wrench.
What's Inside This Mustang ML 48T Manual
| System | Pages | Key Topics |
|---|---|---|
| Operation | 9-16 | Important Information on Service Manual, Type Decals and Component Numbers, Machine Overview, Cab Overview, Instrument Panel, Levers: Overview |
| Engine | 63-78 | BF4M 2011/ F4M 2011 Engine: Overview, Engine Oil Cooling, Fuel System, Engine Level 2, Checking and Adjusting Valve Tip Clearance |
| Power Train | 79-102 | Variable-Displacement Pump 12.5 Mph, Hydraulic Motor – Hydraulic Connections 12.5 Mph, Hydraulic Motor – Control Element 12.5 Mph, Power Train Circuit with Cooling 12.5 Mph |
| Axles | 103-126 | Type Decal – Axle, Front Axle Screw Connections, Rear Axle Screw Connections, Drain, Fill and Check Plug – Front Axle, Fill and Check Plug – Rear Axle |
| Brakes | 127-130 | Brake Circuit, Brake Diagram, Bleeding the Service Brake (Important Information on the Brake System, Bleeding the Brake System with Bleed Equipment), Parking Brake: Overview |
| Steering | 131-138 | 5 Mph (20 km/h) Steering Circuit, 5 Mph (20 km/h) Steering Diagram, 25 Mph (40 km/h) Steering Circuit, 25 Mph (40 km/h) Steering Diagram, Hydraulic Connections on Servostat |
| Hydraulic System | 139-156 | Test Report, Control Valve Connections (Priority Valve for Work Hydraulics and Steering), Control Valve, Work Hydraulics Circuit, Connections: Frame – Loader Unit Disconnect |
| Electrical System | 157-204 | Ohm's Law; Power, Measuring Equipment, Measuring Methods, Terminal Description, Cable Color Coding, Relays (Use, Mode of Function, Terminal Description on Relay), Fuse Box |
| Torque Specifications | 205-208 | Hydraulic Fittings with Various Seals, With Coarse-Pitch Thread, With Fine-Pitch Thread |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

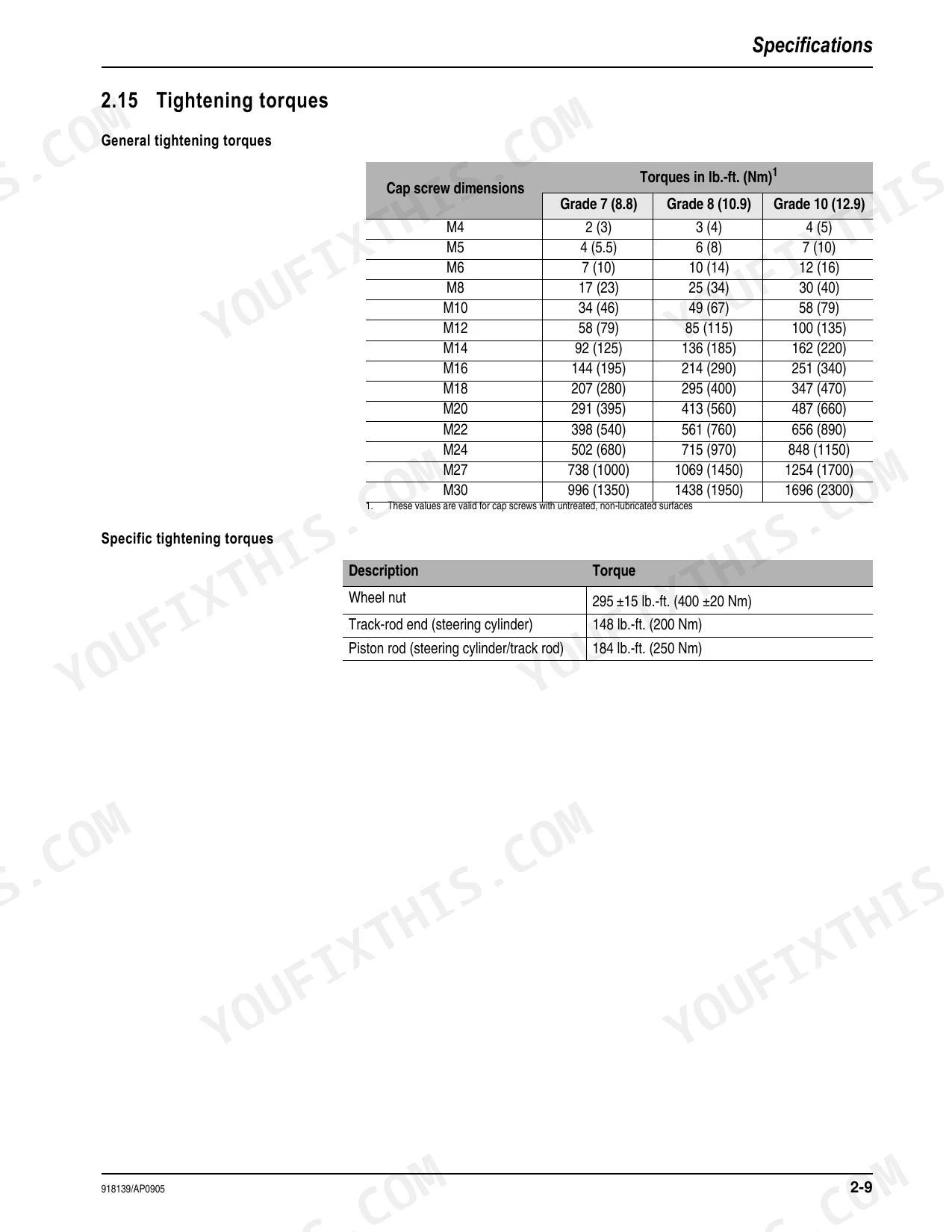

| General tightening torque for M4 Grade 7 (8.8) | 2 lb.-ft. (3 Nm) | p. 25 |
| Hydraulic oil filter replacement interval | 1500 service hours (yearly) | p. 51 |
| Air filter cartridge replacement interval | 1500 service hours (yearly) | p. 41 |
| Fuel filter replacement interval | 1500 service hours (yearly) | p. 30 |
| V-belt deflection clearance | 0.40'' (10 mm) | p. 43 |
| Engine rated output | 44 kW/59 DIN hp at 2400 rpm | p. 17 |
| Engine Output | 59 DIN hp | p. 17 |
| Engine Max. Torque | 144 lb.-ft. | p. 17 |
| Engine Oil Capacity | 2.8 gal. (10.5 L) | p. 27 |
| Hydraulic Oil Tank Capacity | 17 gal. (65 L) | p. 27 |
| Fuel Tank Capacity | 21 gal. (80 L) | p. 27 |
| Wheel Nut Torque | 295 ±15 lb.-ft. | p. 25 |
Mustang ML 48T Common Problems This Manual Covers
Mustang ML 48T loader arms move slowly or bucket won't lift, hydraulic response sluggish p. 51
Check hydraulic oil level first; tank capacity is 17 gal. (65 L). If oil is cloudy or contains metal particles, drain and flush per the diagnostics on page 51. Replace the return filter at 1500 service hours or yearly. Verify work hydraulics pressure reaches 3046 psi (210 bar) before condemning the pump or control valve.
Manual Section: Hydraulic System Diagnostics (Oil Contamination/Filter)Engine loses power or shuts down mid-cycle, temperature gauge reads high under load p. 77
Check coolant level and inspect the radiator core for debris blocking airflow. Verify engine oil is at the full mark; capacity is 2.8 gal. (10.5 L). Replace the air filter cartridge at 1500 service hours per the interval on page 41. If overheating persists, follow the engine troubleshooting chart on page 77.
Manual Section: Engine TroubleHard to start or misfires consistently, white or black smoke from exhaust p. 63
Replace the fuel filter at the 1500-hour interval listed on page 30. After replacement, bleed the fuel system to purge air before attempting to start. Clean the fuel pump screen filter at the same service interval. If the engine still runs rough, inspect injectors and check valve tip clearance per the engine section starting on page 63.
Manual Section: Fuel System Maintenance/RepairDrive belt squeals or slips under load, alternator output drops and accessories lose power p. 43
Inspect the V-belt for cracking, fraying, or glazing. Check deflection midspan; correct tension is 0.40'' (10 mm) per the spec on page 43. If belt is loose, adjust the tensioner to restore deflection to spec and re-torque. Replace any belt showing cord damage or hard surface glazing before it fails completely.
Manual Section: V-belt MaintenanceMachine pulls to one side or steering feels loose and doesn't hold a line p. 131
Check tire pressures on all four wheels; uneven inflation alone will pull the machine sideways. Verify wheel nut torque is 295 ±15 lb.-ft. per the torque spec on page 25. For persistent tracking issues, inspect steering sensor alignment and hydraulic connections per the steering section on page 131. Test each actuator for full, equal response before adjusting sensors.
Manual Section: Steering Sensor AdjustmentDrivetrain vibration or grinding noise during travel that worsens under full load p. 79
Check front and rear axle oil for metal particles; drain and inspect per the axle section on page 103. Verify hydraulic motor connections are secure and leak-free. Max operating pressure at the variable displacement pump is 4931 psi (340 bar). If grinding persists under load, inspect the hydraulic motor control element per page 79.
Manual Section: Power TrainFrequently Asked Questions
How do I reset the service light on a Mustang ML 48T?
The manual describes a reset procedure for the air filter maintenance display. After replacing the filter cartridge, you should press reset button A to reset red mark C in maintenance display B. This specific reset is performed after filter replacement.
What are the torque specs for Mustang ML 48T wheel lugs?
The tightening torque for wheel nuts on the Mustang ML 48T is 295 ±15 lb.-ft. (400 ±20 Nm). These values are valid for cap screws with untreated, non-lubricated surfaces.
What are the torque specs for Mustang ML 48T hydraulic fittings?
Hydraulic fittings have varying torque specifications depending on the thread type and seal. For example, an M10X1.0 thread with a sealing washer requires 7 lb.-ft. (9 Nm), with an elastic seal 13 lb.-ft. (18 Nm), and with an O-ring 11 lb.-ft. (15 Nm). For heavy application, an M12X1.5 thread with a sealing washer requires 15 lb.-ft. (20 Nm), with an elastic seal 26 lb.-ft. (35 Nm), and with an O-ring 26 lb.-ft. (35 Nm).
How to reset Mustang ML 48T
There isn't a single reset procedure for the entire machine, but specific components have reset or calibration steps. For the air filter, you can reset the maintenance display by pressing button A after replacing the filter cartridge. The safe load indicator requires calibration, which involves setting a 0% point and a 100% point using a special magnet and tip switches, as detailed on pages 10-12 and 10-13.
How quickly can I access this Mustang ML 48T manual after buying?
You get a 208-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone — bring it right to the shop floor.
Can I print specific sections of this Mustang ML 48T Service Manual?
None at all — the PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Are hydraulic system diagrams in this Mustang ML 48T Service Manual?
Yes — complete hydraulic schematics with flow diagrams, valve configurations, and pressure specifications are included.
