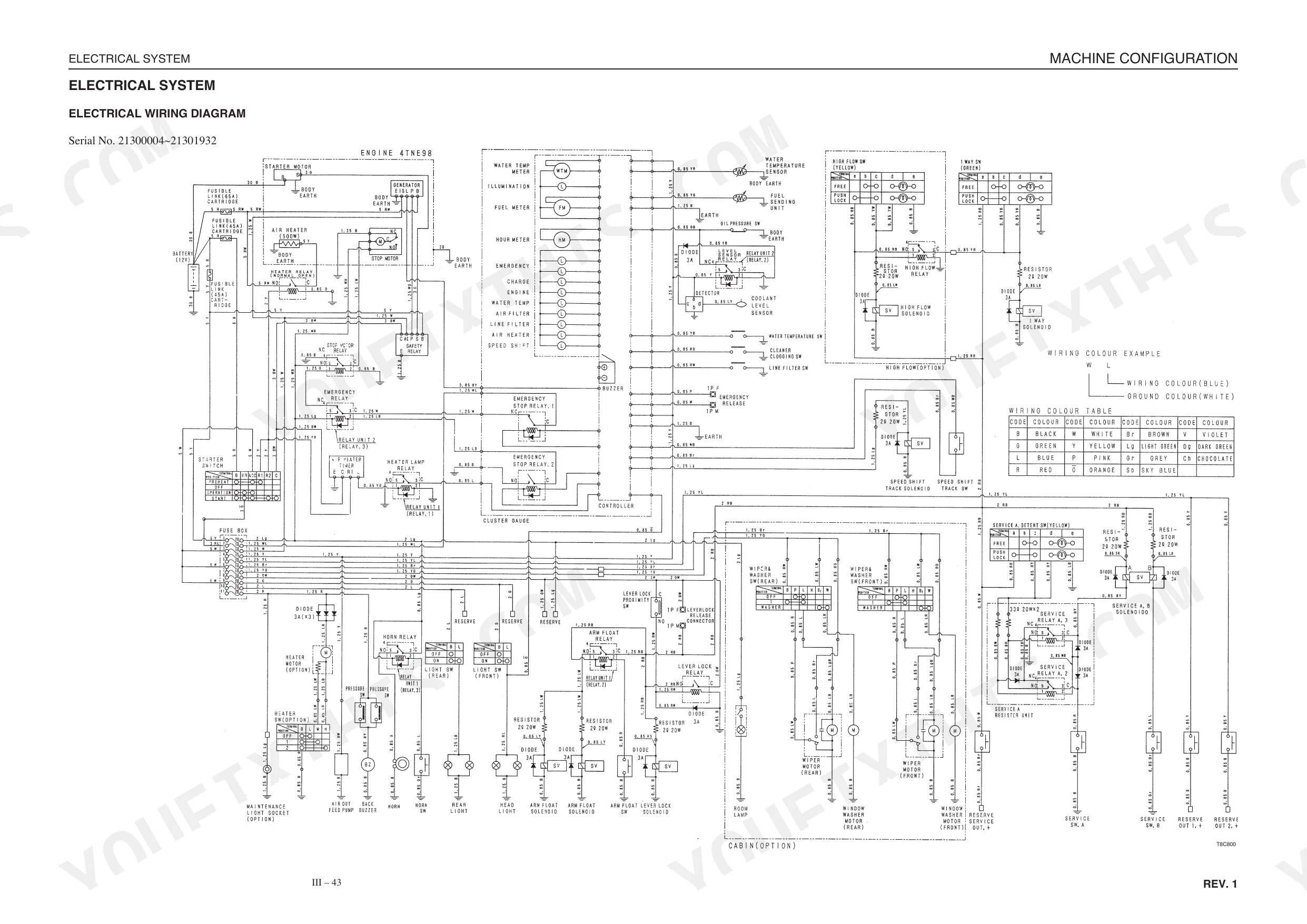

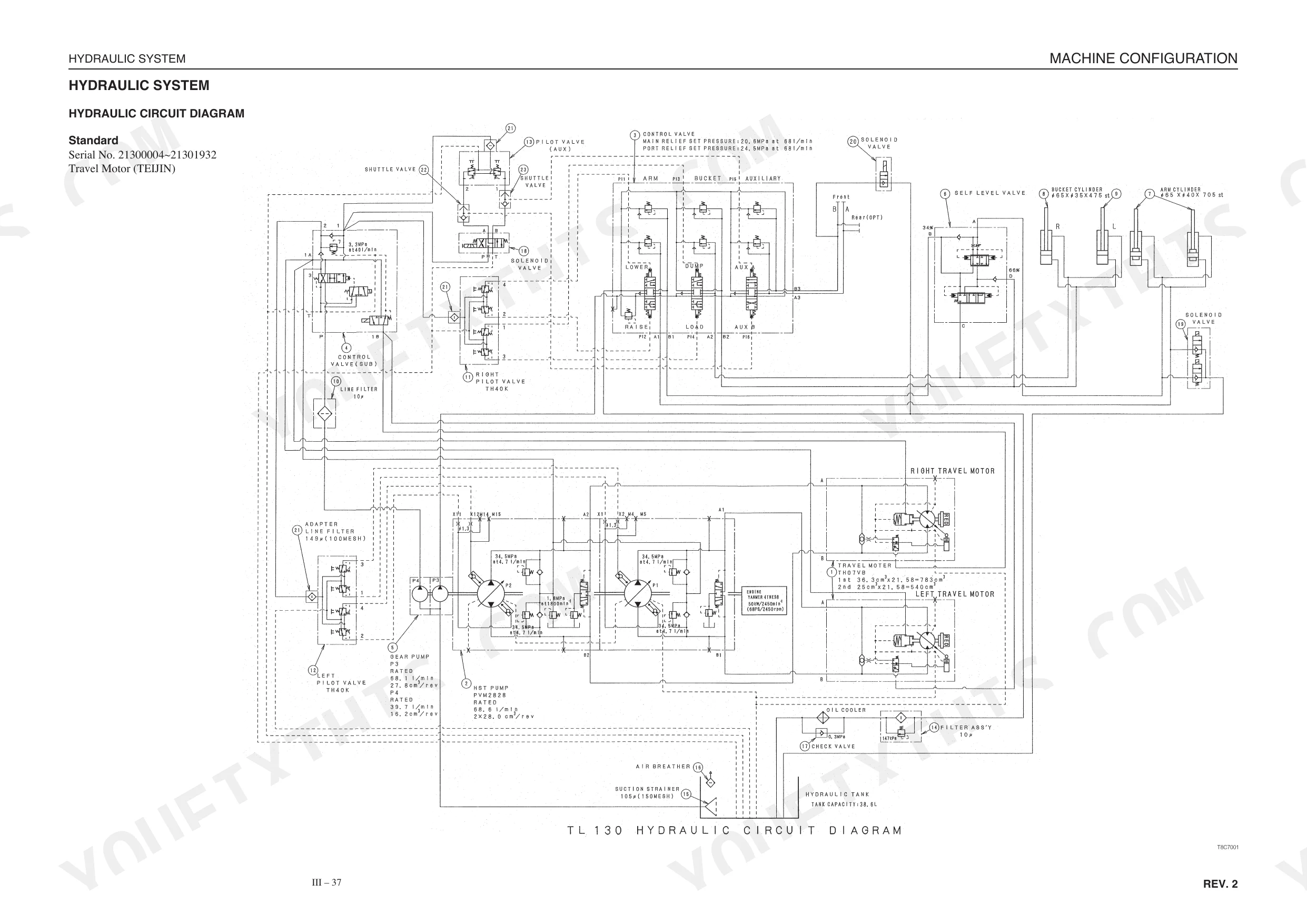

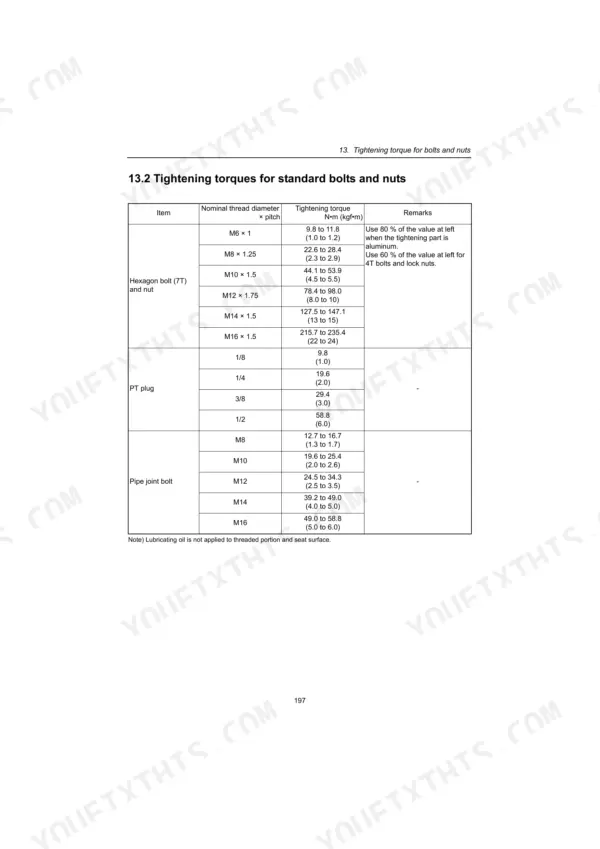

All 755 pages of this Mustang MTL16 Service Manual (OEM #908312) are built around one machine: the MTL16 and TL130 track loaders, covering every major system from frame and drive train through engine teardown. Inside, you get full hydraulic schematics tracing fluid routing through the HST pump, gear pump, control valve, and pilot valve, plus wiring diagrams for the complete electrical system. Troubleshooting walks every failure mode — complete system failures, insufficient power, lift arm faults, and travel train problems — while torque specifications cap the manual with the factory numbers your builds actually depend on. Cylinder head bolts on the 4TNV106(T) torque to 188.0–197.8 N·m; 1/8-inch taper thread hydraulic fittings call for 11.8 ±1.2 N·m. Your machine is down. Get the factory answer, not a forum estimate. Bookmarked and keyword-searchable — open it on any device, jump straight to your section, and start turning wrenches.
What's Inside This Mustang MTL16 Manual
| System | Pages | Key Topics |
|---|---|---|
| Foot of the Page | 5-8 | Page Number, Revision Number, Model(s), Symbols |
| I . General | 9-22 | Safety Precautions, Cautions During Disassembly and Assembly, Cautions During Removal and Installation of the Hydraulic Units, Cautions During Removal and Installation of Piping |

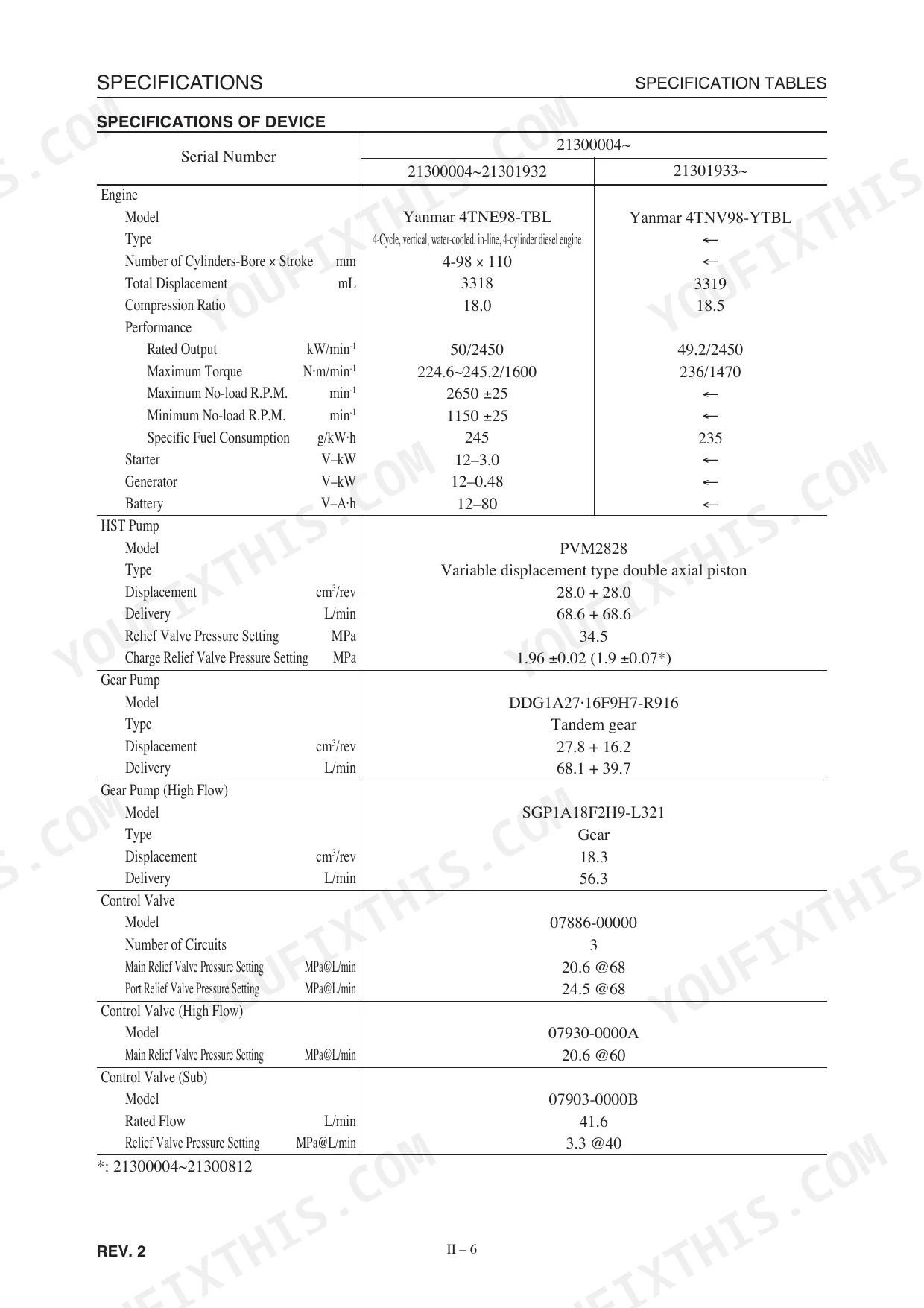

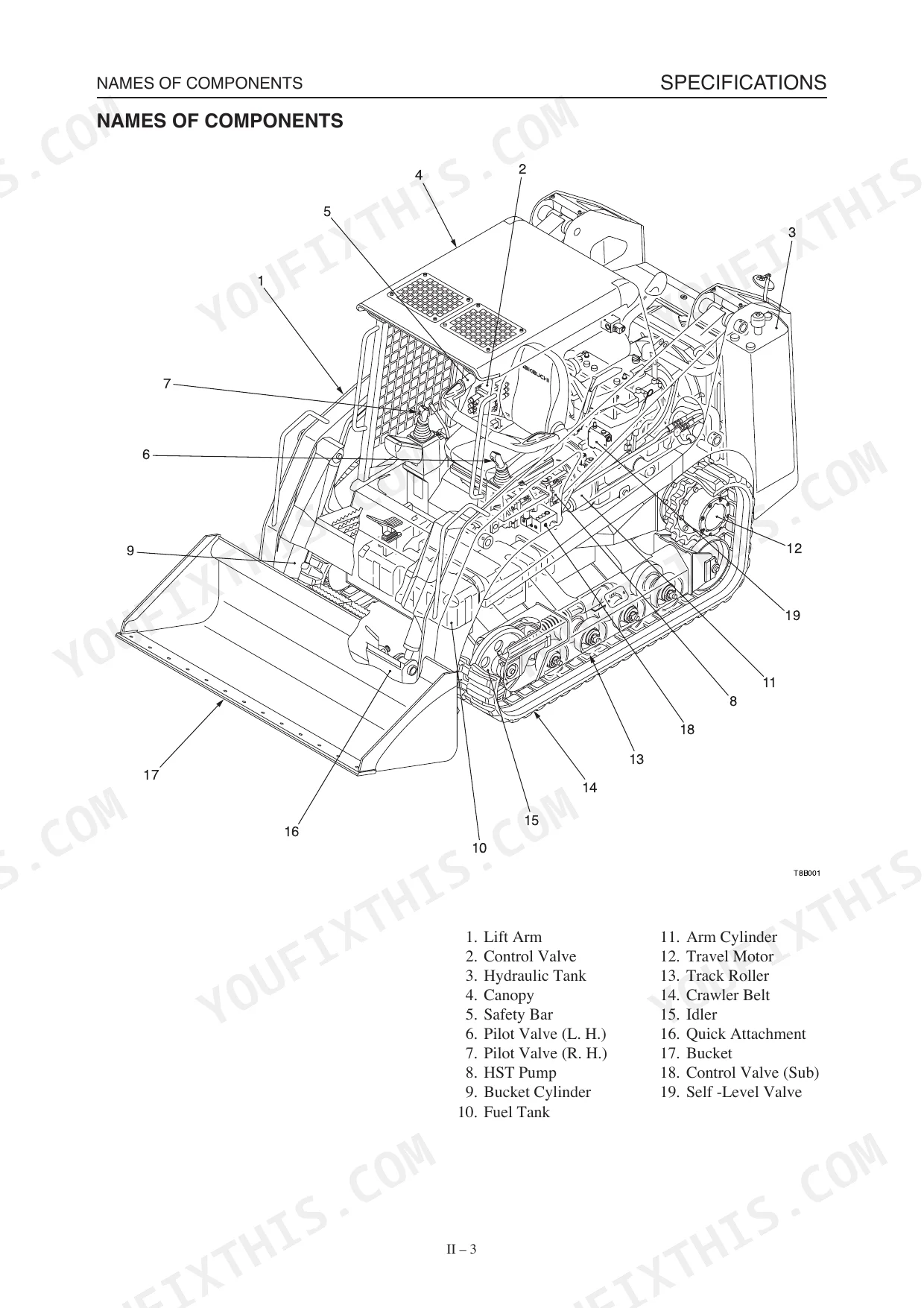

| Ii . Specifications | 23-44 | Names of Components, Dimensions, Specification Tables, Mass Tables, Recommended Lubricants, Servicing Standards |
| Iii . Machine Configuration | 45-170 | Drive System, Travel System, Frame, Control System, Attachments, Hydraulic System |
| Iv . Hydraulic Units | 171-322 | HST Pump, Gear Pump, Control Valve, Control Valve (High Flow), Control Valve (Sub), Pilot Valve |

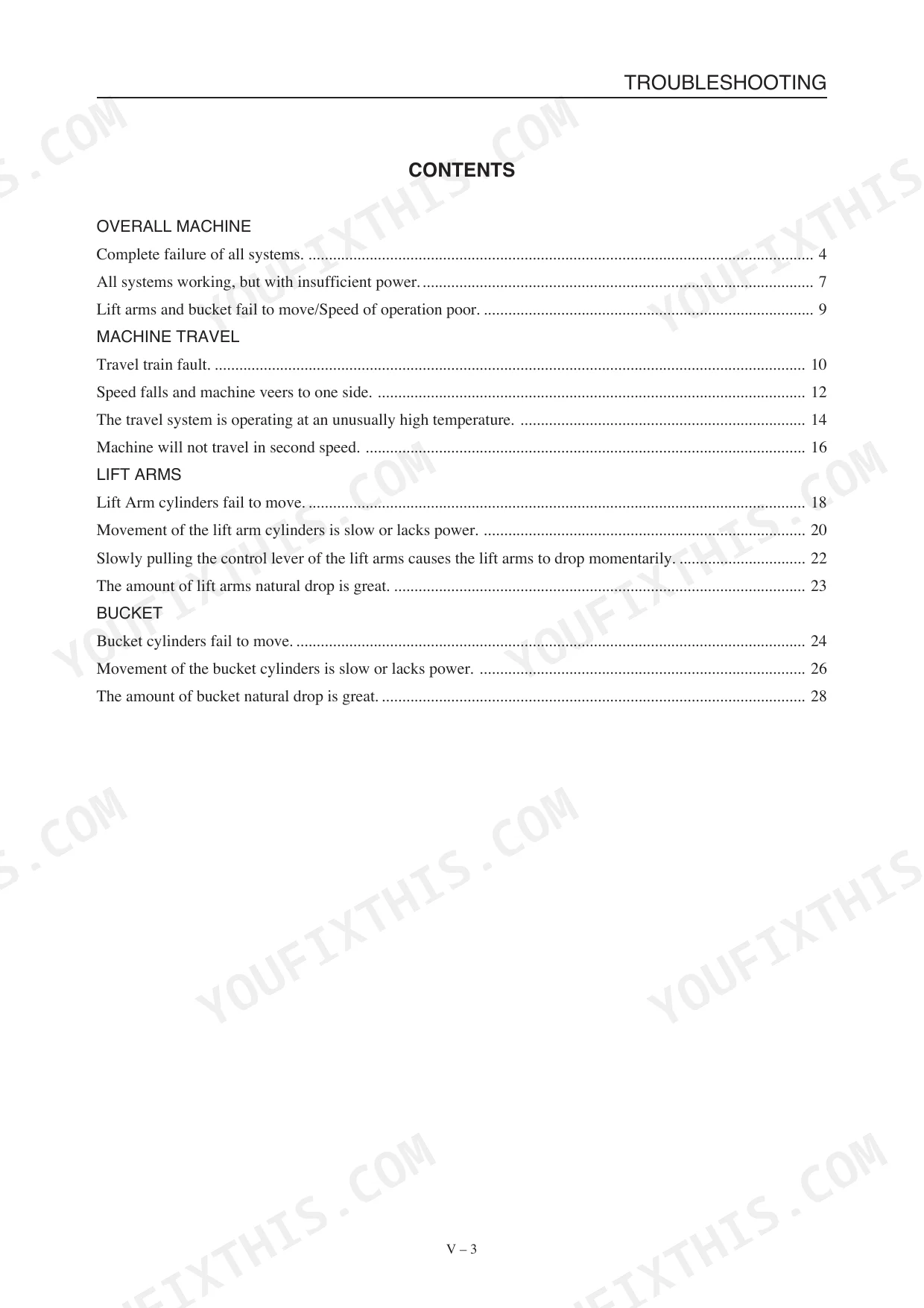

| V . Troubleshooting | 323-352 | Complete Failure of All Systems, All Systems Working, But with Insufficient Power, Lift Arms and Bucket Fail to move/Speed of Operation Poor, Travel Train Fault |
| Vi . Engine | 353-755 | 4Tne94/98/106 (Contents), 3TNV/4TNV Series (Cover, History of Revision, Preface, Safety Labels, Contents, Tightening Torque for Bolts and Nuts, Back Cover) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Oil/coolant light reset procedure | Not explicitly found. The manual indicates checking the warning lamp for normal function and resolving underlying issues (e.g., low oil, low coolant) which would cause the light to go out. | p. 577 |

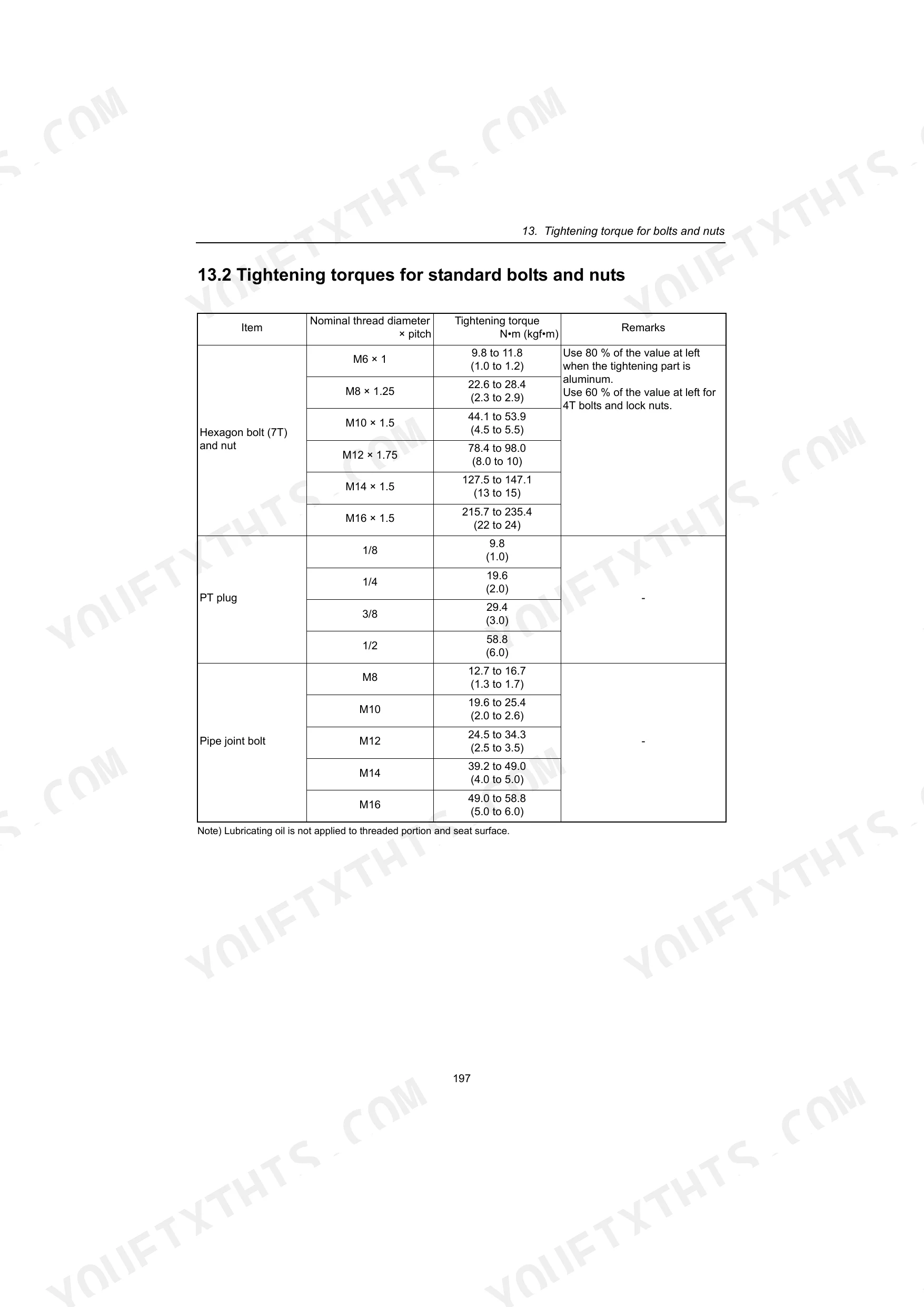

| Cylinder head bolt torque for 4TNV106(T) | 188.0 to 197.8 N·m (19.0 to 20.0 kgf·m) | p. 752 |
| Hydraulic Hoses, Hose Fitting Size 1/8, Taper Thread (R) torque | 11.8 ±1.2 N·m (8.7 ±0.8 ft-lb) | p. 19 |
| Relay specifications (clearance, torque, or replacement values) | Not explicitly found. The manual mentions relays but does not provide specific clearance, torque, or replacement values for them. | p. 113 |
| Flatness of the sliding surface of the HST pump cylinder block | 0.000079 in. (0.002 mm) TIR | p. 195 |
| Torque for coupling bolt (B) connecting coupling to engine flywheel | 241 N·m | p. 51 |
| Corrective action for 'Inspect the output pressure of the HST pump' being 'Pressure low' (Travel train fault) | Repair or replace travel motor. | p. 332 |

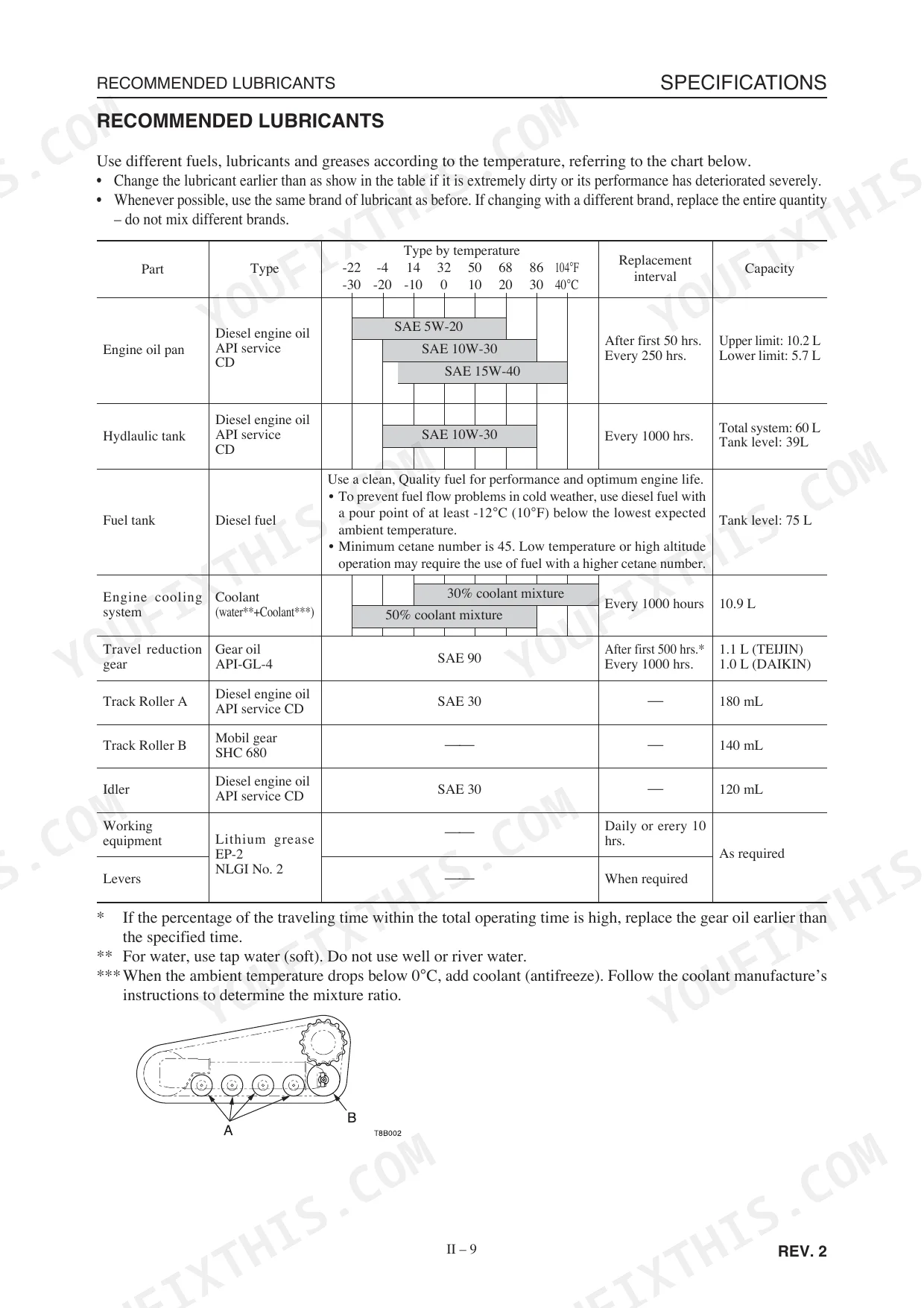

| Engine Oil Capacity (Total, 3TNV82A) | 5.5 L | p. 574 |
| Fuel Tank Capacity | 75 L | p. 61 |
| Coolant Volume (Engine only, 3TNV82A) | 1.8 L | p. 575 |
| Hydraulic Tank Total System Capacity | 60 L | p. 31 |
| Hydraulic Hoses 1/8 Union Nut (G) Tightening Torque | 9.8 N·m | p. 19 |
Mustang MTL16 Common Problems This Manual Covers
Mustang MTL16 engine runs perfectly but the machine has absolutely no drive and no hydraulic functions. p. 51
Inspect the pump-to-engine linkage. Check the coupling connecting the engine flywheel to the hydraulic pump. If the coupling is damaged, replace it and torque the coupling bolt (B) to exactly 241 N·m as noted on page 51. Verify all electrical relays are functioning properly.
Manual Section: Iii . Machine ConfigurationTrack loader speed drops noticeably under load and the machine veers sharply to one side during travel. p. 332
Measure the crawler tension on both sides. Adjust the track sag to maintain a clearance of 25 to 50 mm as specified on page 38. Inspect the output pressure of the HST pump. If the pressure remains low, repair or replace the travel motor according to page 332.
Manual Section: Machine Travel - Travel train faultLift arm cylinders fail to move when commanded and fluid is leaking near the main control valve. p. 19
Check the arm cylinder stroke to ensure it can reach 705 mm without binding. Inspect all hydraulic hoses around the control valve. Torque any loose 1/8 union nut (G) fittings to 9.8 N·m as shown on page 19 to stop the fluid leak.
Manual Section: I . GeneralHydrostatic transmission pump makes grinding noises and machine lacks operating power when hydraulic fluid is hot. p. 195
Remove and disassemble the HST pump to inspect internal components for scoring. Measure the flatness of the sliding surface of the HST pump cylinder block. Machine or replace the block if flatness exceeds 0.000079 in. (0.002 mm) TIR as listed on page 195.
Manual Section: Iv . Hydraulic UnitsFrequently Asked Questions
How do I reset the oil/coolant warning light on a Mustang MTL16?
The manual does not describe a specific reset procedure for the oil/coolant warning light. Instead, it outlines procedures to inspect and address the underlying conditions that trigger the light, such as checking and replenishing lube oil and coolant levels (Page 574), or replacing the lube oil filter (Page 575) and cooling water (Page 587). The warning light is expected to turn off once these issues are resolved.
Why does my Mustang MTL16 start then stall after a few seconds?
The manual indicates that if the engine starts but stops soon, probable causes include improper intake/exhaust valve clearance, compression leakage from the valve seat, or a defective governor. Corrective actions involve adjusting valve clearance (See 2.2.6 (4) in Chapter2.), lapping the valve seat (See 4.2.6 in Chapter4.), or making governor adjustments.
What causes a Mustang MTL16 to run with no hydraulics?
A complete failure of all hydraulic systems can be caused by insufficient hydraulic oil, a faulty hydraulic pump (P4), a faulty fuse, a faulty proximity switch, a faulty lever lock solenoid, a faulty control valve (sub), or a faulty pilot valve. Troubleshooting involves checking these components and replacing them if necessary.
How do I troubleshoot a Mustang MTL16 flashing warning light?
To troubleshoot a flashing warning light, specifically the alternator charge lamp, the manual suggests checking the rotor coil and brush IC-RG, or inspecting and replacing the fan belt and alternator if necessary. The lamp is expected to turn off once the issue is resolved.
How quickly can I access this Mustang MTL16 manual after buying?
You get a 755-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone — bring it right to the shop floor.
Am I able to print pages from this Mustang MTL16 manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.

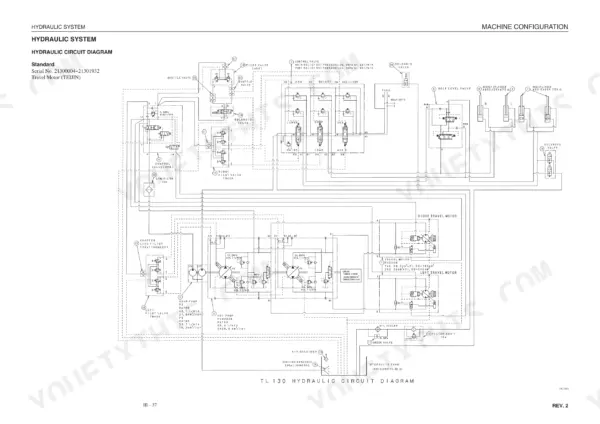

Are hydraulic system diagrams in this Mustang MTL16 Service Manual?
Yes. The manual includes hydraulic circuit diagrams, system schematics, and component specifications with pressure ratings.
Document Quality
This document is a scanned PDF with an OCR layer, allowing you to search and copy text. The text is generally crisp and readable, though some pages show minor OCR artifacts. Diagrams and illustrations are mostly raster images, which means they may appear slightly pixelated when zoomed in, but labels are generally clear. Most pages are clean, but some exhibit minor scan artifacts or slight skewing. There are a few blank pages, primarily at the end of sections, serving as filler.
