Mustang 2026, 2041 Service Manual (incl. Wiring)

$39.99 USD · one-time payment

Model: 2026 | 2041
Type: Skid-Steer Loader
164 Pages·39 MB·Searchable PDF·English·Print-Ready
  • ✓ Wiring Diagrams
  • ✓ Hydraulic Schematics
  • ✓ Torque Specs
  • ✓ Multi-Level Bookmarks (2-level navigation)
Preview Sample Pages (PDF)
Add to Cart

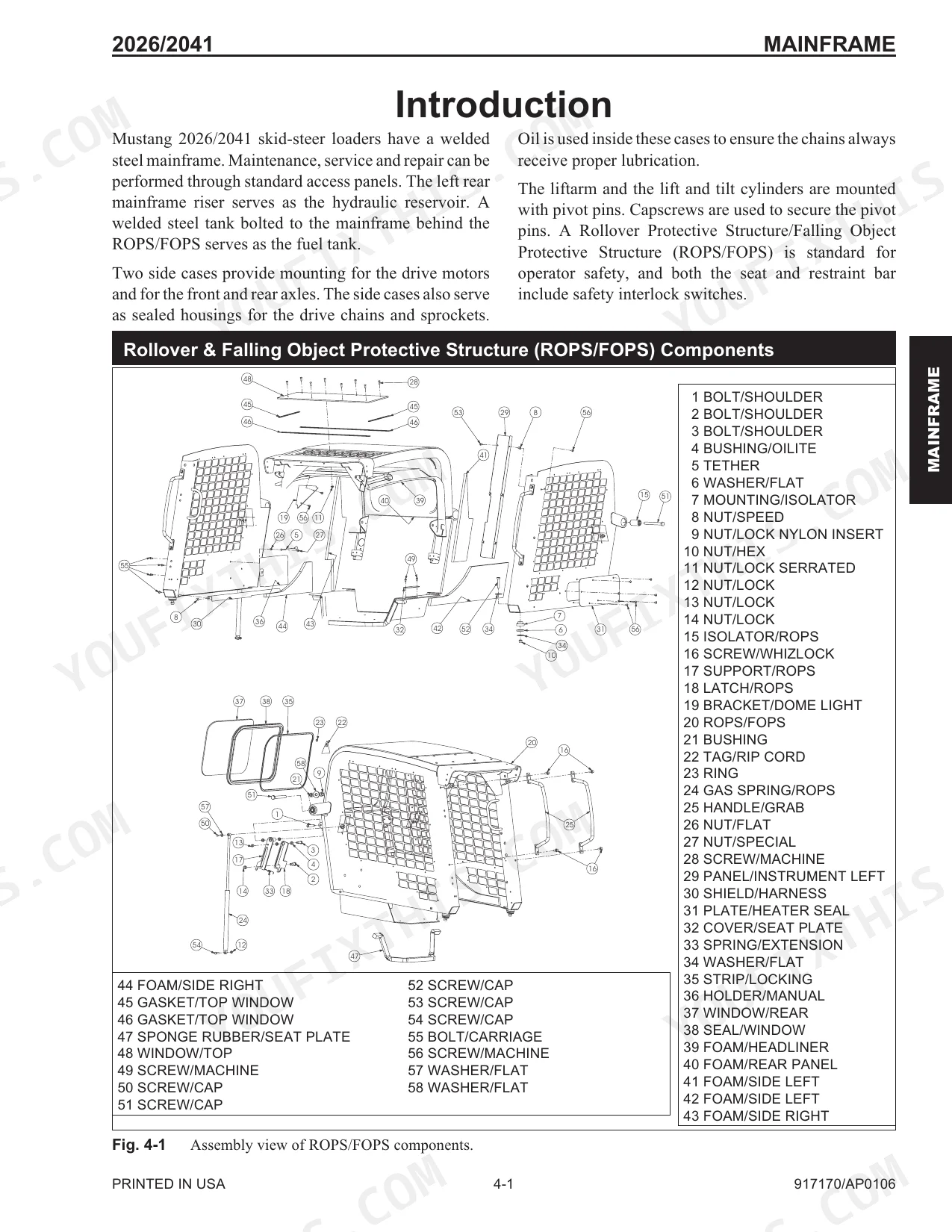

Mustang 2026, 2041 exploded view diagram of ROPS/FOPS components, including windows, seals, and hardware parts list.
Mustang 2026, 2041 Service Manual (incl. Wiring)
$39.99

Instant Download 24/7

  • Works on PC, Mac, tablet, and phone.
  • Download once, keep forever



Guaranteed Safe Checkout
Visa Mastercard PayPal Apple Pay Google Pay

This is the factory service manual for the Mustang 2026 and 2041 skid-steer loaders, part number 917171, covering 164 pages of service, testing, and adjustment for the machines and their Yanmar 3TNV88-XMS2 and 4TNV88-XMS2 engines.

Sections cover specifications, safety, lubrication, the mainframe and liftarm, wheel drives and chaincases, the operator controls, the hydrostatic drive, the work hydraulic system, the electrical system, and the engine. Reference data includes fluid capacities, the 190 bar main hydraulic system pressure, the 163 N.m wheel nut torque, and drive chain deflection settings.

Owners and mechanics can use it to test and adjust the hydrostatic and hydraulic circuits, set drive chain tension, troubleshoot electrical relays and switches, and service the Yanmar engine. The PDF is searchable and bookmarked, so you can locate a procedure quickly and print just the pages you need for the job.

What's Inside This Manual

SystemPagesKey Topics
Introduction2-6Manual Purpose and Scope, Manual Structure and Content, Safety and Hazards, Assistance and Contact Information, Trademark Notice, Tire Options, Buckets and Capacities, Safety
Specifications7-8Tire Options, Buckets and Capacities, General Specifications
Safety9-16
Lubrication17-20Hydraulic Oil Reservoir, Crankcase Oil, Hydraulic Oil Tank Drain Procedure, Chaincases, Chaincase Oil Change Procedure, Grease Fitting Locations, Cooling System Drain Procedure
Mainframe21-40Introduction, Engine Access Cover Removal and Installation, Rollover Protective Structure Removal and Installation, Seat Removal and Installation, Seat Slide Replacement
Wheel Drives41-46Introduction, Drive Chain Adjustment, Drive Chain Removal and Installation, Axle Removal and Installation
Controls47-68Introduction, Control Handle Removal and Installation, Control Handle Position and Tracking Adjustment, Dual Control Weldment Removal and Installation - T-Bar Controls
Hydrostatic System69-80Introduction, Troubleshooting Guide, Charge Pressure Test and Adjustment, Hydrostatic Pump Relief Valves, Drive Motor Hot-Oil Shuttle Valve
Hydraulic System81-112Introduction, Troubleshooting Guide, System Pressure Test - Control Valve, Tilt Cylinder Test, Self-Leveling Valve Test, Self-Leveling Valve Adjustment, Lift Cylinder Test
Electrical System113-132Introduction, Operation, Troubleshooting Guide, Relay Test and Operation, Electrical Circuits, Seat Switch Removal and Installation, Restraint Bar Switch Removal and Installation
Engine133-154Introduction, Troubleshooting Guide, Engine Oil Filter Element Removal and Installation, Air Cleaner Assembly Removal and Installation, Air Filter Element Removal and Installation
Back Cover164Mustang Manufacturing Company, Inc., Address, Website, Copyright Notice

Quick Reference Specifications

SpecificationValuePage
All Models
Wheel nut torque120 ft.-lbs. (163 N•m)p. 44
Engine Oil Filter Element Replacement Intervalevery 250 hours of servicep. 18
Engine Air Filter Element Replacement Conditionwhen restriction gauge shows in the red zonep. 139
Antifreeze Coolant Mixture50% water, 50% ethylene glycolp. 17
Chaincases Oil Capacity (each)7.6 Lp. 7
Hydraulic Reservoir Capacity30 Lp. 7
Main Hydraulic System Pressure190 barp. 7
Starter Power2.0 kWp. 7
2026
Engine Oil Capacity, 20267.6 US qts. (7,2 L)p. 7
Fuel Tank Capacity, 202639 Lp. 7
2041
Engine Oil Capacity, 20419.1 US qts. (8,6 L)p. 7
Fuel Tank Capacity, 204147 Lp. 7
BrandMustang
Model2026, 2041
Machine TypeSkid-Steer Loader
Manual TypeService Manual
LanguageEnglish
FormatSearchable PDF (Digital Download)
Pages164
File Size39 MB
Manual No.917171
Wiring DiagramsYes
Hydraulic SchematicsYes
Torque SpecificationsYes
Bookmarked / IndexedYes
