New Holland Boomer 3040, 3045 Operator Manual — Wiring Diagrams

$19.99 USD · one-time payment

Model: Boomer 3040 | Boomer 3045
Type: Tractor
157 Pages·6.3 MB·Searchable PDF·English·Print-Ready
  • ✓ Wiring Diagrams
  • ✓ Torque Specs
  • ✓ Multi-Level Bookmarks (2-level navigation)
Preview Sample Pages (PDF)
Add to Cart
New Holland Boomer 3040, Boomer 3045 engine, capacity, and air conditioning system technical specifications table.
New Holland Boomer 3040, 3045 Operator Manual — Wiring Diagrams
$19.99

Instant Download 24/7

  • Works on PC, Mac, tablet, and phone.
  • Download once, keep forever



Guaranteed Safe Checkout
Visa Mastercard PayPal Apple Pay Google Pay

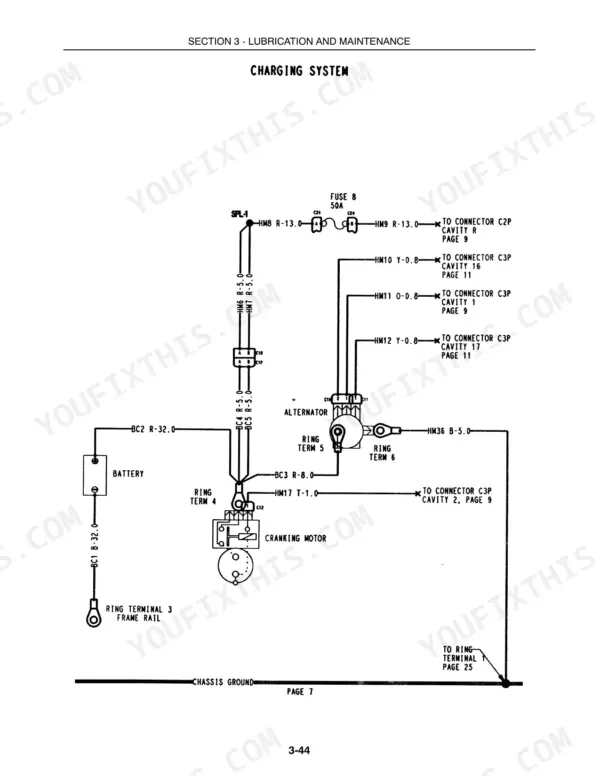

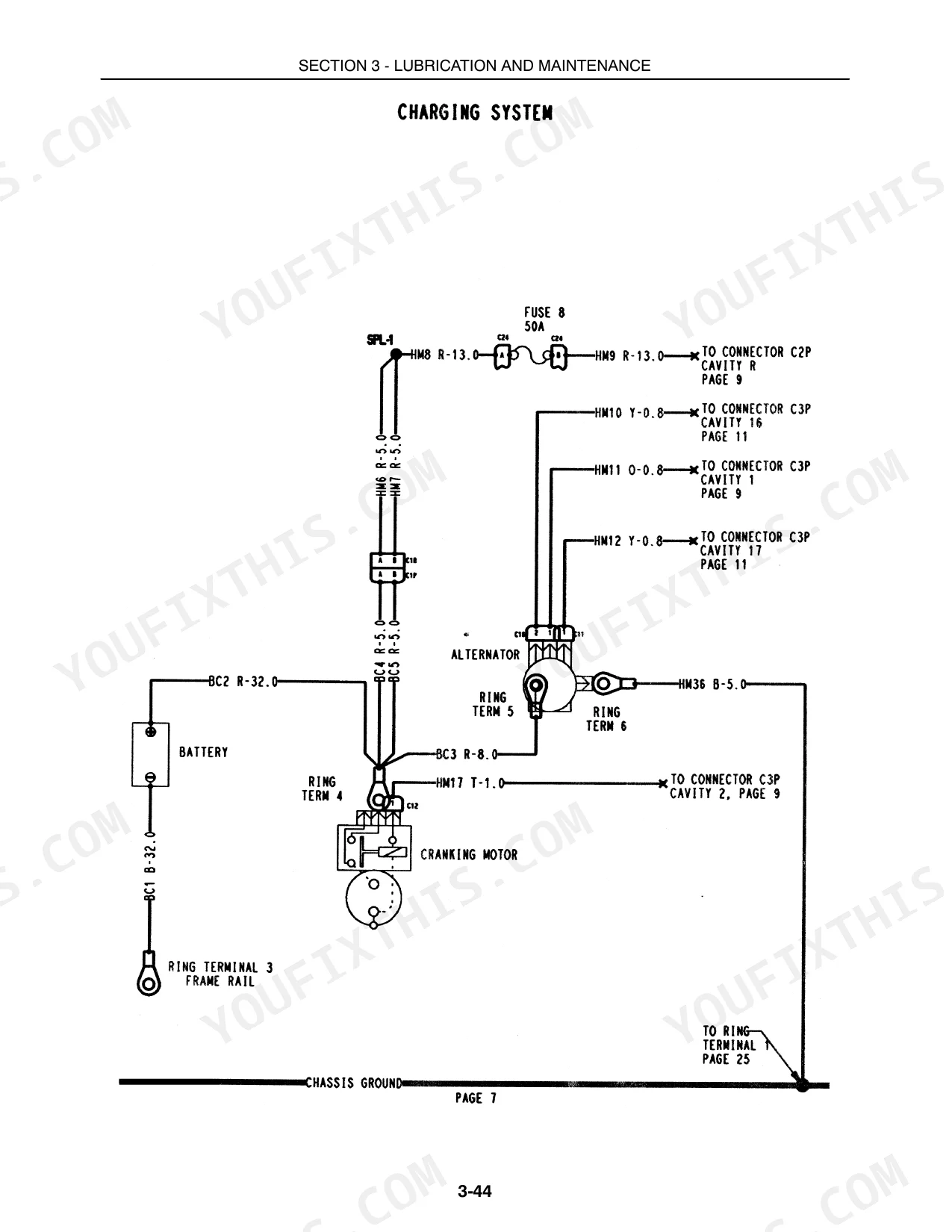

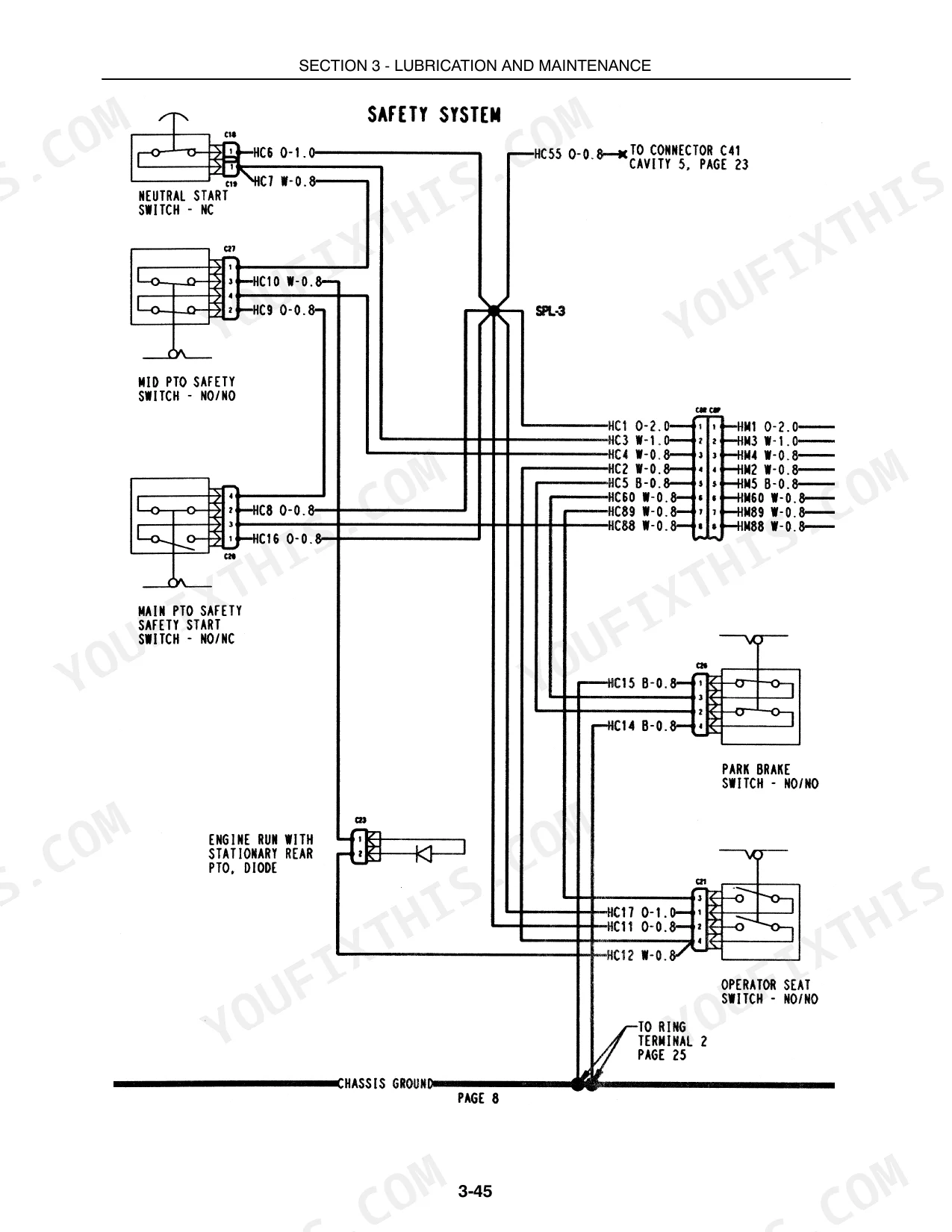

Halfway through first cutting a warning lamp lights on the dash, and the paper book that explained it left with your tractor's previous owner. This New Holland Boomer 3040, Boomer 3045 operator manual PDF puts the factory answer back in the cab: 157 pages, OEM 87477123, covering both compact tractors. Factory wiring diagrams trace each circuit from the ignition switch through the lighting harness, while lubrication and maintenance, the largest section in the book, lays out fuel and lubricant service, air cleaner care, and every scheduled interval. Keep the battery electrolyte 6.35 mm (1/4 in) above the plates and pull wheel hardware to 129 N·m (95 ft-lb), both straight off the spec tables. Rain is coming and the job stalls for one number. One bookmarked, text-searchable download, bought once, and it stays yours for as long as the tractor does.

What's Inside This Operator Manual

SystemPagesKey Topics
Safety7-23Precautionary Statements, Working Safely
General Information24-27Minimum Hardware Tightening Torques
Operation28-77Seat and Seat Belt, Instrument Control Panel, Lighting
Lubrication and Maintenance78-139Fuel and Lubricant Service Procedures, Air Cleaner

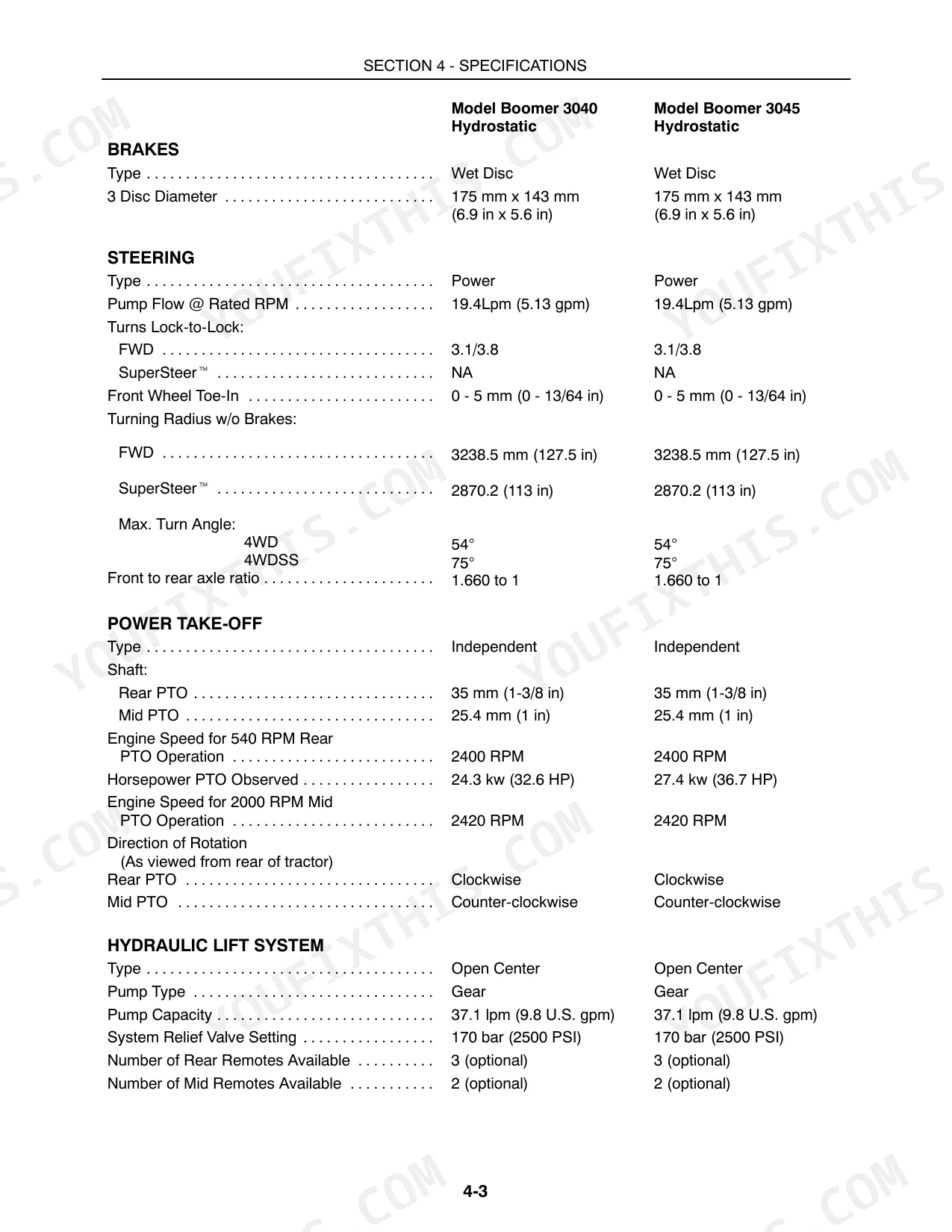

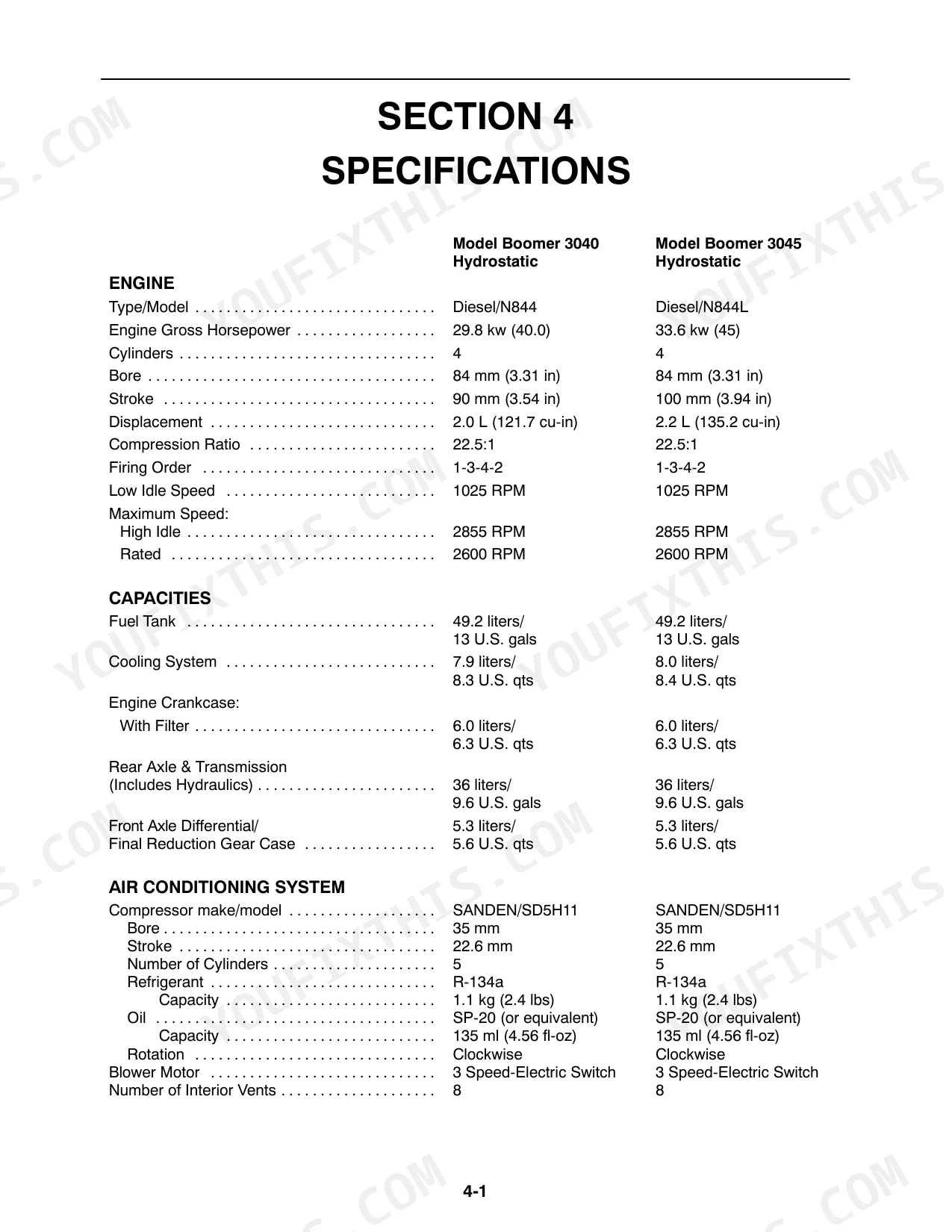

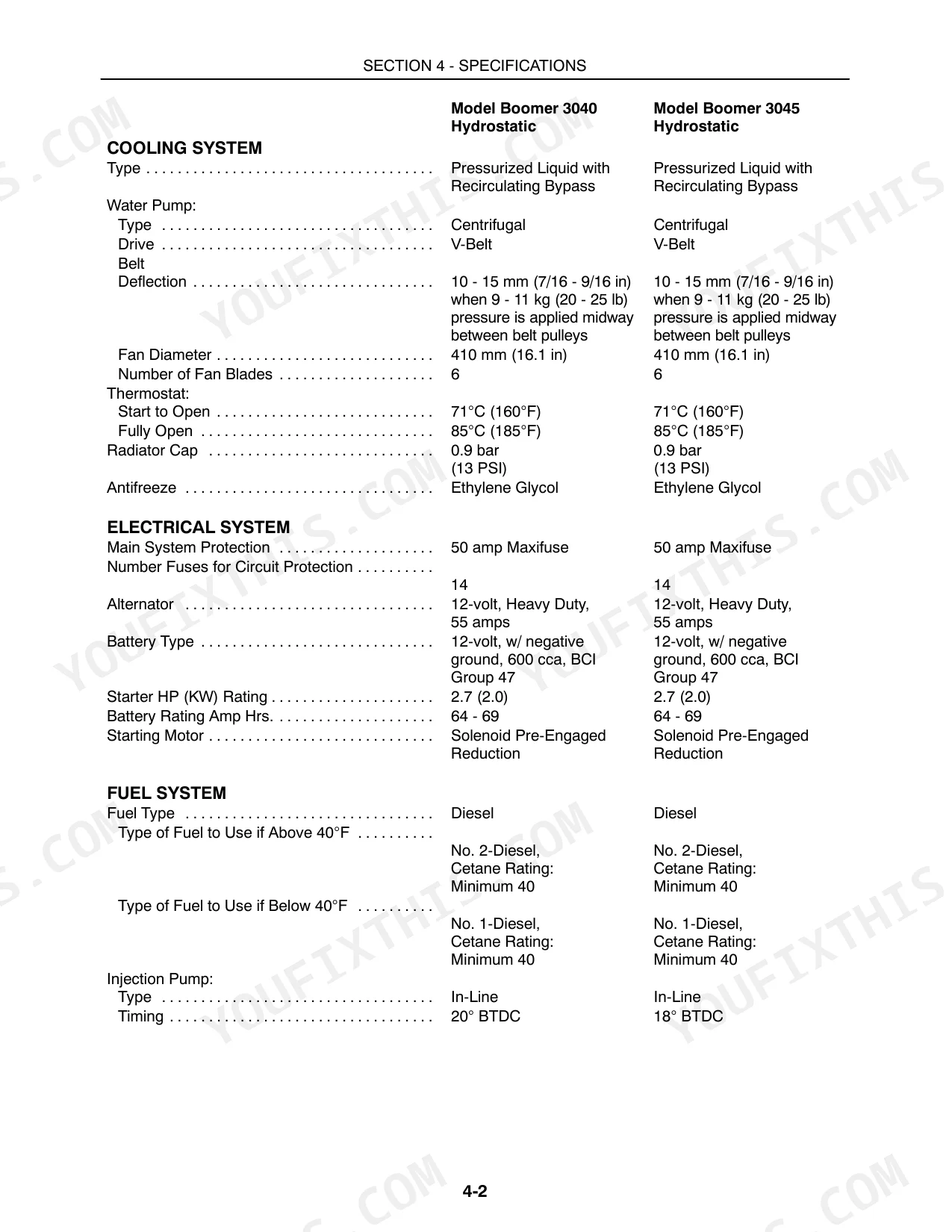

Specifications140-151Engine, Cooling System
Delivery Report154-157Inoperative Service Checks, Safety Items Checks, Operative Service Checks, Fluid and Oil Leaks, Speed Adjustments

Quick Reference Specifications

SpecificationValuePage
All Models
Front Wheel Torque129 N·m (95 ft-lb)p. 108
Rear Wheel Torque129 N·m (95 ft-lb)p. 108
Battery Cold Cranking Amps600 amps at -18°C (0°F)p. 98
Battery Electrolyte Level6.35 mm (1/4 in) above the platesp. 98
Thermostat Start to Open71°C (160°F)p. 141
Thermostat Fully Open85°C (185°F)p. 141
Fuel Tank Capacity49.2 liters (13 U.S. gals)p. 140
Rear Axle & Transmission Oil Capacity36 liters (9.6 U.S. gals)p. 140
Boomer 3040
Engine Gross Horsepower (Boomer 3040)29.8 kw (40.0)p. 140
Cooling System Capacity (Boomer 3040)7.9 liters (8.3 U.S. qts)p. 140
Boomer 3045
Engine Gross Horsepower (Boomer 3045)33.6 kw (45)p. 140
Cooling System Capacity (Boomer 3045)8.0 liters (8.4 U.S. qts)p. 140
BrandNew Holland
ModelBoomer 3040, Boomer 3045
Machine TypeTractor
Manual TypeOperator Manual
LanguageEnglish
FormatSearchable PDF (Digital Download)
Pages157
File Size6.3 MB
Manual No.87477123
Wiring DiagramsYes
Hydraulic SchematicsNo
Torque SpecificationsYes
Bookmarked / IndexedYes
