![New Holland TC30 Repair Manual (S-N HK30001+ Z6NGC1001+) [Tractor]](https://youfixthis.com/wp-content/uploads/2017/08/2017-08-10_13-20-53-300x300.jpg)
Part of the New Holland Repair Manuals.
Getting your tractor back to work requires the exact factory procedures found inside this 592-page New Holland TC30 service manual PDF. You get complete hydraulic schematics for the hydrostatic transmission, full wiring diagrams to trace stubborn electrical faults, and detailed troubleshooting charts for every major system. Open up to page after page of exploded views, maintenance schedules, and step-by-step tear-down procedures for the engine, clutches, and front-wheel drive axle. Lock down the cylinder head bolts to exactly 88-94 N-m (65.1-69.3 ft. lbs.) and verify your shim thickness sits right at 0.25 mm before closing up the assembly. Stop wasting shop hours tearing into a gearbox blind. Download this bookmarked document directly to your tablet, jump straight to the right specifications, and start turning wrenches.
What's Inside This New Holland TC30 Manual

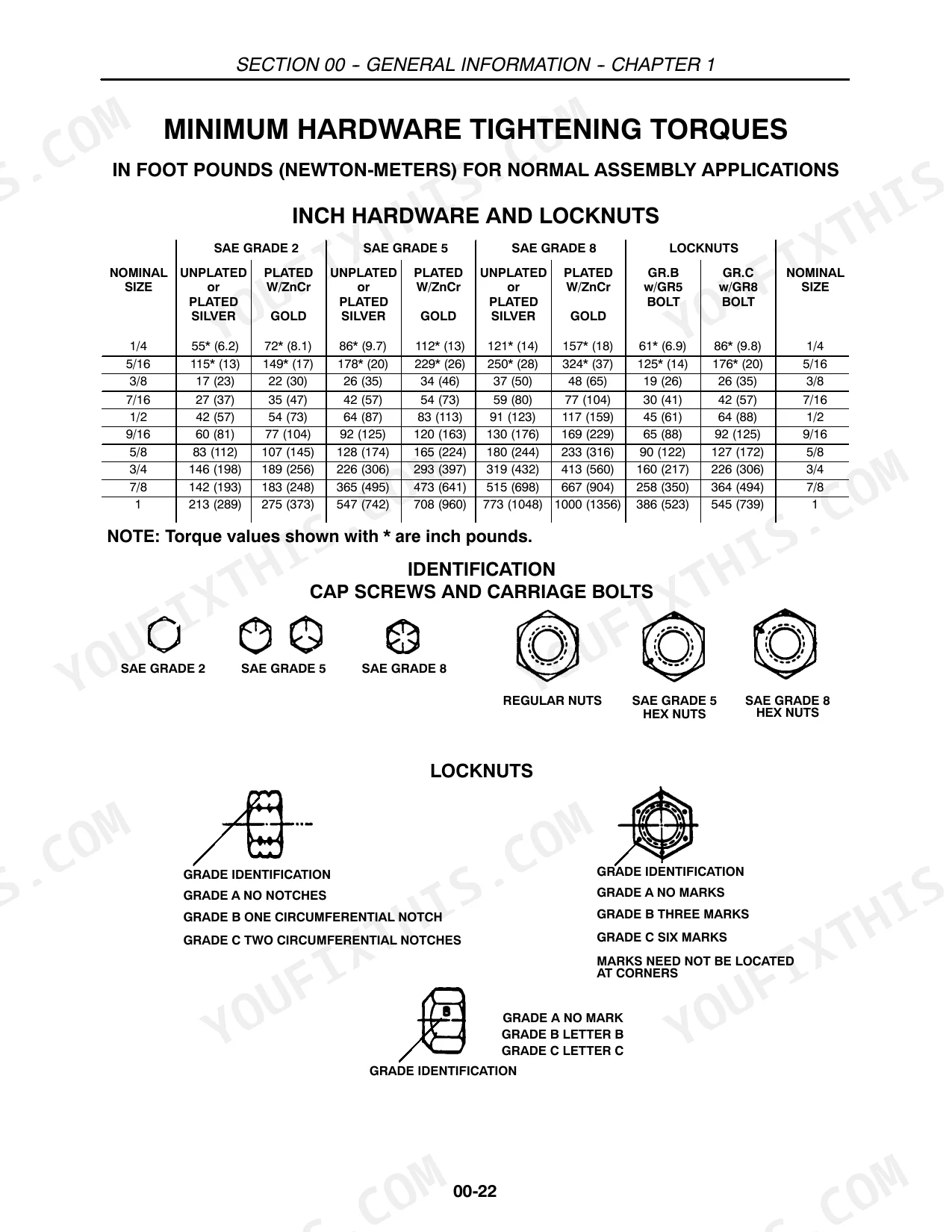

| System | Pages | Key Topics |
|---|---|---|
| General Information | 21-46 | Introduction, Precautionary Statements, Safety, Tractor, Servicing the Tractor, Operating the Tractor, Driving the Tractor |

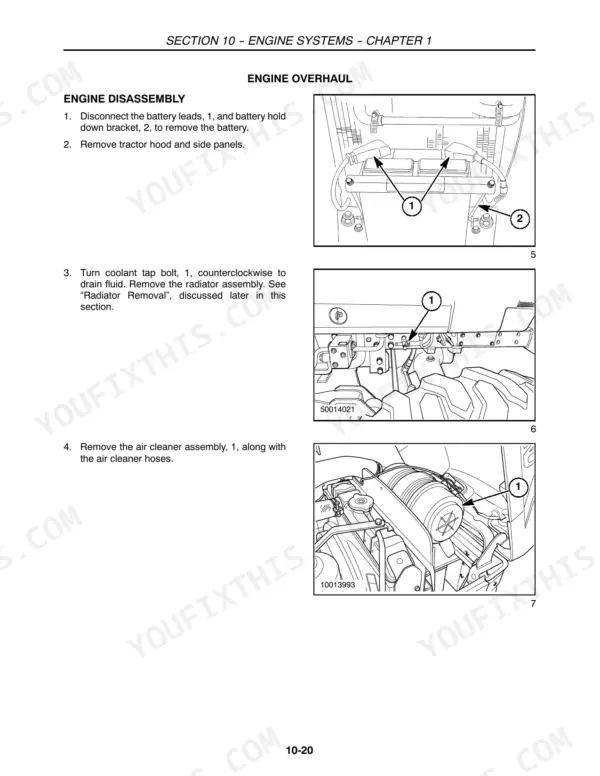

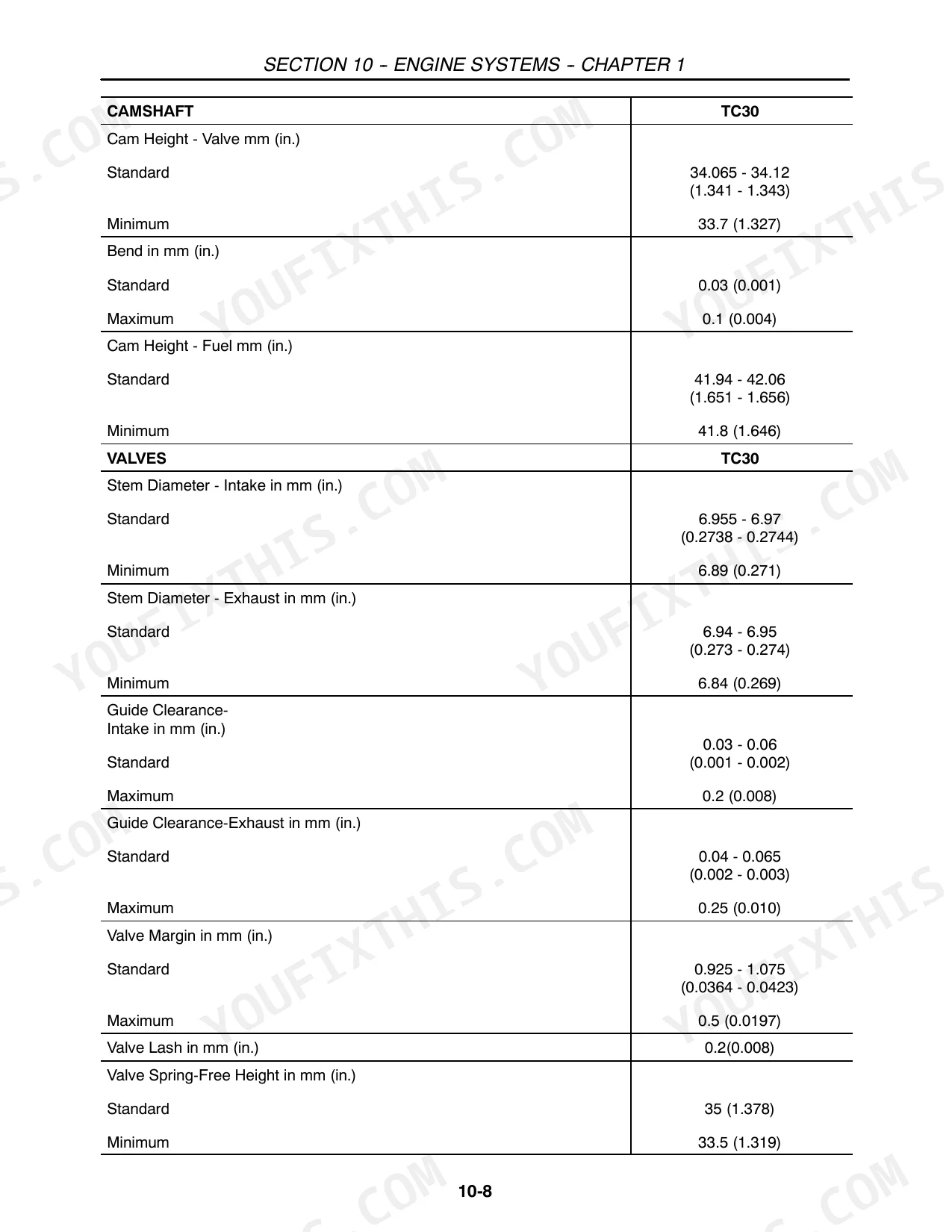

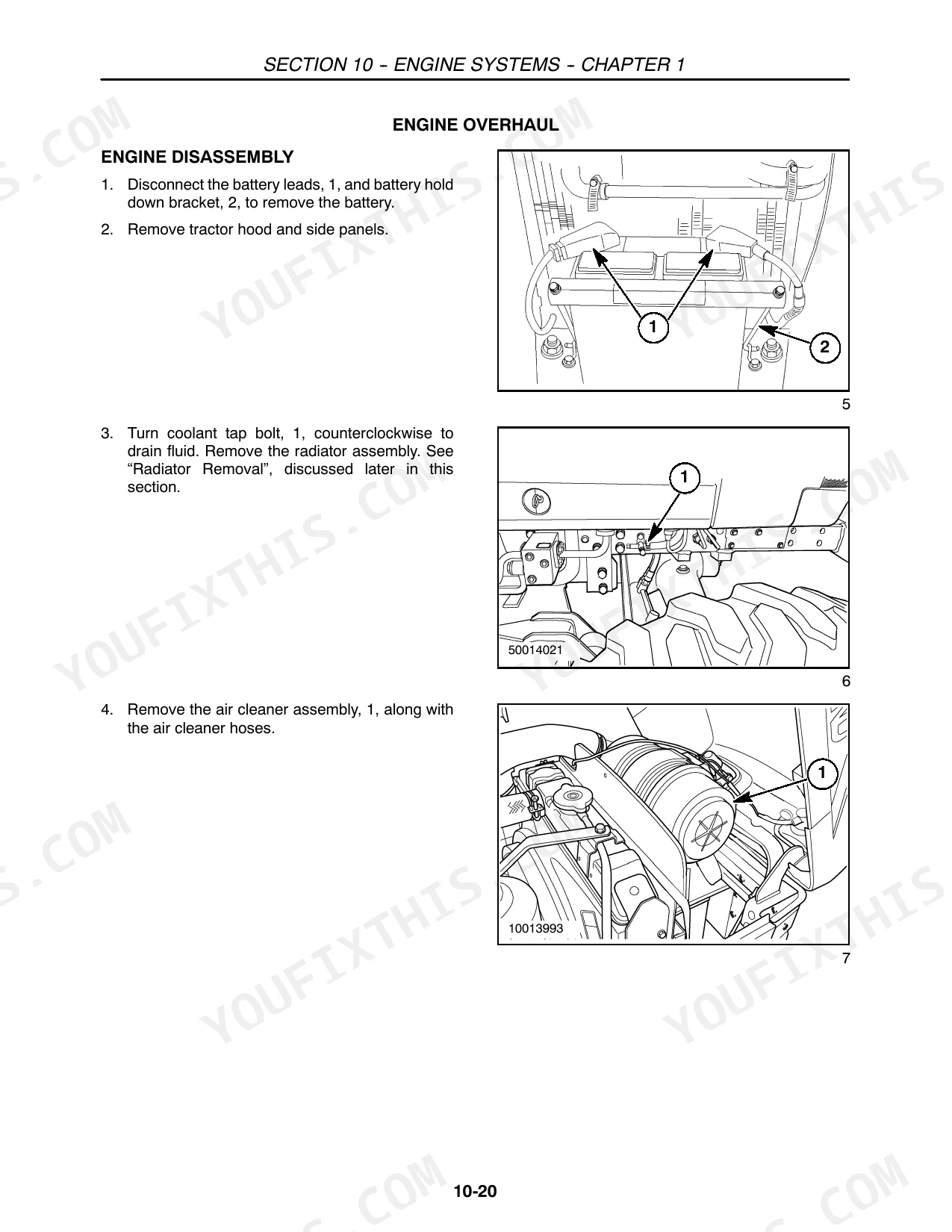

| Engines Systems | 47-156 | Engine Overhaul, Fuel System, Cooling System, Engine Lubrication System, Crankshaft, Pistons |
| Clutches | 157-176 | Single Clutch, Double Clutch, Clutch Pilot Bearing, Clutch Release Bearing, Clutch Linkage Components, Clutch Pedal Bushings |
| Gear Transmission | 177-198 | 9 X 3 Gear Transmission, Input Shaft Removal, Main Transmission Shift Lever, Lever Overhaul, General Bolt Torque Specifications |

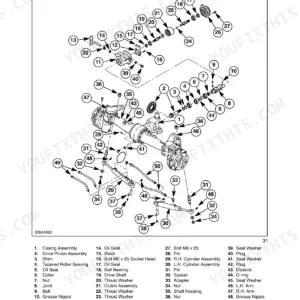

| Front-Wheel Drive Axle | 199-218 | Front-Wheel Drive Front Axle, Reduction Gear - Drop Box, Front Axle and Differential, Drive Pinion Assembly, Differential Case Bearing Pre-Load, Ring Gear-To-Pinion Backlash |
| Differential, Rear Axle | 219-238 | Differential Lock, Differential Overhaul, Rear Axle Overhaul, Seal Installation, Specifications, Bolt Torque Specifications |
| Hydrostatic Transmission | 239-288 | Variable Displacement Pump, Fixed Displacement Motor, Fluid Flow, Overhaul, Port Block, Pressure Tests |
| Power Take-Off Systems | 289-308 | Transmission Drive Power Take-Off, Live Power Take-Off, Power Take-Off Overhaul, Power Take-Off Output Shaft, Mid-Mount Power Take-Off, Specifications |
| Brakes | 309-314 | Rear Axle and Brakes, Parking Brake, Brakes and Final Pinion Overhaul, Specifications |
| Hydraulic System | 315-366 | Hydraulic Fluid Filter, Combination System Relief - Diverter Valve Manifold Assembly, Control Valve Assembly (Hpl), Hydraulic Pump, Remote Valves, Pressure Testing |
| Steering Systems Power Steering | 367-402 | Power Steering System, Power-Steering Control Motor, Spool and Sleeve, Power Steering Pump, Power Steering Cylinder, Pressure Testing |
| Wheels and Tires | 403-418 | Two-Wheel Drive, Spindle Removal and Disassembly, Troubleshooting, Tread Settings, Tractor Weighting, Tire Pressure |
| Electrical System | 419-562 | Battery, Fuse Block, Key Switch, Hazard/Turn Signal Combination Switch, Safety Switches, Alternator Troubleshooting, Starter Motor Troubleshooting |
| Separating the Tractor | 563-576 | Front Axle Removal, Separating the Tractor Between the Engine and Clutch Housing, Transmission Removal and Installation, Hydrostatic Gearbox Removal |
| Platform | 577-592 | Hood, Steering Wheel, Dash Panel, Seat, Roll Over Protection System (ROPS), Fuel Tank |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Flywheel Bolts | 59.0 - 69.0 N·m (43.4 - 51.0 ft. lbs.) | p. 56 |
| Head Bolts | 88 - 94 N·m (65.1 - 69.3 ft. lbs.) | p. 56 |
| flywheel retaining bolts | 58 - 68 N·m (43 - 50 ft. lbs.) | p. 96 |
| fuel injectors | 60 - 69 N·m (55-51 ft. lbs.) | p. 103 |
| shim thickness | 0.25 mm (0.010") | p. 54 |
| Nozzle nut torque | 29 - 33 ft. Ibs. | p. 155 |
| Injector pressure setting | 118 bar (1706 psi) | p. 155 |
| clutch disc lining wear limit | 0.3 mm (0.012") | p. 160 |
| Pump Flow | 23.3 (6.2) LPM (GPM) | p. 339 |

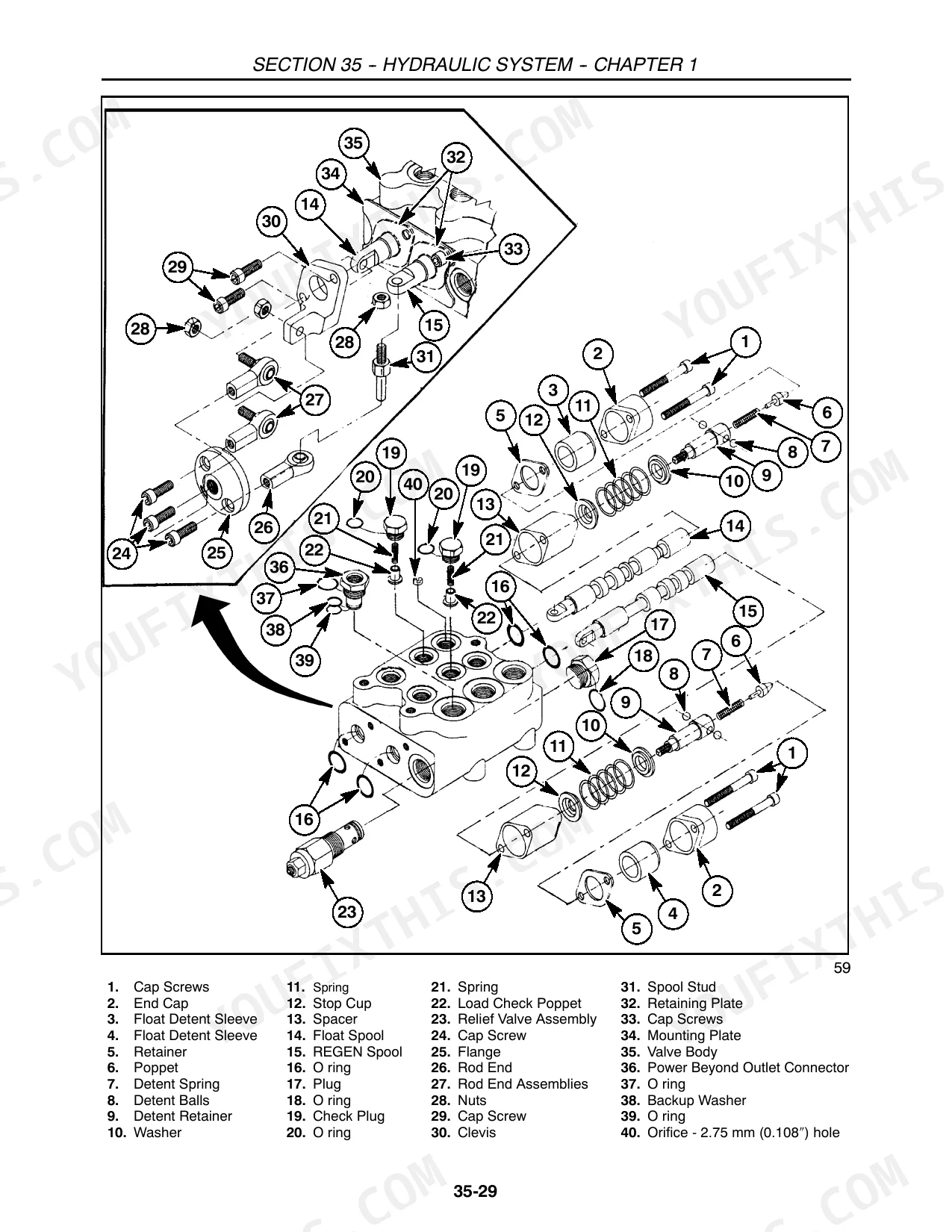

| Orifice | 2.75 mm (0.108") hole | p. 343 |
| Remote relief valve pressure | 121 bar (1750 psi) | p. 347 |
| Hydraulic pressure setting | 121 bar (1750 psi) | p. 361 |
New Holland TC30 Common Problems This Manual Covers
New Holland TC30 hydraulic lift arms lose power and require repeated bleeding to clear trapped air
Check the remote relief valve pressure at the test port; it should hold steady at 121 bar (1750 PSI) as specified on page 347. Loosen the bleed screw at the lift cylinder and cycle the arms fully up and down five times to purge trapped air from the circuit. If pressure still reads low and error E01 triggers, pull the pump inlet screen and inspect the O-rings for the source of air ingress.
Manual Section: Hydraulic System p. 347Whirring or grinding gear noise coming from the transmission grows louder as load increases
Inspect the clutch disc lining for wear; replace the disc once thickness drops below the 0.3 mm (0.012 inch) minimum listed on page 165. Check the clutch pressure plate attaching bolts for looseness and torque them to 22.6-28.4 N·m (16.6-21 ft. lbs.) per page 161. A worn disc or loose pressure plate lets the flywheel rattle under load, which reads as gear whirr.
Manual Section: Clutches p. 161Engine loses coolant from a cracked cylinder head water jacket or corroded core hole plugs
Check the troubleshooting chart for engine overheating causes before condemning the head. Drain the cooling system and pressure test the block; the radiator cap seals at 0.9 bar (13 PSI), so use a tester rated to that spec to isolate the leaking core plug. Remove any corroded core hole plugs, clean the bore, and press in new plugs sealed with anaerobic sealant before refilling.
Manual Section: Engines Systems TroubleshootingPTO shaft fails to engage fully or loses power when placed under load
Measure the PTO clutch release adjusting bolt-to-pressure-plate gap; it should read 1.4-1.5 mm (0.055-0.060 inch) as specified on page 167. Inspect the rear PTO shaft, sized at 35 mm (1-3/8 inch), for spline wear or rounding. Adjust the release bolt gap if the PTO slips or won't fully disengage, and replace the shaft once the splines show damage.
Manual Section: Clutches p. 167Engine cranks slowly or won't turn over at all during cold weather startups
Check the troubleshooting chart for engine no-start conditions before pulling the starter. Test battery voltage and clean corroded terminal connections, since a weak charge is the most common cause of slow cranking in cold weather. Confirm the crankcase is filled with the correct cold-weather viscosity oil; capacity with filter is 4.0 liters (4.2 U.S. qts) per page 56. Replace the battery if it won't hold a charge under load.
Manual Section: Engines Systems TroubleshootingFrequently Asked Questions
What is the specified torque for the New Holland TC30 engine head bolts?
The engine head bolts for the New Holland TC30 should be tightened to a torque of 88 - 94 N⋅m (65.1 - 69.3 ft. lbs.). This ensures proper sealing and assembly of the cylinder head. p. 56
What are the diagnostic steps for an "Engine hard to start" condition on the New Holland TC30?

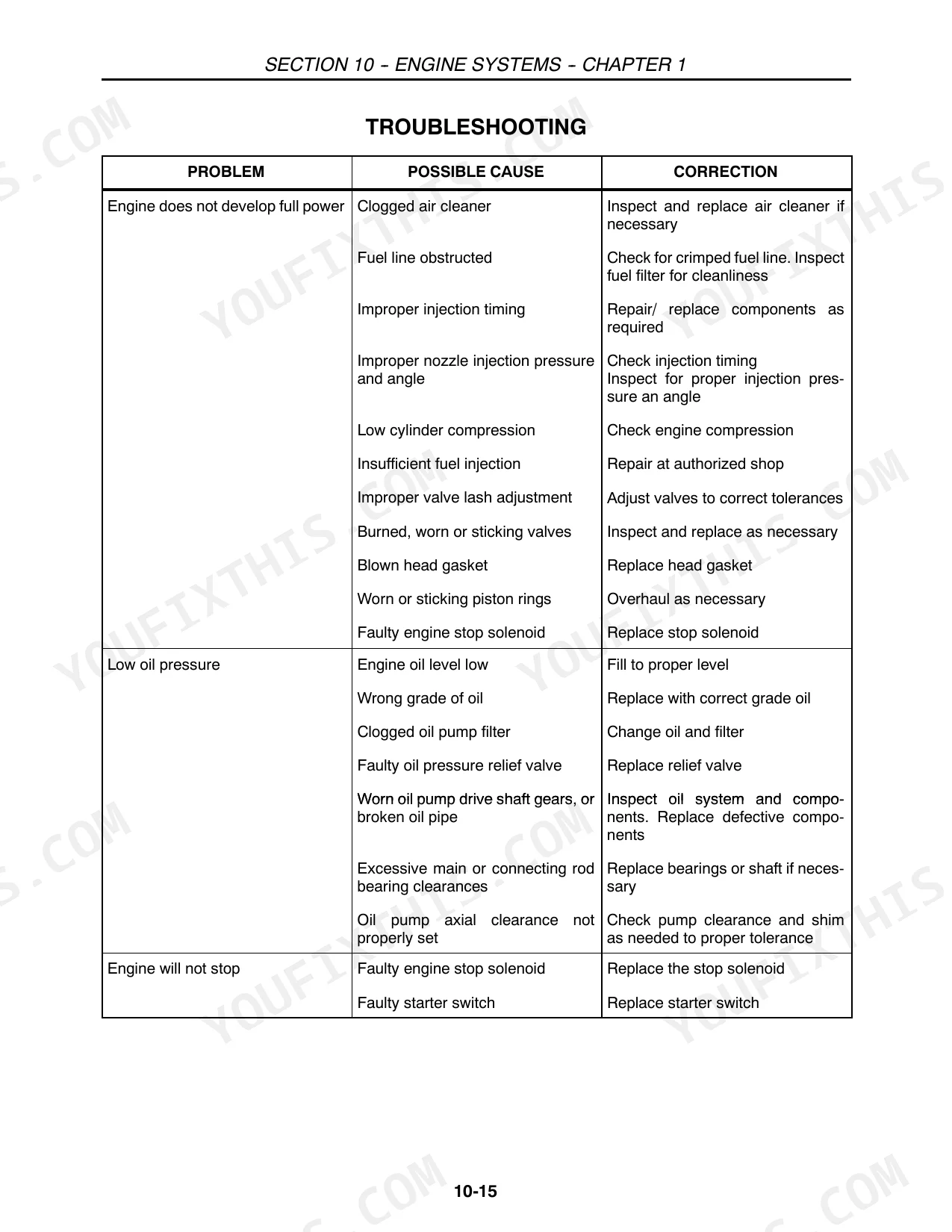

If the engine is hard to start, possible causes include low cranking speed, incorrect pump timing, restricted fuel filter, contaminated fuel, low compression, or air in the fuel system. Corrections involve checking cranking, pump timing, cleaning/flushing the fuel filter, checking for water in fuel, checking engine compression, and checking for air leaks in the suction side of the system. p. 61
How is the main system relief valve pressure adjusted on the New Holland TC30 hydraulic system?
The main system relief valve pressure can be adjusted by adding or removing shims. One shim of 0.2 mm (0.008″) thickness will change the pressure setting by approximately 7.0 bar (100 psi). The target pressure should be 147 ± 5 bar (2130 ± 70 psi). p. 361

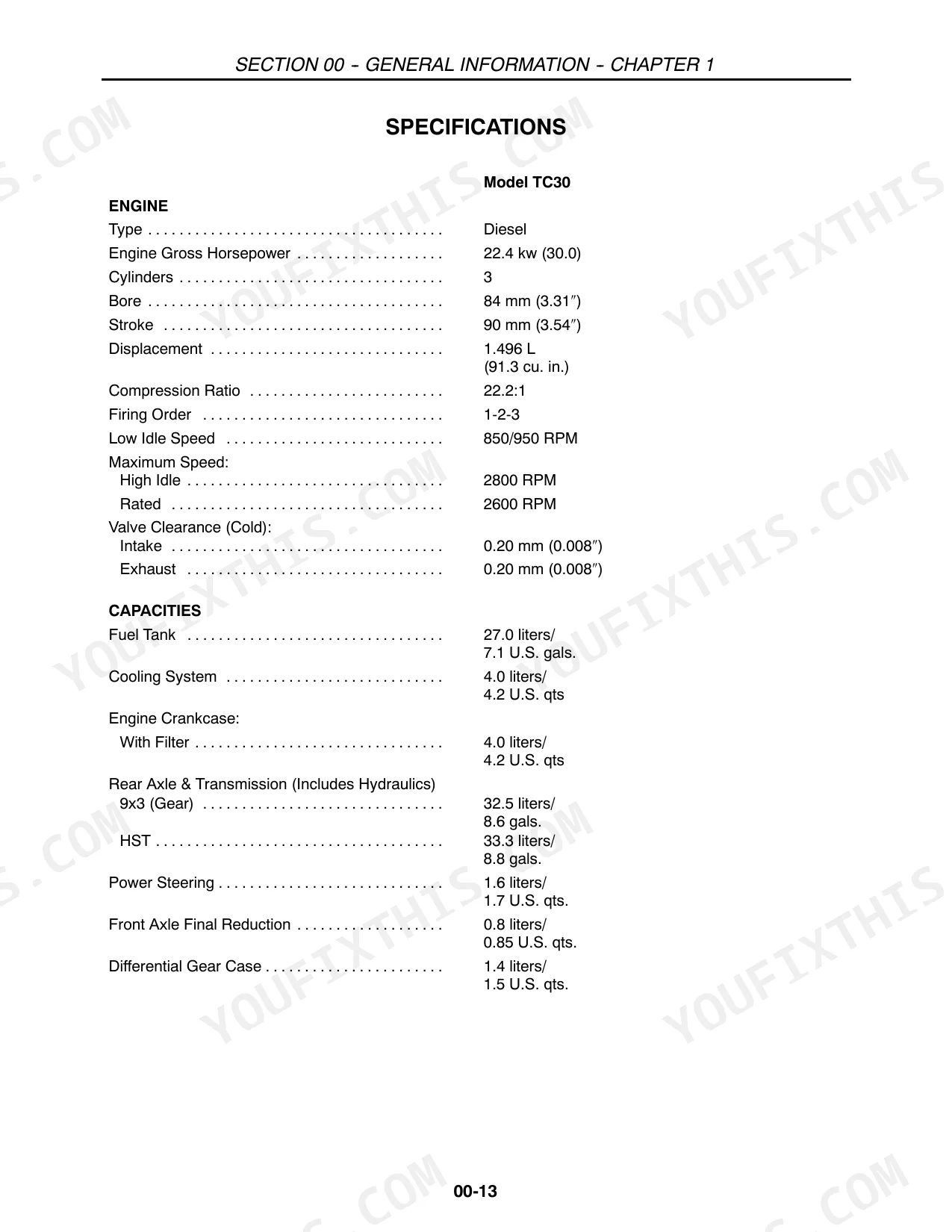

What is the engine oil capacity with filter for the New Holland TC30?
The engine oil capacity for the New Holland TC30, including the filter, is 4.0 liters (4.2 U.S. quarts). p. 33
How quickly can I access this New Holland TC30 manual after buying?
A 592-page Service Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Are there any print restrictions on this New Holland TC30 manual?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.

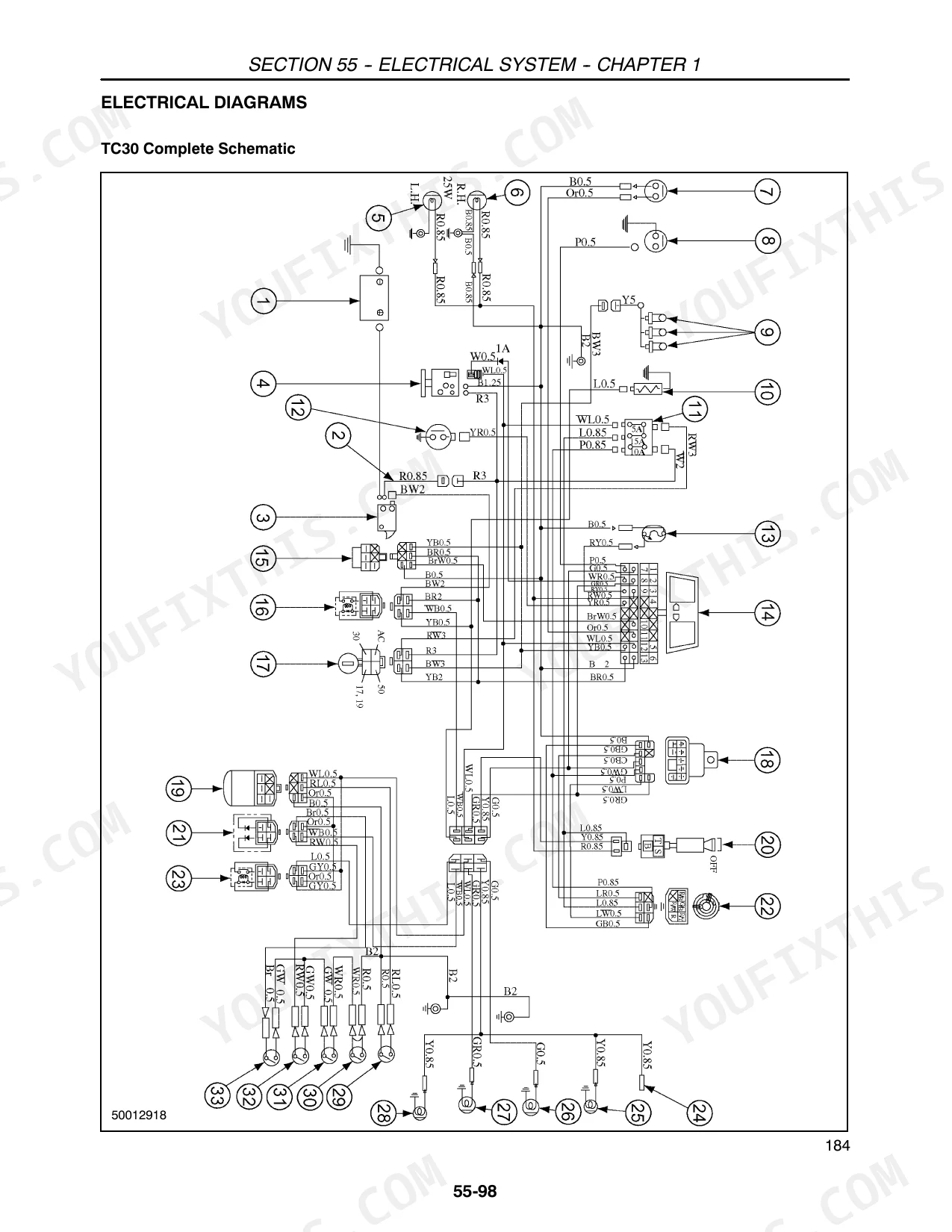

Are electrical wiring diagrams included in this New Holland TC30 Service Manual?
Yes. You'll find full electrical schematics with wire routing diagrams, connector identification, and circuit descriptions.
