Looking for a New Holland TC30 service manual PDF you can trust? This 828-page factory repair manual (OEM #87361959) breaks the TC30 compact tractor down system by system, from engine and clutch to hydrostatic transmission and the full electrical section. You get wiring diagrams with component testing procedures, hydraulic schematics with complete circuit descriptions, and step-by-step overhauls for the 9x3 gear transmission, FWD front axle, power steering, and PTO. Troubleshooting charts and torque tables run through every system. Set the system relief valve to 145 bar (2133 PSI) and confirm the pump is putting out 23.3 lpm (6.2 U.S. gpm) before you blame the lift cylinder. Tired of forum threads that almost match your tractor? This bookmarked PDF opens on any device; type a spec in the search box, jump straight to the section, and get back to wrenching.
What's Inside This New Holland TC30 Manual
| System | Pages | Key Topics |
|---|---|---|

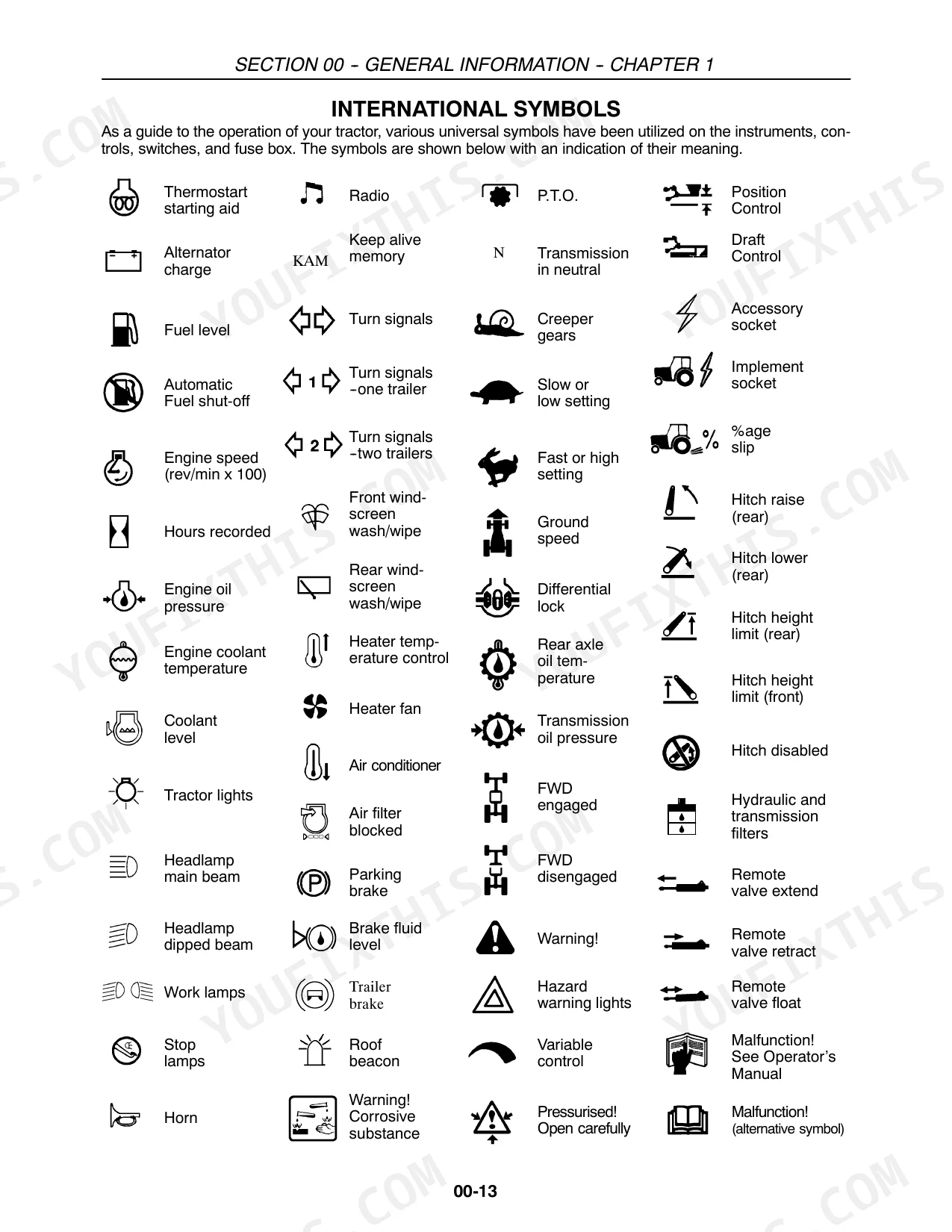

| General Information | 45-70 | Introduction, Precautionary Statements, Safety, Safety Decals, Instruction Decals, International Symbols, Specifications, Minimum Hardware Tightening Torques |

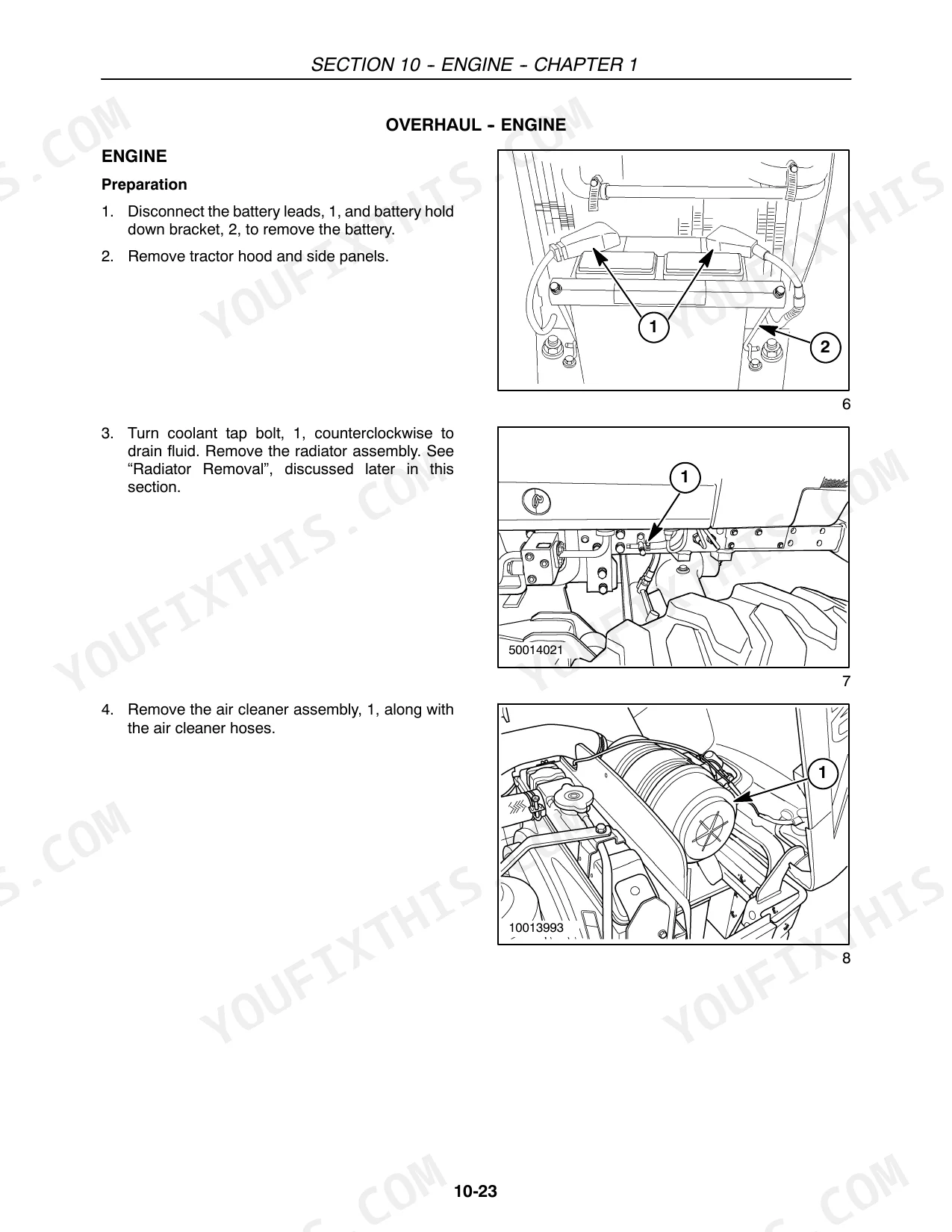

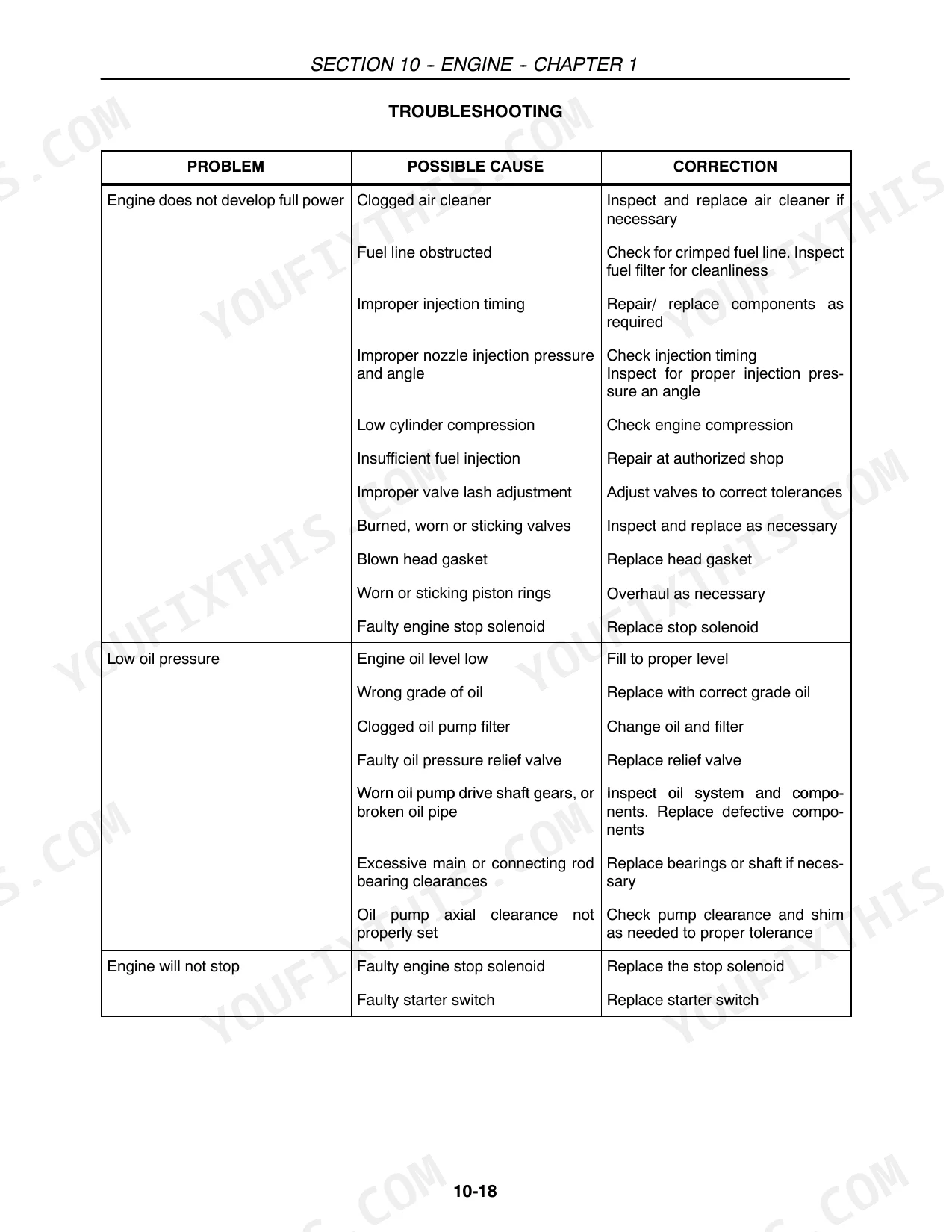

| Engine | 71-190 | Specifications, Metric Bolt Torque Specifications, Engine Bolt Torque Specifications, Engine Fuel System Bolt Torque Specifications, Special Tools, Compression Test and Tools |
| Clutch | 191-214 | Single Clutch, Double Clutch, Clutch Pedal Assembly, Clutch Release Bearing, Clutch Pilot Bearing, Clutch Linkage Components |
| Gear Transmission | 215-242 | 9 X 3 Gear Transmission, Input Shafts, Countershafts, Main Shaft, Drive Pinion, Gear Shifter Rods |

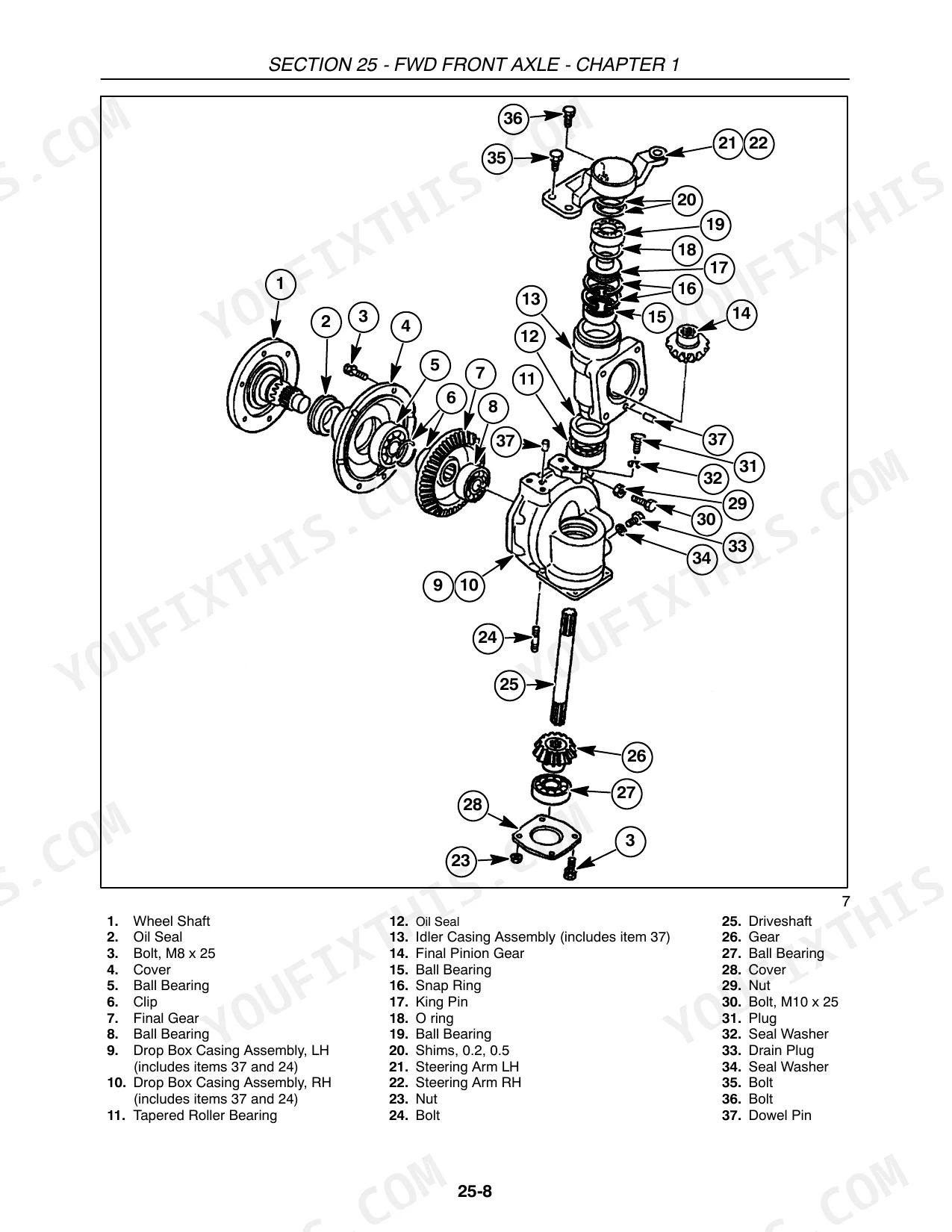

| FWD Front Axle | 243-266 | Operation - Front-Wheel Drive Front Axle, Troubleshooting, Overhaul, Reduction Gear - Drop Box, Front Axle and Differential, Drive Pinion, Front Axle, Differential |
| Differential, Rear Axle | 267-290 | Differential Assembly, Differential Lock, Drive Pinion, Rear Axle, Axle Seal, Center Housing |
| Hydrostatic Transmission | 291-348 | Operation - Hydrostatic Transmission, Variable Displacement Pump, Fixed Displacement Motor, Overhaul - Hydrostatic Unit, Hydrostatic Pump, Hydrostatic Motor |
| Power Take-Off Systems | 349-370 | Operation - Transmission Drive Power Take-Off, X 3 Gear Transmission - Single Clutch, Live Power Take-Off, Power Take-Off Drive - Hydrostatic Transmission |
| Brakes | 371-376 | Rear Axle and Brakes, Brake Operation, Parking Brake, Brakes and Final Pinion Overhaul, Brake Linkage Adjustment |

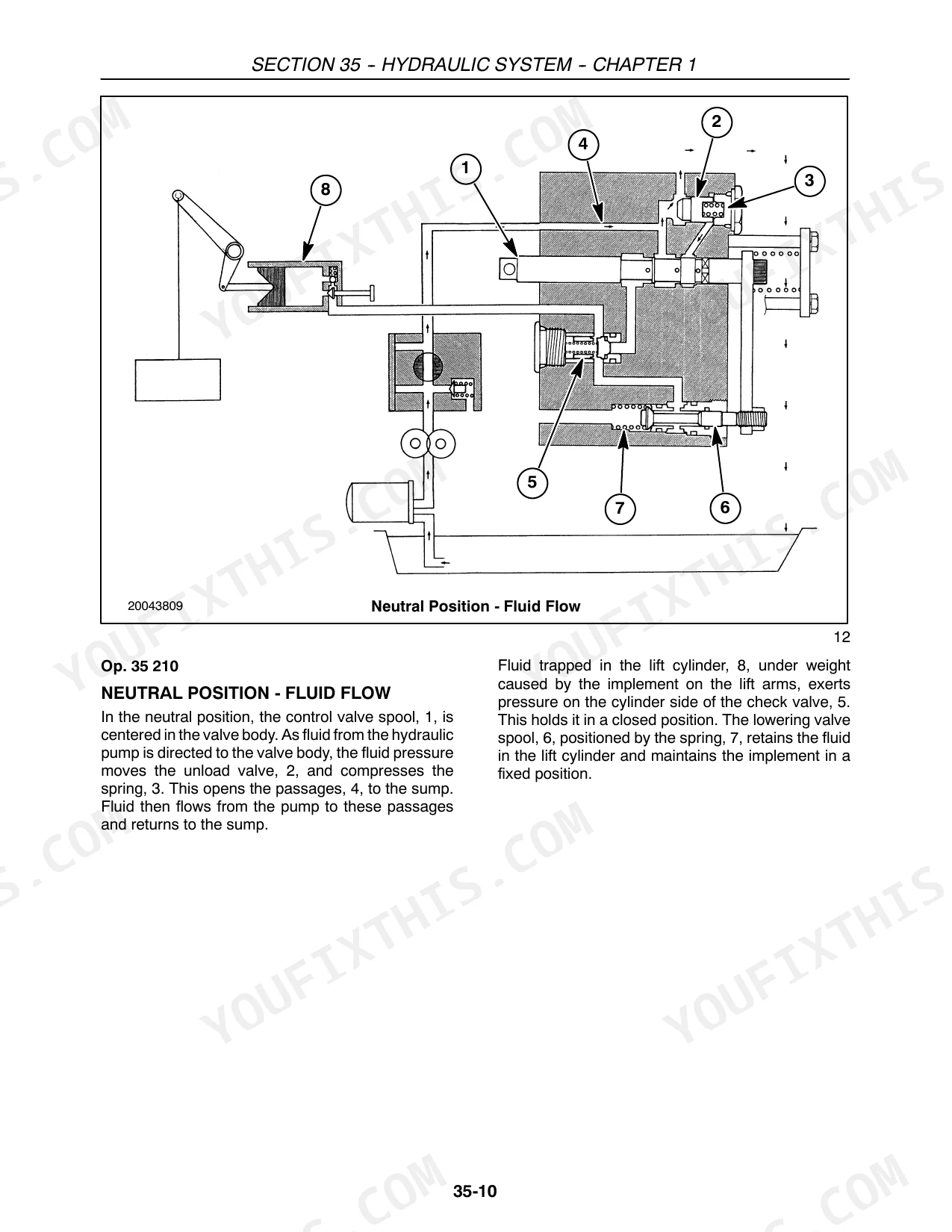

| Hydraulic System | 377-428 | Operation - Hydraulic System, Hydraulic Fluid Filter, Combination System Relief - Diverter Valve Manifold Assembly, Control Valve Assembly, Overhaul - Lift Cylinder, Lift Cylinder |
| Steering | 429-470 | Operation, Power Steering System, Power Steering Control Motor, Power Steering Pump, Power Steering Cylinder, Power Steering Operation, Overhaul, Steering Control Motor |
| Wheels, Tires and 2WD Axle | 471-488 | Operation, Two-Wheel Drive, Two-Wheel Drive Components, Overhaul, Front Wheel Hub, Spindle, Front Wheel Hub and Spindle, Separating the Tractor |
| Electrical System | 489-812 | Introduction, Component Location and Function, Description and Testing - Electrical System Components, Battery, Fusible Link, Fuse Block, Key Switch, Light Switch |
| Platform | 813-828 | Operation, Hood, Side Covers, Steering Wheel, Dash Panel, Seat, Roll Over Protection System, Fuel Tank |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Battery | 12-volt, w/negative ground, 420 cca BCI Group 24 | p. 59 |
| Pump Capacity | 23.3 lpm (6.2 U.S. gpm) | p. 405 |
| System Relief Valve Setting | 145 bar (2133 PSI) | p. 60 |

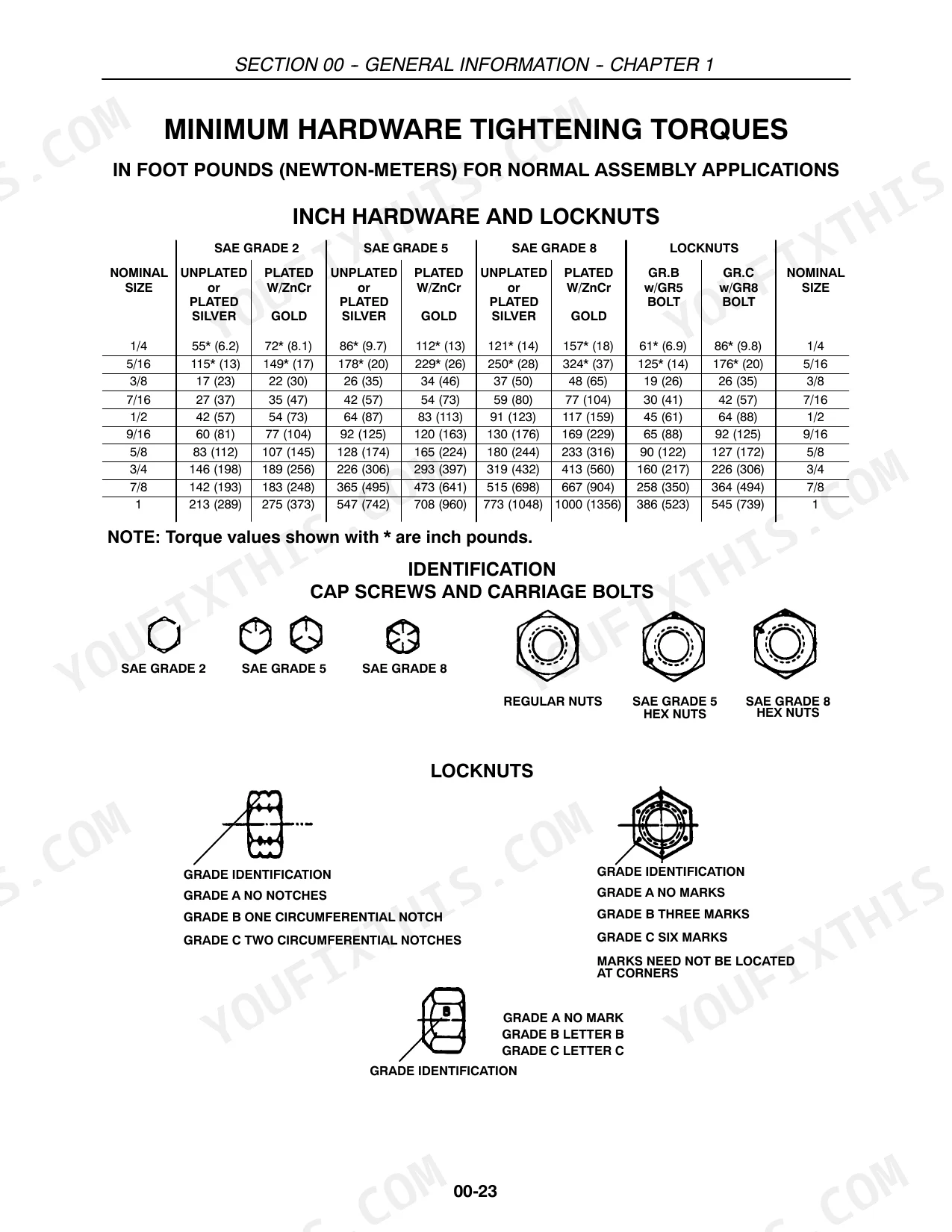

| Minimum Hardware Tightening Torques (SAE Grade 2, 1/4 inch, Unplated or Plated Silver) | 55 inch pounds (6.2 Newton-meters) | p. 67 |
| Minimum Hardware Tightening Torques (SAE Grade 2, 1 inch, Unplated or Plated Silver) | 213 foot pounds (289 Newton-meters) | p. 67 |
| alternator drive belt deflection | 5 - 10 mm (0.197 - 0.394 inch) | p. 81 |
| Hydraulic Fluid Filter replacement interval | 300 hours | p. 382 |
| Replacement interval | 300 hours | p. 405 |
| piston nut torque | 35 N·m | p. 457 |
| cylinder gland head torque | 127 N·m | p. 457 |
| cylinder tube to piston clearance | 0.7 mm | p. 457 |
| anchor pins and bearings clearance | 0.5 mm | p. 457 |
New Holland TC30 Common Problems This Manual Covers
New Holland TC30 loader lifts slow, three point hitch weak, hydraulics lose pressure under load
Check fluid level first, then replace the suction filter; it clogs by 300 hours and starves the pump (page 382). Test pump output with a flow meter: a healthy pump delivers 23.3 LPM (6.2 GPM) at no load, and below 18.64 LPM fails the 80 percent test on page 428. Verify the relief valve holds 145 bar (2133 PSI).
Manual Section: Hydraulic System p. 382PTO shaft will not engage, or keeps spinning after the lever is disengaged
Test the seat, neutral, and PTO safety switches first; confirm a full 12 volts reaches each switch connector with the key on, battery spec on page 59. On gear-transmission tractors, verify the clutch releases fully; a dragging clutch keeps the shaft turning. Then inspect the PTO clutch and brake components in the section beginning page 349.
Manual Section: Power Take-Off Systems p. 349Hydrostatic transmission jerks, loses power on hills, and tractor creeps forward in neutral
Check transmission fluid level and condition first; milky or dark fluid means water intrusion or overheated oil, so drain and refill. Replace the hydraulic suction filter if it has over 300 hours on it (page 382), since the HST shares this fluid. Then work through the erratic-operation and neutral-return checks in the Hydrostatic Transmission section starting page 291.
Manual Section: Hydrostatic Transmission p. 291Engine cranks slowly in cold weather or starter clicks once and will not spin

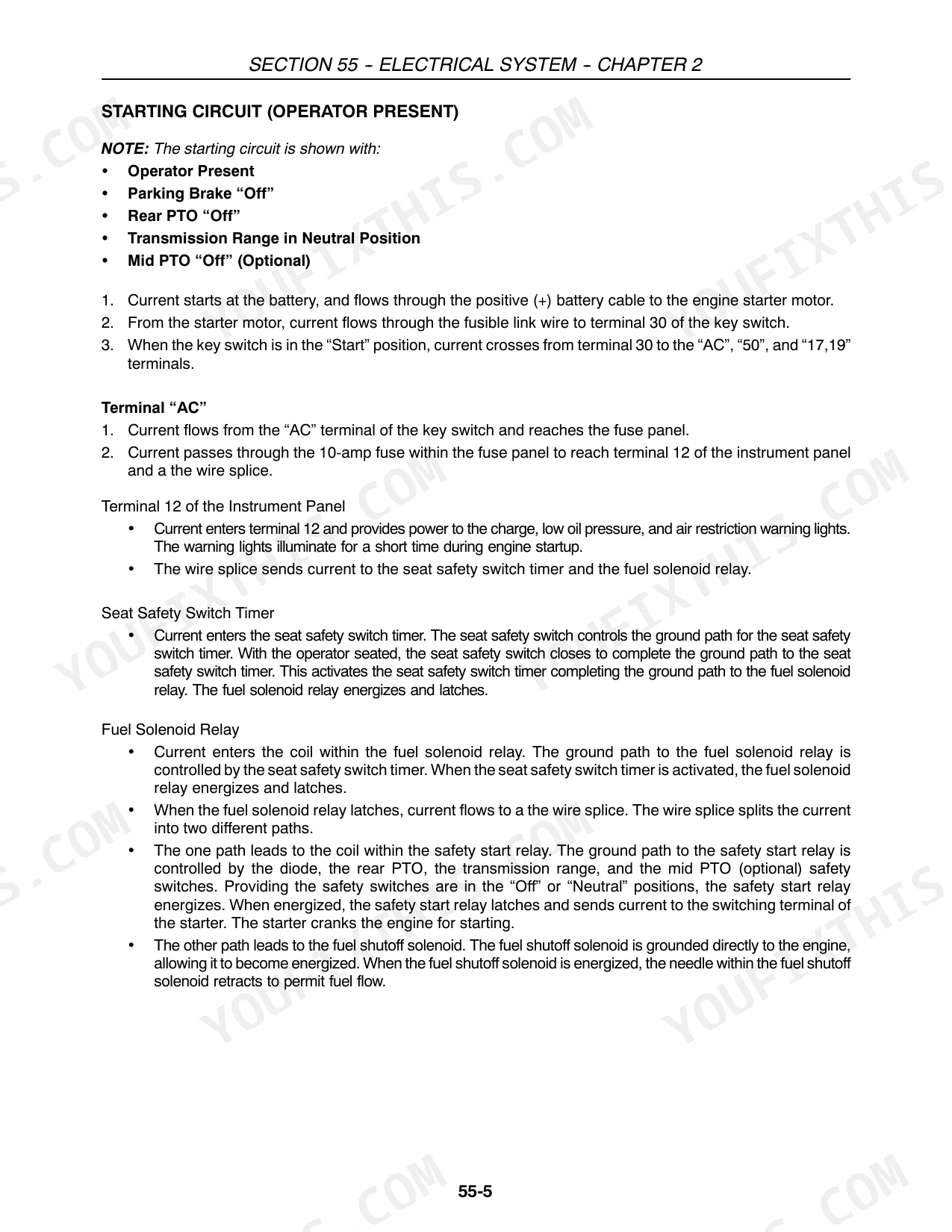

Load test the battery before blaming the starter; it must deliver 420 cold cranking amps at 0°F (-18°C), spec on page 495. Clean and tighten both cable terminals and check electrolyte level every 50 hours. If the battery passes, trace the crank circuit on the wiring diagram, , then check starter pinion shaft movement against the 0.5 to 2.0 mm limit on page 629.
Manual Section: Electrical System p. 495Temperature gauge climbs into the red under load, coolant pushes out the overflow
Check coolant level with the engine cold; the system only holds 4.0 liters, so even a small leak matters (page 81). Inspect the fan belt and set deflection to 5 to 10 mm (0.197 to 0.394 inch) under thumb pressure. Clean chaff from the radiator core, then run the overheating checks in engine troubleshooting for thermostat and water pump tests.
Manual Section: Engine Troubleshooting p. 81Frequently Asked Questions
What are the torque specifications for the New Holland TC30 wheel bolts?
For the front wheel disc-to-hub bolts on both 2WD and FWD models, the torque is 122 N⋅m (90 ft. lbs.). For the rear wheel disc-to-rim and disc-to-axle bolts, the torque is 169 N⋅m (125 ft. lbs.). p. 63
What are the replacement specifications for the battery on the New Holland TC30?
The TC30 tractors are equipped with a BCI group 24, 12-volt, 56 Ah battery with a minimum cold cranking ability of 420 amps at 0° F (-18°C). p. 59
What is the correct valve clearance for the New Holland TC30 engine?
The valve clearance for both intake and exhaust valves on the TC30 engine is 0.20 mm (0.008 inches) when cold. p. 58
What is the engine oil capacity for the New Holland TC30?
The engine crankcase capacity for the TC30, including the filter, is 4.0 liters (4.2 U.S. quarts). p. 58
What is the specified torque for the cylinder head bolts on the New Holland TC30?
The cylinder head bolts on the TC30 engine should be tightened to a final torque specification of 88 - 94 N⋅m (65 - 69 ft. lbs.). p. 128
How quickly can I access this New Holland TC30 manual after buying?
A 828-page Service Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Are there any print restrictions on this New Holland TC30 manual?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
