Covering the TS6020, TS6030 and TS6030HC tractors, this 146-page New Holland TS6020, TS6030 operator manual PDF carries OEM number 84279727 and reads as the book the factory shipped with the machine. Roughly a quarter of the book goes to maintenance, laying out the 10-hour daily walkaround, the first 50-hour service, and the mandatory 300, 600, 900, 1200 and 1500-hour intervals in the order you actually perform them. Tire load and inflation charts, ballasting guidance, instrument panel lamp identification, rear PTO operation and three-point linkage setup all get their own treatment. Torque the disc to hub hardware to 101-122 N.m (74-90 lb ft) on the TS6020 and TS6030, run 244-298 N.m on the HC, and fill the cooling system to 14 litres. A tractor parked mid-season costs you daylight. Bookmarked and searchable, it prints clean, so take the pages you need to the bench and let them get dirty.
Complete the set for your TS6020, TS6030, TS6030HC
What's Inside This New Holland TS6020, TS6030, TS6030HC Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 1-15 | Maintenance and Service Schedule, First 50 Hour Service, Fueling the Machine, Opening, Closing, Or Removing Protective Shields for Service, Service Air Filter If Warning Lamp Is on |
| Safety Information | 16-31 | Basic Operating Safety Rules, Battery Safety, Driving on Public Roads, Electrical Storm Safety, Fire Prevention, Hazardous Chemicals, Implements, Tools and Trailers |

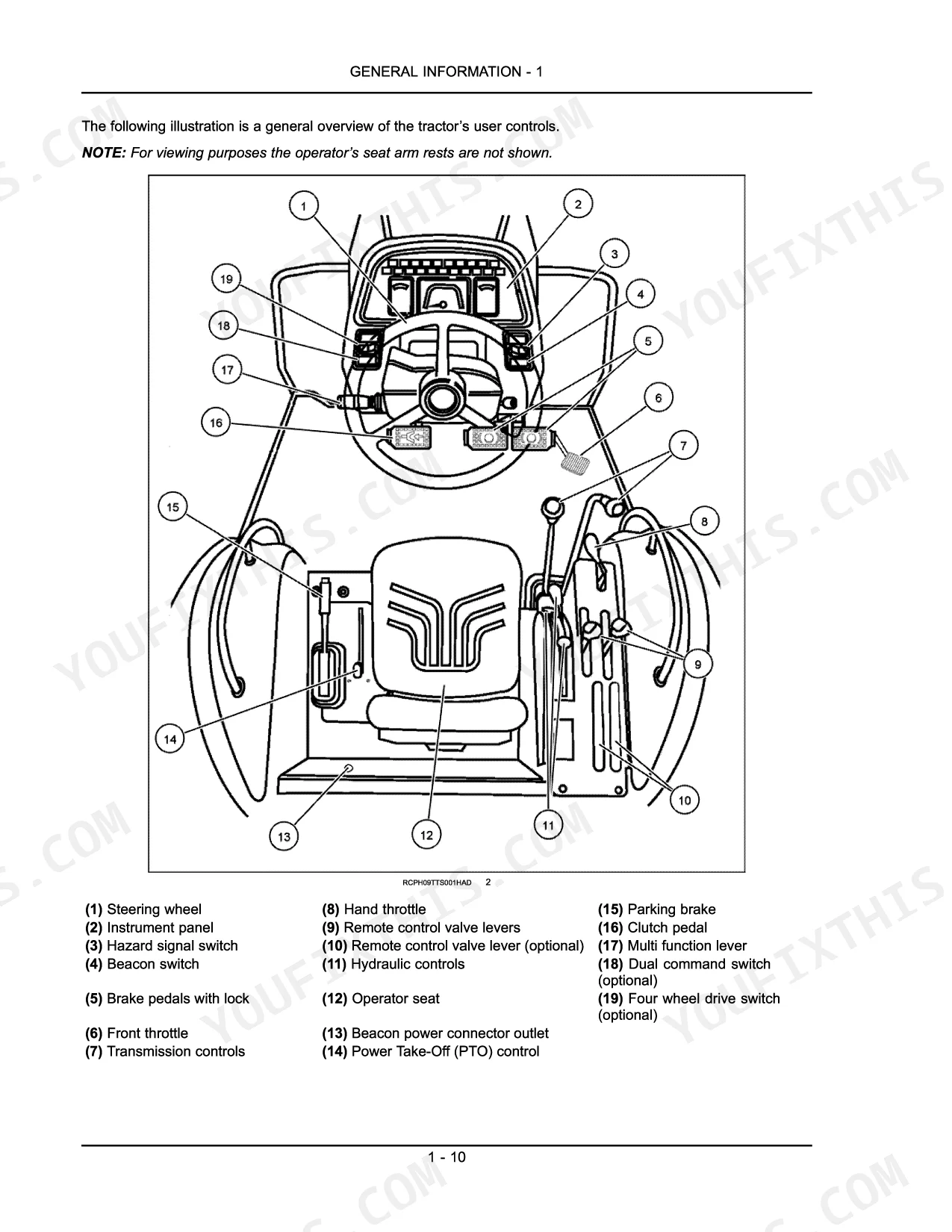

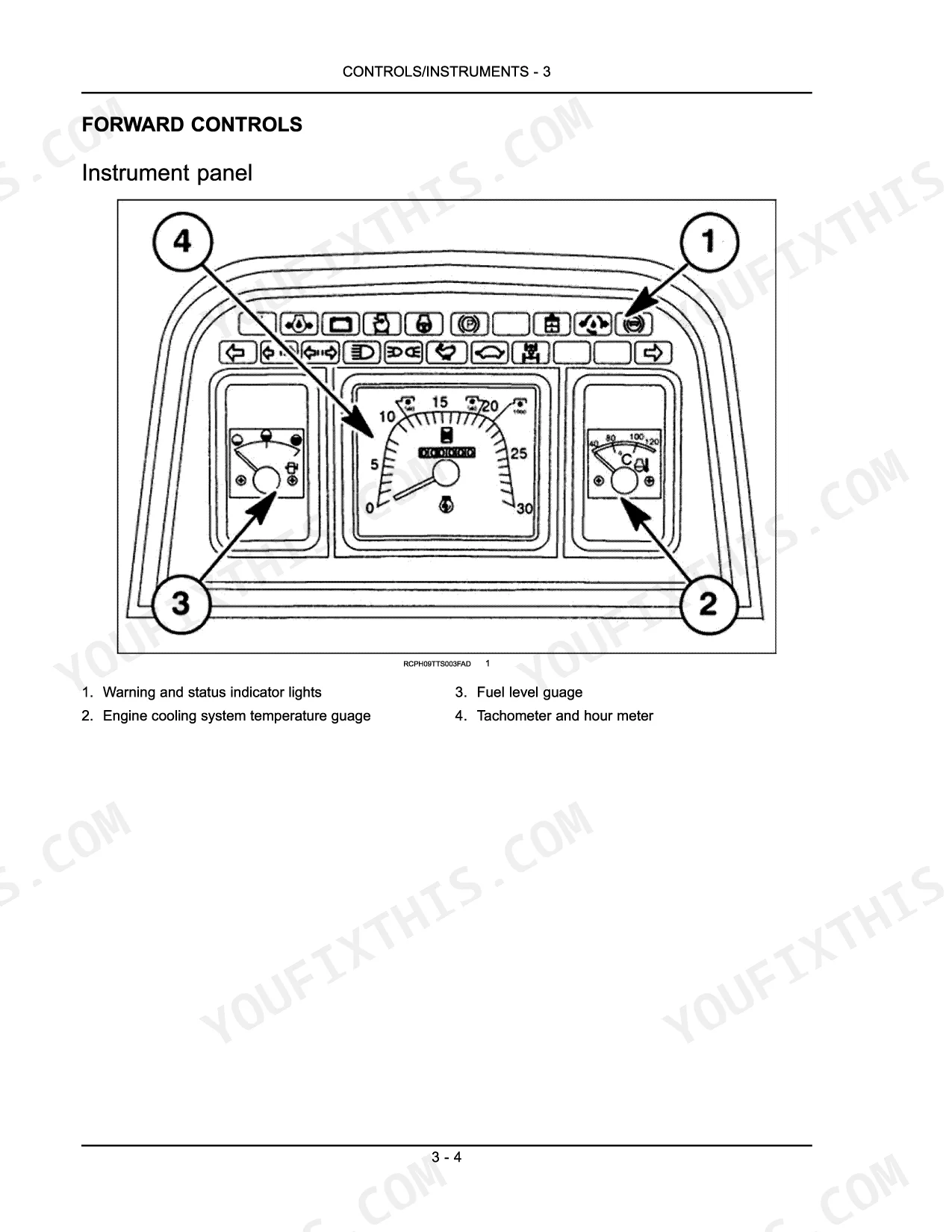

| Controls/Instruments | 32-43 | Access to Operator's Platform (Step and Ladder - Access/Exit), Operator's Seat (Operator Seat Adjustments, Seat Belt - Operating) |

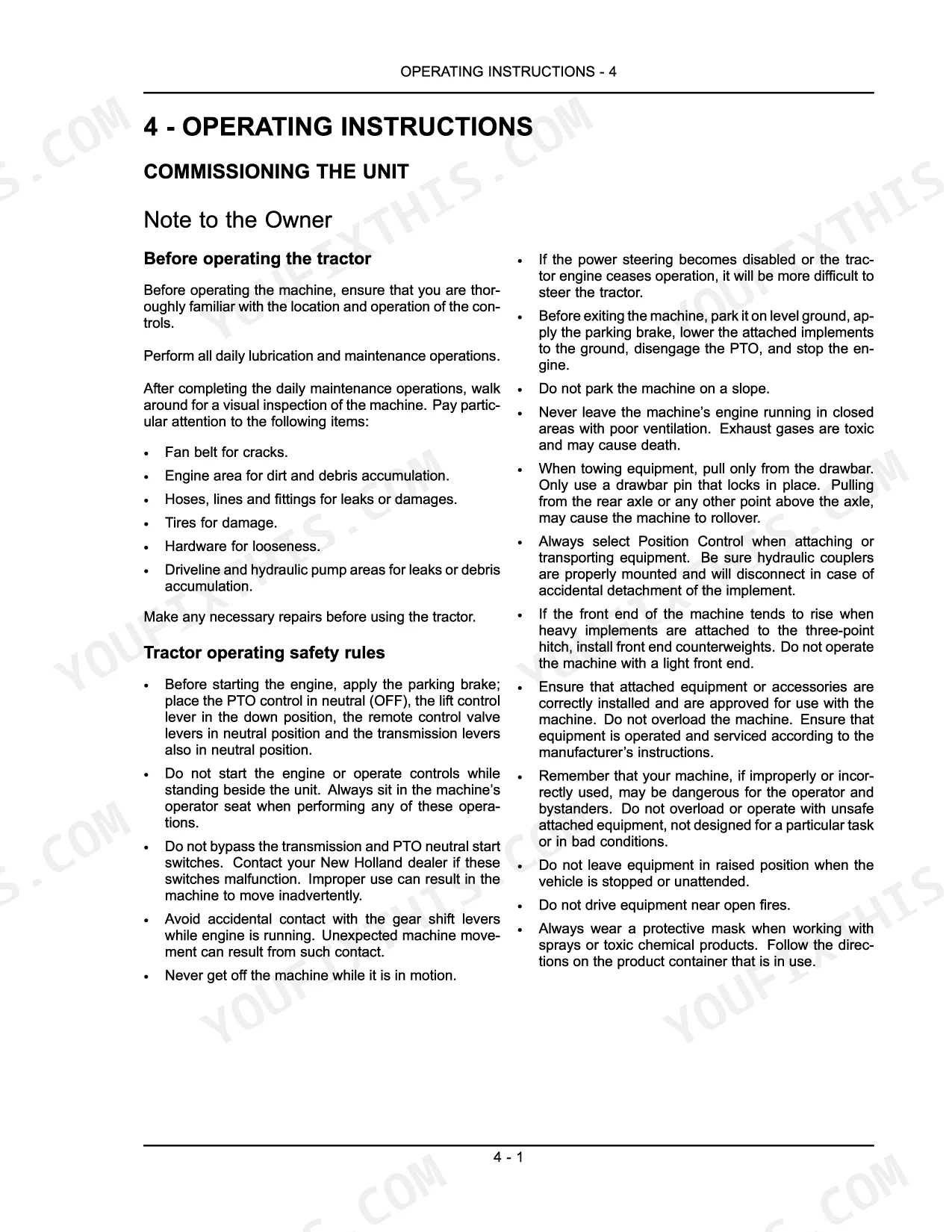

| Operating Instructions | 44-77 | Commissioning the Unit (Note to the Owner, Run in Period of a New Machine, Roll Over Protective Structure - Adjustments) |
| Transport Operations | 78-79 | Road Transport (Basic Instructions), Recovery Transport (Towing the Tractor) |
| Working Operations | 80-95 | Tire Condition and Air Pressure, Tire Load and Inflation Charts, Tractor Ballasting |

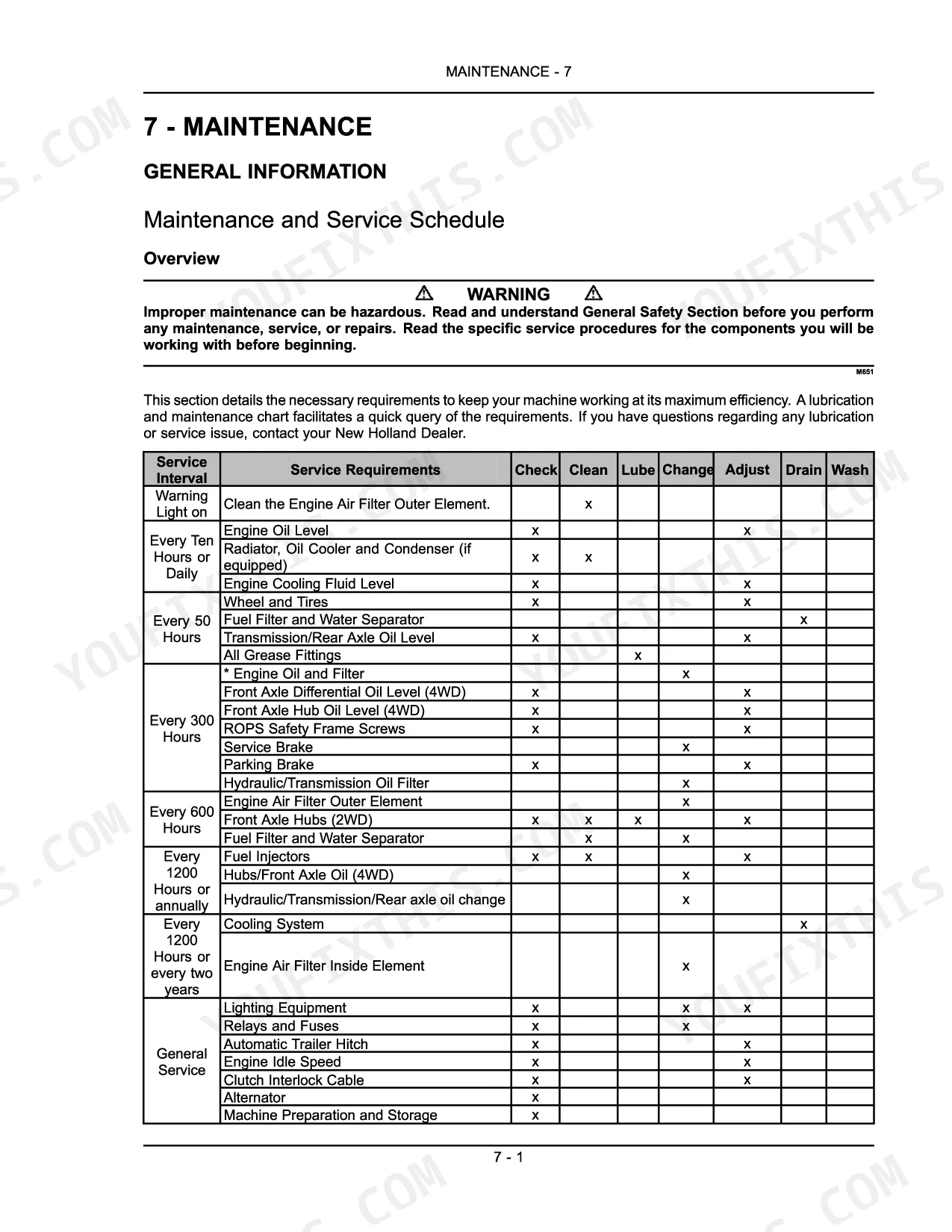

| Maintenance | 96-133 | Maintenance and Service Schedule, First 50 Hour Service, Fueling the Machine |

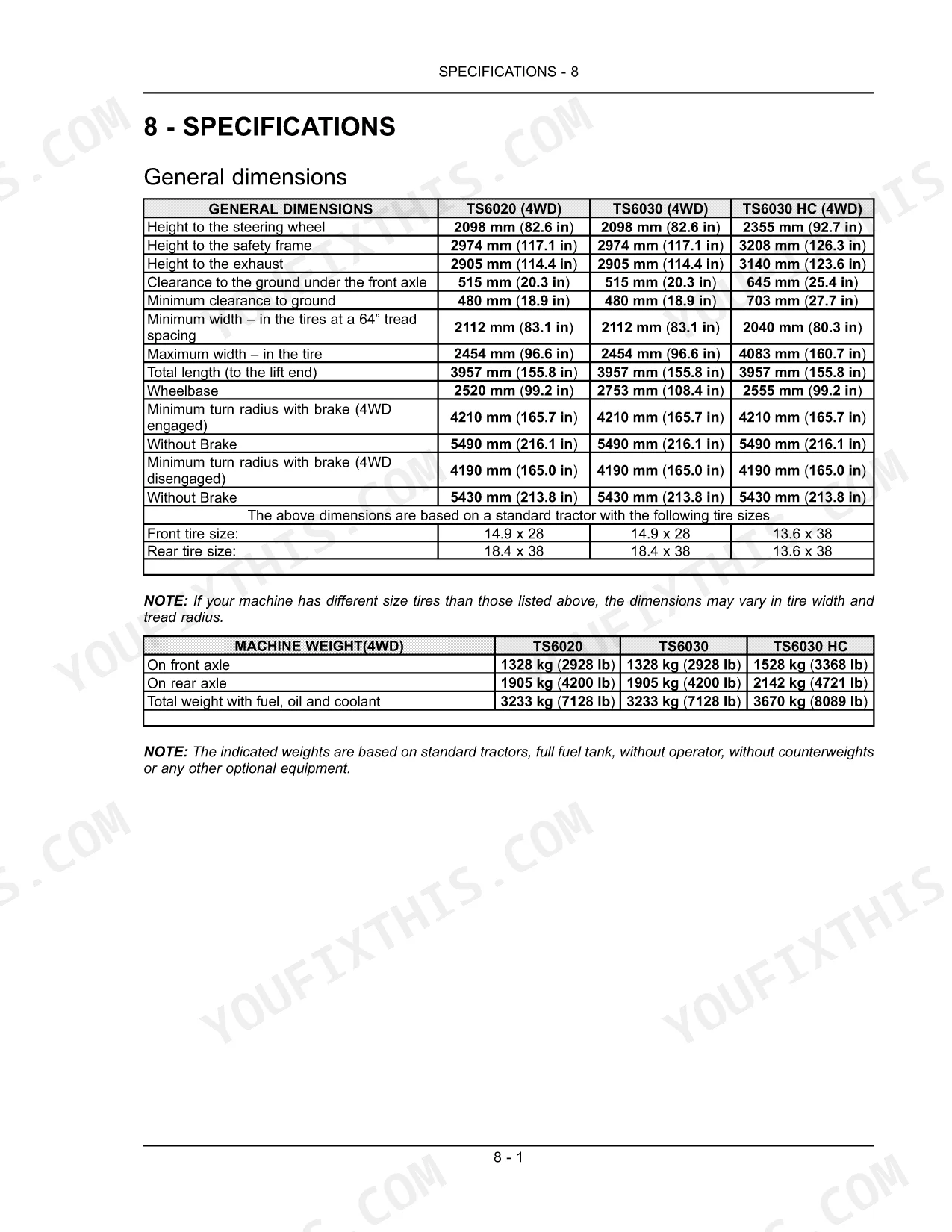

| Specifications | 134-146 | Engine Specifications, Engine Coolant Specifications, Available Transmissions, Maximum Side Slope Operation, PTO Specifications, Hydraulic System General Specifications |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Overpressure limit (safety valve) | 176 - 182 bar (2552 - 2639 psi) | p. 136 |
| Cooling system capacity | 14 l (3.7 US gal) | p. 117 |
| Lift rod thread engagement | At least 40 mm (1.57 inch) | p. 67 |
| Heat exchanger cleaning pressure | 7 bar (102 psi) | p. 103 |
| Radiator pressure cap | 0.9 bar (13.1 psi) | p. 135 |
| Engine Oil Capacity (including filter) | 11 L | p. 110 |
| Fuel Tank Capacity | 160 L | p. 99 |
| Transmission/Rear Axle Oil Capacity | 66 L | p. 115 |
| TS6020/TS6030 | ||
| Disc to hub torque | 101 - 122 N·m (74 - 90 lb ft) | p. 90 |
| Disc to wheel torque | 280 - 340 N·m (207 - 251 lb ft) | p. 90 |
| TS6030 HC | ||
| Disc to hub torque (TS6030 HC) | 244 - 298 N·m (180 - 220 lb ft) | p. 91 |
| Disc to wheel torque (TS6030 HC) | 280 - 340 N·m (207 - 251 lb ft) | p. 91 |
New Holland TS6020, TS6030, TS6030HC Common Problems This Manual Covers
New Holland TS6020 three-point hitch lifts slowly or weakly under load with the implement mounted
Check the hydraulic oil level before anything else, since the transmission and hydraulic system share the same 66 L reservoir covered on page 115. Verify the lift rod thread engagement is at least 40 mm (1.57 inch) as shown on page 67, then change the transmission/hydraulic oil filter at the scheduled interval.
Hitch or remote cylinder drops, jerks, or will not hold position with an implement raised
Lower the implement to the ground and cycle the remote lever several times to bleed trapped air from the cylinders. Inspect both lift rod ends for wear and confirm at least 40 mm (1.57 inch) of thread engagement per page 67. Verify the draft control lever is not sitting between detents.
Manual Section: Three Point Linkage System p. 67Engine temperature climbs and coolant gauge reads high during heavy PTO or drawbar work
Shut down and clean the radiator and heat exchanger screens with compressed air, keeping the pressure at or below 7 bar (102 psi) as noted on page 103. Once the engine is cold, check that the system holds its full 14 L charge and inspect the radiator pressure cap, rated at 0.9 bar (13.1 psi) on page 135.
Manual Section: Cooling System Maintenance p. 103Engine cranks slowly or will not fire on cold mornings before field work
Verify the shuttle lever is in neutral and the clutch is fully depressed so the safety start switch closes. Check battery terminals for corrosion and clean them bright. Let the grid heater complete its cycle before cranking, and confirm fuel level against the 160 L tank capacity listed on page 99 so the pickup is not drawing air.
Manual Section: Engine Starting Aids p. 99Hydraulic oil runs hot and remote functions slow down after extended continuous flow operation
Set the remote lever to the float or neutral detent whenever a continuous flow motor is not working, so oil is not dumping over the safety valve at 176 - 182 bar (2552 - 2639 psi) as listed on page 136. Check the oil level at operating temperature and service the hydraulic filter on schedule.
Manual Section: Hydraulic System Troubleshooting p. 136Wheel nuts loosen or rear wheels shift after changing tread width or adding ballast
Retorque the rear wheel nuts to 406 - 475 N·m (299 - 350 lb ft) and the disc to wheel hardware to 280 - 340 N·m (207 - 251 lb ft), both listed on page 105. Recheck after the first hour of field work, then daily until readings hold steady. Confirm tire pressure against the inflation chart for your ballast.
Manual Section: Tractor Ballasting p. 105Frequently Asked Questions
What are the torque specifications for the wheel lug nuts on the New Holland TS6030?
For the TS6030, the torque for the disc to hub is 244 - 298 N·m (180 - 220 lb ft) for 4WD models, and the disc to wheel torque is 280 - 340 N·m (207 - 251 lb ft). p. 90
What is the engine oil capacity for the New Holland TS6020 and TS6030?
The engine oil capacity, including the filter, is 11 liters (2.9 US gallons). p. 110
What is the procedure for bleeding air from the fuel system after changing the fuel filter?
After replacing the fuel filter, turn the ignition key to position (3) to fill the fuel filter. A change in the noise from the pump indicates that the fuel system is full, then turn the ignition key to the off position (2) and bleed air from the system. p. 113
What is the torque specification for the ROPS safety frame bolts on a New Holland TS6020, TS6030, TS6030HC tractor?
The ROPS U-Bracket and nuts should be tightened to a torque value of 230 N·m (169.6 lb ft). p. 111
What is the correct valve backlash for the engine?
The intake valve backlash is 0.20 - 0.30 mm (0.008 - 0.012 in) and the exhaust valve backlash is 0.45 - 0.50 mm (0.018 - 0.020 in). p. 135
What exactly do I receive with this New Holland TS6020 Operator Manual?
Delivery is instant: a 146-page searchable PDF is yours the second checkout clears. Laptop, tablet, or phone, all fine.
Am I free to print this New Holland TS6020 Operator Manual?
Yes. No DRM, nothing blocks printing, so run off the pages you need on whatever printer you have.
