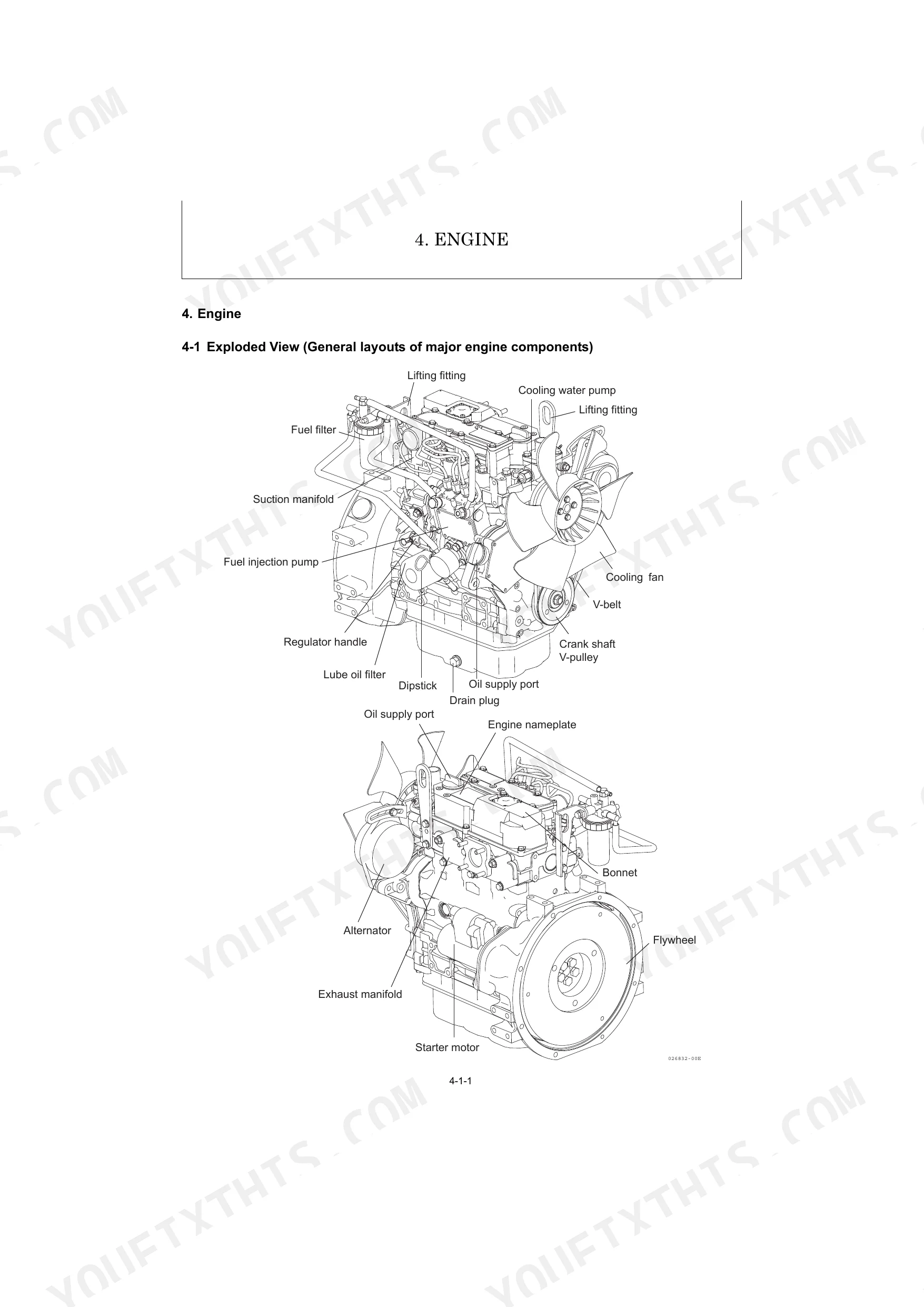

All 448 pages of this Schaeff TC10Z service manual PDF (OEM #MMT02ENMA00100) zero in on one machine: the TC10Z Crawler Excavator, with hydraulic, electrical, and engine systems documented to full factory depth. Inside: hydraulic circuit schematics tracing flow through every valve circuit from boom and arm to swing, blade, and track gauge change, plus a full wiring diagram section covering the monitor and alarm systems, engine start/stop circuit, and electrical equipment layout. You also get a thorough troubleshooting section, serial-number-split procedures for both hydraulic pump and travel motor variants, and exploded views spanning the engine through hydraulic equipment. Set your engine bracket M10 bolts to 44.1-58.8 N·m; track roller M12 fasteners torque to 78.4-98.0 N·m, both pulled straight from factory-verified tables. No more chasing specs across forum threads. Bookmarked and searchable by keyword, this PDF opens on any device so you can pull the number you need right at the machine.
What's Inside This Schaeff TC10Z Manual
| System | Pages | Key Topics |
|---|
| General Cautions for Maintenance Work | 11-24 | Correct Work, Safety Precautions, Preparations, Cautions for Disassembly and Reassembly, Cautions for Removal and Installation of Hydraulic Equipment |

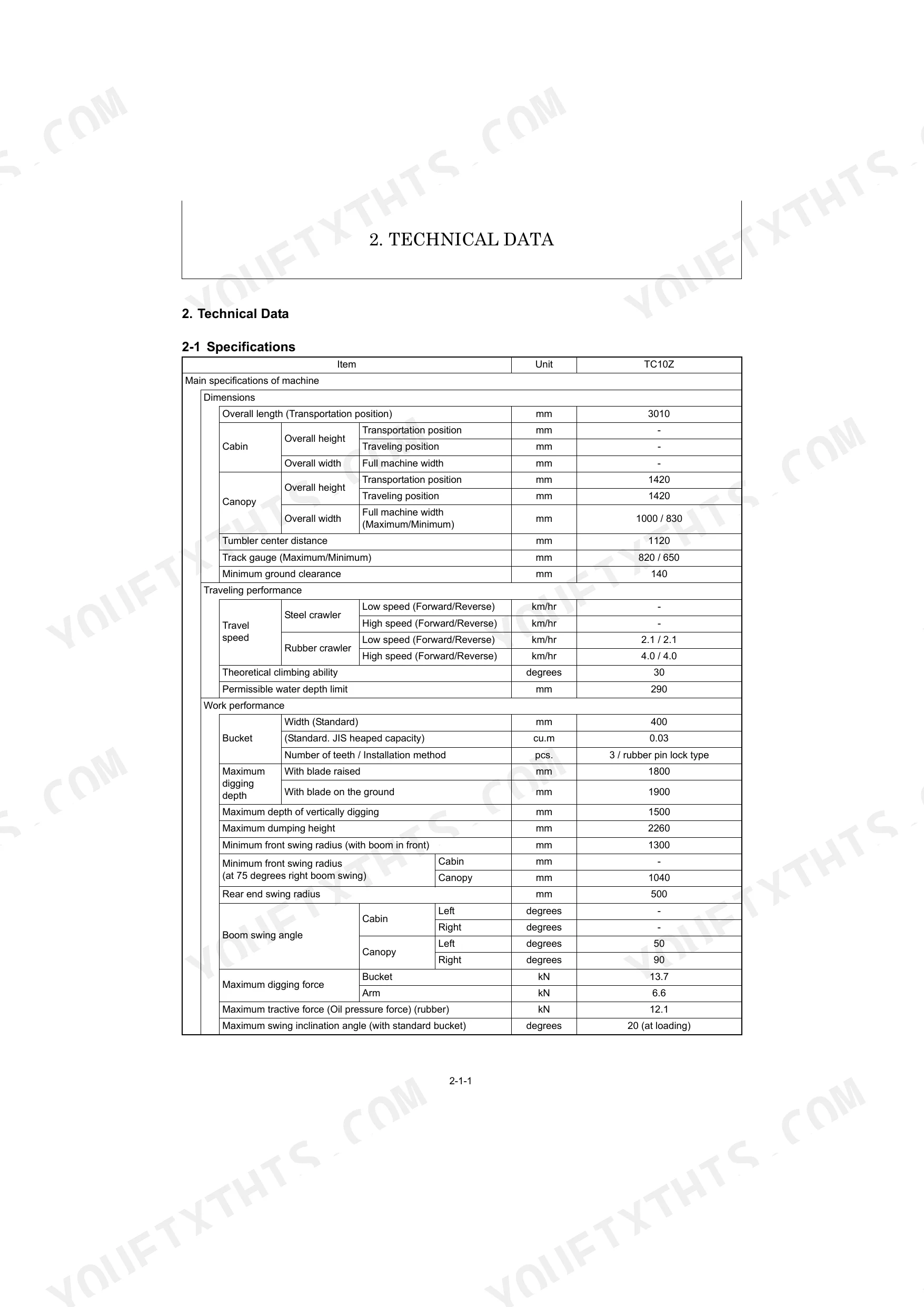

| Technical Data | 25-38 | 2-1 Specifications, 2-2 Outline Drawing and Working Area, 2-3 Weight List of Main Parts, 2-4 Lifting Capacity List |
| Service Standards | 39-58 | Machine Performance, Engine, Undercarriage (Rubber Crawler Specifications), Controls, Hydraulic Equipment (Hydraulic Cylinders) |
| Engine | 59-100 | Measurement |

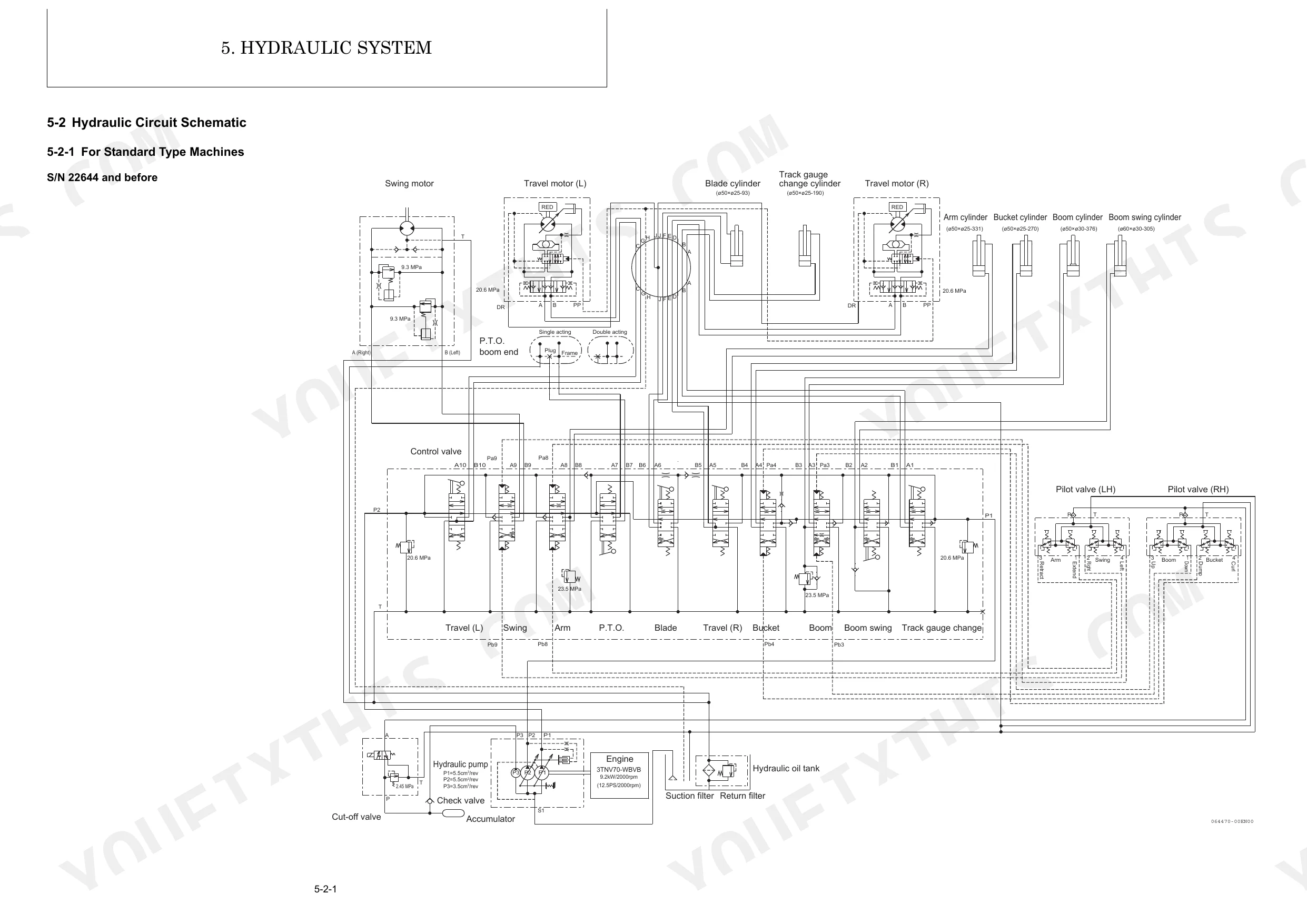

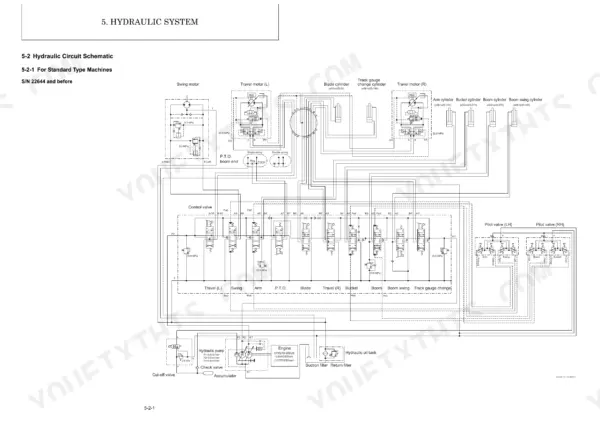

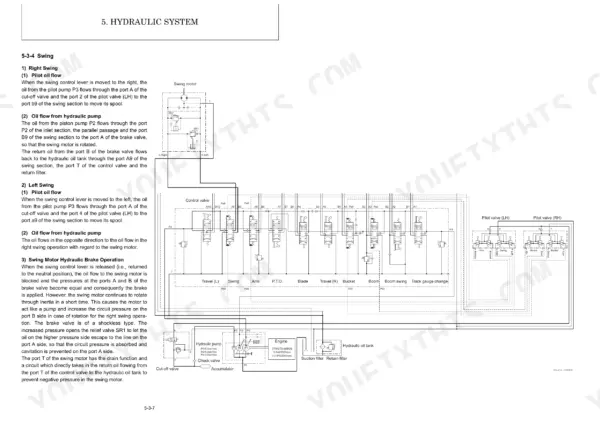

| Hydraulic System | 101-136 | Outline (Control Valve Operation), Hydraulic Circuit Schematic (for Standard Type Machines) |
| Hydraulic Equipment | 137-308 | Hydraulic Pump (S/N: 28645 and Before, 28646 and Above), Control Valve, Pilot Valve, Cut-Off Valve, Swing Motor, Travel Motor (S/N: 22644 and Before, 22701 and Above) |

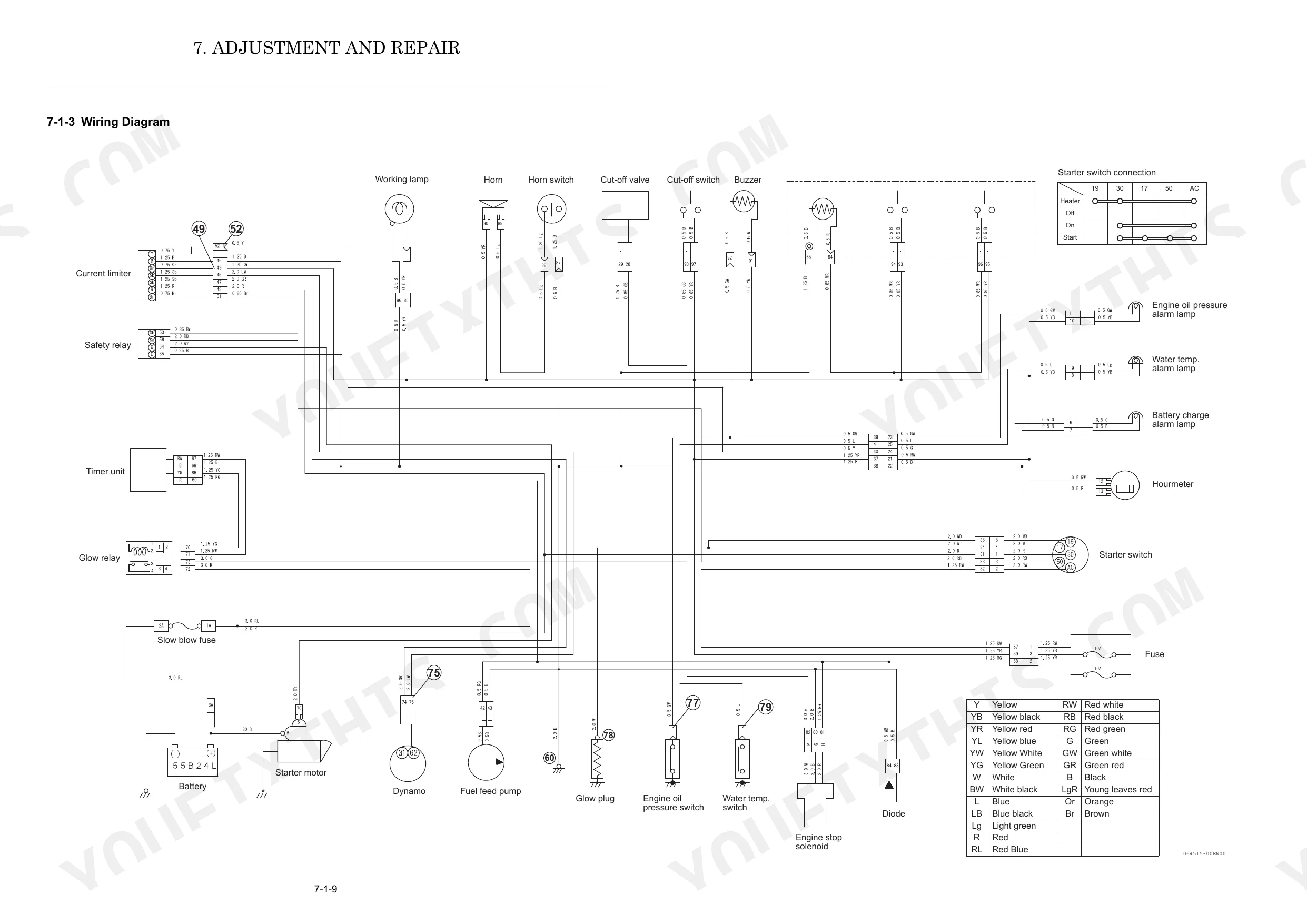

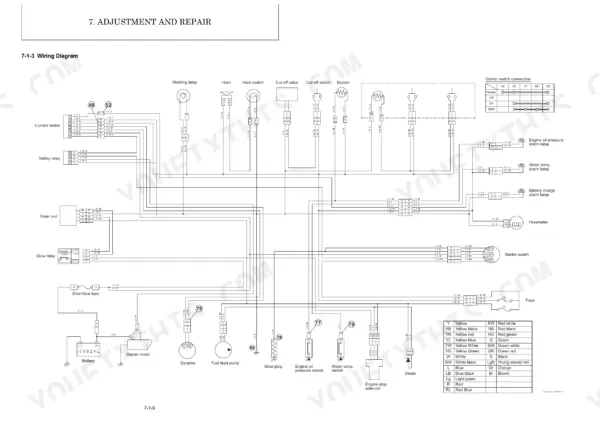

| Adjustment and Repair | 309-400 | Electrical Equipment and Engine of Machine (Parts Layout of Electrical Equipment, Monitor and Alarm Systems, Wiring Diagram, Circuit Description of Engine Start and Stop, Removal and Reinstallation of Engine, Removal and Reinstallation of Starter Motor, Removal and Reinstallation of Fuel Injection Pump, Removal and Reinstallation of Fuel Tank, Removal and Reinstallation of Radiator) |
| Periodic Inspection and Servicing | 401-404 | 8-1 List of Periodic Inspection and Servicing |
| Fuel, Lube Oil and Grease Recommended | 405-408 | Engine Oil, Box Oil, Hydraulic Oil, Diesel, Long-Life Cooling Fluid |
| Troubleshooting | 409-446 | 10-1 Non-Breakdowns, 10-2 Troubleshooting |
| Reference Data | 447-448 | 11-1 Specifications for Attachment |
Quick Reference Specifications
| Specification | Value | Page |
|---|

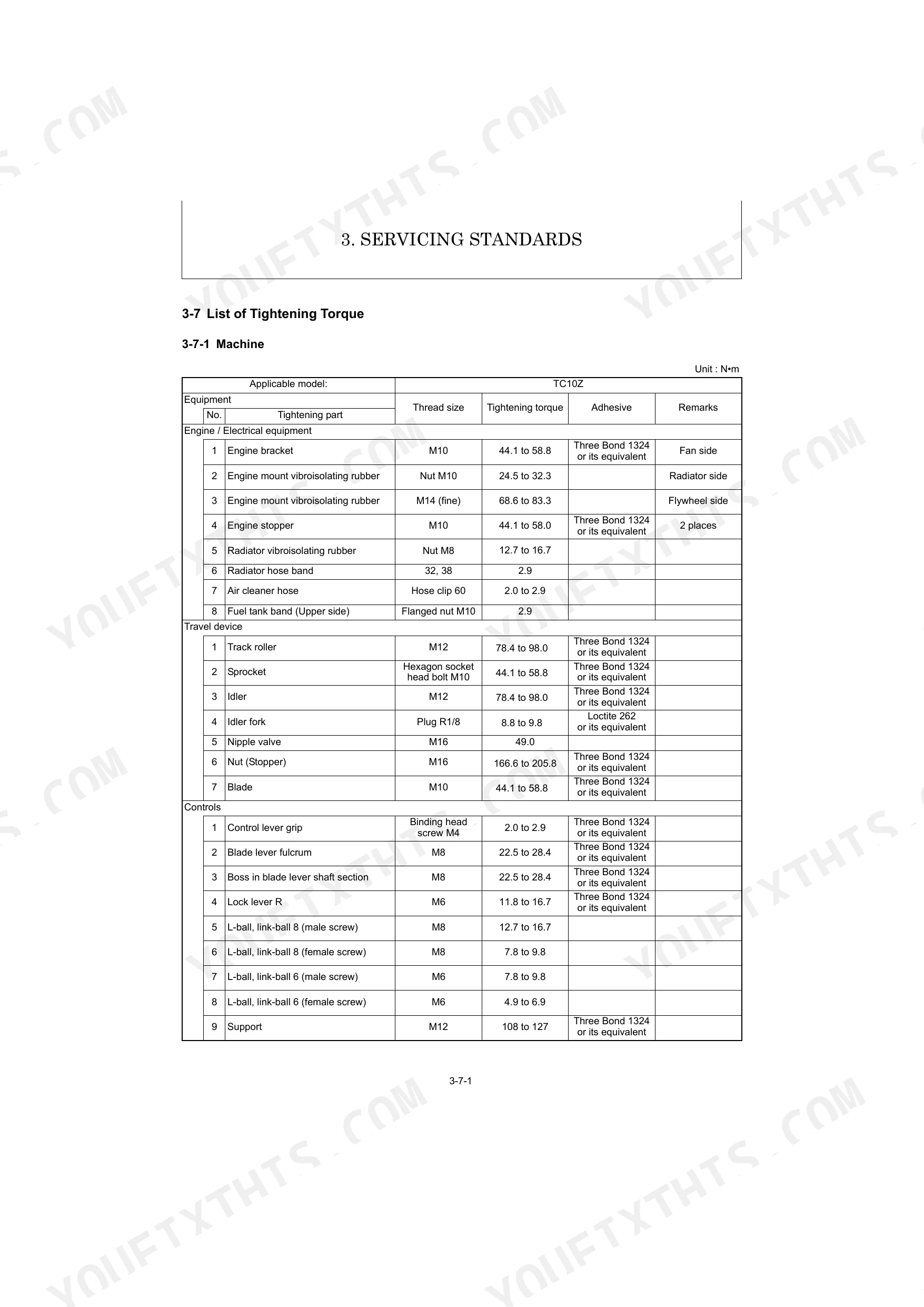

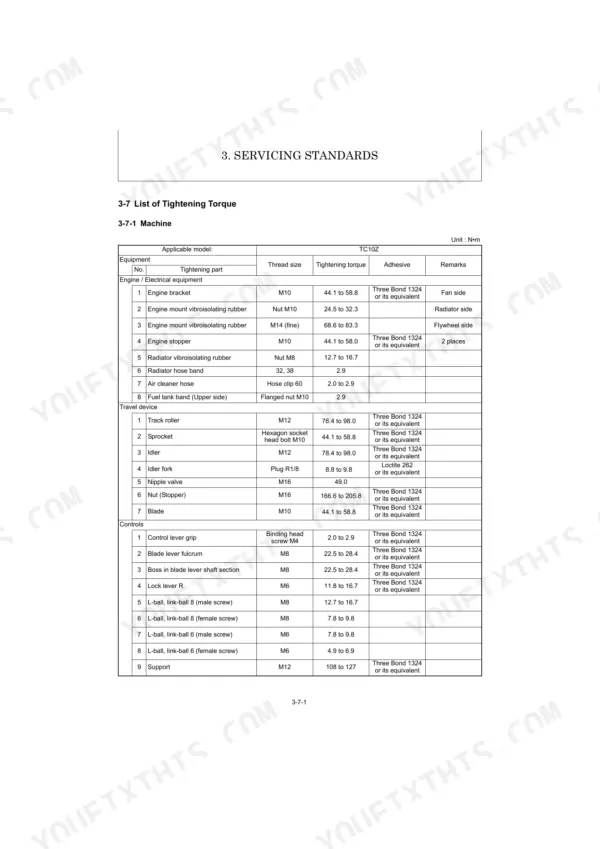

| Engine bracket (M10) tightening torque | 44.1 to 58.8 N·m | p. 53 |
| Track roller (M12) tightening torque | 78.4 to 98.0 N·m | p. 53 |
| Suction filter filtration area | 163 sq.cm | p. 28 |
| Suction filter filtration accuracy | 150 Meshes | p. 28 |
| Fuel filter filtration area | 430 sq.cm | p. 30 |
| Hydraulic hose (SAE J517, 100R1) 02 working pressure | 17.2 MPa | p. 17 |
| Rubber crawler A standard width | 15 mm | p. 29 |
| Track roller mounting bolt (M12) tightening torque | 78.4 to 98.0 N·m | p. 53 |
| System relief valve set pressure (P1, P2) | 20.6 MPa | p. 27 |
| Circuit relief valve (Boom rod end) set pressure | 23.5 MPa | p. 27 |
| Engine Rated Output | 9.2/2000 KW/rpm | p. 29 |
| Engine Total Displacement | 854 cu.cm | p. 29 |
