Carrier roller seals, front idler bearings and the track tension cushion assembly on the Takeuchi TB-35S hydraulic excavator are all listed by part number in this 190-page Takeuchi TB-35S parts catalog PDF. Undercarriage coverage runs from the lower frame and swivel joint through track shoe pins and bushings, track rollers, the travel motor and sprocket on the track gearbox, and the blade cylinder assembly. Exploded views tie numbered callouts to part numbers, so you can identify the hose assembly, adaptor or elbow in the lower piping before ordering. Slew gearbox, hydraulic, cab and engine parts follow. If your job is a track roller or front idler rebuild, the shafts, seals, bearings and O-rings for it are grouped under one heading. Bookmarked and text-searchable, the file goes on a laptop or tablet and stays with you wherever the TB-35S is working.
What's Inside This Takeuchi TB-35S Parts Manual

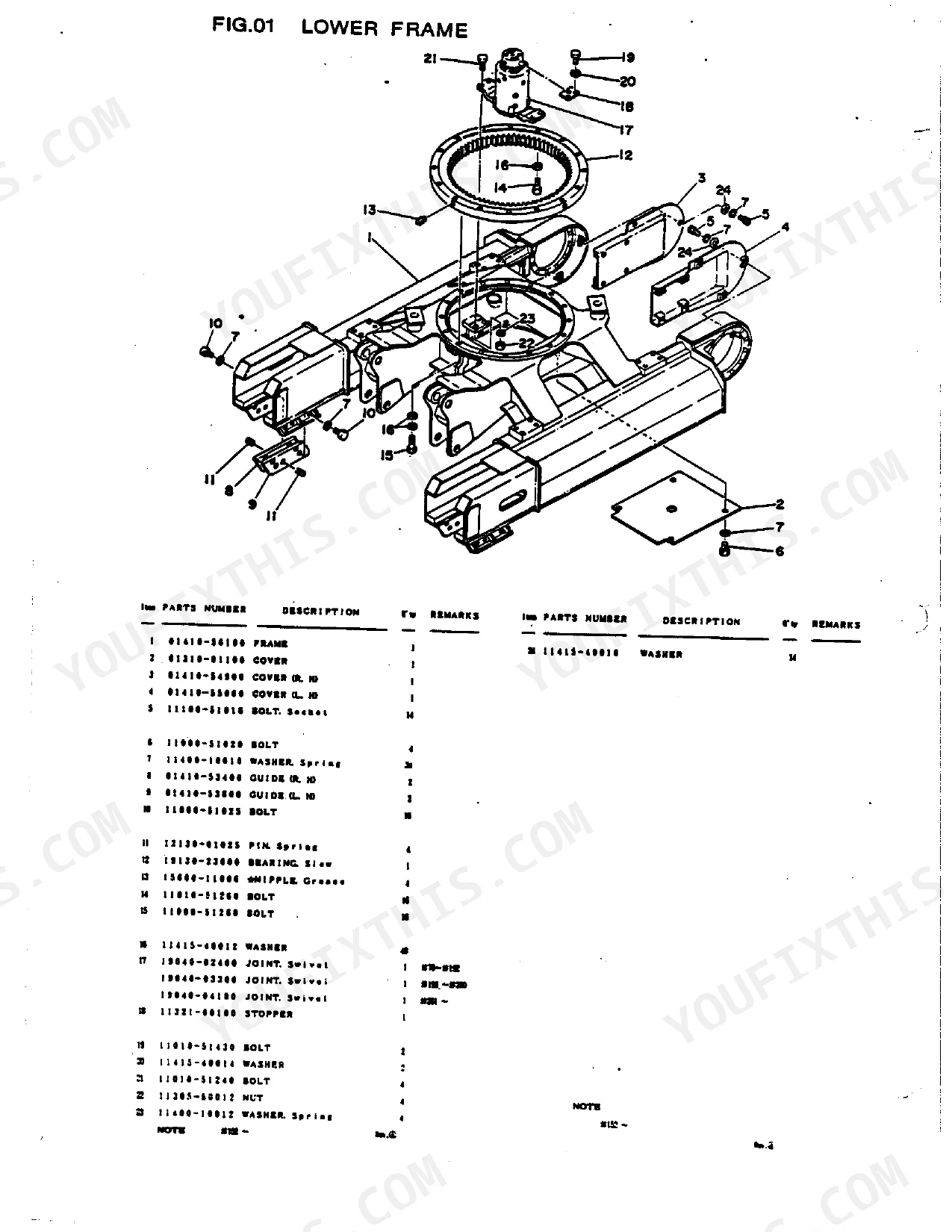

| System | Pages | Key Topics |
|---|---|---|
| Lower Frame | 4 | |
| Track Shoe | 5 | |
| Carrier Roller | 6 | |
| Track Roller | 7 | Roller Assy |
| Front Idler | 8 | |
| Track Tension | 9 | |
| Track Gearbox | 10 | Motor Assy |
| Blade | 11 | |

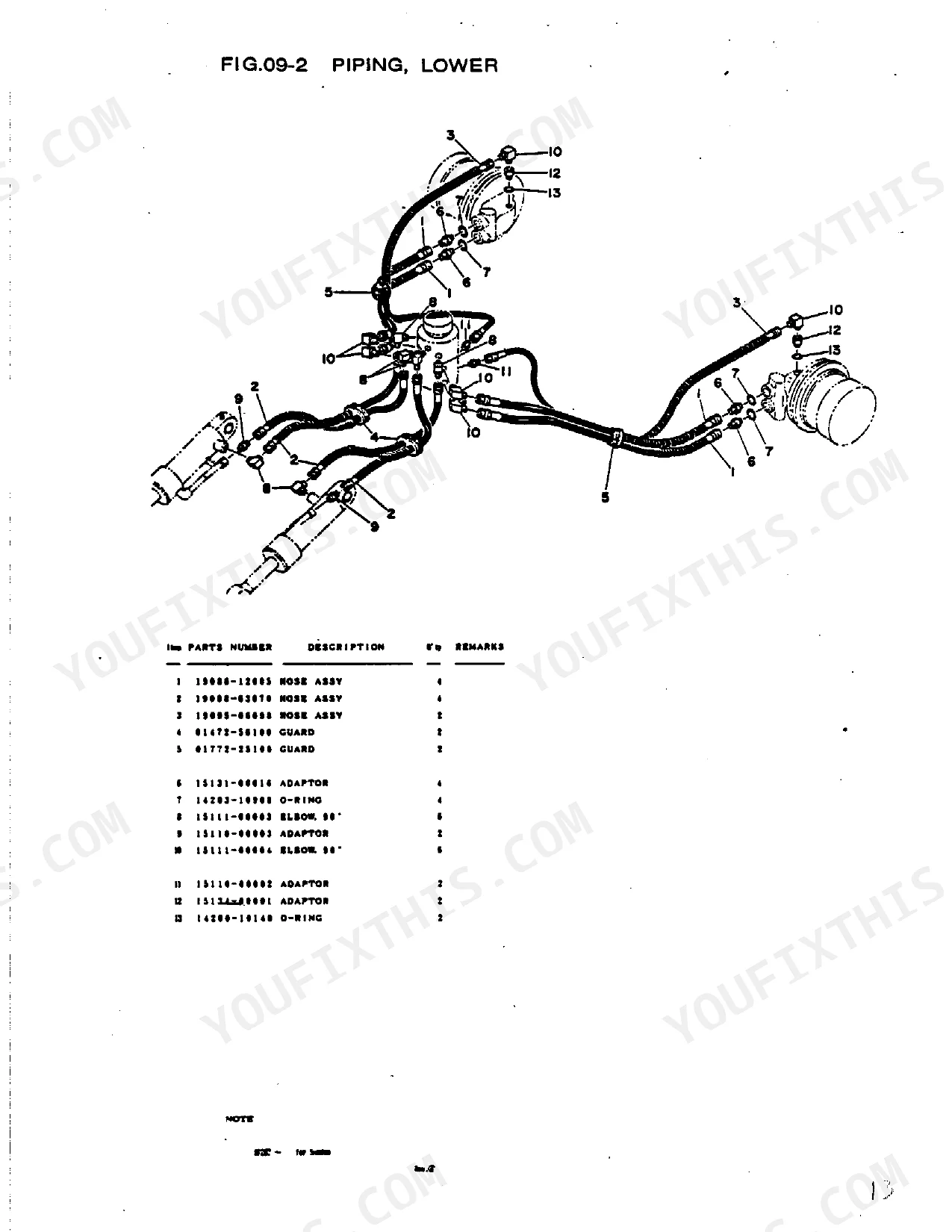

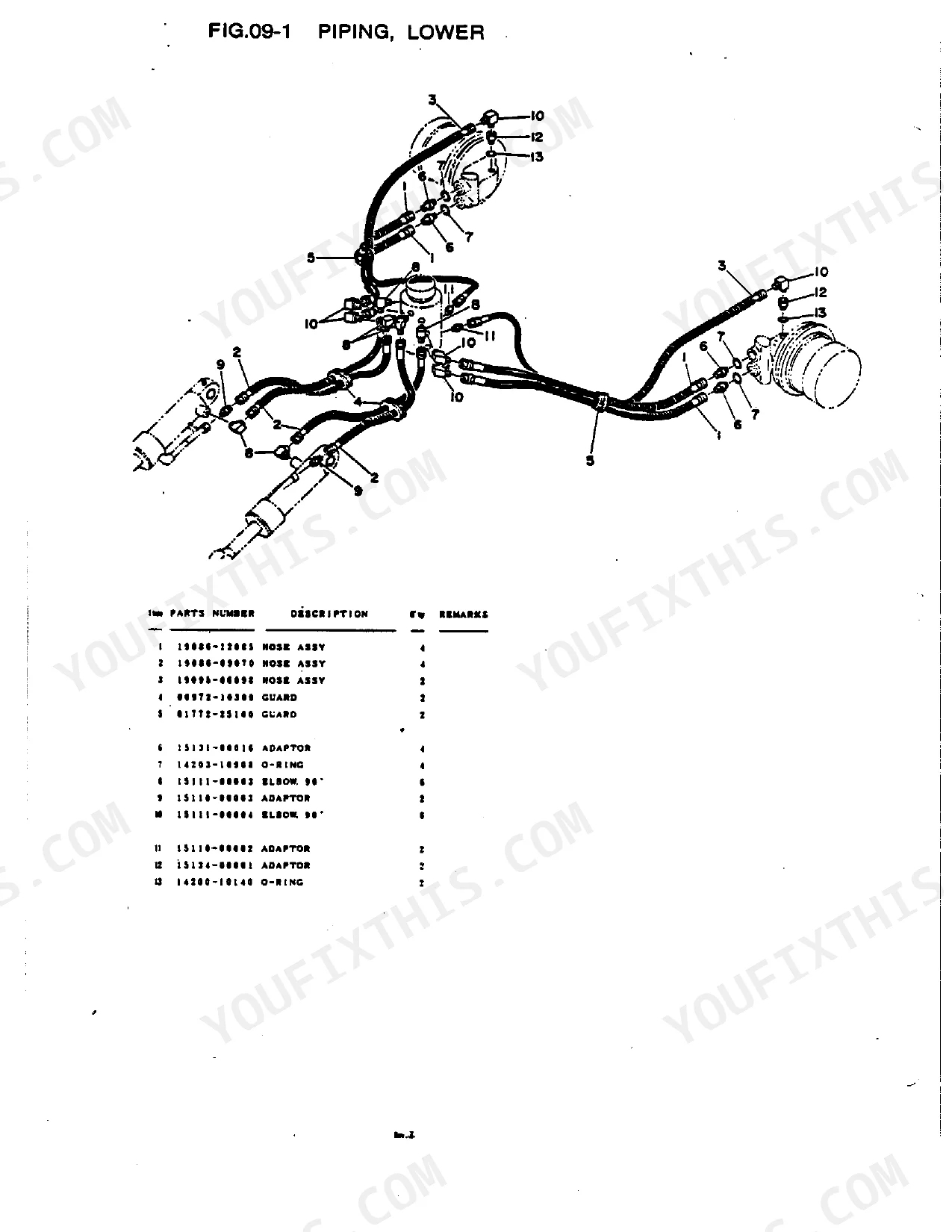

| Piping, Lower | 12-13 | Hose Assy, Guard, Adaptor, O-Ring, Elbow |
| Slew Gearbox | 14-19 | Turntable |

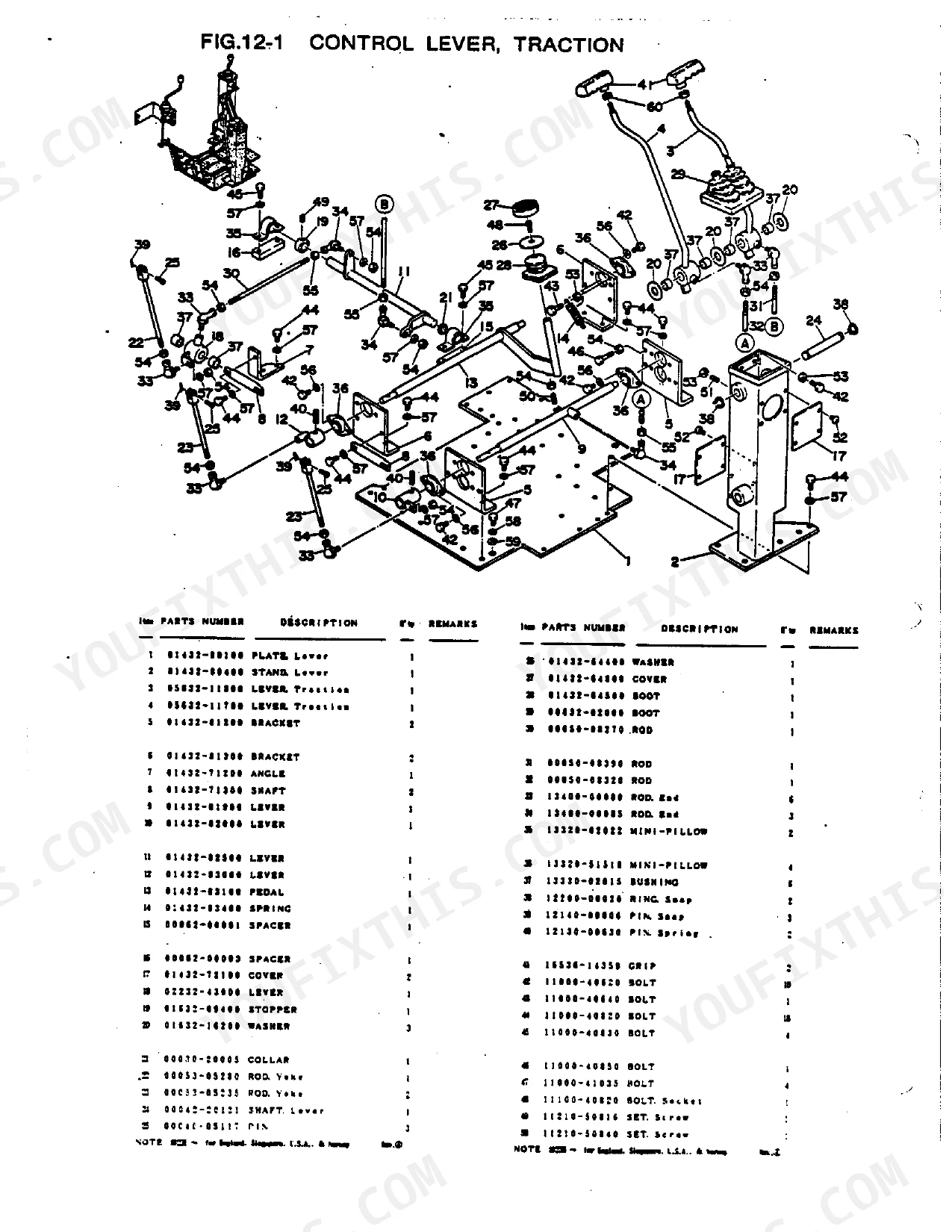

| Control Lever, Traction | 20-37 | Selector Lever |

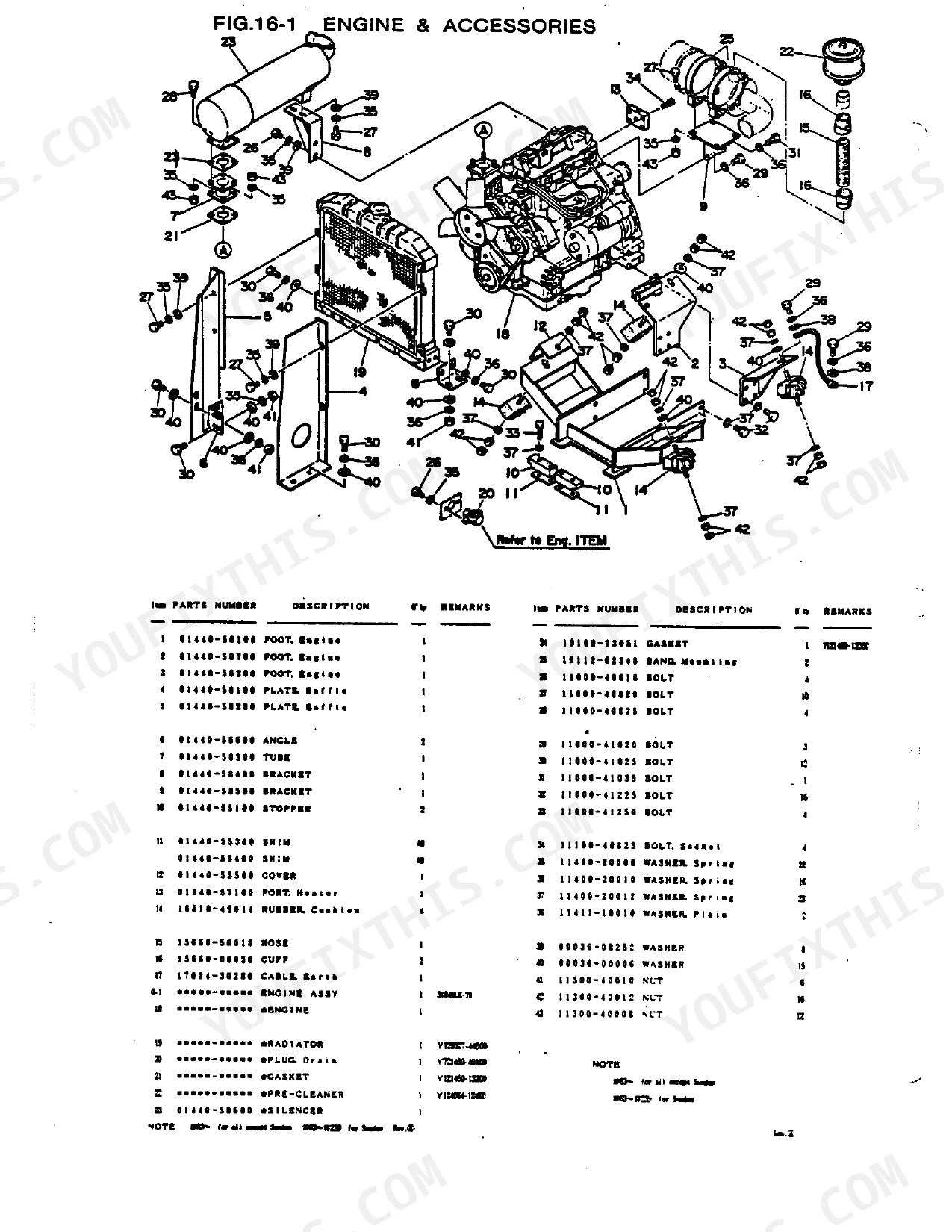

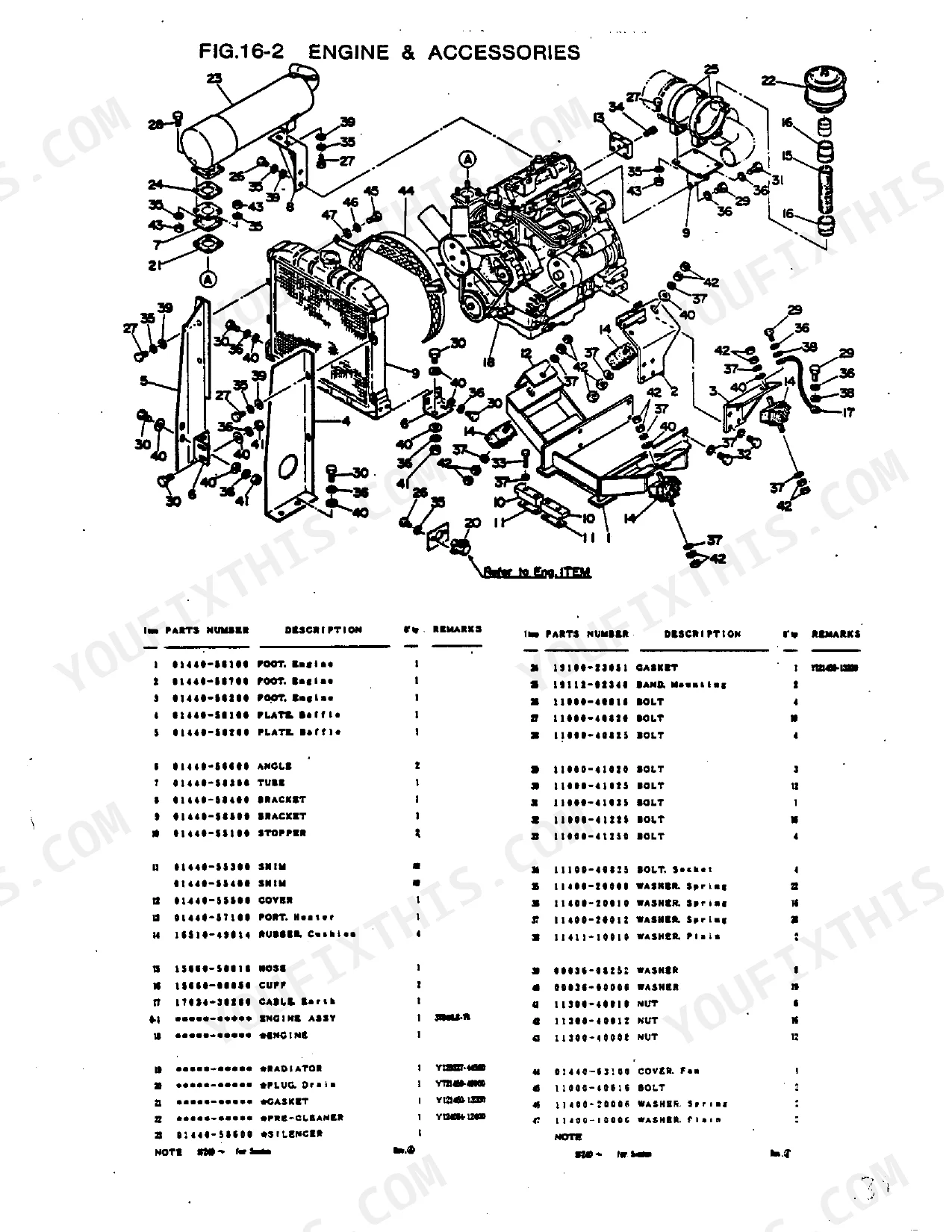

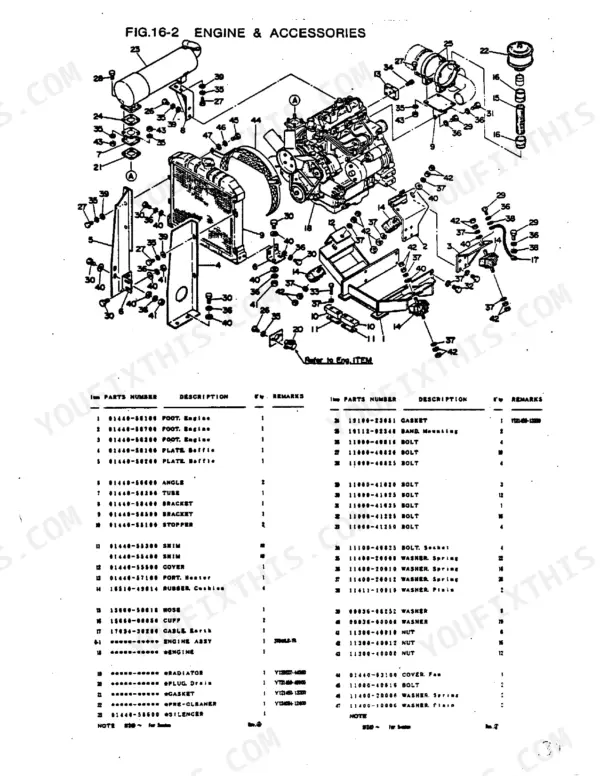

| Engine & Accessories | 38-46 | Control Box, Engine Control, Electricals, Grease Piping |
| Valve Mounting | 47-60 | |
| Pump Drive | 61-64 | Hydraulic Tank, Fuel Tank |
| Seat | 65-71 | Heater |
| Hoe | 72-79 | |
| Stickers | 80-87 | |
| Swivel Joint | 88-96 | Control Valve, Selector Valve, Shuttle & Relief Valve |
| Boom Cylinder | 97-101 | Arm Cylinder, Bucket Cylinder, Swing Cylinder |
| Traction Motor | 102-106 | Slew Motor |
| Rubber Shoe | 107-116 | Ejector Bucket, Parts for the Tropics, Canopy |
| Engine | 117-190 | Cylinder Block, Cylinder Head, Crankshaft, Lub. Oil Pump, Cooling Water Pump, Fuel Injection Pump, Governor, Starting Motor, AC Generator, Gasket Kit |
Takeuchi TB-35S Common Problems This Manual Covers
Takeuchi TB-35S track gearbox traction motor assembly and sprocket part numbers needed for final drive replacement
Check FIG.07 Track Gearbox on page 10. The traction motor assembly is listed as part 19030-03900 and the sprocket as 01416-54200. The socket bolts and spring washers are called out as separate line items. Order the mounting hardware with the sprocket, and confirm each quantity in the parts list before you submit the order.
Manual Section: Track Gearbox p. 10Track tension cushion assembly, check valve and grease cylinder part numbers hard to find on adjuster
Open FIG.06 Track Tension on page 9. The check valve assembly is listed as 18413-01603. The exploded view also breaks out the cushion assembly, rod assembly, spring, grease cylinder, piston, packing, O-ring, back-up ring, oil seal and grease nipple. Order the packing, O-ring, back-up ring and seal together so the adjuster goes back with matched soft parts.

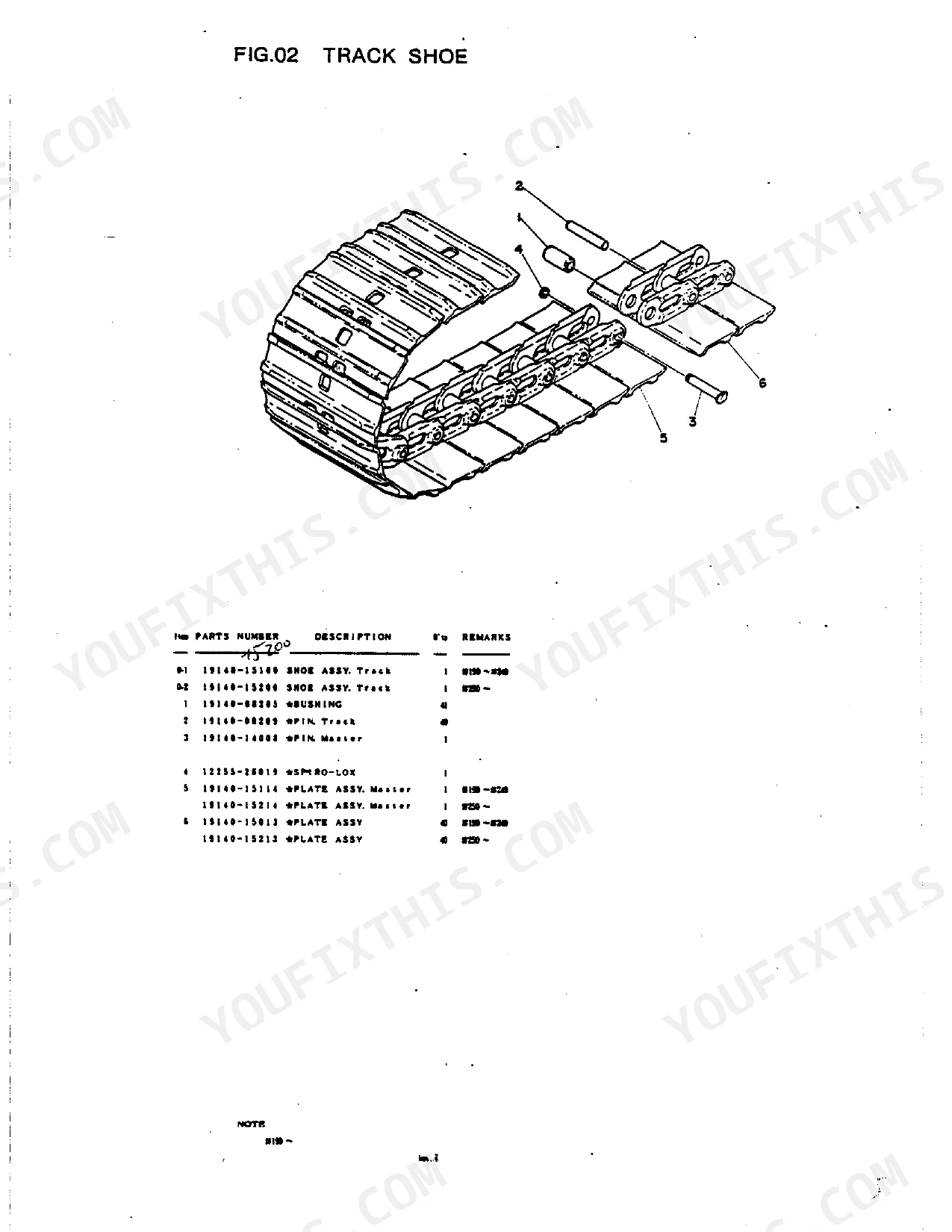

Manual Section: Track Tension p. 9Track shoe page shows several shoe assembly and master plate part numbers for the same machine
Check FIG.02 Track Shoe on page 5 and read the REMARKS column. The shoe assemblies and master plate assemblies are split by serial break there. Match your serial number before you order. The track bushing is listed as 19140-08205 and the master pin as 19140-16008. Confirm both against the shoe assembly that fits your range.
Manual Section: Track Shoe p. 5Track roller seal, bearing and snap ring part numbers needed instead of the complete roller assembly
Inspect FIG.04 Track Roller on page 7. The complete roller assembly is listed as 01413-96006. The shaft, covers, oil seals, bearings, snap ring, plug and bracket are each broken out as individual items. Decide whether you need the full assembly or only the seal and bearing items, then confirm quantities in the parts list.
Manual Section: Track Roller p. 7Front idler shaft, bearing, O-ring and oil seal callouts hard to match to the parts list
Check FIG.05 Front Idler on page 8. The exploded view lists the idler assembly, idler, shaft, collar, washers, plug, bearing, O-ring, snap ring, oil seal, blocks and spring pin. Match each callout number on the diagram to its line in the parts list, and confirm the description and quantity before you order.
Manual Section: Front Idler p. 8Slew gearbox assembly, pinion and motor assembly listed in several figures with different part numbers
Compare FIG.10-1 on page 14 with the other slew gearbox figures before you order. Each figure breaks out the gearbox assembly, case, cover, pinion, gears, bearings, oil seal, motor assembly and valve. The part numbers differ between versions. Identify the figure that matches your machine's serial number, then order only from that list.
Manual Section: Slew Gearbox p. 14Frequently Asked Questions
What is the part number for the FRAME in this manual?
Page 4 lists part number 01410-36100 for the FRAME. p. 4
What is the part number for the BUSHING in this manual?
Page 5 lists part number 19140-08205 for the BUSHING. p. 5
What is the part number for the ROLLER in this manual?
Page 6 lists part number 01412-01100 for the ROLLER. p. 6
What is the part number for the IDLER in this manual?
Page 8 lists part number 01414-00100 for the IDLER. p. 8
How will I receive this Takeuchi TB-35S Parts Catalog?
You get a 190-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print specific sections of this Takeuchi TB-35S Parts Catalog?
Yes. Print a single page or a chapter for your own shop use, on letter or A4.
