Tracking down parts for a Takeuchi TB007? This 184-page Takeuchi TB007 parts manual PDF (OEM #P-TB007BAB) is the factory parts catalog for the TB007 Mini Excavator, with exploded views and part numbers for every assembly on the machine. You get numbered diagrams covering the undercarriage (track rollers, front idler, sprockets, crawler belt), the full hydraulic side (pumps, travel and slew motors, control valves, swivel joint), and every cylinder from boom to dozer blade with complete seal kit breakdowns. Serial-number breaks matter on this machine, and the catalog splits them out: electrical harnesses are listed separately for 3001~3463, 3464~4339, and 4340~ machines, so you order the harness that actually fits. Quit cross-referencing blurry forum scans against the wrong serial range. Bookmarked PDF with a live text layer; punch in a part name, jump to the diagram, order once.
What's Inside This Takeuchi TB007 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Fuel System | Fuel Tank, Fuel Piping | |
| Engine | Engine & Accessories, Engine Control | |
| Hydraulics & 3-Point Hitch | Valve & Accessories, Pump Drive, Hydraulic Tank, Control Valve 1, Control Valve 2, Stop Valve, Boom Cylinder, Arm Cylinder, Bucket Cylinder, Dozer Blade Cylinder, Swing Cylinder, Spanner Cylinder, Hydraulic Pump | |
| Loader, Backhoe & Attachments | Boom Swing, Swing Pedal & Auxil. Pedal, Bucket 1, Bucket 2, Bucket 3 | |

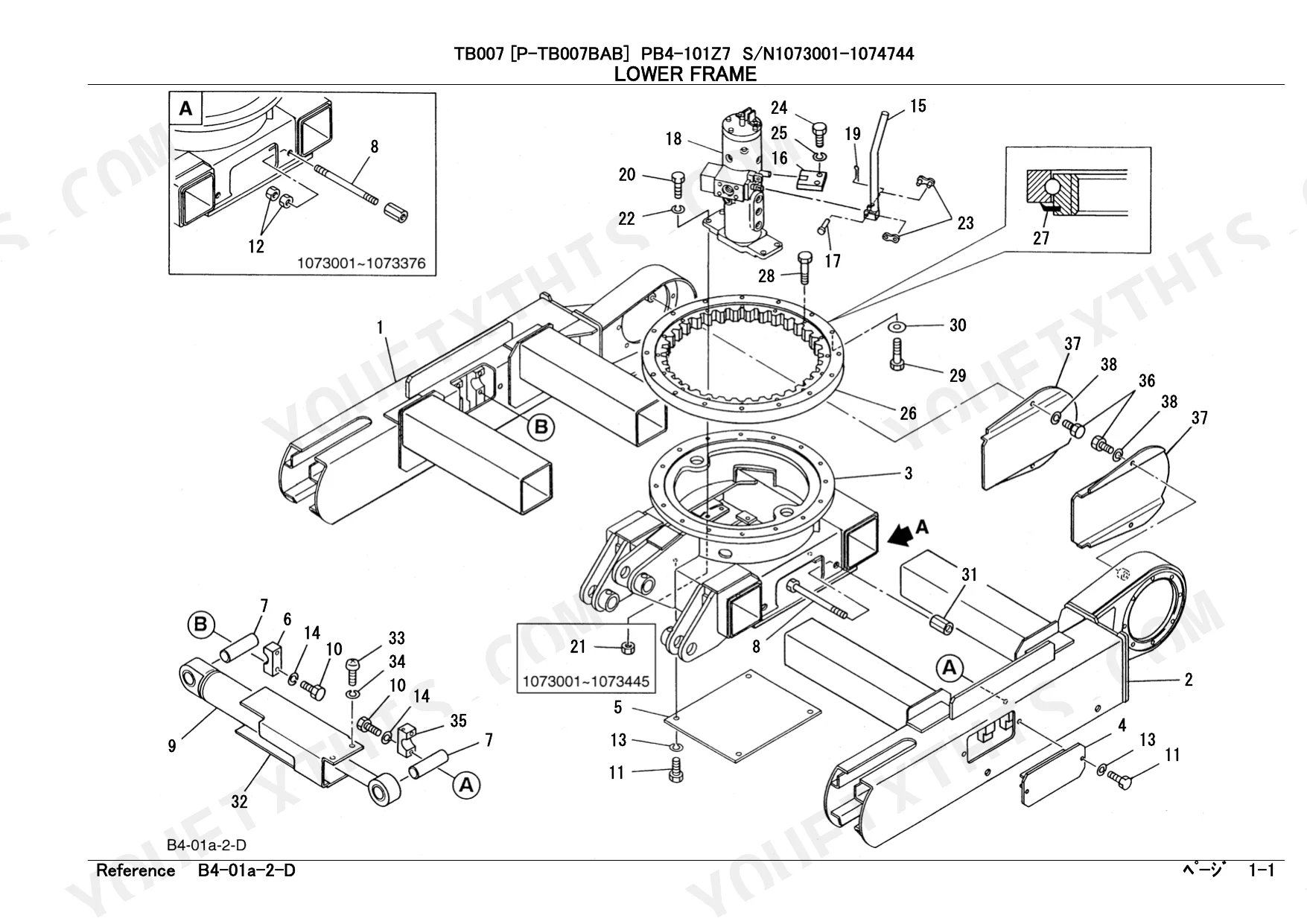

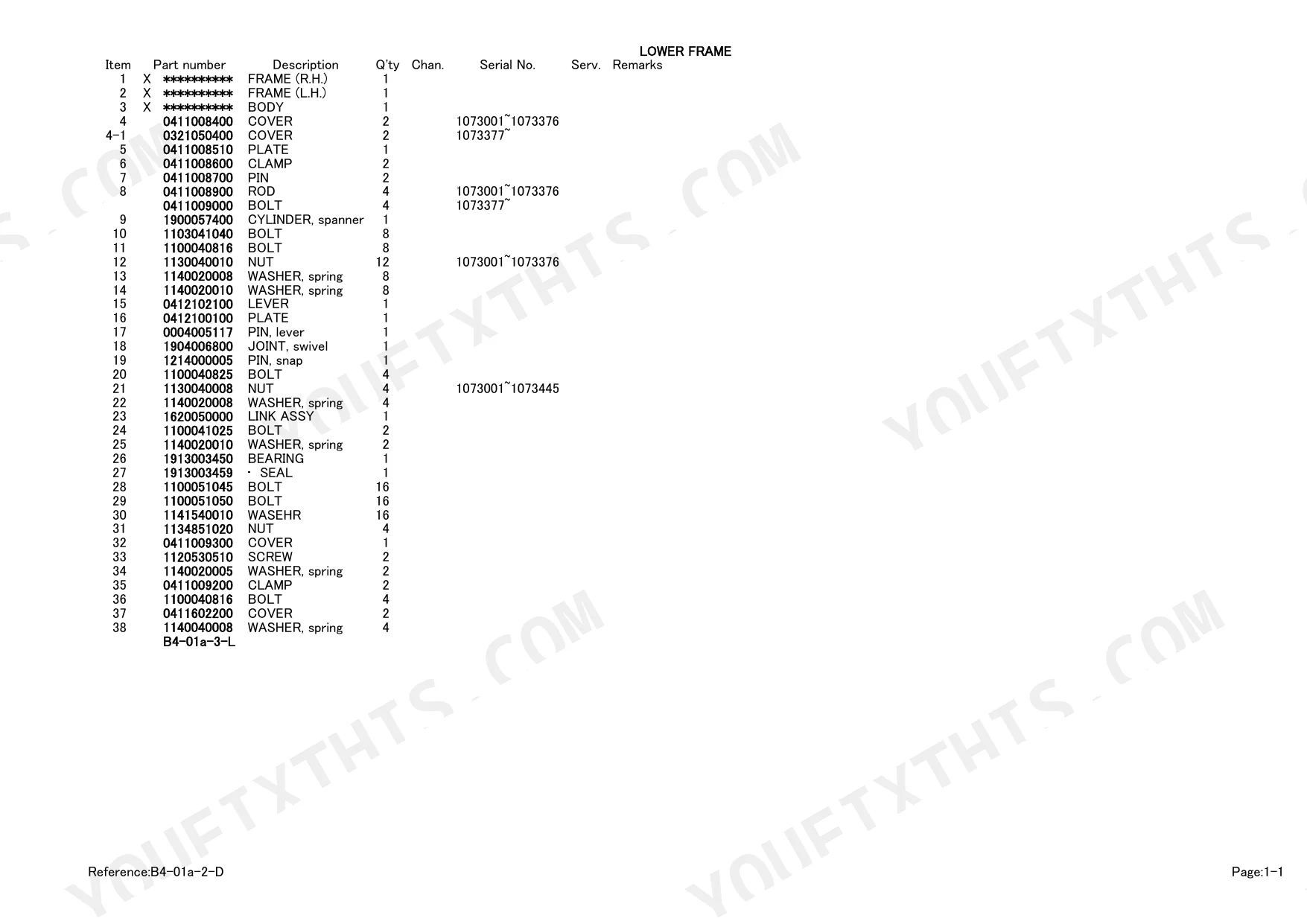

| Body & Operator Station | Lower Frame, Cover, Seat, Seat Belt, Canopy | |
| Decals & Accessories | Decal, Tool | |

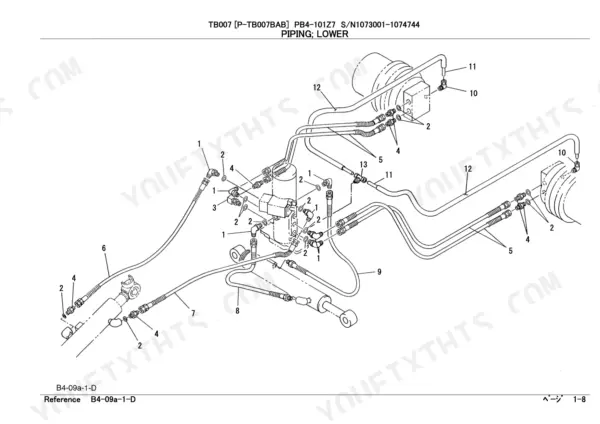

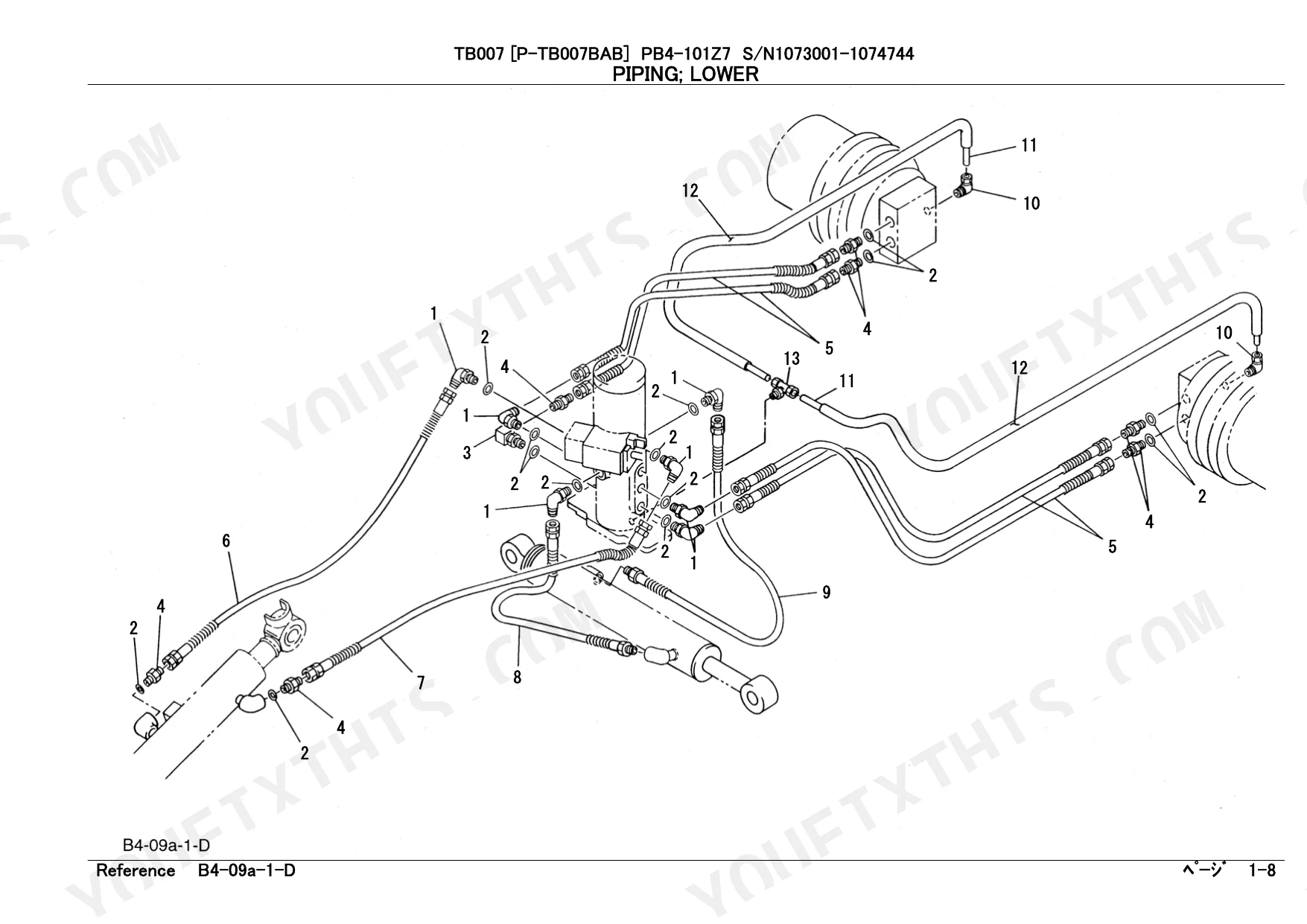

| Other Components | Crawler Belt, Track Roller, Front Idler, Track Adjuster, Travel Device, Dozer Blade, Piping; Lower, Slewing Device, Turntable, Travel Lever, Operation Lever, Dozer Blade Lever, Safety Lock Lever, Control Box, Electrical, Travel Alarm |
Takeuchi TB007 Common Problems This Manual Covers
Takeuchi TB007 boom cylinder leaking, can't find the correct seal kit part number in the parts list
Check the Boom Cylinder exploded view on page 158. The seal kit, piston packing, rod packing, and dust seal each carry separate item numbers in the parts list there. Order the complete kit line rather than single seals, and record your machine serial number before ordering to confirm the correct cylinder assembly.
Manual Section: Boom Cylinder p. 158Ordered wrong operation lever bushings twice, machine has JCB pattern controls and parts don't match
Verify your serial number first. JCB pattern operation lever parts split at serial 3295: machines 3001~3295 use the listing on page 42, machines 3296 and up use page 44. ISO pattern levers are a separate listing on page 46. Match the lever, rod, and bushing item numbers to the exploded view before ordering.
Manual Section: Control System p. 42Cracked hydraulic hose on the boom, can't tell which hose assembly to order
Check where the hose actually runs before opening a catalog page. Upper frame hoses split across two diagrams on pages 76 and 78, boom and arm hoses appear in the Piping Hoe 1 view on page 108, and auxiliary line hoses on page 110. Match the hose assembly item number and its adaptor fittings in the exploded view.
Manual Section: Hydraulic System p. 108Hydraulic fluid contaminated, need the correct tank filter and O-ring part numbers
Check the Hydraulic Tank exploded view on page 82. The filter, flange, plug, sight gauge, and each O-ring are listed as separate line items there. Order the filter plus every O-ring you disturb during the fluid change in one shot; the fuel side strainer is a different part shown on page 84.
Manual Section: Hydraulic Tank p. 82Pump whining under load, unsure which pump seal kit fits this serial range
Check the Hydraulic Pump section starting on page 174 and the pump index on page 176. The pump assembly, seal kit, gears, bushings, front cover, and coupling are all separate line items. Compare your pump's coupling and front cover against the exploded view, then verify the seal kit item number against your serial number.
Manual Section: Hydraulic Pump p. 174Wiring harness melted near the battery, three different harness listings in the book
Verify the serial number before ordering anything electrical; the listings split three ways. Machines 3001~3463 use the harness diagram on page 62, machines 3464~4339 use page 64, and 4340 and later use page 66. Fuse, diode, and lamp assemblies changed at serial 4340, so match your machine to the correct diagram first.
Manual Section: Electrical System p. 62Frequently Asked Questions
What is the replacement part number for the hydraulic filter cartridge?
The replacement cartridge for the hydraulic filter assembly (1551020180) is part number 1551020200. p. 83
What is the replacement part number for the engine oil filter?
The engine oil filter for the TB007 is part number Y11963255620. p. 87
What is the correct part number for the crawler belt?
The crawler belt part number depends on the machine serial number. For serial numbers 1073001~1073381, use part number 1914079000. For serial numbers 1073382~1073598, use 1914090100, and for 1073599 and later, use 1914090200. p. 17
What is the part number for the starter switch?
The starter switch part number is 1700100023 for machines up to serial number 1074381, and 1700100048 for serial numbers 1074382 and later. p. 59
What is the part number for the hydraulic pump assembly?
The hydraulic pump assembly is part number 1902012400. p. 175
How will I receive this Takeuchi TB007 Parts Manual?
Instant PDF download. You get the full 184-page searchable Parts Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Is this Takeuchi TB007 Parts Manual printable?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
