Every part on your Takeuchi TB035 hydraulic excavator has a number, and this 392-page Takeuchi TB035 parts manual PDF (OEM #PG3-102Z5) shows you all of them. Inside: exploded views of the undercarriage, turntable, hydraulic piping and tank, covers and cab, hoe attachment, hydraulic devices, and the complete 3TN84TL-RTBY engine, each keyed to factory part numbers so you order right the first time. You get serial-number breaks for buckets and sub valves (1355001~1355376 versus later machines), plus regional variants covering USA and Australia electrical setups. Need to shim a sloppy bucket pin? This parts catalog identifies the 0.5mm shims for bucket and telescopic arm, and 0.2mm shims for boom swing. Ordering the wrong part twice hurts more than the breakdown. Bookmarked and text-searchable; type the part name, find the exploded view, order once.
What's Inside This Takeuchi TB035 Parts Manual
| System | Pages | Key Topics |
|---|---|---|

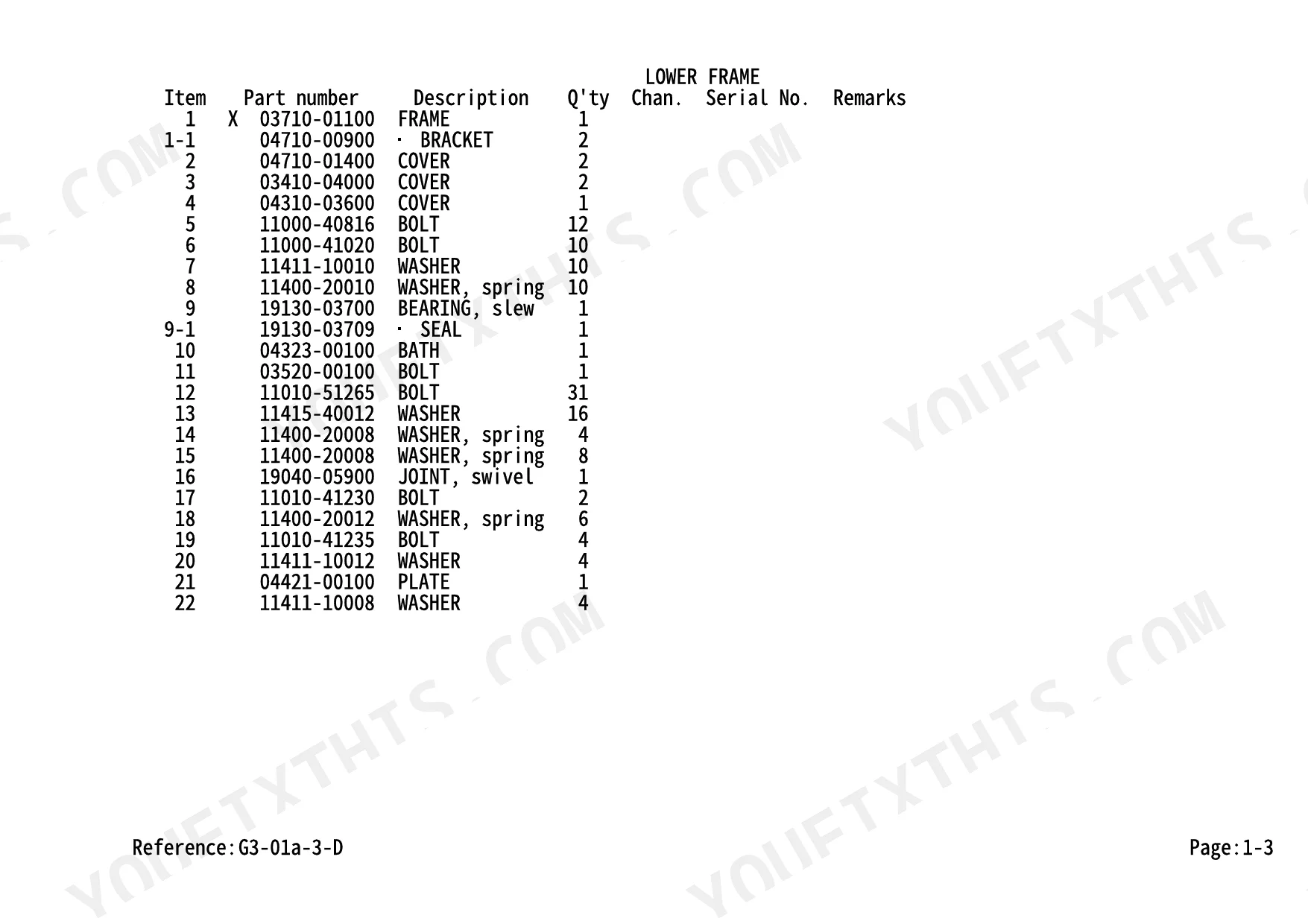

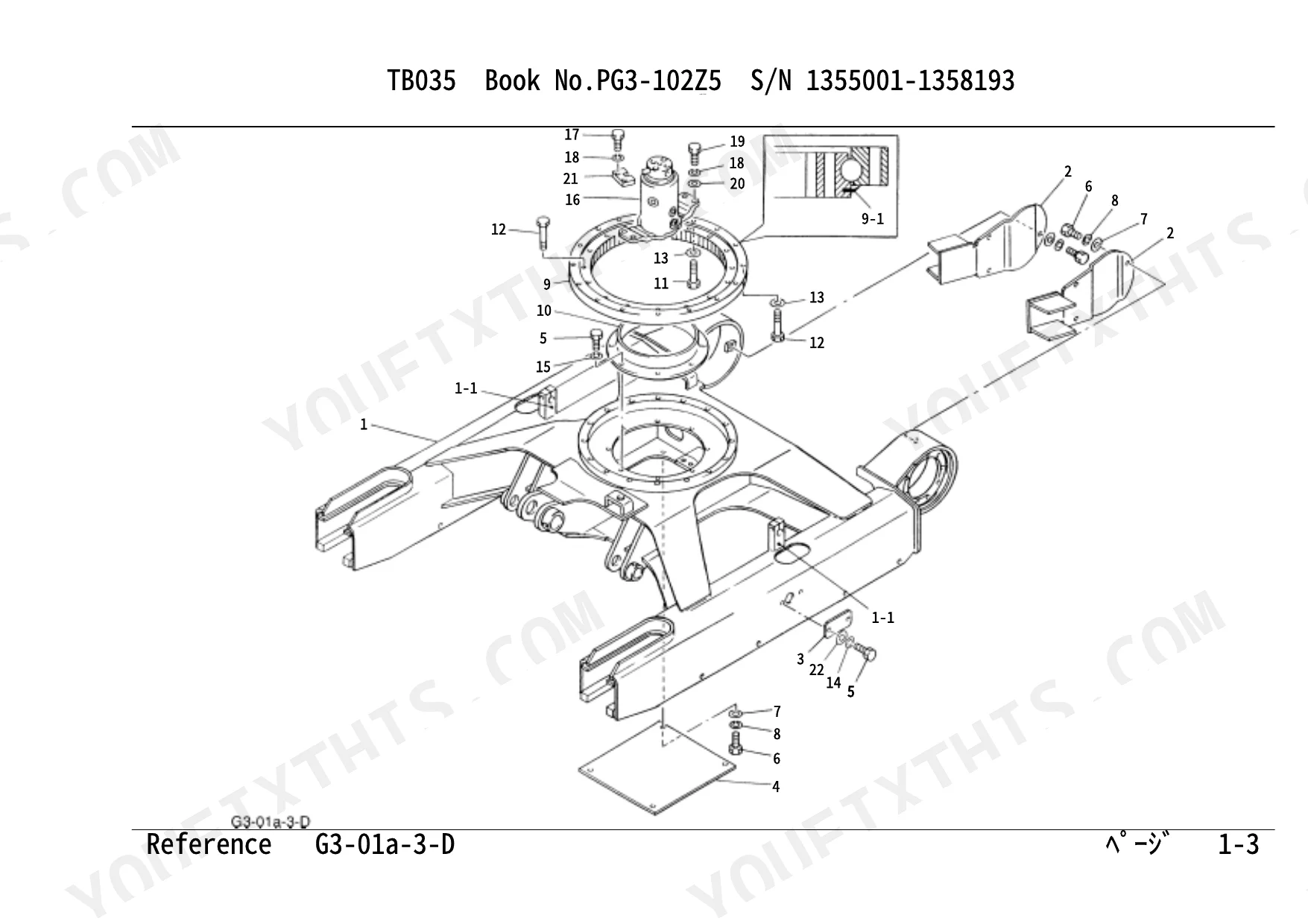

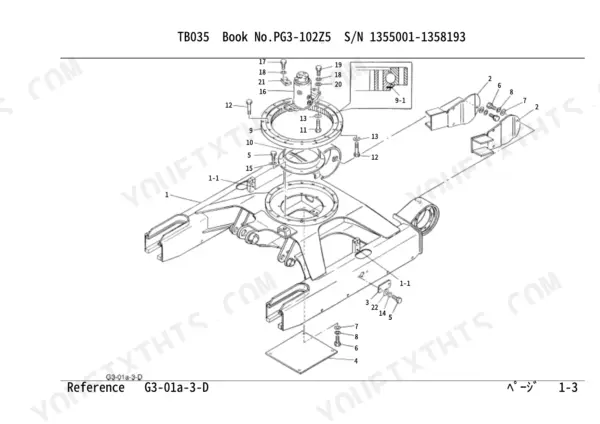

| Undercarriage | 12-29 | Lower Frame, Crawler Belt, Carrier Roller, Track Roller, Front Idler, Track Adjuster, Travel Device, Dozer Blade |
| Turntable & Control Lever | 30-66 | Slewing Device, Turntable, Boom Swing, Travel Lever, Stand (for Japan), Stand, Operation Lever (for Japan) |
| Engine & Electrical System | 67-97 | Engine & Accessories 1, Engine & Accessories 2, Control Box, Engine Control, Electrical 1, Electrical 1 (for Australia), Electrical 2, Electrical 2 (Outside Type) |
| Hydraulic Pipng & Tank | 98-119 | Grease Piping, Valve & Accessories 1, Valve & Accessories 2, Piping; Upper 1, Piping; Upper 2, Piping; Upper 3 (Auxiliary Line), Pump Drive, Fuel Tank |
| Cover & Cab | 120-168 | Cover 1, Cover 2, Cover 3, Seat (for Japan), Seat, Cab 1, Cab 1 (ROPS & FOPS) |

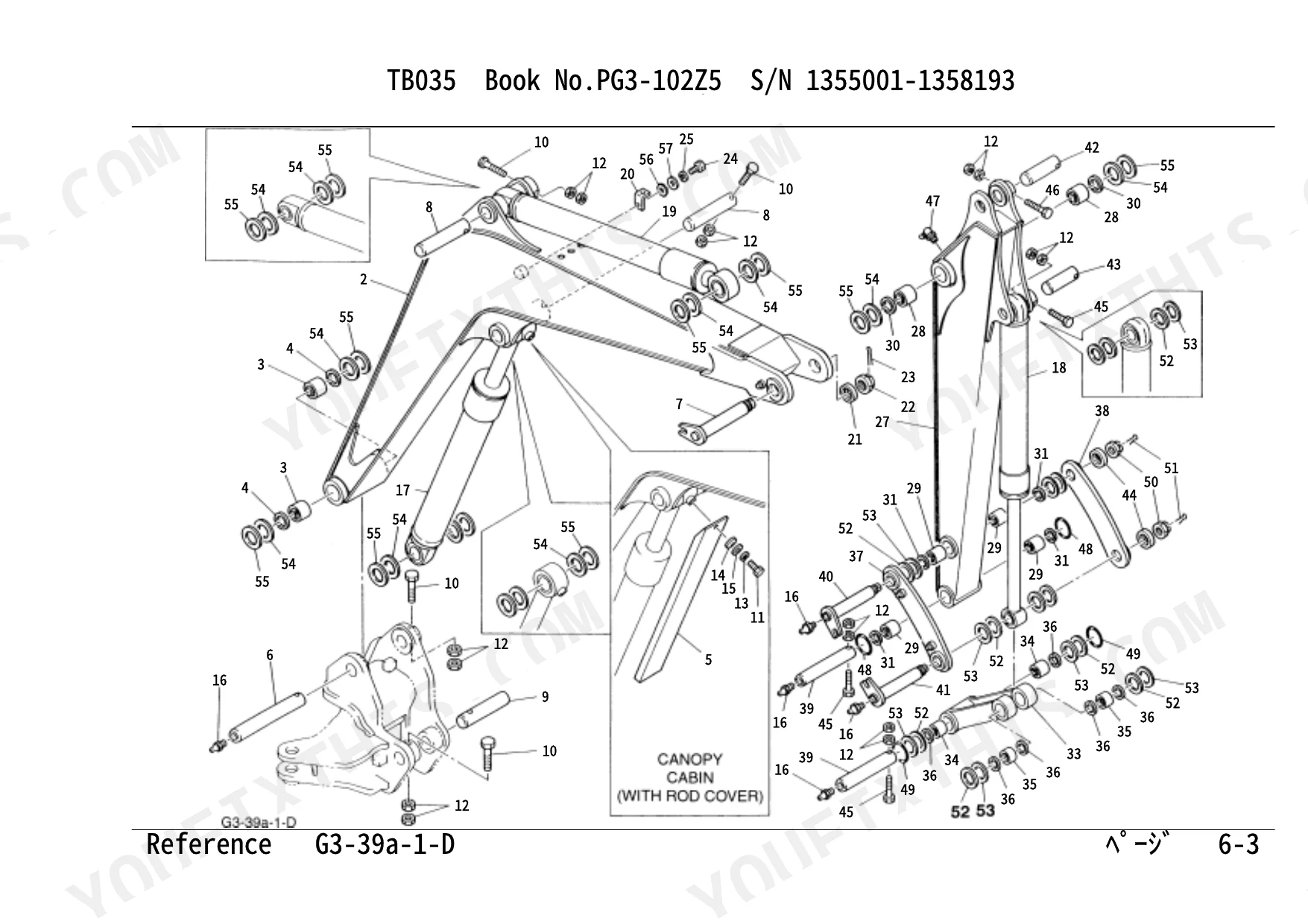

| Hoe Attachment | 169-189 | Hoe, Telescopic Arm, Bucket 1 (1355001~1355376), Bucket 2 (1355001~1355376), Bucket (1355377~), Bucket (for U.S.A.), Piping; Hoe 1, Piping; Hoe 2 (Auxiliary Line) |
| Decal & Tool | 190-262 | Decal (Job-Ace, For Japan), Decal (Tcm, Decal (for Japan), Decal (for Japan) (1355001~1356407) |
| Hydraulic Device | 263-331 | Swivel Joint, Control Valve 1, Control Valve 2, Pilot Valve, Sub Valve (1355001~1355582), Sub Valve (1355583~), Solenoid Valve |

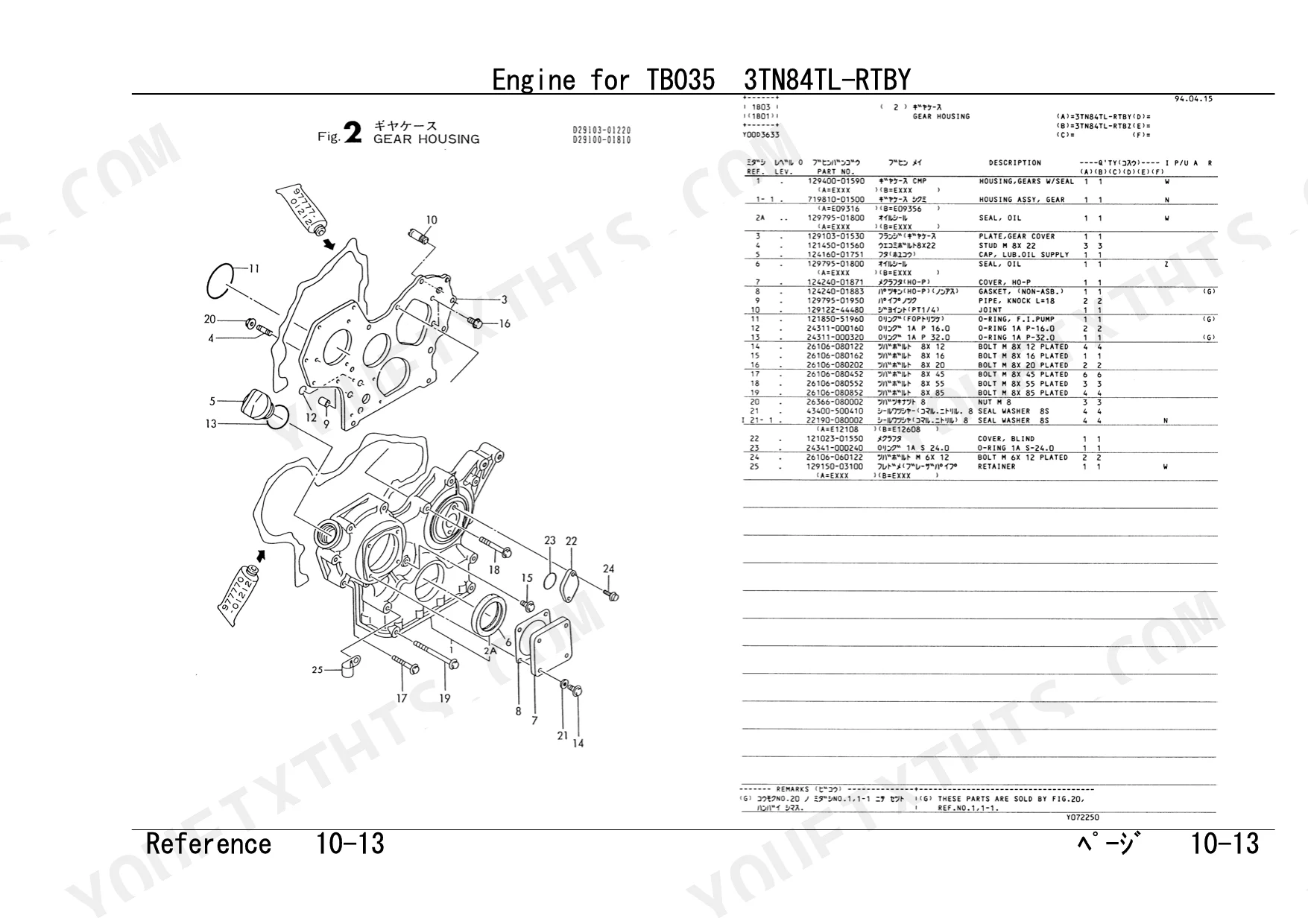

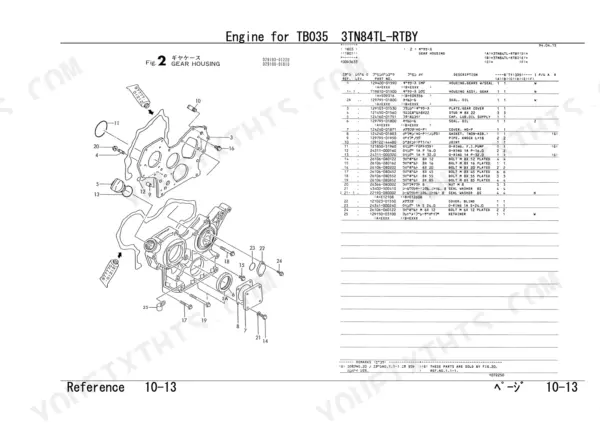

| Engine for 3Tn84Tl-Rtby | 350-392 | Index, Gear Housing, Flywheel Housing & Lub. Oil Sump, Cylinder Head & Bonnet, Suction Manifold & Air Cleaner, Exhaust Manifold & Silencer, Camshaft & Driving Gear, Turbochager |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Shim thickness | 0.5mm | p. 176 |
| Bulb Voltage/Wattage | 12V, 2W | p. 73 |
| Boom Swing Shim Thickness | 0.2mm | p. 36 |
| Bucket Shim Thickness | 0.5mm | p. 176 |
| Telescopic Arm Shim Thickness | 0.5mm | p. 171 |
| Cab Height (Standard) | 1670mm | p. 135 |
| Cab Height (Reduced) | 1620mm | p. 135 |
Takeuchi TB035 Common Problems This Manual Covers
Takeuchi TB035 bucket pin and shim part numbers differ by serial number, unsure which listing fits
Check your serial number plate first. Bucket parts split at serial 1355377, and the Hoe Attachment section carries separate exploded views for each range. Match the 0.5mm bucket shim listed on page 176 to your pin bores, and order shims together with pins since worn bores rarely reuse old shims cleanly.
Manual Section: Hoe Attachment p. 176Boom swing pivot has play, unclear which shim thicknesses and part numbers to order
Measure the boom swing pivot gap before ordering anything. Shims come in 0.2mm, 0.5mm, 1.0mm, and 1.6mm thicknesses, all listed with part numbers on page 36. Count the shims pulled from each pivot during teardown, then order a mix that fills the measured gap plus spare 0.2mm pieces for final fitting.
Manual Section: Turntable & Control Lever p. 36Telescopic arm wear shims need replacement, can't tell which sizes the arm actually uses
Remove the wear pads and measure what remains before ordering. The telescopic arm parts list on page 171 shows shims in 0.2mm and 0.5mm thicknesses with their part numbers. Sketch each shim location as you disassemble; the arm stacks different combinations per side, and mixed-up stacks bind the extension.
Manual Section: Hoe Attachment p. 171Cab lamp bulb burned out, unsure of the correct bulb rating and part number
Verify the rating before buying a replacement: the lamp bulb listed on page 73 is 12V, 2W, and automotive bulbs with the same base often run hotter wattages that cook the lens. Pull the exact part number from the Electrical exploded views, and note Australian machines use a separate Electrical 1 parts diagram.
Manual Section: Engine & Electrical System p. 73Cab glass and trim part numbers unclear, machine could be standard or reduced height version
Measure your cab before ordering glass. Standard cabs run 1670mm tall and the reduced version 1620mm, both listed on page 135, and the two share few panels. Pull part numbers from the cab and interior exploded view on page 134, then confirm the listing against your serial number range before purchase.
Manual Section: Cover & Cab p. 134Frequently Asked Questions
What is the replacement part number for the engine oil filter on the Takeuchi TB035?
The parts manual for the 3TN84TL-RTBY engine lists the oil filter as part number 129150-35153 (referenced in the Gasket Set & Tools section). p. 379
What is the part number for the air cleaner element on the TB035 engine?
The air cleaner element for the 3TN84TL-RTBY engine is part number 129100-55650. p. 383
What is the part number for the starter motor on the TB035 engine?
The starter motor for the 3TN84TL-RTBY engine is part number 171008-77010. p. 377
What is the part number for the alternator on the TB035 engine?
The alternator (generator) for the 3TN84TL-RTBY engine is part number 119836-77200. p. 378
How is this Takeuchi TB035 Parts Manual delivered?
Immediate download of the complete 392-page searchable Parts Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Are there any print restrictions on this Takeuchi TB035 manual?
Printing is allowed without restriction. Pull the pages you need for the job and bin them when they get greasy.
