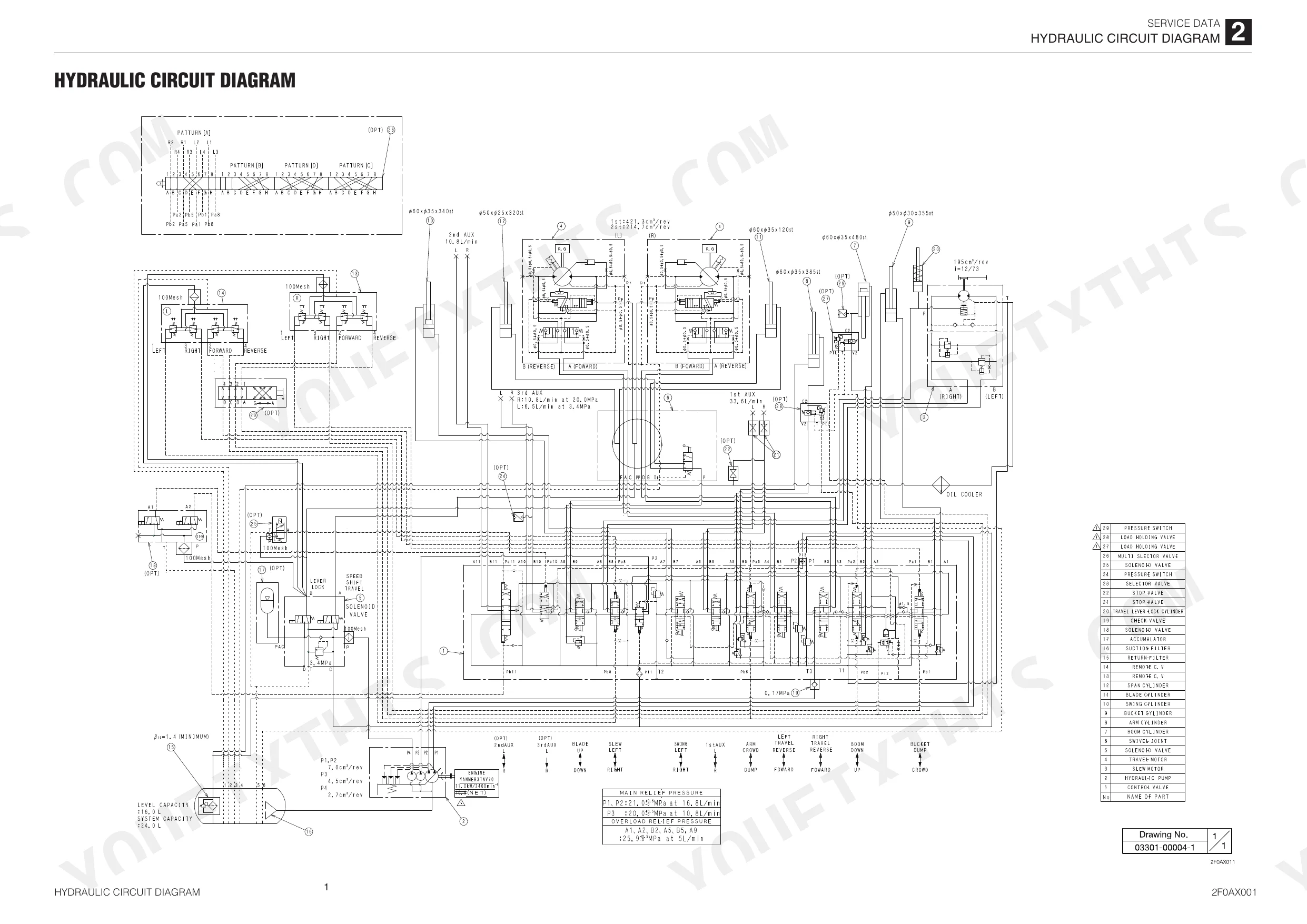

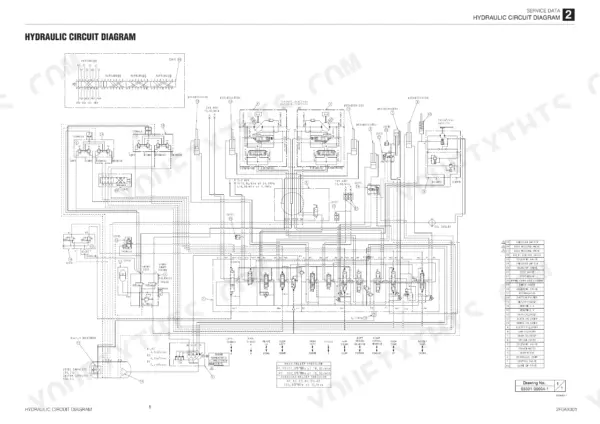

Need the factory numbers for your Takeuchi TB215R mini excavator? This 690-page Takeuchi TB215R shop manual PDF (OEM #CC8E001) covers the whole machine, from crawler removal to slew motor rebuilds. You get the complete electrical wiring diagram, wire harness layout, and full hydraulic circuit schematics, plus a troubleshooting section that walks travel, slew, boom, arm, and bucket faults back to the source. Inside: step-by-step teardown and assembly for the piston pump, control valve, pilot valve, cylinders, travel motor, and slew motor, with tightening torque tables and service standards throughout. Pressure-test the hydraulic circuit at 20.6 MPa (2900 PSI), and keep the 4.3-liter engine oil pan topped to the upper limit. No more chasing wiring faults with a multimeter and a prayer. Bookmarked with a full text layer: jump to any section, search any spec, and get back on the sticks.
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine oil pan capacity (Upper limit) | 4.3 L (4.5 US qt.) | p. 25 |
| Engine oil pan capacity (Lower limit) | 1.5 L (1.6 US qt.) | p. 25 |
| Leak test pressure | 20.6 MPa (2900 PSI) | p. 229 |
| Cylinder stroke | 10 mm (0.4 in.) | p. 235 |

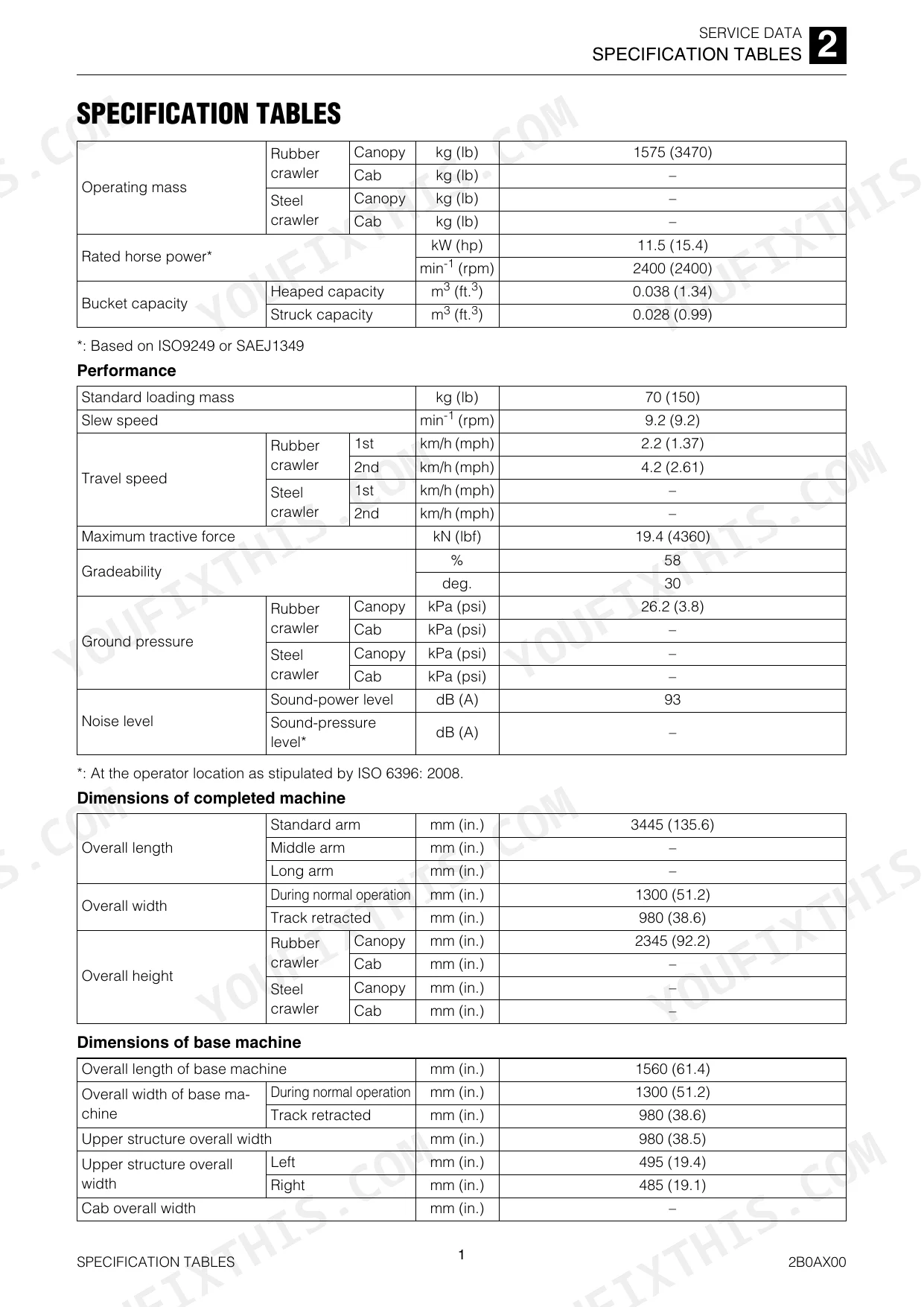

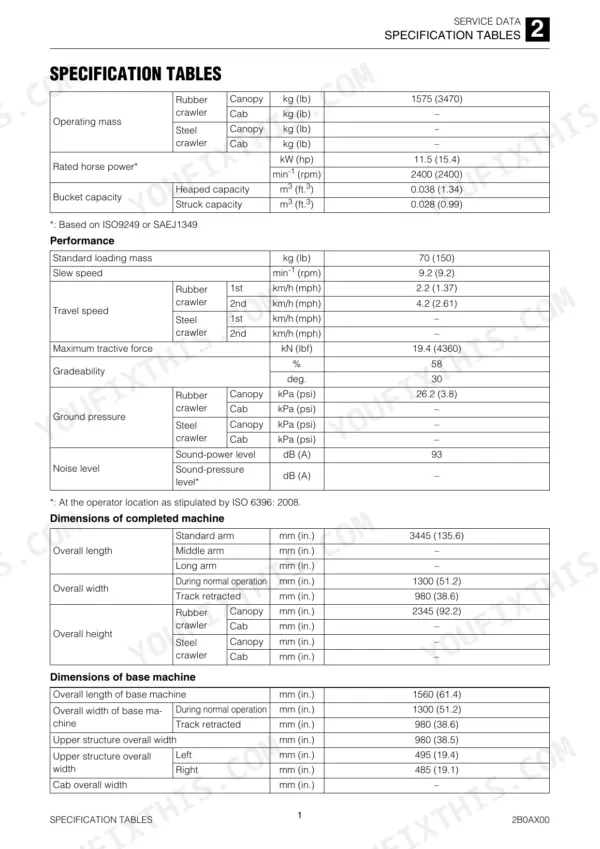

| Operating mass (Rubber crawler, Canopy) | 1575 kg | p. 18 |
| Rated horse power | 11.5 kW | p. 18 |
| Hydraulic tank total oil amount | 24.0 L | p. 25 |
| Engine cooling system capacity | 3.9 L | p. 25 |
| Travel reduction gear oil capacity | 0.330 L | p. 25 |
| Main relief valve pressure setting (P1, P2) | 21.0 MPa | p. 20 |
| Main relief valve pressure setting (P3) | 20.0 MPa | p. 20 |
| Main relief valve pressure setting (P4) | 3.4 MPa | p. 20 |
Takeuchi TB215R Common Problems This Manual Covers
Takeuchi TB215R hydraulic system loses power, boom and arm move slow and jerky after warm-up

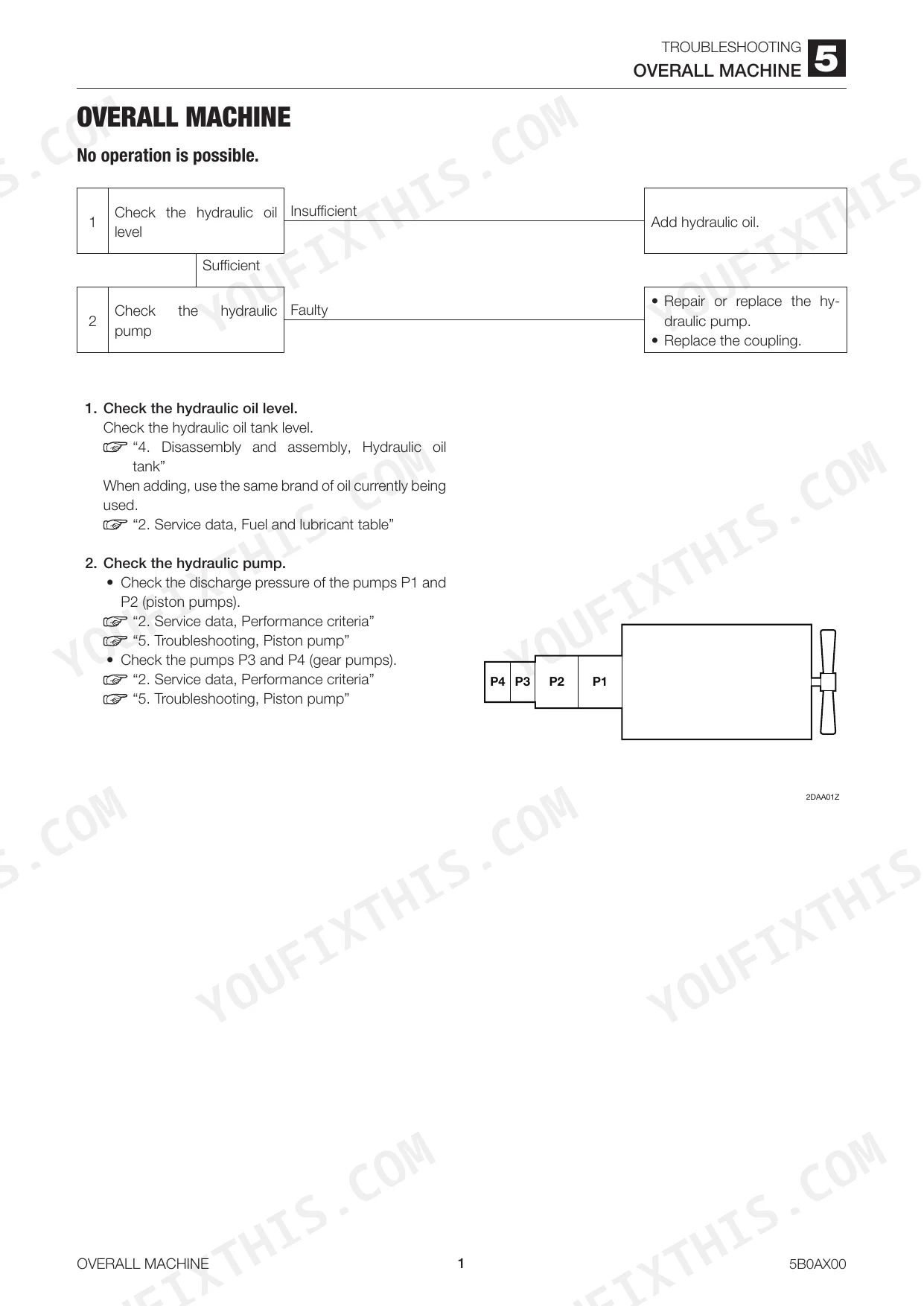

Test main relief valve pressure at P1 and P2 with a gauge on the pump outlet; the setting is 21.0 MPa, listed on page 20. If pressure falls short, adjust the relief or inspect the piston pump for wear. Warm the hydraulic oil fully before testing, then work through the troubleshooting procedures starting on page 230.
Manual Section: Overall Machine p. 230Boom drops slowly under load with engine off, cylinder creeps down overnight
Check the boom port relief and anti-cavitation valves in the control valve section starting on page 183. Run a leak test at 20.6 MPa (2900 PSI), the spec listed on page 229. If the rod still creeps, pull the boom cylinder and replace the piston seals; inspect the rod for scoring before reassembly.
Manual Section: BoomEngine cranks but won't start, or shuts down without warning during operation

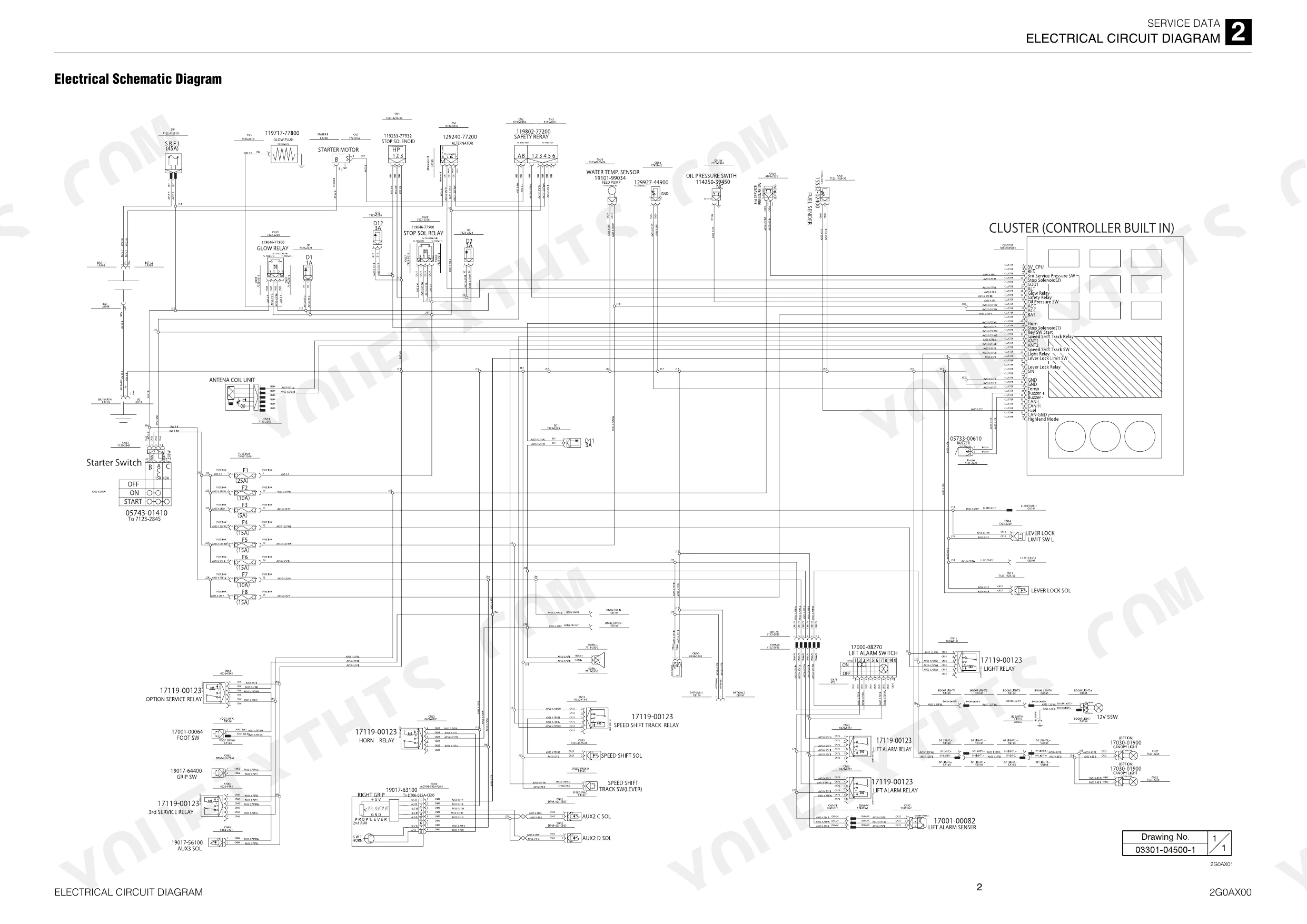

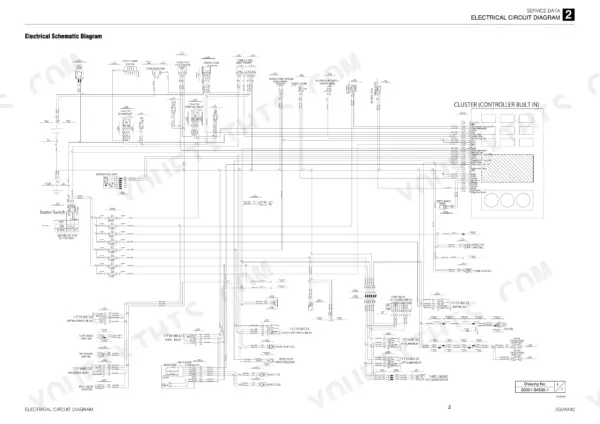

Check battery terminals and the safety interlock switch before condemning the engine. Trace the start circuit against the wiring diagram on page 49, testing each connector for voltage drop. Verify engine oil sits at the upper mark; pan capacity is 4.3 L (4.5 US qt.) per page 25, and low oil will kill a warmed engine.

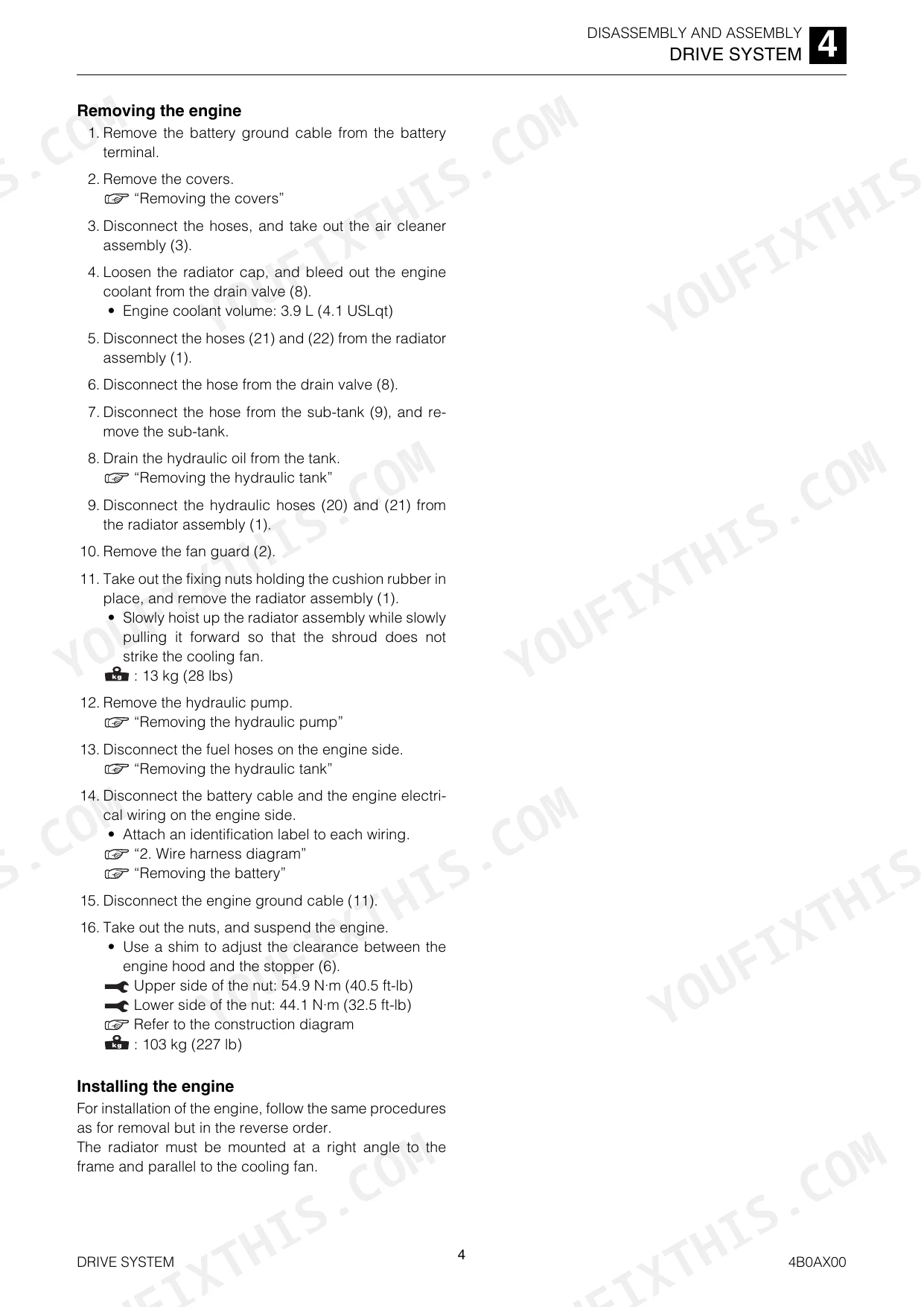

Manual Section: Service Standards and Drive System p. 93Hydraulic pump whines or growls at idle, oil overheats after an hour of digging
Drain and refill the hydraulic tank if the oil looks milky or dark; total system amount is 24.0 L per page 25. Inspect the suction line for air leaks that make the pump cavitate and whine. Retorque loose fittings; a 1/8 union nut takes 9.8 N·m, from the torque table on page 40.
Manual Section: Hydraulic Tank and Hydraulic Pump p. 145Machine veers to one side when traveling straight, one track slower than the other
Check track tension first; a loose crawler on one side drags and pulls the machine off line. Adjust it with the track adjuster covered in the Travel System section starting on page 105. Drain and refill the travel reduction gears, 0.330 L each per page 25, then compare drive speeds under load on flat ground.
Manual Section: Travel System p. 105Frequently Asked Questions
What are the torque specifications for hydraulic hose union nuts on the TB215R?

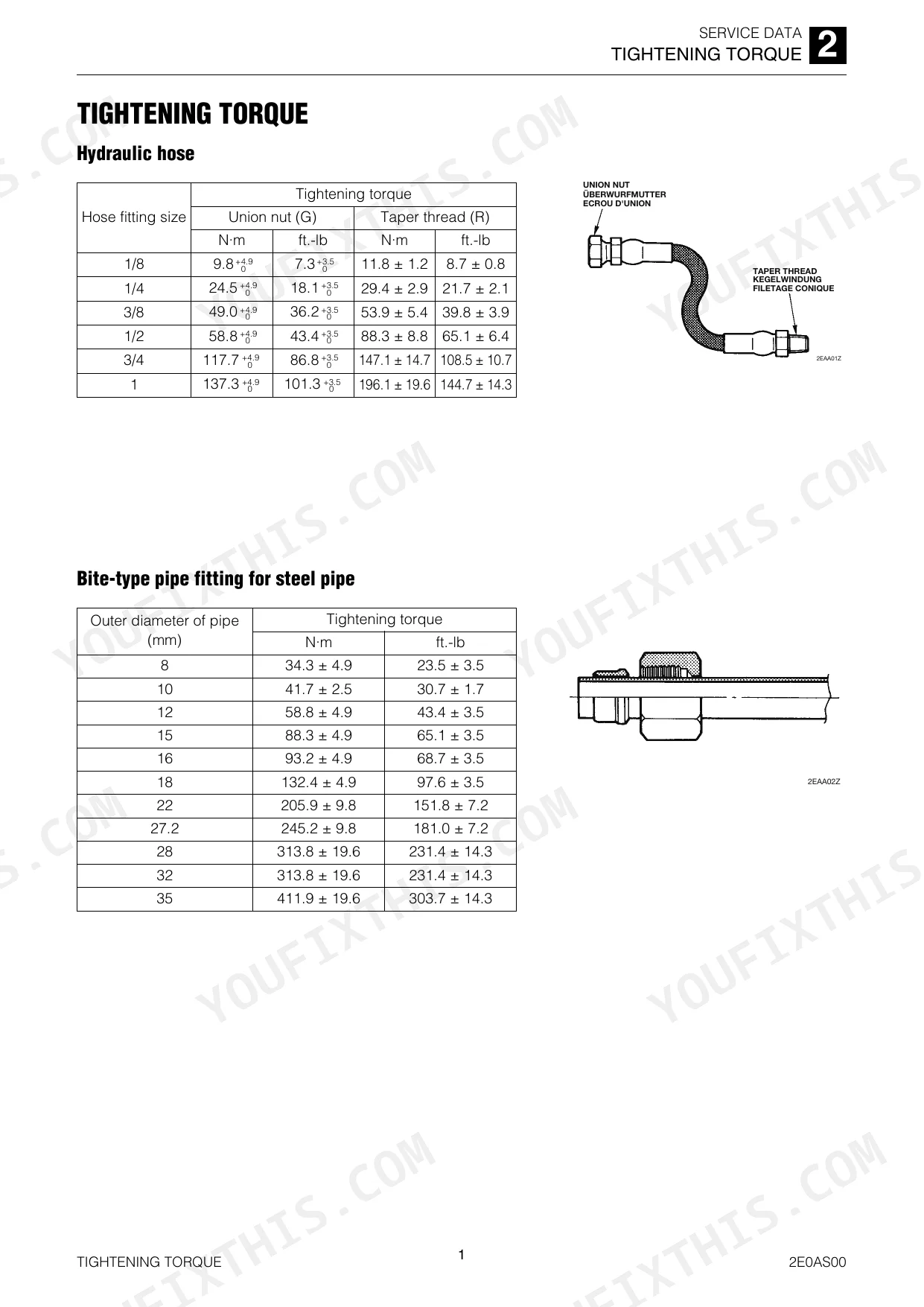

The tightening torque for hydraulic hose union nuts depends on the hose fitting size. For example, a 1/8 size requires 9.8 N·m (7.3 ft.-lb), a 1/2 size requires 58.8 N·m (43.4 ft.-lb), and a 1 size requires 137.3 N·m (101.3 ft.-lb). p. 38
How do I bleed the air from the hydraulic cylinder after replacing it?
After reassembling hydraulic devices, start the engine and let it idle. Slowly extend and retract each cylinder 4 or 5 times, moving the piston rod to a position 100 mm (3.9 in.) before the end of the stroke. Finally, run the engine at top speed and move the piston rod to the stroke end to bleed off the air. p. 136
What is the engine coolant capacity for the TB215R?
The engine cooling system has a capacity of 3.9 L (4.1 US qt.). p. 25
What is the tightening torque for the hydraulic pump mounting bolts?
The hydraulic pump assembly is secured with bolts that must be tightened to 102 N·m (75.2 ft.-lb). p. 95
What is the standard track tension for the TB215R?
The standard track tension for the rubber crawler is a gap of 59 to 64 mm (2.3 to 2.5 in.) between the bottom surface of the frame and the top surface of the track shoe at the center of the crawler frame. p. 28
What do I get after purchasing this Takeuchi TB215R manual?
This is a 690-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Is this Takeuchi TB215R Shop Manual printable?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
