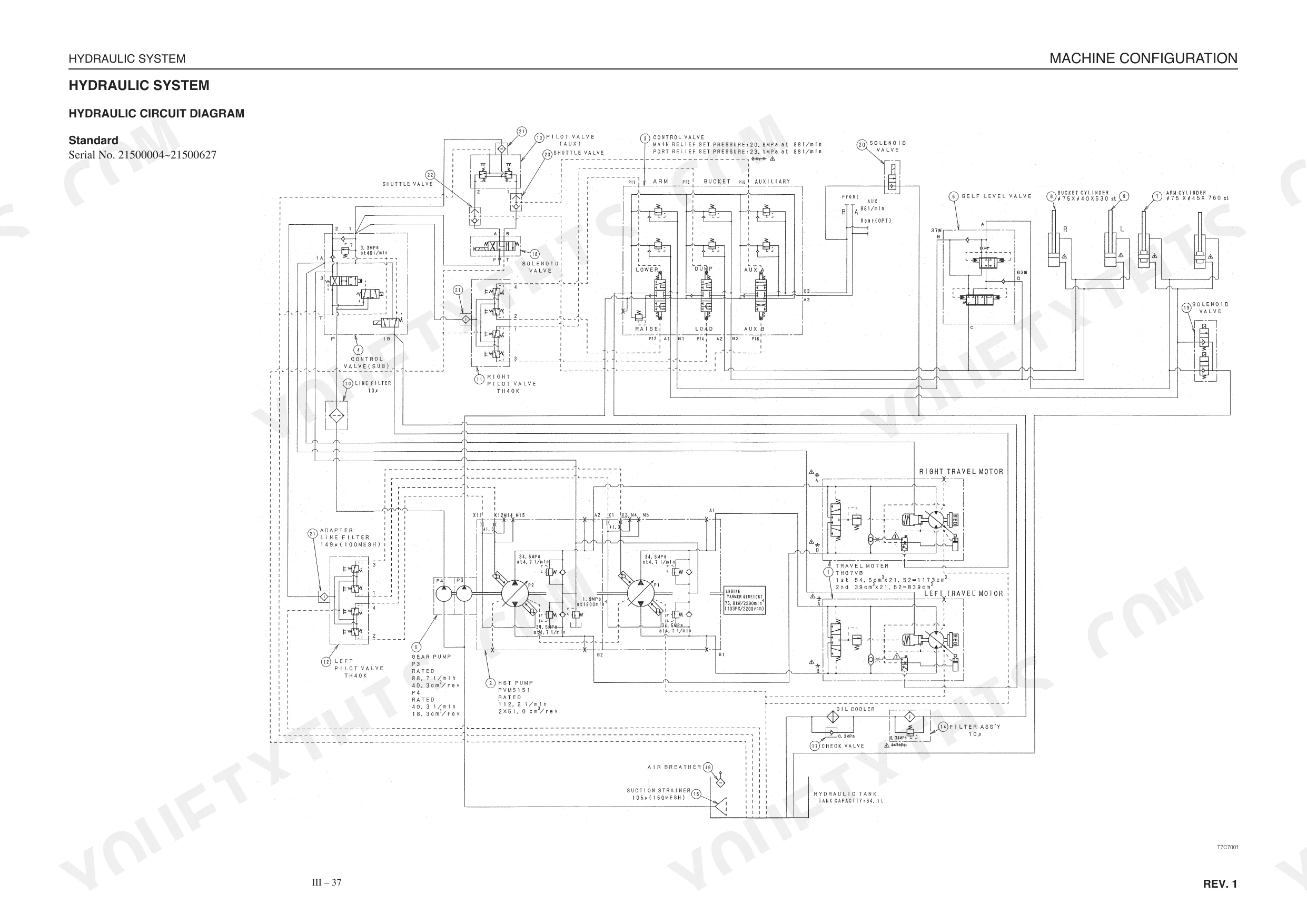

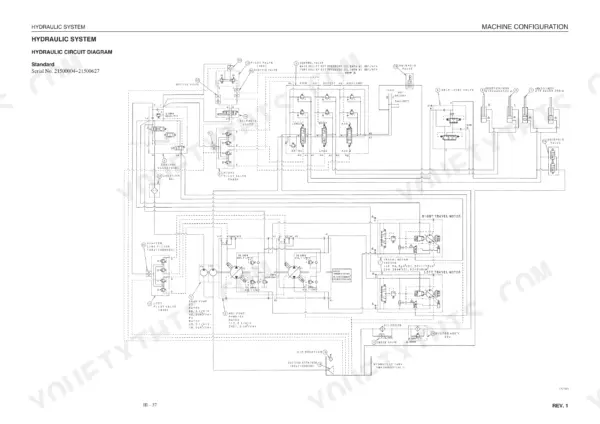

This 798-page Takeuchi TL150 workshop manual PDF (OEM #CT7E001) breaks down the complete drive system, intricate hydraulic units, and multiple engine configurations for your crawler loader. Open up the file to find highly detailed wiring diagrams and hydraulic schematics mapping out the HST pump, control valves, and pilot systems. You get a massive troubleshooting guide covering everything from sluggish machine travel to lift arm faults, plus complete tear-down and rebuild procedures for the 4TNE106 and 4TNV106 powerplants. When putting the block back together, lock the M12 x 1.75 general fasteners to exactly 83.4 N-m and verify your hydraulic seals are perfectly seated to prevent leaks. Guessing at clearances costs you time and parts. Grab this indexed download, pull it up on your tablet right next to the machine, and do the job right the first time.
What's Inside This Takeuchi TL150 Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 9-22 | Safety Precautions, Cautions During Disassembly and Assembly, Cautions During Removal and Installation of the Hydraulic Units, Cautions During Removal and Installation of Piping |

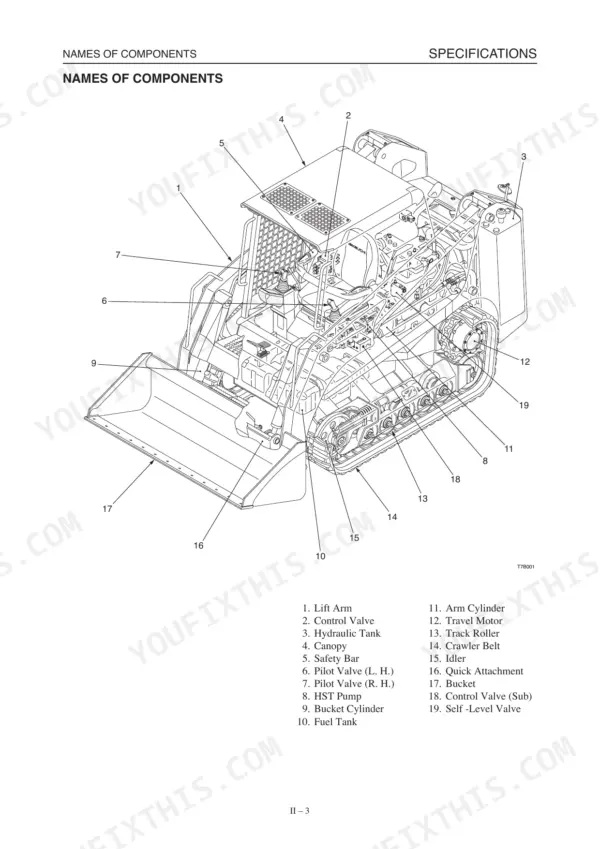

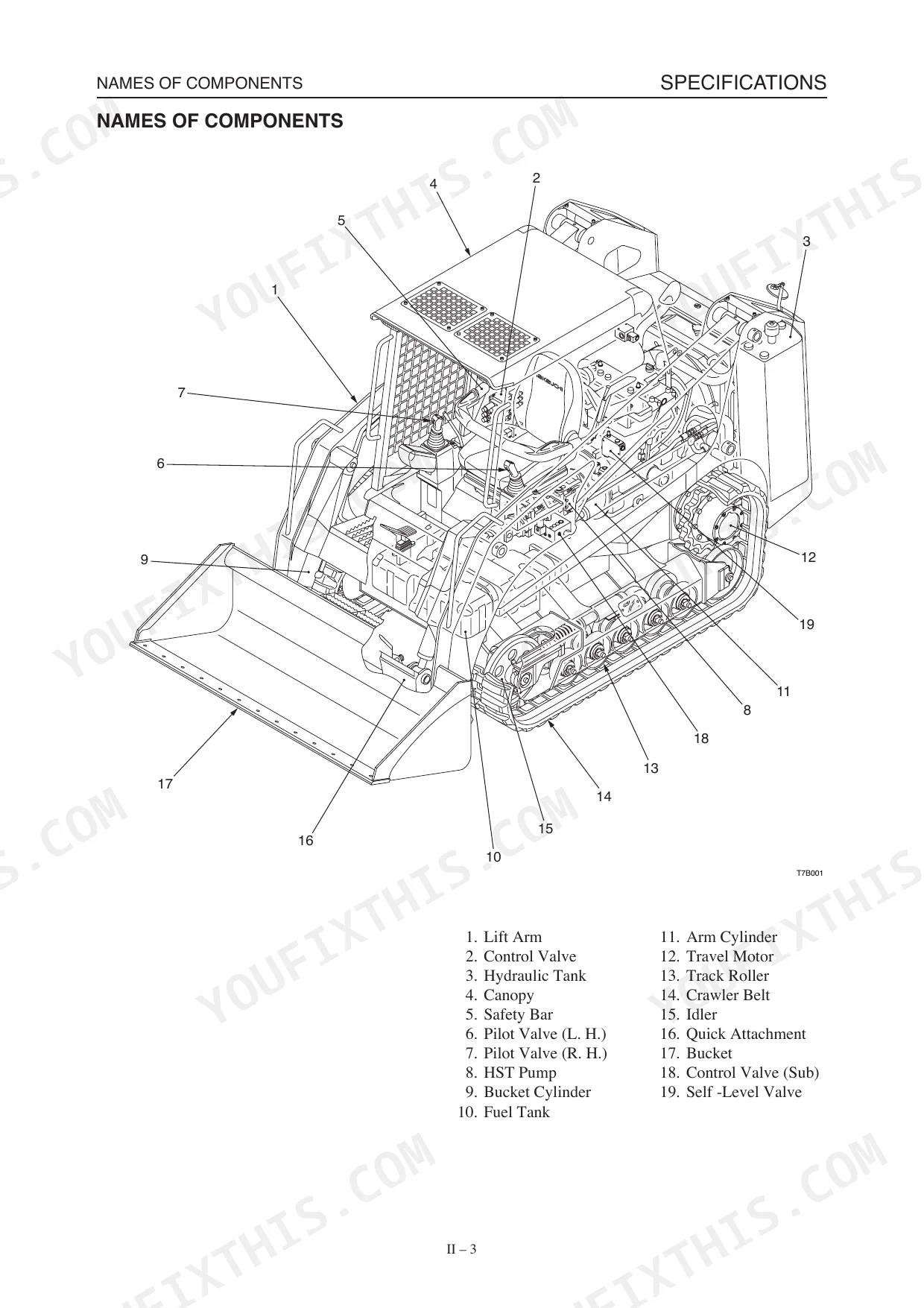

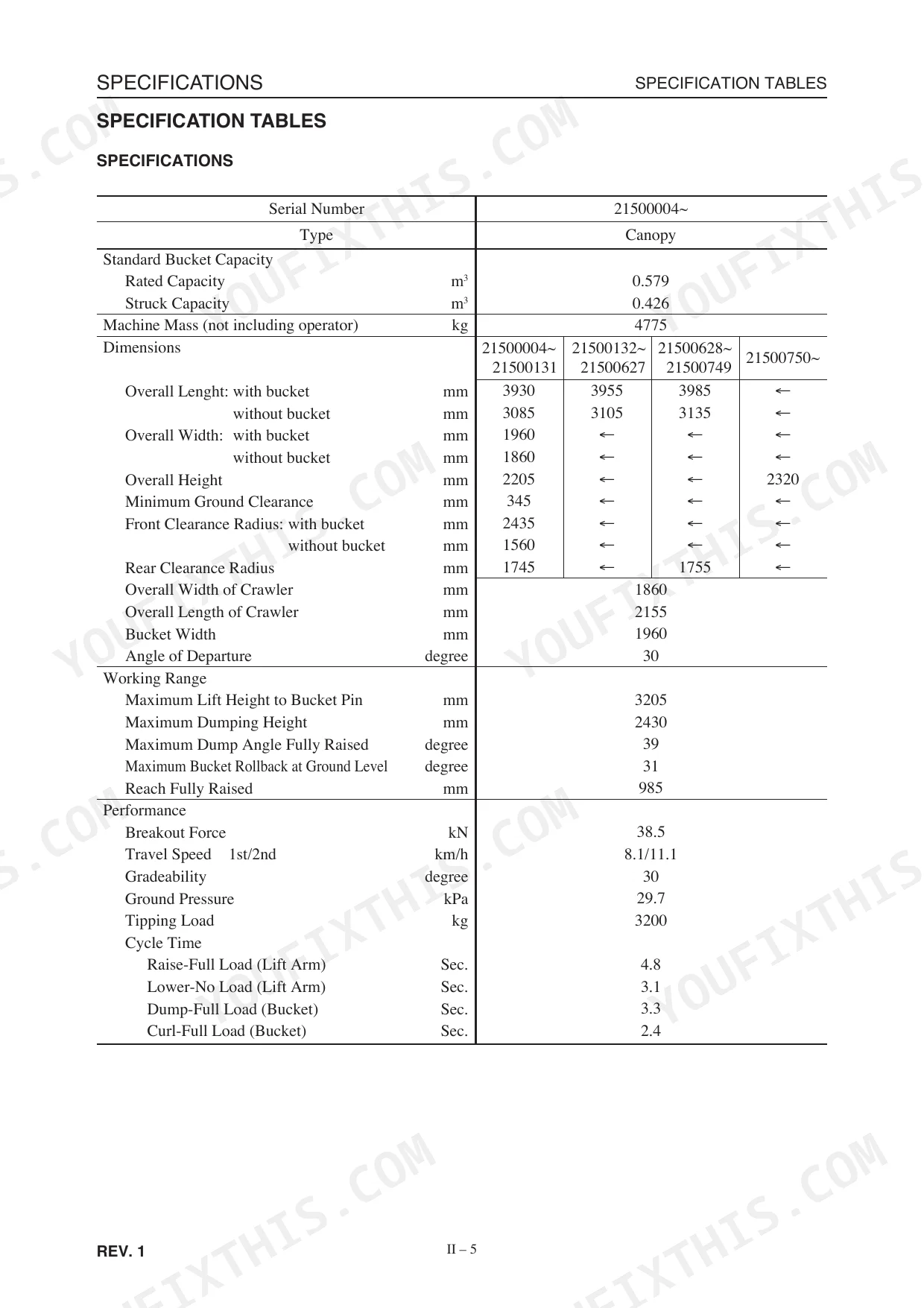

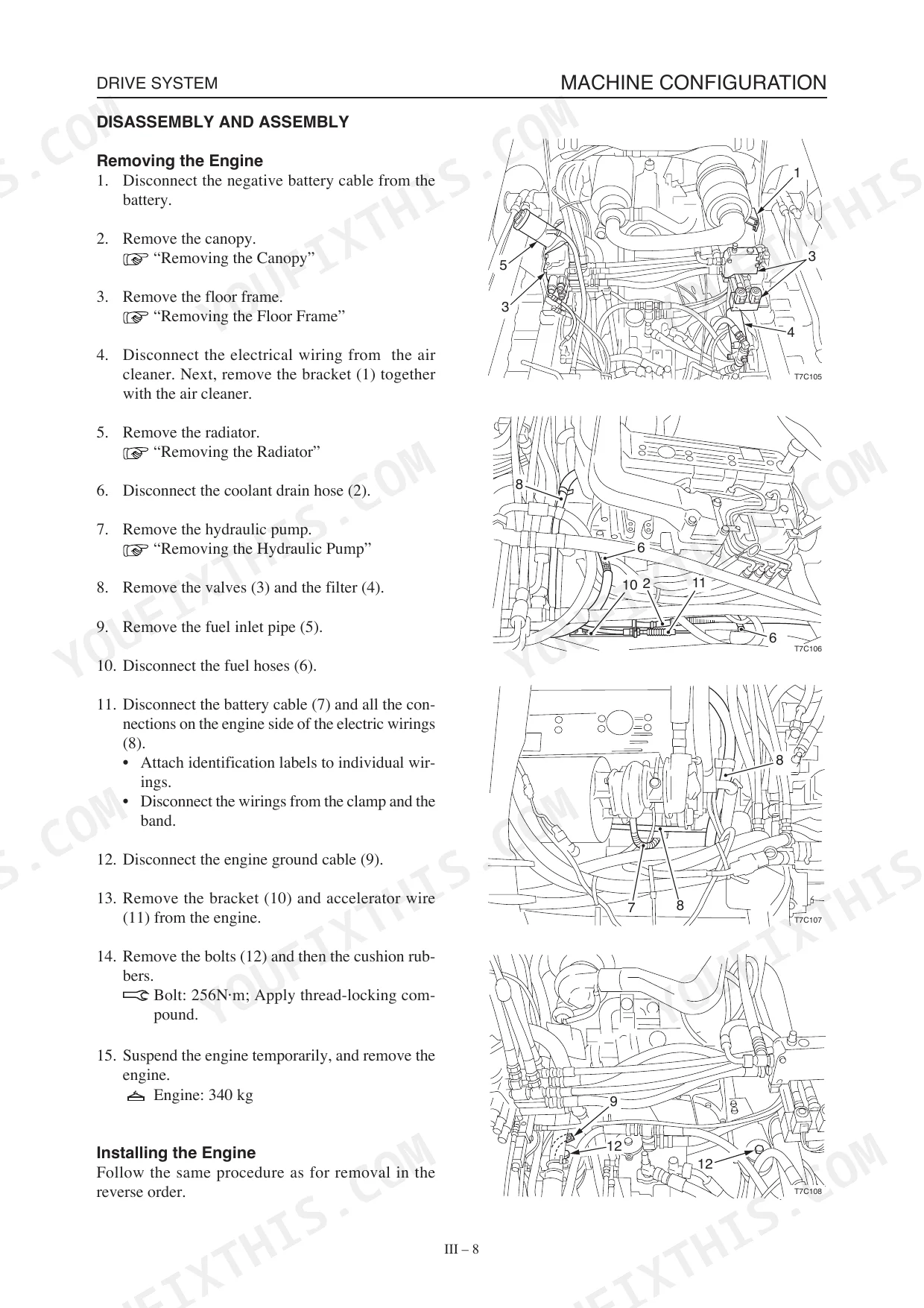

| Ii . Specifications | 23-46 | Names of Components, Specification Diagrams, Specification Tables, Mass Tables, Recommended Lubricants, Servicing Standards |
| Iii . Machine Configuration | 47-170 | Drive System, Travel System, Frame, Control System, Attachments, Hydraulic System |
| Iv . Hydraulic Units | 171-300 | HST Pump, Gear Pump, Control Valve, Pilot Valve, Self-Level Valve, Cylinders |

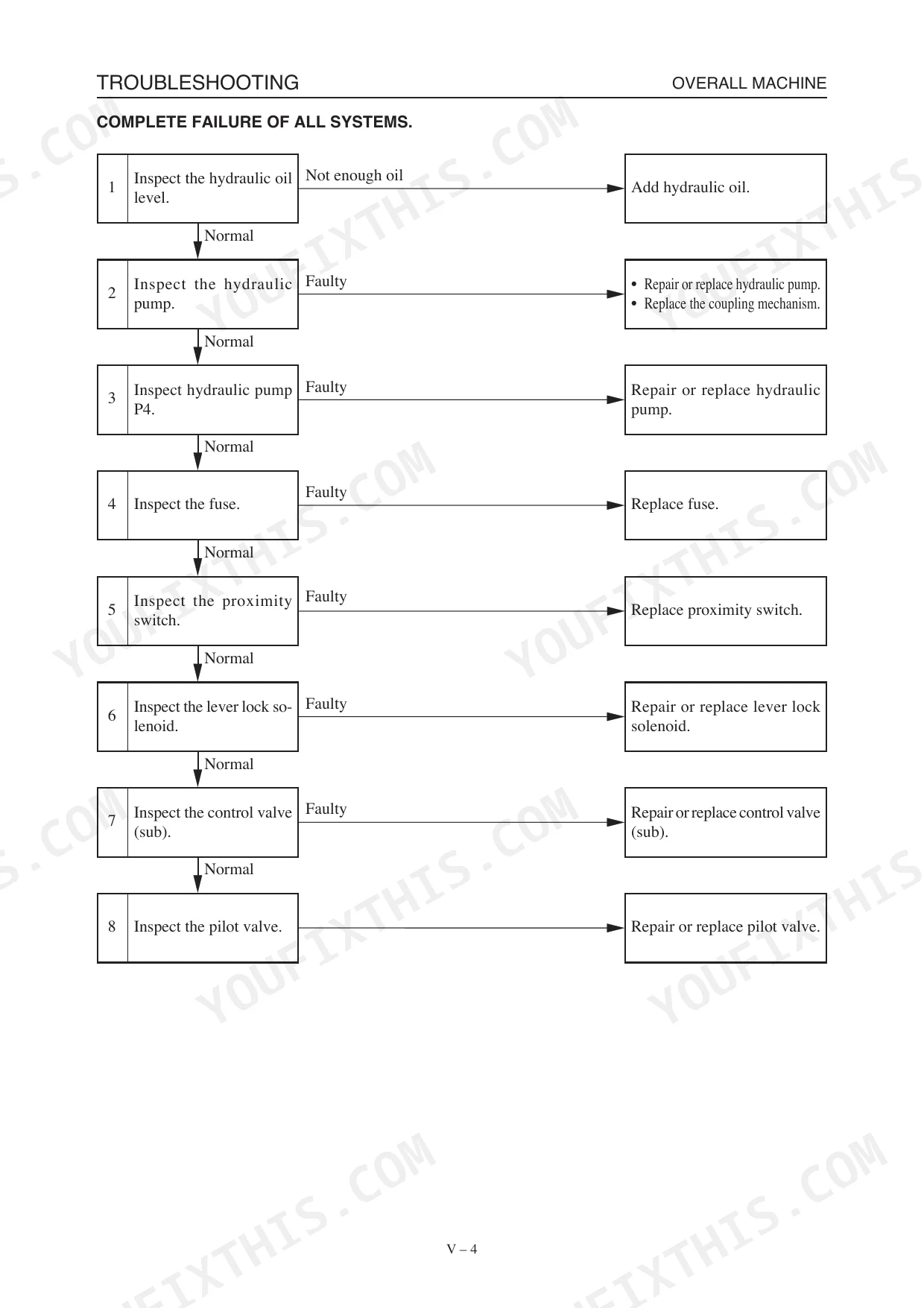

| Troubleshooting | 301-330 | Overall Machine, Machine Travel, Lift Arms, Bucket, Auxiliary Hydraulics |
| Yanmar TNE94/98/106 Engine (Bundled Manual) | 332-511 | Engine Nomenclature, Specifications, Engine Body, Lubrication System, Cooling System, Fuel Injection system/Governor |
| Yanmar TNV/4TNV Engine (Bundled Manual) | 512-732 | Cover, History of Revision, Preface, Safety Labels |
| Yanmar Ypd-Mp Injection Pump (Bundled Manual) | 733-798 | General Information, Construction of MP-Pump, Function of Component, Timer Mechanism, C.S.D.(Cold Start Device), Fuel Injection Nozzle |

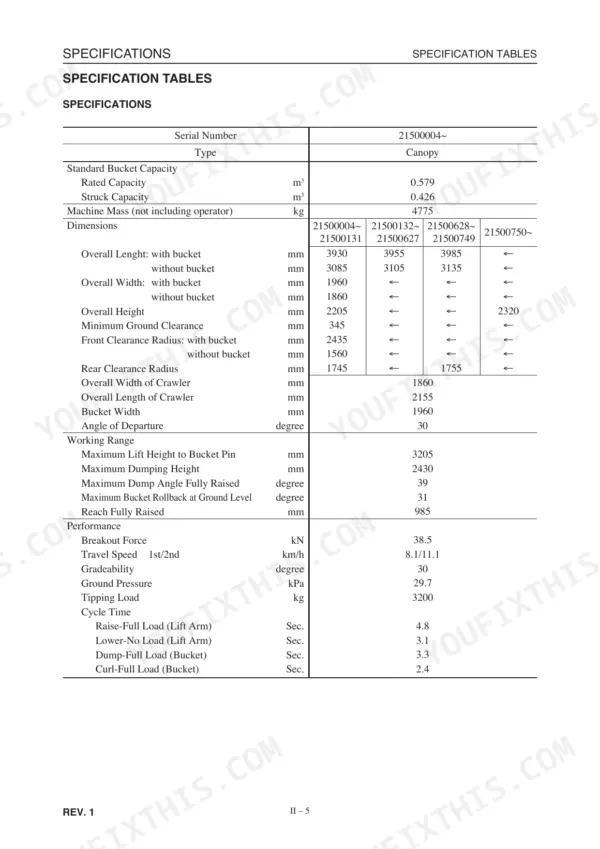

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

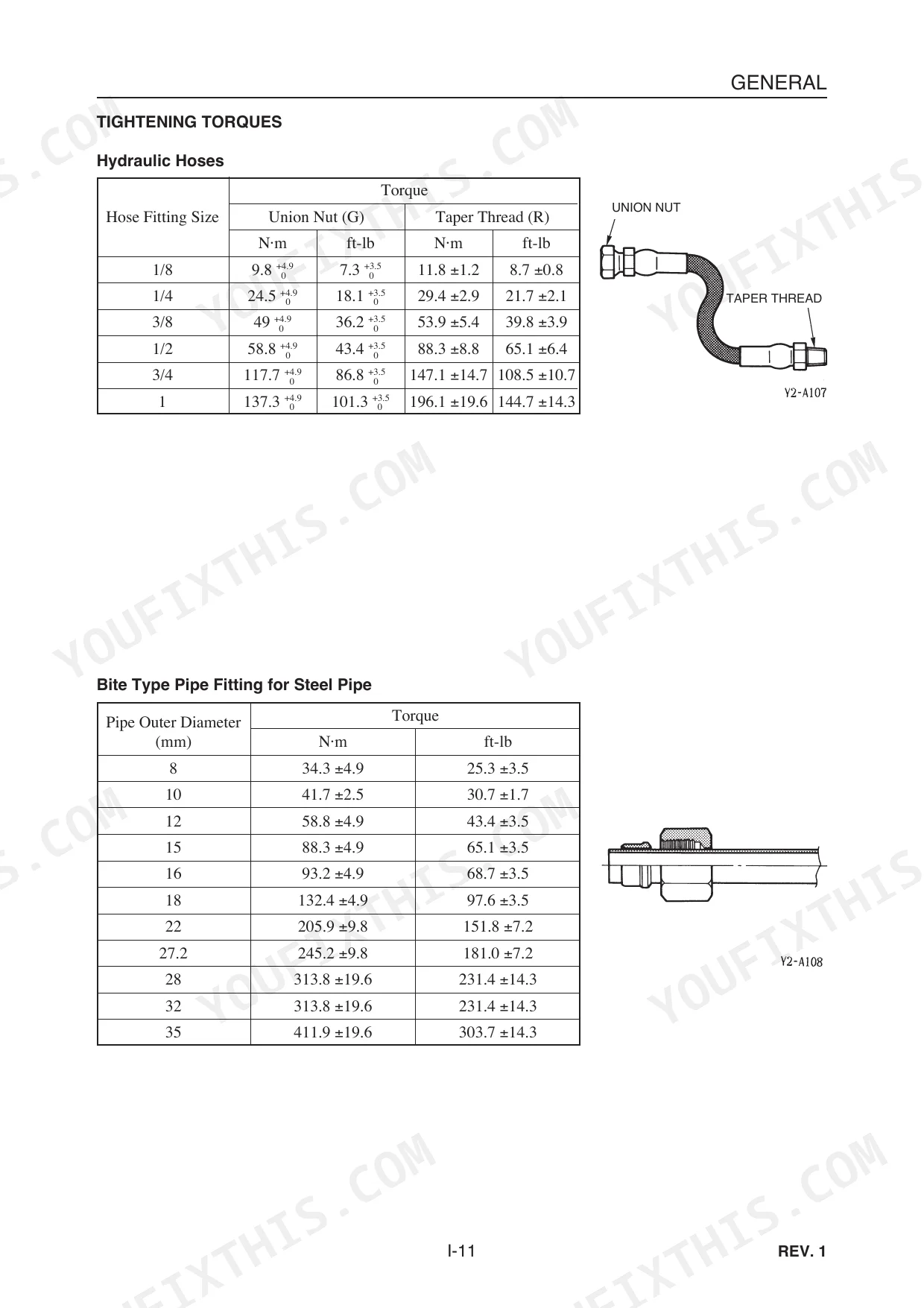

| Bolt/Nut Tightening Torque (ISO 10.9, M6) | 9.8 ±0.5 N·m | p. 21 |
| Bolt/Nut Tightening Torque (ISO 10.9, M8) | 22.6 ±1.1 N·m | p. 21 |
| Fan/Compressor Belt Tension | 120 lb max. | p. 146 |
Takeuchi TL150 Common Problems This Manual Covers
Takeuchi TL150 belt squealing on startup with alternator suspected despite belt being tight
Check belt deflection with the engine off; new V-belts should read 7 to 9 mm on page 62, a used belt at 10 to 15 mm per page 33 is stretched and needs replacing. If tension is correct, spin the alternator pulley by hand; roughness or play means a failing bearing, not the belt. Replace the alternator.
Manual Section: Ii . Specifications p. 62Hydraulic fluid leaking or spraying from hose connections after routine service work
Shut down and relieve system pressure before disconnecting any line; escaping fluid can penetrate skin and is nearly invisible under pressure, per page 15. Inspect every hose for twists, kinks, or cracks per page 14; a compromised hose can burst under load. Torque M8 pipe joint fittings to 12.7 to 16.7 N·m, then recheck for weeping.
Manual Section: Cautions During Removal and Installation of Piping p. 14Engine won't start or cranks slowly with no response from the starting motor
Check the starting motor troubleshooting chart for pinion meshing and magnetic switch faults before pulling the starter. Verify battery terminals and starter mounting bolts are clean and tight; torque M8 mounting bolts to 22.6 ±1.1 N·m per the general tightening chart on page 21. In cold weather, confirm oil viscosity matches ambient temperature.
Manual Section: Engine (4TNE94/98/106(T)): Starting Motor TroubleshootingLift arm cylinders move sluggishly or lack power when raising a loaded bucket
Check the lift arm troubleshooting chart for pilot valve, spool, and port relief valve faults before condemning the pump. Verify the arm float solenoid isn't stuck engaged, which bleeds off lifting pressure under load. If you pull a port relief valve, torque the 3/8 PT plug to 29.4 N·m per page 20 and check for leaks at the rod seals.
Manual Section: Lift Arms: Movement of the lift arm cylinders is slow or lacks powerBucket cylinders fail to move or respond when the control lever is actuated
Check the bucket troubleshooting chart for pilot valve, spool movement, and port relief valve faults before removing the cylinder. Verify the actuator linkage isn't binding and pilot pressure reaches the spool. If you disconnect cylinder lines, replace the O-rings per page 18, and torque M10 fittings to 47.1 N·m per the general tightening chart on page 21.
Manual Section: Bucket: Bucket cylinders fail to moveFuel injection pump fails to deliver fuel, engine won't start or stalls immediately after starting
Check the fuel injection equipment troubleshooting chart for nozzle, timing, and injection pump faults before condemning the engine. Test feed pump delivery pressure; a YPD-MP2 pump should deliver 0.4 to 0.5 MPa per page 756, and a low reading points to a worn feed pump or clogged filter. Bleed air from the fuel lines and retest.
Manual Section: Fuel Injection Equipment (YPD-MP2/YPD-MP4): Troubleshooting p. 756Frequently Asked Questions
What are the torque specifications for the engine bolts on a Takeuchi TL150?
The tightening torques for engine bolts vary by engine model and bolt type. For a 4TNV106(T) engine, the cylinder head bolts (M13 × 1.5) should be tightened to 188.0 to 197.8 N·m (19.0 to 20.0 kgf·m). Refer to page 196 for a comprehensive list of main bolt and nut tightening torques. p. 196
How quickly can I access this Takeuchi TL150, TL150 Crawler Loader, 4TNE106?
This is a 798-page searchable PDF (52 MB) ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Am I able to print pages from this Takeuchi TL150, TL150 Crawler Loader?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.

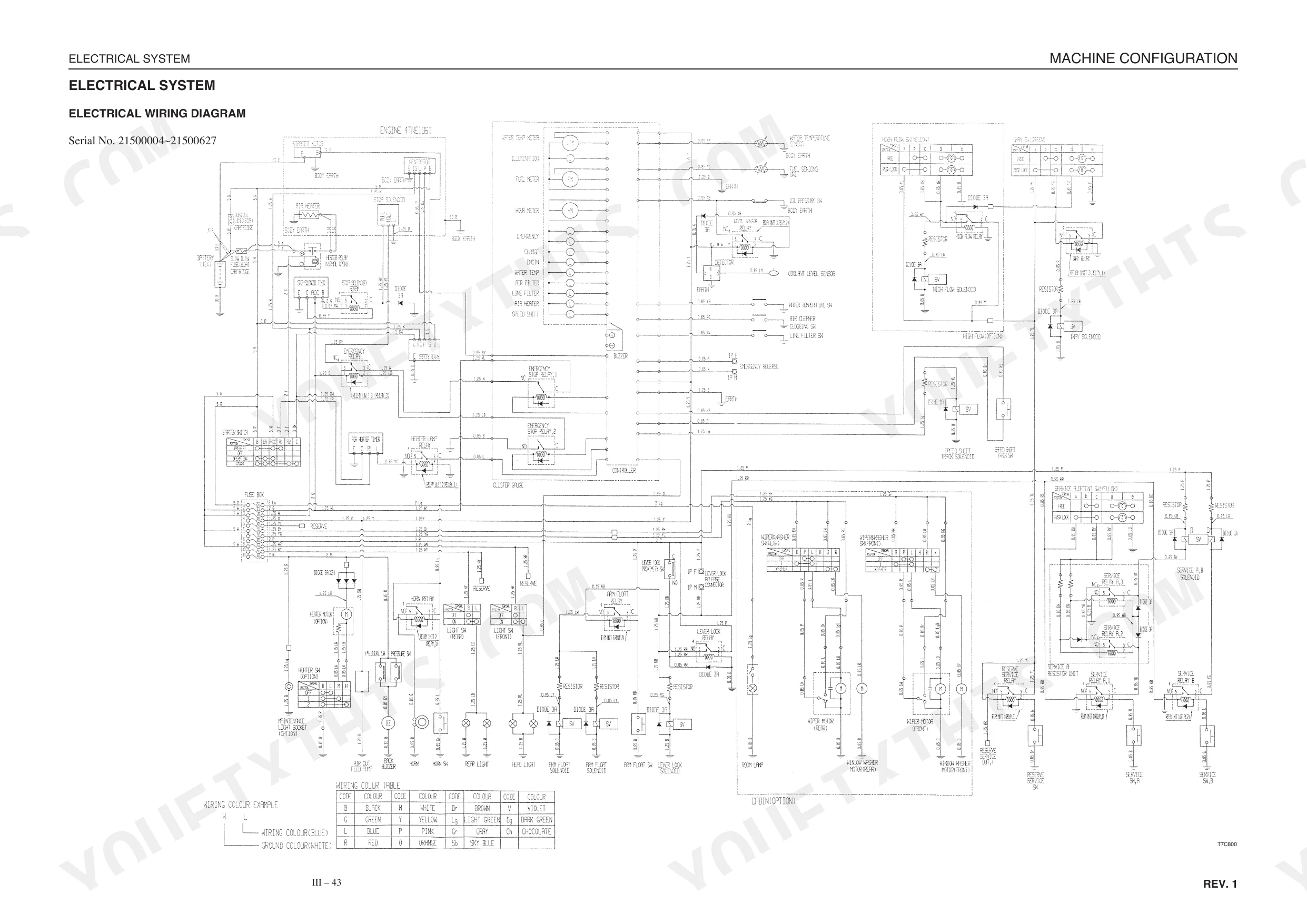

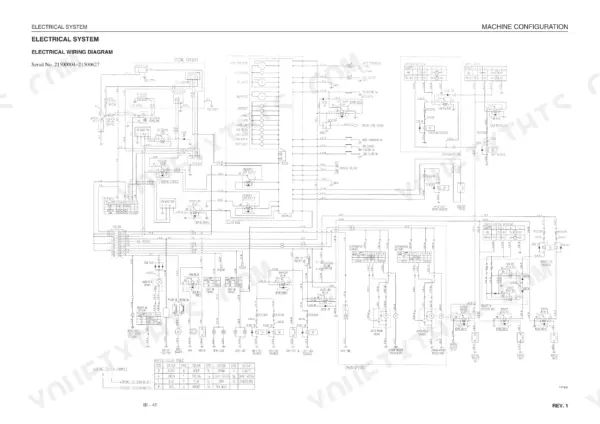

Are electrical wiring diagrams included in this Takeuchi TL150, TL150 Crawler?
Yes, full electrical schematics are included with wire colors, connector locations, and circuit descriptions.
