Takeuchi's own parts publication, identified by OEM ID PUB. 4, comes to you as a 230-page Takeuchi TB25 parts catalog PDF covering the TB25 and 250 compact excavators. Exploded views break each assembly into numbered components, from the crawler belt, track rollers, front idler and travel device underneath to the slewing device, control valves, selector valve and hydraulic pump in the hydraulic device section. Electrical pages set wiring diagrams beside the control box and engine control parts lists, so you can trace electrical components to an orderable part number. Spacing the blade? Pick from six collar thicknesses (1.0mm, 1.6mm, 2.3mm, 3.2mm, 4.0mm and 5.0mm), listed as part numbers 00030-30000 through 00030-30005. Perhaps your job is ordering parts for a boom cylinder, arm cylinder or travel motor, each broken out on its own plate. Bookmarks jump straight to any assembly. Search any part number and the text layer finds it.
What's Inside This Takeuchi TB25, TB250 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Lower Machinery | 15-26 | Lower Frame, Crawler Belt, Track Roller, Front Idler, Track Spring, Travel Device, Blade, Piping Lower |
| Upper Machinery 1 | 27-46 | Slewing Device, Turntable, Travel Lever, Operation Lever, Switching Lever |

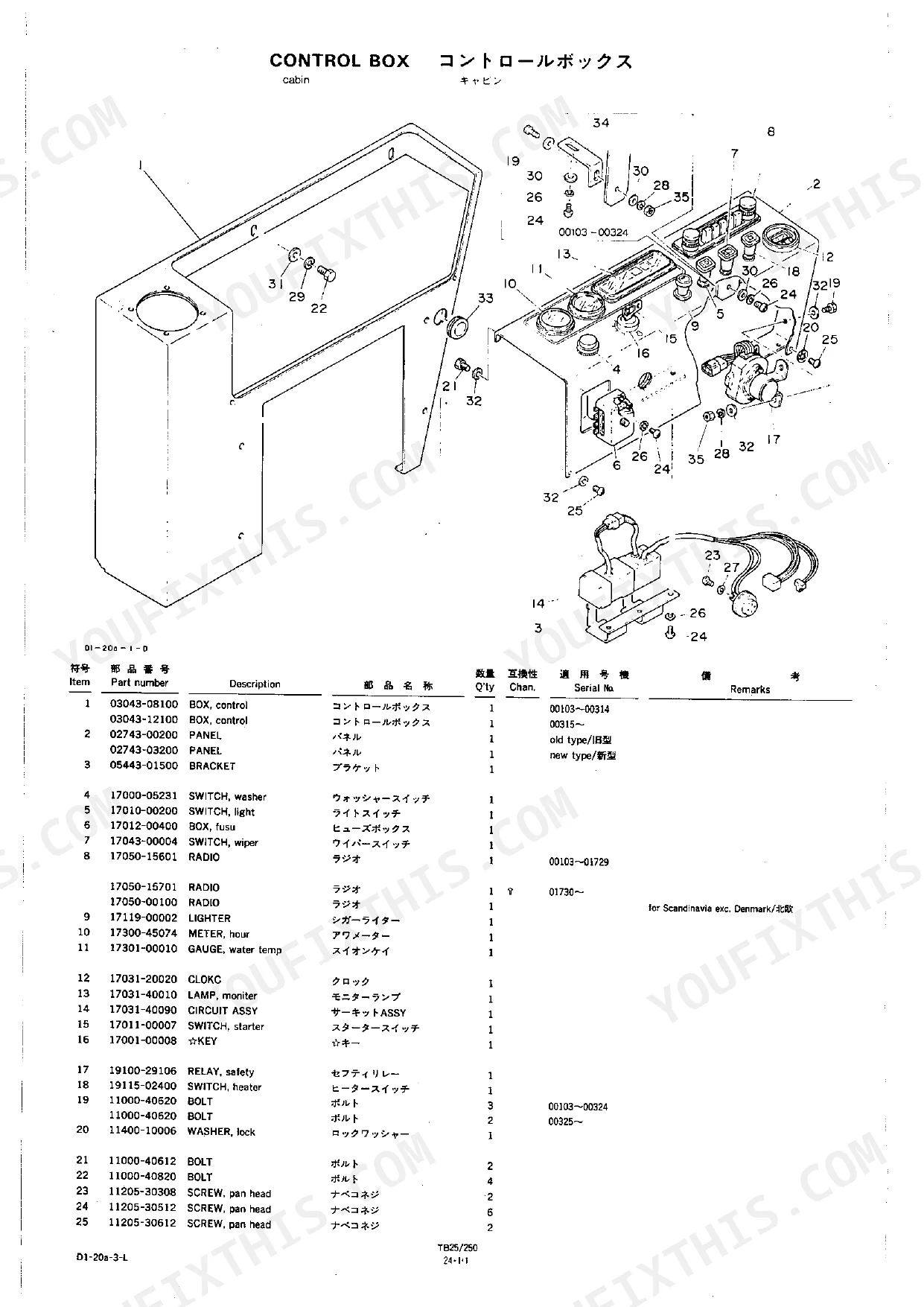

| Upper Machinery 2 | 47-64 | Engine & Accessories 1, Engine & Accessories 2, Control Box, Engine Control, Electrical, Electrical 1, Electrical 2 |

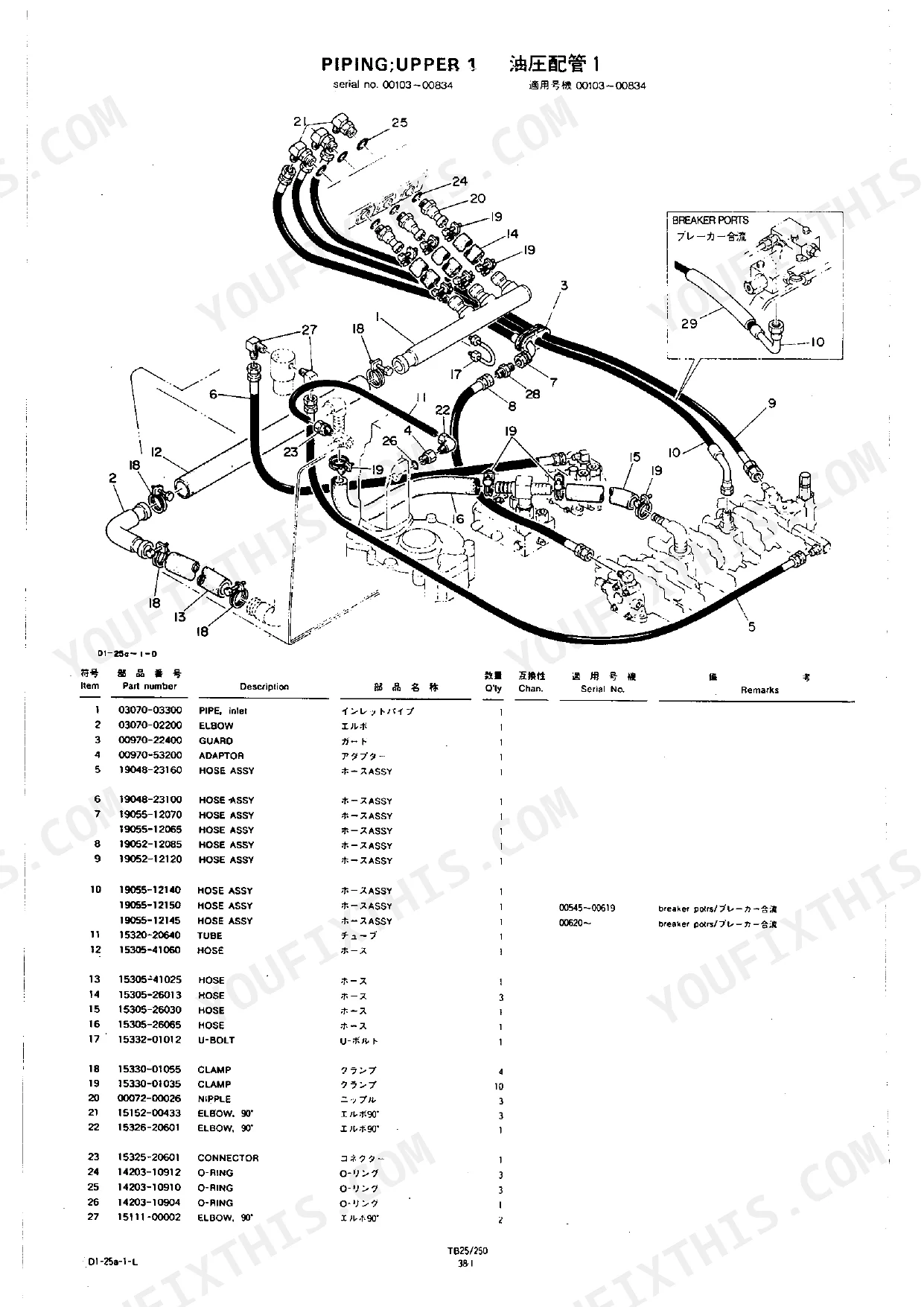

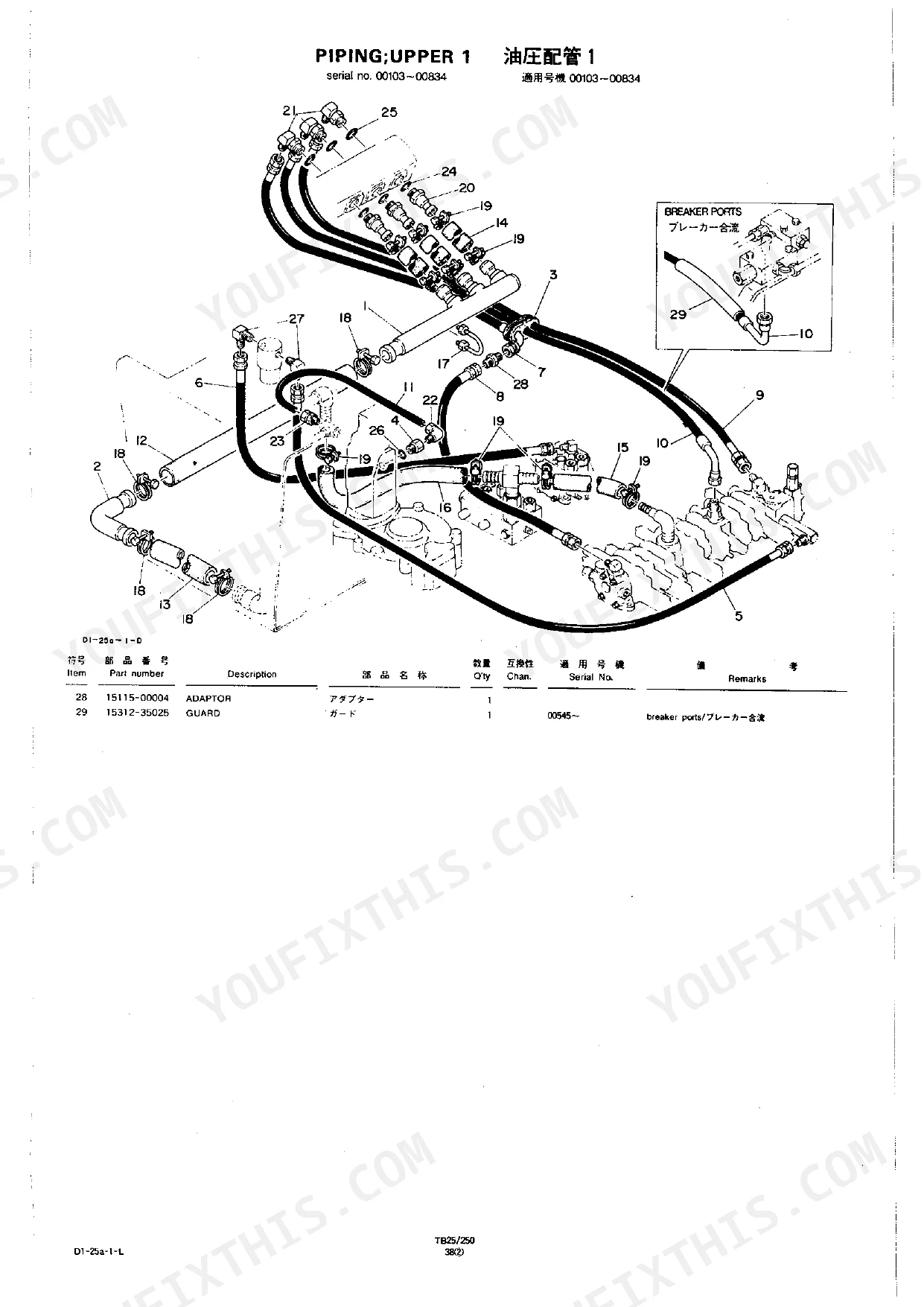

| Upper Machinery 3 | 65-88 | Grease Piping, Valve & Accessories 1, Valve & Accessories 2, Piping Upper 1, Piping Upper 2, Piping Upper 3, Pump Drive, Hydraulic Tank |
| Upper Machinery 4 | 89-104 | Cover 1, Cover 2, Seat, Cabin 1, Cabin 2, Canopy, Heater |

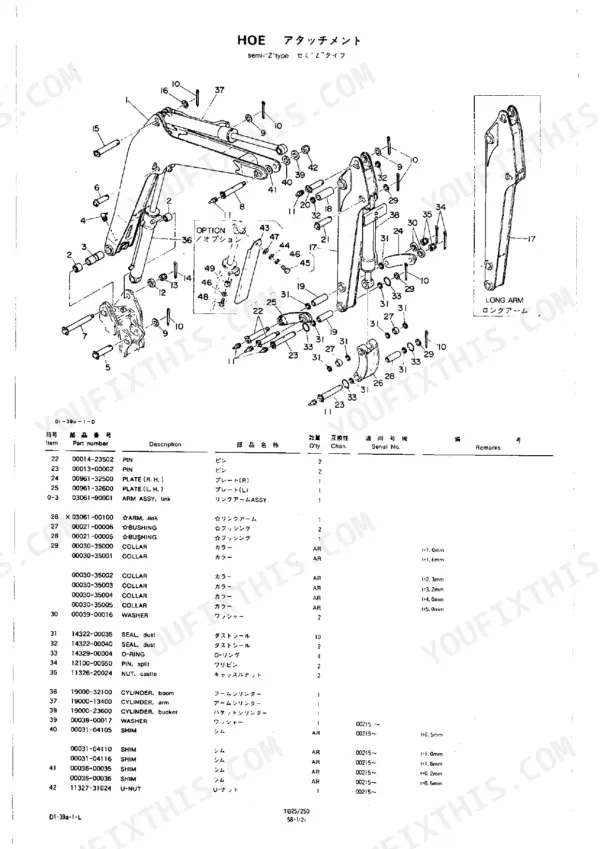

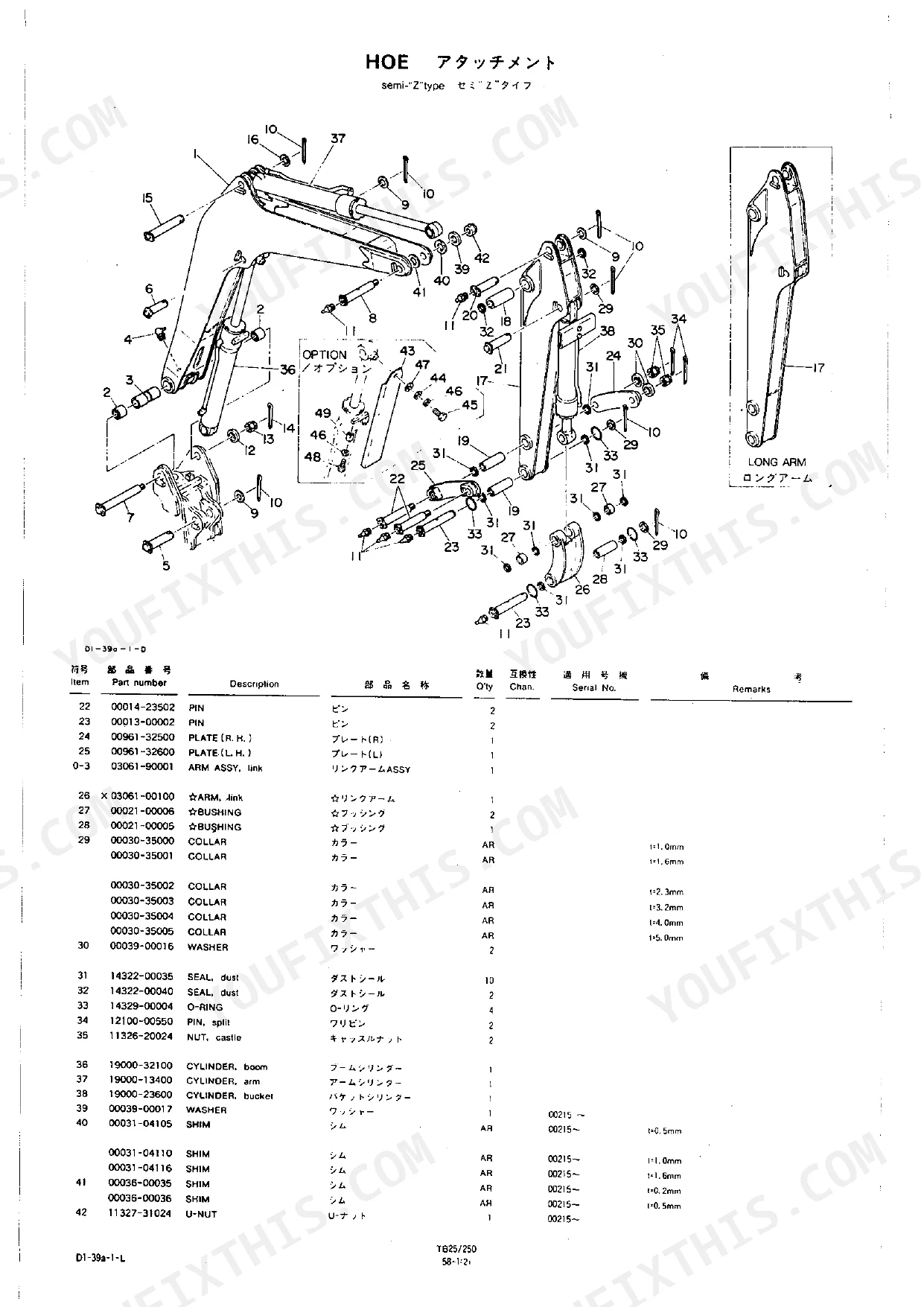

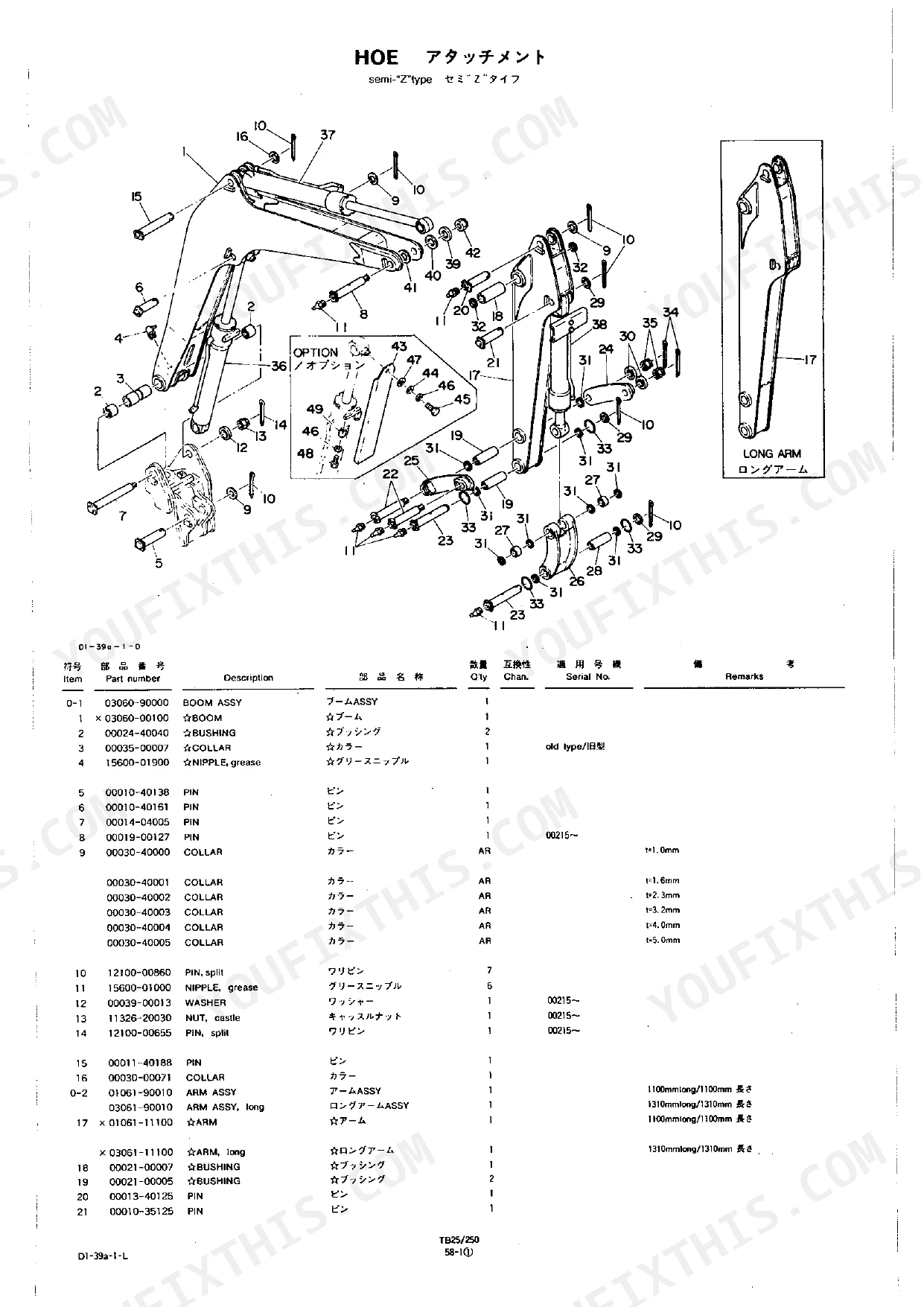

| Hoe Attachment | 105-116 | Hoe, Bucket, Piping Hoe 1, Piping Hoe 2 |
| Others | 117-124 | Sticker, Tool |
| Hydraulic Device | 125-170 | Swivel Joint, Control Valve 1, Control Valve 2, Control Valve Sub, Joy Stick Lever, Selector Valve, Hydraulic Valve, C. B. Valve |
| Option | 171-230 | Bucket, Ejector Bucket, Mirror |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Blade collar thickness | 1.0mm, 1.6mm, 2.3mm, 3.2mm, 4.0mm, 5.0mm | p. 25 |
Takeuchi TB25, TB250 Common Problems This Manual Covers
Takeuchi TB25 track roller oil seal part number differs between steel and rubber crawler belt rollers
Check the steel crawler belt track roller parts list on page 20 first. That roller assembly is 01013-90000 and carries oil seals 14312-03055 and 14312-03022. Rubber belt machines use roller assembly 00913-80000 with seal 14312-03055 only, listed on page 21. Confirm which undercarriage you have before ordering bearings or seals.
Manual Section: Track Roller p. 20Front idler assembly and O-ring part numbers unclear for rubber crawler belt versus steel belt machines
Inspect the front idler exploded view on page 22 and match the remarks column to your track type. Steel belt machines take idler assembly 01414-90000 and O-ring 14200-10700. Rubber belt machines take 00914-90010 and O-ring 14200-00700. Oil seal 14310-03562 and bearing 13000-06307 carry no track type remark.
Manual Section: Front Idler p. 22Track spring cushion assembly part number changes by serial number when ordering a replacement spring
Verify your serial number against the track spring parts list on page 23 before ordering. Cushion assembly 00915-90000 covers serials 00103 through 01602, while 00915-90010 starts at serial 01603. Spring 01615-06100 is listed inside the assembly. Grease cylinder 02615-01100, check valve assembly 15413-01601 and oil seal 14004-02835 are listed on the same page.
Manual Section: Track Spring p. 23Drive sprocket and travel motor part numbers differ for steel and rubber crawler belt undercarriage
Check the travel device parts list on page 24 before ordering. Sprocket 03016-00100 fits steel crawler belt machines and 03016-01100 fits rubber crawler belt machines, both retained by bolt 11115-61225. Four travel motor numbers are listed, so read the serial range and parking brake remarks beside each one to match the motor on your machine.
Manual Section: Travel Device p. 24Blade collar part number unclear when selecting the correct thickness at the blade pins
Check the blade parts list on page 25 and order collars as required for the fit. Sizes are 00030-30000 at 1.0mm, 00030-30001 at 1.6mm, 00030-30002 at 2.3mm, 00030-30003 at 3.2mm, 00030-30004 at 4.0mm and 00030-30005 at 5.0mm. The blade assembly is 03063-90000 and the blade cylinder assembly is 19000-27300.
Manual Section: Blade p. 25Swing motor assembly part number differs between standard and parking brake slewing device versions
Check the slewing device page that matches your machine. Page 29 lists gearbox assembly 03023-90000 with motor assembly 19030-07000 and valve 19017-07600 for TB25/250. The parking brake version on page 31 is marked TB25 only and lists motor assembly 19030-07400 with valve 19017-07100. Gearbox oil seal 14002-02887 appears on both pages.
Manual Section: Slewing Device p. 29Frequently Asked Questions
What is the part number for the FRAME in this manual?

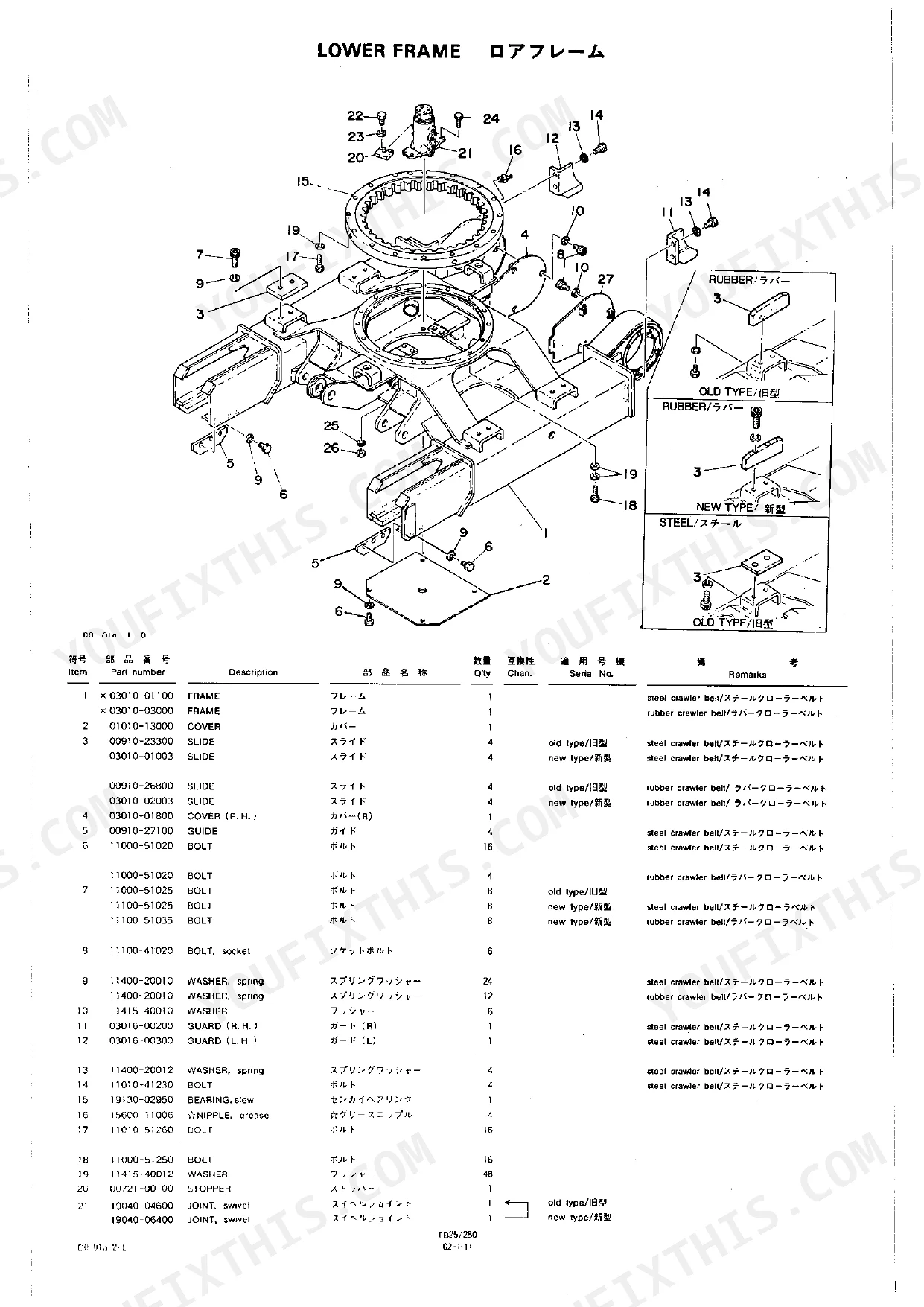

Page 17 lists part number 03010-01100 for the FRAME. p. 17
What is the part number for the SHAFT in this manual?
Page 20 lists part number 01013-11200 for the SHAFT. p. 20
What is the part number for the NIPPLE, grease in this manual?
Page 23 lists part number 15600-01000 for the NIPPLE, grease. p. 23
What is the part number for the BRACKET in this manual?
Page 33 lists part number 00931-47100 for the BRACKET. p. 33
Is this Takeuchi TB25 manual a PDF I download?
A 230-page Parts Catalog in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Is this Takeuchi TB25 Parts Catalog printable?
Yes. Print a single page or a chapter for your own shop use, on letter or A4.
Is there a wiring diagram in this Takeuchi TB25 Parts Catalog?

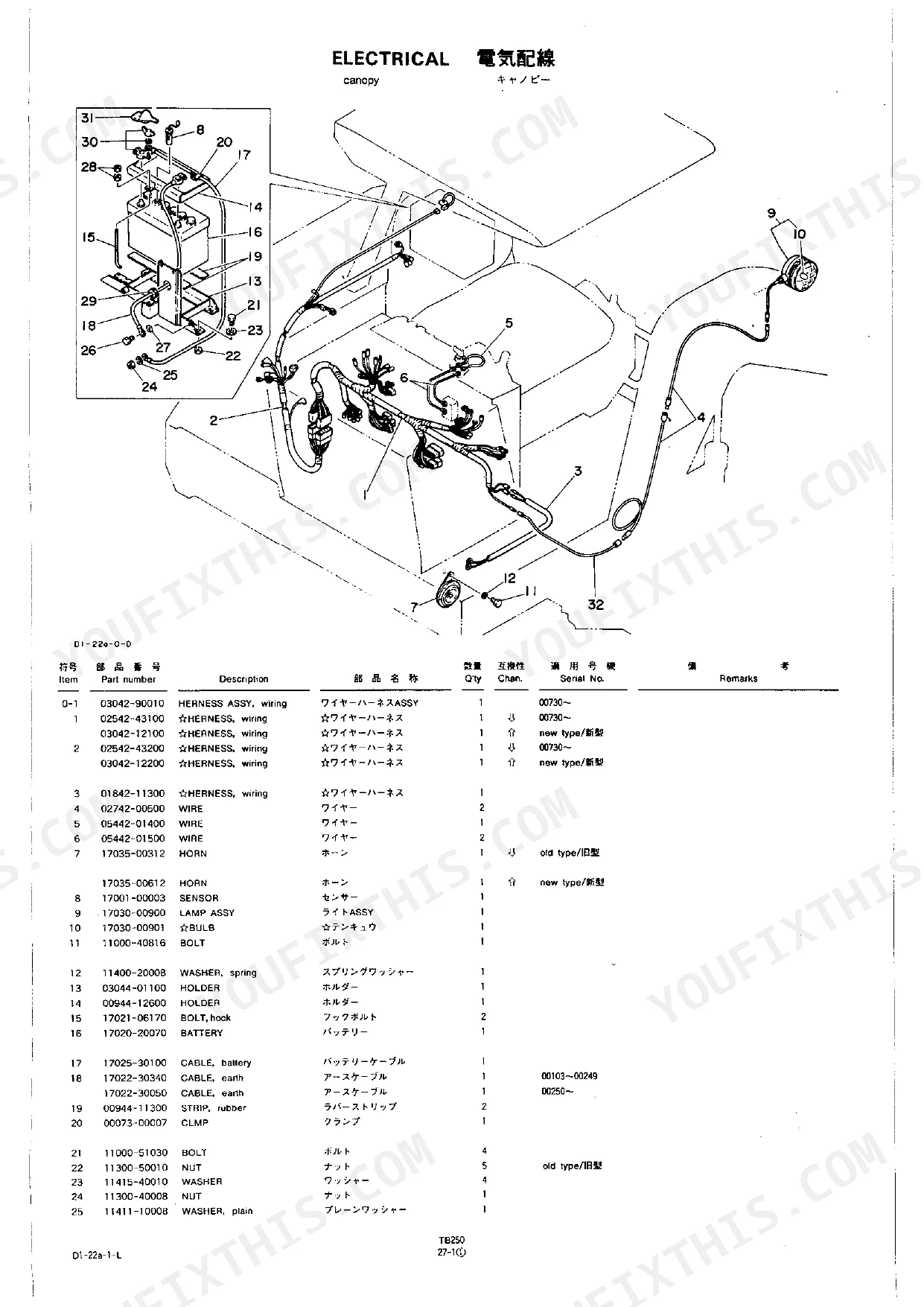

Yes, this Takeuchi TB25, 250 Parts Catalog includes a wiring diagram for the electrical system. There is one on page 57, for example.
