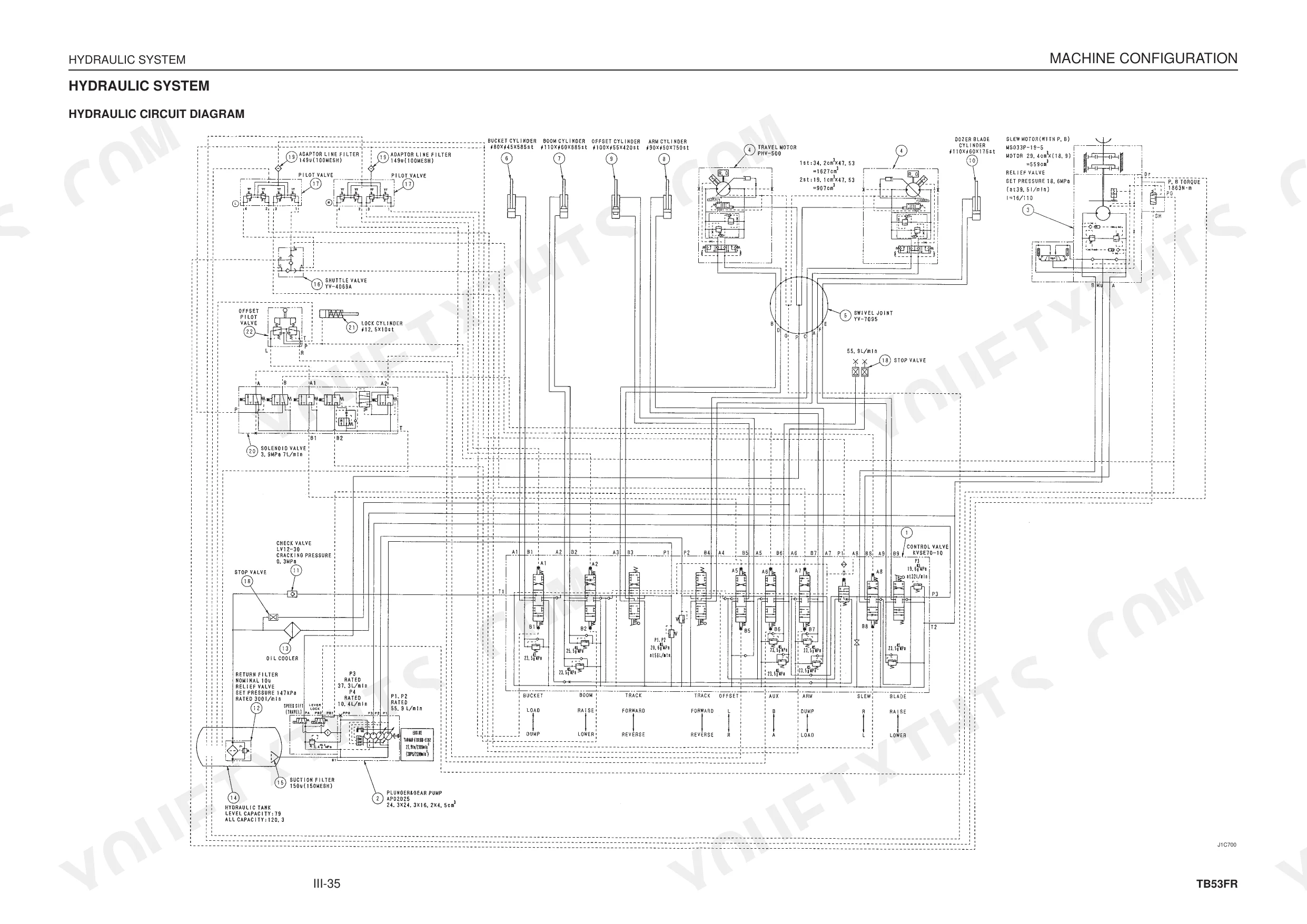

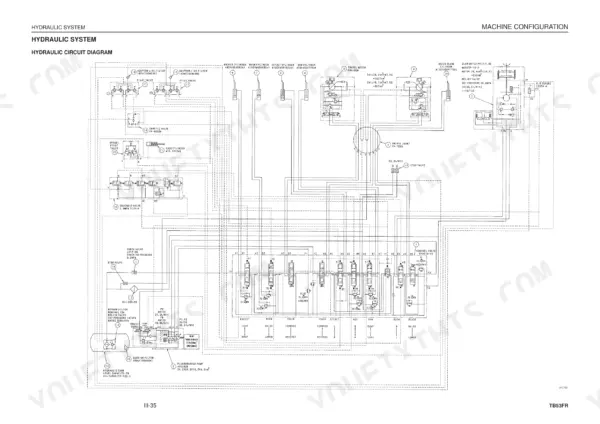

Need the factory teardown procedures for your Takeuchi compact excavator? This 447-page Takeuchi TB53FR Workshop Manual PDF (OEM #CJ1E001) breaks down the complete drive system, upper frame, and engine assembly. Inside, you get full hydraulic schematics detailing pump fluid routing and a massive troubleshooting section covering slewing, boom, and bucket faults. Packed with step-by-step procedures and crisp wiring diagrams, it shows you exactly how to rebuild the travel motor and control valves without guessing. Lock down the 1/8-inch hydraulic hose union nut to 9.8 N-m, and remember to apply a thin coating of gear oil to the floating seals before seating the housing. Your machine is burning daylight in the dirt. Grab this searchable, bookmarked file, pull it up on your tablet, and get that excavator digging again.
What's Inside This Takeuchi TB53FR Manual
| System | Pages | Key Topics |
|---|---|---|

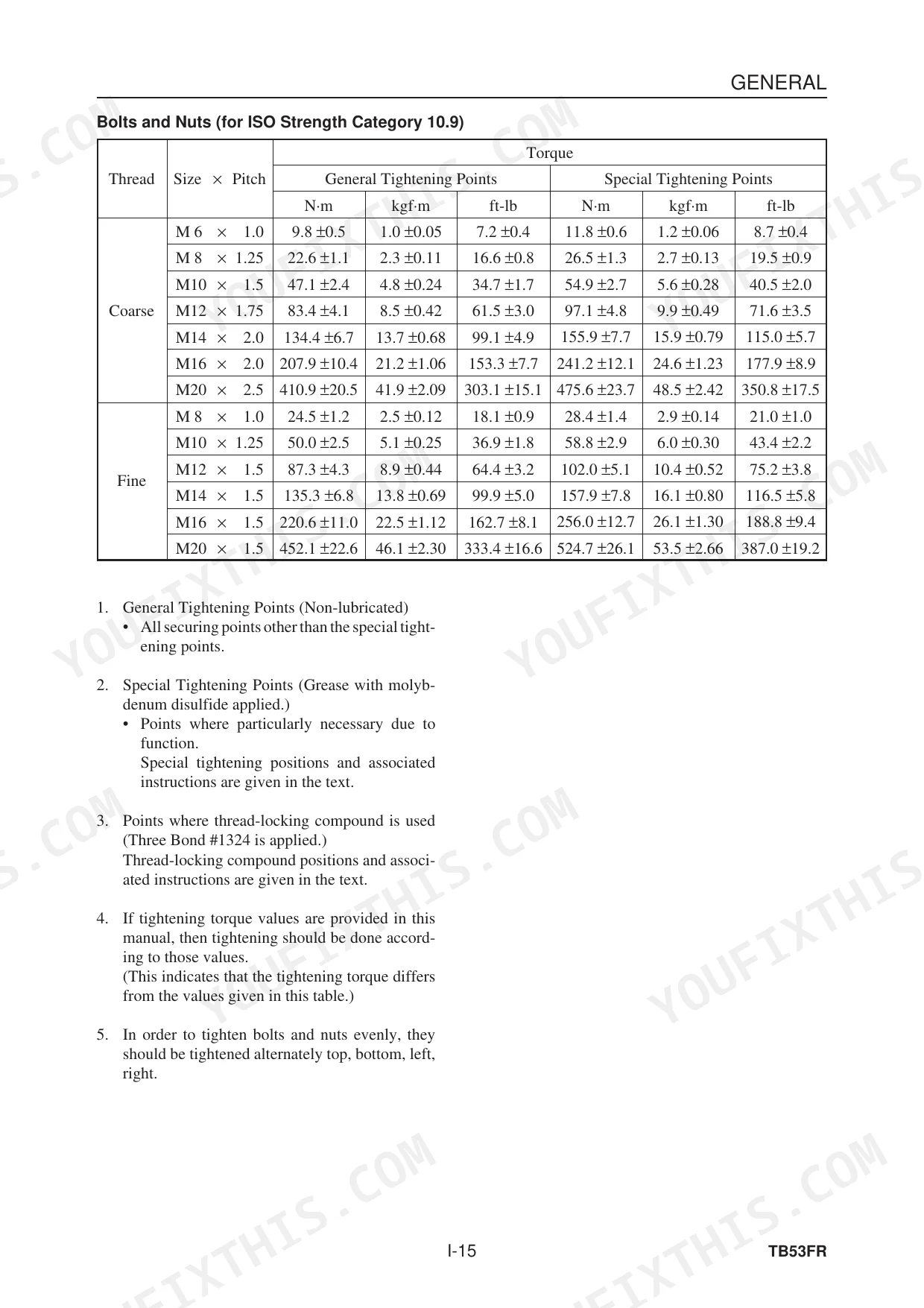

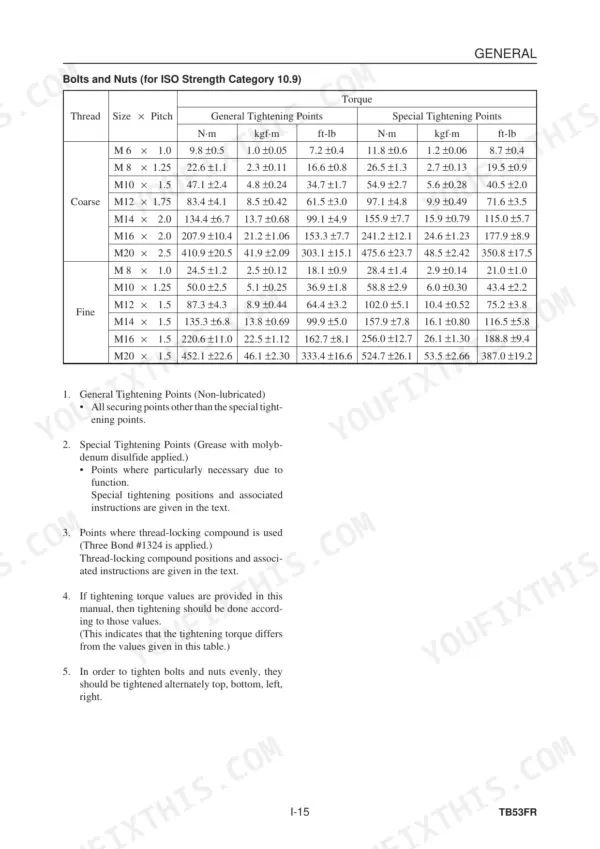

| General | 9-24 | Safety Precautions, Cautions During Disassembly and Assembly, Cautions During Removal and Installation of the Hydraulic Units, Handling of Seals, Tightening Torques |

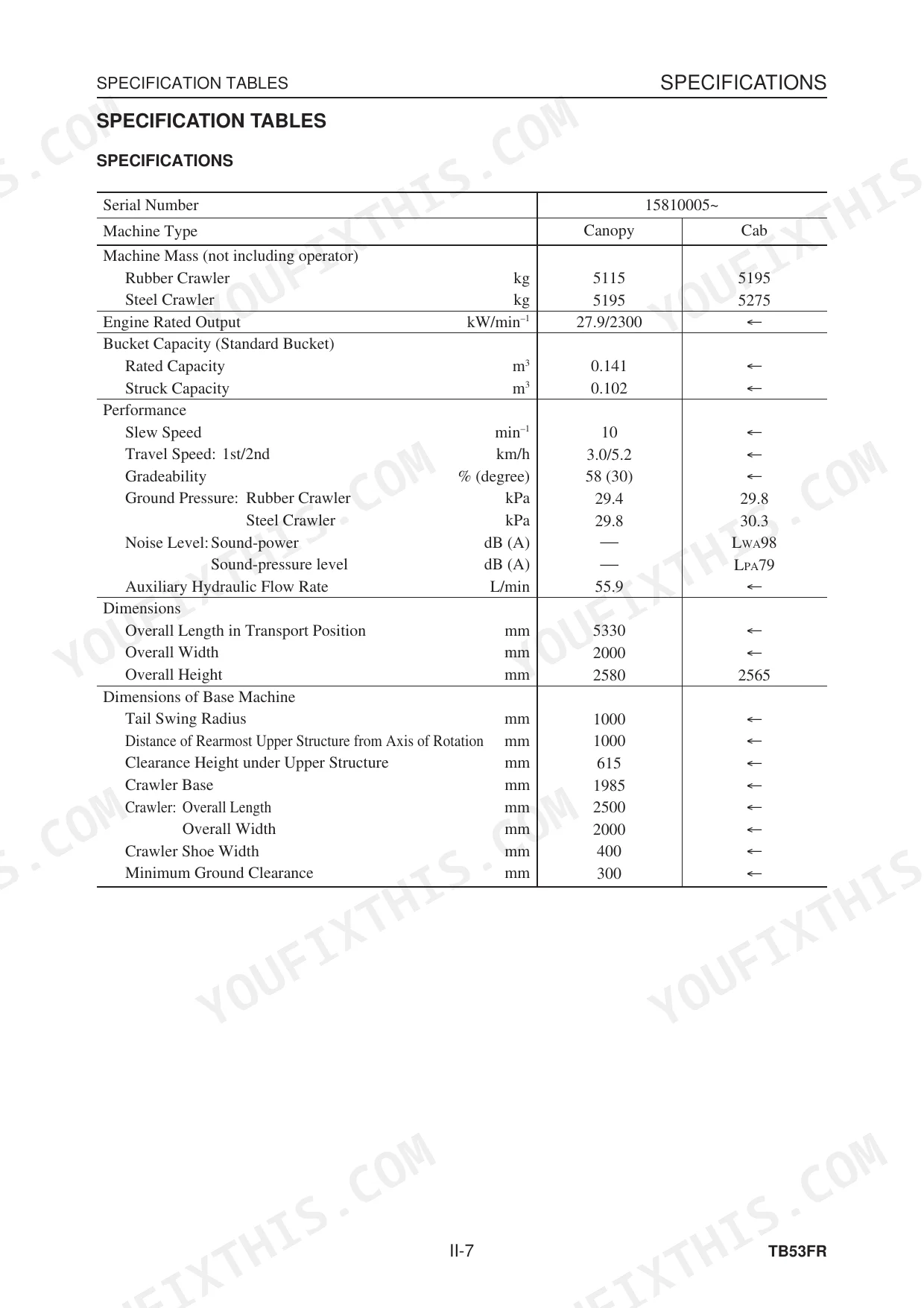

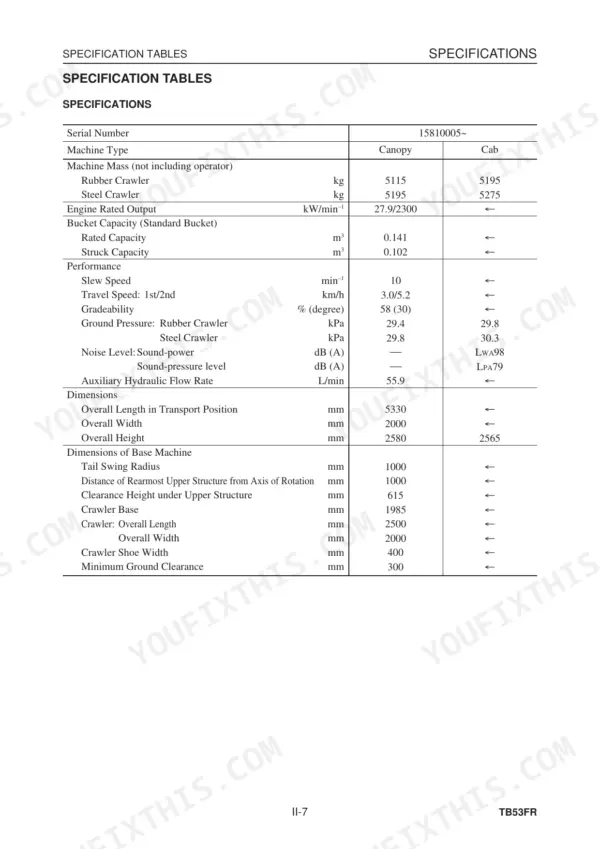

| Specifications | 25-52 | Names of Components, Dimensions, Lifting Capacities, Specification Tables, Mass Tables, Recommended Lubricants |

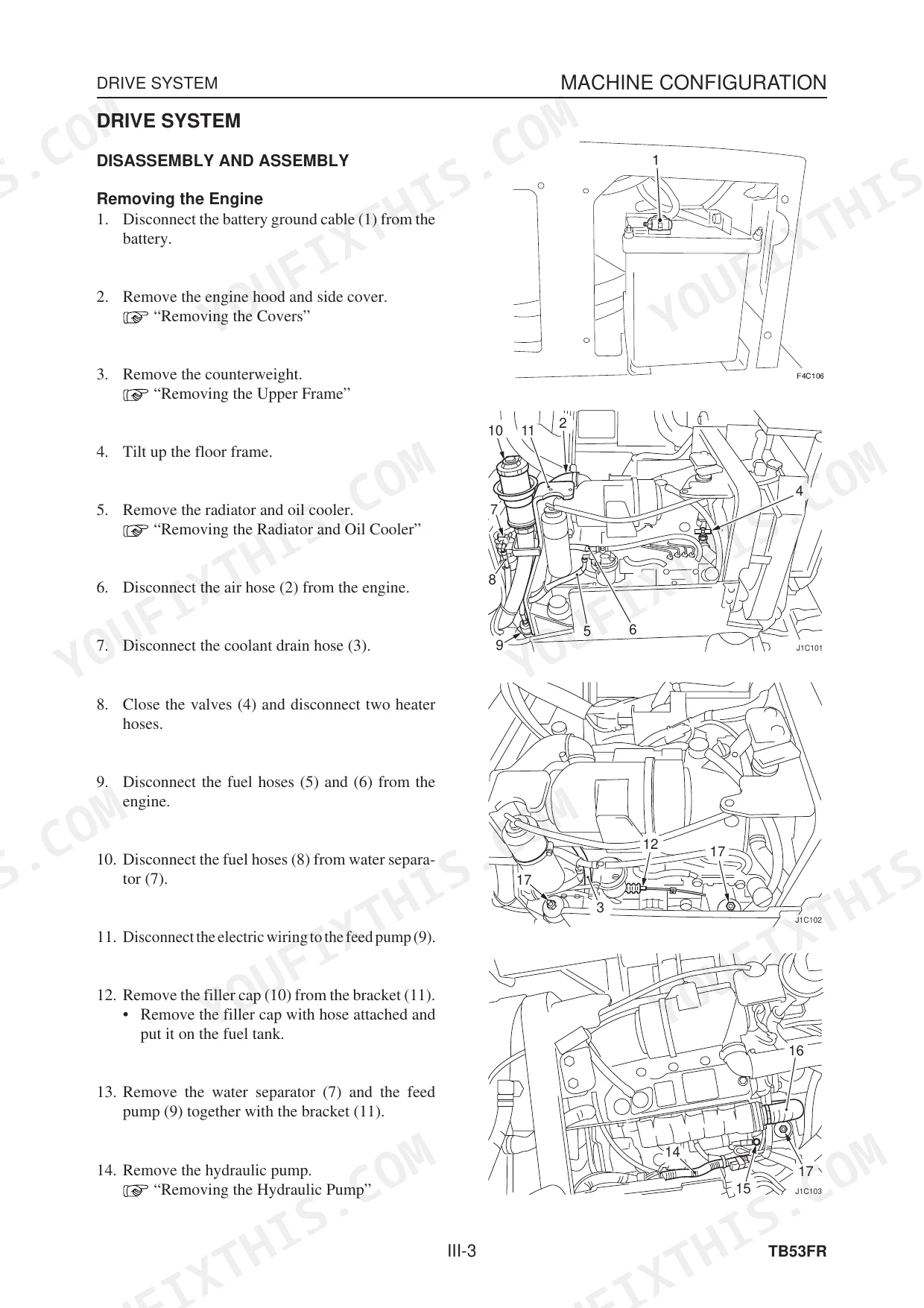

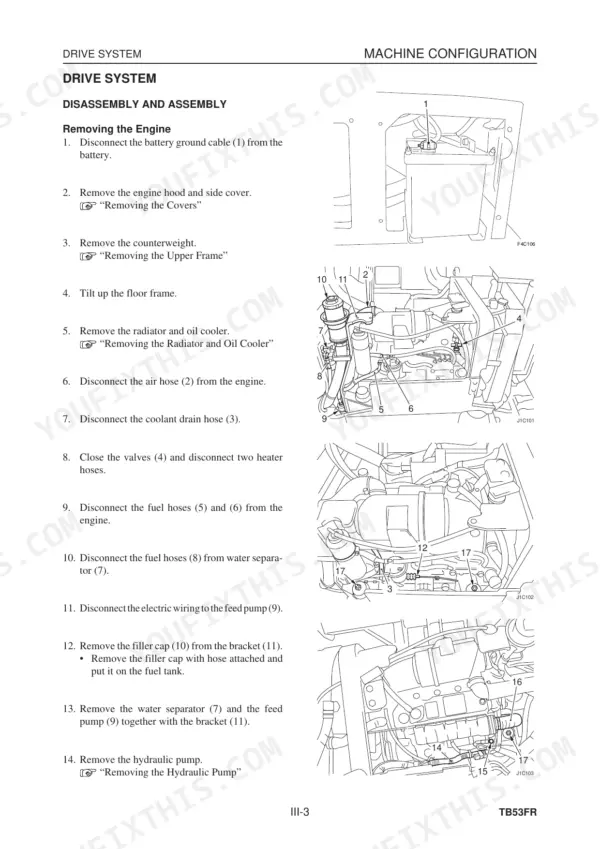

| Machine Configuration | 53-110 | Drive System, Slew System, Travel System, Upper Frame, Control System, Attachments |

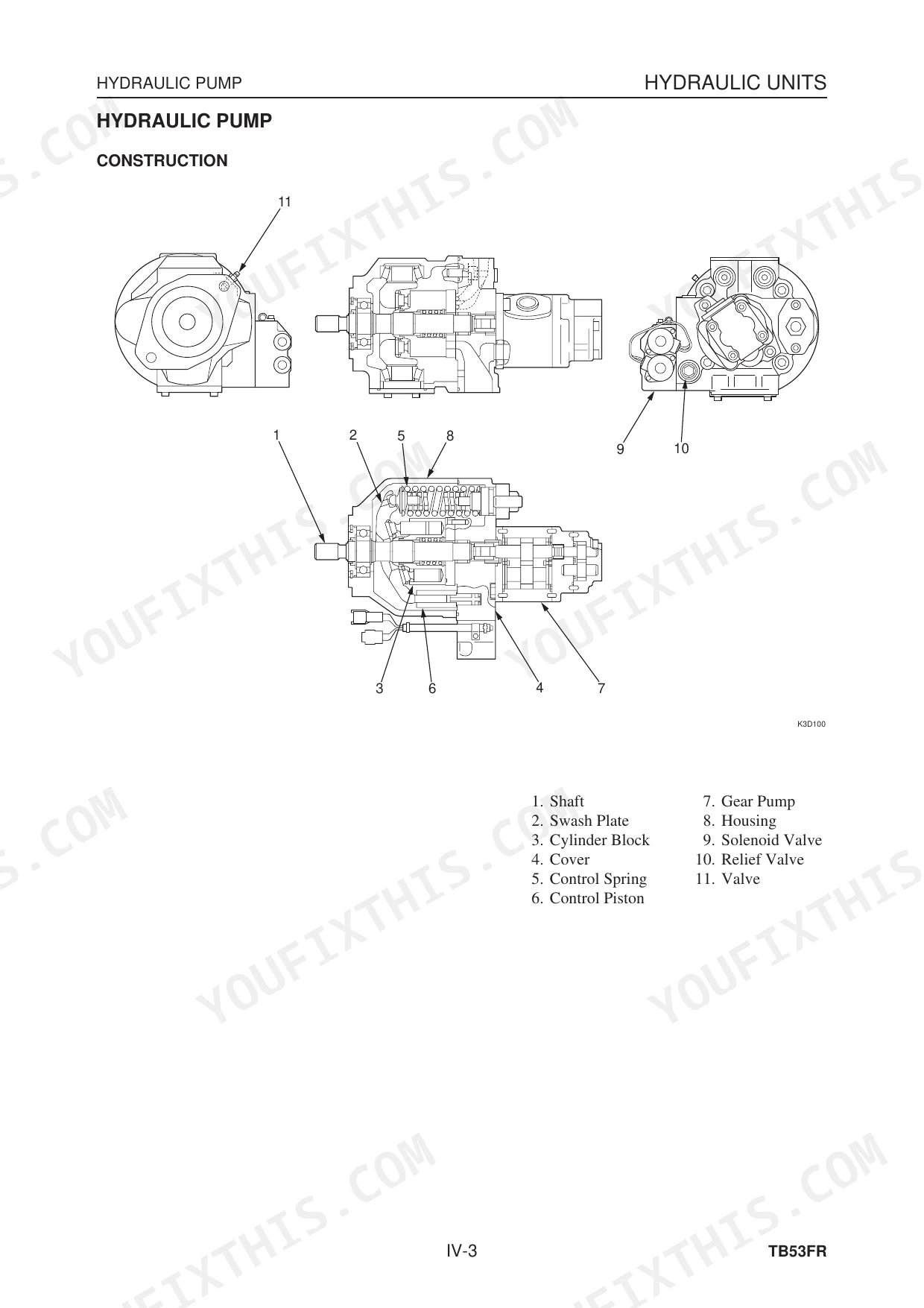

| Hydraulic Units | 111-266 | Hydraulic Pump, Control Valve, Solenoid Valve, Pilot Valve, Cylinders, Travel Motor |

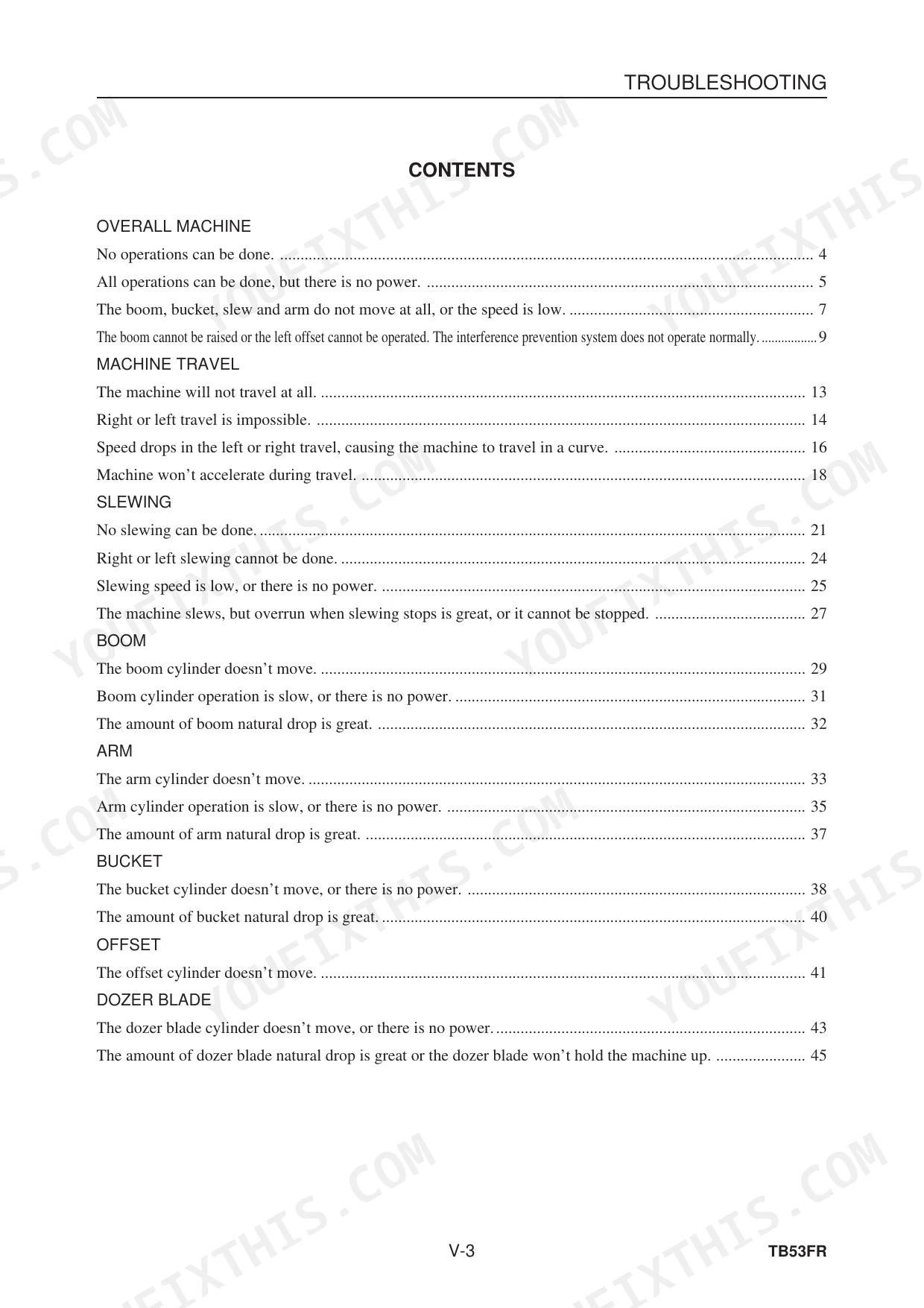

| Troubleshooting | 267-312 | Overall Machine, Machine Travel, Slewing, Boom, Arm, Bucket |
| Engine | 313-447 | Specifications and Performance, Cooling Water, Lubricating Oil and Fuel Oil, Special Service Tools and Measuring Instruments, Measurement, Inspection and Adjustment |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Hydraulic Hoses - Union Nut (G) 1/8 | 9.8 +4.9/-0 N·m (7.3 +3.5/-0 ft-lb) | p. 21 |
| Piping Joint (O-ring Seal) - Thread (G) 1/8 | 19.6 ±2.0 N·m (14.5 ±1.4 ft-lb) | p. 22 |
| Piping Joint (O-ring Seal) - Thread (G) 1/4 | 34.3 ±4.9 N·m (25.3 ±3.5 ft-lb) | p. 22 |
Takeuchi TB53FR Common Problems This Manual Covers
Takeuchi TB53FR hydraulic hose burst or fluid leakage from fittings after recent line replacement
Inspect the lines to ensure they are not twisted or bent as noted on page 14. Tighten loose connections, then apply the maximum working pressure 5 or 6 times as outlined on page 19 to verify the fix holds under load.
Manual Section: I . General p. 14Final drive floating seal failure and heavy hydraulic fluid loss around the lower track motor
Remove the drive hub and inspect the floating seals. Apply a thin coating of gear oil to the contact surface of the housing as directed on page 20 before assembly. Check the O-rings for twists and torque the plug to 46~51 N-m using page 224.
Manual Section: I . General p. 20Rapid oil seal lip wear and immediate fluid weeping at first startup after cylinder repair
Disassemble the leaking component and extract the damaged seal. Measure the oil seal wear amount and replace if it exceeds 0.025 mm as specified on page 142. Apply grease directly to the lip of the new seal on page 20 to prevent dry friction damage.
Manual Section: Iv . Hydraulic Units p. 142Machine travel completely dead on both sides or track speed drops significantly under load
Check the main relief valve set pressure. Loosen the locknut and turn the setting screw clockwise to raise pressure as shown on page 43. Verify the hydraulic tank level is full, ensuring it meets the 120 L total system capacity noted on page 37.
Manual Section: Ii . Specifications p. 43Frequently Asked Questions
What are the torque specifications for Takeuchi TB53FR engine bolts?
For cylinder head bolts, apply lubricating oil and tighten to 3.8 to 4.2 kgf·m (27.5 to 30.4 ft-lb) for M10 x 1.25 bolts. Connecting rod bolts should be tightened to 2.3 to 2.8 kgf·m (16.6 to 20.3 ft-lb) for M8 x 1.0 bolts. p. 347
What causes slow boom raise on the Takeuchi TB53FR excavator?
Slow boom raise can be caused by a faulty hydraulic pump P4, a faulty pilot valve, or issues with the spool operation. Additionally, a faulty port relief valve or a problem with the boom cylinder itself can contribute to this symptom. p. 297
Why does the Takeuchi TB53FR hydraulic system run hot after running an hour?
Abnormal heat in the hydraulic system can be caused by the engine's speed being too low, abnormally high oil temperature, or high hydraulic oil viscosity. Other factors include dropped pump volumetric efficiency, a loose horsepower setting adjustment screw, low oil level in the tank, or a clogged suction pipe or filter. p. 143
How do you reset the Takeuchi TB53FR hydraulic pressure?
To adjust hydraulic pressure, loosen the locknut (2) and turn the setting screw (1); clockwise increases pressure, counterclockwise lowers it. After adjustment, tighten the locknut while holding the setting screw firmly in place, then operate the relief valve once more to stabilize the set pressure. p. 43
How quickly can I access this Takeuchi TB53FR & variants manual after buying?
Immediate download of the complete 447-page searchable Workshop Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print this Takeuchi TB53FR & variants manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Does this Takeuchi TB53FR & variants manual include wiring diagrams?

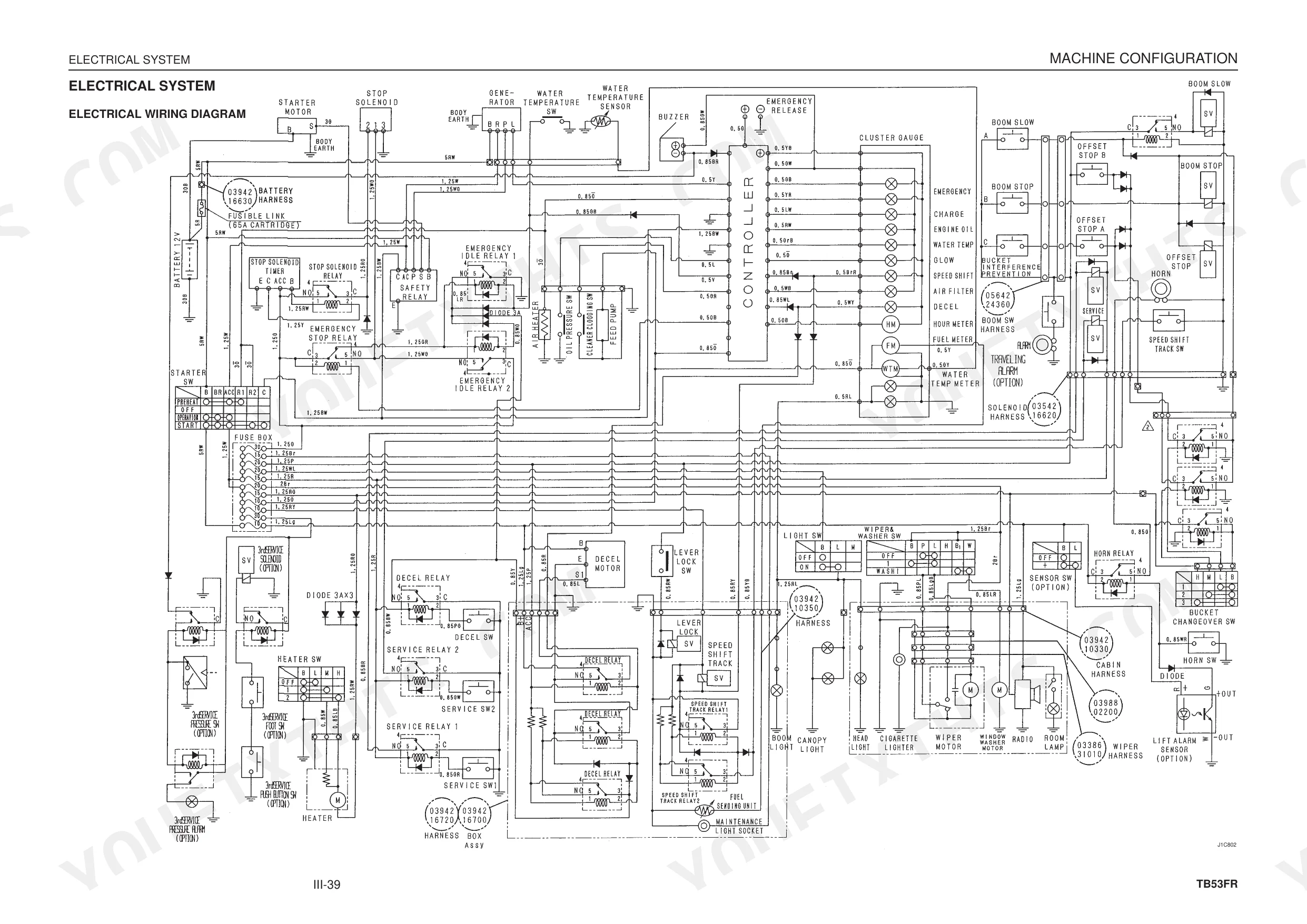

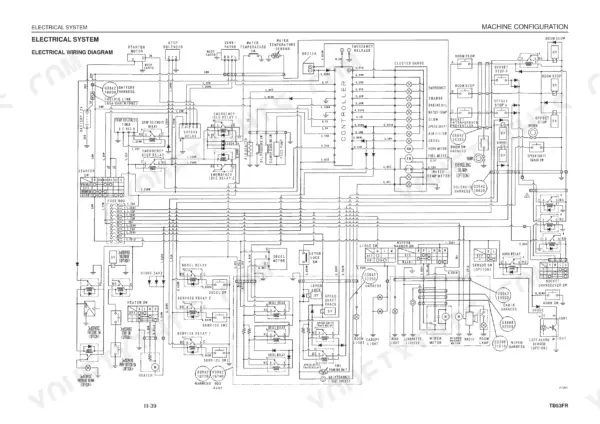

Complete wiring diagrams are included, covering all electrical circuits, harness routing, and connector pinouts for the Takeuchi TB53FR & variants.
