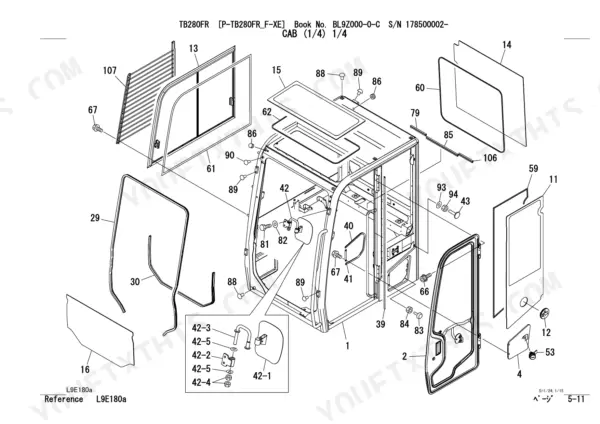

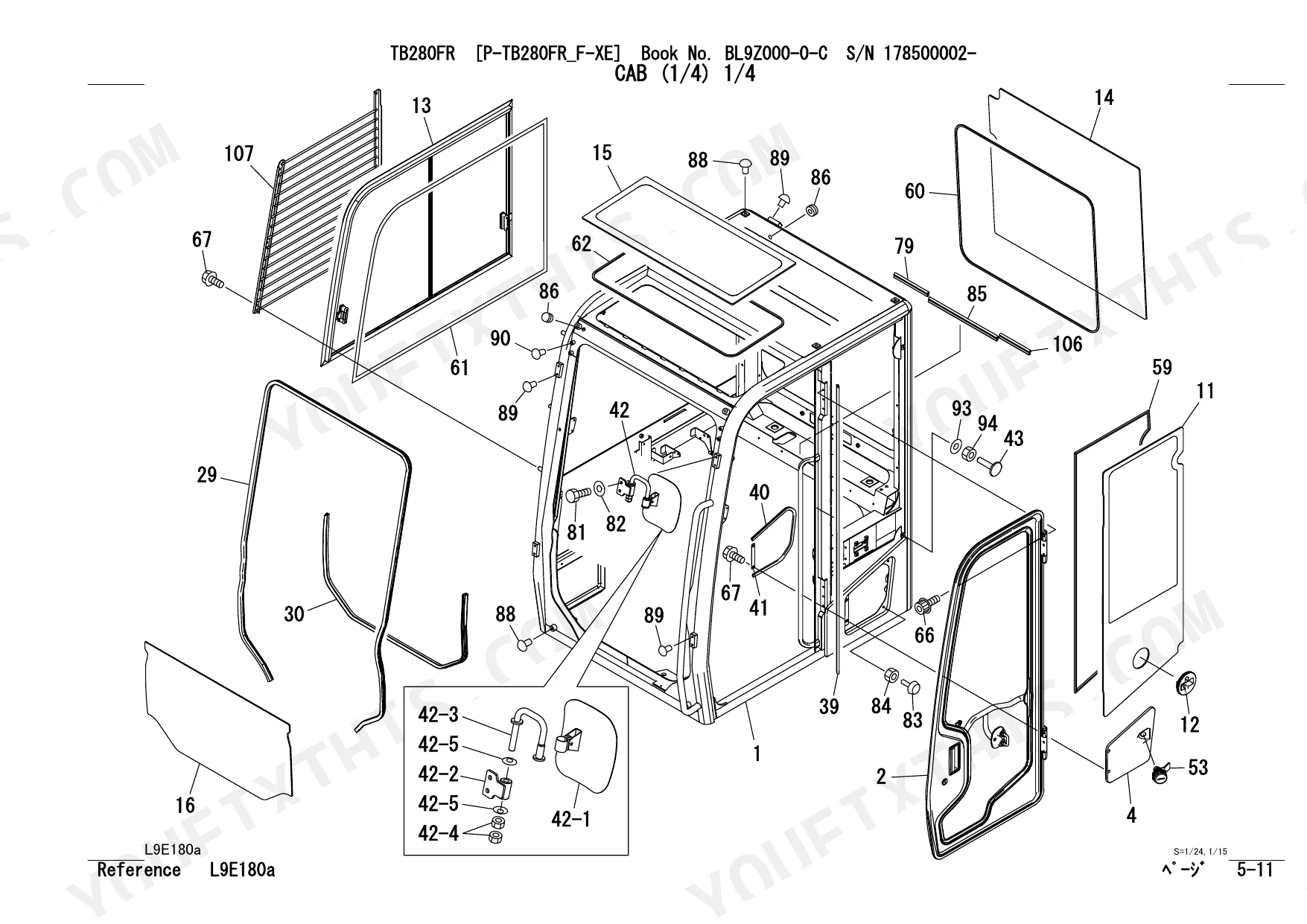

Written for a single machine, the Takeuchi TB280FR hydraulic excavator, this 432-page parts catalog (OEM ID BL9Z000-0-C) breaks it down from the rubber crawler belt and slew bearing to the cab and air conditioner. Exploded views pair every component with its part number, so the Takeuchi TB280FR parts manual PDF lets you identify a carrier roller, front idler, track adjuster or travel device before you phone the dealer. Hydraulics take the largest share of the book, with breakdowns of the control valve, pilot and solenoid valves, hydraulic pump, travel motor, and the boom, arm, bucket, offset and dozer blade cylinders. Shims are called out by thickness, including the 0.2 mm (t) size, so match what you pulled before you order. A cylinder sitting open on the bench waits on exactly one part number. Bookmarks across all eight sections, plus a searchable text layer, put you on the remote control valve or tension cylinder page in seconds.
What's Inside This Takeuchi TB280FR Parts Manual
| System | Pages | Key Topics |
|---|---|---|

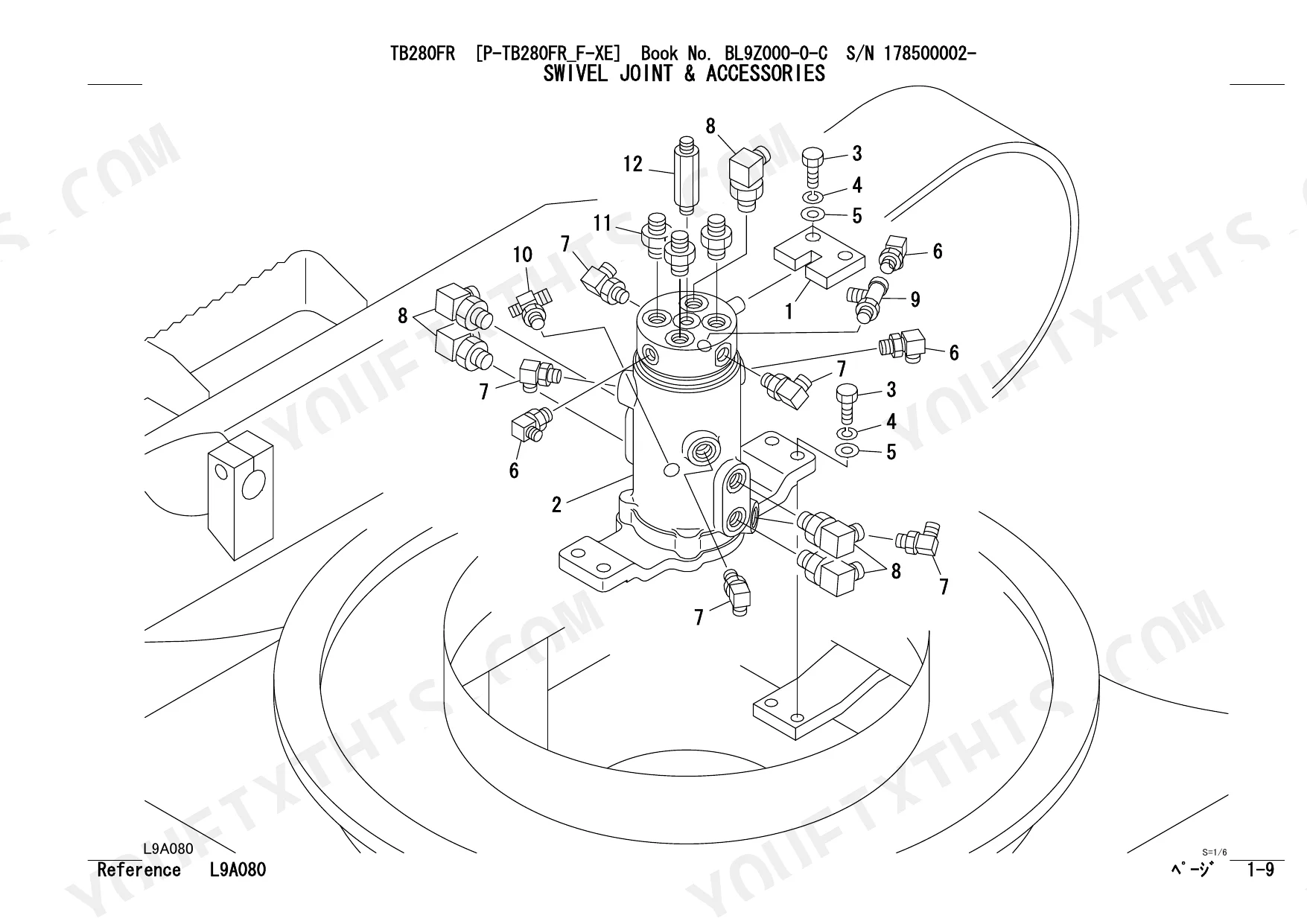

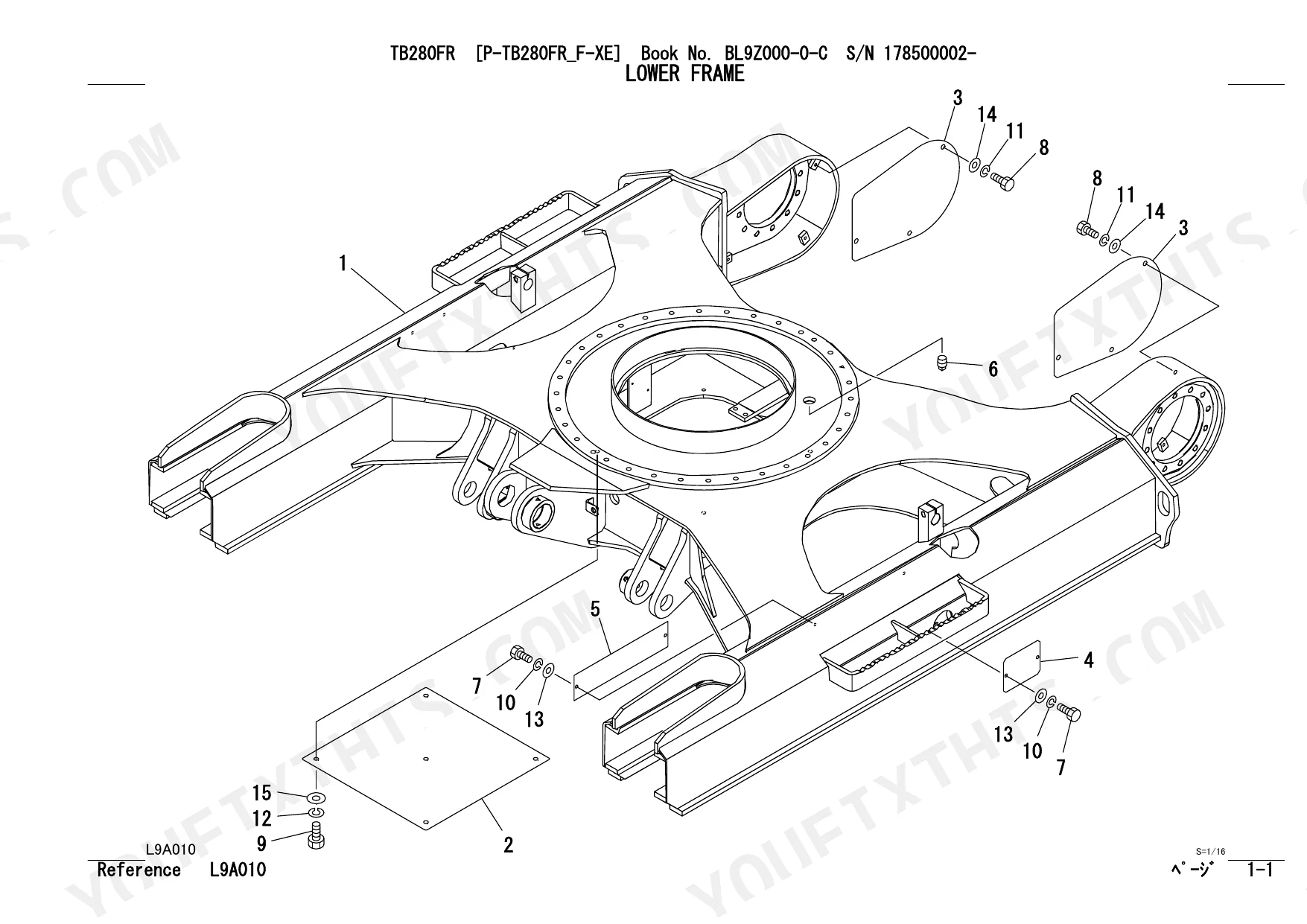

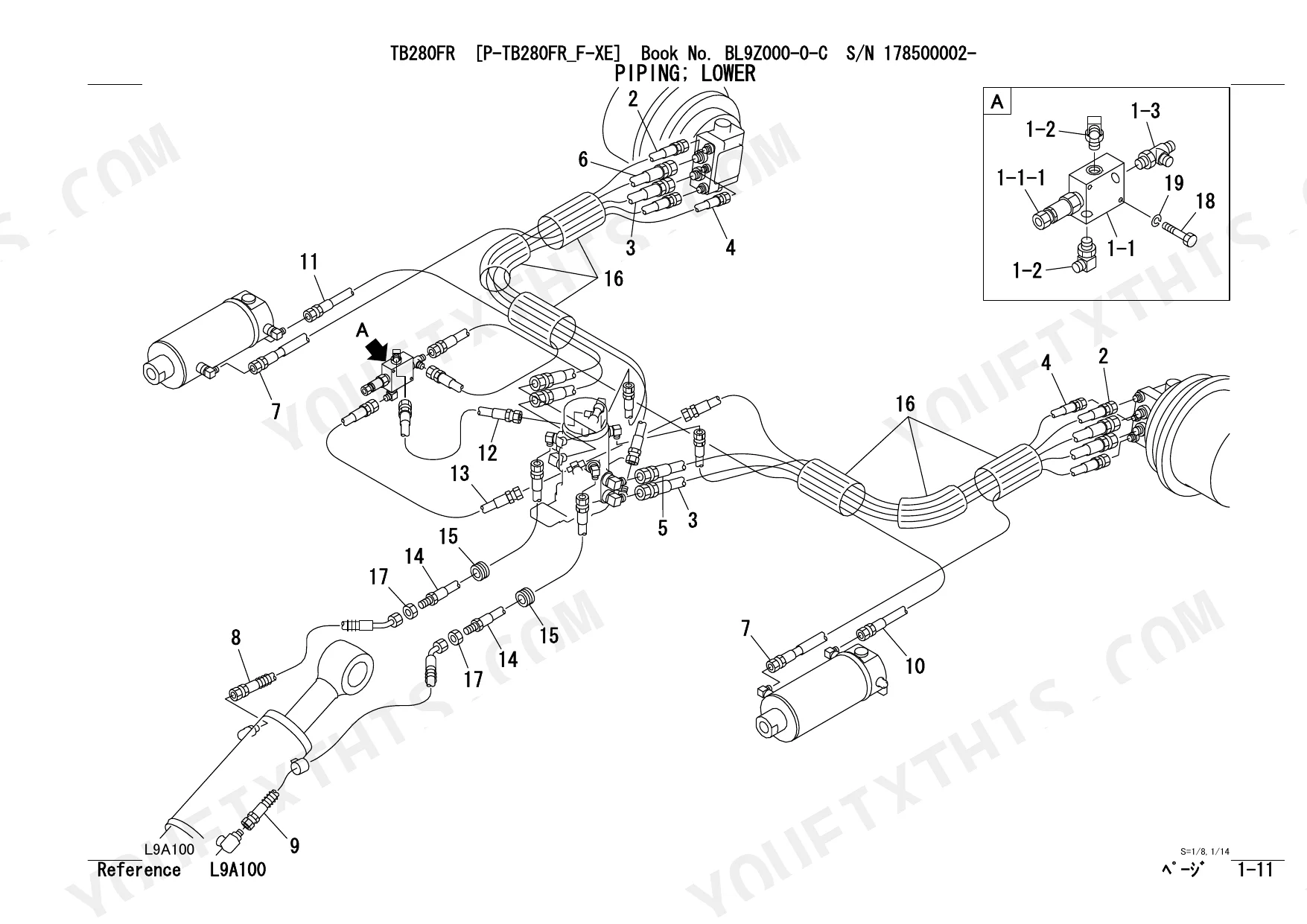

| Lower Frame | 18-39 | Crawler Belt, Carrier Roller, Track Roller, Front Idler, Track Adjuster, Travel Device, Slew Bearing, Swivel Joint & Accessories |

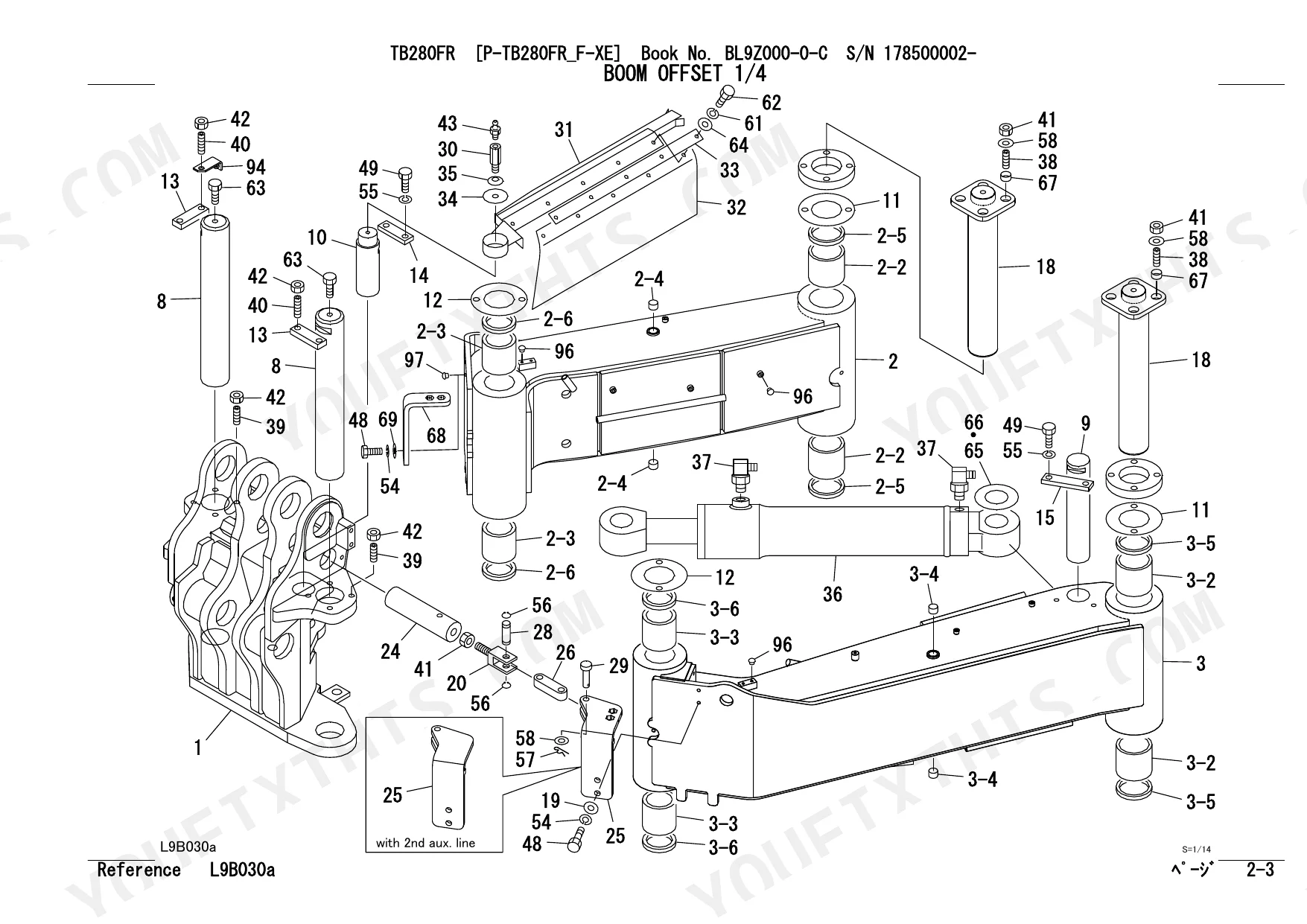

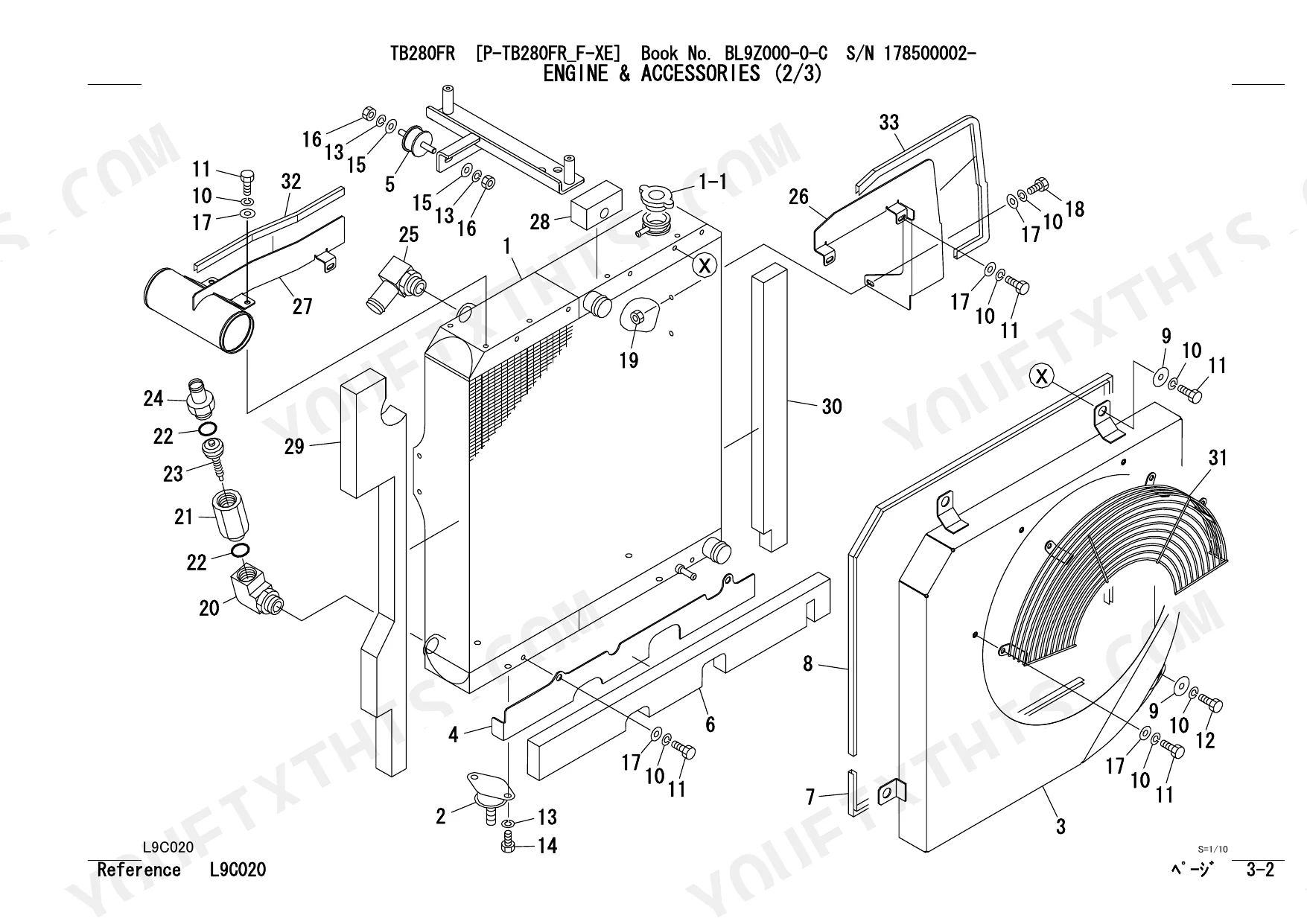

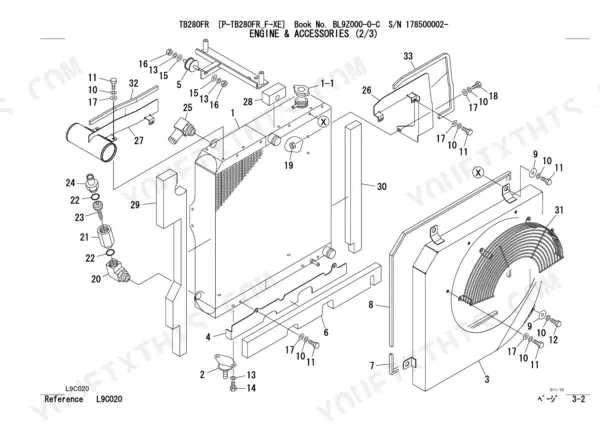

| Slewing Device | 40-71 | Turntable, Boom Offset, Offset Switch, Travel Lever, Dozer Blade Lever, Valve Bracket, Piping; Operation Lever |
| Engine & Accessories | 72-103 | Control Box, Electrical, Battery, Radio, Window Washer, Cab Light, Cab Light Stay, Rear Light |
| Grease Piping | 104-201 | Valve & Accessories, Accumulator, Piping; Upper, Pump Drive, Hydraulic Tank, Fuel Tank & Fuel Piping |
| Boom | 256-305 | Assembly, Cylinder, Arm Cylinder, Switch, Arm |
| Decal | 306-325 | Locations, Labels, Foot Switch, Grip Button, Operation Lever, Selector Valve, Blade Float |
| Swivel Joint | 326-432 | Control Valve, Sub Valve, Inlet Housing Assy, Block Assy, Outlet Housing Assy, Pilot Valve, Handle, Remote Control Valve |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Shim thickness (t) | 0.2mm | p. 49 |
Takeuchi TB280FR Common Problems This Manual Covers
Takeuchi TB280FR fuse box fuse or fusible link blown, correct amperage and part number unknown
Check the electrical parts list on page 87 under item 8, the wiring harness assembly. Fuses run from 5A (1701310005) to 25A (1701310025), and the 20A fuse is listed as 1701310020. Order the 45A fusible link as 1701330045 and the 75A link as 1701330075. Confirm your machine falls in the S/N 178500002 and later range.
Manual Section: Electrical System Diagnostics p. 87Water separator or fuel feed pump needs replacement, part number and cross-reference number not found
Check the fuel tank and fuel piping list on page 199. The water separator is item 39, part 1910302030, with remarks number Y129E00-55700. The feed pump is item 38, part 1910199034 (Y129612-52100). Match item numbers to the exploded view on page 198 before ordering. The fuel cooler on the same list is item 40, part 1911300920.
Manual Section: Fuel System Diagnostics p. 199Fuel cap packing leaking or fuel tank strainer torn, replacement part numbers hard to locate
Check the fuel tank sub assembly list on page 201. Order the strainer as item 26, part 1552101410, and the cap assembly as item 23, part 1552101400. If only the seal is gone, the cap packing is listed separately as item 23-1, part 1552101404. Use the exploded view on page 200 to confirm item locations before ordering.
Manual Section: Fuel System Diagnostics p. 201Engine foot or cushion rubber cracked, correct part number for each mounting corner unclear

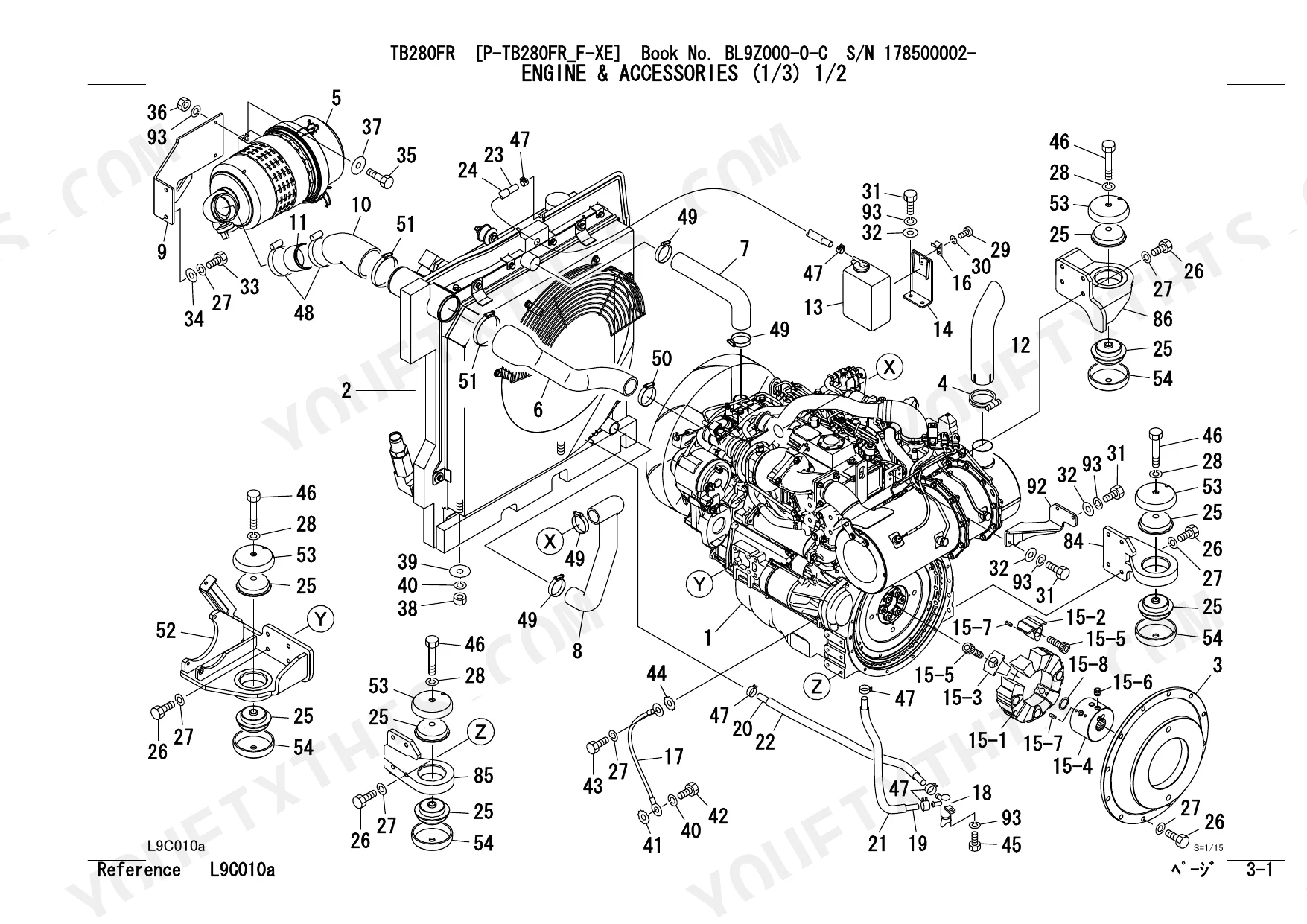

Check the engine and accessories list on pages 74 and 75. Each foot has its own number: front left 0564000125, front right 0564000274, rear left 0564000237, rear right 0564000234. Order cushion rubber 1651030026 as item 25, quantity 8. Locate each item on the exploded view on page 72 before ordering.
Manual Section: Engine & Accessories p. 75Engine coupling assembly element worn, element and insert part numbers hard to find
Check item 15 on the engine and accessories list on page 74. The complete coupling assembly is 1602041000; the element alone is 1602041001. Inserts come as NA (1602041002) and R (1602041003), four of each. Order the hub 1602041004 and spring pins 1213000510 (quantity 12) if the old parts are damaged. Match the 15-1 through 15-8 callouts on page 72.
Manual Section: Engine & Accessories Troubleshooting p. 74Air conditioner compressor V-belt, dryer, or unit filter replacement part numbers not found
Check the compressor list on page 251 for the V-belt, item 6, part 1621073043. Find the dryer on the condenser list on page 253 as item 16, part 1911505511. Order the air conditioner unit filter from page 255 as item 5, part 1911515570. Note that the refrigerant gas on page 251 is marked not service.
Manual Section: Air Conditioner Diagnostics p. 251Frequently Asked Questions
What is the part number for the air cleaner element on the Takeuchi TB280FR?
The primary air cleaner element is part number 1911113001, and the secondary element is part number 1911113002. p. 79
What is the part number for the water separator on the Takeuchi TB280FR?
The water separator is part number 1910302030. p. 199
What is the part number for the travel motor assembly on the Takeuchi TB280FR?
The travel motor assembly is part number 1903131300. p. 31
How quickly can I access this Takeuchi TB280FR manual after buying?
Delivery is instant: a 432-page searchable PDF is yours the second checkout clears. Laptop, tablet, or phone, all fine.
Can I print just the pages I need from this Takeuchi TB280FR manual?
Yes. Print individual pages or full chapters for your own shop use, on letter or A4 paper.
