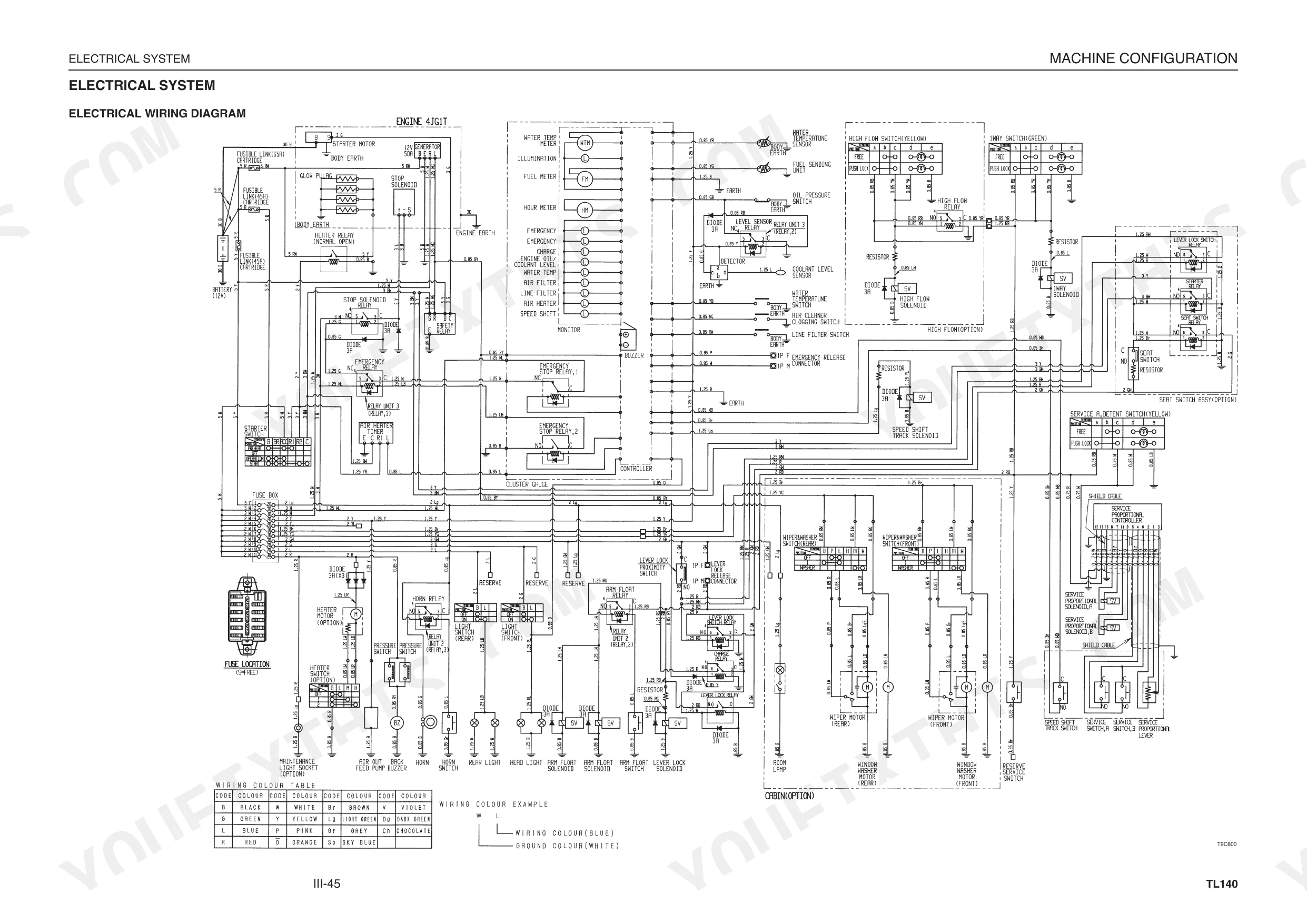

Need the exact repair procedures for your track machine? This 559-page Takeuchi TL140 workshop manual PDF (OEM #CT9E001) breaks down every drive system, hydraulic unit, and engine component. You get full factory troubleshooting charts to track down travel or lift arm faults, plus high-quality wiring diagrams and complete fluid schematics. Open up the exploded views and torque tables to rebuild the HST pump, gear pump, and control valves right the first time. When bleeding the lift cylinders, stop the piston rods exactly 100 mm before the stroke end, and always test new hydraulic hoses by applying maximum working pressure five to six times to verify seals. Stop hunting for answers on dusty shop shelves. Download this text-searchable file directly to your tablet, click the bookmarks to find your spec, and get the loader back in the dirt.
What's Inside This Takeuchi TL140 Manual

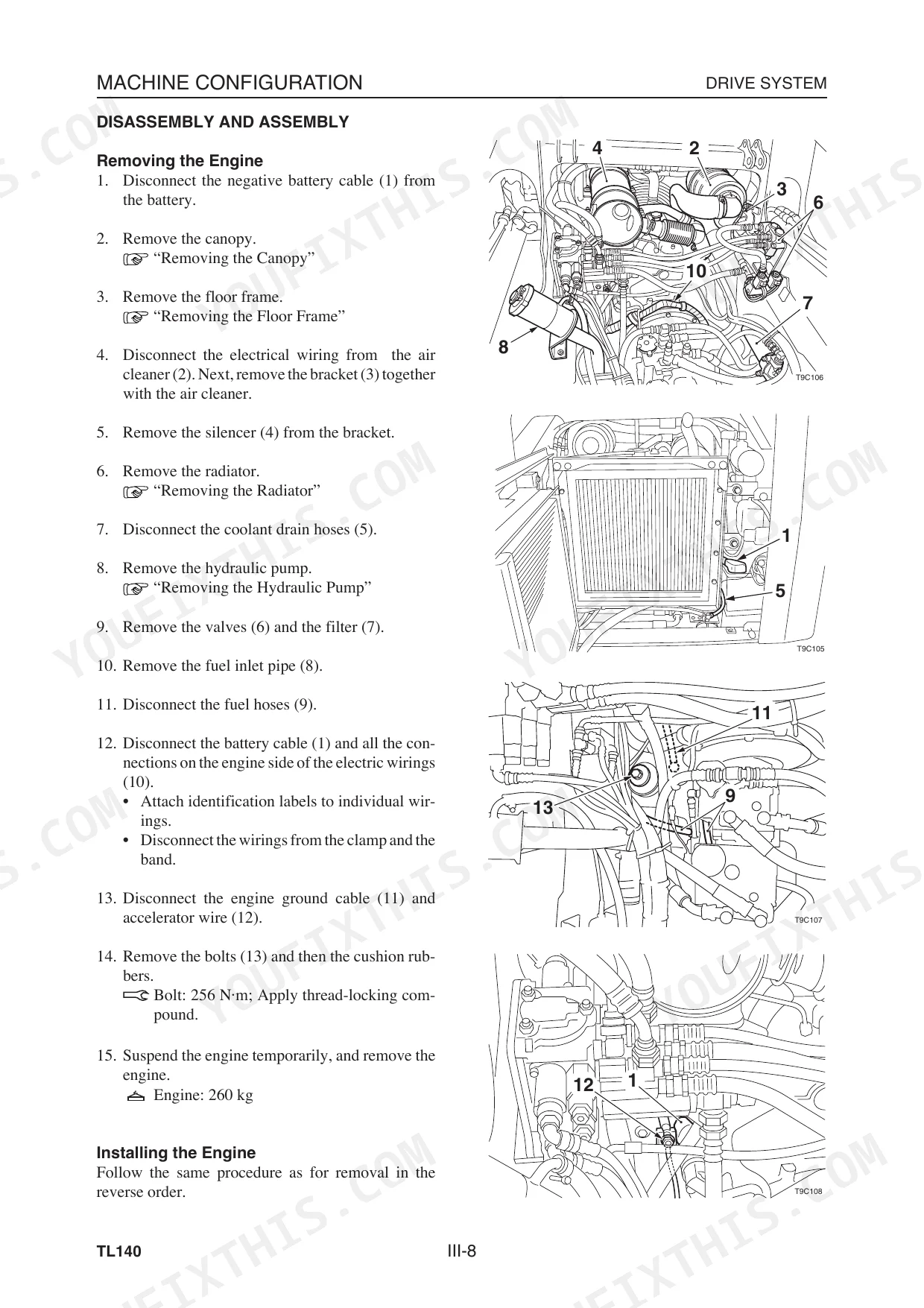

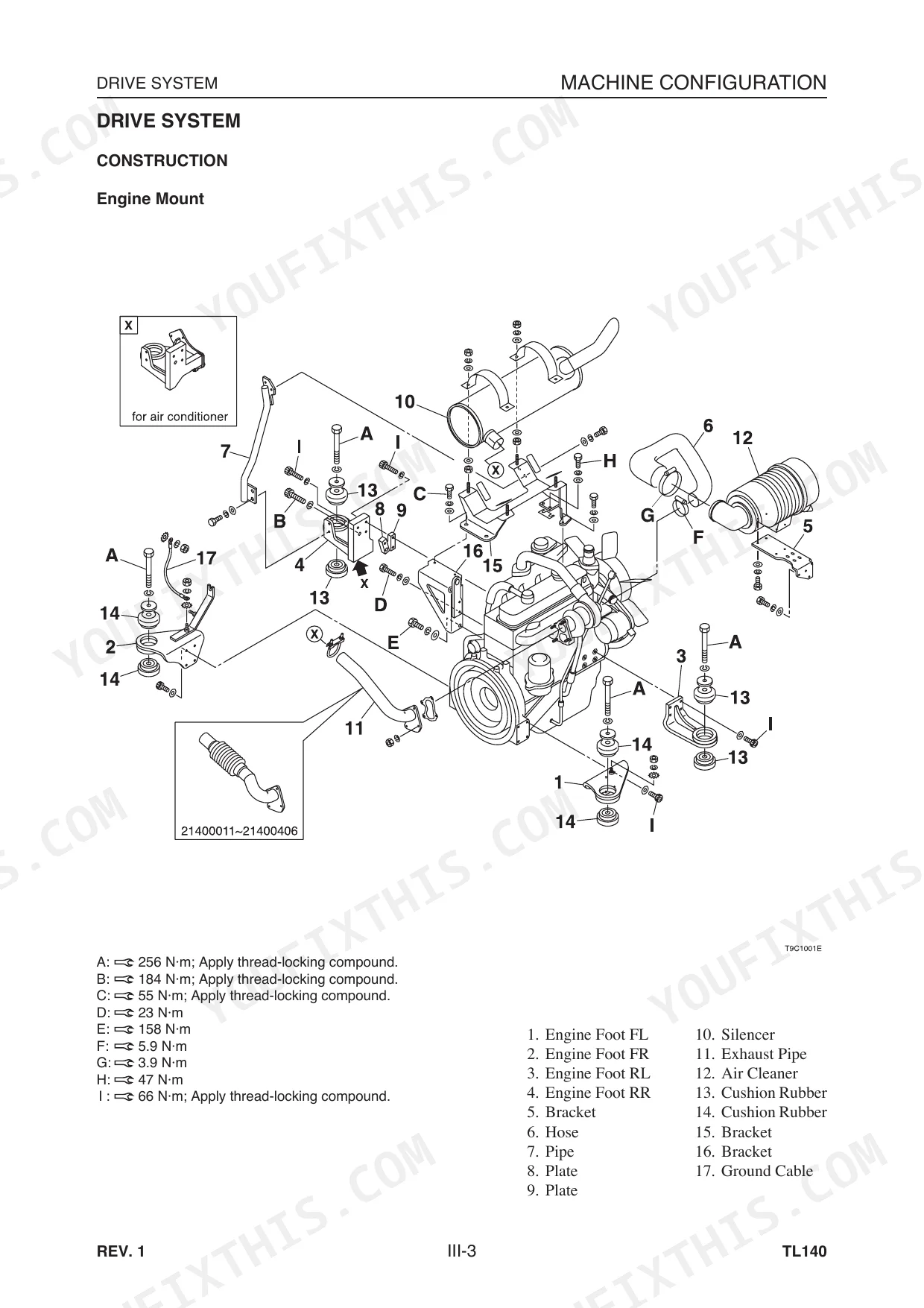

| System | Pages | Key Topics |
|---|---|---|
| General | 9-22 | Safety Precautions, Disassembly and Assembly Cautions, Hydraulic Units Removal and Installation Cautions, Piping Removal and Installation Cautions, Seals Handling |
| Specifications | 23-40 | Names of Components, Dimensions, Specification Tables, Mass Tables, Recommended Lubricants, Service Standards |
| Machine Configuration | 41-152 | Drive System, Travel System, Frame, Control System, Attachments, Hydraulic System |
| Hydraulic Units | 153-270 | HST Pump, Gear Pump, Control Valve, Control Valve (Sub), Proportional Control Solenoid Valve, Self-Level Valve |

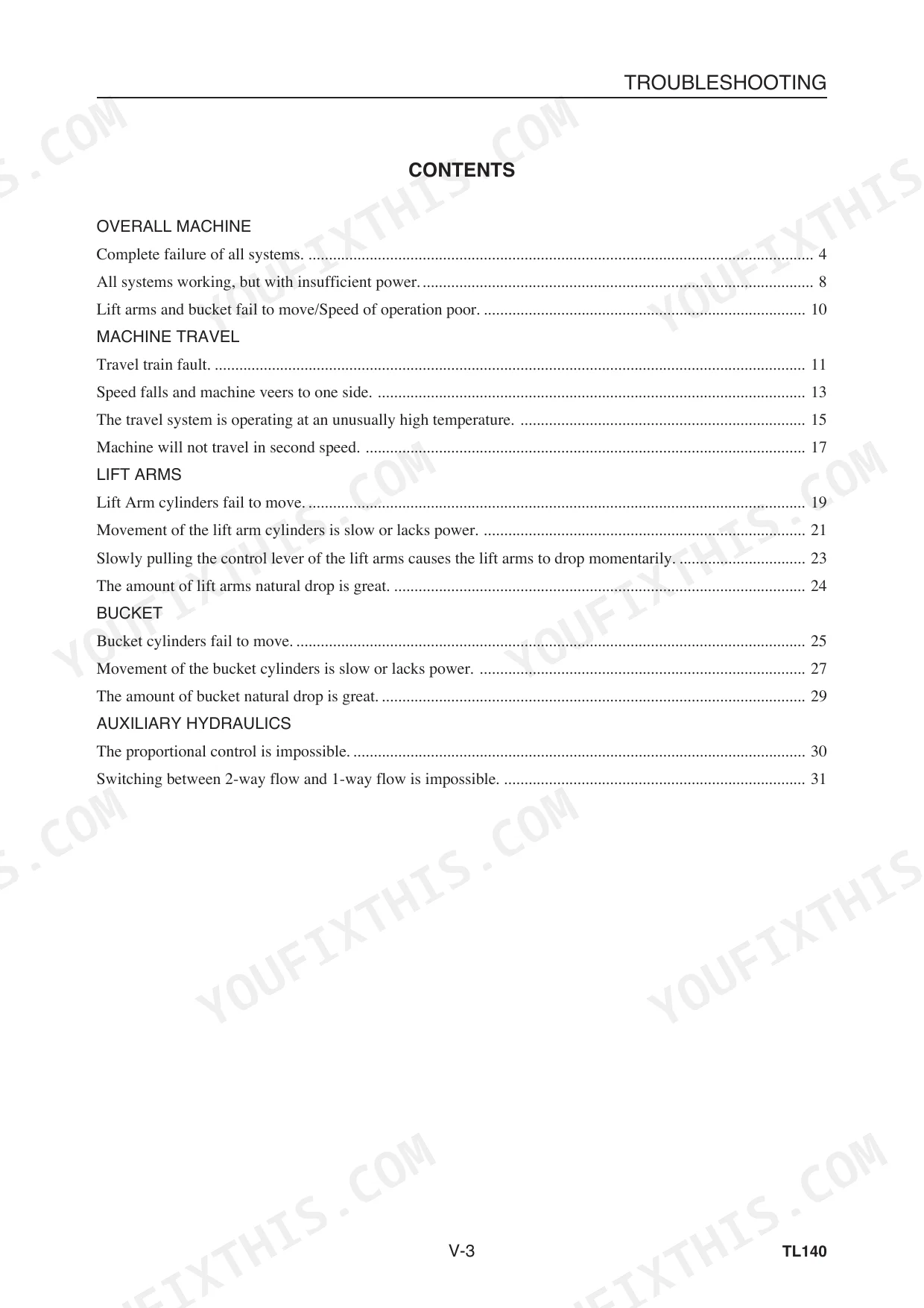

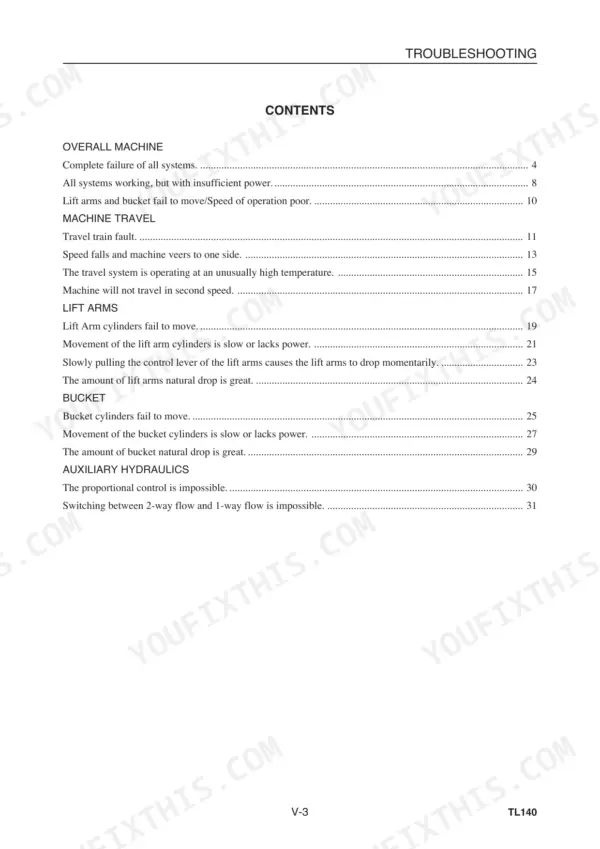

| Troubleshooting | 271-302 | Overall Machine, Machine Travel, Lift Arms, Bucket, Auxiliary Hydraulics |
| Isuzu 4JG1 Engine (Bundled Manual) | 303-559 | Engine Disassembly and Reassembly, Fuel Injection System, Cooling and Lubrication, Inspection and Adjustment, Engine Specifications |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Hydraulic Tank Total System | 83 L | p. 31 |
| Hydraulic Tank Level | 52 L | p. 31 |
| Track Roller A Floating Seal | 241 N·m | p. 55 |
Takeuchi TL140 Common Problems This Manual Covers
Takeuchi TL140 hydraulics work intermittently, functioning fine one day and completely dead the next
Test the thermostatic switch documented on page 148 first; when it fails to trigger properly, hydraulics cut in and out with no clear pattern. Verify the hydraulic tank sits at the 52 L level mark on page 31 before suspecting the pump. Cycle every function twice after the switch is replaced to confirm consistent operation.
Manual Section: Iii . Machine Configuration p. 148Engine cranks over but refuses to start, especially in cold weather
Start with the fuel shut-off solenoid; a stuck or corroded solenoid stops fuel delivery entirely and mimics a dead battery. Confirm you're working on the 60.3 kW at 2500 min-1 rated engine per page 28, then check the electric fuel pump's internal filter for clogging before pulling the injection pump; full teardown steps start on page 303.
Manual Section: Vi . Engine p. 303Hydraulic oil leaking from hose and pipe fittings after routine repair work

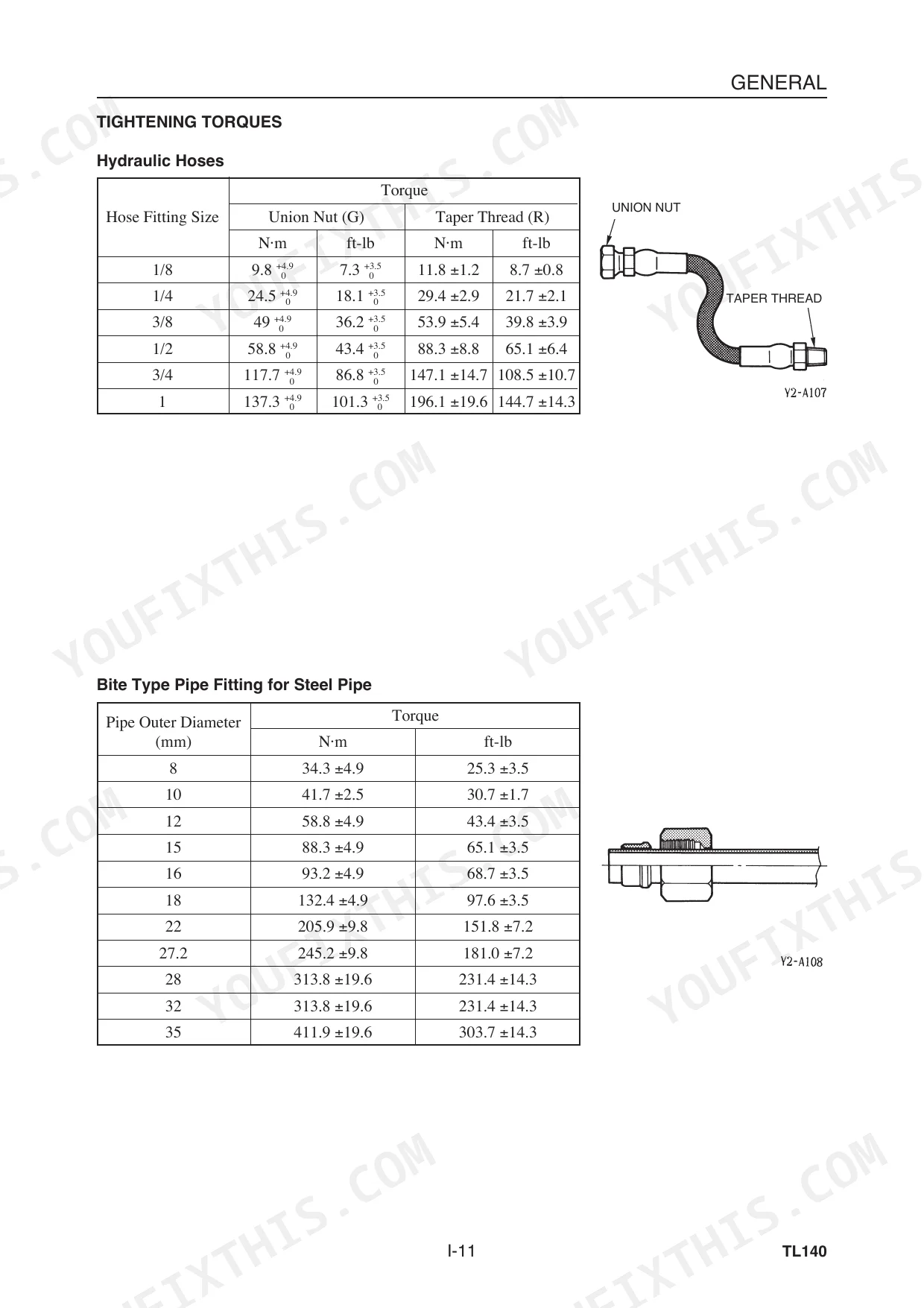

Apply maximum working pressure to the new hose or pipe assembly 5 or 6 times as specified on page 18, and check every joint closely for seepage. If an O-ring looks twisted, work the twist out with your fingertips instead of forcing it. If leaks persist, replace the oil seals and O-rings per page 269 rather than reusing parts.
Manual Section: Iv . Hydraulic Units p. 269Lift arm cylinders won't move or respond when the control lever is engaged
Work through the troubleshooting procedures on page 273 for actuator faults. Trace the pilot valve circuit against the hydraulic schematic and confirm the control valve spool moves fully. Torque the linkage lock nut to 20 to 27 N·m per page 181; a loose nut lets the pilot valve slip and mimics a dead cylinder.
Manual Section: Lift Arms: Lift Arm cylinders fail to move p. 273Bucket cylinders unresponsive, bucket won't curl, dump, or hold position under load
Check the troubleshooting procedures on page 273 for spool movement and port relief valve faults before pulling the bucket cylinders. If you disassemble a cylinder, replace every O-ring with a new one per page 162 rather than reusing old seals. Torque the cylinder head screws to 88.2 to 93.1 N·m per page 186 to prevent bypass that mimics a dead cylinder.
Manual Section: Bucket: Bucket cylinders fail to move p. 273Frequently Asked Questions
What are the torque specifications for the Takeuchi TL140 engine cylinder head bolts?
The cylinder head bolts on the Takeuchi TL140 engine require a three-step tightening process. The first step is 44-54 N·m (4.5-5.5 kgf·m/33-40 lb·ft), followed by two additional turns of 60-75° each. p. 311
What are the replacement instructions for the Fuel shut-off solenoid?
If the fuel cut solenoid valve is defective, it should be replaced. The manual indicates this as a countermeasure for the engine not starting due to fuel not being delivered to the injection pump. p. 205
What are the replacement instructions for the Electric fuel pump?
If the fuel feed pump is defective, it should be repaired or replaced. This is identified as a countermeasure for insufficient engine power. p. 210
What is the engine oil capacity for the Takeuchi TL140?
The engine oil pan capacity for the Takeuchi TL140 is an upper limit of 9.6 L and a lower limit of 7.6 L. p. 31
How will I receive this Takeuchi TL140?
This is a 559-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Is this Takeuchi TL140 manual printable?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Does this Takeuchi TL140 manual include?

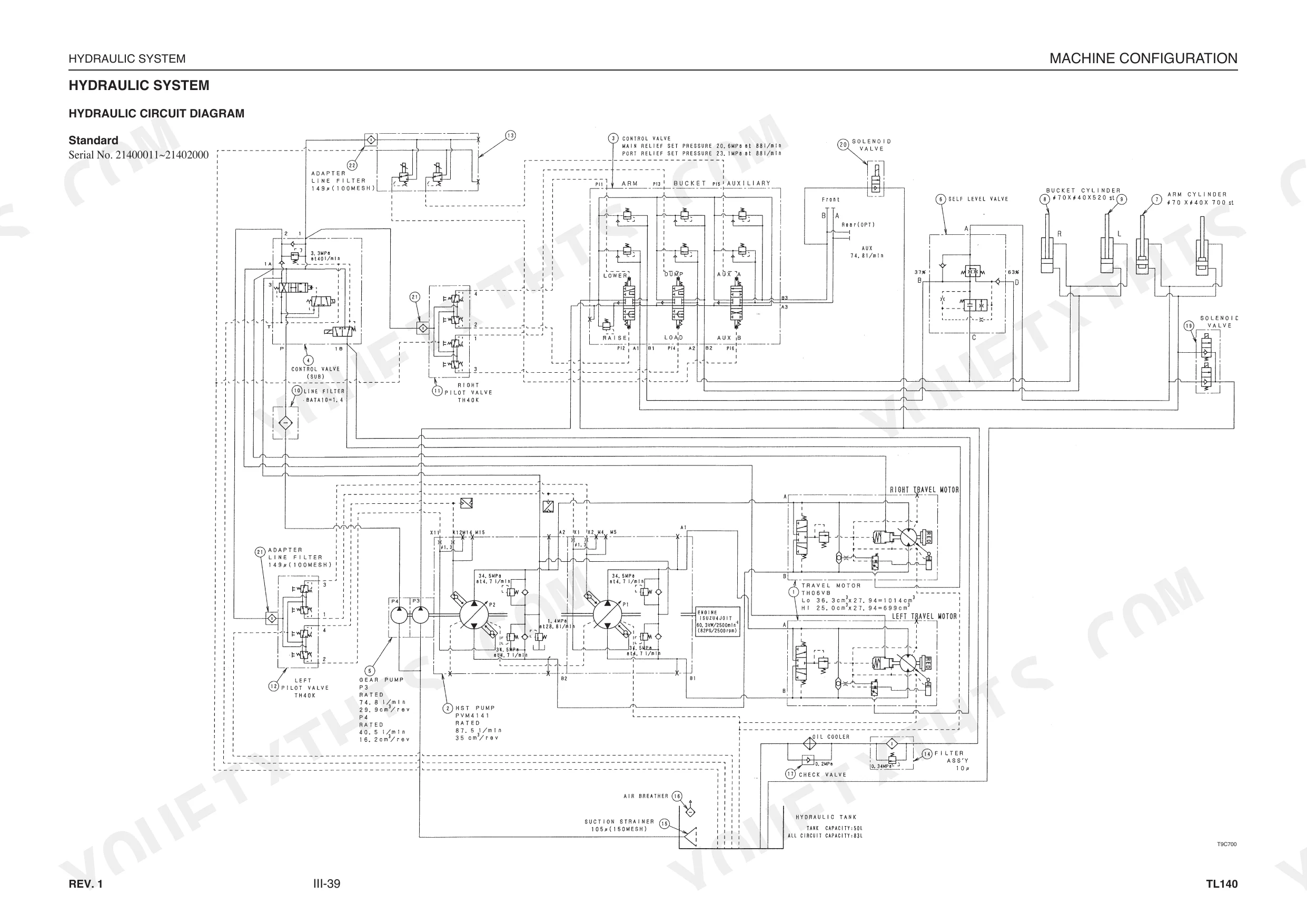

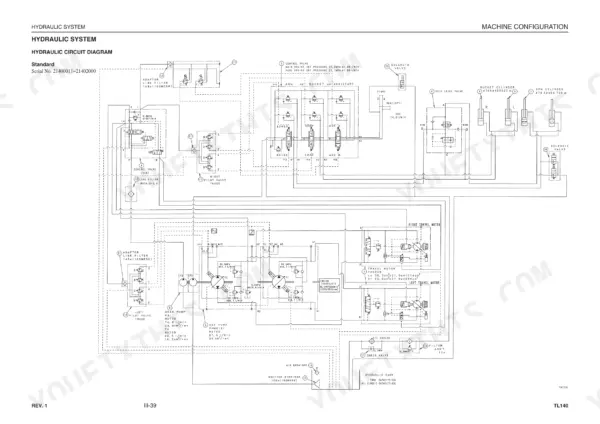

Yes. The manual includes hydraulic circuit diagrams, system schematics, and component specifications with pressure ratings.
