This 754-page Valtra service manual covers the M and T Series tractors: M120, M130 and M150, plus T120 through T190. The electrical section alone runs from page 119 to 392 and carries the wiring diagrams for the whole range, which is what most of these repairs come down to. Around it you get the engine (cylinder block, head and valves), the power transmission with its clutch, gearbox and reverse shuttle, the brake system with its technical data, the steering and front axle, the frame and wheels, and the hydraulic system with its pressures and settings.
What's Inside This Valtra M120-M150, T120-T190 Manual

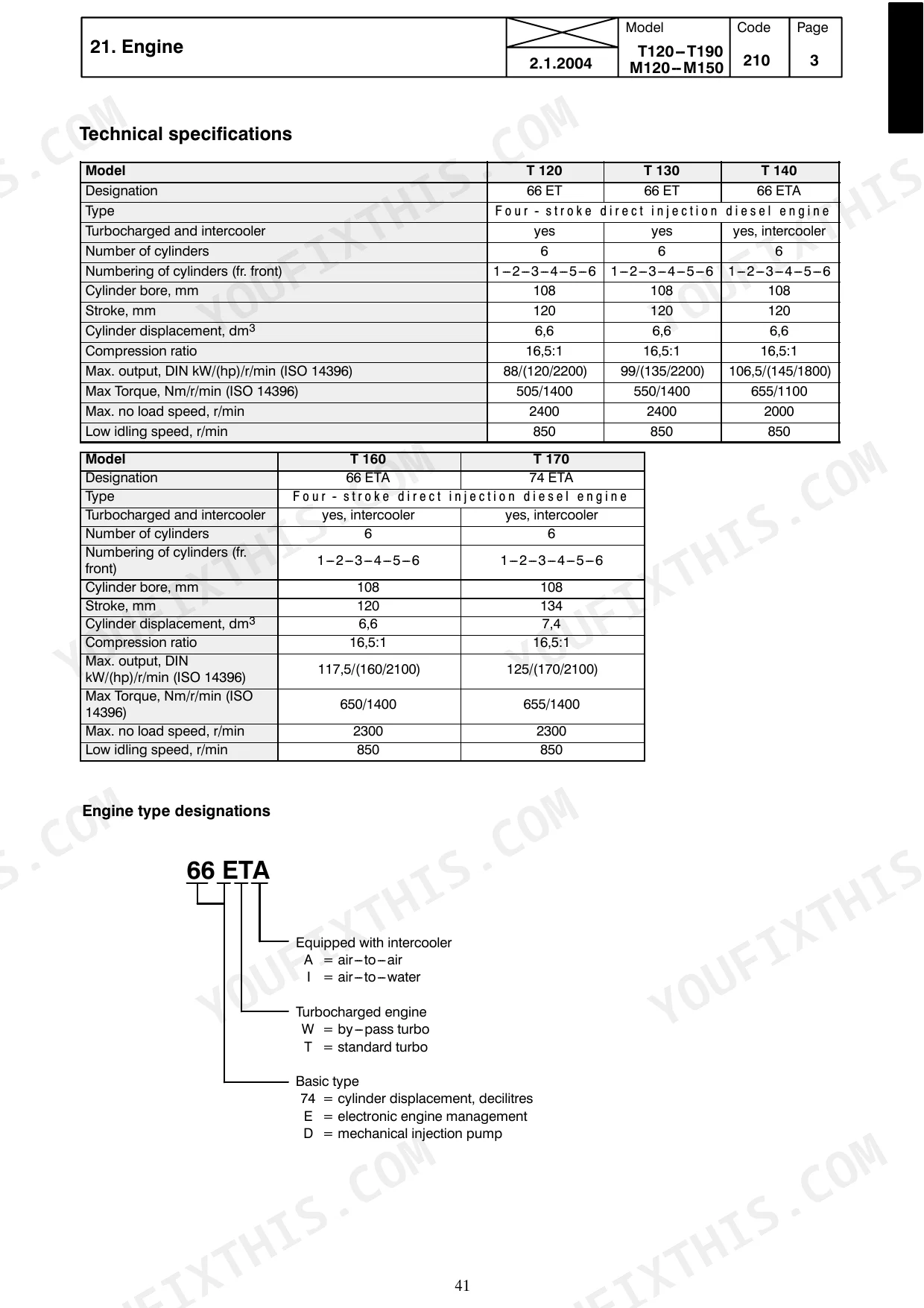

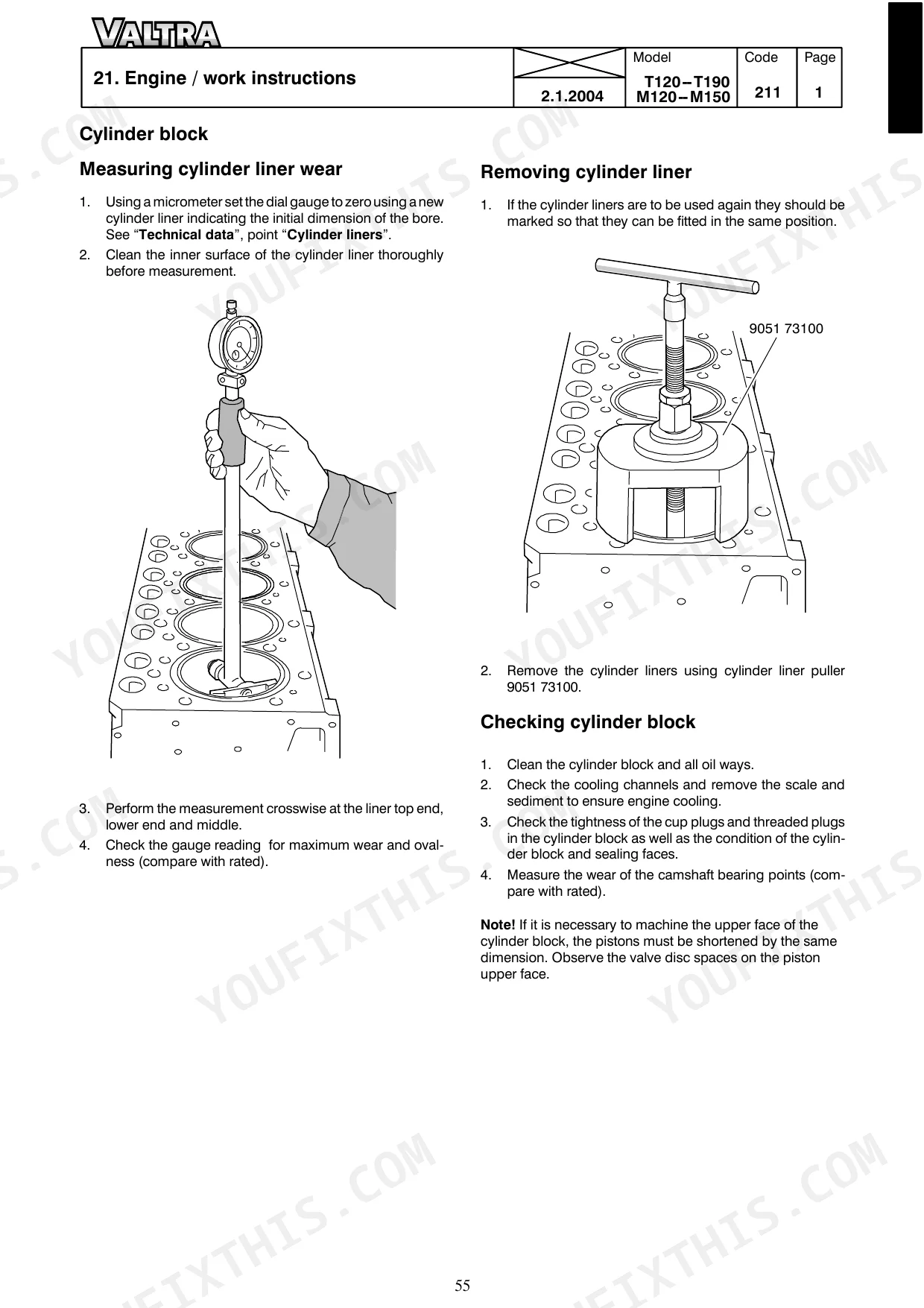

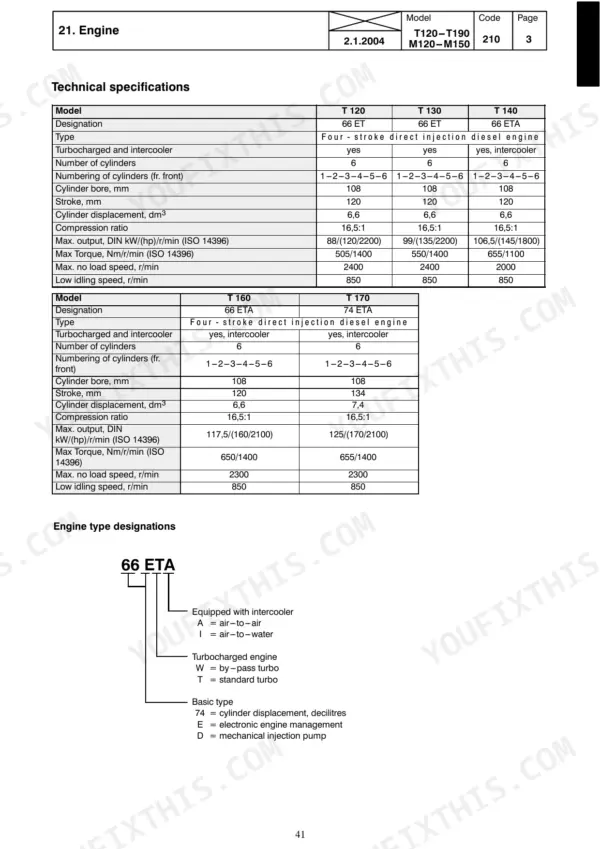

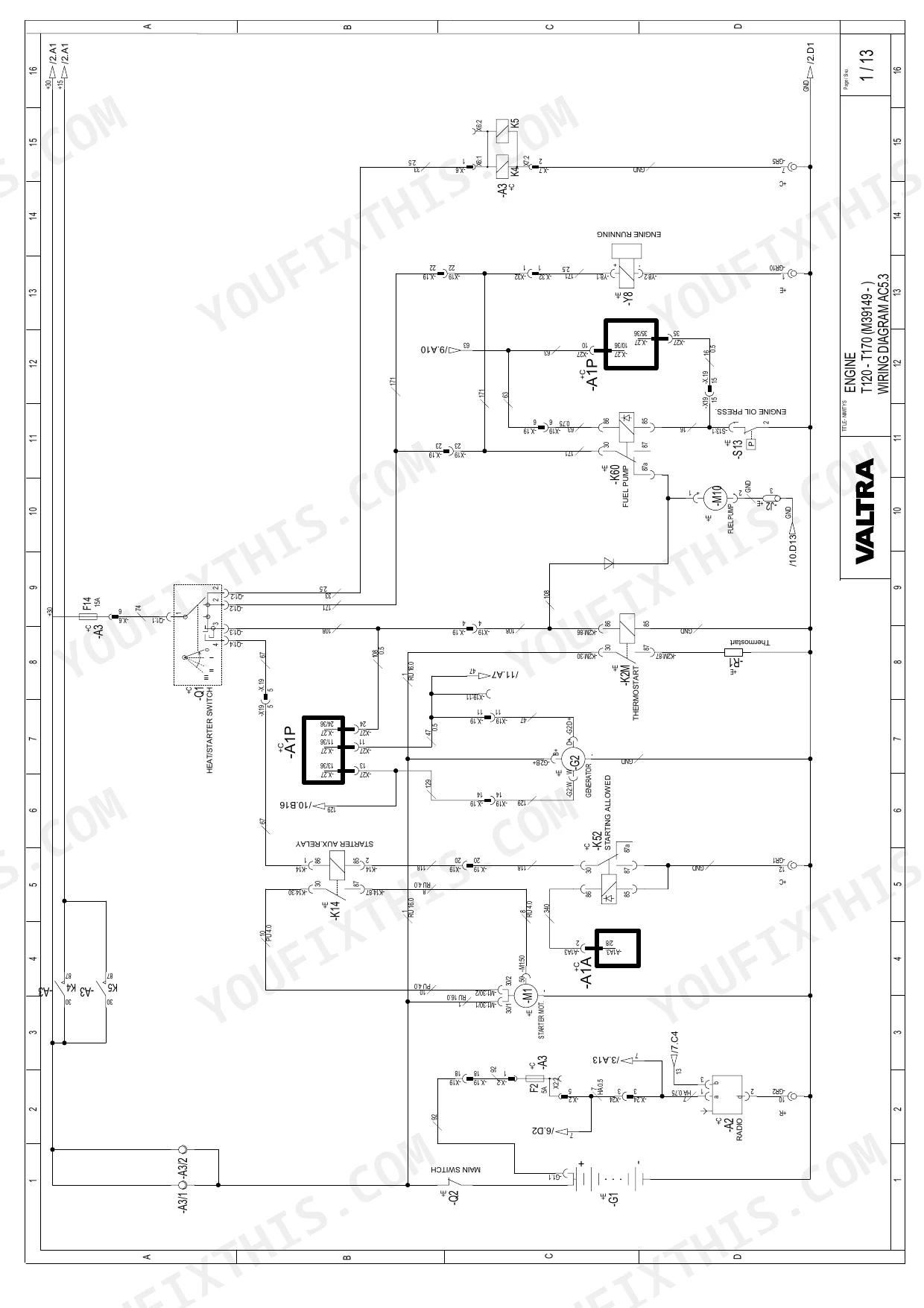

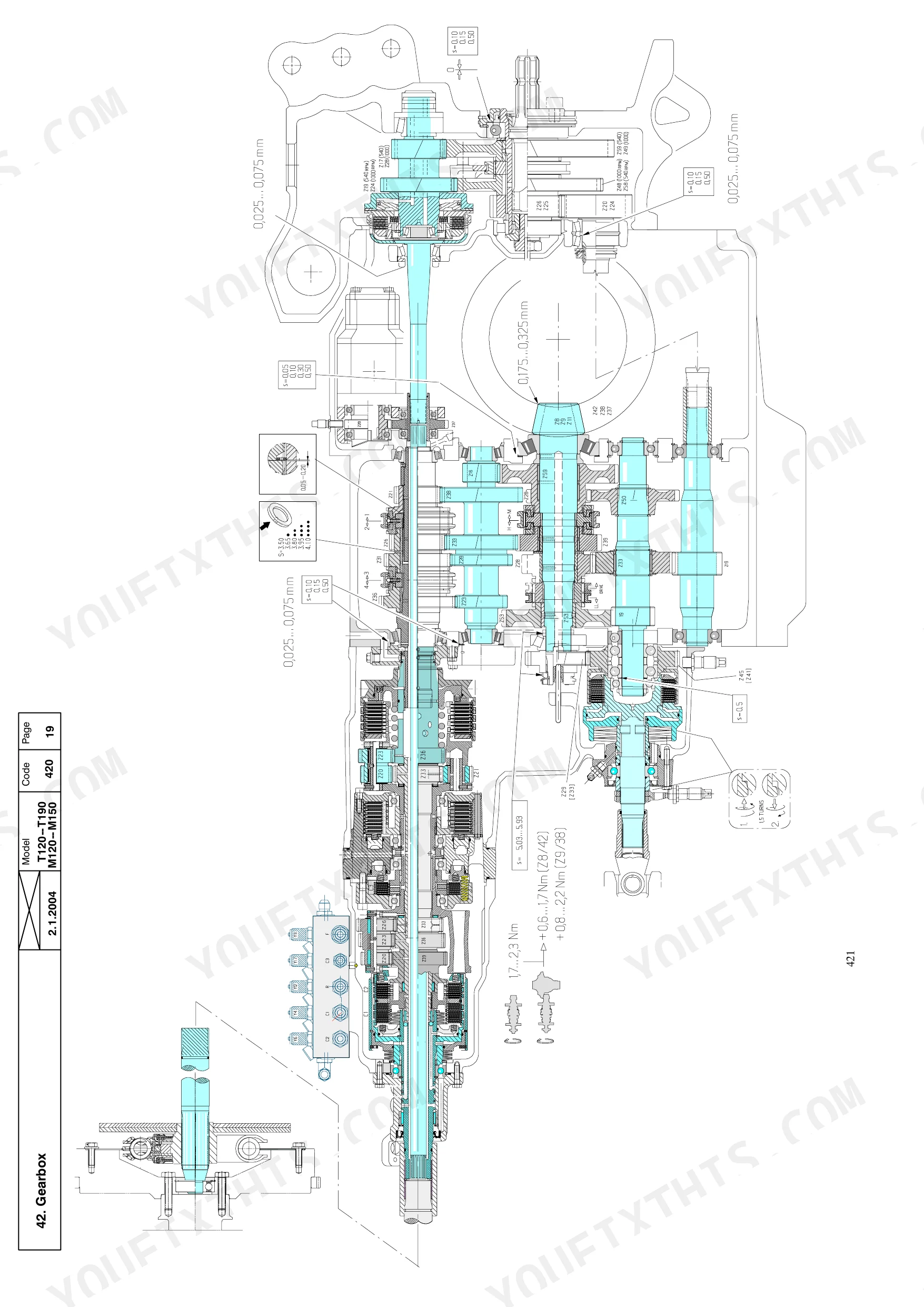

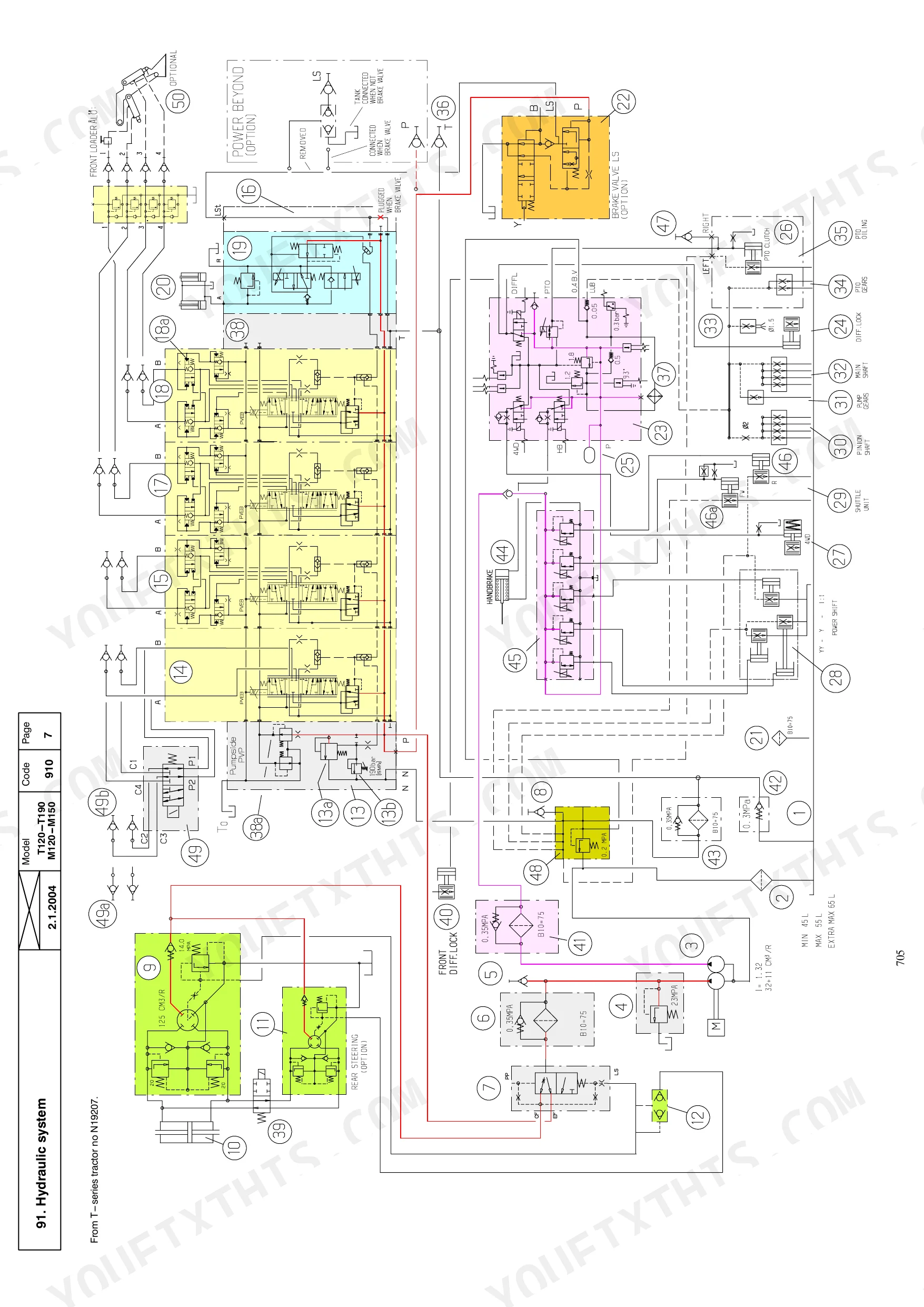

| System | Pages | Key Topics |
|---|---|---|
| General | 3-36 | Layout, Repairs, Maintenance |
| Engine | 37-118 | Cylinder Block, Cylinder Head and Valve Mechanism, Crankshaft Engine, Timing Gears, Lubrication System, Cooling System |
| Electrical | 119-392 | Safety Precautions for the Electrical System, Fuses and Relays, Sensors, Control Unit Connectors, LCD Display and Diagnostics, Fault Memory and Service Modes |
| Power Transmission | 393-518 | Clutch, Description, Gearbox, Quick-Shift Gear, Reverse Shuttle and 4WD Clutch, Final Drives |
| Brake System | 519-542 | Technical Data, Description, Pressure Air Brakes for Trailer, Parking Brake Mechanism, Adjusting Foot Brakes, Adjusting Parking Brake |
| Steering & Front Axle | 543-682 | Steering System, Description, Steering Valve, Priority Valve, Steering Cylinder, Powered Front Axle, Differential Lock |
| Frame & Wheels | 683-696 | Frame Dimensions, Front Weight Support and Frame, Wheels, Tyre Loadings and Pressures, Track Widths, Wheel Nuts, Tightening Torque, Twin-Mounted Wheels |
| Hydraulic System | 697-754 | Technical Data of Hydraulic System, High Pressure Circuit, Low Pressure Hydraulics, Hydraulic Valves in the Working Hydraulics, Power Lift Hydraulics, Description, Lifting Cylinder |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

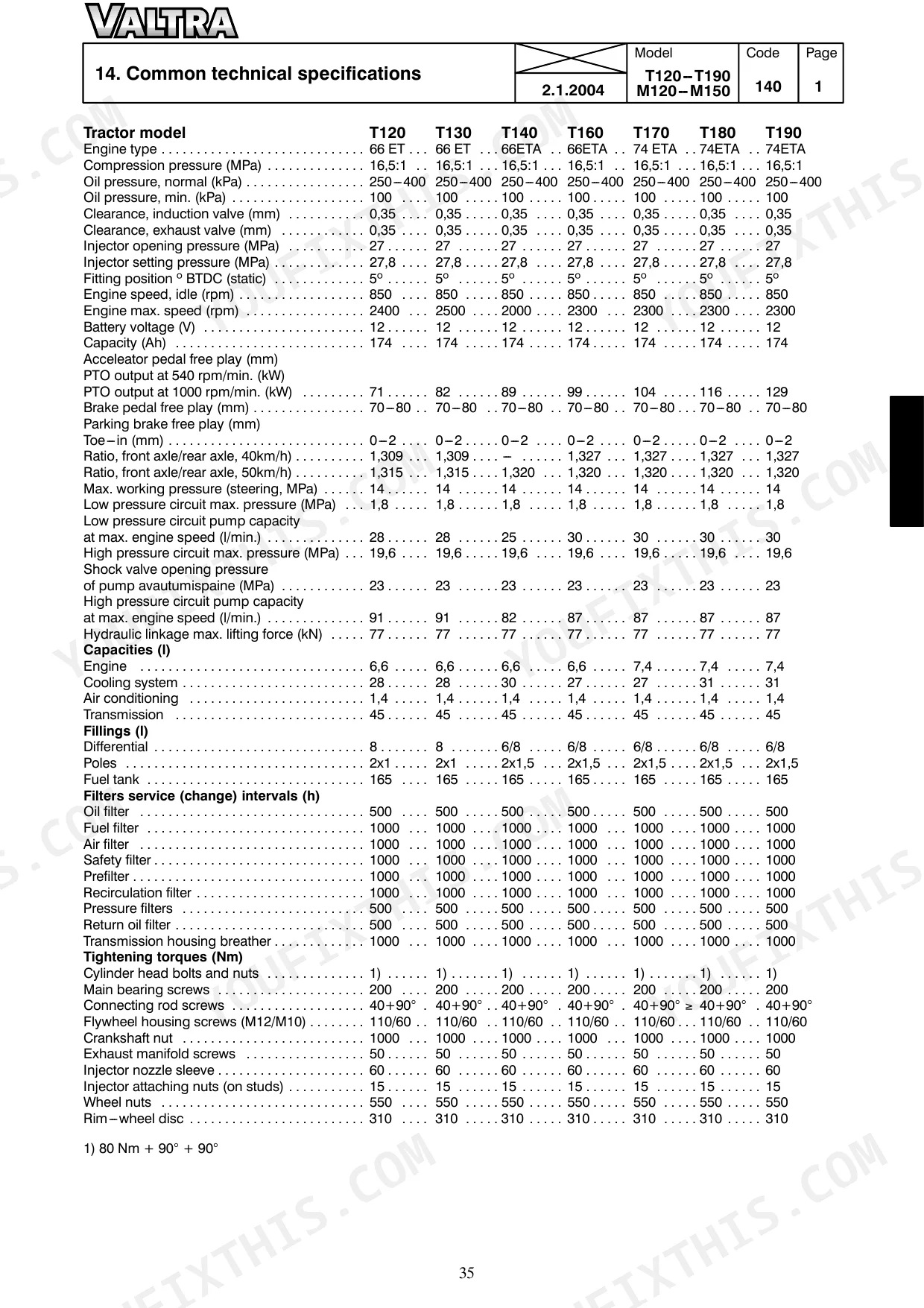

| Wheel Nut Torque | 550 Nm | p. 36 |
| Thermostat Opening Temperature | 83 °C | p. 118 |
| Battery Voltage | 12 V | p. 119 |
| TC1 Proportional Valve Resistance | 7-9 ohms | p. 392 |
| Sigma Power Engaging Torque | 250 Nm ± 25 Nm | p. 518 |
| Brake Pedal Free Travel (pedals latched together) | 70-80 mm | p. 542 |
| Selector Fork Rail Thread Sealant | Loctite 242 | p. 518 |
| PTO Gearbox Sealant | Hylosil RTV Grade 102 Black | p. 518 |
| Reverse Shuttle Gearbox Sealant | Hylosil RTV Grade 102 Black | p. 518 |
Valtra M120-M150, T120-T190 Common Problems This Manual Covers
Valtra T130 PTO shaft end oil seal leaking, gear oil dripping onto drivetrain components
Remove the PTO shaft seal retainer circlip and press out the failed cassette seal as detailed on page 512. Inspect the retainer o-ring for hardening and replace if worn. Coat the power take-off-gearbox sealing face with Hylosil RTV Grade 102 Black per page 404, fit the new cassette seal, then measure retainer play with a dial gauge before final reassembly.
Manual Section: T Series Power Transmission p. 512Output shaft to transmission oil seal failure, gear oil weeping past the housing joint
Drain the gearbox and split the housing to reach the output shaft, following the Power Transmission section starting page 393. Replace both O-rings on the DPS input shaft noted on page 397, since that cavity runs under lubrication pressure and a hardened O-ring will seep steadily. Coat the reverse shuttle-gearbox mating face with Hylosil RTV Grade 102 Black from page 404 before torquing the housing back together.
Manual Section: T Series Power Transmission p. 397Engine won't start or throws unrecognized fault codes after a DPM firmware update
Pull the code from the error code reference beginning and confirm it matches a known DPM entry. Verify battery voltage holds steady at 12 V during crank per the spec on page 124, since a weak battery drops DPM communication mid-update and mimics a no-start. If the code isn't in the standard table, cross-check it against DPM manual V39249214, since that manual covers module-specific codes this manual doesn't list.
Manual Section: T Series ElectricalHard steering with continual correction needed and noticeable vibration through the wheel

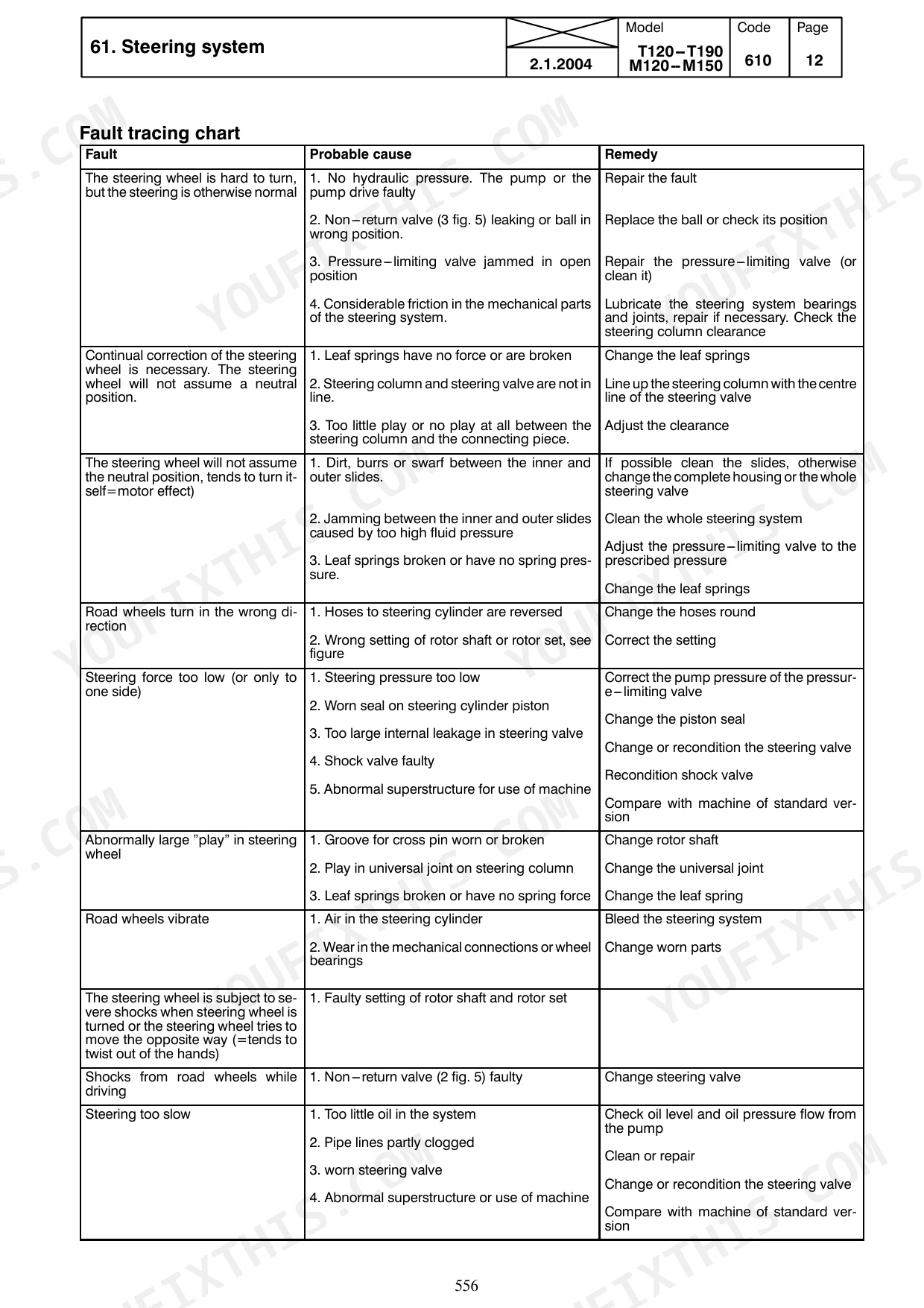

Work through the steering troubleshooting procedures beginning to separate a pump problem from a valve problem. Clean the shock valves first and check for internal bypass before condemning any seals. Inspect the priority valve and steering cylinder bore for scoring, then bleed the circuit completely, since trapped air produces the same vibration symptom as a worn pump.
Manual Section: T Series Steering & Front AxlePower lift locks up and ignores the lift/lower switch, diagnostic light stays lit
Identify the fault level from the power lift fault code list on page 347. For a level 1 lockout, repair the underlying fault, restart the tractor, and reactivate the power lift. For a level 2 fault, repair the fault and reactivate using the lift/lower switch itself, then cycle the switch again to confirm the diagnostic light goes out before returning the tractor to service.
Manual Section: T Series Hyd System p. 347Excessive brake pedal free play before both pedals engage evenly
Latch both brake pedals together and check free travel; it should measure 70-80 mm per the spec on page 521. Adjust the master cylinder pushrod clearance and rear pedal free travel following the foot brake adjustment procedures beginning page 519. Bleed the system afterward to clear any air drawn in during the adjustment before road-testing pedal feel.
Manual Section: T Series Brake System p. 521Frequently Asked Questions
How to reset Valtra M120 engine error code?
To delete fault codes from memory, press the DPS pre-programming button for over 4 seconds and then switch the power off. If fault codes are not deleted, escape the fault memory mode by switching off the current. This procedure is applicable to Autocontrol 5.3 systems found in Valtra M120 tractors. p. 138
How to reset Valtra T190 transmission fault?
To delete fault codes from memory, press the DPS pre-programming button for over 4 seconds and then switch the power off. If fault codes are not deleted, escape the fault memory mode by switching off the current. This procedure is applicable to Autocontrol 6.1 systems found in Valtra T190 tractors. p. 262
Torque specs for Valtra M130 wheel bolts?
The recommended tightening torque for wheel nuts on Valtra M130 tractors is 550 Nm for both front 4WD and rear wheels. This specification is listed in the common technical specifications for T120-T190 and M120-M150 models. p. 35
Torque specs for Valtra T160 cylinder head?
The tightening torque for cylinder head bolts and nuts on Valtra T160 is 80 Nm + 90° +90°. The procedure involves a first tightening to 80 Nm, followed by two additional 90° turns. This applies to T120-T190 models. p. 66
How to reset Valtra M120 engine control unit?
To reset the engine control unit, you can choose the 'Replace all' option during the software download process. This action will erase all existing files on the control unit (TC1, TC2, EC) and then send new files to every unit, which is useful if a control unit is not functioning correctly despite having the right software. p. 387
What do I get after purchasing this Valtra M120 & variants manual?
A 754-page Service Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Are there any print restrictions on this Valtra M120 & variants manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
