Versatile printed a 44 page operator manual for the 800 and 850 four wheel drive tractors, and this PDF is that factory book, complete from cover to service record. Anyone hunting a Versatile 800, 850 operator manual PDF will find the electrical wiring diagram, the hydraulic schematic for the steering and auxiliary circuit, and troubleshooting tables that trace wandering steering or overheating oil back to the pump or control valve. Starting procedures, shifting patterns, ballast recommendations, and the 50, 200, and 400 hour service charts fill the remaining pages. Keep compressed air under 100 PSI when you clean the outer filter element, and pull wheel bolts to 220 ft-lbs after the first hour of work. Guess that torque and you shear studs. Bookmarked and keyword searchable, it rides along to whatever field the tractor is working in.

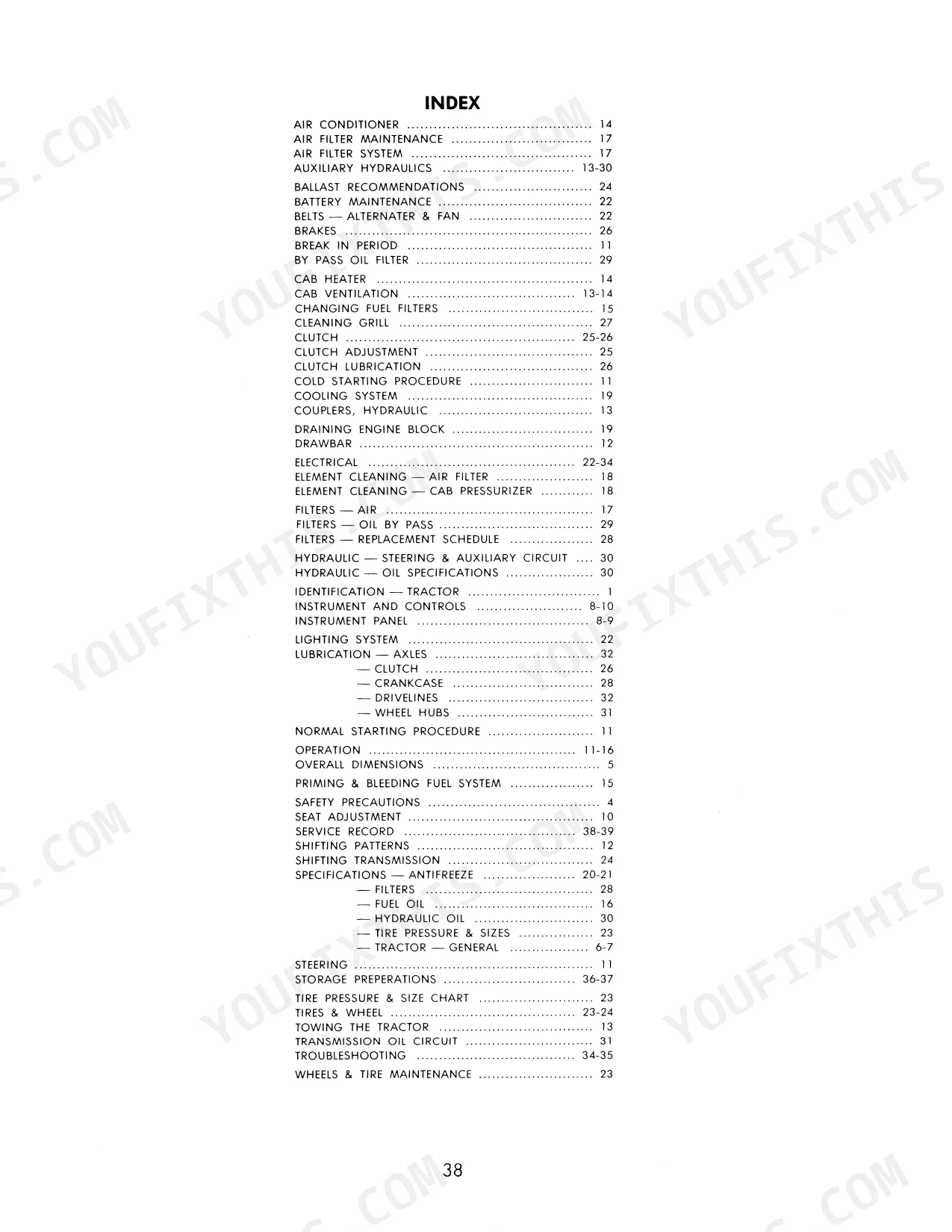

What's Inside This Versatile 800, 850 Operator Manual

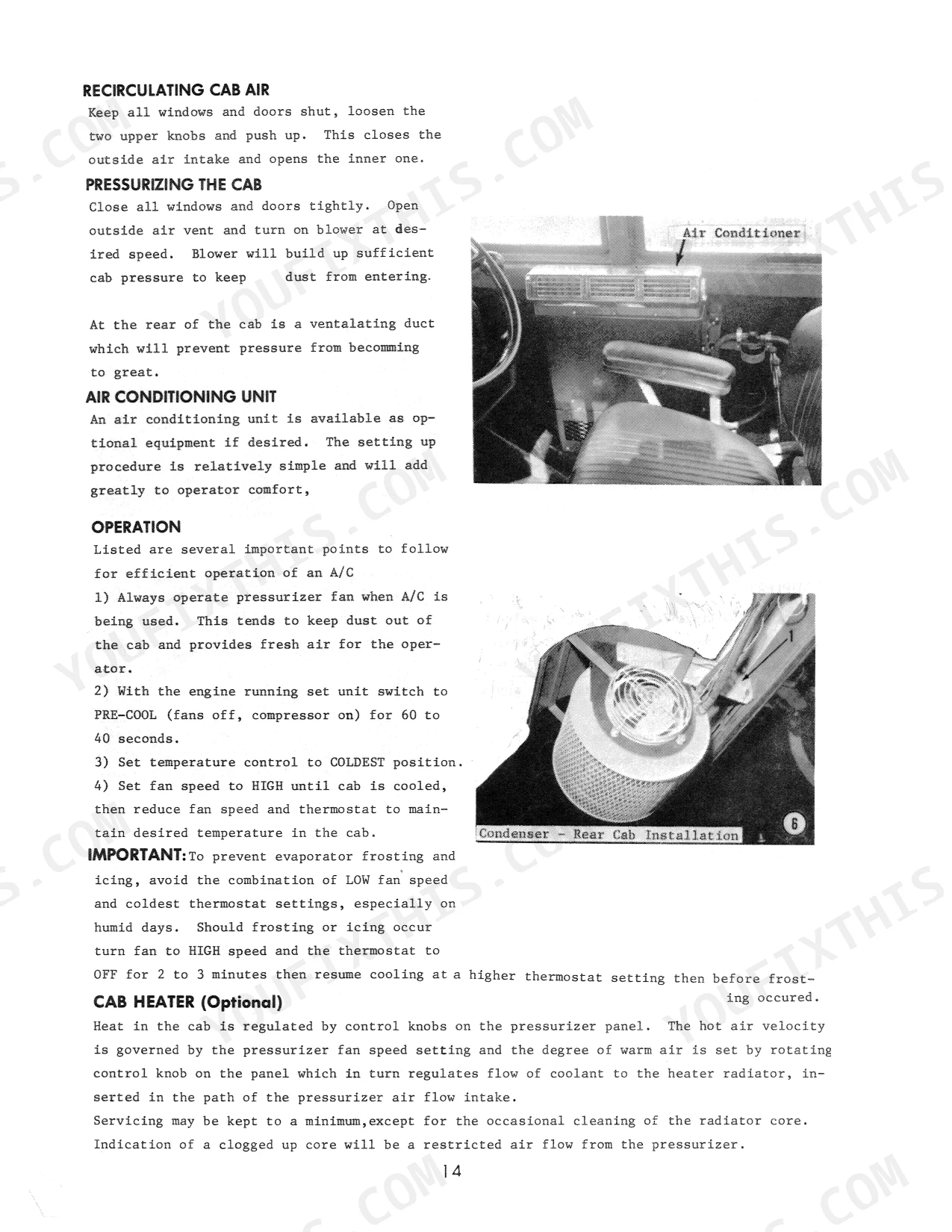

| System | Pages | Key Topics |
|---|---|---|
| Identification Tractor | 3-5 | Tractor Model, Tractor Serial Number, Engine Model, Serial Number |
| Safety Precautions | 6 | |
| Overall Dimensions | 7-12 | Width, Overall Length, Wheelbase, Drawbar Height, Overall Height |
| Operation | 13 | Normal Starting Procedure |
| Shifting Patterns | 14 | Transmission Gears |
| Towing the Tractor | 15 | Gearshift Position, Towing Speed |
| Air Conditioner | 16 | |
| Air Filter Maintenance | 17-20 | Service Indicator, Outer Element, Safety Element, Dust Unloader |
| Cooling System | 21-23 | Coolant Level, Drain Plugs, Chromate Filter, Anti-Freeze |
| Electrical | 24 | |
| Tires & Wheel | 25 | |
| Ballast Recommendations | 26 | Front Ballast, Rear Ballast, Dual Tires |
| Clutch | 27 | Clutch Adjustment, Clutch Lubrication |
| Brakes | 28-30 | Brake Pedal, Disc Brake Assembly, Master Cylinder, Parking Brake, Brake Adjustment |
| By Pass Oil Filter | 31-32 | Filter Cover, O-Rings, Hold-Down Assembly, Orifice Plug, Filter Element |
| Transmission Oil Circuit | 33-36 | Oil Level Plug, Filler Plug, Inline Filter, Pressure Pump, Oil Indicator Light |
| Troubleshooting | 37 | Steering, Implement Hydraulic System, Hydraulic Pumps |
| Storage Preparations | 38-40 | Crankcase Oil, Cooling System, Batteries, Axle Housing, Hydraulic Circuit Reservoir |
| Service Record | 41-44 | Meter Reading, Oil Added, Daily Maintenance, 50 Hour Service, 200 Hour Service, 400 Hour Service |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Steering pump flow rate | 24 GPM | p. 9 |
| Auxiliary pump flow rate | 20 GPM | p. 9 |
| Compressed air pressure for cleaning air filter element | 100 PSI | p. 17 |
| Wheel bolts torque | 220 ft-lbs | p. 23 |
| Inner wheel bolts torque | 220 ft-lbs | p. 23 |
| Cooling System Capacity | 49 quarts | p. 9 |
| Engine Oil Capacity | 41 quarts | p. 9 |
| Transmission Oil Capacity | 23 quarts | p. 9 |
| Implement & Steering Hydraulics Capacity | 95 quarts | p. 9 |
| Tie Rod Torque | 150 ft-lbs | p. 25 |
| 800 | ||
| Engine Rated H.P. | 250 @ 2100 RPM | p. 8 |
| 850 | ||
| Engine Rated H.P. | 280 at 2100 RPM | p. 8 |
Versatile 800, 850 Common Problems This Manual Covers
Versatile 850 hydraulic oil overheats and foams during field work, implement action slow and erratic
Check the hydraulic oil heating chart on page 37 before anything else. Verify reservoir oil level; the implement and steering circuit holds 95 quarts when full. Inspect the oil cooler fins and clean out chaff buildup. If the oil still foams, find the loose suction line clamp letting the pump pull air.
Manual Section: Troubleshooting p. 37Steering feels hard and jerky at idle, front wheels slow to respond
Check the steering troubleshooting table on page 37 first. Verify hydraulic reservoir level and top up before condemning the pump; the steering pump should supply 24 GPM at rated speed. Raise engine RPM off idle and test again. Inspect suction hoses and clamps for air leaks that make the pump noisy and erratic.
Manual Section: Steering System Troubleshooting p. 37Engine loses power and blows black smoke, air filter service indicator showing red
Remove the outer element following the procedure on page 17. Clean it with compressed air kept under 100 PSI, blowing from the inside out, and inspect for pinholes with a light. Empty the dust unloader daily in dry conditions. Leave the safety element alone unless it shows dirt; replace it, never clean it.
Manual Section: Air Filter Maintenance p. 17Transmission oil pressure indicator light comes on while pulling heavy in high range
Stop and check transmission oil level at the level plug before running any further. Fill through the filler plug; the transmission holds 23 quarts. Inspect the inline filter for plugging using the circuit layout on page 33. If the light stays on with correct level and a clean filter, park it and call your dealer.
Manual Section: Transmission Oil Circuit p. 33Wheel bolts keep working loose and duals wobble after a day of fieldwork
Torque all wheel bolts to 220 ft-lbs as shown on page 23, then recheck after the first hour of operation and periodically through the season. On duals, torque inner wheel bolts to 220 ft-lbs and tie rods to 150 ft-lbs. Check tire pressure while you are down there so the beads stay seated for harvest.
Manual Section: Tires & Wheel p. 25Frequently Asked Questions
What are the torque specifications for the wheel hub bolts on a Versatile 800, 850 tractor?
The wheel hub bolts must be tightened to 220 ft-lbs. This should be done after the first several hours of operation and checked daily thereafter in a criss-cross pattern to ensure correct alignment. p. 26
What is the recommended service interval for the chromate filter on a Versatile 800, 850 tractor?
The chromate filter in the cooling system should be changed every 400 hours or yearly to ensure proper protection against scale and electrolytic corrosion. p. 21
What is the correct procedure for adjusting the engine clutch?
Internal clutch adjustments should be made when the free pedal is reduced to 3/4 inch. Remove the lower clutch housing cover plate, remove the adjusting ring lock, and rotate the adjusting ring clockwise with a large screwdriver; movement of three notches equals approximately 1/16 inch of release bearing movement. p. 27
What is the capacity of the cooling system on a Versatile 800, 850 tractor?
The cooling system has an approximate capacity of 49 quarts. p. 9
What is the required deflection for the alternator drive belt?
The alternator drive belt should be adjusted to have a deflection of 3/16 inch. p. 24
Is this Versatile 800 manual a download or a disc?
You get a 44-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Is printing allowed for this Versatile 800 Operator Manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
