All 315 pages of this Vm Motori R 753 IE4 Service Manual (OEM #47730965) zero in on one engine: the R 753 IE4 four-cylinder diesel and its complete mechanical and electrical systems. Inside, you get full coverage of the crankshaft, connecting rods, cylinder heads, valve train, fuel injection system, turbocharger, SCR and EGR exhaust treatment, plus a dedicated electrical systems section covering engine controls, cold start aid, and cooling. Wiring diagrams are included for every major electrical circuit, so you're tracing faults with factory schematics, not guesswork. Connecting rod cap bolts torque in two stages: Stage 1 at 10 N·m, then confirm intake valve stem diameter sits between 7.94 and 7.96 mm before final assembly. Your engine is apart and the spec sheet is missing. Stop hunting forums. Download now, search any spec by keyword, and jump straight to the section you need.
What's Inside This Vm Motori R 753 IE4, VM Motori R 753 IE4 Manual
| System | Pages | Key Topics |
|---|---|---|

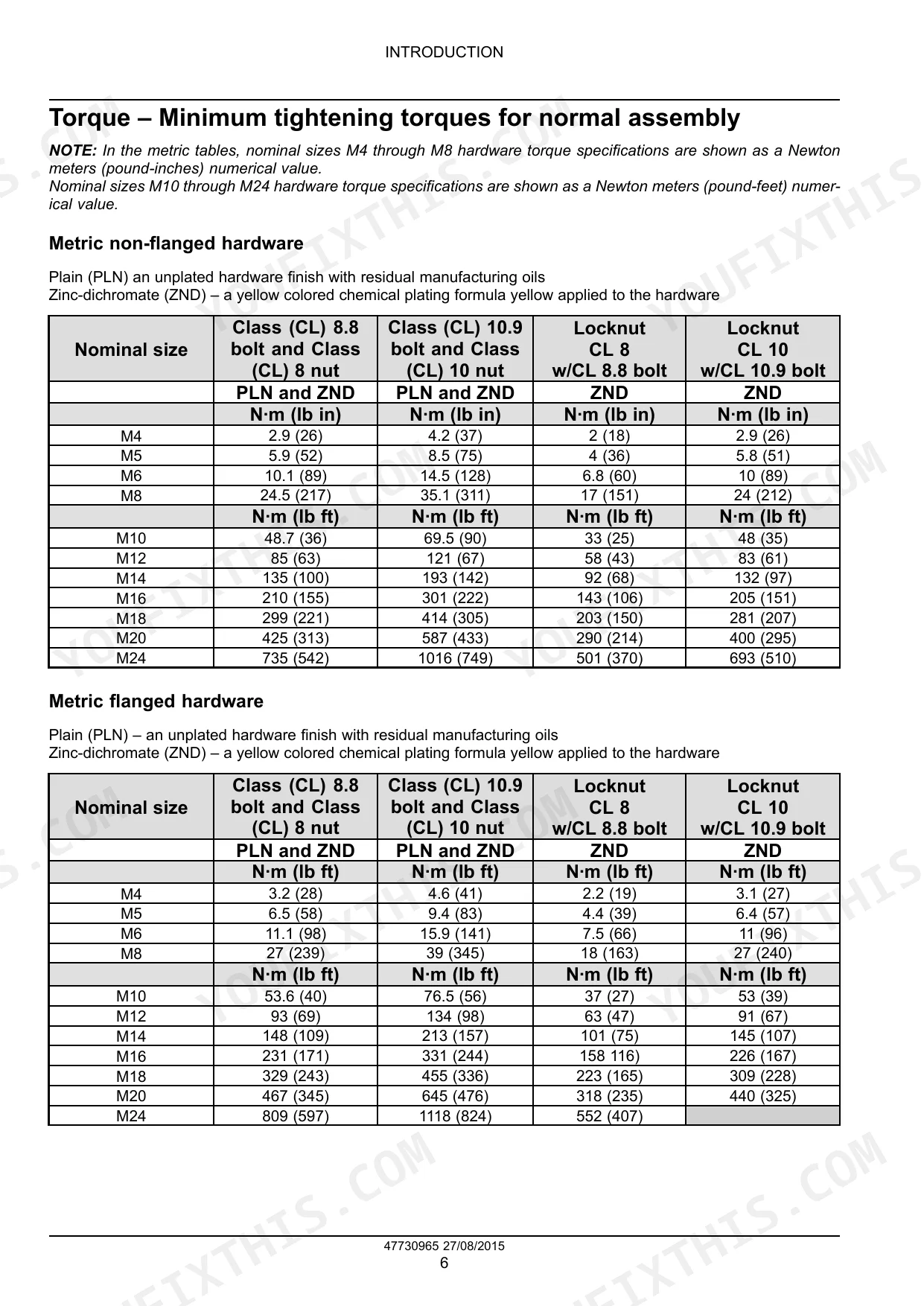

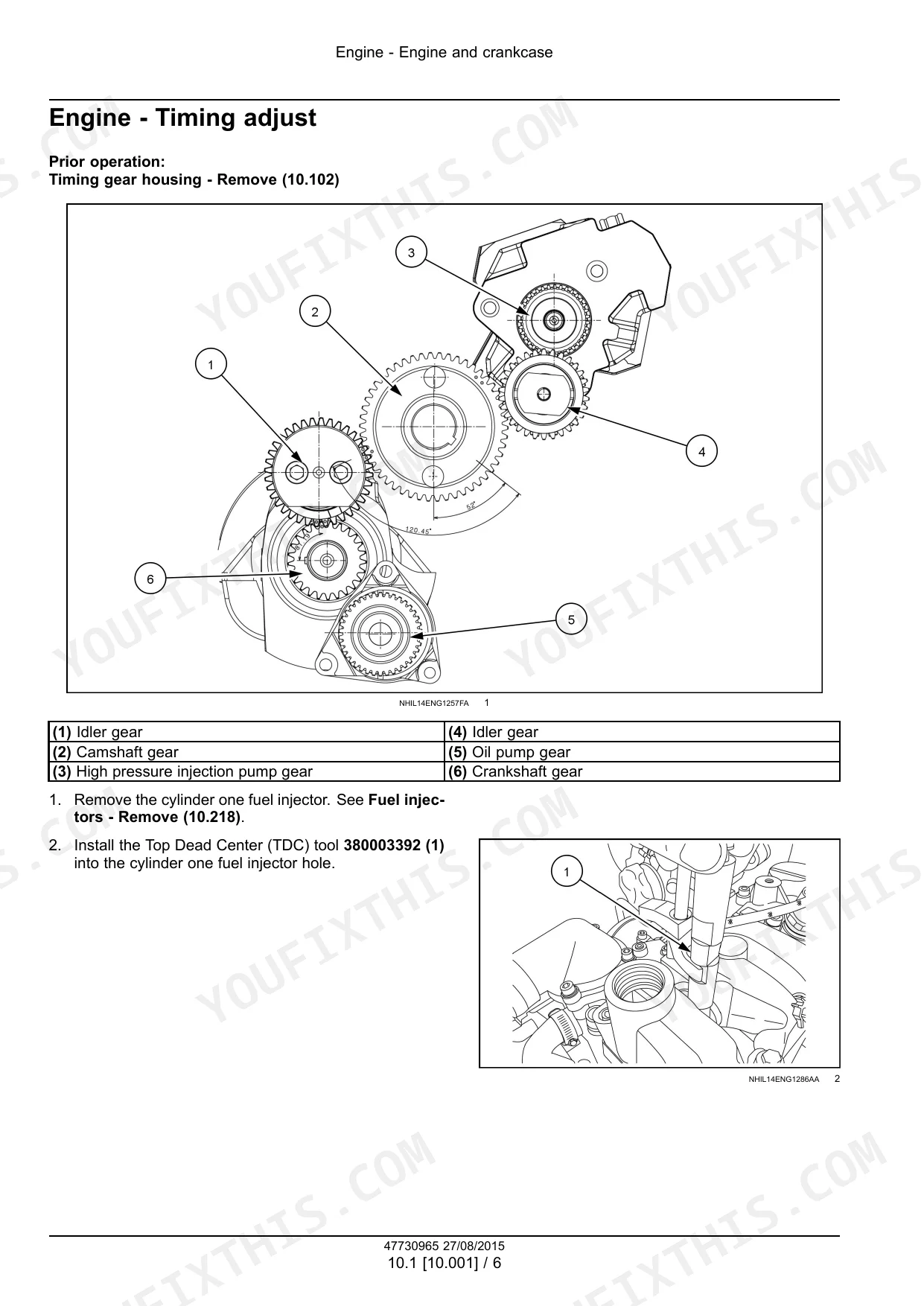

| Introduction | 5-24 | Foreword - Important Notice Regarding Equipment Servicing, Safety Rules, Safety Rules - Ecology and the Environment, Torque – Minimum Tightening Torques for Normal Assembly |
| Engine | 25-266 | Engine and Crankcase, Cylinder Heads, Pan and Covers, Crankshaft and Flywheel, Connecting Rods and Pistons, Valve Drive and Gears, Fuel Filters, Fuel Injection System |
| Electrical Systems | 267-313 | Fuel Injection System, Engine Cooling System, Engine Intake and Exhaust System, Engine Control System, Cold Start Aid, Exhaust Gas Recirculation Electrical System |

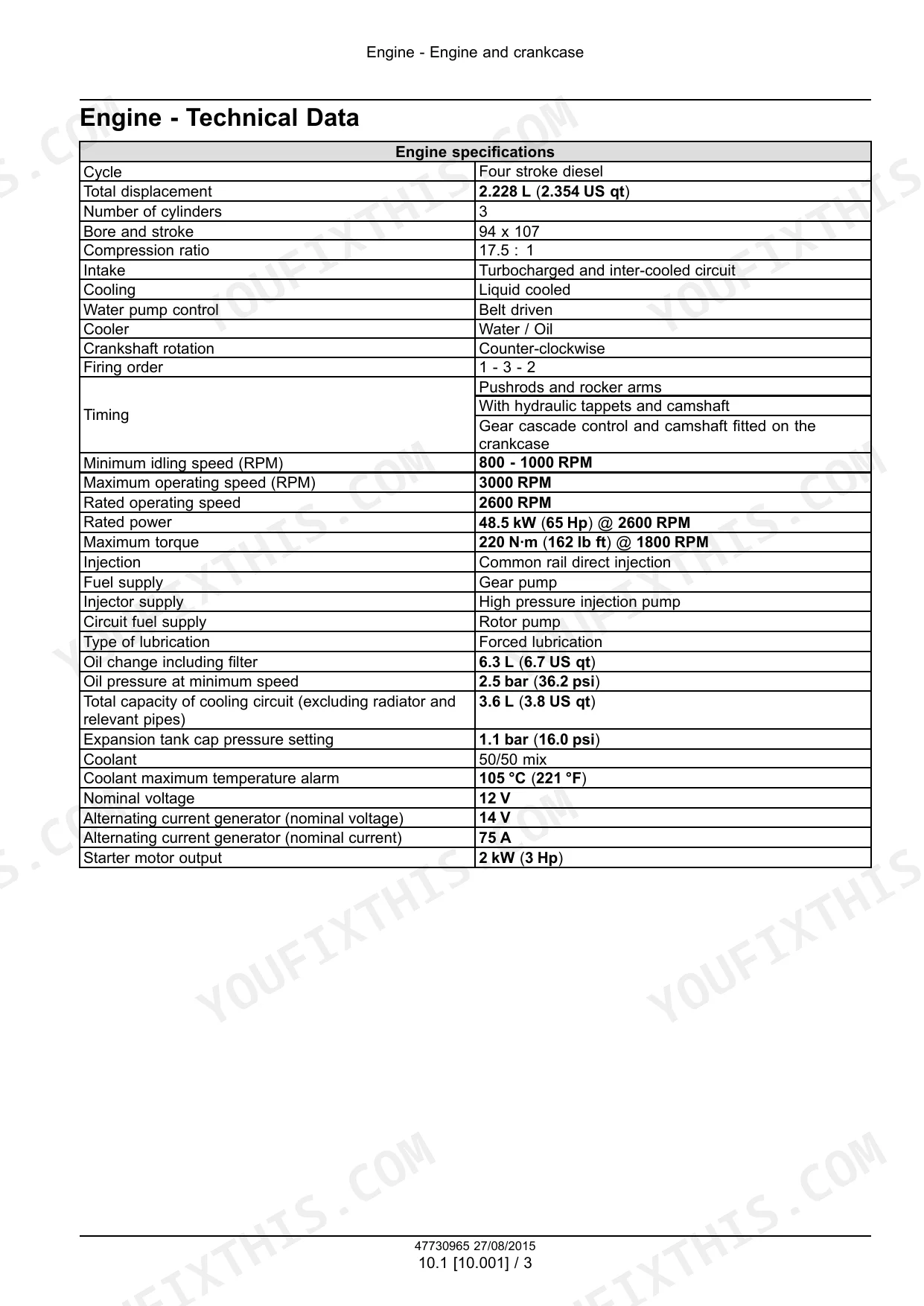

Quick Reference Specifications

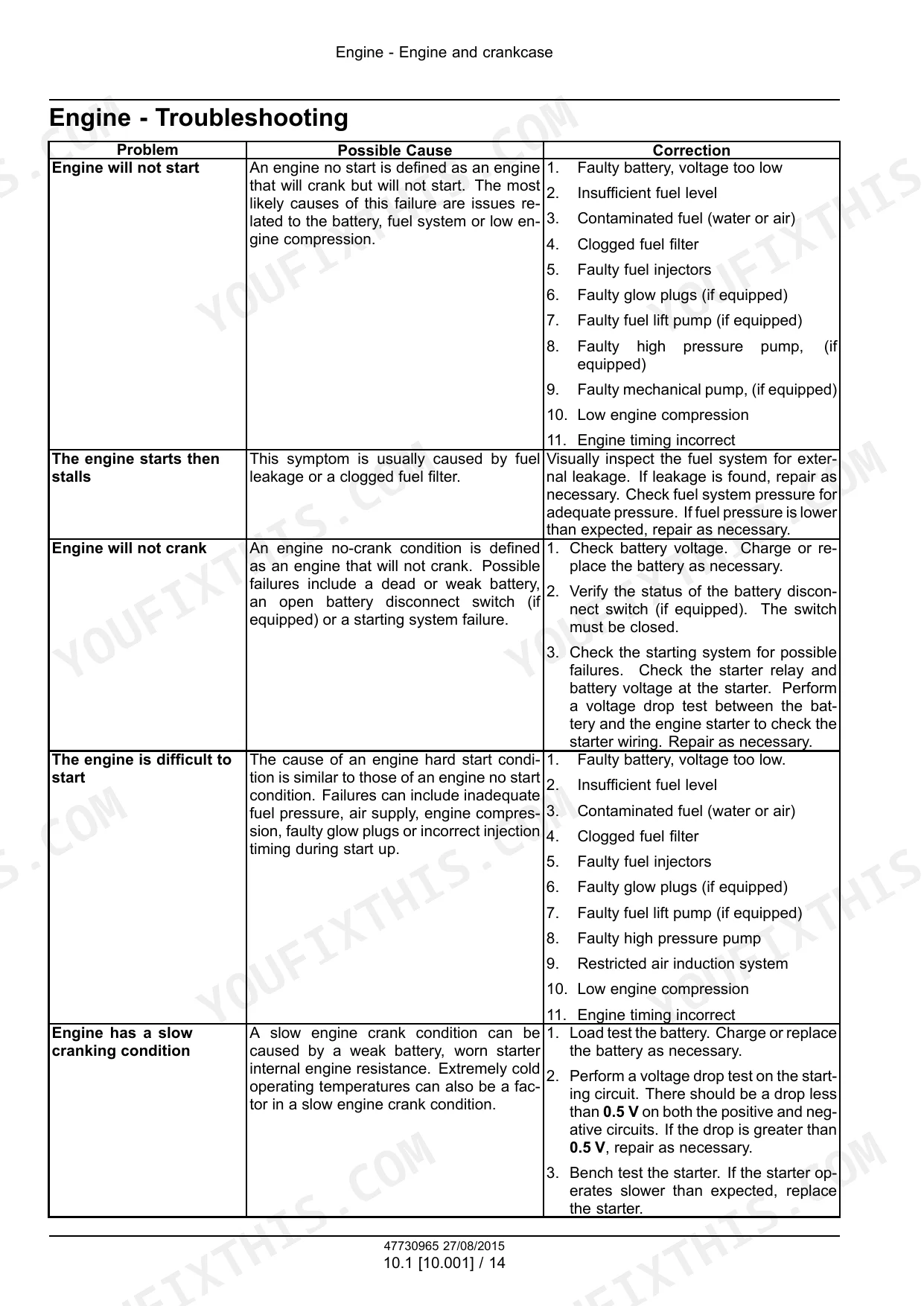

| Specification | Value | Page |
|---|---|---|
| Intake valve stem diameter | 7.94 - 7.96 mm (0.3126 - 0.3134 in) | p. 45 |
| Exhaust valve stem diameter | 7.921 - 7.939 mm (0.3119 - 0.3126 in) | p. 45 |
| Connecting rod bearing clearance | 0.012 - 0.066 mm (0.0005 - 0.0026 in) | p. 80 |
| Connecting rod cap bolts torque (Stage 1) | 10 N·m (7.4 lb ft) | p. 116 |
| Cylinder head gasket thickness (0.60 - 0.72 mm piston protrusion) | 1.42 mm (0.056 in) | p. 44 |
| Cylinder head gasket thickness (0.73 - 0.82 mm piston protrusion) | 1.52 mm (0.060 in) | p. 44 |
| Crankshaft gear installation heating temperature | 70 °C (158 °F) | p. 103 |
| Engine cycle | Four stroke diesel | p. 19 |
| Total displacement | 2.228 L (2.354 US qt) | p. 19 |
| Troubleshooting for low oil pressure due to excessive main or connecting rod bearing clearances | Replace bearings or shaft if necessary | p. 40 |
| Number of cylinders | 3 | p. 19 |
| Rated power | 48.5 kW (65 Hp) @ 2600 RPM | p. 19 |
Vm Motori R 753 IE4, VM Motori R 753 IE4 Common Problems This Manual Covers
VM Motori R 753 IE4 big end bearing knock with heavy rumble under load p. 80
Check oil level and verify main gallery pressure reaches at least 80.0 kPa (11.6 psi) at operating temperature (page 202). Pull the pan and measure connecting rod bearing clearance against the 0.012 - 0.066 mm spec on page 80. Install new bearings and torque cap bolts in three stages: 10, 30, then 40 N·m (page 116).
Manual Section: Connecting Rods and PistonsLow oil pressure warning light illuminated with ticking noise at idle and under load p. 202

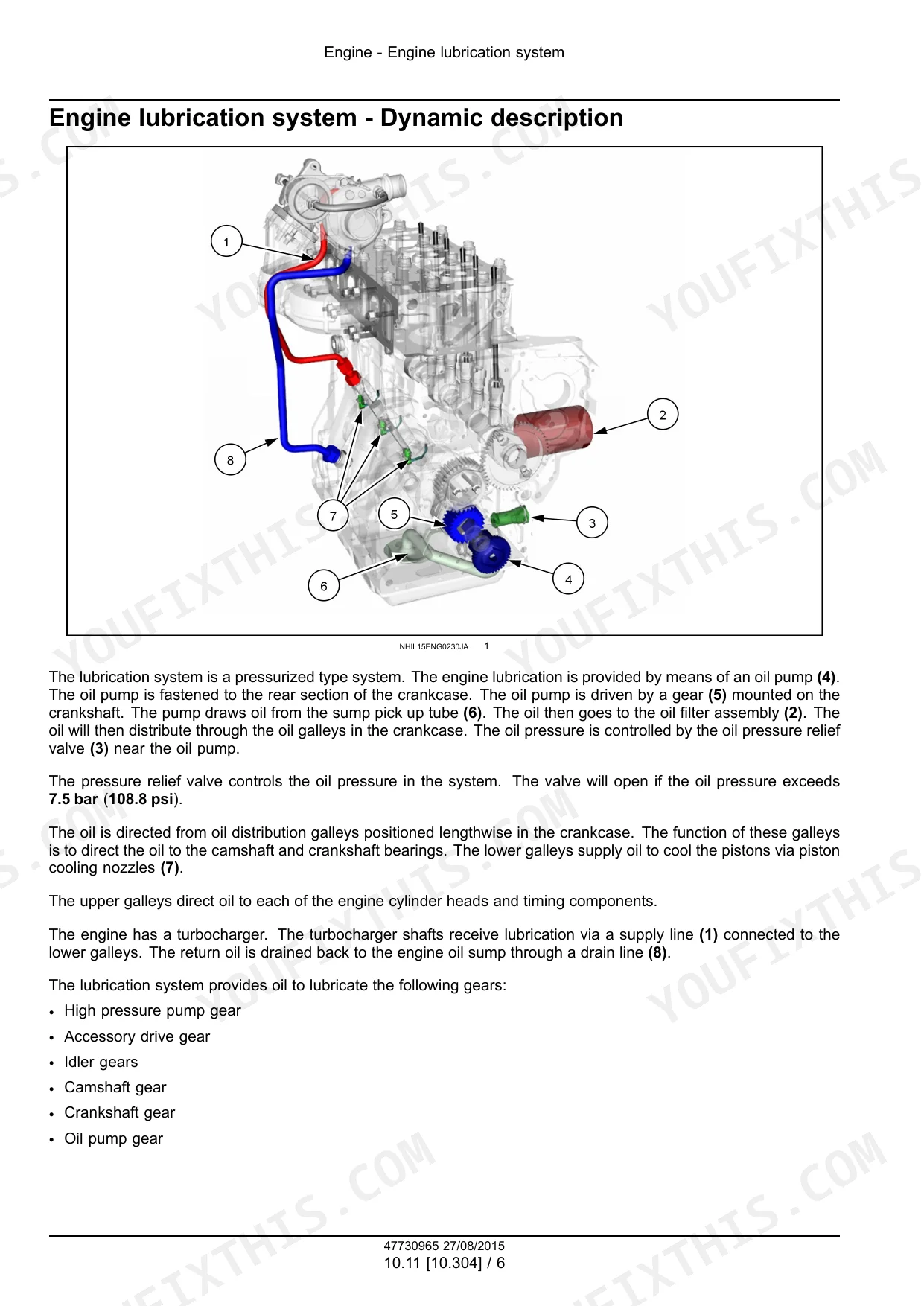

Verify oil level immediately; capacity is 6.3 L (6.7 US qt) with filter. Connect a mechanical gauge at the main gallery and confirm pressure meets the 80.0 kPa (11.6 psi) minimum at 130 °C (page 202). If pressure is low with correct oil level, follow the troubleshooting steps to isolate worn bearings, a stuck relief valve, or blocked passages.
Manual Section: Engine lubrication system TroubleshootingIntake or exhaust valves burning early with rough idle and poor cold start p. 45

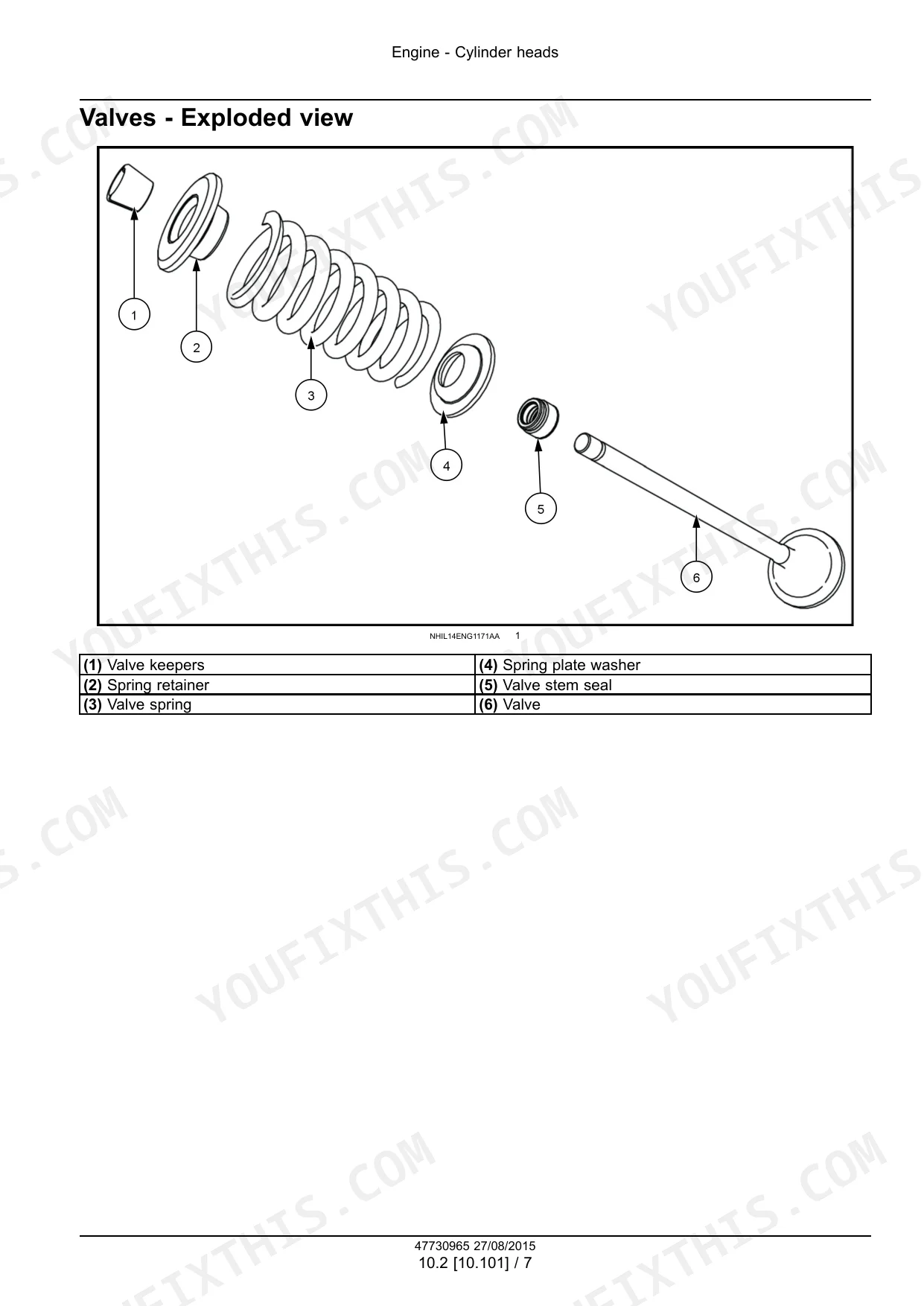

Inspect valve stems against spec: intake diameter is 7.94 - 7.96 mm and exhaust is 7.921 - 7.939 mm (page 45). Check valve guide clearance: intake limit is 0.030 - 0.065 mm, exhaust 0.040 - 0.073 mm (page 46). After refacing, measure margin thickness; discard any valve thinner than 1.30 mm (page 59).
Manual Section: Cylinder HeadsCommon rail fuel supply fault code, engine stalls or won't rev cleanly p. 160
Check fuel pump return pressure; spec is 0.6 bar (8.7 psi) per page 160. Inspect fuel lines for dark or hazy fuel indicating contamination. Drain and replace the filter, then cycle the key several times to purge air from the rail. If return pressure stays low, test the high-pressure pump and inspect rail connections for leakage.
Manual Section: Fuel injection system TroubleshootingCoolant temperature gauge running high with white exhaust smoke and oil turning milky p. 44
Verify coolant circuit is full; total capacity is 3.6 L (3.8 US qt) on page 19. Pull the oil dipstick and look for cream-colored emulsion indicating coolant intrusion. If confirmed, measure piston protrusion on all three cylinders to select the correct replacement head gasket: protrusion of 0.60 - 0.72 mm calls for a 1.42 mm gasket (page 44).
Manual Section: Engine cooling system TroubleshootingFrequently Asked Questions
How to reset the error code on VM Motori R 753 IE4?
To reset ECU data for a replaced Rail Pressure Relief Valve (PRV) or Rail Pressure Sensor, connect the Electronic Service Tool (EST) and turn the key switch ON without starting the engine. Navigate to the 'Configuration' icon, select 'Replacement of the Rail Pressure Relief Valve (PRV) – Reset ECU Data' or 'Replacement of the Rail Pressure Sensor - Reset ECU Data', click 'CONFIGURE SELECTED ITEM', and then 'RESET'. Active dosing faults require additional key cycles for the Engine Control Unit (ECU) to determine the fault has been repaired, with afterrun completed between each key cycle.
What are the torque specs for the VM Motori R 753 IE4 cylinder head?
The cylinder head bolts are torqued in stages. The center M14 bolts are torqued to 30 N·m (22 lb ft), then an additional 65°, and then another 65°. The outside M12 bolts are torqued to 30 N·m (22 lb ft), then an additional 85°, then 30 N·m (22 lb ft), and finally another 85°.
What are the torque specs for the manifold bolts on VM Motori R 753 IE4?
For the intake manifold, the nuts should be torqued to 27.5 N·m (20.3 lb ft) following a specific sequence. For the exhaust manifold, the nuts are torqued in two stages: first to 15.0 N·m (11.1 lb ft), and then to 36.0 N·m (26.6 lb ft) following a specific sequence.
What are the replacement specifications for Valves?
When refacing valves, the valve margin thickness must not be less than 1.30 mm (0.051 in). If the valve recess is excessively lowered or the seat width is wider than specified measures during reconditioning, the valve seat insert should be replaced. Valves with excessive wear on stems or those warped excessively should also be replaced.
How quickly can I access this manual?
This is a 315-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Are there any print restrictions on this Vm Motori R 753 IE4, Motori R 753 IE4?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Are electrical wiring diagrams included in this Vm Motori R 753 IE4, Motori R?
Included. The Vm Motori R 753 IE4, Motori R 753 IE4 Service Manual covers complete wiring harness diagrams, electrical circuits, and connector pinouts.
