Running a 1703 or 2003 well means knowing exactly what the factory allows, and this Wacker Neuson 1703, 2003 operator manual PDF puts all 202 pages of those answers in your hands, published under OEM document 1000188437 for both track excavators. Lift capacity tables for each model, including the VDS and telescopic undercarriage versions, tell you what the boom will carry at every reach before you rig a load. A dedicated maintenance chapter walks through track tension, hydraulic oil checks, lubrication points, and the full service plan, backed by troubleshooting tables for engine and hydraulic faults. Set track play at 15 to 20 mm at the second support roller, and torque the cab attachment screws to 110 Nm when refitting. Guess at either and you pay in steel. Bookmarked and text-searchable, the file is bought once and stays yours for the life of the machine.

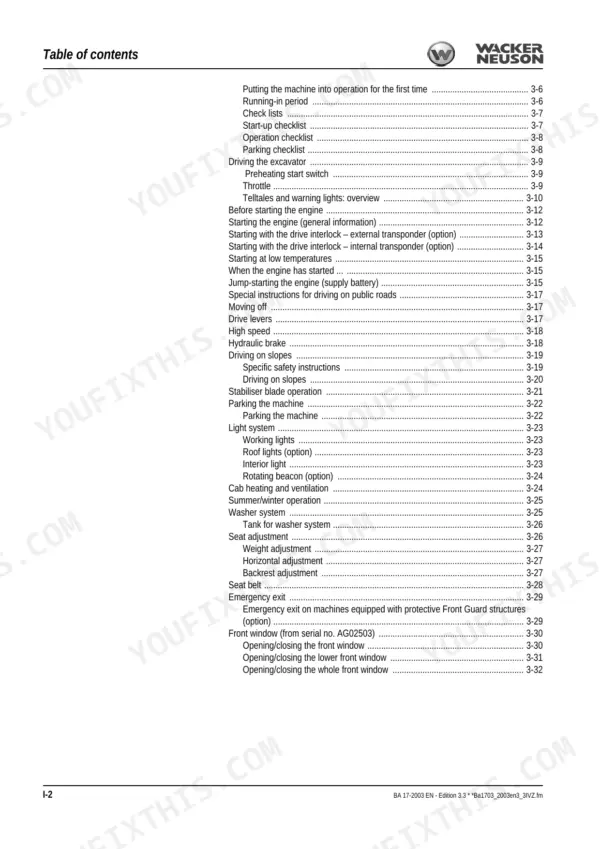

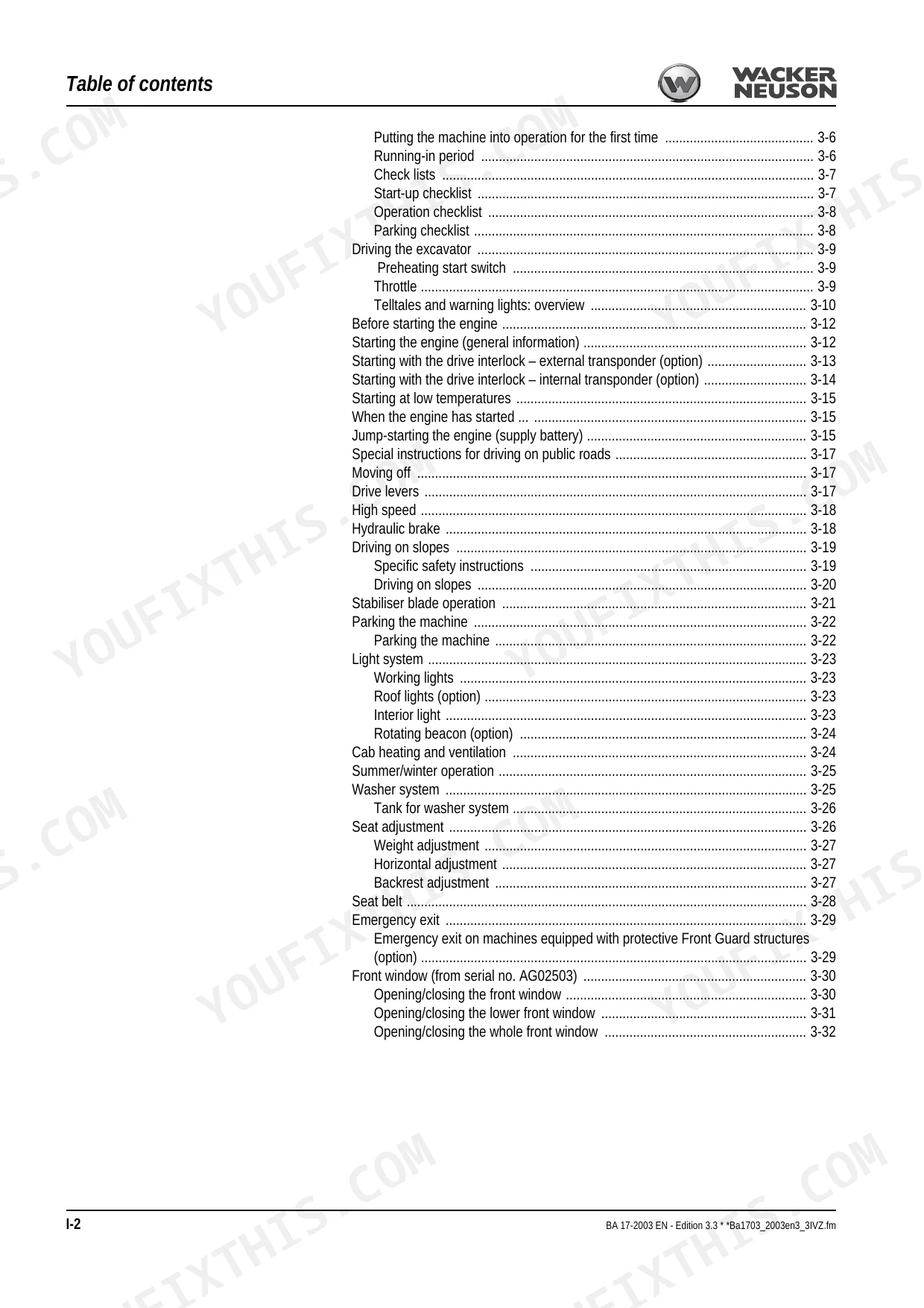

What's Inside This Wacker Neuson 1703, 2003 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 11-34 | Overall Machine View, Brief Description, Fields of Application |
| Safety Instructions | 35-50 | Identification of Warnings and Dangers, Warranty, Disposal |

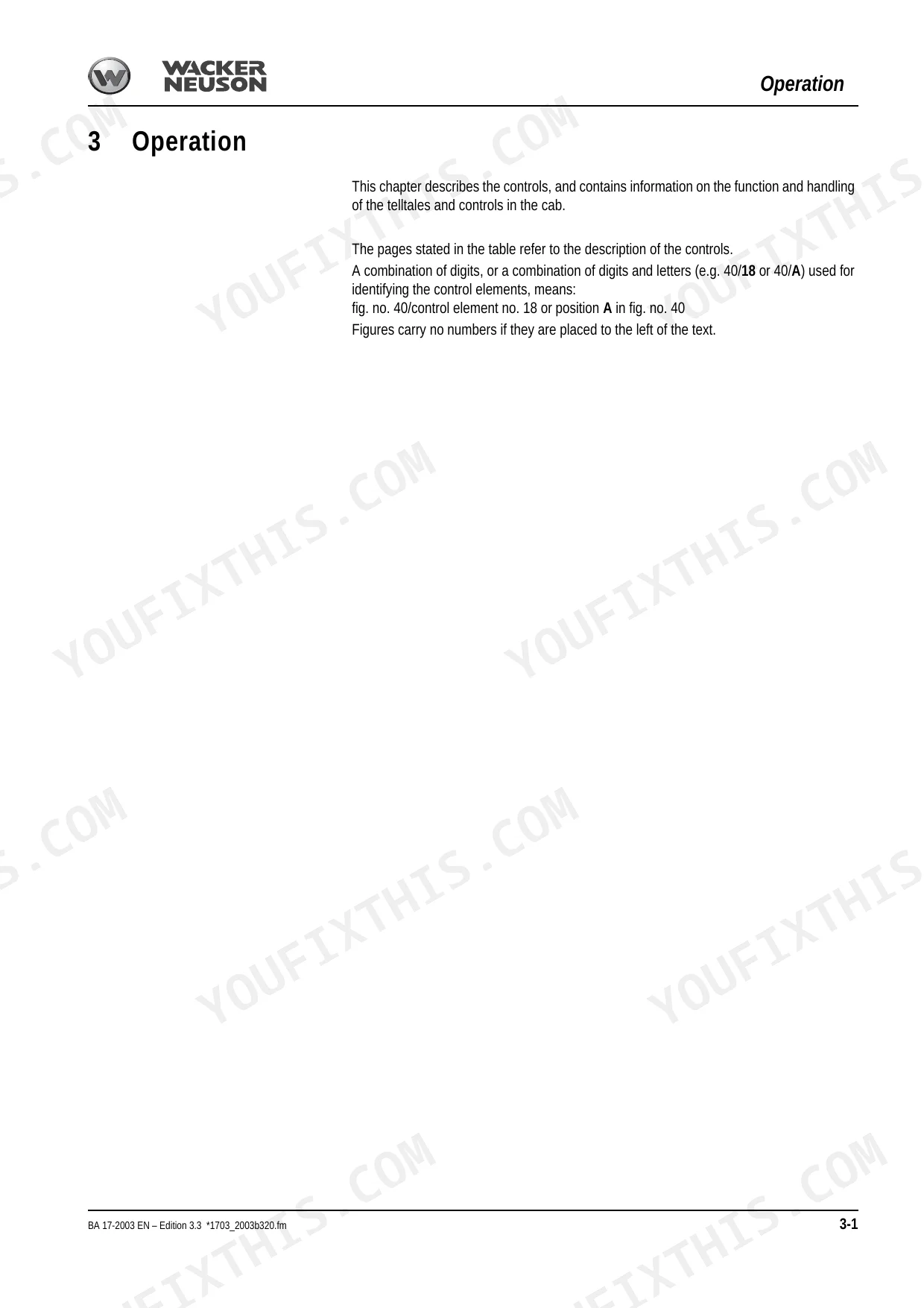

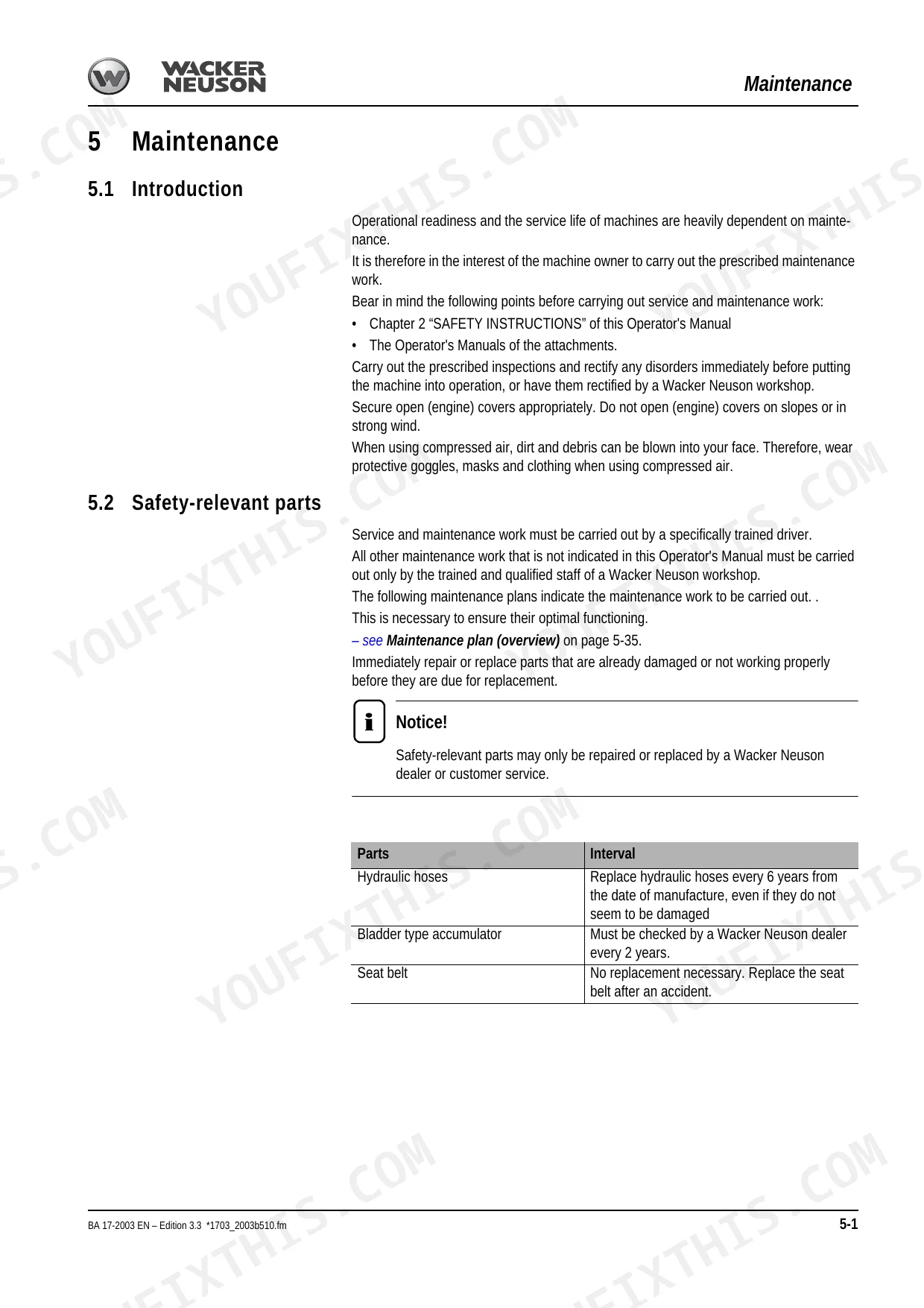

| Cab and Instrument Panel Overview | 51-55 | Cab Overview, Instrument Panel Overview, Control Lever Functions, Switch Panels |
| Putting Into Operation and Checklists | 56-58 | Start-Up Checklist, Operation Checklist, Parking Checklist, Running-In Period |
| Engine Starting and Driving | 59-70 | Preheating Start Switch, Starting the Engine, Driving on Slopes, High Speed, Hydraulic Brake |
| Machine Operation and Adjustments | 71-87 | Stabiliser Blade Operation, Parking the Machine, Light System, Seat Adjustment, Front Window Operation, Door Operation |
| Transport and Crane Handling | 88-98 | Exit Through the Door, Engine Cover, Towing, Crane Handling, Loading and Transporting, Tying Down the Machine |
| Working with the Machine and Attachments | 99-123 | Removing/Installing Cab, Shatter Protection, Control Levers, Hammer Operation, Quickhitch, Powertilt |
| Excavator Work Procedures | 124-134 | Auxiliary Hydraulics, Grab Operation, Safe Load Indicator, Excavating Trenches, Loading Vehicles, Grading |
| Troubleshooting | 135-138 | Engine Trouble, Hydraulics, Malfunctions of the Powertilt Unit |
| Maintenance | 139-176 | Safety-Relevant Parts, Fuel System, Refuelling (Stationary Fuel Pumps, Diesel Fuel Specification), Bleeding the Fuel System (Water Separator) |
| Specifications | 177-202 | Model 1703 (Engine, Hydraulic System, Stabiliser Blade, Work Hydraulics), Model 2003 (Engine |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Tighten screws A (cab attachment) | 110 Nm (81.1 lb/ft) | p. 91 |
| Tighten screws B (cab attachment) | 110 Nm (81.1 lb/ft) | p. 92 |
| Standard play between the track's shoulder and the contact area of the second support roller of the drive pinion | 15 – 20 mm (0.6” – 0.8”) | p. 157 |
| Engine Output | 13.2 kW | p. 177 |
| Hydraulic Tank Capacity | 21 l | p. 177 |
| Hydraulic Oil Quantity | 30 l | p. 177 |
| Engine Oil Capacity | 3.4 l | p. 170 |
| Fuel Tank Capacity | 24 l | p. 170 |
| Coolant Capacity | 4.5 l | p. 170 |
| 2003 | ||
| Max. torque (intermittent) | 65.6 Nm at 1600 rpm | p. 178 |
| 1703 | ||
| Swivel unit operating pressure | 125 bar | p. 178 |
| Operating pressure for work and drive hydraulics | 200 bar | p. 178 |
Wacker Neuson 1703, 2003 Common Problems This Manual Covers
Wacker Neuson 1703 engine won't start or cranks slowly after preheating in cold weather
Check the engine trouble chart on page 135 before anything else. Hold the preheating start switch in the preheat position for cold starts, verify the 24 l fuel tank is not run dry, and drain water from the fuel water separator. Bleed the fuel system if the tank ran empty.
Manual Section: Engine trouble p. 135Boom and arm cylinder movements jerky or stiff during the first minutes of operation
Verify the hydraulic oil level before starting work; the system holds 30 l with a 21 l tank, both listed on page 177. Warm the hydraulics at low idle in cold weather, and grease the boom, arm, and bucket pins at the intervals in the maintenance schedule on page 139.
Manual Section: HydraulicsEngine loses power or bogs down when digging or lifting under full hydraulic load
Check the engine output items on page 135 first. Clean or replace the air filter element and inspect the fuel filter for restriction. These engines make 13.2 kW, so run full throttle when digging, take smaller bites, and let the hydraulics, not the engine, do the work.
Manual Section: Engine trouble p. 135Tracks sag or slap against the frame after hours in muddy ground
Measure the play between the track's shoulder and the second support roller's contact area; standard play is 15 to 20 mm (0.6 to 0.8 in), listed on page 157. Clean packed mud off the rollers and idler before measuring, then adjust track tension and recheck after a short drive.
Manual Section: Maintenance p. 157Powertilt bucket drifts and will not hold its tilt position under load
Inspect the Powertilt grease points first; too much or too little grease causes drift and inexact lateral movement. Cycle the tilt slowly to full stroke both ways and watch for travel in one direction only. The unit is rated to hold 2470 Nm, page 180, so steady drift under load means a fault, not overloading.
Manual Section: Malfunctions of the Powertilt unit p. 180Frequently Asked Questions
What is the tightening torque for the cab attachment screws on the 1703 and 2003 models?
The cab attachment screws (A) must be tightened to 110 Nm (81.1 lb/ft) using a torque wrench before raising the machine. p. 91
What is the required deflection for a used V-belt on the engine?
A used V-belt (after about 5 minutes of running time) should have a deflection of 7 to 9 mm (0.27 to 0.35 inches) when pressed with approximately 100 N (22.5 lbs.) of force. p. 150
What is the hydraulic oil tank capacity for the 1703 and 2003 models?
The hydraulic oil tank capacity for both the 1703 and 2003 models is 21 liters. p. 177
How often should the hydraulic oil filter insert be replaced?
The hydraulic oil filter insert should be replaced for the first time after 50 service hours, and then every 500 service hours thereafter. p. 171
What is the correct procedure for bleeding the fuel system?
Fill the fuel tank, turn the ignition key to the first position, and wait about 5 minutes while the fuel system bleeds itself automatically before starting the engine. p. 142
Will this Wacker Neuson 1703 Operator Manual download right away?
You get a 202-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print a copy of this Wacker Neuson 1703 Operator Manual for the shop?
Yes. The PDF is DRM-free, so printing works from any reader and any printer.
