Document 5200013253 is Wacker Neuson's own factory book, a 216-page Wacker Neuson LTN 6 repair manual PDF covering six light tower variants across the LTN series. Troubleshooting fills the heart of it: separate diagnostic sequences for no-crank, crank-no-start, and starts-then-dies conditions, each walking you from the key switch to a specific failed component. Wiring coverage runs just as deep, with lighting schematics in 120V and 120/240V configurations, engine and control panel wiring, power winch and trailer circuits, and generator capacitor excitation diagrams for each model group. Before you condemn a fuel solenoid, meter the coil for 15 to 25 ohms; if the engine keeps shutting down hot, the temperature switch should trip at 107°C (225°F). Nothing stalls a night shift like one missing capacitor value. Pay for this PDF once, and the bookmarked, text-indexed file belongs to your shop for the life of the machine.
What's Inside This Wacker Neuson Ltn Series Repair Manual
| System | Pages | Key Topics |
|---|---|---|

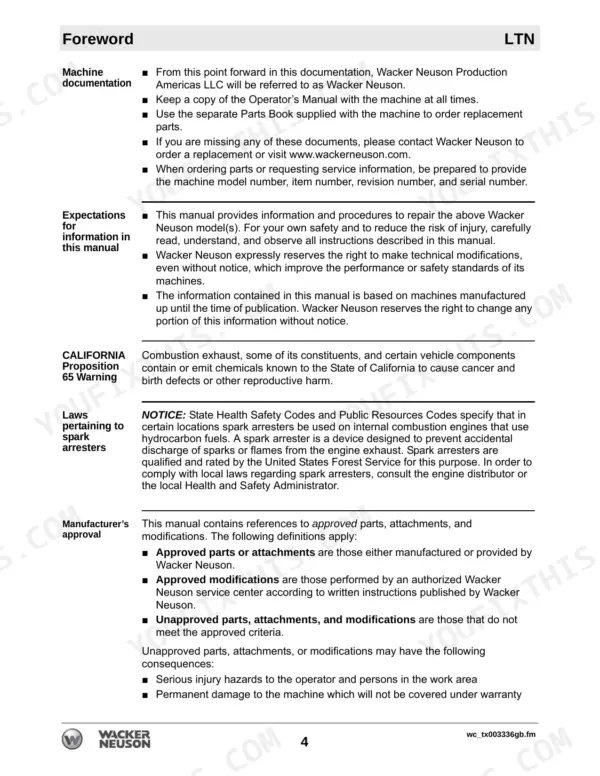

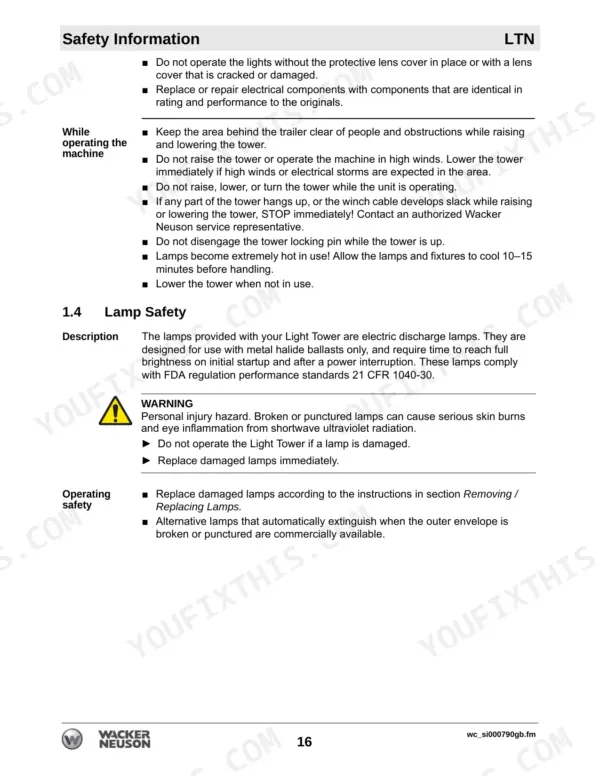

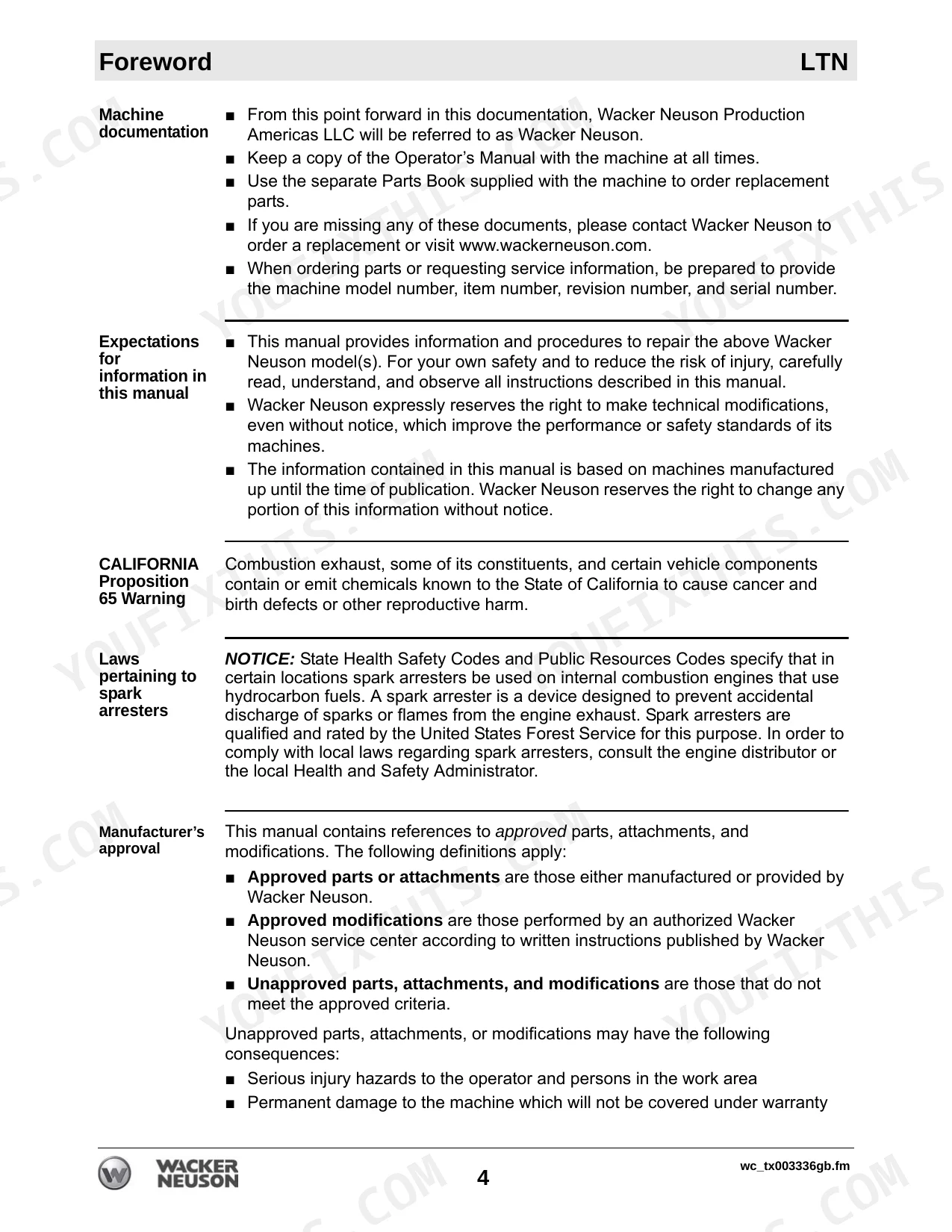

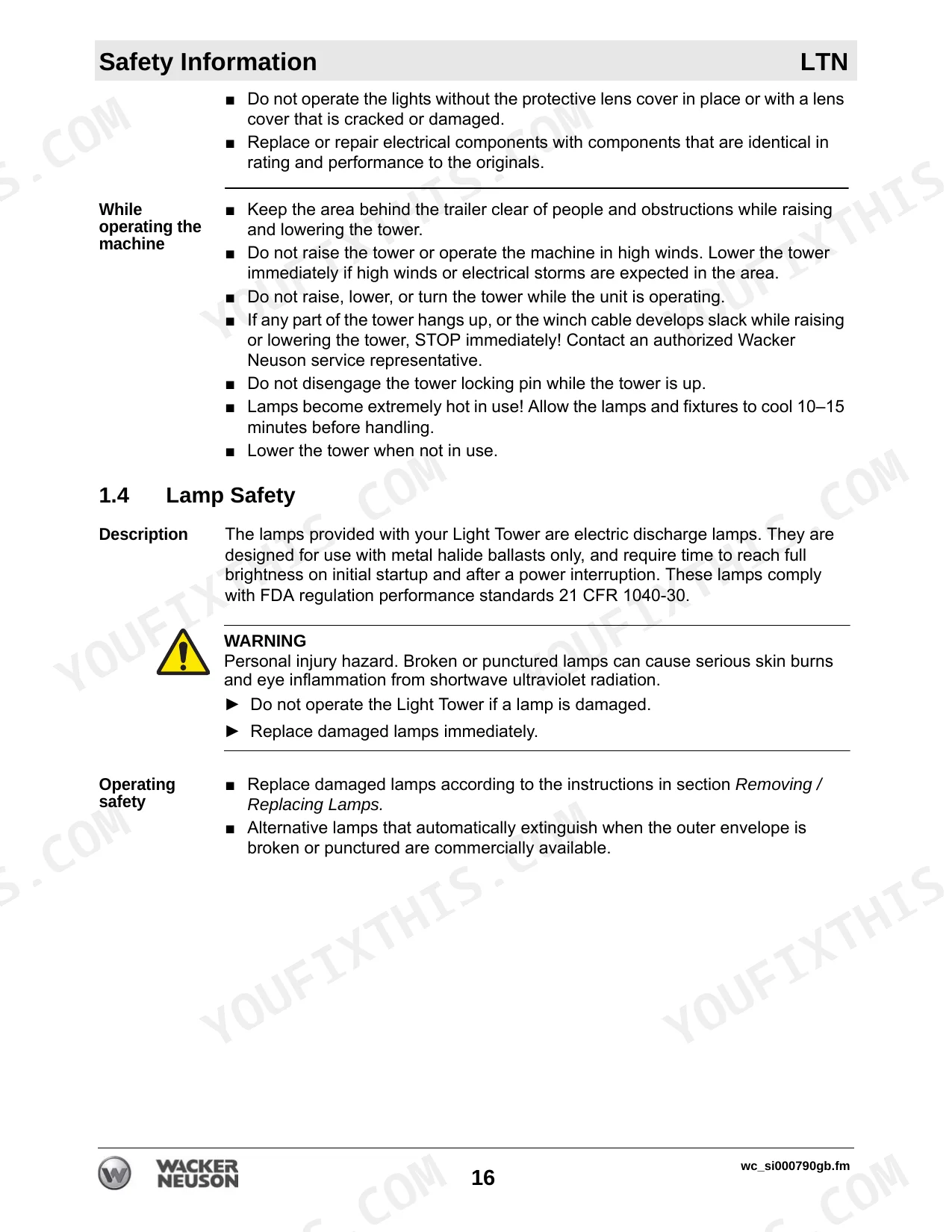

| Foreword and Safety Information | 3-20 | Signal Words Used in This Manual, Machine Description and Intended Use, Safety Guidelines for Operating the Machine |

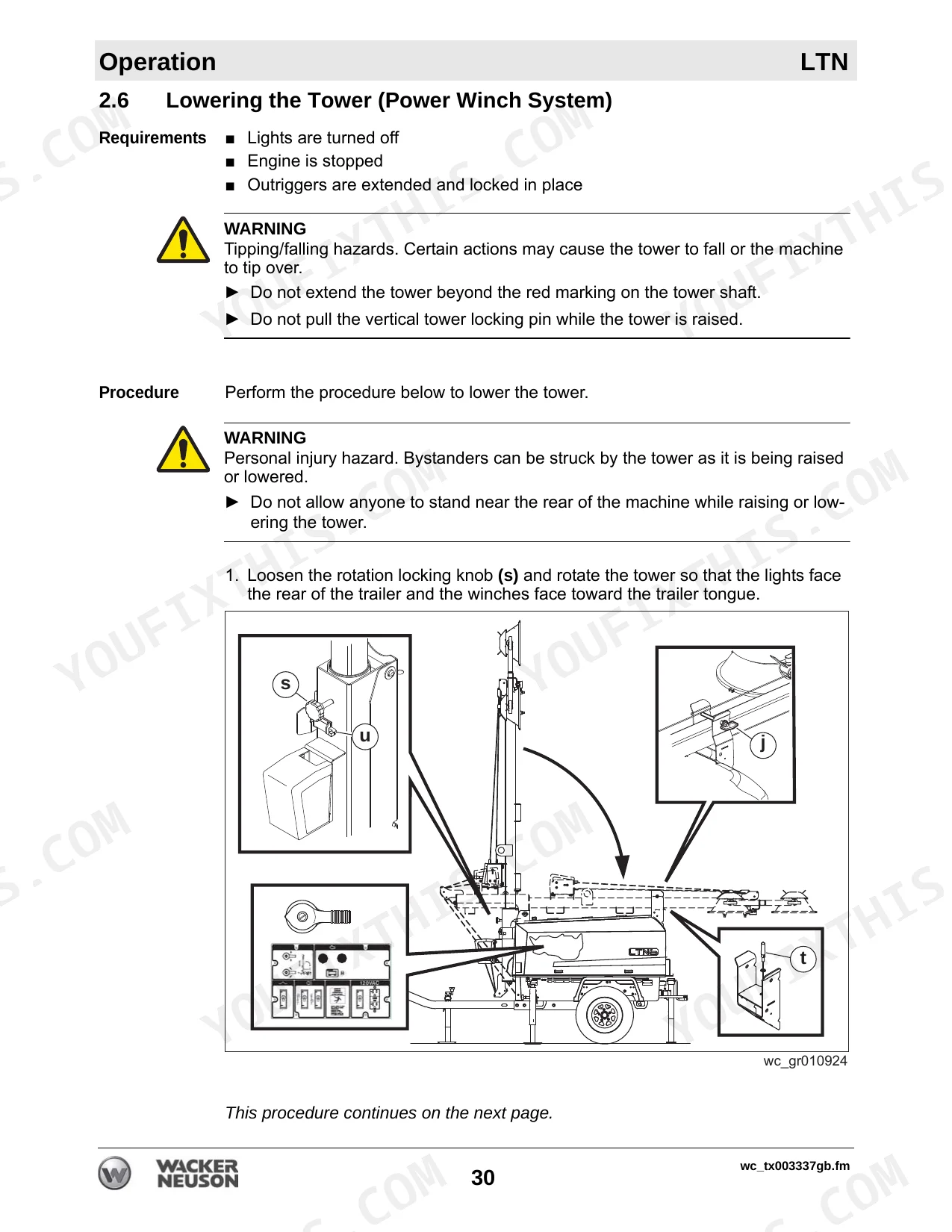

| Operation | 21-31 | Starting, Raising the Tower, Lowering the Tower |

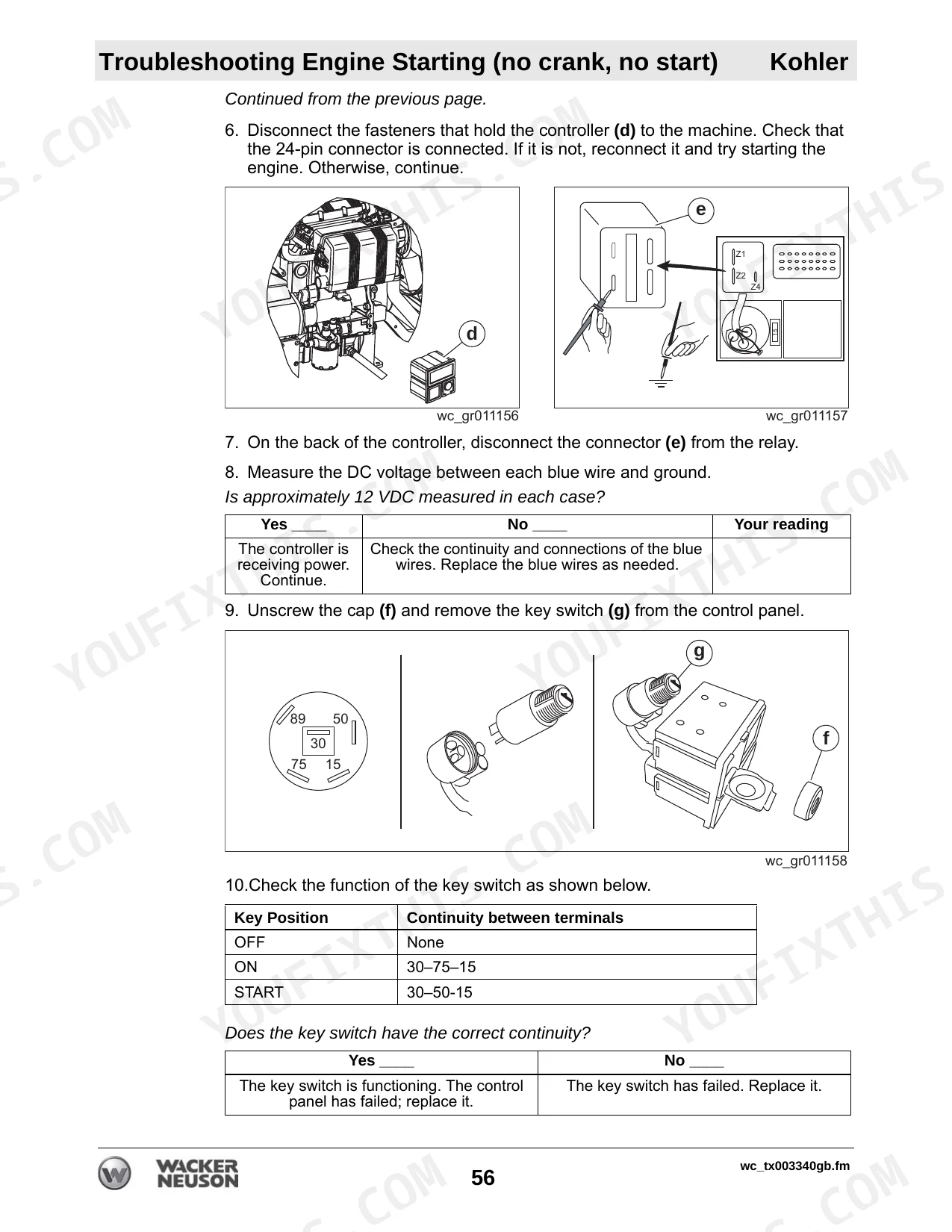

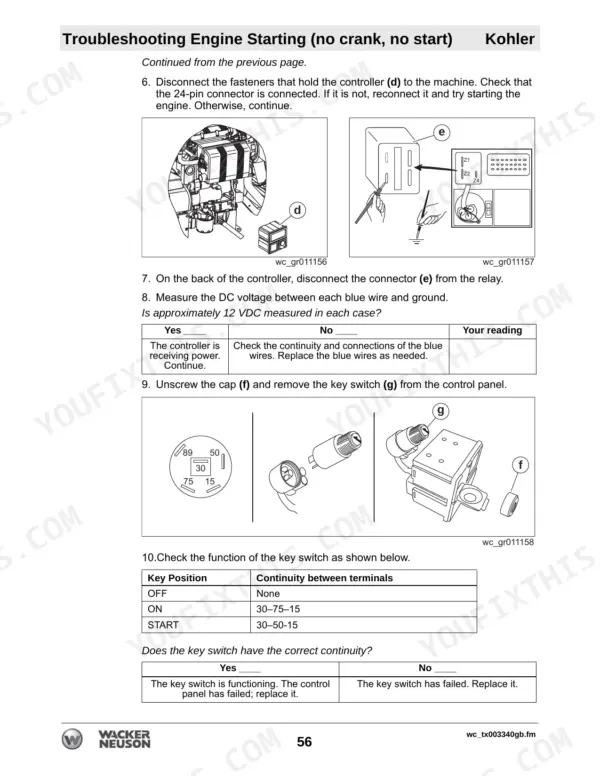

| Troubleshooting Engine Starting (No Crank, No Start) | 32-37 | Preparing for Diagnostic Procedures, Troubleshooting Sequence, Checking the Battery and Ground Wiring |
| Troubleshooting Engine Starting (Crank, No Start) | 38-46 | Troubleshooting Sequence, Checking the Key Switch, Checking the 15A Fuse |
| Troubleshooting Engine Start (Starts, Then Shuts Down) | 47-62 | Preparing for Diagnostic Procedures, Checking the Oil Switch, Checking the Temperature Switch, Checking the Battery and Ground Wiring, Checking Power to the Starter Solenoid, Checking the 15A Fuse, Checking Power to the Fuel Solenoid |
| Kohler Engine Shut-Down Conditions | 63-85 | List of Kohler Engine Shut-Down Conditions, Diagnosing the Oil Pressure Circuit, Checking the Temperature Switch, Preparing for Diagnostic Procedures, Checking the Battery and Ground Wiring, Checking the Key Switch, Checking the 15A Fuse, Checking Power to the Fuel Solenoid |
| Troubleshooting the Lights | 86-115 | Preparing for Diagnostic Procedures, Determining Where to Start, Checking Voltage at the Main Terminal Strip |
| Troubleshooting the Power Winch | 116-120 | Replacing the Cable and Power Winch |
| Disassembly and Reassembly | 121-167 | Removing the Radiator, Installing the Radiator |
| Technical Data (LTN 6C, LTN 6L, LTN 6K / LTN 8K) | 168-179 | Engine, Generator, Machine |
| Schematics (LTN 6C, LTN 6L, LTN 6K / LTN 8K) | 180-216 | Lighting Schematic, Components, Generator Capacitor Excitation Schematic |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| 15A fuse rating | 15A | p. 38 |
| Shut-down relay voltage | 10.5 V | p. 41 |
| 15A fuse | 15A | p. 58 |
| Fuel solenoid coil resistance | 15–25 ohms | p. 60 |
| Engine rpm (no load) for 60 Hz machines | 60.0–62.0 Hz (1800–1860 rpm) | p. 88 |
| Engine rpm (no load) for 50 Hz machines | 50.0–52.0 Hz (1500–1575 rpm) | p. 88 |
| Stator mounting screws torque | 31 Nm (23 ft.lbs.) | p. 136 |
| Generator support bracket screws torque | 35 Nm (26 ft.lbs.) | p. 137 |
| Battery voltage | 12 V | p. 168 |
| Battery cold cranking amps | 650 ccA | p. 168 |
| LTN 6C | ||
| Engine Oil Capacity | 2.4L | p. 168 |
| LTN 6L | ||
| Engine Oil Capacity | 2.4L | p. 171 |
Wacker Neuson Ltn Series Common Problems This Manual Covers
Wacker Neuson LTN light tower lamps flicker, dim, or will not strike after generator reaches speed
Check engine speed first: a 60 Hz machine should hold 60.0 to 62.0 Hz no load (1800 to 1860 rpm), verified on page 88. If speed is good, test the ballast capacitor; a 60 Hz tower should read 24±0.8 µF, page 98 shows the procedure. Replace any capacitor out of range and inspect fixture connections for corrosion.
Manual Section: Troubleshooting the Lights p. 86Engine cranks but won't start in cold weather, glow plugs seem dead
Check the 15A fuse in the start circuit, covered starting on page 38, before condemning anything else. Verify power reaches the fuel solenoid with the key on. Then measure each glow plug; a good plug reads about 1.2 ohms, the spec listed on page 84. Replace any plug that reads open and retest.
Manual Section: Troubleshooting Engine Starting (Crank, No Start) p. 38Engine starts then shuts down after a few seconds, oil level is fine
Test the oil pressure switch and temperature switch, the two usual suspects, using the procedures that begin on page 47. Check the fuel solenoid coil while you are in there; it should measure 15 to 25 ohms, the spec on page 60. A coil outside that range drops out under vibration and stalls the engine. Replace and retest.
Manual Section: Troubleshooting Engine Start (Starts, Then Shuts Down) p. 47Power winch won't raise the tower mast, winch motor hums or clicks but nothing moves
Check the 70A winch fuse before pulling the motor; the winch diagnostics start on page 116. Test the winch switch for continuity in both directions, then verify battery voltage reaches the motor terminals under load. If the motor hums but will not turn, replace the cable and winch as an assembly using the same section.
Manual Section: Troubleshooting the Power Winch p. 116Kohler engine keeps shutting down mid-shift, coolant level fine, no obvious leaks
Check the shut-down condition list beginning on page 63 and work it in order. Diagnose the oil pressure circuit first, then test the temperature switch; it should open at 107°C (225°F), the spec on page 83. Check the recharging system and air restriction indicator switch as well; either one can trip a shutdown. Clean the radiator fins while you are there.
Manual Section: Kohler Engine Shut-Down Conditions p. 63Frequently Asked Questions
What are the torque specifications for installing the stator on the LTN light tower?
When installing the stator, connect it to the engine using screws (d) and torque them to 31 Nm (23 ft.lbs.). After installation, strike the stator at the 12:00, 4:00, and 8:00 o'clock positions with a dead blow hammer to relieve stress, then torque the generator support bracket screws (b) to 35 Nm (26 ft.lbs.). p. 136
What is the correct engine operating speed for the LTN 6C and LTN 6L models?
The operating speed (no-load) for both the LTN 6C and LTN 6L models is 1800 rpm. p. 168
What is the required resistance for a functioning glow plug?
A functioning glow plug should measure approximately 1.2 ohms of resistance when measured between the end of the glow plug and the engine ground. p. 46
What is the procedure for clearing a recharging system fault on a Kohler engine?
To clear a recharging system fault, cycle the key on and off. If the condition persists, you should recharge or replace the battery. If the battery does not remain charged, check the wiring to the alternator, test the charging system, and replace the alternator if necessary. p. 69
What is the torque specification for the spine mounting screws on the Wacker Neuson Ltn Series?
When installing the doors and the spine, the two screws (m) that hold the spine to the machine must be torqued to 58 Nm (43 ft.lbs.). p. 142
How quickly can I access this Wacker Neuson LTN 6C manual after buying?
You get a 216-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Is this Wacker Neuson LTN 6C manual print-friendly?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
