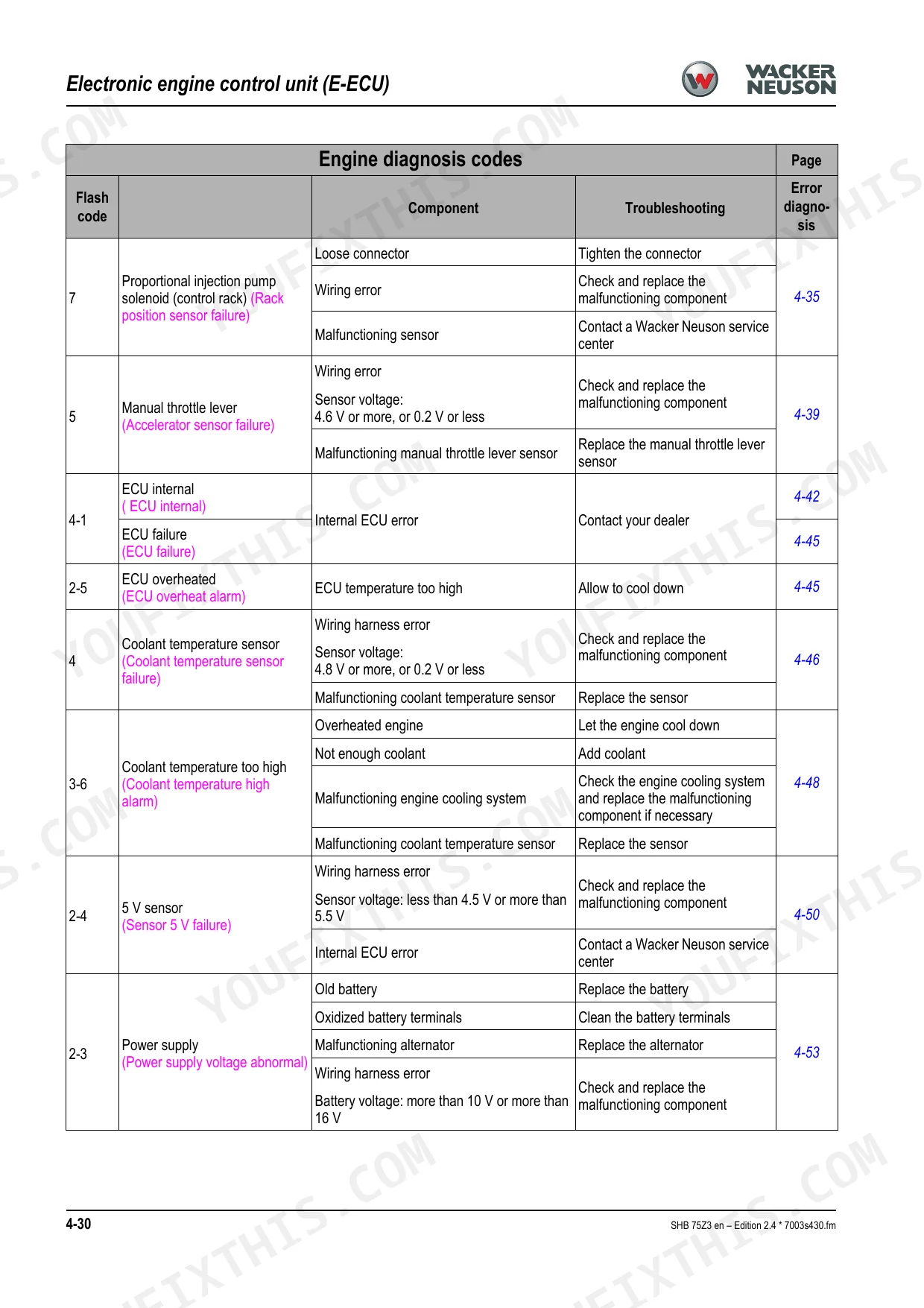

A flash code on the 4TNV98 tells you almost nothing without the diagnostic table that decodes it, and that table lives in this book: the 322-page Wacker Neuson 75Z3 service manual PDF, factory document 1000132821 for the 75Z3 track excavator. Both engine builds are covered, up to serial AD07209 and from AH00646, with DTC troubleshooting that walks each flash code from detection conditions to the failed component. Hydraulic coverage runs from pump exploded views and main valve block diagrams through pilot and main relief pressure checks, and wiring diagrams back up the electrical fault tracing. Torque the live ring bolts to 180 Nm and the cylinder head to 103.1 to 112.9 Nm, in the printed sequence. Guess instead, and you pay in a second teardown or a ruined swing bearing. Buy it once with bookmarked, text-searchable pages, and it stays yours for the life of your machine.
What's Inside This Wacker Neuson 75Z3 Manual
| System | Pages | Key Topics |
|---|---|---|
| Documentation | 2-11 | Operator's Manual, Service Manual, Spare Parts List |
| Operation | 12-31 | Information on This Service Manual, Identification of Warnings and Dangers, Designated Use and Exemption From Liability, Type Labels and Component Numbers, Machine Overview |

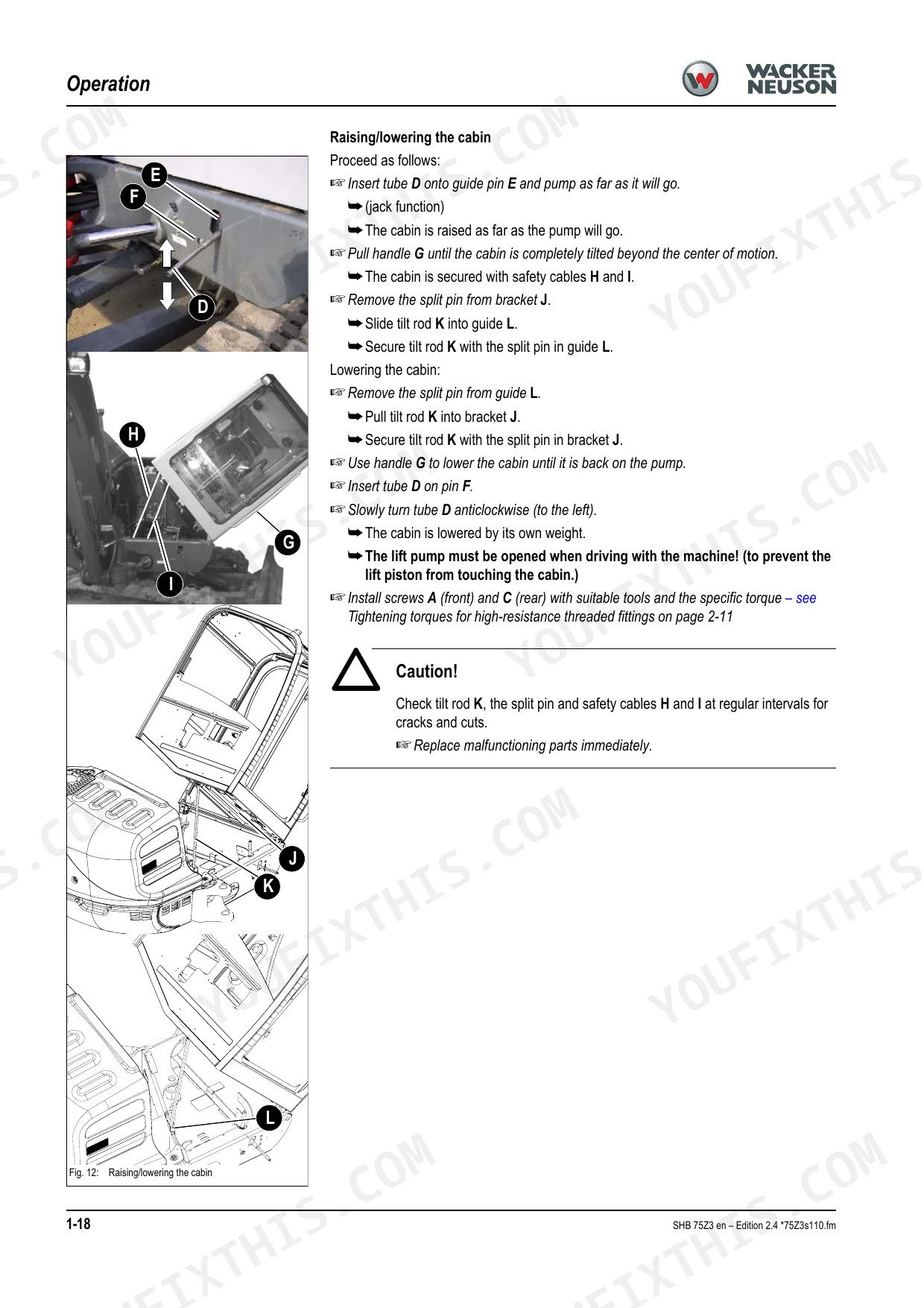

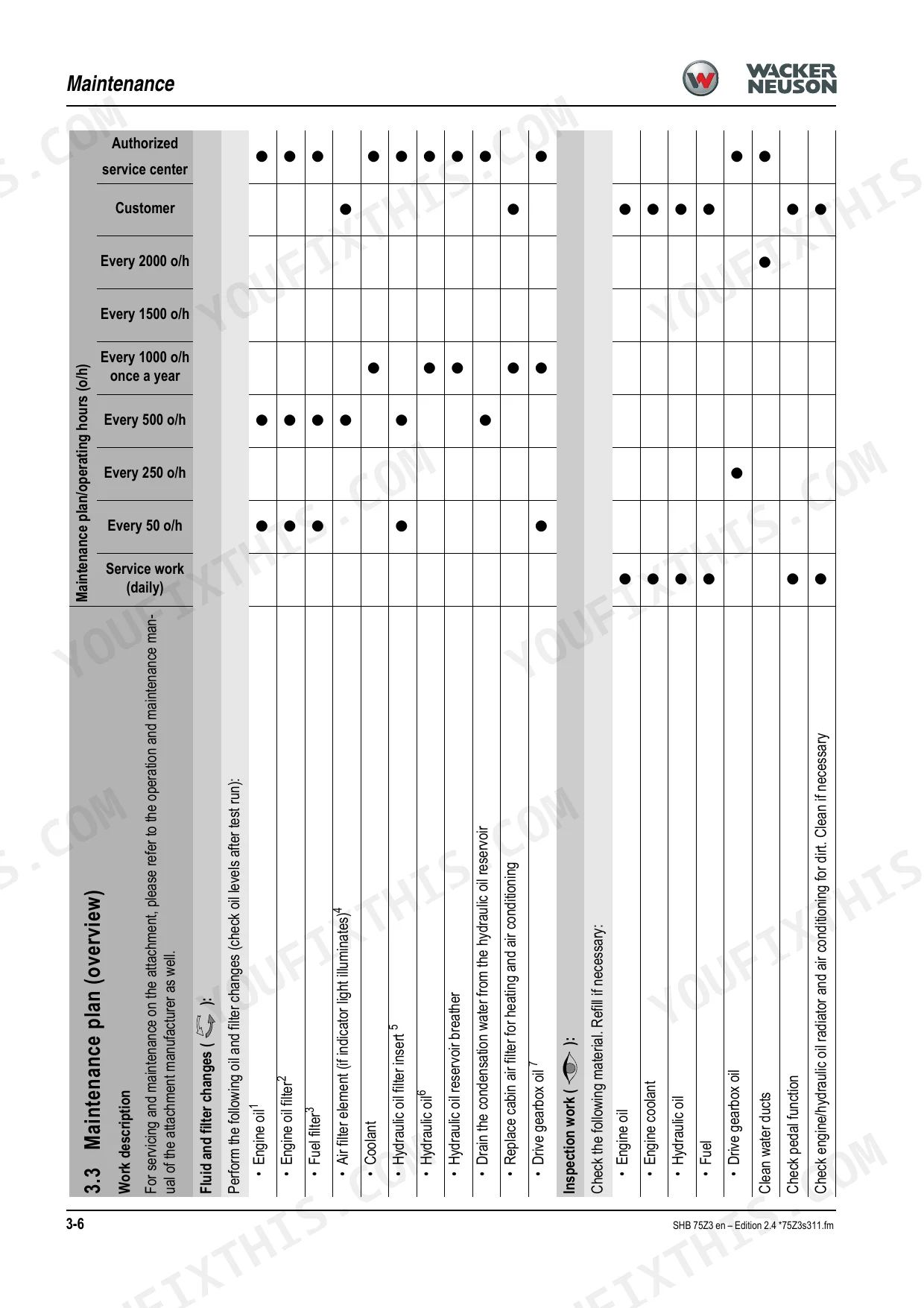

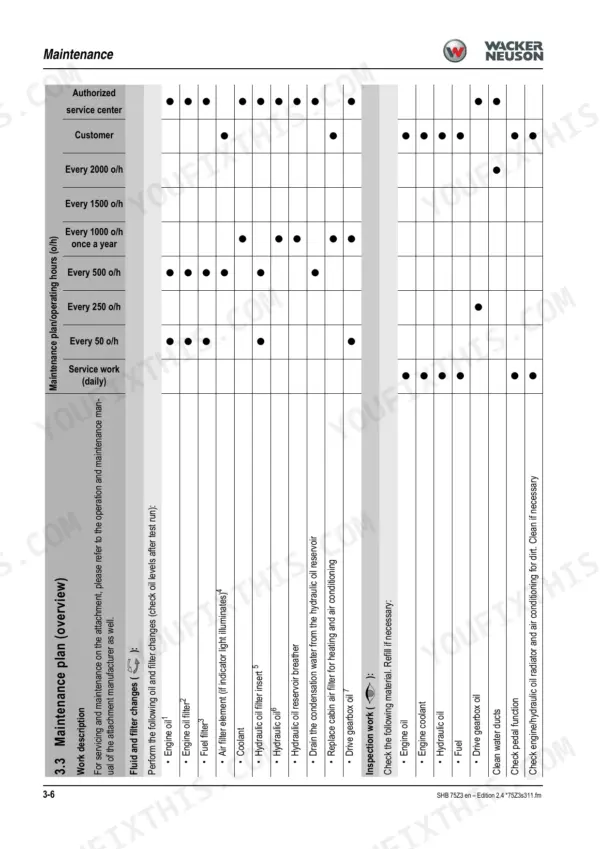

| Maintenance | 46-107 | Fluids and Lubricants (Additional Oil Change and Filter Replacement), Maintenance Label (Explanation of Symbols on the Maintenance Label), Maintenance Plan, Introduction |
| Engine | 108-199 | Engine 4TNV98-Vns (Fuel System, Removing the Cylinder-Head Cover, Checking and Adjusting Valve Clearance, Checking Valve Clearance, Setting Zero Play of the Valve Bridge, Setting Valve Clearance, Tightening Order for Cylinder Head Bolts, Checking the Injection Nozzles, Pressure Check, Checking the Nozzle Jet, Injection Time, Checking Injection Time, Setting Injection Time, Fuel Injection Pump, Engine Speed, Compression, Checking the Coolant Thermostat, Checking the Thermal Switch, Oil Pressure Switch, Checking the Coolant Circuit) |
| Hydraulic System | 200-322 | Hydraulic Pump AP2D36LV3RS6-875-P (Pump Unit: Exploded View, Pilot Oil Supply Unit), Main Valve Block (Connections, Legend, Diagram, Pressure Limiting Valves, Pump Assignment) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Cylinder-head bolt | 103.1 – 112.9 Nm (76.04 – 83.27 ft.lbs.) | p. 33 |
| Connecting rod bearing screw | 53.9 – 58.8 Nm (39.75 – 43.37 ft.lbs.) | p. 33 |
| Pin diameter | 55 mm | p. 43 |
| Stick width | 170 mm | p. 43 |
| Battery | 12 V 88 Ah | p. 36 |
| Alternator | 12 V 55 A | p. 36 |
| V-belt deflection (new) | 6 to 8 mm (0.2" – 0.3") | p. 71 |
| Engine Oil Capacity (Tier 2) | 9.4L | p. 33 |
| Engine Oil Capacity (Level 3A/Tier 3) | 10.2L | p. 33 |
| Fuel Tank Capacity | 93L | p. 33 |
| Coolant Capacity (without radiator) | 4.2L | p. 33 |
| Hydraulic Reservoir Capacity | 99L | p. 34 |
Wacker Neuson 75Z3 Common Problems This Manual Covers
Wacker Neuson 75Z3 hydraulic system warning from high return-line pressure, boom and travel functions go weak
Shut it down now; that warning means the return circuit is plugged. Replace the hydraulic return filter element and cut the old one open to check for metal. Trace the return line against the schematic for kinks or a collapsed hose, then refill the reservoir to its 99 L capacity and recheck pressure at idle.
Manual Section: Hydraulic System p. 81Joystick channel error codes on the display, overload or short-to-ground faults, pilot controls drop out
Check supply voltage at the controller before condemning a joystick; a weak battery or corroded ground will throw channel faults. Load-test the 12 V 88 Ah battery, then work through the harness connectors using the wiring diagram. If an eight-digit code stays up, verify display and controller software versions match and reflash the odd one.
Manual Section: Hydraulic System p. 36Oil pressure warning with fault code 2-1 or 3-1, engine derates or shuts down
Verify oil level on the dipstick before chasing wiring; Tier 2 engines hold 9.4 L, Tier 3 units 10.2 L. Inspect the oil pressure switch connector for chafed or oil-soaked wires, then test the switch itself per the engine section starting on page 108. Confirm the flash code against the error reference before replacing parts.
Manual Section: Engine p. 108Sloppy bucket and knocking from worn pins and bushings in boom, arm, and bucket linkage
Measure the pins before ordering parts; stock pins are 55 mm diameter, and any visible step or scoring means the bushings went with them. Replace pins, bushings, and dust seals as a set, never mixed, then grease every linkage point on the interval in the maintenance schedule to keep the new parts alive.
Manual Section: Maintenance p. 43Battery keeps going flat and engine cranks slowly, charge warning flickers at low idle
Test the charging system before buying a battery. Check V-belt deflection first: 6 to 8 mm on a new belt, 7 to 9 mm on a used one, per the spec on page 71. Clean and tighten both terminals, load-test the 12 V 88 Ah battery, and confirm the 12 V 55 A alternator charges above battery voltage at idle.
Manual Section: Maintenance p. 71Frequently Asked Questions
What are the torque specifications for the cylinder-head bolts on the Wacker Neuson 75Z3?
The cylinder-head bolts for the 75Z3 should be tightened in two passes. The first pass requires 49 – 58.8 Nm (36.1 – 43.4 ft.lbs.), and the second pass requires 103.1 – 112.9 Nm (76 – 83.3 ft.lbs.). p. 113
What is the hydraulic pressure specification for the main pressure limiting valve for pumps P1 and P2?
The main pressure limiting valve for pumps P1 and P2 is set to 260±3 bar (3771±44 psi). p. 34
What is the engine oil capacity for the Wacker Neuson 75Z3?
The engine oil capacity for the 75Z3 is 10.2 liters (2.7 gallons). p. 46
What is the correct valve clearance for the engine?
The valve clearance for both intake and outlet valves on a cold engine is 0.15 – 0.25 mm (0.006 – 0.01 inches). p. 32
How often should the hydraulic oil filter insert be replaced?
The hydraulic oil filter insert should be replaced for the first time after 50 operating hours, and then every 500 operating hours thereafter. p. 47
Is this Wacker Neuson 75Z3 Service Manual a digital download?
Instant PDF download. You get the full 322-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Am I able to print pages from this Wacker Neuson 75Z3 manual?
Print away. There is no DRM and no page limit. Many buyers print one chapter at a time and leave the rest on a tablet.
